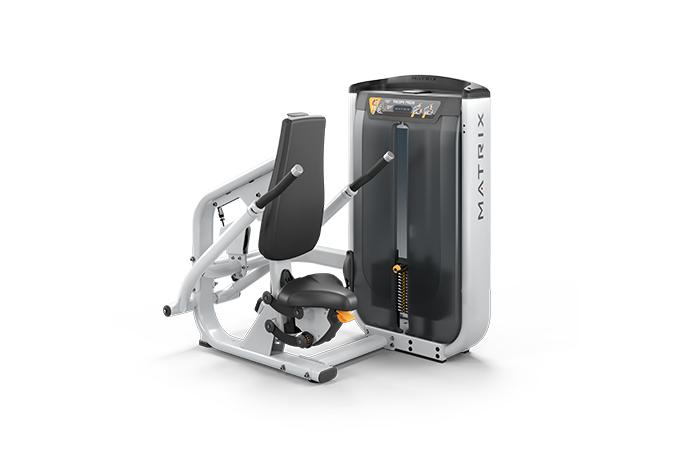

Matrix Fitness - G7-S42B-02 - G7-S42BH-02 - Ultra Base Triceps Press - 2020 - 2020

Repair Parts for Matrix Fitness G7-S42B-02 - G7-S42BH-02 - Ultra Base Triceps Press - 2020 GM223, GM223H

Brand: Matrix Fitness

Category: Single Station

Type: Strength Systems

Model Name: G7-S42B-02 - G7-S42BH-02 - Ultra Base Triceps Press - 2020

Serial Number Prefix: GM223, GM223H

Version: 2020

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Foot pad;Tube;Rubber;GM07 700145 000514-C C14 Foot pad;Tube;Rubber;GM07 No Model Compatibility List $3.64 / Each

1
701287 004355-AD B42 SCREW;BH;M4X0.7PX10L;;PH;;CHM;; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Screw;Round;Hex Socket;M10x1.5Px80L 701470 004519-AE Z14 Screw;Round;Hex Socket;M10x1.5Px80L No Model Compatibility List $4.94 / Each

1
Round Hex Socket Screw, M10 x 1.5P x 65L 701487 004530-AC C30 Round Hex Socket Screw, M10 x 1.5P x 65L No Model Compatibility List $1.68 / Each

1
701513 004549-00 B59 Screw;Hex Socket;Round;M10x1.5Px55L;Cr; No Model Compatibility List $6.27 / Each

1
701618 004636-AD J45 Screw;BH;4X15L;SM;PH;;CHM;;POT No Model Compatibility List $0.81 / Each

1
Screw;Hex Socket;8X1.25X20L;Chromed 701660 004696-AB B07 Screw;Hex Socket;8X1.25X20L;Chromed No Model Compatibility List $2.00 / Each

1
701691 004719-AB B26 Screw;BH;M8X1.25PX12L;;HS;;CHM;;G12.9 No Model Compatibility List $0.39 / Each

1
701789 004804-00 Z24 Screw;Oval Hex Socket;M10x1.5Px100L;Chromed No Model Compatibility List $9.41 / Each

1
Nut;Nylon;M8x1.25P;Chromed 701901 004929-00 F12 Nut;Nylon;M8x1.25P;Chromed No Model Compatibility List $2.00 / Each

1
Nut;Nylon;M6X1.0P;Chromed 701911 004938-00 K009 Nut;Nylon;M6X1.0P;Chromed No Model Compatibility List $2.00 / Each

1
Washer;Spring;SW6 6.1x12.2x1.5t;Chromed 701963 005004-AE Z102 Washer;Spring;SW6 6.1x12.2x1.5t;Chromed No Model Compatibility List $1.85 / Each

1
Washer;Spring;SW8 8.2x15.4x2T;Zinc Plating 701970 005009-AB Z03 Washer;Spring;SW8 8.2x15.4x2T;Zinc Plating No Model Compatibility List $2.00 / Each

1
Washer;Spring;SW10 10.2X18.4X2.5T;Chromed 701981 005017-00 B41 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.33 / Each

1
Washer;Flat;8.2x15.0x1.2T;Chromed 702014 005048-AC Z05 Washer;Flat;8.2x15.0x1.2T;Chromed No Model Compatibility List $2.00 / Each

1
Washer;Flat;8.2x19.0x2.0T;Chromed 702119 005145-AC Z22 Washer;Flat;8.2x19.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

1
Washer;Wavy;26.0x35.0x0.3T 702177 005219-00 E66 Washer;Wavy;26.0x35.0x0.3T No Model Compatibility List $1.79 / Each

1
702217 005330-00 Q08 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

1
Clamp;E-Shaped Ring;E-15 702250 005377-00 E33 Clamp;E-Shaped Ring;E-15 No Model Compatibility List $0.65 / Each

1
Washer;Arc;M10x28x10.5T;SS41 702531 008523-B Z13 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $9.10 / Each

1
Stopper Mast;Foam;AL6061;GM02 702710 009355-B D21 Stopper Mast;Foam;AL6061;GM02 No Model Compatibility List $3.64 / Each

1
Cap;Grip;GM02 702722 009372-E E14 Cap;Grip;GM02 No Model Compatibility List $13.36 / Each

1
Rubber Bumper;Weight Stack 703901 019151-AA K17 Rubber Bumper;Weight Stack No Model Compatibility List $3.64 / Each

1
703996 020081-00 Z17 Screw;SH;M8X1.25PX60L;;HS;;;;G12.9 No Model Compatibility List $1.01 / Each

1
Screw;Hex Socket;Round;M8x1.25Px15L;Chromed 704004 020096-00 H07 Screw;Hex Socket;Round;M8x1.25Px15L;Chromed Yes Model Compatibility List $9.99 / Each

1
Screw;Hex Socket;Round;M10x1.5Px50L(Tooth15) 704023 020112-A B63 Screw;Hex Socket;Round;M10x1.5Px50L(Tooth15) No Model Compatibility List $1.33 / Each

1
704045 020129-AB B53 Screw;Hex Socket;Round;M10x1.5Px60L ;Adh No Model Compatibility List $3.35 / Each

1
704073 020185-00 E11 Screw;Phillip;BH;Tapped;4x10L No Model Compatibility List $1.59 / Each

1
Washer;Flat;M10.2X25PX2.0T;Chromed 704193 020465-AB Z03 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

1
SCREW;BH;?X3X19L;SM;PH;;;;POT 705020 029526-A P33 SCREW;BH;?X3X19L;SM;PH;;;;POT No Model Compatibility List $1.85 / Each

1
705696 055200-AB Z19 Screw;Hex;M10X1.5PX25L;;HE;;CHM;; No Model Compatibility List $9.10 / Each

1
707430 1000092645 AK1 Weight Plate Set;18LBS;Long;M40 No Model Compatibility List $84.47 / Each

1
Rubber Pad;Fixing;GM40 707824 1000096017 Not Shown Rubber Pad;Fixing;GM40 No Model Compatibility List $2.39 / Each

1
707829 1000096024 Q08 Fixing Base;PC;GM40 No Model Compatibility List $3.35 / Each

1
707982 1000097385 J33 Stopper Sleeve;CON Rod Axle;ABS;GM40 No Model Compatibility List $2.57 / Each

1
708023 1000097845 D15 SCREW;SH;M10X1.5PX15L;;HS;;CHM;; No Model Compatibility List $1.59 / Each

1
708027 1000097850 J40 SCREW;SH;M8X1.25PX95L;;HS;;CHM;;G12.9 No Model Compatibility List $3.35 / Each

1
708032 1000098050 D22 Pulley Cover;Small;Base;ABS;GM40 No Model Compatibility List $8.79 / Each

1
708033 1000098051 C20 Bearing Cover;Base;ABS;GM40 No Model Compatibility List $8.24 / Each

1
708044 1000098477 K06 Spring Pin;8.5X90L;GM47 No Model Compatibility List $4.06 / Each

1
708062 1000098704 C50 Stopper Pad;Black;GM43 No Model Compatibility List $8.24 / Each

1
Screw;Hex Socket;Flat;M8x1.25Px20L;Cr Pl 708473 1000102893 C57 Screw;Hex Socket;Flat;M8x1.25Px20L;Cr Pl No Model Compatibility List $1.38 / Each

1
708565 1000103444 J43 Cover;Seat;GM40-KM No Model Compatibility List $4.65 / Each

1
Screw;BH;M5x0.8Px10L;HS;CST;CST;CST;CHM; 708649 1000104672 Z03 Screw;BH;M5x0.8Px10L;HS;CST;CST;CST;CHM; No Model Compatibility List $0.60 / Each

1
Circlip;External C Type;S-25;BAN 708655 1000104682 D28 Circlip;External C Type;S-25;BAN No Model Compatibility List $0.81 / Each

1
Nut;Nylon;M10x1.5P;G12.9;CHM 708730 1000105174 Z09 Nut;Nylon;M10x1.5P;G12.9;CHM No Model Compatibility List $1.79 / Each

1
Screw;RND;M8x1.25Px25L;HS;CHM;BP;G8.8 709067 1000108799 H14 Screw;RND;M8x1.25Px25L;HS;CHM;BP;G8.8 No Model Compatibility List $3.56 / Each

1
Screw;RND;M5x0.8Px15L;HS;CHM;BP;G8.8 709069 1000108801 Z08 Screw;RND;M5x0.8Px15L;HS;CHM;BP;G8.8 No Model Compatibility List $1.79 / Each

1
Screw;RND;M8x1.25Px20L;HS;CHM;BP;G12.9 709072 1000108805 B06 Screw;RND;M8x1.25Px20L;HS;CHM;BP;G12.9 No Model Compatibility List $1.79 / Each

1
709112 1000109777 Z20 Screw;RND;M6x1.0Px20L;;HS;CHM;BP;G8.8 No Model Compatibility List $6.42 / Each

1
Cover;Seat Chair;GM59 709320 1000113095 J15 Cover;Seat Chair;GM59 No Model Compatibility List $13.49 / Each

1
709517 1000200981 K07 Guide Rod;Weight plate No Model Compatibility List $124.83 / Each

1
709696 1000202036 J16 SCREW;RND;-;-;-;SEAT ADJ;-; No Model Compatibility List $6.73 / Each

1
709718 1000202352 K13 Cushion;Guide Rod No Model Compatibility List $8.42 / Each

1
Axle;Peadal Arm;42CrMo;GM40 709865 1000204083 C02 Axle;Peadal Arm;42CrMo;GM40 No Model Compatibility List $60.53 / Each

1
FOAM;ELASTOMER;Diam.30.4X5TX125L;GM59;-; 710330 1000209553 D68 FOAM;ELASTOMER;Diam.30.4X5TX125L;GM59;-; No Model Compatibility List $6.73 / Each

1
710580 1000211102 AJ2 Seat Grip Set No Model Compatibility List $71.92 / Each

1
710681 1000212332 V60 Decorated Label;ROUND;GRAY 11C;PC;;;GM47 No Model Compatibility List $3.98 / Each

1
712864 1000231069 Z13 Screw;SH;M10x50L;-;HS;-;CHM;BP;G12.9; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Screw;Socket Head;M10X1.5PX150L;;Hex Soc 713698 1000306613 Z08 Screw;Socket Head;M10X1.5PX150L;;Hex Soc No Model Compatibility List $6.73 / Each

1
Plastic Cover;Nut;;;;;; 713740 1000307173 C33 Plastic Cover;Nut;;;;;; No Model Compatibility List $1.66 / Each

1
714884 1000319422 Not Shown Frame Fix Plate;;;painting;;Iced Sliver; No Model Compatibility List $16.87 / Each

1
716192 1000334510 B17 Fixing Plate;;down;NBR;;;GM40; No Model Compatibility List $16.87 / Each

1
716193 1000334511 C15 Rubber Foot Pad;Base;;NBR;;;GM40; No Model Compatibility List $10.11 / Each

1
717511 1000345659 J12 Cap;Elliptical;;TPU;BL/Black C;Diam.50.0 No Model Compatibility List $15.18 / Each

1
719682 1000363760 V51 Warning Label;Frame;;;PC;;English; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
719683 1000363766 V02 Warning Label;Frame;;;PC;;French;GM40 No Model Compatibility List $5.04 / Each

1
722682 1000397599 Q01 Stopper Plate;Steel Rope;;PA66+GF30%;;13 No Model Compatibility List $32.08 / Each

1
722683 1000397609 F11 Pulley;;;NYLON 66+G30%(Anti-fire);Black; No Model Compatibility List $55.74 / Each

1
722701 1000397869 Q99 Cover;;up;ABS/PA757;Deep Grey;740.0x173. No Model Compatibility List $47.29 / Each

1
722702 1000397883 Q93 Cover;;back;ABS/PA757;Limpid;1104.8x648. No Model Compatibility List $184.18 / Each

1
722705 1000397910 Q98 Kettle Plate;;left;ABS;;252.6x121.0x16.0 No Model Compatibility List $16.87 / Each

1
722706 1000397914 Q97 Kettle Plate;;right;ABS;;252.6x121.0x16. No Model Compatibility List $16.87 / Each

1
722707 1000397915 Q96 Kettle Plate;;mid;TPU;426C/80393;113.0x7 No Model Compatibility List $6.73 / Each

1
722862 1000399047 B18 Cover;Cam;;TPU; No Model Compatibility List $10.11 / Each

1
723011 1000402503 F01 Steel Rope-Extrawork;frame;;Press Rope H No Model Compatibility List $162.21 / Each

1
723014 1000402509 V11 Instructional Labe;Cover;;;PC;Front;Engl No Model Compatibility List $33.77 / Each

1
723015 1000402510 V12 Instructional Labe;Cover;;;PC;Rear;Engli No Model Compatibility List $33.77 / Each

1
723356 1000406464 K62 Socket;Power Switch;;PA66+G20%;;110x58x1 No Model Compatibility List $6.73 / Each

1
723482 1000407026 B12 Stopper Plate;Steel Rope;2;PA66+GF30%;;9 No Model Compatibility List $16.87 / Each

1
723583 1000409142 C19 Spacing Sleeve;ROD END BEAING;;20#;White No Model Compatibility List $13.49 / Each

1
723696 1000411911 V15 Spec Label;Weight Plate;;;PC;;;GM123 No Model Compatibility List $13.49 / Each

1
723896 1000413258 AJ11 Seat Bushing Fabricate Drawing;Semi-Assy No Model Compatibility List $0.00 / Each
Out Of Stock 		1
723954 1000413637 G20 Fixing Plate;CON Tube;;;;Iced Sliver;GM1 No Model Compatibility List $40.53 / Each

1
724131 1000415474 AB1 Frame Set;;;painting;;Iced Sliver;GM129; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
724194 1000416338 5 Seat Adjustable Set;Semi-Assy;;Iced Sliv No Model Compatibility List $184.18 / Each

1
724259 1000416918 AC31 Base Set-Exreawork;bushing;;;Iced Sliver No Model Compatibility List $0.00 / Each
Out Of Stock 		1
724262 1000416969 AD11 pedal arm set;Assembly;left;Iced Sliver; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
724263 1000416977 AD12 pedal arm set;Assembly;right;Iced Sliver No Model Compatibility List $0.00 / Each
Out Of Stock 		1
724264 1000417000 AG1 Disassembly connect set;;U;;;Iced Sliver No Model Compatibility List $0.00 / Each
Out Of Stock 		1
724265 1000417007 AG2 Disassembly connect set;;D;;;Iced Sliver No Model Compatibility List $0.00 / Each
Out Of Stock 		1
724303 1000417904 B24 Screw;Socket Head;M4X0.7PX14L-5L;Machine No Model Compatibility List $0.00 / Each
Out Of Stock 		1
724575 1000422325 F34 Bearing;Rod End;SI14TK/K;M14X2.P;;??;?? No Model Compatibility List $25.32 / Each

1
Screw Set;M6X1.0PX5L;BP;POT 726707 084241 Z06 Screw Set;M6X1.0PX5L;BP;POT No Model Compatibility List $0.39 / Each

1
Foot Pad;Adjustable;M12X58H;12.9;EP304; 728614 0000095638 J15 Foot Pad;Adjustable;M12X58H;12.9;EP304; Yes Model Compatibility List $33.85 / Each

1
728703 096046 J32 Axle;CON Rod;45#;GM40 No Model Compatibility List $19.53 / Each

1
728707 096088 AK1 Weght Plate Set;12.5P;GM41 No Model Compatibility List $67.57 / Each

1
728731 096216 J35 Stopper Sleeve;WASHER;GM40 No Model Compatibility List $0.21 / Each

1
728914 098972 J21 Spring;EXT;;SWP;ZNC;GM40 No Model Compatibility List $1.79 / Each

1
728920 098985 Q02 Weight Stack Shield;Front;ABS;GM40 No Model Compatibility List $147.63 / Each

1
728923 098988 Q04 Cover;Front;ABS;GM40 No Model Compatibility List $147.63 / Each

1
728927 099030 J10 ADJ Plate;Seat;ZG20;GM40 No Model Compatibility List $99.45 / Each

1
728928 099035 J13 Axle;Pull Pin;42CrMo;GM40 No Model Compatibility List $42.43 / Each

1
728929 099036 J14 Axle Sleeve;Pull Pin;42CrMo;GM40 No Model Compatibility List $16.64 / Each

1
729261 See Pad Matrix J01 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Fixing Rack;BRACKET COVER;U;;;;GM113; 730040 1000412847 B11 Fixing Rack;BRACKET COVER;U;;;;GM113; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Support Board;Cover;Reat-Up;;;Black Matt 730042 1000407390 B44 Support Board;Cover;Reat-Up;;;Black Matt No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Direction Label;Seat ADJ Tube;42X19mm;;P 730051 1000454302 V13 Direction Label;Seat ADJ Tube;42X19mm;;P No Model Compatibility List $1.68 / Each

1
Direction Label;Seat ADJ Tube;42X19mm;;P 730052 1000454301 V14 Direction Label;Seat ADJ Tube;42X19mm;;P No Model Compatibility List $1.68 / Each

1
Fixing Rack Cover;;D;painting;;Mat Blck; 730056 1000397596 B14 Fixing Rack Cover;;D;painting;;Mat Blck; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Washer;Spring;8.2X15.4X2.0T;Chromed 730061 005009-00 Z28 Washer;Spring;8.2X15.4X2.0T;Chromed No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Washer;Flat;Diam.6.2xDiam.12.0x2.0T;;Chr 730706 005155-ZA Z14 Washer;Flat;Diam.6.2xDiam.12.0x2.0T;;Chr No Model Compatibility List $1.28 / Each

1
Washer;Flat;8.4X15.5X1.6T 730719 005040-AB Z07 Washer;Flat;8.4X15.5X1.6T No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Screw;TH;M6X1.0PX25L;;HS;;;;; 730727 0000080409 C54 Screw;TH;M6X1.0PX25L;;HS;;;;; No Model Compatibility List $1.68 / Each

1
Aperture Label;Console Cover;;;PC;;;SSA 730931 1000411804 B36 Aperture Label;Console Cover;;;PC;;;SSA No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Plug;;;PP;slate black;;MS53; 730932 1000432146 B42 Plug;;;PP;slate black;;MS53; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Pull Pin Set;Frame;;;GM214;; 730936 1000452420 L59 Pull Pin Set;Frame;;;GM214;; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Cover;;up;ABS/PA757;slate black;;GM211; 730937 1000455407 Q94 Cover;;up;ABS/PA757;slate black;;GM211; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Connect Mast;Seat;L;painting;;Black Matt 731133 1000453569 AJ3 Connect Mast;Seat;L;painting;;Black Matt No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Connect Mast;Seat;RU;painting;;Black Mat 731134 1000453580 AJ4 Connect Mast;Seat;RU;painting;;Black Mat No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Connect Mast;Seat;RD;painting;;Black Mat 731135 1000453584 AJ5 Connect Mast;Seat;RD;painting;;Black Mat No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Air Stick;;30KG;F22x275L;;;GM211 731137 1000453613 J17 Air Stick;;30KG;F22x275L;;;GM211 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Up Weight Plate Set;Assembly;;;GM220;; 731879 1000453508 AL4 Up Weight Plate Set;Assembly;;;GM220;; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Support Set;Weight Plate;;;;Black Matte; 731987 1000415007 AK2 Support Set;Weight Plate;;;;Black Matte; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Stopper Pin;Grip;;42CrMo;Chrome;GM123;; 733179 1000451090 D55 Stopper Pin;Grip;;42CrMo;Chrome;GM123;; No Model Compatibility List $9.08 / Each

1
Grip;;;painting;;Iced Sliver;GM223; 733180 1000458024 D25 Grip;;;painting;;Iced Sliver;GM223; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
hardware set;Assembly;;;GM223;; 733181 1000453788 Not Shown hardware set;Assembly;;;GM223;; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Gear Rower Retainer Clip (New) 957398 005330-00 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

1
View Drawing
