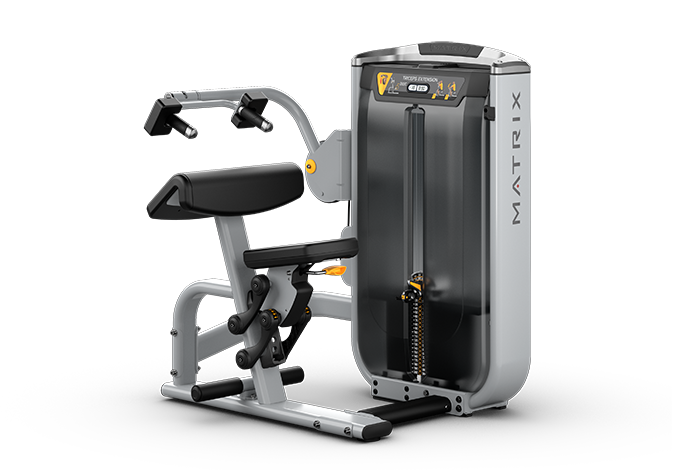

Matrix Fitness - G7-S45 - Triceps Extension - GM231 - 2021 - 2021

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Disassembly connect set;;D;;;Iced Sliver 730037 1000467984 AG2 Disassembly connect set;;D;;;Iced Sliver No Model Compatibility List $0.00 / Each
Out Of Stock
Seat ADJ Set;;;Iced Sliver;GM230;; 730039 1000467999 AJ1 Seat ADJ Set;;;Iced Sliver;GM230;; No Model Compatibility List $0.00 / Each
Out Of Stock
Fixing Rack;BRACKET COVER;U;;;;GM113; 730040 1000412847 B11 Fixing Rack;BRACKET COVER;U;;;;GM113; No Model Compatibility List $0.00 / Each
Out Of Stock
Fix Base;Pulley;;painting;;Mat Black;GM1 730041 1000397610 B13 Fix Base;Pulley;;painting;;Mat Black;GM1 No Model Compatibility List $0.00 / Each
Out Of Stock
Support Board;Cover;Reat-Up;;;Black Matt 730042 1000407390 B44 Support Board;Cover;Reat-Up;;;Black Matt No Model Compatibility List $0.00 / Each
Out Of Stock
Boot;Connect Tube;;NBR;BL/Black C;;GM230 730043 1000457667 C22 Boot;Connect Tube;;NBR;BL/Black C;;GM230 No Model Compatibility List $0.00 / Each
Out Of Stock
Axle;Pedal Arm;;42CrMo;;GM231;Diam.25x16 730046 1000457873 G12 Axle;Pedal Arm;;42CrMo;;GM231;Diam.25x16 No Model Compatibility List $0.00 / Each
Out Of Stock
Direction Label;Seat ADJ Tube;42X19mm;;P 730051 1000454302 V13 Direction Label;Seat ADJ Tube;42X19mm;;P No Model Compatibility List $1.68 / Each

Direction Label;Seat ADJ Tube;42X19mm;;P 730052 1000454301 V14 Direction Label;Seat ADJ Tube;42X19mm;;P No Model Compatibility List $1.68 / Each

Screw;HH;M10x1.5Px30L;G8.8;CHM 730053 1000105289 Z50 Screw;HH;M10x1.5Px30L;G8.8;CHM No Model Compatibility List $2.22 / Each

Frame Set;;;painting;;Iced Sliver;GM230; 730054 1000467970 AB1 Frame Set;;;painting;;Iced Sliver;GM230; No Model Compatibility List $0.00 / Each
Out Of Stock
Fixing Rack Cover;;D;painting;;Mat Blck; 730056 1000397596 B14 Fixing Rack Cover;;D;painting;;Mat Blck; No Model Compatibility List $0.00 / Each
Out Of Stock
Bushing;CON Rod;Peadel Arm;painting;GM40 730058 1000098858 B16 Bushing;CON Rod;Peadel Arm;painting;GM40 No Model Compatibility List $0.00 / Each
Out Of Stock
Lithium and Iron Disulfide Battery 730059 1000096574 B35 Lithium and Iron Disulfide Battery No Model Compatibility List $0.00 / Each
Out Of Stock
Fixing  Rack;Counte;Painting;GM40-KM 730060 1000097567 L30 Fixing Rack;Counte;Painting;GM40-KM No Model Compatibility List $0.00 / Each
Out Of Stock
Washer;Spring;8.2X15.4X2.0T;Chromed 730061 005009-00 Z28 Washer;Spring;8.2X15.4X2.0T;Chromed No Model Compatibility List $0.00 / Each
Out Of Stock
Fixing Rack;Counte;Painting;GM40-KM 730062 1000104023 L30 Fixing Rack;Counte;Painting;GM40-KM No Model Compatibility List $0.00 / Each
Out Of Stock
pedal arm set;;;Iced Sliver;GM231;; 734223 1000468367 AD11 pedal arm set;;;Iced Sliver;GM231;; No Model Compatibility List $0.00 / Each
Out Of Stock
Cam Set;;L;painting;;Iced Sliver;GM231; 734224 1000468394 AD5 Cam Set;;L;painting;;Iced Sliver;GM231; No Model Compatibility List $0.00 / Each
Out Of Stock
Handle set;Semi-Assy;;Iced Sliver;;;GM23 734225 1000468085 AE11 Handle set;Semi-Assy;;Iced Sliver;;;GM23 No Model Compatibility List $0.00 / Each
Out Of Stock
Steel Rope-Extrawork;frame;;Press Rope H 734226 1000458380 AF1 Steel Rope-Extrawork;frame;;Press Rope H No Model Compatibility List $0.00 / Each
Out Of Stock
ConnectingTube;;U;painting;;Iced Sliver; 734227 1000468060 AG1 ConnectingTube;;U;painting;;Iced Sliver; No Model Compatibility List $0.00 / Each
Out Of Stock
Cam Fix Plate;;;painting;;Iced Sliver;GM 734228 1000468381 AG3 Cam Fix Plate;;;painting;;Iced Sliver;GM No Model Compatibility List $0.00 / Each
Out Of Stock
Fixing Plate;Fixing;;painting;;Iced Sliv 734229 1000468382 F03 Fixing Plate;Fixing;;painting;;Iced Sliv No Model Compatibility List $0.00 / Each
Out Of Stock
Cam;;;VHMWPE;Deep Grey;;GM231;??45771 734230 1000457872 G18 Cam;;;VHMWPE;Deep Grey;;GM231;??45771 No Model Compatibility List $0.00 / Each
Out Of Stock
Hardware Set;Assembly;;;GM1231;; 734231 1000458603 Not Shown Hardware Set;Assembly;;;GM1231;; No Model Compatibility List $0.00 / Each
Out Of Stock
Spec Label;Weight Plate;;;PC;;;GM231 734232 1000467445 V03 Spec Label;Weight Plate;;;PC;;;GM231 No Model Compatibility List $0.00 / Each
Out Of Stock
Instructional Labe;;;;PC;Front;English;G 734233 1000458650 V11 Instructional Labe;;;;PC;Front;English;G No Model Compatibility List $0.00 / Each
Out Of Stock
Instructional Labe;;;;PC;Front;French;GM 734234 1000467356 V11 Instructional Labe;;;;PC;Front;French;GM No Model Compatibility List $0.00 / Each
Out Of Stock
Instructional Labe;;;;PC;Rear;English;GM 734235 1000458654 V12 Instructional Labe;;;;PC;Rear;English;GM No Model Compatibility List $0.00 / Each
Out Of Stock
User frame set;Semi-Assy;;Iced Sliver;;; 734236 1000468029 AC11 User frame set;Semi-Assy;;Iced Sliver;;; No Model Compatibility List $0.00 / Each
Out Of Stock
Preacher Pad;;PU,Vesicant;Desert Brown;; 734237 091715 J50 Preacher Pad;;PU,Vesicant;Desert Brown;; No Model Compatibility List $0.00 / Each
Out Of Stock
EN LABEL;Frame;;;PC;;English;GM231 734238 1000458604 V15 EN LABEL;Frame;;;PC;;English;GM231 No Model Compatibility List $0.00 / Each
Out Of Stock
Gear Rower Retainer Clip (New) 957398 005330-00 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

View Drawing
