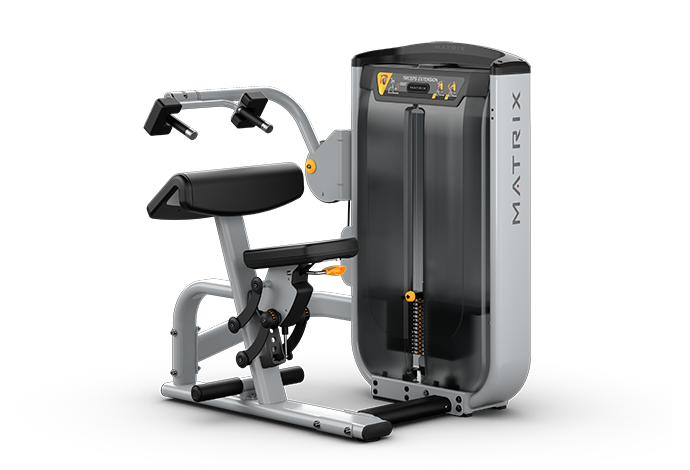

Matrix Fitness - G7-S45B - G7-S45BH - GM233(H) - Ultra Base Triceps Extension - 2021 - 2021

Repair Parts for Matrix Fitness G7-S45B - G7-S45BH - GM233(H) - Ultra Base Triceps Extension - 2021 GM233H, GM233

Brand: Matrix Fitness

Category: Single Station

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

GM233H, GM233

Model Name: G7-S45B - G7-S45BH - GM233(H) - Ultra Base Triceps Extension - 2021

Serial Number Prefix: GM233H, GM233

Version: 2021

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

diag_446_G7-S45BH Triceps Ext Parts List.pdf

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
730037	1000467984	AG2	Disassembly connect set;;D;;;Iced Sliver	No	Model Compatibility List	$0.00 / Each Out Of Stock
730039	1000467999	AJ1	Seat ADJ Set;;;Iced Sliver;GM230;;	No	Model Compatibility List	$0.00 / Each Out Of Stock
730040	1000412847	B11	Fixing Rack;BRACKET COVER;U;;;;GM113;	No	Model Compatibility List	$0.00 / Each Out Of Stock
730041	1000397610	B13	Fix Base;Pulley;;painting;;Mat Black;GM1	No	Model Compatibility List	$0.00 / Each Out Of Stock
730042	1000407390	B44	Support Board;Cover;Reat-Up;;;Black Matt	No	Model Compatibility List	$0.00 / Each Out Of Stock
730046	1000457873	G12	Axle;Pedal Arm;;42CrMo;;GM231;Diam.25x16	No	Model Compatibility List	$0.00 / Each Out Of Stock
730051	1000454302	V13	Direction Label;Seat ADJ Tube;42X19mm;;P	No	Model Compatibility List	$1.68 / Each
730052	1000454301	V14	Direction Label;Seat ADJ Tube;42X19mm;;P	No	Model Compatibility List	$1.68 / Each
730053	1000105289	Z50	Screw;HH;M10x1.5Px30L;G8.8;CHM	No	Model Compatibility List	$2.22 / Each
730054	1000467970	AB1	Frame Set;;;painting;;Iced Sliver;GM230;	No	Model Compatibility List	$0.00 / Each Out Of Stock
730056	1000397596	B14	Fixing Rack Cover;;D;painting;;Mat Blck;	No	Model Compatibility List	$0.00 / Each Out Of Stock
730058	1000098858	B16	Bushing;CON Rod;Peadel Arm;painting;GM40	No	Model Compatibility List	$0.00 / Each Out Of Stock
730061	005009-00	Z28	Washer;Spring;8.2X15.4X2.0T;Chromed	No	Model Compatibility List	$0.00 / Each Out Of Stock
730931	1000411804	B36	Aperture Label;Console Cover;;;PC;;;SSA	No	Model Compatibility List	$0.00 / Each Out Of Stock
730932	1000432146	B42	Plug;;;PP;slate black;;MS53;	No	Model Compatibility List	$0.00 / Each Out Of Stock
730936	1000452420	L59	Pull Pin Set;Frame;;;GM214;;	No	Model Compatibility List	$0.00 / Each Out Of Stock
730937	1000455407	Q94	Cover;;up;ABS/PA757;slate black;;GM211;	No	Model Compatibility List	$0.00 / Each Out Of Stock
731133	1000453569	AJ3	Connect Mast;Seat;L;painting;;Black Matt	No	Model Compatibility List	$0.00 / Each Out Of Stock
731134	1000453580	AJ4	Connect Mast;Seat;RU;painting;;Black Mat	No	Model Compatibility List	$0.00 / Each Out Of Stock
731135	1000453584	AJ5	Connect Mast;Seat;RD;painting;;Black Mat	No	Model Compatibility List	$0.00 / Each Out Of Stock
731137	1000453613	J17	Air Stick;;30KG;F22x275L;;;GM211	No	Model Compatibility List	$0.00 / Each Out Of Stock
731879	1000453508	AL4	Up Weight Plate Set;Assembly;;;GM220;;	No	Model Compatibility List	$0.00 / Each Out Of Stock
734223	1000468367	AD11	pedal arm set;;;Iced Sliver;GM231;;	No	Model Compatibility List	$0.00 / Each Out Of Stock
734224	1000468394	AD5	Cam Set;;L;painting;;Iced Sliver;GM231;	No	Model Compatibility List	$0.00 / Each Out Of Stock
734225	1000468085	AE11	Handle set;Semi-Assy;;Iced Sliver;;;GM23	No	Model Compatibility List	$0.00 / Each Out Of Stock
734226	1000458380	AF1	Steel Rope-Extrawork;frame;;Press Rope H	No	Model Compatibility List	$0.00 / Each Out Of Stock
734227	1000468060	AG1	ConnectingTube;;U;painting;;Iced Sliver;	No	Model Compatibility List	$0.00 / Each Out Of Stock
734228	1000468381	AG3	Cam Fix Plate;;;painting;;Iced Sliver;GM	No	Model Compatibility List	$0.00 / Each Out Of Stock
734229	1000468382	F03	Fixing Plate;Fixing;;painting;;Iced Sliv	No	Model Compatibility List	$0.00 / Each Out Of Stock
734231	1000458603	Not Shown	Hardware Set;Assembly;;;GM1231;;	No	Model Compatibility List	$0.00 / Each Out Of Stock
734232	1000467445	V03	Spec Label;Weight Plate;;;PC;;;GM231	No	Model Compatibility List	$0.00 / Each Out Of Stock
734233	1000458650	V11	Instructional Labe;;;;PC;Front;English;G	No	Model Compatibility List	$0.00 / Each Out Of Stock
734234	1000467356	V11	Instructional Labe;;;;PC;Front;French;GM	No	Model Compatibility List	$0.00 / Each Out Of Stock
734235	1000458654	V12	Instructional Labe;;;;PC;Rear;English;GM	No	Model Compatibility List	$0.00 / Each Out Of Stock
734236	1000468029	AC11	User frame set;Semi-Assy;;Iced Sliver;;;	No	Model Compatibility List	$0.00 / Each Out Of Stock
734238	1000458604	V15	EN LABEL;Frame;;;PC;;English;GM231	No	Model Compatibility List	$0.00 / Each Out Of Stock
957398	005330-00		Gear Rower Retainer Clip (New)	Yes	Model Compatibility List	$11.99 / Each

View Drawing
