Brand: Matrix Fitness
Category: Single Station
Type: Strength Systems

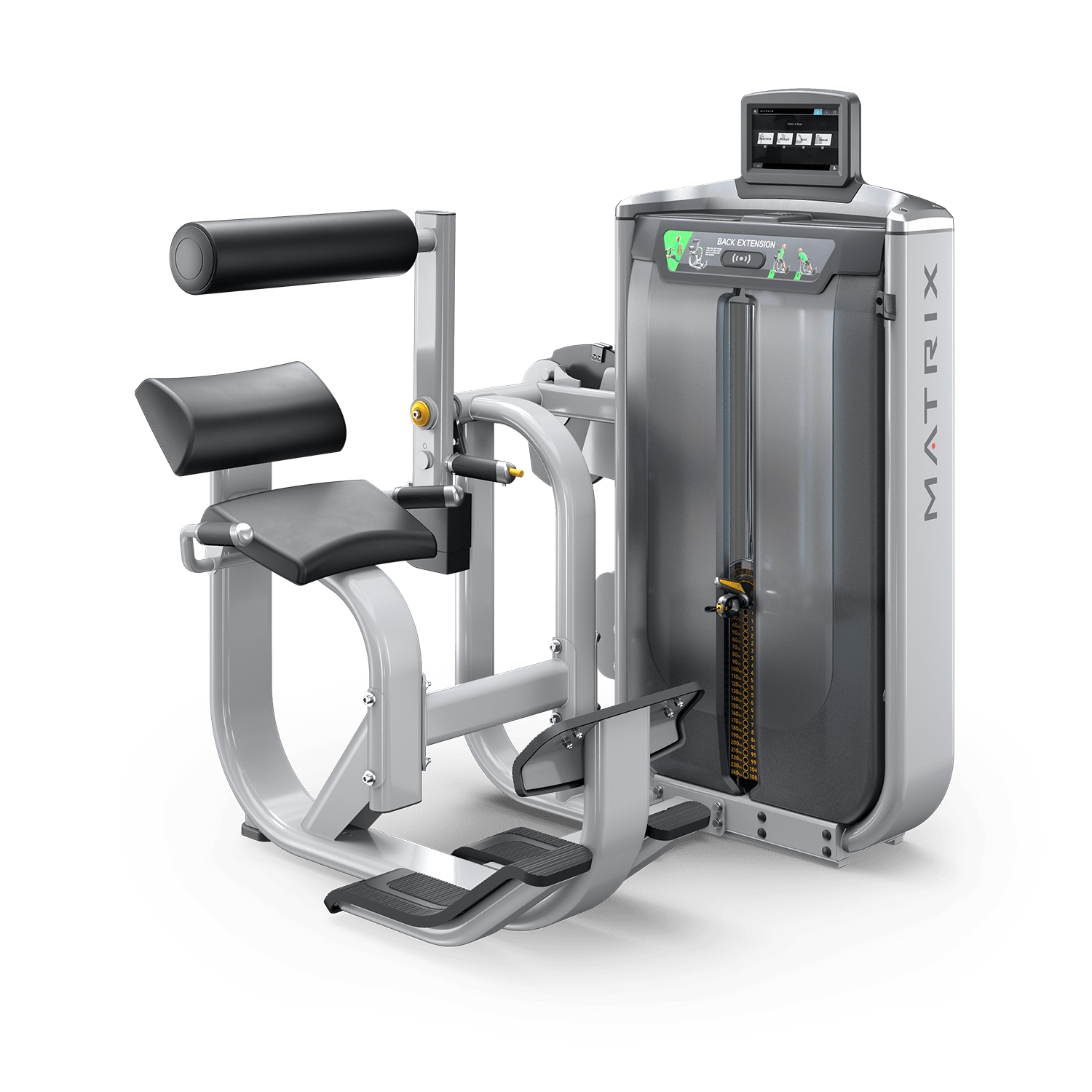

Model Name: G7-S52-02 - Back Extension - G7GM126 - 2018
Serial Number Prefix: G7GM126, AS1861
Version: 2018
"Used Only" - contact us if interested in used or refurbished parts. Send us mail:
X
Image |
Catalog # |
MPN |
Part List Key |
Quantity On Model |
Part Description |
Notes |
Available Used |
Model Compatibility List |
New price |
|---|---|---|---|---|---|---|---|---|---|
|
|
|||||||||
| 724297 | 1000417374 | 1 | Handle Set;;;Iced Silver;GM126-KM;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724814 | 1000427258 | 1 | Handle Set;;;;GM126B-KM;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
 |
730660 | 1000414106 | 1 | Transmission Set;Semi-Assy;A;;;;PAS1861- | No | Model Compatibility List | $558.98 / Each |
||
 |
704145 | 020329-00 | 1-Feb | Set Screw;M6X1.0PX12L | No | Model Compatibility List | $0.21 / Each |
||
| 724280 | 1000417131 | 2 | Swivel arm set;Semi-Assy;;Iced Sliver;;; | No | Model Compatibility List | $358.25 / Each |
|||
| 724844 | 1000427366 | 2 | Swivel arm set;Semi-Assy;;;RL4008??;;GM1 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
 |
730716 | 1000414107 | 2 | Console set;Semi-Assy;;;;;AS1861; D/C - Part will show as orderable until stock is depleted. | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
| 724282 | 1000417155 | 3 | Cam Fixing Set;Semi-Assy;;Iced Sliver;;; | No | Model Compatibility List | $437.68 / Each |
|||
| 724847 | 1000427376 | 3 | Cam Fixing Set;Semi-Assy;;;RL4008 ??;;GM | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
 |
730661 | 1000417259 | 3 | Power Switch Set;Semi-Assy;;;;;AS1861; | No | Model Compatibility List | $158.58 / Each |
||
 |
730662 | 1000419076 | 4 | RFID SET;Semi-Assy;;;;;AS1861; | No | Model Compatibility List | $384.78 / Each |
||
| 724484 | 1000420787 | 8 | Disassembly connect set;Semi-Assy;;;CAM; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 709875 | 1000204186 | 18 | Top Weight Plate Set | No | Model Compatibility List | $379.65 / Each |
|||
| 724274 | 1000417087 | AB1 | Frame Set;;;painting;;Iced Sliver;GM126- | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724856 | 1000427444 | AB1 | Frame Set;;;painting;;;GM112B-KM;RL4008 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 723948 | 1000413579 | AB2 | Pulley Set;Fixing;;painting;;Iced Sliver | No | Model Compatibility List | $69.26 / Each |
|||
| 724832 | 1000427307 | AB2 | Pulley Set;Fixing;;painting;;Planet Fitn | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
 |
730663 | 1000398787 | AB03 | Sensor set;Semi-Assy;;;;;AS1861; | No | Model Compatibility List | $462.78 / Each |
||
| 724276 | 1000417100 | AC1 | base set;;;painting;;Iced Sliver;GM126-K | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724857 | 1000427445 | AC1 | base set;;;painting;;;GM126B-KM;RL4008 ? | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 723710 | 1000412183 | AC9 | PEDAL;;Short2;painting;;Black3;GM53;PUsp | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724279 | 1000417117 | AC121 | Support Seat Set;Swivel Arm;;Iced Sliver | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724858 | 1000427448 | AC121 | Support Seat Set;Swivel Arm;;;GM126B-KM; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
 |
730708 | 1000398618 | AD2 | Fix Base;;;painting;;Black Matte;AS1861; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
| 724281 | 1000417136 | AD111 | Swivel arm set;Swivel Arm;level;Iced Sl | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724845 | 1000427370 | AD111 | Swivel arm set;Swivel Arm;level;RL4008 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724283 | 1000417163 | AF11 | Cam Fixing Set;Assembly;;Iced Silver;GM1 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724848 | 1000427377 | AF11 | Cam Fixing Set;Assembly;;RL4008 ??;GM126 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724284 | 1000417170 | AG1 | Disassembly connect set;;;;;Iced Sliver; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724859 | 1000427456 | AG1 | Disassembly connect set;;;painting;;;GM1 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724285 | 1000417177 | AG2 | Disassembly connect set;;D;;;Iced Sliver | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724860 | 1000427461 | AG2 | Disassembly connect set;;D;painting;;;GM | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 723553 | 1000408109 | AH1 | AdJ Tube-Extrawork;;;Cr Plate;;GM126; | No | Model Compatibility List | $236.57 / Each |
|||
| 728707 | 096088 | AK1 | Weght Plate Set;12.5P;GM41 | No | Model Compatibility List | $67.57 / Each |
|||
| 723129 | 1000404084 | AL2 | Incremental Weight Plate Set;Semi-Assy;; | No | Model Compatibility List | $91.23 / Each |
|||
| 707434 | 1000092654 | AL4 | ADJ Base Three;Incremental Weight Plate; | No | Model Compatibility List | $75.37 / Each |
|||
| 724278 | 1000417109 | AT1 | Handle set;Seat;;painting;;Iced Sliver;G | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724819 | 1000427277 | AT1 | Handle set;Seat;;painting;;;GM126B-KM; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 723860 | 1000412812 | AZ9 | Label set;;;;Silver Gray;Advanced config | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 723861 | 1000412813 | AZ9 | Label set;;;;Orange;Advanced configurati | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 723862 | 1000412814 | AZ9 | Label set;;;;Brown;Advanced configuratio | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 723863 | 1000412815 | AZ9 | Label set;;;;Pink;Advanced configuration | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 723864 | 1000412816 | AZ9 | Label set;;;;Gray;Advanced configuration | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
 |
730664 | 1000408949 | B01 | Support Board;;;painting;;Black Matte;AS | No | Model Compatibility List | $45.48 / Each |
||
 |
730665 | 1000398704 | B04 | Connet Sleeve;;;20#;Zinc;AS1861;Diam.14x | No | Model Compatibility List | $10.38 / Each |
||
 |
709072 | 1000108805 | B06 | Screw;RND;M8x1.25Px20L;HS;CHM;BP;G12.9 | No | Model Compatibility List | $1.79 / Each |
||
 |
701660 | 004696-AB | B07 | Screw;Hex Socket;8X1.25X20L;Chromed | No | Model Compatibility List | $2.00 / Each |
||
| 723943 | 1000413515 | B11 | Fixing Rack;BRACKET COVER;U;;;Iced Slive | No | Model Compatibility List | $10.11 / Each |
|||
| 724818 | 1000427276 | B11 | Fixing Rack;BRACKET COVER;U;;;Planet Fit | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 722695 | 1000397803 | B12 | Stopper Piece;pulley;;SPHC;173x31.5x30x2 | No | Model Compatibility List | $11.80 / Each |
|||
| 723482 | 1000407026 | B12 | Stopper Plate;Steel Rope;2;PA66+GF30%;;9 | No | Model Compatibility List | $16.87 / Each |
|||
| 723941 | 1000413504 | B13 | Fix Base;Pulley;;painting;;Iced Sliver;G | No | Model Compatibility List | $37.15 / Each |
|||
| 724817 | 1000427273 | B13 | Fix Base;Pulley;;painting;;Planet Fitnes | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 723935 | 1000413485 | B14 | Fixing Rack Cover;;D;;;Iced Sliver;GM113 | No | Model Compatibility List | $33.77 / Each |
|||
| 724812 | 1000427250 | B14 | Fixing Rack Cover;;D;;;Planet Fitness Pu | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 722552 | 1000393987 | B16 | Sleeve;CON Tube;;painting;;Iced Sliver;G | No | Model Compatibility List | $3.02 / Each |
|||
| 724833 | 1000427308 | B16 | Sleeve;CON Tube;;;;Planet Fitness Purple | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 716192 | 1000334510 | B17 | Fixing Plate;;down;NBR;;;GM40; | No | Model Compatibility List | $16.87 / Each |
|||
| 702030 | 005062-00 | B21 | Washer;Flat;10.2x19x2.0T;Chromed | No | Model Compatibility List | $1.59 / Each |
|||
 |
730666 | 1000399163 | B23 | Stopper Block;Steel Rope;;PA6+G15%;;50x3 | No | Model Compatibility List | $2.32 / Each |
||
 |
730709 | 1000398124 | B24 | Sliding Pulley Set;Semi-Assy;;;;;AS1861; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
| 701691 | 004719-AB | B26 | Screw;BH;M8X1.25PX12L;;HS;;CHM;;G12.9 | No | Model Compatibility List | $0.39 / Each |
|||
 |
730667 | 1000398534 | B26 | SLEEVE;;;20#;Chrome;AS1861;Diam.20x11.55 | No | Model Compatibility List | $7.78 / Each |
||
 |
730668 | 1000399147 | B27 | Permanent Magnet;Two-sided;Diam.3x 3.0T; | No | Model Compatibility List | $1.02 / Each |
||
| 707831 | 1000096026 | B32 | Fixing Base;Sensor;ABS;GM40 | No | Model Compatibility List | $8.32 / Each |
|||
 |
707864 | 1000096531 | B33 | Speed Sensor Wire;1200mm(2.5-5P);GM40 | No | Model Compatibility List | $21.84 / Each |
||
| 707861 | 1000096514 | B34 | Control Board;Matrix;H102;S1.60;GM40 | No | Model Compatibility List | $50.67 / Each |
|||
 |
730059 | 1000096574 | B35 | Lithium and Iron Disulfide Battery | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
| 723685 | 1000411806 | B36 | Manipulate Overlay;;;;;GM111 | No | Model Compatibility List | $2.18 / Each |
|||
 |
701981 | 005017-00 | B41 | Washer;Spring;SW10 10.2X18.4X2.5T;Chromed | No | Model Compatibility List | $1.33 / Each |
||
| 708443 | 1000102859 | B42 | Screw;Hex Socket;Round;M4x0.7Px10L;Cr Pl | No | Model Compatibility List | $0.52 / Each |
|||
| 723939 | 1000413494 | B44 | Support Board;Cover;Reat-Up;;;Iced Slive | No | Model Compatibility List | $25.32 / Each |
|||
| 724813 | 1000427251 | B44 | Support Board;Cover;Reat-Up;;;Planet Fit | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
 |
730669 | 1000402429 | B51 | Support Board;Pulley;;painting;;Black Ma | No | Model Compatibility List | $18.18 / Each |
||
| 701513 | 004549-00 | B59 | Screw;Hex Socket;Round;M10x1.5Px55L;Cr; | No | Model Compatibility List | $6.27 / Each |
|||
| 711205 | 1000217603 | B63 | STOPPER PIECE;INDUCTOR;-;SPHC;ZH;GM40; | No | Model Compatibility List | $3.35 / Each |
|||
| 708445 | 1000102861 | B65 | Screw;Hex Socket;Round;M6x1.0Px25L;Cr Pl | No | Model Compatibility List | $1.38 / Each |
|||
 |
730670 | 1000398706 | B91 | Cover;Pulley;left;ABS;;130x122.7x16;AS18 | No | Model Compatibility List | $5.18 / Each |
||
 |
730671 | 1000398705 | B92 | Cover;Pulley;right;ABS;;130x122.7x36;AS1 | No | Model Compatibility List | $5.18 / Each |
||
 |
700145 | 000514-C | C14 | Foot pad;Tube;Rubber;GM07 | No | Model Compatibility List | $3.64 / Each |
||
 |
708563 | 1000103438 | C15 | Screw;Cross;BH;Tapped;4x10L;A Class;ke | No | Model Compatibility List | $0.57 / Each |
||
| 710460 | 1000210344 | C15 | Rubber Pad;Pedal;Right;GM53-KM | No | Model Compatibility List | $177.76 / Each |
|||
| 716193 | 1000334511 | C15 | Rubber Foot Pad;Base;;NBR;;;GM40; | No | Model Compatibility List | $10.11 / Each |
|||
 |
720322 | 1000371560 | C18 | Cap;Elliptical;;TPU;;Diam.50.0xDiam.100. | No | Model Compatibility List | $6.73 / Each |
||
 |
707798 | 1000095593 | C20 | Cap;Leg Pad;ABS;GM42 | No | Model Compatibility List | $2.13 / Each |
||
| 708033 | 1000098051 | C20 | Bearing Cover;Base;ABS;GM40 | No | Model Compatibility List | $8.24 / Each |
|||
| 710461 | 1000210345 | C20 | Rubber Pad;Pedal;Left;GM53-KM | No | Model Compatibility List | $177.76 / Each |
|||
| 710462 | 1000210346 | C21 | Rubber Pad;Pedal;UP;GM53-KM | No | Model Compatibility List | $84.58 / Each |
|||
 |
707799 | 1000095594 | C22 | Cap;Leg Pad;ABS;GM42 | No | Model Compatibility List | $1.87 / Each |
||
| 704079 | 020196-A | C24 | Screw;Phillip;BH;Tapped;3x6L;;Zn-BL | No | Model Compatibility List | $4.00 / Each |
|||
| 701764 | 004786-00 | C31 | Screw;Hex Socket;BH;CrMo;M10x1.5Px25L | No | Model Compatibility List | $3.64 / Each |
|||
 |
713740 | 1000307173 | C33 | Plastic Cover;Nut;;;;;; | No | Model Compatibility List | $1.66 / Each |
||
| 724286 | 1000417186 | C35 | Fixing Plate;;;painting;;Iced Sliver;GM1 | No | Model Compatibility List | $5.04 / Each |
|||
| 724861 | 1000427464 | C35 | Fixing Plate;;;painting;;;GM126B-KM;RL40 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 726162 | 080409 | C38 | Screw;TH;M6X1.0PX25L;;HS;;;;; | No | Model Compatibility List | $1.66 / Each |
|||
 |
730727 | 0000080409 | C54 | Screw;TH;M6X1.0PX25L;;HS;;;;; | No | Model Compatibility List | $1.68 / Each |
||
 |
708473 | 1000102893 | C57 | Screw;Hex Socket;Flat;M8x1.25Px20L;Cr Pl | No | Model Compatibility List | $1.38 / Each |
||
| 701551 | 004579-AB | C92 | Screw;Sink Hex Socket;M8x1.25Px25L;Cr Pl | No | Model Compatibility List | $1.79 / Each |
|||
 |
708484 | 1000102910 | C94 | Circlip;External C Type;S-12;BED | No | Model Compatibility List | $1.33 / Each |
||
 |
730710 | 1000402422 | D06 | Support Board;Console;Inner;painting;;Bl | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
| 709198 | 1000110841 | D11 | Grip;Pedal Arm ;wrap rubber;GM42-KM | No | Model Compatibility List | $16.74 / Each |
|||
| 722692 | 1000397778 | D12 | Stopper Ring;Grip;;;Chrome;ADC12; | No | Model Compatibility List | $16.87 / Each |
|||
| 707173 | 1000091060 | D14 | Spring;CMP;;;;PULL PIN;GM44 | No | Model Compatibility List | $0.86 / Each |
|||
| 708417 | 1000102750 | D15 | Pull Pin;ADJ Pin;45#;GM45-KM | No | Model Compatibility List | $24.28 / Each |
|||
| 722693 | 1000397779 | D15 | Cap;Grip;;;Chrome;ADC12; | No | Model Compatibility List | $20.25 / Each |
|||
| 708400 | 1000102648 | D29 | Balance Brick;HT200;GM47 | No | Model Compatibility List | $224.90 / Each |
|||
 |
728720 | 096166 | D31 | Pull Pin;GM44 | No | Model Compatibility List | $4.71 / Each |
||
 |
730728 | 1000408501 | D33 Jam Nut | Nut;Hex;M14x2.0Px11T;G10;Chrome; | No | Model Compatibility List | $1.68 / Each |
||
 |
730925 | 0000086517 | D43 | Screw;Round Hex Socket;M10x1.5Px25L | No | Model Compatibility List | $1.02 / Each |
||
 |
702250 | 005377-00 | E33 | Clamp;E-Shaped Ring;E-15 | No | Model Compatibility List | $0.65 / Each |
||
| 701772 | 004793-00 | F02 | Screw;Button Head;M10X1.5PX15L;;Hex Sock | No | Model Compatibility List | $3.02 / Each |
|||
| 723936 | 1000413488 | F04 | Snug Plate;Cam;;painting;;Iced Sliver;GM | No | Model Compatibility List | $8.42 / Each |
|||
| 724846 | 1000427372 | F04 | Snug Plate;Cam;;painting;;Planet Fitness | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
 |
720362 | 1000371997 | F05 | Buffer Block;Stopper;;NBR;;;GM105; | No | Model Compatibility List | $3.02 / Each |
||
 |
710685 | 1000212388 | F08 | Fixing Plate;Cable Head-;45#;BED;GM40; | No | Model Compatibility List | $21.53 / Each |
||
| 722958 | 1000401625 | F10 | Steel Rope-Extrawork;frame;;Press Rope H | No | Model Compatibility List | $130.10 / Each |
|||
 |
707946 | 1000097206 | F11 | Screw;SH;M8X1.25PX25L;;HS;;CHM;;BP | No | Model Compatibility List | $2.00 / Each |
||
| 722683 | 1000397609 | F11 | Pulley;;;NYLON 66+G30%(Anti-fire);Black; | No | Model Compatibility List | $55.74 / Each |
|||
 |
701901 | 004929-00 | F12 | Nut;Nylon;M8x1.25P;Chromed | No | Model Compatibility List | $2.00 / Each |
||
| 723552 | 1000408107 | F21 | Ring;Protect;Side;ABS PA757S;;Diam.146x1 | No | Model Compatibility List | $5.04 / Each |
|||
| 709061 | 1000108793 | F22 | Screw;RND;M5x0.8Px10L;HS;CHM;BP;G8.8 | No | Model Compatibility List | $0.21 / Each |
|||
| 722982 | 1000402051 | F31 | Stopper Plate;Cam Stopper;;PA66;;;GM124; | No | Model Compatibility List | $3.02 / Each |
|||
| 723584 | 1000409299 | F32 | Screw;Flat Head;M4x0.7P-30L;;Hex Socket; | No | Model Compatibility List | $1.33 / Each |
|||
| 701859 | 004881-00 | F33 | NUT;HX;M4X0.7P;SS41;BZN;; | No | Model Compatibility List | $1.01 / Each |
|||
| 722715 | 1000397982 | H05 | Cap;Pedal Arm;;;Chrome;ADC12; | No | Model Compatibility List | $20.25 / Each |
|||
 |
728704 | 096073 | H12 | CON Plate; Cap;SPHC3.0t;GM42 | No | Model Compatibility List | $2.37 / Each |
||
 |
728705 | 096074 | H13 | Stopper Ring;Cap;AL6061;GM42 | No | Model Compatibility List | $19.81 / Each |
||
 |
708662 | 1000104691 | H26 | Screw;RND;M10x1.5Px30L;HS;G12.9;CHM;BP | No | Model Compatibility List | $3.64 / Each |
||
| 726987 | 086517 | H65 | Screw;Round Hex Socket;M10x1.5Px25L | No | Model Compatibility List | $3.64 / Each |
|||
| 729261 | See Pad Matrix | J01 | Elbow Pad;;PU;Black;;FW213-KM; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 717511 | 1000345659 | J12 | Cap;Elliptical;;TPU;BL/Black C;Diam.50.0 | No | Model Compatibility List | $15.18 / Each |
|||
 |
728614 | 0000095638 | J15 | Foot Pad;Adjustable;M12X58H;12.9;EP304; | Yes | Model Compatibility List | $33.85 / Each |
||
| 723980 | 1000413780 | J41 | Bearing Sheath;Base;;ABS/PA757;137C;55x | No | Model Compatibility List | $5.04 / Each |
|||
| 723984 | 1000413887 | K02 | Incremental Adjustable Rod-Exreawork;Inc | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
 |
730672 | 1000406463 | K04 | Protect Sleeve;Power Switch;;PA66;;;AS18 | No | Model Compatibility List | $5.18 / Each |
||
| 709517 | 1000200981 | K07 | Guide Rod;Weight plate | No | Model Compatibility List | $124.83 / Each |
|||
 |
730673 | 1000415728 | K07 | Cover;Power;up;ABS Fire;;;AS1861; | No | Model Compatibility List | $27.28 / Each |
||
 |
730674 | 1000415731 | K08 | Cover;Power;down;ABS Fire;;;AS1861; | No | Model Compatibility List | $14.28 / Each |
||
| 723566 | 1000408504 | K09 | Fixing Axle;Steel Rope Head;Short;45#;Ch | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
 |
730675 | 1000417231 | K12 | Boot-Extrawork;;;line cutting;Diam.10.0x | No | Model Compatibility List | $2.32 / Each |
||
| 709718 | 1000202352 | K13 | Cushion;Guide Rod | No | Model Compatibility List | $8.42 / Each |
|||
 |
703901 | 019151-AA | K17 | Rubber Bumper;Weight Stack | Yes | Model Compatibility List | $8.00 / Each |
||
 |
708675 | 1000104705 | K19 | Screw;RND;M6x1.0Px15L;HS;CHM;BP;G8.8 | No | Model Compatibility List | $0.52 / Each |
||
 |
717480 | 1000345425 | K28 | Stopper Ring;Guide Rod;;;Chrome;GM41;; | No | Model Compatibility List | $18.23 / Each |
||
| 723356 | 1000406464 | K62 | Socket;Power Switch;;PA66+G20%;;110x58x1 | No | Model Compatibility List | $6.73 / Each |
|||
| 728931 | 099053 | L03 | ADJ Base;R;Incremental Weight Plate;GM40 | No | Model Compatibility List | $1.98 / Each |
|||
| 728933 | 099056 | L07 | U;Cover;IncrementalWeightPlate;20#;GM40 | No | Model Compatibility List | $23.50 / Each |
|||
| 728930 | 099052 | L12 | ADJ Base;L;Incremental Weight Plate;GM40 | No | Model Compatibility List | $23.50 / Each |
|||
| 708408 | 1000102696 | L13 | Dial;GM41 | No | Model Compatibility List | $3.95 / Each |
|||
| 707833 | 1000096167 | L15 | Axle Sleeve Two;Weight Plate;Rubber;GM40 | No | Model Compatibility List | $9.62 / Each |
|||
| 728937 | 099064 | L17 | Sleeve;D;IncrementalWeight Plate;POM;GM4 | No | Model Compatibility List | $5.64 / Each |
|||
| 722732 | 1000398249 | L18 | Handle Set;Assembly;;Incremental weight | No | Model Compatibility List | $47.29 / Each |
|||
| 707826 | 1000096021 | L21 | Screw;SET;M10X1.5P | No | Model Compatibility List | $0.81 / Each |
|||
| 714882 | 1000319417 | L30 | Fixing Rack;Counte;;painting;;Iced Slive | No | Model Compatibility List | $13.49 / Each |
|||
| 724837 | 1000427312 | L30 | Fixing Rack;Counte;;painting;;Planet Fit | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 713056 | 1000232864 | L31 | PERMANENT MAGNET;-;1500##;##; | No | Model Compatibility List | $7.28 / Each |
|||
| 707828 | 1000096023 | L32 | Half-moon Key;20#;GM40 | No | Model Compatibility List | $0.88 / Each |
|||
| 709070 | 1000108803 | L33 | Screw;RND;M5x0.8Px12L;HS;CHM;BP;G8.8 | No | Model Compatibility List | $0.34 / Each |
|||
| 709071 | 1000108804 | L36 | Screw;BH;M5x0.8Px15L;HS;CHM;BP;G8.8 | No | Model Compatibility List | $0.70 / Each |
|||
| 725362 | 070571 | L38 | Washer;Flat;5.2X10.0X1.5T;;CHM; | No | Model Compatibility List | $0.49 / Each |
|||
| 711206 | 1000217605 | L40 | PLASTIC COVER;HEAD PLATE;TPC;;;;GM40; | No | Model Compatibility List | $20.41 / Each |
|||
| 707435 | 1000092656 | L43 | Nut;HX;M10X1.5PX10L;SS41;CHM;; | No | Model Compatibility List | $0.86 / Each |
|||
| 709076 | 1000108910 | L46 | Washer;Flat;12.5x23x1.0t;CHM | No | Model Compatibility List | $1.33 / Each |
|||
| 710475 | 1000210485 | L50 | SCREW;SET;M5X0.8PX6L;FLAT POINT;HS;G8.8; | No | Model Compatibility List | $1.66 / Each |
|||
 |
722734 | 1000398254 | L59 | Adjustment Pin Assembly;Assembly;;weight | No | Model Compatibility List | $123.34 / Each |
||
 |
730676 | 1000375452 | N01 | Foam;;BLACK;223.6x5x3mm;;EP625; | No | Model Compatibility List | $1.02 / Each |
||
 |
730677 | 1000375453 | N02 | Foam;;BLACK;;;EP625; | No | Model Compatibility List | $1.02 / Each |
||
 |
730678 | 1000379358 | N03 | Foam;;BLACK;116.2x5x3mm;;EP625; | No | Model Compatibility List | $1.02 / Each |
||
 |
730711 | 1000398716 | N04 | Fixing Base;;;ABS+PC;;195x60x19.2;PAS186 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
730679 | 1000402205 | N10 | Exchanged Board;;;HDPD;;;;RFID; | No | Model Compatibility List | $59.78 / Each |
||
 |
730712 | 1000416684 | N14 | Foam;;BLACK;80.0x5.0x3.0t;;SSA | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
730680 | 1000398108 | N44 | Control Board;;;HFPF;V16;;;Load cell | No | Model Compatibility List | $45.48 / Each |
||
 |
702299 | 005811-00 | N58 | Cable Tie;Nylon;Black;160L | No | Model Compatibility List | $1.51 / Each |
||
 |
730681 | 1000441967 | N61 | Control Board Module;10 inch;;OS2.1.4.0; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
730717 | 1000402112 | N61 | Control Board Module;10 inch;;OS2.1.0.0; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
730682 | 1000405556 | N62 | USB Wire;;;;;;150;; | No | Model Compatibility List | $5.18 / Each |
||
 |
730683 | 1000405558 | N63 | Console Wire Set;;;;;;800;Molex70066 50- | No | Model Compatibility List | $11.68 / Each |
||
 |
730684 | 1000406930 | N64 | Console Extension Wire;;;;;;600;MOLEX 70 | No | Model Compatibility List | $14.28 / Each |
||
 |
730685 | 1000407217 | N65 | Console Ground Wire;;;;;;400+150;Diam.5+ | No | Model Compatibility List | $3.88 / Each |
||
 |
730686 | 1000407223 | N66 | Console Ground Wire;;;;;;500+400;Diam.3+ | No | Model Compatibility List | $5.18 / Each |
||
 |
730687 | 1000408705 | N67 | Console Ground Wire;;;;;UL1015 16AWG;100 | No | Model Compatibility List | $3.88 / Each |
||
 |
730688 | 1000403396 | N68 | Memory card set;;TF?;Sandisk 8G;;ITC; | No | Model Compatibility List | $33.78 / Each |
||
 |
707824 | 1000096017 | Not Shown | Rubber Pad;Fixing;GM40 | No | Model Compatibility List | $2.39 / Each |
||
| 714884 | 1000319422 | Not Shown | Frame Fix Plate;;;painting;;Iced Sliver; | No | Model Compatibility List | $16.87 / Each |
|||
| 722959 | 1000401636 | Not Shown | hardware set;Assembly;;;GM126-KM; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 723038 | 1000402634 | Not Shown | Manual set;Semi-Assy;;;;;GM126-KM; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724141 | 1000415617 | Not Shown | Manual;Assembly;;NA/EU;;GM126-KM | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724142 | 1000415626 | Not Shown | Manual set;Semi-Assy;;;NA/EU;;GM126-KM; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724356 | 1000418395 | Not Shown | Insert;;;;Sale service address;GM113;All | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
 |
730689 | 1000398560 | Not Shown | hardware set;Assembly;;;PAS1861-2KM; | No | Model Compatibility List | $7.78 / Each |
||
 |
730690 | 1000418071 | Not Shown | Manual;Console;;;NA/Europe;AS1861?; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
730718 | 1000398533 | Not Shown | Manual set;Semi-Assy;;;;English;AS1861; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
730691 | 1000399107 | P01 | Power Switch Set;;;;;;85+85+85;KST 250x2 | No | Model Compatibility List | $14.28 / Each |
||
 |
730692 | 1000402104 | P03 | Network Signal Wire;;;;;;800;TKP H6630R1 | No | Model Compatibility List | $9.08 / Each |
||
 |
730693 | 1000399109 | P05 | DC Power Wire;;;;;;2200;Molex70066+CWB:V | No | Model Compatibility List | $9.08 / Each |
||
 |
730694 | 1000399111 | P06 | USB Wire;;;;;;1000;(JST,XAP-06V-1)x2;; | No | Model Compatibility List | $7.78 / Each |
||
 |
730695 | 1000403042 | P08 | Signal ConnectN Wire;;;;;;70;JST,ZHR-06+ | No | Model Compatibility List | $5.18 / Each |
||
 |
730696 | 1000407137 | P10 | Filter Wire;;;;;;;BF1115B-3A;90+90+80; | No | Model Compatibility List | $19.48 / Each |
||
 |
730697 | 1000410680 | P11 | Ground Wire;;;;;;2200;RFID;Diam.5+Diam.5 | No | Model Compatibility List | $5.18 / Each |
||
 |
730698 | 1000410690 | P12 | Adapter;;100-240V;Out,12V/3A;; | No | Model Compatibility List | $38.98 / Each |
||
| 700570 | 001679-00 | P13 | Tie Strap;Adhesive;Nylon;66;HC-101;W | No | Model Compatibility List | $2.81 / Each |
|||
 |
730699 | 1000415793 | P13 | Ground Wire;;;;;16AWG;;Diam.5; | No | Model Compatibility List | $1.68 / Each |
||
| 705313 | 040816-A | P19 | Screw;Phillip;BH;Tapped;3x8L; | No | Model Compatibility List | $2.00 / Each |
|||
 |
730700 | 1000411962 | P21 | TIE STRAP ADHESIVE;;KSS/UC-3;;;;AS1861 | No | Model Compatibility List | $1.02 / Each |
||
 |
730479 | 1000417018 | P25 | Screw;Button Head;M5x10L;GND;Cutting;Phi | No | Model Compatibility List | $1.02 / Each |
||
 |
730132 | 001678-A | P33 | Cable Fix Button;KSS/UC-2 | No | Model Compatibility List | $1.28 / Each |
||
 |
730701 | 1000398589 | Q01 | Cover;Display;front;ABS;;332.1x229.8x37. | No | Model Compatibility List | $22.08 / Each |
||
| 728920 | 098985 | Q02 | Weight Stack Shield;Front;ABS;GM40 | No | Model Compatibility List | $147.63 / Each |
|||
 |
730702 | 1000398596 | Q02 | Cover;Display;back;ABS;;331.1x227.5x53.3 | No | Model Compatibility List | $12.98 / Each |
||
| 715052 | 1000320792 | Q03 | Cover;Cam;L;painting;;Iced Sliver;GM53-K | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724862 | 1000427465 | Q03 | Cover Set;Cam;L;painting;;;GM126B-KM;RL4 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
 |
730703 | 1000398609 | Q03 | Cover;Display;back;ABS;;228.9x179.4x19.1 | No | Model Compatibility List | $7.78 / Each |
||
| 728923 | 098988 | Q04 | Cover;Front;ABS;GM40 | No | Model Compatibility List | $147.63 / Each |
|||
| 707829 | 1000096024 | Q08 | Fixing Base;PC;GM40 | No | Model Compatibility List | $3.35 / Each |
|||
| 722970 | 1000401872 | Q26 | Hanging Hook;Main Tube;;TPU;Black 6C;;GM | No | Model Compatibility List | $27.01 / Each |
|||
| 722702 | 1000397883 | Q93 | Cover;;back;ABS/PA757;Limpid;1104.8x648. | No | Model Compatibility List | $184.18 / Each |
|||
| 722703 | 1000397892 | Q94 | Decorte Cover;;up;ABS/PA757;Deep Grey;33 | No | Model Compatibility List | $15.18 / Each |
|||
| 722704 | 1000397899 | Q95 | Cover;Frame;Bright Silver;Up;Painting;AD | No | Model Compatibility List | $224.74 / Each |
|||
| 724713 | 1000424165 | Q95 | Cover;Frame;U;painting;;Black Matte;GM11 | No | Model Compatibility List | $174.04 / Each |
|||
| 722707 | 1000397915 | Q96 | Kettle Plate;;mid;TPU;426C/80393;113.0x7 | No | Model Compatibility List | $6.73 / Each |
|||
| 722706 | 1000397914 | Q97 | Kettle Plate;;right;ABS;;252.6x121.0x16. | No | Model Compatibility List | $16.87 / Each |
|||
| 722705 | 1000397910 | Q98 | Kettle Plate;;left;ABS;;252.6x121.0x16.0 | No | Model Compatibility List | $16.87 / Each |
|||
| 722701 | 1000397869 | Q99 | Cover;;up;ABS/PA757;Deep Grey;740.0x173. | No | Model Compatibility List | $47.29 / Each |
|||
 |
713500 | 1000304394 | Roller Pad 5 | Bousing;Round Pad;-;PVC;60x52x30.1L;GM | No | Model Compatibility List | $1.66 / Each |
||
| 724485 | 1000420801 | Tool1 | Fix plate-Extrawork;Cam;;White Zinc;Remo | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724486 | 1000420802 | Tool2 | slide Sleeve set-Extrawork;Cam;;White Zi | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724487 | 1000420803 | Tool3 | Adj. Base-Extrawork;Cam;;White Zinc;Remo | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724488 | 1000420804 | Tool4 | Washer-Exreawork;Cam;;White Zinc;Remove | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
 |
709081 | 1000109127 | V02 | Decal;Pinch Point ;MS21KM-G3 | No | Model Compatibility List | $1.77 / Each |
||
| 719683 | 1000363766 | V02 | Warning Label;Frame;;;PC;;French;GM40 | No | Model Compatibility List | $5.04 / Each |
|||
| 723037 | 1000402626 | V08 | EN LABEL;;;;PETP;;English;GM126-KM; | No | Model Compatibility List | $1.33 / Each |
|||
| 723059 | 1000402912 | V11 | Instructional Labe;Cover;;;;Front;;GM126 | No | Model Compatibility List | $33.77 / Each |
|||
| 724407 | 1000419169 | V11 | Instructional Labe;Cover;;;;Front;French | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
 |
730713 | 1000414740 | V11 | Warning Label;;POWER BOX;;;;;SSA | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
| 723060 | 1000402913 | V12 | Instructional Labe;Cover;;;PC;Rear;;GM12 | No | Model Compatibility List | $33.77 / Each |
|||
| 724408 | 1000419195 | V12 | Instructional Labe;Cover;;;PC;Rear;Frenc | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 723679 | 1000411786 | V15 | Spec Label;Weight Plate;10LBS;;PC;;;GM11 | No | Model Compatibility List | $16.87 / Each |
|||
 |
730714 | 1000414756 | V15 | CE Label;Console;;;PC;;English;SSA | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
| 723686 | 1000411812 | V16 | Direction Label;Incremental Weight Plate | No | Model Compatibility List | $3.02 / Each |
|||
| 702325 | 006078-00 | V18 | Decal;Grounding;TM08 | No | Model Compatibility List | $1.90 / Each |
|||
 |
730715 | 1000414838 | V20 | Decal;Console;FCC;;;;;SSA#; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
| 719682 | 1000363760 | V51 | Warning Label;Frame;;;PC;;English; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
 |
730547 | 1000355791 | W12 | Antena board;;;GAT-MAXI LA 3.1;;;EP614C; | No | Model Compatibility List | $89.68 / Each |
||
 |
730704 | 1000385354 | W80 | WIFI Wireness module Set;;;;EP625;; | No | Model Compatibility List | $148.18 / Each |
||
 |
725411 | 070970 | Z01 | Screw;SH;M10X1.5PX80L;;HS;;CHM;; | No | Model Compatibility List | $112.29 / Each |
||
| 701970 | 005009-AB | Z03 | Washer;Spring;SW8 8.2x15.4x2T;Zinc Plating | No | Model Compatibility List | $2.00 / Each |
|||
 |
704193 | 020465-AB | Z03 | Washer;Flat;M10.2X25PX2.0T;Chromed | No | Model Compatibility List | $1.79 / Each |
||
 |
708649 | 1000104672 | Z03 | Screw;BH;M5x0.8Px10L;HS;CST;CST;CST;CHM; | No | Model Compatibility List | $0.60 / Each |
||
 |
701836 | 004855-AC | Z06 | Set Screw;M6X1.0PX4L | No | Model Compatibility List | $1.79 / Each |
||
 |
730719 | 005040-AB | Z07 | Washer;Flat;8.4X15.5X1.6T | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
| 708052 | 1000098556 | Z08 | Washer;Wavy;30.5X39.2X0.4T;;; | No | Model Compatibility List | $0.75 / Each |
|||
 |
709069 | 1000108801 | Z08 | Screw;RND;M5x0.8Px15L;HS;CHM;BP;G8.8 | No | Model Compatibility List | $1.79 / Each |
||
 |
713698 | 1000306613 | Z08 | Screw;Socket Head;M10X1.5PX150L;;Hex Soc | No | Model Compatibility List | $6.73 / Each |
||
 |
708730 | 1000105174 | Z09 | Nut;Nylon;M10x1.5P;G12.9;CHM | No | Model Compatibility List | $1.79 / Each |
||
| 722883 | 1000399677 | Z09 | Screw;Socket Head;M10X1.5PX130L-35L;;Hex | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
 |
730705 | 004326-AB | Z12 | SCREW;RND;M5X0.8PX8L;;PH;;CHM;; | No | Model Compatibility List | $1.02 / Each |
||
 |
702531 | 008523-B | Z13 | Washer;Arc;M10x28x10.5T;SS41 | No | Model Compatibility List | $9.10 / Each |
||
 |
730706 | 005155-ZA | Z14 | Washer;Flat;Diam.6.2xDiam.12.0x2.0T;;Chr | No | Model Compatibility List | $1.28 / Each |
||
| 703996 | 020081-00 | Z17 | Screw;SH;M8X1.25PX60L;;HS;;;;G12.9 | No | Model Compatibility List | $1.01 / Each |
|||
 |
701851 | 004870-00 | Z19 | Screw;Plain Tapping;Rail Lock;5x15L | No | Model Compatibility List | $1.59 / Each |
||
| 705696 | 055200-AB | Z19 | Screw;Hex;M10X1.5PX25L;;HE;;CHM;; | No | Model Compatibility List | $9.10 / Each |
|||
| 701412 | 004462-Z | Z21 | Screw;Hex Socket;Round;M6x1.0Px15L; | No | Model Compatibility List | $1.33 / Each |
|||
 |
702119 | 005145-AC | Z22 | Washer;Flat;8.2x19.0x2.0T;Chromed | No | Model Compatibility List | $2.00 / Each |
||
| 717691 | 1000346841 | Z22 | Stopper Plate;Bearing;;SPHC;?35.0x5.0T;; | No | Model Compatibility List | $3.02 / Each |
|||
 |
730707 | 068287-00 | Z24 | Screw;RND;M3x8L;-;PH;-;WZN;-;-;ROHS; | No | Model Compatibility List | $1.48 / Each |
||
 |
702006 | 005043-7 | Z28 | Washer;Flat;Diam.X10xDiam.X30x2.0T;;Chro | No | Model Compatibility List | $1.66 / Each |
||
 |
730061 | 005009-00 | Z28 | Washer;Spring;8.2X15.4X2.0T;Chromed | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
702056 | 005084-00 | Z35 | Washer;Flat;5.3X10.0X1.0T;Chromed | No | Model Compatibility List | $2.00 / Each |
||
| 712810 | 1000230891 | Z35 | SCREW;SET;M10X1.5PX65L;FLATHEADED;HS;;;C | No | Model Compatibility List | $3.35 / Each |
|||
| 723530 | 1000407813 | Z46 | Nut;Hex;M24x1.5Px18L;Grade 8.8;Black Zin | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 723531 | 1000407816 | Z47 | Washer;Disc Spring;Diam.50xDiam.25.4x1.5 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724490 | 1000420808 | Z56 | Screw;Round Head;M16x1.5Px50L;;Hex Socke | No | Model Compatibility List | $10.11 / Each |
|||
| 708051 | 1000098555 | Z61 | Washer;Flat;30.3X45X2.0T;SPHC ;WZN; | No | Model Compatibility List | $0.70 / Each |
|||
| 724839 | 1000427314 | Z100 | Frame Fix Plate;;;painting;;Planet Fitne | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818
Hydra Fitness Exchange © 2025. All Rights Reserved.
