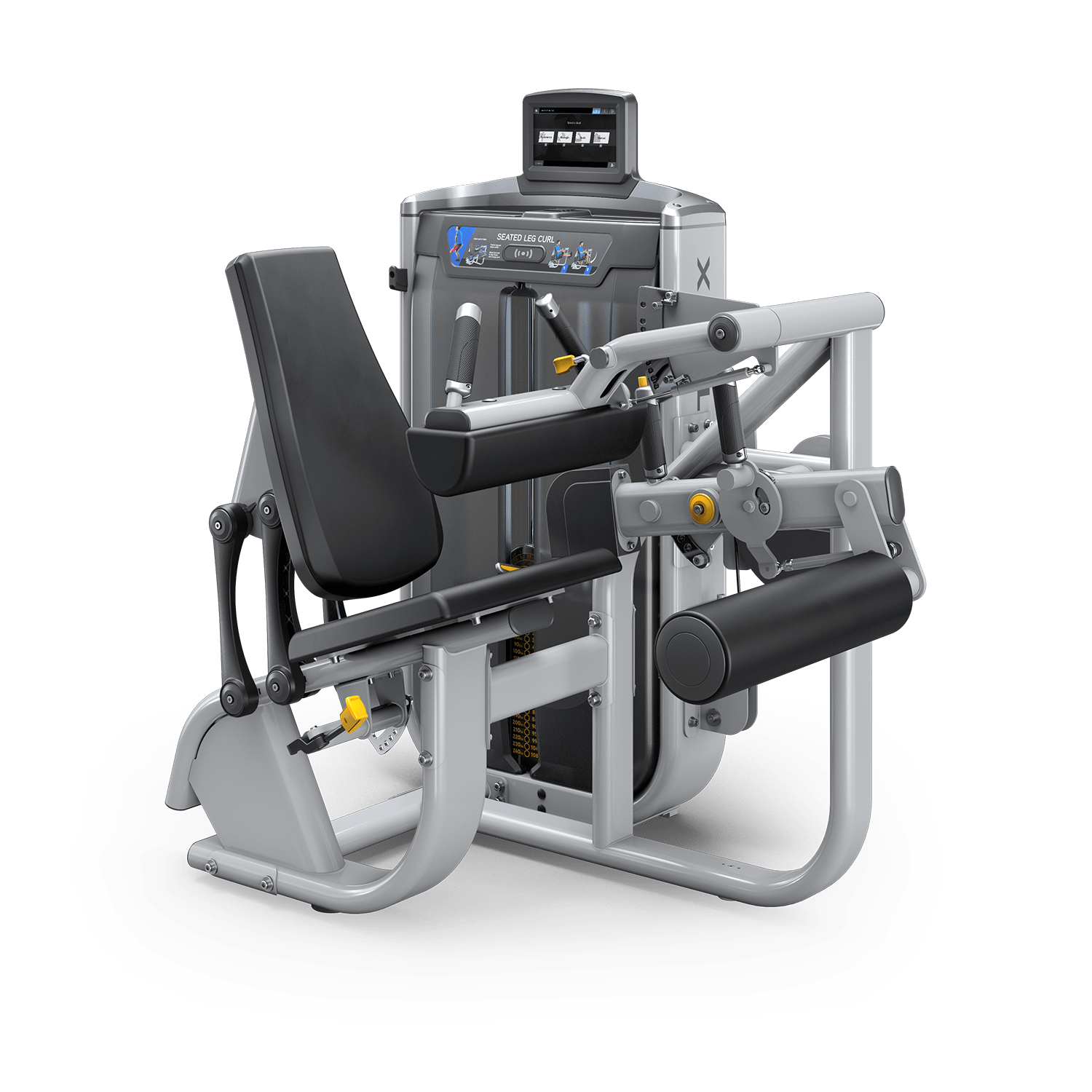

Matrix Fitness - G7-S72-02 - Seated Leg Curl - G7GM119 - 2018 - 2018

Repair Parts for Matrix Fitness G7-S72-02 - Seated Leg Curl - G7GM119 - 2018 G7GM119, AS1861

Brand: Matrix Fitness

Category: Single Station

Type: Strength Systems

Model Name: G7-S72-02 - Seated Leg Curl - G7GM119 - 2018

Serial Number Prefix: G7GM119, AS1861

Version: 2018

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700570 001679-00 P13 Tie Strap;Adhesive;Nylon;66;HC-101;W No Model Compatibility List $2.81 / Each

701412 004462-Z Z21 Screw;Hex Socket;Round;M6x1.0Px15L; No Model Compatibility List $1.33 / Each

Screw;Hex Socket;Round;M8x1.25Px15L;Cr;A 701431 004479-ABX F10 Screw;Hex Socket;Round;M8x1.25Px15L;Cr;A No Model Compatibility List $2.00 / Each

Screw;Hex Socket;Round;M8x1.25Px20L;Cr 701436 004482-AB B43 Screw;Hex Socket;Round;M8x1.25Px20L;Cr No Model Compatibility List $2.00 / Each

701455 004503-00 Z37 SCREW;SH;M12X1.75PX60L-30L ;;HS;CRMO;;;P No Model Compatibility List $1.33 / Each

2
701513 004549-00 B59 Screw;Hex Socket;Round;M10x1.5Px55L;Cr; No Model Compatibility List $6.27 / Each

Screw;Hex Socket;8X1.25X20L;Chromed 701660 004696-AB B07 Screw;Hex Socket;8X1.25X20L;Chromed No Model Compatibility List $2.00 / Each

701691 004719-AB B26 Screw;BH;M8X1.25PX12L;;HS;;CHM;;G12.9 No Model Compatibility List $0.39 / Each

701767 004789-AC Z04 Screw;BH;M10X1.5PX75L;;HS;;CHM;;G12.9 No Model Compatibility List $3.69 / Each

701772 004793-00 F02 Screw;Button Head;M10X1.5PX15L;;Hex Sock No Model Compatibility List $3.02 / Each

Set Screw;M6X1.0PX4L 701836 004855-AC Z06 Set Screw;M6X1.0PX4L No Model Compatibility List $1.79 / Each

Screw;Plain Tapping;Rail Lock;5x15L 701851 004870-00 Z19 Screw;Plain Tapping;Rail Lock;5x15L No Model Compatibility List $1.59 / Each

701859 004881-00 F33 NUT;HX;M4X0.7P;SS41;BZN;; No Model Compatibility List $1.01 / Each

NUT;NLK;M5X0.8P;;CHM;; 701892 004924-AB F13 NUT;NLK;M5X0.8P;;CHM;; No Model Compatibility List $1.66 / Each

Nut;Nylon;M8x1.25P;Chromed 701901 004929-00 F12 Nut;Nylon;M8x1.25P;Chromed No Model Compatibility List $2.00 / Each

701970 005009-AB Z03 Washer;Spring;SW8 8.2x15.4x2T;Zinc Plating No Model Compatibility List $2.00 / Each

Washer;Spring;SW10 10.2X18.4X2.5T;Chromed 701981 005017-00 B41 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.33 / Each

Washer;Flat;Diam.X10xDiam.X30x2.0T;;Chro 702006 005043-7 Z28 Washer;Flat;Diam.X10xDiam.X30x2.0T;;Chro No Model Compatibility List $1.66 / Each

702030 005062-00 B21 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.59 / Each

Washer;Flat;5.3X10.0X1.0T;Chromed 702056 005084-00 Z35 Washer;Flat;5.3X10.0X1.0T;Chromed No Model Compatibility List $2.00 / Each

Washer;Flat;8.4x15.5x1.6T;Chromed 702098 005130-00 Z33 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $2.00 / Each

Washer;Flat;13x26x2.5T;Chromed 702102 005132-00 Z03 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
Washer;Flat;8.2x19.0x2.0T;Chromed 702119 005145-AC Z22 Washer;Flat;8.2x19.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

Clamp;E-Shaped Ring;E-15 702250 005377-00 E33 Clamp;E-Shaped Ring;E-15 No Model Compatibility List $0.65 / Each

Cable Tie;Nylon;Black;160L 702299 005811-00 N58 Cable Tie;Nylon;Black;160L No Model Compatibility List $1.51 / Each

Washer;Arc;M10x28x10.5T;SS41 702531 008523-B Z13 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $9.10 / Each

Rubber Bumper;Weight Stack 703901 019151-AA K17 Rubber Bumper;Weight Stack No Model Compatibility List $3.64 / Each

703996 020081-00 Z17 Screw;SH;M8X1.25PX60L;;HS;;;;G12.9 No Model Compatibility List $1.01 / Each

Screw;Hex Socket;Round;M10x1.25Px20L;Chromed 704001 020090-00 G38 Screw;Hex Socket;Round;M10x1.25Px20L;Chromed No Model Compatibility List $4.00 / Each

704079 020196-A C24 Screw;Phillip;BH;Tapped;3x6L;;Zn-BL No Model Compatibility List $4.00 / Each

Screw;BH;M5X0.8PX10L;;HS;;CHM;; 704110 020256-AD Z14 Screw;BH;M5X0.8PX10L;;HS;;CHM;; No Model Compatibility List $0.70 / Each

Set Screw;M6X1.0PX12L 704145 020329-00 1-Feb Set Screw;M6X1.0PX12L No Model Compatibility List $0.21 / Each

Washer;Flat;M10.2X25PX2.0T;Chromed 704193 020465-AB Z03 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

Washer;Flat;5.2X20.0X2.0T;Chromed 704200 020474-00 E32 Washer;Flat;5.2X20.0X2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
705313 040816-A P19 Screw;Phillip;BH;Tapped;3x8L; No Model Compatibility List $2.00 / Each

Screw;Hex Socket;Round;M10x1.5Px20L;Cr; 705465 049256-AB Z03 Screw;Hex Socket;Round;M10x1.5Px20L;Cr; No Model Compatibility List $1.79 / Each

705696 055200-AB Z19 Screw;Hex;M10X1.5PX25L;;HE;;CHM;; No Model Compatibility List $9.10 / Each

707170 1000091018 H13 Stopper Ring;Seat Pad;Pull Pin;GM45 No Model Compatibility List $12.53 / Each

707172 1000091028 C37 Swivel Axle;ADJ Grip;GM45 No Model Compatibility List $1.61 / Each

8,11
707173 1000091060 D14 Spring;CMP;;;;PULL PIN;GM44 No Model Compatibility List $0.86 / Each

707175 1000091091 H08 ADJ Pull Pin;Leg Pad;GM45 No Model Compatibility List $24.83 / Each

12,13,14
707176 1000091092 H09 ADJ Plate;Leg Pad;GM45 No Model Compatibility List $13.26 / Each

3,12,13,14
707427 1000092641 L16 Axle Sleeve;Weight Plate;Rubber;GM40 No Model Compatibility List $7.28 / Each

707428 1000092642 J20 Spring;RCL;;4130CrMo;Spray teflon;GM40 No Model Compatibility List $106.00 / Each

707434 1000092654 AL4 ADJ Base Three;Incremental Weight Plate; No Model Compatibility List $75.37 / Each

707435 1000092656 L43 Nut;HX;M10X1.5PX10L;SS41;CHM;; No Model Compatibility List $0.86 / Each

Plastic Cover;Back Pad;GM40 707439 1000092669 J28 Plastic Cover;Back Pad;GM40 No Model Compatibility List $65.42 / Each

707521 1000093119 D25 Bearing;Rod End;Left THREAD(EXTERNAL);M12;G No Model Compatibility List $41.86 / Each

707522 1000093120 D26 Bearing;Rod End;Right;THREAD(EXTERNAL);M12;G No Model Compatibility List $41.86 / Each

707794 1000095461 C58 Fixing Plate;FRAME;;SPHC;185x75x54.8x3.0 No Model Compatibility List $6.73 / Each

3
Cap;Leg Pad;ABS;GM42 707798 1000095593 C20 Cap;Leg Pad;ABS;GM42 No Model Compatibility List $2.13 / Each

Cap;Leg Pad;ABS;GM42 707799 1000095594 C22 Cap;Leg Pad;ABS;GM42 No Model Compatibility List $1.87 / Each

Rubber Pad;Fixing;GM40 707824 1000096017 Not Shown Rubber Pad;Fixing;GM40 No Model Compatibility List $2.39 / Each

707826 1000096021 L21 Screw;SET;M10X1.5P No Model Compatibility List $0.81 / Each

707828 1000096023 L32 Half-moon Key;20#;GM40 No Model Compatibility List $0.88 / Each

707829 1000096024 Q08 Fixing Base;PC;GM40 No Model Compatibility List $3.35 / Each

707831 1000096026 B32 Fixing Base;Sensor;ABS;GM40 No Model Compatibility List $8.32 / Each

707859 1000096510 D43 Nut;HX;M12X1.75P;SS41;CHM;; No Model Compatibility List $1.38 / Each

707860 1000096511 D44 Nut;HX;M12X1.75P;SS41;CHM;;LEFT KNOB No Model Compatibility List $1.38 / Each

707861 1000096514 B34 Control Board;Matrix;H102;S1.60;GM40 No Model Compatibility List $50.67 / Each

Speed Sensor Wire;1200mm(2.5-5P);GM40 707864 1000096531 B33 Speed Sensor Wire;1200mm(2.5-5P);GM40 No Model Compatibility List $21.84 / Each

Screw;SH;M8X1.25PX25L;;HS;;CHM;;BP 707946 1000097206 F11 Screw;SH;M8X1.25PX25L;;HS;;CHM;;BP No Model Compatibility List $2.00 / Each

708032 1000098050 D22 Pulley Cover;Small;Base;ABS;GM40 No Model Compatibility List $8.79 / Each

708033 1000098051 C20 Bearing Cover;Base;ABS;GM40 No Model Compatibility List $8.24 / Each

708038 1000098134 C61 Pin;Spring;4x20 No Model Compatibility List $1.07 / Each

708051 1000098555 Z61 Washer;Flat;30.3X45X2.0T;SPHC ;WZN; No Model Compatibility List $0.70 / Each

708052 1000098556 Z08 Washer;Wavy;30.5X39.2X0.4T;;; No Model Compatibility List $0.75 / Each

708053 1000098613 D29 Balance Brick;HT200;GM45 No Model Compatibility List $198.72 / Each

708055 1000098615 D24 Screw;SH;M8X1.25PX10L;;;;;;SB No Model Compatibility List $4.94 / Each

2
708056 1000098618 F21 Cover;Cam;Exrta-Work;Sanding;Cr Plate;G No Model Compatibility List $52.68 / Each

9,3
708057 1000098626 H12 ADJ Grip;Semi-Assy;GM45 No Model Compatibility List $23.66 / Each

11
708092 1000099579 H34 Screw;SH;M8X1.25PX12L;;HS;;CHM;;BP No Model Compatibility List $0.60 / Each

708408 1000102696 L13 Dial;GM41 No Model Compatibility List $3.95 / Each

708417 1000102750 D15 Pull Pin;ADJ Pin;45#;GM45-KM No Model Compatibility List $24.28 / Each

708445 1000102861 B65 Screw;Hex Socket;Round;M6x1.0Px25L;Cr Pl No Model Compatibility List $1.38 / Each

Circlip;External C Type;S-12;BED 708484 1000102910 C94 Circlip;External C Type;S-12;BED No Model Compatibility List $1.33 / Each

Screw;Cross;BH;Tapped;4x10L;A Class;ke 708563 1000103438 C15 Screw;Cross;BH;Tapped;4x10L;A Class;ke No Model Compatibility List $0.57 / Each

708588 1000103772 J50 Seat Position Indicator;ABS;GM44 No Model Compatibility List $4.76 / Each

Screw;BH;M5x0.8Px10L;HS;CST;CST;CST;CHM; 708649 1000104672 Z03 Screw;BH;M5x0.8Px10L;HS;CST;CST;CST;CHM; No Model Compatibility List $0.60 / Each

Nut;Nylon;M10x1.5P;G12.9;CHM 708730 1000105174 Z09 Nut;Nylon;M10x1.5P;G12.9;CHM No Model Compatibility List $1.79 / Each

708731 1000105175 J24 Spacer;20#;GM44-KM No Model Compatibility List $3.46 / Each

2,3,4,5,6
708734 1000105191 J52 Screw;FH;M5x0.8Px15L;HS;NKL;BP No Model Compatibility List $0.70 / Each

709061 1000108793 F22 Screw;RND;M5x0.8Px10L;HS;CHM;BP;G8.8 No Model Compatibility List $0.21 / Each

Screw;RND;M5x0.8Px15L;HS;CHM;BP;G8.8 709069 1000108801 Z08 Screw;RND;M5x0.8Px15L;HS;CHM;BP;G8.8 No Model Compatibility List $1.79 / Each

709070 1000108803 L33 Screw;RND;M5x0.8Px12L;HS;CHM;BP;G8.8 No Model Compatibility List $0.34 / Each

709071 1000108804 L36 Screw;BH;M5x0.8Px15L;HS;CHM;BP;G8.8 No Model Compatibility List $0.70 / Each

Screw;RND;M8x1.25Px20L;HS;CHM;BP;G12.9 709072 1000108805 B06 Screw;RND;M8x1.25Px20L;HS;CHM;BP;G12.9 No Model Compatibility List $1.79 / Each

709076 1000108910 L46 Washer;Flat;12.5x23x1.0t;CHM No Model Compatibility List $1.33 / Each

Decal;Pinch Point ;MS21KM-G3 709081 1000109127 V02 Decal;Pinch Point ;MS21KM-G3 No Model Compatibility List $1.77 / Each

709198 1000110841 D11 Grip;Pedal Arm ;wrap rubber;GM42-KM No Model Compatibility List $16.74 / Each

709517 1000200981 K07 Guide Rod;Weight plate No Model Compatibility List $124.83 / Each

Plastic Cover;;ABS;DG;;;GM61; 709543 1000201207 D20 Plastic Cover;;ABS;DG;;;GM61; No Model Compatibility List $1.77 / Each

709718 1000202352 K13 Cushion;Guide Rod No Model Compatibility List $8.42 / Each

709875 1000204186 18 Top Weight Plate Set No Model Compatibility List $379.65 / Each

710475 1000210485 L50 SCREW;SET;M5X0.8PX6L;FLAT POINT;HS;G8.8; No Model Compatibility List $1.66 / Each

710684 1000212387 F13 Fixing Plate;Cable Head;-;45#;BED;GM41; No Model Compatibility List $15.96 / Each

3,4,5,6
711205 1000217603 B63 STOPPER PIECE;INDUCTOR;-;SPHC;ZH;GM40; No Model Compatibility List $3.35 / Each

711206 1000217605 L40 PLASTIC COVER;HEAD PLATE;TPC;;;;GM40; No Model Compatibility List $20.41 / Each

711984 1000224684 Z12 Screw;RND;M10x1.5Px125L;-;HS;-;CHM;BP;G1 No Model Compatibility List $0.00 / Each
Out Of Stock
712810 1000230891 Z35 SCREW;SET;M10X1.5PX65L;FLATHEADED;HS;;;C No Model Compatibility List $3.35 / Each

713056 1000232864 L31 PERMANENT MAGNET;-;1500##;##; No Model Compatibility List $7.28 / Each

Bousing;Round Pad;-;PVC;60x52x30.1L;GM 713500 1000304394 Roller Pad 5 Bousing;Round Pad;-;PVC;60x52x30.1L;GM No Model Compatibility List $1.66 / Each

Plastic Cover;Nut;;;;;; 713740 1000307173 C33 Plastic Cover;Nut;;;;;; No Model Compatibility List $1.66 / Each

714882 1000319417 L30 Fixing Rack;Counte;;painting;;Iced Slive No Model Compatibility List $13.49 / Each

715019 1000320729 AD3 Link Arm;;;painting;;Iced Sliver;GM45-KM No Model Compatibility List $0.00 / Each
Out Of Stock
3
715119 1000320949 18 Link Arm;;;Iced Sliver;GM45-KM;;Service No Model Compatibility List $67.57 / Each

3
716192 1000334510 B17 Fixing Plate;;down;NBR;;;GM40; No Model Compatibility List $16.87 / Each

716193 1000334511 C15 Rubber Foot Pad;Base;;NBR;;;GM40; No Model Compatibility List $10.11 / Each

717511 1000345659 J12 Cap;Elliptical;;TPU;BL/Black C;Diam.50.0 No Model Compatibility List $15.18 / Each

717691 1000346841 Z22 Stopper Plate;Bearing;;SPHC;?35.0x5.0T;; No Model Compatibility List $3.02 / Each

719682 1000363760 V51 Warning Label;Frame;;;PC;;English; No Model Compatibility List $0.00 / Each
Out Of Stock
719683 1000363766 V02 Warning Label;Frame;;;PC;;French;GM40 No Model Compatibility List $5.04 / Each

Cap;Elliptical;;TPU;;Diam.50.0xDiam.100. 720322 1000371560 C18 Cap;Elliptical;;TPU;;Diam.50.0xDiam.100. No Model Compatibility List $6.73 / Each

720625 1000374182 C57 Screw;Set Screw;M8X1.25PX20L;;Hex Socket No Model Compatibility List $0.00 / Each
Out Of Stock
2
720723 1000375328 C33 Cap;Elliptical;;TPU;;Diam.50x150x3T;GM10 No Model Compatibility List $10.11 / Each

721761 1000385488 J25 Screw;Flat Head;M5x0.8Px45L-20L;;Hex Soc No Model Compatibility List $2.21 / Each

2
Spring;Compression;1.3x12.7x38Lx7;SWP; 722509 1000393222 B39 Spring;Compression;1.3x12.7x38Lx7;SWP; No Model Compatibility List $1.66 / Each

722653 1000397041 C52 Chain;Transmission;;;CHM;;PITCH 12.7 No Model Compatibility List $10.11 / Each

722683 1000397609 F11 Pulley;;;NYLON 66+G30%(Anti-fire);Black; No Model Compatibility List $55.74 / Each

722692 1000397778 D12 Stopper Ring;Grip;;;Chrome;ADC12; No Model Compatibility List $16.87 / Each

722693 1000397779 D15 Cap;Grip;;;Chrome;ADC12; No Model Compatibility List $20.25 / Each

722695 1000397803 B12 Stopper Piece;pulley;;SPHC;173x31.5x30x2 No Model Compatibility List $11.80 / Each

722696 1000397819 J03 CON Rod;Seat Adjustment;Chrome;;Black Ma No Model Compatibility List $81.09 / Each

7,3,4,5,6,12,13,14
722701 1000397869 Q99 Cover;;up;ABS/PA757;Deep Grey;740.0x173. No Model Compatibility List $47.29 / Each

722702 1000397883 Q93 Cover;;back;ABS/PA757;Limpid;1104.8x648. No Model Compatibility List $184.18 / Each

722703 1000397892 Q94 Decorte Cover;;up;ABS/PA757;Deep Grey;33 No Model Compatibility List $15.18 / Each

722704 1000397899 Q95 Cover;Frame;Bright Silver;Up;Painting;AD No Model Compatibility List $224.74 / Each

722705 1000397910 Q98 Kettle Plate;;left;ABS;;252.6x121.0x16.0 No Model Compatibility List $16.87 / Each

722706 1000397914 Q97 Kettle Plate;;right;ABS;;252.6x121.0x16. No Model Compatibility List $16.87 / Each

722707 1000397915 Q96 Kettle Plate;;mid;TPU;426C/80393;113.0x7 No Model Compatibility List $6.73 / Each

722709 1000397921 Z06 Screw;Socket Head;M10X1.5PX180L-35L;;Hex No Model Compatibility List $6.73 / Each

722715 1000397982 H05 Cap;Pedal Arm;;;Chrome;ADC12; No Model Compatibility List $20.25 / Each

7,8,9,3,4,5,6,12,13,14
722732 1000398249 L18 Handle Set;Assembly;;Incremental weight No Model Compatibility List $47.29 / Each

Adjustment Pin Assembly;Assembly;;weight 722734 1000398254 L59 Adjustment Pin Assembly;Assembly;;weight No Model Compatibility List $123.34 / Each

722941 1000400775 J11 ADJ plate;Back Pad;;SPHC;410.2x311x6.0t; No Model Compatibility List $111.51 / Each

3,4,5,6,12,13,14
722954 1000401582 J06 CON Rod;Seat Adjustment;Adjustment plate No Model Compatibility List $87.85 / Each

3,12,13,14
722956 1000401608 D26 Swivel Axle-Exreawork;Leg Pad;;cutting;D No Model Compatibility List $28.70 / Each

8,12,13,14
722957 1000401616 F10 Steel Rope;;;;Diam.6.0x2740L;;GM119; No Model Compatibility List $121.65 / Each

1
722970 1000401872 Q26 Hanging Hook;Main Tube;;TPU;Black 6C;;GM No Model Compatibility List $27.01 / Each

722975 1000402011 C41 ADJ plate;Leg Pad;;SPHC;177.8x78.8x6.0t; No Model Compatibility List $69.26 / Each

3,12,13,14
722982 1000402051 F31 Stopper Plate;Cam Stopper;;PA66;;;GM124; No Model Compatibility List $3.02 / Each

723124 1000404050 C47 Grip;Adjustable Handle;down;ABS/PA746;Ye No Model Compatibility List $11.80 / Each

723125 1000404051 C68 Grip;Adjustable Handle;up;ABS/PA746;Yell No Model Compatibility List $8.42 / Each

723129 1000404084 AL2 Incremental Weight Plate Set;Semi-Assy;; No Model Compatibility List $91.23 / Each

3
723209 1000405004 G06 Fixing Plate;Arc;;SPHC;185x83.0x3.0t;;GM No Model Compatibility List $6.73 / Each

3
723280 1000406180 C23 Axle;;;45#;White Zinc;GM119;38.1x146.5; No Model Compatibility List $70.95 / Each

8
723282 1000406202 H13 Stopper Ring;;;20#;;GM119;38.1x17; No Model Compatibility List $20.25 / Each

1
723283 1000406203 H14 Air Stick;;40KG;Diam.18X305L;;;GM119?; No Model Compatibility List $21.94 / Each

1
723356 1000406464 K62 Socket;Power Switch;;PA66+G20%;;110x58x1 No Model Compatibility List $6.73 / Each

723482 1000407026 B12 Stopper Plate;Steel Rope;2;PA66+GF30%;;9 No Model Compatibility List $16.87 / Each

723497 1000407118 AC5 Pull pin-Extrawork;Adjustable;;Cr Plate; No Model Compatibility List $57.43 / Each

3,12,13,14
723505 1000407199 Not Shown hardware set;Assembly;;;GM119; No Model Compatibility List $125.03 / Each

3
723529 1000407812 AC9 Slider Bar Arm Sub;Adjustable;;painting; No Model Compatibility List $67.57 / Each

3
723530 1000407813 Z46 Nut;Hex;M24x1.5Px18L;Grade 8.8;Black Zin No Model Compatibility List $0.00 / Each
Out Of Stock
723531 1000407816 Z47 Washer;Disc Spring;Diam.50xDiam.25.4x1.5 No Model Compatibility List $0.00 / Each
Out Of Stock
723552 1000408107 F21 Ring;Protect;Side;ABS PA757S;;Diam.146x1 No Model Compatibility List $5.04 / Each

723566 1000408504 K09 Fixing Axle;Steel Rope Head;Short;45#;Ch No Model Compatibility List $0.00 / Each
Out Of Stock
8
Stopper Pad;Cam;;PU;BL/Black C;;GM127-KM 723570 1000408854 F16 Stopper Pad;Cam;;PU;BL/Black C;;GM127-KM No Model Compatibility List $10.11 / Each

723584 1000409299 F32 Screw;Flat Head;M4x0.7P-30L;;Hex Socket; No Model Compatibility List $1.33 / Each

723645 1000411321 V06 Instructional Labe;Cover;;;PC;Front;Engl No Model Compatibility List $33.77 / Each

9
723646 1000411322 V07 Instructional Labe;Cover;;;PC;Rear;Engli No Model Compatibility List $33.77 / Each

9
723647 1000411323 Not Shown Manual;Assembly;;English;;GM119-KM; No Model Compatibility List $10.11 / Each

3
723648 1000411324 V10 EN LABEL;;;;PETP;;English;GM119-KM No Model Compatibility List $1.33 / Each

1
723679 1000411786 V15 Spec Label;Weight Plate;10LBS;;PC;;;GM11 No Model Compatibility List $16.87 / Each

723685 1000411806 B36 Manipulate Overlay;;;;;GM111 No Model Compatibility List $2.18 / Each

723686 1000411812 V16 Direction Label;Incremental Weight Plate No Model Compatibility List $3.02 / Each

723860 1000412812 AZ9 Label set;;;;Silver Gray;Advanced config No Model Compatibility List $0.00 / Each
Out Of Stock
723861 1000412813 AZ9 Label set;;;;Orange;Advanced configurati No Model Compatibility List $0.00 / Each
Out Of Stock
1
723862 1000412814 AZ9 Label set;;;;Brown;Advanced configuratio No Model Compatibility List $0.00 / Each
Out Of Stock
723863 1000412815 AZ9 Label set;;;;Pink;Advanced configuration No Model Compatibility List $0.00 / Each
Out Of Stock
12,13,14
723864 1000412816 AZ9 Label set;;;;Gray;Advanced configuration No Model Compatibility List $0.00 / Each
Out Of Stock
1
723865 1000412881 V05 Direction Label;Handlebar;;Yellow;PC;;;G No Model Compatibility List $3.02 / Each

11
723875 1000413039 V03 Decal;Pedal Arm Adjustical;;;PC;;;GM119 No Model Compatibility List $3.02 / Each

7,8,9,3
723876 1000413040 V12 Decal;Leg Pad Adjustable;;;PC;;;GM119 No Model Compatibility List $2.18 / Each

7,3,12,13,14
723877 1000413041 V04 Decal;Leg Pad;Adjustable;;PC;;;GM119 No Model Compatibility List $3.02 / Each

7,3,12,13,14
723878 1000413042 V01 Decal;Back Pad Adjustable;;;PC;;;GM119 No Model Compatibility List $3.02 / Each

7,3,4,5,6,12,13,14
723935 1000413485 B14 Fixing Rack Cover;;D;;;Iced Sliver;GM113 No Model Compatibility List $33.77 / Each

723936 1000413488 F04 Snug Plate;Cam;;painting;;Iced Sliver;GM No Model Compatibility List $8.42 / Each

723939 1000413494 B44 Support Board;Cover;Reat-Up;;;Iced Slive No Model Compatibility List $25.32 / Each

723941 1000413504 B13 Fix Base;Pulley;;painting;;Iced Sliver;G No Model Compatibility List $37.15 / Each

723943 1000413515 B11 Fixing Rack;BRACKET COVER;U;;;Iced Slive No Model Compatibility List $10.11 / Each

723946 1000413542 AJ11 Back Pad Adjustable Set;;;Iced Silver;GM No Model Compatibility List $0.00 / Each
Out Of Stock
723948 1000413579 AB2 Pulley Set;Fixing;;painting;;Iced Sliver No Model Compatibility List $69.26 / Each

723980 1000413780 J41 Bearing Sheath;Base;;ABS/PA757;137C;55x No Model Compatibility List $5.04 / Each

723984 1000413887 K02 Incremental Adjustable Rod-Exreawork;Inc No Model Compatibility List $0.00 / Each
Out Of Stock
3
724056 1000414668 C43 Rubber Piece;Stopper;;SBR;BL/Black C;16x No Model Compatibility List $1.33 / Each

4,5,6
724212 1000416482 D100 Stopper Pad;Pedal Arm Support Set;;PU;BL No Model Compatibility List $11.80 / Each

8,9,3,12,13,14
724214 1000416515 AB1 Frame Set;;;painting;;Iced Sliver;GM119; No Model Compatibility List $0.00 / Each
Out Of Stock
3
724215 1000416527 AC21 Base Set;;;;GM119;;Iced Sliver No Model Compatibility List $0.00 / Each
Out Of Stock
3
724216 1000416541 AC8 ConnectingTube Set;;Front-Up;;;Iced Sliv No Model Compatibility List $0.00 / Each
Out Of Stock
3
724217 1000416548 AC7 ConnectingTube Set;;Rear;painting;;Iced No Model Compatibility List $0.00 / Each
Out Of Stock
3
724218 1000416556 AC13 Adjustment Pin Assembly;;;;GM119;;Iced S No Model Compatibility List $92.92 / Each

3,12,13,14
724219 1000416570 AC11 Link Set;;;;GM119;;Iced Sliver No Model Compatibility List $0.00 / Each
Out Of Stock
3
724221 1000416599 1 pedal arm set;;;;GM119;;Iced Sliver No Model Compatibility List $446.13 / Each

8,9,3
724222 1000416606 AD01 pedal arm set;;;;GM119;;Iced Sliver No Model Compatibility List $0.00 / Each
Out Of Stock
8,9,3
724223 1000416623 2 Adjustment set;Leg Pad;;;GM119;;Iced Sli No Model Compatibility List $266.99 / Each

12,13,14
724224 1000416631 AD2 Leg Pad ADJ;;;painting;;Iced Sliver;GM11 No Model Compatibility List $0.00 / Each
Out Of Stock
12,13,14
724247 1000416685 AD4 Leg Pad;;;painting;;Iced Sliver;GM119; No Model Compatibility List $0.00 / Each
Out Of Stock
12,13,14
724248 1000416692 AF1 Cam;;;painting;;Iced Sliver;GM119; No Model Compatibility List $299.10 / Each

1
724249 1000416708 3 Cam set;Semi-Assy;;Iced Sliver;;;GM119;s No Model Compatibility List $375.15 / Each

1
724250 1000416715 AF21 CAM SET;Assembly;;;GM119;;Iced Sliver No Model Compatibility List $0.00 / Each
Out Of Stock
3
724251 1000416724 4 Leg Press Set;Assembly;;;GM119;;Iced Sli No Model Compatibility List $403.88 / Each

3
724252 1000416736 AH21 Leg Press Set;;;;GM119;;Iced Sliver No Model Compatibility List $0.00 / Each
Out Of Stock
1
724376 1000418768 V06 Instructional Labe;Cover;;;PC;Front;Fren No Model Compatibility List $0.00 / Each
Out Of Stock
9
724377 1000418769 V07 Instructional Labe;Cover;;;PC;Rear;Frenc No Model Compatibility List $0.00 / Each
Out Of Stock
9
724480 1000420609 C63 protect piece;Cam;;painting;;Iced Sliver No Model Compatibility List $0.00 / Each
Out Of Stock
1
724713 1000424165 Q95 Cover;Frame;U;painting;;Black Matte;GM11 No Model Compatibility List $174.04 / Each

725362 070571 L38 Washer;Flat;5.2X10.0X1.5T;;CHM; No Model Compatibility List $0.49 / Each

Screw;SH;M10X1.5PX80L;;HS;;CHM;; 725411 070970 Z01 Screw;SH;M10X1.5PX80L;;HS;;CHM;; No Model Compatibility List $112.29 / Each

726162 080409 C38 Screw;TH;M6X1.0PX25L;;HS;;;;; No Model Compatibility List $1.66 / Each

726987 086517 H65 Screw;Round Hex Socket;M10x1.5Px25L No Model Compatibility List $3.64 / Each

728057 092924 D36 Screw;Hex Scoket;Round;M8x1.25Px10L;Cr;A No Model Compatibility List $0.52 / Each

Foot Pad;Adjustable;M12X58H;12.9;EP304; 728614 0000095638 J15 Foot Pad;Adjustable;M12X58H;12.9;EP304; Yes Model Compatibility List $33.85 / Each

CON Plate; Cap;SPHC3.0t;GM42 728704 096073 H12 CON Plate; Cap;SPHC3.0t;GM42 No Model Compatibility List $2.37 / Each

Stopper Ring;Cap;AL6061;GM42 728705 096074 H13 Stopper Ring;Cap;AL6061;GM42 No Model Compatibility List $19.81 / Each

728707 096088 AK1 Weght Plate Set;12.5P;GM41 No Model Compatibility List $67.57 / Each

728712 096123 D35 Pull Pin;GM43 No Model Compatibility List $14.25 / Each

728715 096140 D27 Pull Pin;ADJ Pin;45#;GM44 No Model Compatibility List $24.28 / Each

728716 096148 C29 Axle;CON Rod;Zn;GM44 No Model Compatibility List $6.24 / Each

Pull Pin;GM44 728720 096166 D31 Pull Pin;GM44 No Model Compatibility List $4.71 / Each

728917 098979 B16 Sleeve;CON Dode;Peadel Arm;45#;GM40 No Model Compatibility List $3.35 / Each

728920 098985 Q02 Weight Stack Shield;Front;ABS;GM40 No Model Compatibility List $147.63 / Each

728923 098988 Q04 Cover;Front;ABS;GM40 No Model Compatibility List $147.63 / Each

728930 099052 L12 ADJ Base;L;Incremental Weight Plate;GM40 No Model Compatibility List $23.50 / Each

728931 099053 L03 ADJ Base;R;Incremental Weight Plate;GM40 No Model Compatibility List $1.98 / Each

728933 099056 L07 U;Cover;IncrementalWeightPlate;20#;GM40 No Model Compatibility List $23.50 / Each

728937 099064 L17 Sleeve;D;IncrementalWeight Plate;POM;GM4 No Model Compatibility List $5.64 / Each

729261 See Pad Matrix J01 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock
Bearing Rod End Left Knob Outside Screw 707521 1000093119 Bearing Rod End Left Knob Outside Screw No Model Compatibility List $38.29 / Each

Lithium and Iron Disulfide Battery 730059 1000096574 B35 Lithium and Iron Disulfide Battery No Model Compatibility List $0.00 / Each
Out Of Stock
Washer;Spring;8.2X15.4X2.0T;Chromed 730061 005009-00 Z28 Washer;Spring;8.2X15.4X2.0T;Chromed No Model Compatibility List $0.00 / Each
Out Of Stock
Cable Fix Button;KSS/UC-2 730132 001678-A P33 Cable Fix Button;KSS/UC-2 No Model Compatibility List $1.28 / Each

Screw;Button Head;M5x10L;GND;Cutting;Phi 730479 1000417018 P25 Screw;Button Head;M5x10L;GND;Cutting;Phi No Model Compatibility List $1.02 / Each

Antena board;;;GAT-MAXI LA 3.1;;;EP614C; 730547 1000355791 W12 Antena board;;;GAT-MAXI LA 3.1;;;EP614C; No Model Compatibility List $89.68 / Each

Transmission Set;Semi-Assy;A;;;;PAS1861- 730660 1000414106 1 Transmission Set;Semi-Assy;A;;;;PAS1861- No Model Compatibility List $558.98 / Each

Power Switch Set;Semi-Assy;;;;;AS1861; 730661 1000417259 3 Power Switch Set;Semi-Assy;;;;;AS1861; No Model Compatibility List $158.58 / Each

RFID SET;Semi-Assy;;;;;AS1861; 730662 1000419076 4 RFID SET;Semi-Assy;;;;;AS1861; No Model Compatibility List $384.78 / Each

Sensor set;Semi-Assy;;;;;AS1861; 730663 1000398787 AB03 Sensor set;Semi-Assy;;;;;AS1861; No Model Compatibility List $462.78 / Each

Support Board;;;painting;;Black Matte;AS 730664 1000408949 B01 Support Board;;;painting;;Black Matte;AS No Model Compatibility List $45.48 / Each

Connet Sleeve;;;20#;Zinc;AS1861;Diam.14x 730665 1000398704 B04 Connet Sleeve;;;20#;Zinc;AS1861;Diam.14x No Model Compatibility List $10.38 / Each

Stopper Block;Steel Rope;;PA6+G15%;;50x3 730666 1000399163 B23 Stopper Block;Steel Rope;;PA6+G15%;;50x3 No Model Compatibility List $2.32 / Each

SLEEVE;;;20#;Chrome;AS1861;Diam.20x11.55 730667 1000398534 B26 SLEEVE;;;20#;Chrome;AS1861;Diam.20x11.55 No Model Compatibility List $7.78 / Each

Permanent Magnet;Two-sided;Diam.3x 3.0T; 730668 1000399147 B27 Permanent Magnet;Two-sided;Diam.3x 3.0T; No Model Compatibility List $1.02 / Each

Support Board;Pulley;;painting;;Black Ma 730669 1000402429 B51 Support Board;Pulley;;painting;;Black Ma No Model Compatibility List $18.18 / Each

Cover;Pulley;left;ABS;;130x122.7x16;AS18 730670 1000398706 B91 Cover;Pulley;left;ABS;;130x122.7x16;AS18 No Model Compatibility List $5.18 / Each

Cover;Pulley;right;ABS;;130x122.7x36;AS1 730671 1000398705 B92 Cover;Pulley;right;ABS;;130x122.7x36;AS1 No Model Compatibility List $5.18 / Each

Protect Sleeve;Power Switch;;PA66;;;AS18 730672 1000406463 K04 Protect Sleeve;Power Switch;;PA66;;;AS18 No Model Compatibility List $5.18 / Each

Cover;Power;up;ABS Fire;;;AS1861; 730673 1000415728 K07 Cover;Power;up;ABS Fire;;;AS1861; No Model Compatibility List $27.28 / Each

Cover;Power;down;ABS Fire;;;AS1861; 730674 1000415731 K08 Cover;Power;down;ABS Fire;;;AS1861; No Model Compatibility List $14.28 / Each

Boot-Extrawork;;;line cutting;Diam.10.0x 730675 1000417231 K12 Boot-Extrawork;;;line cutting;Diam.10.0x No Model Compatibility List $2.32 / Each

Foam;;BLACK;223.6x5x3mm;;EP625; 730676 1000375452 N01 Foam;;BLACK;223.6x5x3mm;;EP625; No Model Compatibility List $1.02 / Each

Foam;;BLACK;;;EP625; 730677 1000375453 N02 Foam;;BLACK;;;EP625; No Model Compatibility List $1.02 / Each

Foam;;BLACK;116.2x5x3mm;;EP625; 730678 1000379358 N03 Foam;;BLACK;116.2x5x3mm;;EP625; No Model Compatibility List $1.02 / Each

Exchanged Board;;;HDPD;;;;RFID; 730679 1000402205 N10 Exchanged Board;;;HDPD;;;;RFID; No Model Compatibility List $59.78 / Each

Control Board;;;HFPF;V16;;;Load cell 730680 1000398108 N44 Control Board;;;HFPF;V16;;;Load cell No Model Compatibility List $45.48 / Each

Control Board Module;10 inch;;OS2.1.4.0; 730681 1000441967 N61 Control Board Module;10 inch;;OS2.1.4.0; No Model Compatibility List $0.00 / Each
Out Of Stock
USB Wire;;;;;;150;; 730682 1000405556 N62 USB Wire;;;;;;150;; No Model Compatibility List $5.18 / Each

Console Wire Set;;;;;;800;Molex70066 50- 730683 1000405558 N63 Console Wire Set;;;;;;800;Molex70066 50- No Model Compatibility List $11.68 / Each

Console Extension Wire;;;;;;600;MOLEX 70 730684 1000406930 N64 Console Extension Wire;;;;;;600;MOLEX 70 No Model Compatibility List $14.28 / Each

Console Ground Wire;;;;;;400+150;Diam.5+ 730685 1000407217 N65 Console Ground Wire;;;;;;400+150;Diam.5+ No Model Compatibility List $3.88 / Each

Console Ground Wire;;;;;;500+400;Diam.3+ 730686 1000407223 N66 Console Ground Wire;;;;;;500+400;Diam.3+ No Model Compatibility List $5.18 / Each

Console Ground Wire;;;;;UL1015 16AWG;100 730687 1000408705 N67 Console Ground Wire;;;;;UL1015 16AWG;100 No Model Compatibility List $3.88 / Each

Memory card set;;TF?;Sandisk 8G;;ITC; 730688 1000403396 N68 Memory card set;;TF?;Sandisk 8G;;ITC; No Model Compatibility List $33.78 / Each

hardware set;Assembly;;;PAS1861-2KM; 730689 1000398560 Not Shown hardware set;Assembly;;;PAS1861-2KM; No Model Compatibility List $7.78 / Each

Manual;Console;;;NA/Europe;AS1861?; 730690 1000418071 Not Shown Manual;Console;;;NA/Europe;AS1861?; No Model Compatibility List $0.00 / Each
Out Of Stock
Power Switch Set;;;;;;85+85+85;KST 250x2 730691 1000399107 P01 Power Switch Set;;;;;;85+85+85;KST 250x2 No Model Compatibility List $14.28 / Each

Network Signal Wire;;;;;;800;TKP H6630R1 730692 1000402104 P03 Network Signal Wire;;;;;;800;TKP H6630R1 No Model Compatibility List $9.08 / Each

DC Power Wire;;;;;;2200;Molex70066+CWB:V 730693 1000399109 P05 DC Power Wire;;;;;;2200;Molex70066+CWB:V No Model Compatibility List $9.08 / Each

USB Wire;;;;;;1000;(JST,XAP-06V-1)x2;; 730694 1000399111 P06 USB Wire;;;;;;1000;(JST,XAP-06V-1)x2;; No Model Compatibility List $7.78 / Each

Signal ConnectN Wire;;;;;;70;JST,ZHR-06+ 730695 1000403042 P08 Signal ConnectN Wire;;;;;;70;JST,ZHR-06+ No Model Compatibility List $5.18 / Each

Filter Wire;;;;;;;BF1115B-3A;90+90+80; 730696 1000407137 P10 Filter Wire;;;;;;;BF1115B-3A;90+90+80; No Model Compatibility List $19.48 / Each

Ground Wire;;;;;;2200;RFID;Diam.5+Diam.5 730697 1000410680 P11 Ground Wire;;;;;;2200;RFID;Diam.5+Diam.5 No Model Compatibility List $5.18 / Each

Adapter;;100-240V;Out,12V/3A;; 730698 1000410690 P12 Adapter;;100-240V;Out,12V/3A;; No Model Compatibility List $38.98 / Each

Ground Wire;;;;;16AWG;;Diam.5; 730699 1000415793 P13 Ground Wire;;;;;16AWG;;Diam.5; No Model Compatibility List $1.68 / Each

TIE STRAP ADHESIVE;;KSS/UC-3;;;;AS1861 730700 1000411962 P21 TIE STRAP ADHESIVE;;KSS/UC-3;;;;AS1861 No Model Compatibility List $1.02 / Each

Cover;Display;front;ABS;;332.1x229.8x37. 730701 1000398589 Q01 Cover;Display;front;ABS;;332.1x229.8x37. No Model Compatibility List $22.08 / Each

Cover;Display;back;ABS;;331.1x227.5x53.3 730702 1000398596 Q02 Cover;Display;back;ABS;;331.1x227.5x53.3 No Model Compatibility List $12.98 / Each

Cover;Display;back;ABS;;228.9x179.4x19.1 730703 1000398609 Q03 Cover;Display;back;ABS;;228.9x179.4x19.1 No Model Compatibility List $7.78 / Each

WIFI Wireness module Set;;;;EP625;; 730704 1000385354 W80 WIFI Wireness module Set;;;;EP625;; No Model Compatibility List $148.18 / Each

SCREW;RND;M5X0.8PX8L;;PH;;CHM;; 730705 004326-AB Z12 SCREW;RND;M5X0.8PX8L;;PH;;CHM;; No Model Compatibility List $1.02 / Each

Washer;Flat;Diam.6.2xDiam.12.0x2.0T;;Chr 730706 005155-ZA Z14 Washer;Flat;Diam.6.2xDiam.12.0x2.0T;;Chr No Model Compatibility List $1.28 / Each

Screw;RND;M3x8L;-;PH;-;WZN;-;-;ROHS; 730707 068287-00 Z24 Screw;RND;M3x8L;-;PH;-;WZN;-;-;ROHS; No Model Compatibility List $1.48 / Each

Fix Base;;;painting;;Black Matte;AS1861; 730708 1000398618 AD2 Fix Base;;;painting;;Black Matte;AS1861; No Model Compatibility List $0.00 / Each
Out Of Stock
Sliding Pulley Set;Semi-Assy;;;;;AS1861; 730709 1000398124 B24 Sliding Pulley Set;Semi-Assy;;;;;AS1861; No Model Compatibility List $0.00 / Each
Out Of Stock
Support Board;Console;Inner;painting;;Bl 730710 1000402422 D06 Support Board;Console;Inner;painting;;Bl No Model Compatibility List $0.00 / Each
Out Of Stock
Fixing Base;;;ABS+PC;;195x60x19.2;PAS186 730711 1000398716 N04 Fixing Base;;;ABS+PC;;195x60x19.2;PAS186 No Model Compatibility List $0.00 / Each
Out Of Stock
Foam;;BLACK;80.0x5.0x3.0t;;SSA 730712 1000416684 N14 Foam;;BLACK;80.0x5.0x3.0t;;SSA No Model Compatibility List $0.00 / Each
Out Of Stock
Warning Label;;POWER BOX;;;;;SSA 730713 1000414740 V11 Warning Label;;POWER BOX;;;;;SSA No Model Compatibility List $0.00 / Each
Out Of Stock
CE Label;Console;;;PC;;English;SSA 730714 1000414756 V15 CE Label;Console;;;PC;;English;SSA No Model Compatibility List $0.00 / Each
Out Of Stock
Decal;Console;FCC;;;;;SSA#; 730715 1000414838 V20 Decal;Console;FCC;;;;;SSA#; No Model Compatibility List $0.00 / Each
Out Of Stock
Console set;Semi-Assy;;;;;AS1861; D/C - Part will show as orderable until stock is depleted. 730716 1000414107 2 Console set;Semi-Assy;;;;;AS1861; D/C - Part will show as orderable until stock is depleted. No Model Compatibility List $0.00 / Each
Out Of Stock
Control Board Module;10 inch;;OS2.1.0.0; 730717 1000402112 N61 Control Board Module;10 inch;;OS2.1.0.0; No Model Compatibility List $0.00 / Each
Out Of Stock
Manual set;Semi-Assy;;;;English;AS1861; 730718 1000398533 Not Shown Manual set;Semi-Assy;;;;English;AS1861; No Model Compatibility List $0.00 / Each
Out Of Stock
Washer;Flat;8.4X15.5X1.6T 730719 005040-AB Z07 Washer;Flat;8.4X15.5X1.6T No Model Compatibility List $0.00 / Each
Out Of Stock
Screw;TH;M6X1.0PX25L;;HS;;;;; 730727 0000080409 C54 Screw;TH;M6X1.0PX25L;;HS;;;;; No Model Compatibility List $1.68 / Each

Nut;Hex;M14x2.0Px11T;G10;Chrome; 730728 1000408501 D33 Jam Nut Nut;Hex;M14x2.0Px11T;G10;Chrome; No Model Compatibility List $1.68 / Each

Screw;Round Hex Socket;M10x1.5Px25L 730925 0000086517 D43 Screw;Round Hex Socket;M10x1.5Px25L No Model Compatibility List $1.02 / Each

Screw;SH;M8X1.25PX15L;;HS;;CHM;;BP 732173 004479-AB B16 Screw;SH;M8X1.25PX15L;;HS;;CHM;;BP No Model Compatibility List $0.00 / Each
Out Of Stock
View Drawing
