Brand: Matrix Fitness
Category: Single Station
Type: Strength Systems

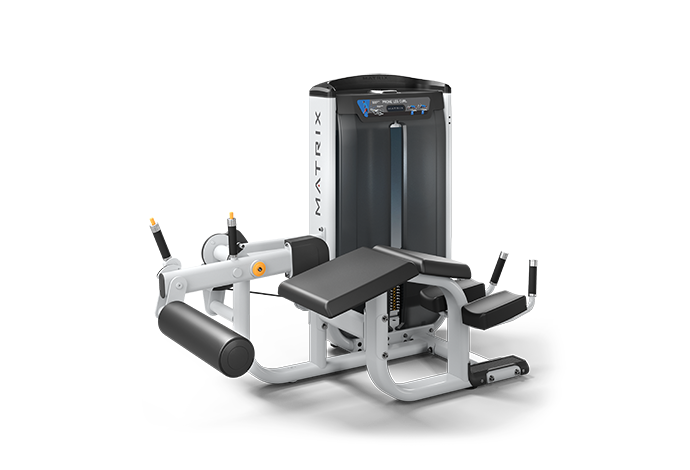

Model Name: G7-S73B-02 - G7-S73BH-02 - GM227 - Ultra Base Prone Leg Curl - 2020
Serial Number Prefix: G7GM227, G7GM227H
Version: 2020
"Used Only" - contact us if interested in used or refurbished parts. Send us mail:
XImage | Catalog # | MPN | Part List Key | Quantity On Model | Part Description | Notes | Available Used | Model Compatibility List | New price |
---|---|---|---|---|---|---|---|---|---|
701513 | 004549-00 | B59 | Screw;Hex Socket;Round;M10x1.5Px55L;Cr; | No | Model Compatibility List | $6.27 / Each |
|||
![]() |
701660 | 004696-AB | B07 | Screw;Hex Socket;8X1.25X20L;Chromed | No | Model Compatibility List | $2.00 / Each |
||
701691 | 004719-AB | B26 | Screw;BH;M8X1.25PX12L;;HS;;CHM;;G12.9 | No | Model Compatibility List | $0.39 / Each |
|||
701772 | 004793-00 | F02 | Screw;Button Head;M10X1.5PX15L;;Hex Sock | No | Model Compatibility List | $3.02 / Each |
|||
![]() |
701836 | 004855-AC | Z06 | Set Screw;M6X1.0PX4L | No | Model Compatibility List | $1.79 / Each |
||
701859 | 004881-00 | F33 | NUT;HX;M4X0.7P;SS41;BZN;; | No | Model Compatibility List | $1.01 / Each |
|||
![]() |
701901 | 004929-00 | F12 | Nut;Nylon;M8x1.25P;Chromed | No | Model Compatibility List | $2.00 / Each |
||
![]() |
701970 | 005009-AB | Z03 | Washer;Spring;SW8 8.2x15.4x2T;Zinc Plating | No | Model Compatibility List | $2.00 / Each |
||
![]() |
701981 | 005017-00 | B41 | Washer;Spring;SW10 10.2X18.4X2.5T;Chromed | No | Model Compatibility List | $1.33 / Each |
||
![]() |
702006 | 005043-7 | Z28 | Washer;Flat;Diam.X10xDiam.X30x2.0T;;Chro | No | Model Compatibility List | $1.66 / Each |
||
![]() |
702030 | 005062-00 | B21 | Washer;Flat;10.2x19x2.0T;Chromed | No | Model Compatibility List | $1.59 / Each |
||
![]() |
702119 | 005145-AC | Z22 | Washer;Flat;8.2x19.0x2.0T;Chromed | No | Model Compatibility List | $2.00 / Each |
||
![]() |
702250 | 005377-00 | E33 | Clamp;E-Shaped Ring;E-15 | No | Model Compatibility List | $0.65 / Each |
||
702325 | 006078-00 | V18 | Decal;Grounding;TM08 | No | Model Compatibility List | $1.90 / Each |
|||
![]() |
702531 | 008523-B | Z13 | Washer;Arc;M10x28x10.5T;SS41 | No | Model Compatibility List | $9.10 / Each |
||
![]() |
702711 | 009356-B | C46 | Stopper Mast;Foam;AL6061;GM03 | No | Model Compatibility List | $3.64 / Each |
||
![]() |
702721 | 009371-E | C26 | Cap;Grip;GM03 | No | Model Compatibility List | $15.34 / Each |
||
![]() |
703901 | 019151-AA | K17 | Rubber Bumper;Weight Stack | No | Model Compatibility List | $3.64 / Each |
||
703996 | 020081-00 | Z17 | Screw;SH;M8X1.25PX60L;;HS;;;;G12.9 | No | Model Compatibility List | $1.01 / Each |
|||
704127 | 020294-00 | Z13 | SCREW;BH;M10X1.5PX20L;;HS;;CHM;; | No | Model Compatibility List | $1.85 / Each |
|||
![]() |
704193 | 020465-AB | Z03 | Washer;Flat;M10.2X25PX2.0T;Chromed | No | Model Compatibility List | $1.79 / Each |
||
![]() |
705020 | 029526-A | P33 | SCREW;BH;?X3X19L;SM;PH;;;;POT | No | Model Compatibility List | $1.85 / Each |
||
705696 | 055200-AB | Z19 | Screw;Hex;M10X1.5PX25L;;HE;;CHM;; | No | Model Compatibility List | $9.10 / Each |
|||
707173 | 1000091060 | D14 | Spring;CMP;;;;PULL PIN;GM44 | No | Model Compatibility List | $0.86 / Each |
|||
707431 | 1000092646 | L02 | Axle Sleeve;Guide Rod;23X20X15L;GM40 | No | Model Compatibility List | $5.46 / Each |
|||
![]() |
707798 | 1000095593 | C20 | Cap;Leg Pad;ABS;GM42 | No | Model Compatibility List | $2.13 / Each |
||
![]() |
707799 | 1000095594 | C22 | Cap;Leg Pad;ABS;GM42 | No | Model Compatibility List | $1.87 / Each |
||
![]() |
707824 | 1000096017 | Not Shown | Rubber Pad;Fixing;GM40 | No | Model Compatibility List | $2.39 / Each |
||
707829 | 1000096024 | Q08 | Fixing Base;PC;GM40 | No | Model Compatibility List | $3.35 / Each |
|||
![]() |
707946 | 1000097206 | F11 | Screw;SH;M8X1.25PX25L;;HS;;CHM;;BP | No | Model Compatibility List | $2.00 / Each |
||
708016 | 1000097806 | D23 | ADJ Plate;Peadal;GM54 | No | Model Compatibility List | $38.84 / Each |
|||
708033 | 1000098051 | C20 | Bearing Cover;Base;ABS;GM40 | No | Model Compatibility List | $8.24 / Each |
|||
708051 | 1000098555 | Z61 | Washer;Flat;30.3X45X2.0T;SPHC ;WZN; | No | Model Compatibility List | $0.70 / Each |
|||
708052 | 1000098556 | Z08 | Washer;Wavy;30.5X39.2X0.4T;;; | No | Model Compatibility List | $0.75 / Each |
|||
708092 | 1000099579 | H34 | Screw;SH;M8X1.25PX12L;;HS;;CHM;;BP | No | Model Compatibility List | $0.60 / Each |
|||
708417 | 1000102750 | D15 | Pull Pin;ADJ Pin;45#;GM45-KM | No | Model Compatibility List | $24.28 / Each |
|||
![]() |
708486 | 1000102912 | M14 | Circlip;External C Type;S-30;BED | No | Model Compatibility List | $2.00 / Each |
||
![]() |
708563 | 1000103438 | C15 | Screw;Cross;BH;Tapped;4x10L;A Class;ke | No | Model Compatibility List | $0.57 / Each |
||
![]() |
708649 | 1000104672 | Z03 | Screw;BH;M5x0.8Px10L;HS;CST;CST;CST;CHM; | No | Model Compatibility List | $0.60 / Each |
||
![]() |
708675 | 1000104705 | K19 | Screw;RND;M6x1.0Px15L;HS;CHM;BP;G8.8 | No | Model Compatibility List | $0.52 / Each |
||
![]() |
708730 | 1000105174 | Z09 | Nut;Nylon;M10x1.5P;G12.9;CHM | No | Model Compatibility List | $1.79 / Each |
||
709041 | 1000108501 | B16 | Bushing;CON Rod;Peadel Arm;painting;GM40 | No | Model Compatibility List | $2.78 / Each |
|||
709061 | 1000108793 | F22 | Screw;RND;M5x0.8Px10L;HS;CHM;BP;G8.8 | No | Model Compatibility List | $0.21 / Each |
|||
![]() |
709069 | 1000108801 | Z08 | Screw;RND;M5x0.8Px15L;HS;CHM;BP;G8.8 | No | Model Compatibility List | $1.79 / Each |
||
![]() |
709072 | 1000108805 | B06 | Screw;RND;M8x1.25Px20L;HS;CHM;BP;G12.9 | No | Model Compatibility List | $1.79 / Each |
||
![]() |
709307 | 1000112985 | B13 | Elastomer;Weight Plate;GM59 | No | Model Compatibility List | $16.87 / Each |
||
709517 | 1000200981 | K07 | Guide Rod;Weight plate | No | Model Compatibility List | $124.83 / Each |
|||
709718 | 1000202352 | K13 | Cushion;Guide Rod | No | Model Compatibility List | $8.42 / Each |
|||
710644 | 1000211532 | Z53 | SCREW;RND;M10X1.5PX20L;-;HS;G12.9;CHM; | No | Model Compatibility List | $2.44 / Each |
|||
![]() |
710685 | 1000212388 | F08 | Fixing Plate;Cable Head-;45#;BED;GM40; | No | Model Compatibility List | $21.53 / Each |
||
711042 | 1000216132 | D20 | BALANCE PLATE;-;14.5KG;-;-;HT200; | No | Model Compatibility List | $237.25 / Each |
|||
712810 | 1000230891 | Z35 | SCREW;SET;M10X1.5PX65L;FLATHEADED;HS;;;C | No | Model Compatibility List | $3.35 / Each |
|||
![]() |
713500 | 1000304394 | Roller Pad 5 | Bousing;Round Pad;-;PVC;60x52x30.1L;GM | No | Model Compatibility List | $1.66 / Each |
||
![]() |
713698 | 1000306613 | Z08 | Screw;Socket Head;M10X1.5PX150L;;Hex Soc | No | Model Compatibility List | $6.73 / Each |
||
![]() |
713740 | 1000307173 | C33 | Plastic Cover;Nut;;;;;; | No | Model Compatibility List | $1.66 / Each |
||
714884 | 1000319422 | Not Shown | Frame Fix Plate;;;painting;;Iced Sliver; | No | Model Compatibility List | $16.87 / Each |
|||
716192 | 1000334510 | B17 | Fixing Plate;;down;NBR;;;GM40; | No | Model Compatibility List | $16.87 / Each |
|||
716193 | 1000334511 | C15 | Rubber Foot Pad;Base;;NBR;;;GM40; | No | Model Compatibility List | $10.11 / Each |
|||
![]() |
717480 | 1000345425 | K28 | Stopper Ring;Guide Rod;;;Chrome;GM41;; | No | Model Compatibility List | $18.23 / Each |
||
717511 | 1000345659 | J12 | Cap;Elliptical;;TPU;BL/Black C;Diam.50.0 | No | Model Compatibility List | $15.18 / Each |
|||
717691 | 1000346841 | Z22 | Stopper Plate;Bearing;;SPHC;?35.0x5.0T;; | No | Model Compatibility List | $3.02 / Each |
|||
719682 | 1000363760 | V51 | Warning Label;Frame;;;PC;;English; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
![]() |
720322 | 1000371560 | C18 | Cap;Elliptical;;TPU;;Diam.50.0xDiam.100. | No | Model Compatibility List | $6.73 / Each |
||
![]() |
720362 | 1000371997 | F05 | Buffer Block;Stopper;;NBR;;;GM105; | No | Model Compatibility List | $3.02 / Each |
||
![]() |
720986 | 1000379292 | B20 | Foam;;;24x5.0tx120L;Grip;GM104-KM | No | Model Compatibility List | $6.73 / Each |
||
722683 | 1000397609 | F11 | Pulley;;;NYLON 66+G30%(Anti-fire);Black; | No | Model Compatibility List | $55.74 / Each |
|||
722695 | 1000397803 | B12 | Stopper Piece;pulley;;SPHC;173x31.5x30x2 | No | Model Compatibility List | $11.80 / Each |
|||
722701 | 1000397869 | Q99 | Cover;;up;ABS/PA757;Deep Grey;740.0x173. | No | Model Compatibility List | $47.29 / Each |
|||
722702 | 1000397883 | Q93 | Cover;;back;ABS/PA757;Limpid;1104.8x648. | No | Model Compatibility List | $184.18 / Each |
|||
722705 | 1000397910 | Q98 | Kettle Plate;;left;ABS;;252.6x121.0x16.0 | No | Model Compatibility List | $16.87 / Each |
|||
722706 | 1000397914 | Q97 | Kettle Plate;;right;ABS;;252.6x121.0x16. | No | Model Compatibility List | $16.87 / Each |
|||
722707 | 1000397915 | Q96 | Kettle Plate;;mid;TPU;426C/80393;113.0x7 | No | Model Compatibility List | $6.73 / Each |
|||
722883 | 1000399677 | Z09 | Screw;Socket Head;M10X1.5PX130L-35L;;Hex | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
722982 | 1000402051 | F31 | Stopper Plate;Cam Stopper;;PA66;;;GM124; | No | Model Compatibility List | $3.02 / Each |
|||
723005 | 1000402437 | D18 | Stopper Mast;SPECIAL BOLT;2;45#;Hard Cr; | No | Model Compatibility List | $15.18 / Each |
|||
723006 | 1000402439 | D22 | Adjustable Axle;Seat Pad;;45#;Hard Cr;GM | No | Model Compatibility List | $33.77 / Each |
|||
723007 | 1000402465 | AF3 | Steel Rope-Extrawork;frame;;Press Rope H | No | Model Compatibility List | $130.10 / Each |
|||
723009 | 1000402488 | Not Shown | hardware set;;;;GM127-KM; | No | Model Compatibility List | $101.37 / Each |
|||
723356 | 1000406464 | K62 | Socket;Power Switch;;PA66+G20%;;110x58x1 | No | Model Compatibility List | $6.73 / Each |
|||
723481 | 1000407013 | C26 | Pedal;Base;up;SBR;;;GM127-KM; | No | Model Compatibility List | $64.19 / Each |
|||
723482 | 1000407026 | B12 | Stopper Plate;Steel Rope;2;PA66+GF30%;;9 | No | Model Compatibility List | $16.87 / Each |
|||
723530 | 1000407813 | Z46 | Nut;Hex;M24x1.5Px18L;Grade 8.8;Black Zin | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
723531 | 1000407816 | Z47 | Washer;Disc Spring;Diam.50xDiam.25.4x1.5 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
723552 | 1000408107 | F21 | Ring;Protect;Side;ABS PA757S;;Diam.146x1 | No | Model Compatibility List | $5.04 / Each |
|||
![]() |
723570 | 1000408854 | F16 | Stopper Pad;Cam;;PU;BL/Black C;;GM127-KM | No | Model Compatibility List | $10.11 / Each |
||
723584 | 1000409299 | F32 | Screw;Flat Head;M4x0.7P-30L;;Hex Socket; | No | Model Compatibility List | $1.33 / Each |
|||
723590 | 1000409499 | F10 | ADJ plate;Cam;;Stainless Steel;160.8x55. | No | Model Compatibility List | $47.29 / Each |
|||
723679 | 1000411786 | V15 | Spec Label;Weight Plate;10LBS;;PC;;;GM11 | No | Model Compatibility List | $16.87 / Each |
|||
723690 | 1000411817 | V12 | Direction Label;ROM Adjustical;14.0x14.0 | No | Model Compatibility List | $1.33 / Each |
|||
723926 | 1000413463 | V01 | Instructional Labe;Cover;;;PC;Front;Engl | No | Model Compatibility List | $33.77 / Each |
|||
723927 | 1000413467 | V29 | Instructional Labe;Cover;;;PC;Rear;Engli | No | Model Compatibility List | $33.77 / Each |
|||
723928 | 1000413469 | V03 | Adjustable Indication Decal;;;;PVC;1;;GM | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
723929 | 1000413470 | V04 | Adjustable Indication Decal;;;;PVC;2;;GM | No | Model Compatibility List | $2.18 / Each |
|||
723936 | 1000413488 | F04 | Snug Plate;Cam;;painting;;Iced Sliver;GM | No | Model Compatibility List | $8.42 / Each |
|||
723948 | 1000413579 | AB2 | Pulley Set;Fixing;;painting;;Iced Sliver | No | Model Compatibility List | $69.26 / Each |
|||
723954 | 1000413637 | G20 | Fixing Plate;CON Tube;;;;Iced Sliver;GM1 | No | Model Compatibility List | $40.53 / Each |
|||
723980 | 1000413780 | J41 | Bearing Sheath;Base;;ABS/PA757;137C;55x | No | Model Compatibility List | $5.04 / Each |
|||
724112 | 1000415204 | C32 | Screw;TH;M6X1.0PX15L;;Hex Socket;;Chrome | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
724329 | 1000418126 | AB1 | Frame Set;;;painting;;Iced Sliver;GM127; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
724331 | 1000418140 | 2 | User frame set;Semi-Assy;left;Iced Slive | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
724334 | 1000418162 | 5 | Cam Fixing Set;Semi-Assy;;Iced Sliver;;; | No | Model Compatibility List | $319.38 / Each |
|||
724335 | 1000418169 | AC1 | base set;;R;painting;;Iced Sliver;GM127; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
724336 | 1000418185 | AC2 | base set;;L;painting;;Iced Sliver;GM127; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
724337 | 1000418192 | C31 | Stopper;Cam;;painting;;Iced Sliver;GM127 | No | Model Compatibility List | $35.46 / Each |
|||
724338 | 1000418208 | AD2 | Leg Pad Set;;;painting;;Iced Sliver;GM12 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
724339 | 1000418216 | AG1 | Connecting Set;Disassembly;D;;;Iced Sliv | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
724340 | 1000418223 | AG2 | Connecting Set;Disassembly;U;;;Iced Sliv | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
724341 | 1000418229 | AF1 | Adjustable Set;Cam;;painting;;Iced Slive | No | Model Compatibility List | $385.29 / Each |
|||
724342 | 1000418238 | AD11 | pedal arm set;Assembly;;;GM127;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
724346 | 1000418274 | AF11 | Cam Fixing Set;Assembly;;;GM127;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
724498 | 1000420935 | D21 | Screw;Flat Head;M8X1.25PX12L;;Hex Socket | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
724568 | 1000422148 | V02 | Warning Label Set;;;;;;GM114;multiple la | No | Model Compatibility List | $25.32 / Each |
|||
![]() |
725411 | 070970 | Z01 | Screw;SH;M10X1.5PX80L;;HS;;CHM;; | No | Model Compatibility List | $112.29 / Each |
||
![]() |
726707 | 084241 | Z06 | Screw Set;M6X1.0PX5L;BP;POT | No | Model Compatibility List | $0.39 / Each |
||
![]() |
728614 | 0000095638 | J15 | Foot Pad;Adjustable;M12X58H;12.9;EP304; | Yes | Model Compatibility List | $33.85 / Each |
||
![]() |
728704 | 096073 | H12 | CON Plate; Cap;SPHC3.0t;GM42 | No | Model Compatibility List | $2.37 / Each |
||
![]() |
728705 | 096074 | H13 | Stopper Ring;Cap;AL6061;GM42 | No | Model Compatibility List | $19.81 / Each |
||
728707 | 096088 | AK1 | Weght Plate Set;12.5P;GM41 | No | Model Compatibility List | $67.57 / Each |
|||
728715 | 096140 | D27 | Pull Pin;ADJ Pin;45#;GM44 | No | Model Compatibility List | $24.28 / Each |
|||
![]() |
728720 | 096166 | D31 | Pull Pin;GM44 | No | Model Compatibility List | $4.71 / Each |
||
728920 | 098985 | Q02 | Weight Stack Shield;Front;ABS;GM40 | No | Model Compatibility List | $147.63 / Each |
|||
728923 | 098988 | Q04 | Cover;Front;ABS;GM40 | No | Model Compatibility List | $147.63 / Each |
|||
729261 | See Pad Matrix | J01 | Elbow Pad;;PU;Black;;FW213-KM; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
![]() |
730040 | 1000412847 | B11 | Fixing Rack;BRACKET COVER;U;;;;GM113; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
730041 | 1000397610 | B13 | Fix Base;Pulley;;painting;;Mat Black;GM1 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
730042 | 1000407390 | B44 | Support Board;Cover;Reat-Up;;;Black Matt | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
730056 | 1000397596 | B14 | Fixing Rack Cover;;D;painting;;Mat Blck; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
730058 | 1000098858 | B16 | Bushing;CON Rod;Peadel Arm;painting;GM40 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
730061 | 005009-00 | Z28 | Washer;Spring;8.2X15.4X2.0T;Chromed | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
730719 | 005040-AB | Z07 | Washer;Flat;8.4X15.5X1.6T | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
730727 | 0000080409 | C54 | Screw;TH;M6X1.0PX25L;;HS;;;;; | No | Model Compatibility List | $1.68 / Each |
||
![]() |
730925 | 0000086517 | D43 | Screw;Round Hex Socket;M10x1.5Px25L | No | Model Compatibility List | $1.02 / Each |
||
![]() |
730926 | 0000090959 | D54 | Nut;Hex;M10x1.5P;Cr Plate; | No | Model Compatibility List | $1.28 / Each |
||
![]() |
730927 | 1000457535 | 1 | User frame set;Semi-Assy;right;Iced Sliv | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
730928 | 1000457543 | 3 | Pedal Arm set;Semi-Assy;;Iced Sliver;;;G | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
730929 | 1000457555 | 4 | Leg Set;Semi-Assy;;Iced Sliver;;;GM227; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
730930 | 1000453258 | AL3 | Top Weight Plate Set;;;painting;;;GM220; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
730931 | 1000411804 | B36 | Aperture Label;Console Cover;;;PC;;;SSA | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
730932 | 1000432146 | B42 | Plug;;;PP;slate black;;MS53; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
730933 | 1000425423 | C29 | Bearing;Ball;6006zz;F30XF55X13T;CSC;C3; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
730934 | 1000452709 | H18 | Cap;Grip;;;Chrome;ADC12;GM226 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
730935 | 1000452429 | L03 | Guide Block;;;POM;Black;;GM214; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
730936 | 1000452420 | L59 | Pull Pin Set;Frame;;;GM214;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
730937 | 1000455407 | Q94 | Cover;;up;ABS/PA757;slate black;;GM211; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
730938 | 1000452693 | V17 | EN LABEL;;;;PETP;;;GM227-KM | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
|
