Brand: Matrix Fitness
Category: Single Station
Type: Strength Systems

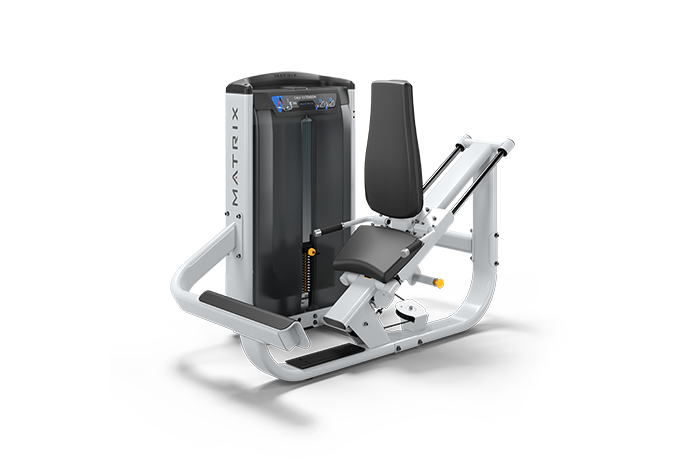

Model Name: G7-S77B-02 - G7-S77BH-02 - Ultra Base Calf Extension - 2020
Serial Number Prefix: GM216, GM216H
Version: 2020
"Used Only" - contact us if interested in used or refurbished parts. Send us mail:
X
| Image | Catalog # | MPN | Part List Key | Quantity On Model | Part Description | Notes | Available Used | Model Compatibility List | New price |
|---|---|---|---|---|---|---|---|---|---|
 |
701487 | 004530-AC | C30 | Round Hex Socket Screw, M10 x 1.5P x 65L | No | Model Compatibility List | $1.68 / Each |
||
 |
701660 | 004696-AB | B07 | Screw;Hex Socket;8X1.25X20L;Chromed | No | Model Compatibility List | $2.00 / Each |
||
| 701691 | 004719-AB | B26 | Screw;BH;M8X1.25PX12L;;HS;;CHM;;G12.9 | No | Model Compatibility List | $0.39 / Each |
|||
| 701789 | 004804-00 | Z24 | Screw;Oval Hex Socket;M10x1.5Px100L;Chromed | No | Model Compatibility List | $9.41 / Each |
|||
 |
701901 | 004929-00 | F12 | Nut;Nylon;M8x1.25P;Chromed | No | Model Compatibility List | $2.00 / Each |
||
 |
701970 | 005009-AB | Z03 | Washer;Spring;SW8 8.2x15.4x2T;Zinc Plating | No | Model Compatibility List | $2.00 / Each |
||
 |
701981 | 005017-00 | B41 | Washer;Spring;SW10 10.2X18.4X2.5T;Chromed | No | Model Compatibility List | $1.33 / Each |
||
 |
702119 | 005145-AC | Z22 | Washer;Flat;8.2x19.0x2.0T;Chromed | No | Model Compatibility List | $2.00 / Each |
||
| 702325 | 006078-00 | V18 | Decal;Grounding;TM08 | No | Model Compatibility List | $1.90 / Each |
|||
 |
702531 | 008523-B | Z13 | Washer;Arc;M10x28x10.5T;SS41 | No | Model Compatibility List | $9.10 / Each |
||
 |
702711 | 009356-B | C46 | Stopper Mast;Foam;AL6061;GM03 | No | Model Compatibility List | $3.64 / Each |
||
 |
702721 | 009371-E | C26 | Cap;Grip;GM03 | No | Model Compatibility List | $15.34 / Each |
||
 |
703901 | 019151-AA | K17 | Rubber Bumper;Weight Stack | No | Model Compatibility List | $3.64 / Each |
||
| 703996 | 020081-00 | Z17 | Screw;SH;M8X1.25PX60L;;HS;;;;G12.9 | No | Model Compatibility List | $1.01 / Each |
|||
 |
704004 | 020096-00 | H07 | Screw;Hex Socket;Round;M8x1.25Px15L;Chromed | Yes | Model Compatibility List | $9.99 / Each |
||
 |
704023 | 020112-A | B63 | Screw;Hex Socket;Round;M10x1.5Px50L(Tooth15) | No | Model Compatibility List | $1.33 / Each |
||
| 704127 | 020294-00 | Z13 | SCREW;BH;M10X1.5PX20L;;HS;;CHM;; | No | Model Compatibility List | $1.85 / Each |
|||
| 704181 | 020439-00 | Z24 | Washer;Flat;6.4X14.0X1.0T;Chromed | No | Model Compatibility List | $2.00 / Each |
|||
 |
704193 | 020465-AB | Z03 | Washer;Flat;M10.2X25PX2.0T;Chromed | No | Model Compatibility List | $1.79 / Each |
||
 |
705020 | 029526-A | P33 | SCREW;BH;?X3X19L;SM;PH;;;;POT | No | Model Compatibility List | $1.85 / Each |
||
| 705696 | 055200-AB | Z19 | Screw;Hex;M10X1.5PX25L;;HE;;CHM;; | No | Model Compatibility List | $9.10 / Each |
|||
| 707170 | 1000091018 | H13 | Stopper Ring;Seat Pad;Pull Pin;GM45 | No | Model Compatibility List | $12.53 / Each |
|||
| 707323 | 1000092046 | H09 | Sleeve;Adjustable Mast;POM;GM57 | No | Model Compatibility List | $4.19 / Each |
|||
| 707325 | 1000092068 | M05 | Fixing Sleeve;GuideRode;Rubber;GM57 | No | Model Compatibility List | $9.00 / Each |
|||
 |
707326 | 1000092071 | Q01 | Elastomer Pad;Rubber;GM57 | No | Model Compatibility List | $1.98 / Each |
||
| 707327 | 1000092072 | C32 | Stopper Plate;SPHC;GM57 | No | Model Compatibility List | $4.76 / Each |
|||
| 707381 | 1000092375 | K03 | Weight Plate;10 P;SPHC;GM48 | No | Model Compatibility List | $59.12 / Each |
|||
 |
707824 | 1000096017 | Not Shown | Rubber Pad;Fixing;GM40 | No | Model Compatibility List | $2.39 / Each |
||
| 707829 | 1000096024 | Q08 | Fixing Base;PC;GM40 | No | Model Compatibility List | $3.35 / Each |
|||
| 708317 | 1000102027 | M04 | Guide Rod;Up;SKF:GM55 | No | Model Compatibility List | $272.06 / Each |
|||
| 708367 | 1000102276 | H27 | Screw;Hex Socket;Sink;M6x1.0Px14L;CHM;BP | No | Model Compatibility List | $0.81 / Each |
|||
| 708443 | 1000102859 | B42 | Screw;Hex Socket;Round;M4x0.7Px10L;Cr Pl | No | Model Compatibility List | $0.52 / Each |
|||
 |
708448 | 1000102864 | Z09 | Screw;Hex Socket;Round;M10x1.5Px60L;Cr P | No | Model Compatibility List | $8.14 / Each |
||
 |
708489 | 1000102915 | K12 | Circlip;E Type;;E-15;Cr Plate | No | Model Compatibility List | $0.86 / Each |
||
| 708509 | 1000103029 | C22 | Pedal;baseGM57-KM | No | Model Compatibility List | $14.56 / Each |
|||
 |
708563 | 1000103438 | C15 | Screw;Cross;BH;Tapped;4x10L;A Class;ke | No | Model Compatibility List | $0.57 / Each |
||
 |
708649 | 1000104672 | Z03 | Screw;BH;M5x0.8Px10L;HS;CST;CST;CST;CHM; | No | Model Compatibility List | $0.60 / Each |
||
| 708653 | 1000104679 | C33 | Circlip;Internal C Type;R-45;BAN | No | Model Compatibility List | $0.99 / Each |
|||
 |
708675 | 1000104705 | K19 | Screw;RND;M6x1.0Px15L;HS;CHM;BP;G8.8 | No | Model Compatibility List | $0.52 / Each |
||
 |
708730 | 1000105174 | Z09 | Nut;Nylon;M10x1.5P;G12.9;CHM | No | Model Compatibility List | $1.79 / Each |
||
 |
709069 | 1000108801 | Z08 | Screw;RND;M5x0.8Px15L;HS;CHM;BP;G8.8 | No | Model Compatibility List | $1.79 / Each |
||
 |
709072 | 1000108805 | B06 | Screw;RND;M8x1.25Px20L;HS;CHM;BP;G12.9 | No | Model Compatibility List | $1.79 / Each |
||
 |
709081 | 1000109127 | V02 | Decal;Pinch Point ;MS21KM-G3 | No | Model Compatibility List | $1.77 / Each |
||
| 709113 | 1000109833 | C44 | Screw;RND;M10x25L;-;HS;-;CHM;BP;G12.9; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
 |
709307 | 1000112985 | B13 | Elastomer;Weight Plate;GM59 | No | Model Compatibility List | $16.87 / Each |
||
| 709517 | 1000200981 | K07 | Guide Rod;Weight plate | No | Model Compatibility List | $124.83 / Each |
|||
 |
709543 | 1000201207 | D20 | Plastic Cover;;ABS;DG;;;GM61; | No | Model Compatibility List | $1.77 / Each |
||
| 709718 | 1000202352 | K13 | Cushion;Guide Rod | No | Model Compatibility List | $8.42 / Each |
|||
 |
711198 | 1000217438 | J23 | Handle Pull Pin;;;TPP;Black Orange;;GM59 | No | Model Compatibility List | $13.49 / Each |
||
| 711984 | 1000224684 | Z12 | Screw;RND;M10x1.5Px125L;-;HS;-;CHM;BP;G1 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
 |
712457 | 1000228977 | Z13 | Screw;HH;M8x12L;-;HE;-;CHM;-;G12.9; | No | Model Compatibility List | $1.66 / Each |
||
 |
712934 | 1000231572 | B40 | SCREW;SH;M10X1.5PX20L;;;HS;BP;CHM; | No | Model Compatibility List | $2.00 / Each |
||
 |
713740 | 1000307173 | C33 | Plastic Cover;Nut;;;;;; | No | Model Compatibility List | $1.66 / Each |
||
| 714884 | 1000319422 | Not Shown | Frame Fix Plate;;;painting;;Iced Sliver; | No | Model Compatibility List | $16.87 / Each |
|||
| 715076 | 1000320828 | AT1 | Handle set;;L;painting;;Iced Sliver;GM57 | No | Model Compatibility List | $28.70 / Each |
|||
| 715077 | 1000320829 | AT2 | Handle set;;R;painting;;Iced Sliver;GM57 | No | Model Compatibility List | $28.70 / Each |
|||
 |
716149 | 1000333566 | M11 | Bearing;Linear;KS30-PP;;INA; | No | Model Compatibility List | $250.04 / Each |
||
| 716192 | 1000334510 | B17 | Fixing Plate;;down;NBR;;;GM40; | No | Model Compatibility List | $16.87 / Each |
|||
| 716193 | 1000334511 | C15 | Rubber Foot Pad;Base;;NBR;;;GM40; | No | Model Compatibility List | $10.11 / Each |
|||
| 717511 | 1000345659 | J12 | Cap;Elliptical;;TPU;BL/Black C;Diam.50.0 | No | Model Compatibility List | $15.18 / Each |
|||
| 719682 | 1000363760 | V51 | Warning Label;Frame;;;PC;;English; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
 |
720362 | 1000371997 | F05 | Buffer Block;Stopper;;NBR;;;GM105; | No | Model Compatibility List | $3.02 / Each |
||
| 720723 | 1000375328 | C33 | Cap;Elliptical;;TPU;;Diam.50x150x3T;GM10 | No | Model Compatibility List | $10.11 / Each |
|||
| 722650 | 1000396915 | F38 | Nut;Nylon;M14x2.0P;Grade 12.9;Chrome; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 722682 | 1000397599 | Q01 | Stopper Plate;Steel Rope;;PA66+GF30%;;13 | No | Model Compatibility List | $32.08 / Each |
|||
| 722683 | 1000397609 | F11 | Pulley;;;NYLON 66+G30%(Anti-fire);Black; | No | Model Compatibility List | $55.74 / Each |
|||
| 722701 | 1000397869 | Q99 | Cover;;up;ABS/PA757;Deep Grey;740.0x173. | No | Model Compatibility List | $47.29 / Each |
|||
| 722702 | 1000397883 | Q93 | Cover;;back;ABS/PA757;Limpid;1104.8x648. | No | Model Compatibility List | $184.18 / Each |
|||
| 722705 | 1000397910 | Q98 | Kettle Plate;;left;ABS;;252.6x121.0x16.0 | No | Model Compatibility List | $16.87 / Each |
|||
| 722706 | 1000397914 | Q97 | Kettle Plate;;right;ABS;;252.6x121.0x16. | No | Model Compatibility List | $16.87 / Each |
|||
| 722707 | 1000397915 | Q96 | Kettle Plate;;mid;TPU;426C/80393;113.0x7 | No | Model Compatibility List | $6.73 / Each |
|||
| 722709 | 1000397921 | Z06 | Screw;Socket Head;M10X1.5PX180L-35L;;Hex | No | Model Compatibility List | $6.73 / Each |
|||
| 722862 | 1000399047 | B18 | Cover;Cam;;TPU; | No | Model Compatibility List | $10.11 / Each |
|||
| 722945 | 1000401081 | AH1 | Adjustable Rod Set-Exreawork;;;Cr Plate; | No | Model Compatibility List | $152.07 / Each |
|||
| 722953 | 1000401307 | F01 | Steel Rope-Extrawork;;;Press Rope Hand;D | No | Model Compatibility List | $153.76 / Each |
|||
| 723356 | 1000406464 | K62 | Socket;Power Switch;;PA66+G20%;;110x58x1 | No | Model Compatibility List | $6.73 / Each |
|||
| 723482 | 1000407026 | B12 | Stopper Plate;Steel Rope;2;PA66+GF30%;;9 | No | Model Compatibility List | $16.87 / Each |
|||
| 723524 | 1000407607 | D23 | Cap;;;TPU;;;GM114; | No | Model Compatibility List | $5.04 / Each |
|||
| 723618 | 1000410490 | V03 | Spec Label;Weight Plate;;;PC;;;GM114; | No | Model Compatibility List | $16.87 / Each |
|||
| 723627 | 1000410674 | Z23 | Screw;Pan Head;GB/T 828 M5x5x4;;;;White | No | Model Compatibility List | $3.02 / Each |
|||
| 723674 | 1000411567 | Not Shown | hardware set;;;;GM116; | No | Model Compatibility List | $135.17 / Each |
|||
| 723720 | 1000412318 | V30 | Adjustable Indication Decal;Frame;260x55 | No | Model Compatibility List | $8.42 / Each |
|||
| 723724 | 1000412343 | V11 | Instructional Labe;;;;;Front;English;GM1 | No | Model Compatibility List | $33.77 / Each |
|||
| 723725 | 1000412345 | V12 | Instructional Labe;;;;;Rear;English;GM11 | No | Model Compatibility List | $33.77 / Each |
|||
| 723954 | 1000413637 | G20 | Fixing Plate;CON Tube;;;;Iced Sliver;GM1 | No | Model Compatibility List | $40.53 / Each |
|||
| 724117 | 1000415236 | AB1 | Frame Set;;;painting;;Iced Sliver;GM116; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724118 | 1000415244 | AC1 | base set;;;painting;;Iced Sliver;GM116; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724119 | 1000415259 | AG1 | ConnectingTube Set;;U;;;Iced Sliver;GM11 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724120 | 1000415275 | AC2 | Pedal Tube Set;;;painting;;Iced Sliver;G | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724121 | 1000415296 | AJ1 | Seat Set;;;painting;;Iced Sliver;GM116; | No | Model Compatibility List | $277.13 / Each |
|||
| 724123 | 1000415320 | AJ2 | Seat Pad Set;;;painting;;Iced Sliver;GM1 | No | Model Compatibility List | $101.37 / Each |
|||
| 724127 | 1000415405 | AG2 | ConnectingTube Set;Frame;D;;;Iced Sliver | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724302 | 1000417902 | C42 | Screw;Socket Head;M4X0.7PX35L-5L;Machine | No | Model Compatibility List | $1.33 / Each |
|||
| 724303 | 1000417904 | B24 | Screw;Socket Head;M4X0.7PX14L-5L;Machine | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
 |
725411 | 070970 | Z01 | Screw;SH;M10X1.5PX80L;;HS;;CHM;; | No | Model Compatibility List | $112.29 / Each |
||
 |
726707 | 084241 | Z06 | Screw Set;M6X1.0PX5L;BP;POT | No | Model Compatibility List | $0.39 / Each |
||
 |
728614 | 0000095638 | J15 | Foot Pad;Adjustable;M12X58H;12.9;EP304; | Yes | Model Compatibility List | $33.85 / Each |
||
| 728920 | 098985 | Q02 | Weight Stack Shield;Front;ABS;GM40 | No | Model Compatibility List | $147.63 / Each |
|||
| 728923 | 098988 | Q04 | Cover;Front;ABS;GM40 | No | Model Compatibility List | $147.63 / Each |
|||
| 729261 | See Pad Matrix | J01 | Elbow Pad;;PU;Black;;FW213-KM; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
 |
730040 | 1000412847 | B11 | Fixing Rack;BRACKET COVER;U;;;;GM113; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
730041 | 1000397610 | B13 | Fix Base;Pulley;;painting;;Mat Black;GM1 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
730042 | 1000407390 | B44 | Support Board;Cover;Reat-Up;;;Black Matt | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
730056 | 1000397596 | B14 | Fixing Rack Cover;;D;painting;;Mat Blck; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
730061 | 005009-00 | Z28 | Washer;Spring;8.2X15.4X2.0T;Chromed | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
730719 | 005040-AB | Z07 | Washer;Flat;8.4X15.5X1.6T | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
730727 | 0000080409 | C54 | Screw;TH;M6X1.0PX25L;;HS;;;;; | No | Model Compatibility List | $1.68 / Each |
||
 |
730931 | 1000411804 | B36 | Aperture Label;Console Cover;;;PC;;;SSA | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
730932 | 1000432146 | B42 | Plug;;;PP;slate black;;MS53; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
730936 | 1000452420 | L59 | Pull Pin Set;Frame;;;GM214;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
730937 | 1000455407 | Q94 | Cover;;up;ABS/PA757;slate black;;GM211; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
731686 | 1000452741 | AL4 | Up Weight Plate Set;Assembly Drawing;;;G | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
733733 | 1000452414 | AC2 | Pull pin-Extrawork;Adjustable;mid;Cr Pla | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
734776 | 1000426523 | C60 | Spring;Compression;1.5x10.2x45.2L;SWPB | No | Model Compatibility List | $2.32 / Each |
||
 |
734777 | 1000431364 | D11 | Foam;Arm Rest Handle;;;;Diam.24X5.0TX140 | No | Model Compatibility List | $5.18 / Each |
||
 |
734778 | 1000104668 | H14 | Screw;FH;M6x20L;-;HS;-;CHM;BP;-; | No | Model Compatibility List | $1.02 / Each |
||
 |
734779 | 1000457252 | AH2 | ADJ Pull Pin;;;painting;;Iced Sliver;GM2 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
734780 | 1000452757 | C20 | Foot Pad;Pedal;down;NBR;Black;;GM216; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
734781 | 1000421477 | C55 | Sleeve;Guide Rod;;painting;;Black Matte; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
734782 | 1000421478 | C56 | Connecting Block;Seat Sleeve Set;;painti | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
734783 | 1000452577 | V29 | EN LABEL;;70x42;;;;;GM216 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
|
|
|||||||||
