Brand: Matrix Fitness
Category: Single Station
Type: Strength Systems

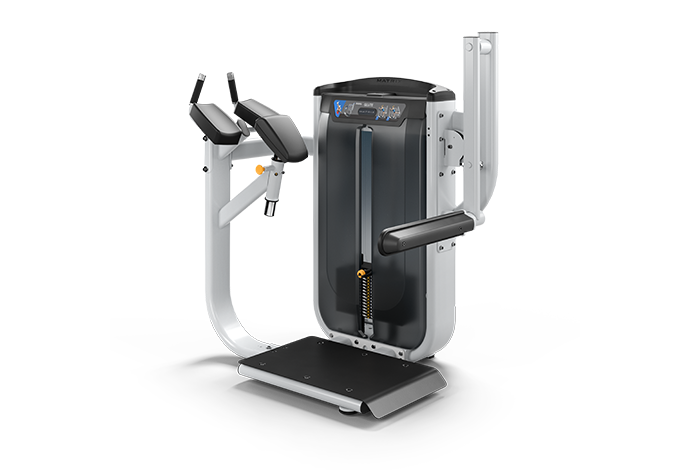

Model Name: G7-S78B-02 - G7-S78BH-02 - G7GM228 - Ultra Base Glute - 2020
Serial Number Prefix: G7GM228, G7GM228H
Version: 2020
"Used Only" - contact us if interested in used or refurbished parts. Send us mail:
XImage | Catalog # | MPN | Part List Key | Quantity On Model | Part Description | Notes | Available Used | Model Compatibility List | New price |
---|---|---|---|---|---|---|---|---|---|
![]() |
701431 | 004479-ABX | F10 | Screw;Hex Socket;Round;M8x1.25Px15L;Cr;A | No | Model Compatibility List | $2.00 / Each |
||
![]() |
701436 | 004482-AB | B43 | Screw;Hex Socket;Round;M8x1.25Px20L;Cr | No | Model Compatibility List | $2.00 / Each |
||
701513 | 004549-00 | B59 | Screw;Hex Socket;Round;M10x1.5Px55L;Cr; | No | Model Compatibility List | $6.27 / Each |
|||
![]() |
701660 | 004696-AB | B07 | Screw;Hex Socket;8X1.25X20L;Chromed | No | Model Compatibility List | $2.00 / Each |
||
![]() |
701664 | 004699-00 | B60 | Screw;Hex Socket;M8X1.25PX15L | Yes | Model Compatibility List | $1.79 / Each |
||
701691 | 004719-AB | B26 | Screw;BH;M8X1.25PX12L;;HS;;CHM;;G12.9 | No | Model Compatibility List | $0.39 / Each |
|||
![]() |
701757 | 004779-00 | Z19 | Screw;Oval;Hex Socket;M10x1.5Px30L;Chromed | No | Model Compatibility List | $1.66 / Each |
||
701764 | 004786-00 | C31 | Screw;Hex Socket;BH;CrMo;M10x1.5Px25L | No | Model Compatibility List | $3.64 / Each |
|||
![]() |
701901 | 004929-00 | F12 | Nut;Nylon;M8x1.25P;Chromed | No | Model Compatibility List | $2.00 / Each |
||
![]() |
701970 | 005009-AB | Z03 | Washer;Spring;SW8 8.2x15.4x2T;Zinc Plating | No | Model Compatibility List | $2.00 / Each |
||
![]() |
701981 | 005017-00 | B41 | Washer;Spring;SW10 10.2X18.4X2.5T;Chromed | No | Model Compatibility List | $1.33 / Each |
||
![]() |
702014 | 005048-AC | Z05 | Washer;Flat;8.2x15.0x1.2T;Chromed | No | Model Compatibility List | $2.00 / Each |
||
![]() |
702085 | 005117-AB | F15 | Washer;Flat;8.2x16.0x2.0T;Chromed | No | Model Compatibility List | $1.33 / Each |
||
![]() |
702119 | 005145-AC | Z22 | Washer;Flat;8.2x19.0x2.0T;Chromed | No | Model Compatibility List | $2.00 / Each |
||
![]() |
702250 | 005377-00 | E33 | Clamp;E-Shaped Ring;E-15 | No | Model Compatibility List | $0.65 / Each |
||
702325 | 006078-00 | V18 | Decal;Grounding;TM08 | No | Model Compatibility List | $1.90 / Each |
|||
![]() |
702531 | 008523-B | Z13 | Washer;Arc;M10x28x10.5T;SS41 | No | Model Compatibility List | $9.10 / Each |
||
![]() |
702711 | 009356-B | C46 | Stopper Mast;Foam;AL6061;GM03 | No | Model Compatibility List | $3.64 / Each |
||
![]() |
702721 | 009371-E | C26 | Cap;Grip;GM03 | No | Model Compatibility List | $15.34 / Each |
||
![]() |
703901 | 019151-AA | K17 | Rubber Bumper;Weight Stack | No | Model Compatibility List | $3.64 / Each |
||
703996 | 020081-00 | Z17 | Screw;SH;M8X1.25PX60L;;HS;;;;G12.9 | No | Model Compatibility List | $1.01 / Each |
|||
![]() |
704039 | 020126-DB | Z30 | Screw;Seat Stopper;M8x1.25Px20L | No | Model Compatibility List | $1.79 / Each |
||
![]() |
704193 | 020465-AB | Z03 | Washer;Flat;M10.2X25PX2.0T;Chromed | No | Model Compatibility List | $1.79 / Each |
||
![]() |
705020 | 029526-A | P33 | SCREW;BH;?X3X19L;SM;PH;;;;POT | No | Model Compatibility List | $1.85 / Each |
||
705696 | 055200-AB | Z19 | Screw;Hex;M10X1.5PX25L;;HE;;CHM;; | No | Model Compatibility List | $9.10 / Each |
|||
707829 | 1000096024 | Q08 | Fixing Base;PC;GM40 | No | Model Compatibility List | $3.35 / Each |
|||
708033 | 1000098051 | C20 | Bearing Cover;Base;ABS;GM40 | No | Model Compatibility List | $8.24 / Each |
|||
708321 | 1000102056 | AH04 | Support Set;Chest Pad;CHM;GM55 | No | Model Compatibility List | $161.56 / Each |
|||
708406 | 1000102686 | J43 | Cap End;ADJ Tube;GM43 | No | Model Compatibility List | $1.82 / Each |
|||
![]() |
708563 | 1000103438 | C15 | Screw;Cross;BH;Tapped;4x10L;A Class;ke | No | Model Compatibility List | $0.57 / Each |
||
![]() |
708649 | 1000104672 | Z03 | Screw;BH;M5x0.8Px10L;HS;CST;CST;CST;CHM; | No | Model Compatibility List | $0.60 / Each |
||
![]() |
708664 | 1000104693 | B52 | Screw;RND;M10x1.5Px60L-15L;HS;G8.8;CHM;P | No | Model Compatibility List | $5.02 / Each |
||
![]() |
708730 | 1000105174 | Z09 | Nut;Nylon;M10x1.5P;G12.9;CHM | No | Model Compatibility List | $1.79 / Each |
||
![]() |
709069 | 1000108801 | Z08 | Screw;RND;M5x0.8Px15L;HS;CHM;BP;G8.8 | No | Model Compatibility List | $1.79 / Each |
||
![]() |
709081 | 1000109127 | V02 | Decal;Pinch Point ;MS21KM-G3 | No | Model Compatibility List | $1.77 / Each |
||
709517 | 1000200981 | K07 | Guide Rod;Weight plate | No | Model Compatibility List | $124.83 / Each |
|||
![]() |
709532 | 1000201047 | C65 | Screw;BH;M4X0.7PX10L;MT;NL;HS;G8.8;CHM; | No | Model Compatibility List | $1.79 / Each |
||
709718 | 1000202352 | K13 | Cushion;Guide Rod | No | Model Compatibility List | $8.42 / Each |
|||
![]() |
711198 | 1000217438 | J23 | Handle Pull Pin;;;TPP;Black Orange;;GM59 | No | Model Compatibility List | $13.49 / Each |
||
714761 | 1000317877 | J44 | PLASTIC LINER;Fixing Tube;;POM;;;GM43; | No | Model Compatibility List | $5.04 / Each |
|||
716192 | 1000334510 | B17 | Fixing Plate;;down;NBR;;;GM40; | No | Model Compatibility List | $16.87 / Each |
|||
716193 | 1000334511 | C15 | Rubber Foot Pad;Base;;NBR;;;GM40; | No | Model Compatibility List | $10.11 / Each |
|||
717691 | 1000346841 | Z22 | Stopper Plate;Bearing;;SPHC;?35.0x5.0T;; | No | Model Compatibility List | $3.02 / Each |
|||
719082 | 1000355733 | C03 | Tube Cap;Base;;TPU;BL/Black C;F40xF80;FW | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
719682 | 1000363760 | V51 | Warning Label;Frame;;;PC;;English; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
![]() |
720322 | 1000371560 | C18 | Cap;Elliptical;;TPU;;Diam.50.0xDiam.100. | No | Model Compatibility List | $6.73 / Each |
||
720723 | 1000375328 | C33 | Cap;Elliptical;;TPU;;Diam.50x150x3T;GM10 | No | Model Compatibility List | $10.11 / Each |
|||
![]() |
720986 | 1000379292 | B20 | Foam;;;24x5.0tx120L;Grip;GM104-KM | No | Model Compatibility List | $6.73 / Each |
||
![]() |
722509 | 1000393222 | B39 | Spring;Compression;1.3x12.7x38Lx7;SWP; | No | Model Compatibility List | $1.66 / Each |
||
722682 | 1000397599 | Q01 | Stopper Plate;Steel Rope;;PA66+GF30%;;13 | No | Model Compatibility List | $32.08 / Each |
|||
722683 | 1000397609 | F11 | Pulley;;;NYLON 66+G30%(Anti-fire);Black; | No | Model Compatibility List | $55.74 / Each |
|||
722701 | 1000397869 | Q99 | Cover;;up;ABS/PA757;Deep Grey;740.0x173. | No | Model Compatibility List | $47.29 / Each |
|||
722702 | 1000397883 | Q93 | Cover;;back;ABS/PA757;Limpid;1104.8x648. | No | Model Compatibility List | $184.18 / Each |
|||
722705 | 1000397910 | Q98 | Kettle Plate;;left;ABS;;252.6x121.0x16.0 | No | Model Compatibility List | $16.87 / Each |
|||
722706 | 1000397914 | Q97 | Kettle Plate;;right;ABS;;252.6x121.0x16. | No | Model Compatibility List | $16.87 / Each |
|||
722707 | 1000397915 | Q96 | Kettle Plate;;mid;TPU;426C/80393;113.0x7 | No | Model Compatibility List | $6.73 / Each |
|||
722709 | 1000397921 | Z06 | Screw;Socket Head;M10X1.5PX180L-35L;;Hex | No | Model Compatibility List | $6.73 / Each |
|||
722915 | 1000400344 | D10 | Rubber Cushion;;;SBR;BL/Black C;;GM128-K | No | Model Compatibility List | $60.81 / Each |
|||
722916 | 1000400345 | D16 | Back Cover;Foot Pad;;ABS/PA757;;;GM128-K | No | Model Compatibility List | $20.25 / Each |
|||
722917 | 1000400381 | F12 | Steel Rope-Extrawork;frame;;Press Rope H | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
723264 | 1000405841 | Z101 | Rubber Pad;Fixing Base;down;SBR;BL427;15 | No | Model Compatibility List | $6.73 / Each |
|||
723356 | 1000406464 | K62 | Socket;Power Switch;;PA66+G20%;;110x58x1 | No | Model Compatibility List | $6.73 / Each |
|||
723482 | 1000407026 | B12 | Stopper Plate;Steel Rope;2;PA66+GF30%;;9 | No | Model Compatibility List | $16.87 / Each |
|||

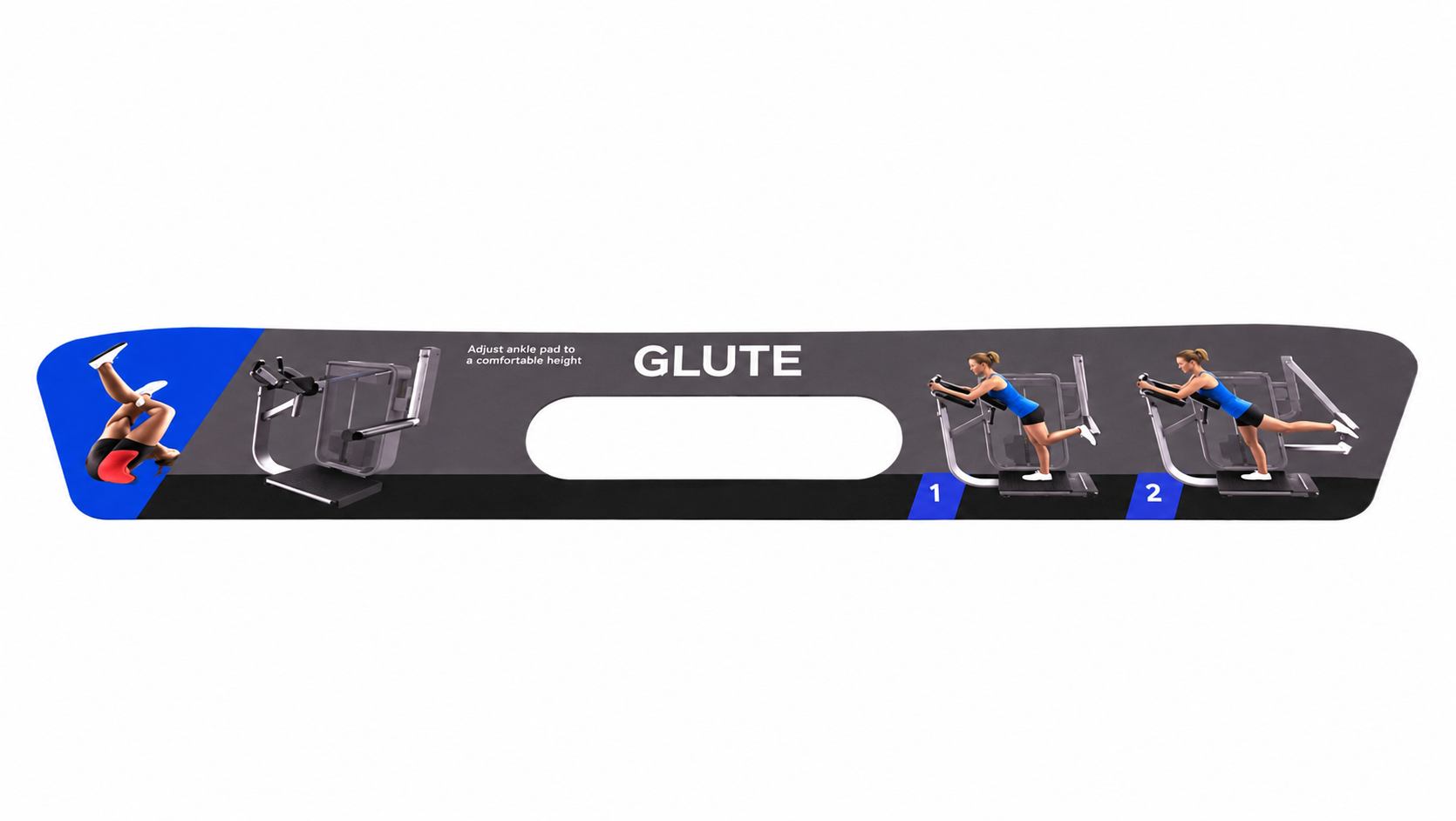

723625 | 1000410581 | V11 | Instructional Labe;Frame;;;PC;Front;Engl | No | Model Compatibility List | $33.77 / Each |
|||

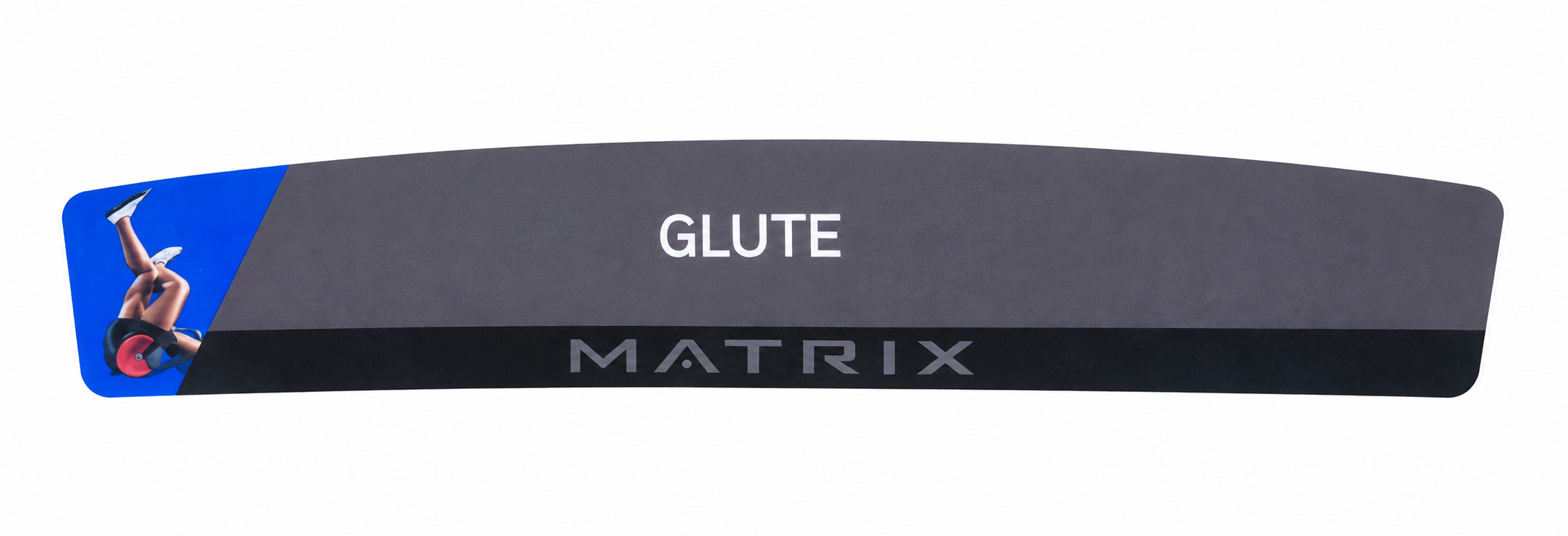

723626 | 1000410582 | V12 | Instructional Labe;Frame;;;PC;Rear;Engli | No | Model Compatibility List | $33.77 / Each |
|||
723679 | 1000411786 | V15 | Spec Label;Weight Plate;10LBS;;PC;;;GM11 | No | Model Compatibility List | $16.87 / Each |
|||
723686 | 1000411812 | V16 | Direction Label;Incremental Weight Plate | No | Model Compatibility List | $3.02 / Each |
|||
723954 | 1000413637 | G20 | Fixing Plate;CON Tube;;;;Iced Sliver;GM1 | No | Model Compatibility List | $40.53 / Each |
|||
724010 | 1000414156 | V13 | Decal;CHEST PAD ADJUST;;;;;;GM128-KM | No | Model Compatibility List | $3.02 / Each |
|||
724090 | 1000414847 | AB1 | Frame Set;;;painting;;Iced Sliver;GM128- | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
724097 | 1000414927 | AD1 | Kick set;;;painting;;Iced Sliver;GM128-K | No | Model Compatibility List | $153.76 / Each |
|||
724098 | 1000414947 | AE11 | Pedal Arm Connect Set;;;Iced Sliver;;;GM | No | Model Compatibility List | $277.13 / Each |
|||
724099 | 1000414959 | AF11 | Pedal Arm set;Semi-Assy;;Iced Sliver;;;G | No | Model Compatibility List | $194.32 / Each |
|||
724101 | 1000414976 | AG1 | PEDAL SET;;;painting;;Iced Sliver;GM128- | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
724102 | 1000414983 | G17 | Fixing Plate;Foot Pad;;;;Iced Sliver;GM1 | No | Model Compatibility List | $180.80 / Each |
|||
724103 | 1000414990 | AH1 | Connecting Set;Disassembly;;;;Iced Slive | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
724298 | 1000417399 | C23 | Axle, central;Adjustable Pull Pin;;42CrM | No | Model Compatibility List | $28.70 / Each |
|||
724575 | 1000422325 | F34 | Bearing;Rod End;SI14TK/K;M14X2.P;;??;?? | No | Model Compatibility List | $25.32 / Each |
|||
724715 | 1000424285 | Z100 | Fixing Plate;Base;D;painting;;Iced Slive | No | Model Compatibility List | $8.42 / Each |
|||
![]() |
725411 | 070970 | Z01 | Screw;SH;M10X1.5PX80L;;HS;;CHM;; | No | Model Compatibility List | $112.29 / Each |
||
![]() |
726707 | 084241 | Z06 | Screw Set;M6X1.0PX5L;BP;POT | No | Model Compatibility List | $0.39 / Each |
||
![]() |
727687 | 090440 | H08 | Stopper BlockRubber;GM30 | No | Model Compatibility List | $2.73 / Each |
||
![]() |
728614 | 0000095638 | J15 | Foot Pad;Adjustable;M12X58H;12.9;EP304; | Yes | Model Compatibility List | $33.85 / Each |
||
728707 | 096088 | AK1 | Weght Plate Set;12.5P;GM41 | No | Model Compatibility List | $67.57 / Each |
|||
728920 | 098985 | Q02 | Weight Stack Shield;Front;ABS;GM40 | No | Model Compatibility List | $147.63 / Each |
|||
728923 | 098988 | Q04 | Cover;Front;ABS;GM40 | No | Model Compatibility List | $147.63 / Each |
|||
729261 | See Pad Matrix | J01 | Elbow Pad;;PU;Black;;FW213-KM; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
![]() |
730040 | 1000412847 | B11 | Fixing Rack;BRACKET COVER;U;;;;GM113; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
730041 | 1000397610 | B13 | Fix Base;Pulley;;painting;;Mat Black;GM1 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
730042 | 1000407390 | B44 | Support Board;Cover;Reat-Up;;;Black Matt | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
730056 | 1000397596 | B14 | Fixing Rack Cover;;D;painting;;Mat Blck; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
730061 | 005009-00 | Z28 | Washer;Spring;8.2X15.4X2.0T;Chromed | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
730719 | 005040-AB | Z07 | Washer;Flat;8.4X15.5X1.6T | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
730727 | 0000080409 | C54 | Screw;TH;M6X1.0PX25L;;HS;;;;; | No | Model Compatibility List | $1.68 / Each |
||
![]() |
730925 | 0000086517 | D43 | Screw;Round Hex Socket;M10x1.5Px25L | No | Model Compatibility List | $1.02 / Each |
||
![]() |
730931 | 1000411804 | B36 | Aperture Label;Console Cover;;;PC;;;SSA | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
730932 | 1000432146 | B42 | Plug;;;PP;slate black;;MS53; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
730936 | 1000452420 | L59 | Pull Pin Set;Frame;;;GM214;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
730937 | 1000455407 | Q94 | Cover;;up;ABS/PA757;slate black;;GM211; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
731365 | 1000441318 | C27 | Cover1;Chest Pad;;ABS/PA757;Deep Grey Pa | No | Model Compatibility List | $9.08 / Each |
||
![]() |
731833 | 1000426729 | Z01 | Screw;TH;M10x1.5Px25L;Machine Thread;Hex | No | Model Compatibility List | $1.68 / Each |
||
![]() |
731879 | 1000453508 | AL4 | Up Weight Plate Set;Assembly;;;GM220;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
732073 | 005485-E | B39 | Spring;Stretch;SWP; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
732173 | 004479-AB | B16 | Screw;SH;M8X1.25PX15L;;HS;;CHM;;BP | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
733341 | 1000458064 | AC11 | User frame set;Semi-Assy;;Iced Sliver;;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
733342 | 1000107039 | AK2 | Support Set;Weight Plate;Painting;GM55 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
733343 | 1000452606 | Not Shown | hardware set;;;;GM228-KM;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
733344 | 020126-D | C51 | Screw;Set;M8X1.25PX20L;;;;CHM;;BP;STOP | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
|
