Brand: Matrix Fitness
Category: Single Station
Type: Strength Systems

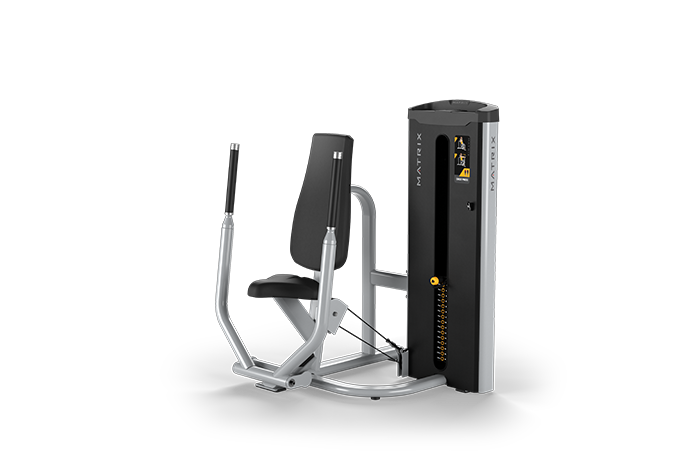

Model Name: GO-S13 - Chest Press - GM135 - 2020
Serial Number Prefix: GM135
Version: 2020
"Used Only" - contact us if interested in used or refurbished parts. Send us mail:
XImage | Catalog # | MPN | Part List Key | Quantity On Model | Part Description | Notes | Available Used | Model Compatibility List | New price |
---|---|---|---|---|---|---|---|---|---|
![]() |
701165 | 004081-A2 | U03 | Ball Bearing;6204ZZ;20x47x14t;TPI | Yes | Model Compatibility List | $15.89 / Each |
||
![]() |
701465 | 004518-00 | J53 | Screw;SH;M10X1.5PX75L;;HS;;CHM;; | No | Model Compatibility List | $3.64 / Each |
||
![]() |
701524 | 004556-AB | Z35 | Screw;Hex Socket;Round;M12x1.75Px25L;Cr; | No | Model Compatibility List | $1.79 / Each |
||
![]() |
701664 | 004699-00 | B60 | Screw;Hex Socket;M8X1.25PX15L | Yes | Model Compatibility List | $1.79 / Each |
||
![]() |
701891 | 004924-00 | T10 | Nut;Nylon;M5x0.8P;Black Zinc | No | Model Compatibility List | $2.00 / Each |
||
![]() |
701901 | 004929-00 | F12 | Nut;Nylon;M8x1.25P;Chromed | No | Model Compatibility List | $2.00 / Each |
||
![]() |
702030 | 005062-00 | B21 | Washer;Flat;10.2x19x2.0T;Chromed | No | Model Compatibility List | $1.59 / Each |
||
702178 | 005220-00 | Z20 | Washer;Wavy;20.7x29.1x.3T | No | Model Compatibility List | $2.00 / Each |
|||
![]() |
702654 | 009247-A | B13 | Axle;Swivel;;S45C;10x25L | No | Model Compatibility List | $2.86 / Each |
||
![]() |
702710 | 009355-B | D21 | Stopper Mast;Foam;AL6061;GM02 | No | Model Compatibility List | $3.64 / Each |
||
![]() |
702722 | 009372-E | E14 | Cap;Grip;GM02 | No | Model Compatibility List | $13.36 / Each |
||
![]() |
703737 | 015942-AA | K06 | Weight Plate Set;10 Lbs;Dry Bearing | No | Model Compatibility List | $42.22 / Each |
||
![]() |
704023 | 020112-A | B63 | Screw;Hex Socket;Round;M10x1.5Px50L(Tooth15) | No | Model Compatibility List | $1.33 / Each |
||
![]() |
704217 | 020489-A | Z22 | Washer;Arc;10.2x20.0x1.5t;Chromed | No | Model Compatibility List | $2.00 / Each |
||
707836 | 1000096178 | Z10 | Screw;BH;M5x20L;-;HS;-;BED;-;-; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
708092 | 1000099579 | H34 | Screw;SH;M8X1.25PX12L;;HS;;CHM;;BP | No | Model Compatibility List | $0.60 / Each |
|||

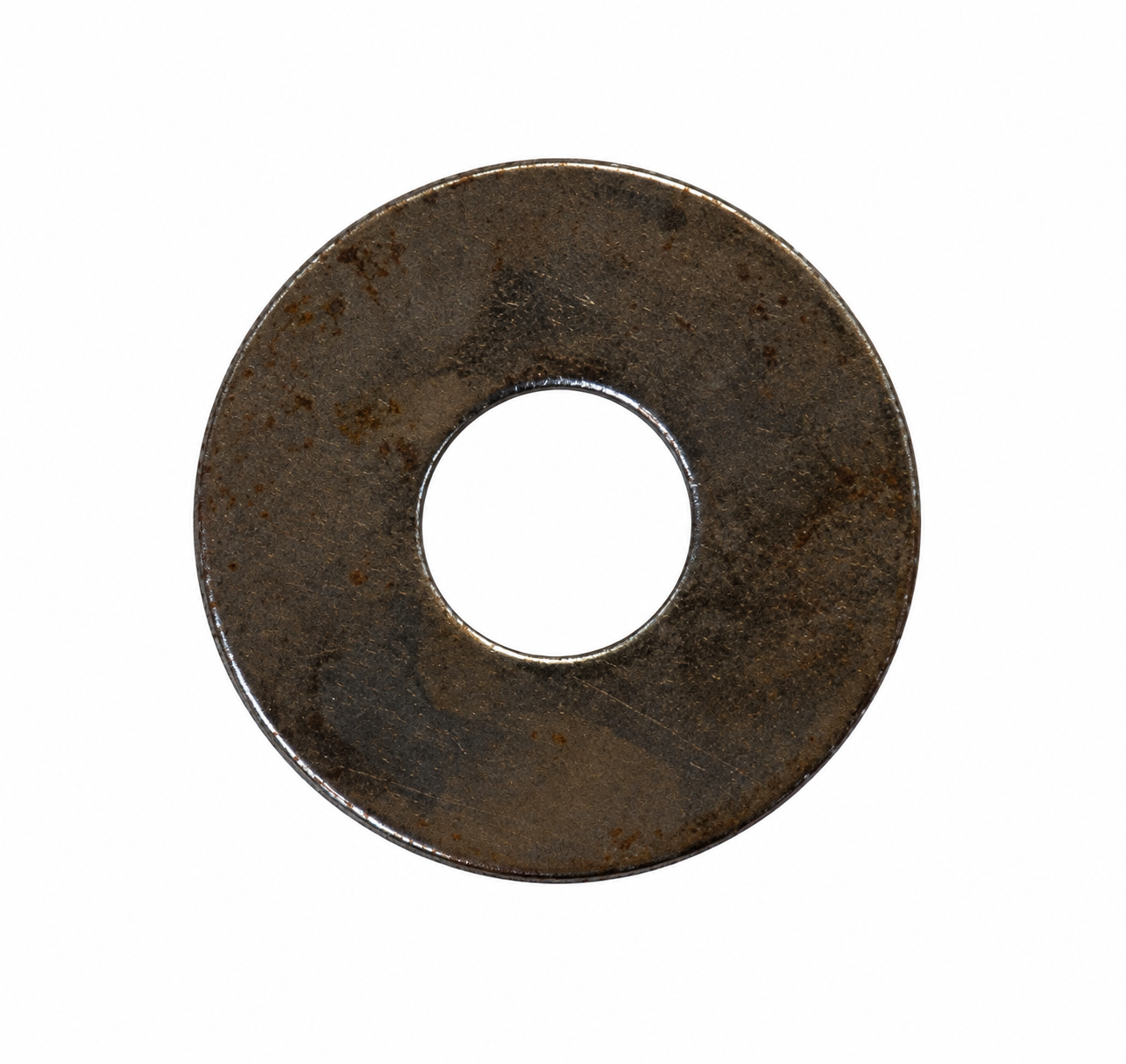

708687 | 1000104724 | H07 | Washer;FLT;13.0x35.0x2.5t;CHM | No | Model Compatibility List | $1.30 / Each |
|||
![]() |
708730 | 1000105174 | Z09 | Nut;Nylon;M10x1.5P;G12.9;CHM | No | Model Compatibility List | $1.79 / Each |
||
![]() |
709005 | 1000108187 | C24 | Screw;RND;M8x1.25Px45L-20L;MT;HS;CHM | No | Model Compatibility List | $3.64 / Each |
||
709068 | 1000108800 | Z06 | Screw;RND;M6x1.0Px12L;HS;CHM;BP;G10.9 | No | Model Compatibility List | $0.44 / Each |
|||
![]() |
709081 | 1000109127 | V02 | Decal;Pinch Point ;MS21KM-G3 | No | Model Compatibility List | $1.77 / Each |
||
709204 | 1000111017 | C21 | cushion plug;Rubber;GM49-KM | No | Model Compatibility List | $1.66 / Each |
|||
![]() |
709315 | 1000113066 | D13 | Space Mass;Mast Bearing;20#;Chromeplate; | No | Model Compatibility List | $6.73 / Each |
||
![]() |
709461 | 1000200252 | B18 | RUBBER;STOPPER;-;GM59; | No | Model Compatibility List | $8.42 / Each |
||
711984 | 1000224684 | Z12 | Screw;RND;M10x1.5Px125L;-;HS;-;CHM;BP;G1 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
![]() |
713129 | 1000233200 | C52 | PLASTIC COVER;;NBR;BL;;;; | No | Model Compatibility List | $1.66 / Each |
||
![]() |
713139 | 1000233235 | Z10 | Bearing;Rod End;PHS;M12X1.75PX60L;Siao Y | No | Model Compatibility List | $27.01 / Each |
||
![]() |
713460 | 1000303546 | C51 | Plastic Pad;Foot Pad;-;PP;BL427 | No | Model Compatibility List | $3.35 / Each |
||
719682 | 1000363760 | V51 | Warning Label;Frame;;;PC;;English; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
![]() |
720322 | 1000371560 | C18 | Cap;Elliptical;;TPU;;Diam.50.0xDiam.100. | No | Model Compatibility List | $6.73 / Each |
||
722707 | 1000397915 | Q96 | Kettle Plate;;mid;TPU;426C/80393;113.0x7 | No | Model Compatibility List | $6.73 / Each |
|||
725265 | 103406 | D38 | Washer;Flat;8.2x20.0x1.8t;Cr Plat; | No | Model Compatibility List | $0.21 / Each |
|||
![]() |
726707 | 084241 | Z06 | Screw Set;M6X1.0PX5L;BP;POT | No | Model Compatibility List | $0.39 / Each |
||
729261 | See Pad Matrix | J01 | Elbow Pad;;PU;Black;;FW213-KM; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
![]() |
730925 | 0000086517 | D43 | Screw;Round Hex Socket;M10x1.5Px25L | No | Model Compatibility List | $1.02 / Each |
||
![]() |
732212 | 1000442579 | AK01 | Up Weight Plate Set;Assembly Drawing;;;G | No | Model Compatibility List | $161.18 / Each |
||
![]() |
732213 | 1000434128 | B14 | Pulley;;;;Black;Diam.114;MS51;outsourcin | No | Model Compatibility List | $7.78 / Each |
||
![]() |
732214 | 1000431611 | C03 | Cushion;;;NBR;;100x50x35;PL217; | No | Model Compatibility List | $11.68 / Each |
||
![]() |
732217 | 1000454152 | G14 | Connect Plate;;;painting;;Iced Sliver;GM | No | Model Compatibility List | $5.18 / Each |
||
![]() |
732218 | 1000442573 | K01 | Fixing Sleeve;Guide Rod;;PA66;;;GM135; | No | Model Compatibility List | $2.58 / Each |
||
![]() |
732219 | 1000442574 | K02 | Guide Rod;Weight Plate;;45#;Chrome;GM135 | No | Model Compatibility List | $51.98 / Each |
||
![]() |
732220 | 1000445907 | K03 | Plug;;;NYLON 66;BL/Black C;13;RB210;City | No | Model Compatibility List | $1.28 / Each |
||
![]() |
732221 | 1000447002 | K04 | Spring;Compression;Diam.1.3xDiam.13.5x38 | No | Model Compatibility List | $1.28 / Each |
||
![]() |
732222 | 1000375460 | K11 | Pin set;Semi-Assy;;WEIGHT PLATE;;GM106;; | No | Model Compatibility List | $33.78 / Each |
||
![]() |
732224 | 1000442564 | Q01 | Cover;;Rear;painting;;Black Matte;GM135- | No | Model Compatibility List | $77.98 / Each |
||
![]() |
732225 | 1000442334 | Q02 | Cover;;F;painting;;Black Matte;GM136-KM; | No | Model Compatibility List | $84.48 / Each |
||
![]() |
732226 | 1000442569 | Q03 | Cover;;up;ABS Fire;;;GM135; | No | Model Compatibility List | $14.28 / Each |
||
![]() |
732227 | 1000442570 | Q04 | Kettle Plate;;left;EPDM;;;GM135; | No | Model Compatibility List | $5.18 / Each |
||
![]() |
732228 | 1000442571 | Q05 | Kettle Plate;;right;EPDM;;;GM135; | No | Model Compatibility List | $5.18 / Each |
||
![]() |
732229 | 1000377082 | Q06 | Hanging Hook;;right up;NYLON+G30%;;;GM13 | No | Model Compatibility List | $1.28 / Each |
||
![]() |
732230 | 1000376867 | Q09 | Rail;Board;Inner;NBR;;;GM135; | No | Model Compatibility List | $9.08 / Each |
||
![]() |
732233 | 1000450783 | V04 | Spec Label;Weight Plate;10lbs*16;;PC;;;G | No | Model Compatibility List | $11.68 / Each |
||
![]() |
732236 | See GO-IW page | Not Shown | Go Series Increment Weight | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
732237 | 004924-Z | Q08 | NUT LK M5 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
733524 | 1000455106 | 1 | Pedal Arm set;Semi-Assy;;Iced Sliver;;;G | No | Model Compatibility List | $230.08 / Each |
||
![]() |
733525 | 1000442775 | AF1 | Steel Rope-Extrawork;;;Press Rope Hand;D | No | Model Compatibility List | $44.18 / Each |
||
![]() |
733526 | 1000455097 | AG1 | Disassembly connect set;;;painting;;Iced | No | Model Compatibility List | $42.88 / Each |
||
![]() |
733527 | 1000425454 | B35 | Screw;Round Head;;M8x1.25Px35L;;Hex Sock | No | Model Compatibility List | $1.28 / Each |
||
![]() |
733528 | 1000442623 | D03 | Axle;Swivel Arm;;42CrMo;;GM135-KM;Diam.2 | No | Model Compatibility List | $24.68 / Each |
||
![]() |
733529 | 1000442332 | D14 | Foam;Pedal Arm Grip;;;;Diam.40.4X5.0TX30 | No | Model Compatibility List | $9.08 / Each |
||
![]() |
733530 | 1000446798 | D15 | Spacer;Bearing;;;Black coating;GM135;20 | No | Model Compatibility List | $3.88 / Each |
||
![]() |
733531 | 1000447573 | G15 | Foot Pad;;;PVC;;M10x29L; | No | Model Compatibility List | $3.88 / Each |
||
![]() |
733532 | 1000442604 | Not Shown | hardware set;;;;GM135; | No | Model Compatibility List | $22.08 / Each |
||
![]() |
733533 | 1000442605 | V01 | EN LABEL;;GM135;;;;; | No | Model Compatibility List | $1.28 / Each |
||
![]() |
733534 | 1000442634 | V02 | Instructional Labe;;Down;;;English;GM135 | No | Model Compatibility List | $7.78 / Each |
||
![]() |
733535 | 1000453436 | V03 | Instructional Labe;;;;;Up;;GM135 | No | Model Compatibility List | $6.48 / Each |
||
![]() |
733536 | 1000455060 | AB1 | Frame Set;;;painting;;Iced Sliver;GM135; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
733537 | 1000455089 | AC1 | base set;;;painting;;Iced Sliver;GM135;s | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
733538 | 1000455108 | AD1 | Pedal Arm Set;;;painting;;Iced Sliver;GM | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
733539 | 1000442556 | Q02 | Cover;Black Matte; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
733540 | 019845-00 | D13 | Washer;Wave;20.7x29.1x0.3t;65Mn | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
|
