Brand: Matrix Fitness
Category: Single Station
Type: Strength Systems

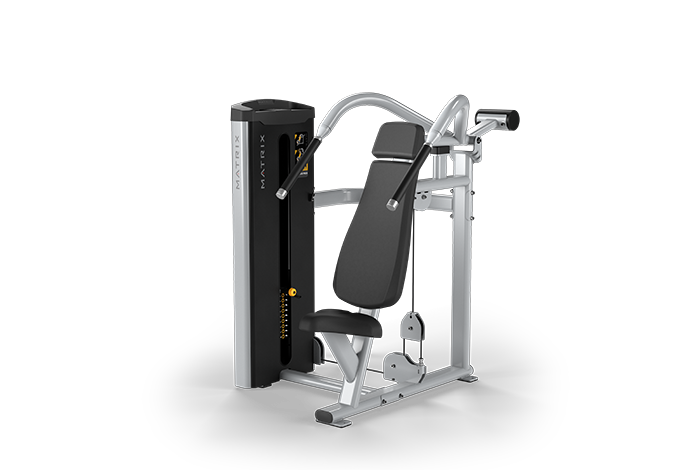

Model Name: GO-S23 - Shoulder Press - GM136 - 2020
Serial Number Prefix: GM136
Version: 2020
"Used Only" - contact us if interested in used or refurbished parts. Send us mail:
XImage | Catalog # | MPN | Part List Key | Quantity On Model | Part Description | Notes | Available Used | Model Compatibility List | New price |
---|---|---|---|---|---|---|---|---|---|
![]() |
701478 | 004525-00 | R05 | Screw;Hex Socket;Round;M8x1.25Px50L | Yes | Model Compatibility List | $7.20 / Each |
||
![]() |
701664 | 004699-00 | B60 | Screw;Hex Socket;M8X1.25PX15L | Yes | Model Compatibility List | $1.79 / Each |
||
701767 | 004789-AC | Z04 | Screw;BH;M10X1.5PX75L;;HS;;CHM;;G12.9 | No | Model Compatibility List | $3.69 / Each |
|||
![]() |
701891 | 004924-00 | T10 | Nut;Nylon;M5x0.8P;Black Zinc | No | Model Compatibility List | $2.00 / Each |
||
![]() |
701901 | 004929-00 | F12 | Nut;Nylon;M8x1.25P;Chromed | No | Model Compatibility List | $2.00 / Each |
||
![]() |
702030 | 005062-00 | B21 | Washer;Flat;10.2x19x2.0T;Chromed | No | Model Compatibility List | $1.59 / Each |
||
![]() |
702654 | 009247-A | B13 | Axle;Swivel;;S45C;10x25L | No | Model Compatibility List | $2.86 / Each |
||
![]() |
702722 | 009372-E | E14 | Cap;Grip;GM02 | No | Model Compatibility List | $13.36 / Each |
||
![]() |
703737 | 015942-AA | K06 | Weight Plate Set;10 Lbs;Dry Bearing | No | Model Compatibility List | $42.22 / Each |
||
![]() |
704023 | 020112-A | B63 | Screw;Hex Socket;Round;M10x1.5Px50L(Tooth15) | No | Model Compatibility List | $1.33 / Each |
||
![]() |
704217 | 020489-A | Z22 | Washer;Arc;10.2x20.0x1.5t;Chromed | No | Model Compatibility List | $2.00 / Each |
||
![]() |
705465 | 049256-AB | Z03 | Screw;Hex Socket;Round;M10x1.5Px20L;Cr; | No | Model Compatibility List | $1.79 / Each |
||
707836 | 1000096178 | Z10 | Screw;BH;M5x20L;-;HS;-;BED;-;-; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
708092 | 1000099579 | H34 | Screw;SH;M8X1.25PX12L;;HS;;CHM;;BP | No | Model Compatibility List | $0.60 / Each |
|||
![]() |
708446 | 1000102862 | B24 | Screw;Hex Socket;Round;M8x1.25Px30L;Cr P | No | Model Compatibility List | $2.00 / Each |
||
![]() |
708593 | 1000104003 | B59 | Cap;Insert Nut;GM40-KM | No | Model Compatibility List | $2.96 / Each |
||
![]() |
708686 | 1000104723 | Z31 | Washer;FLT;6.2x13.0x1.0t;CHM | No | Model Compatibility List | $0.13 / Each |
||
![]() |
708730 | 1000105174 | Z09 | Nut;Nylon;M10x1.5P;G12.9;CHM | No | Model Compatibility List | $1.79 / Each |
||
709068 | 1000108800 | Z06 | Screw;RND;M6x1.0Px12L;HS;CHM;BP;G10.9 | No | Model Compatibility List | $0.44 / Each |
|||
![]() |
709081 | 1000109127 | V02 | Decal;Pinch Point ;MS21KM-G3 | No | Model Compatibility List | $1.77 / Each |
||
709204 | 1000111017 | C21 | cushion plug;Rubber;GM49-KM | No | Model Compatibility List | $1.66 / Each |
|||
![]() |
709315 | 1000113066 | D13 | Space Mass;Mast Bearing;20#;Chromeplate; | No | Model Compatibility List | $6.73 / Each |
||
![]() |
709461 | 1000200252 | B18 | RUBBER;STOPPER;-;GM59; | No | Model Compatibility List | $8.42 / Each |
||
709497 | 1000200716 | K10 | ELASTOMER;WEIGHT;RUBBER;;;;GM61; | No | Model Compatibility List | $25.04 / Each |
|||
710481 | 1000210496 | B42 | WASHER;FLT;Diam.10.2XDiam.28.5X3.0T;-;CH | No | Model Compatibility List | $1.85 / Each |
|||
710687 | 1000212396 | F15 | Fixing Plate;Cable Head;-;45#;BED;GM46; | No | Model Compatibility List | $102.10 / Each |
|||
711984 | 1000224684 | Z12 | Screw;RND;M10x1.5Px125L;-;HS;-;CHM;BP;G1 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
![]() |
713129 | 1000233200 | C52 | PLASTIC COVER;;NBR;BL;;;; | No | Model Compatibility List | $1.66 / Each |
||
![]() |
713139 | 1000233235 | Z10 | Bearing;Rod End;PHS;M12X1.75PX60L;Siao Y | No | Model Compatibility List | $27.01 / Each |
||
![]() |
713460 | 1000303546 | C51 | Plastic Pad;Foot Pad;-;PP;BL427 | No | Model Compatibility List | $3.35 / Each |
||
719682 | 1000363760 | V51 | Warning Label;Frame;;;PC;;English; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
![]() |
720322 | 1000371560 | C18 | Cap;Elliptical;;TPU;;Diam.50.0xDiam.100. | No | Model Compatibility List | $6.73 / Each |
||
722641 | 1000396712 | F10 | Fixing Plate;Pulley;;painting;;Iced Sliv | No | Model Compatibility List | $20.25 / Each |
|||
722707 | 1000397915 | Q96 | Kettle Plate;;mid;TPU;426C/80393;113.0x7 | No | Model Compatibility List | $6.73 / Each |
|||
725265 | 103406 | D38 | Washer;Flat;8.2x20.0x1.8t;Cr Plat; | No | Model Compatibility List | $0.21 / Each |
|||
![]() |
726707 | 084241 | Z06 | Screw Set;M6X1.0PX5L;BP;POT | No | Model Compatibility List | $0.39 / Each |
||
![]() |

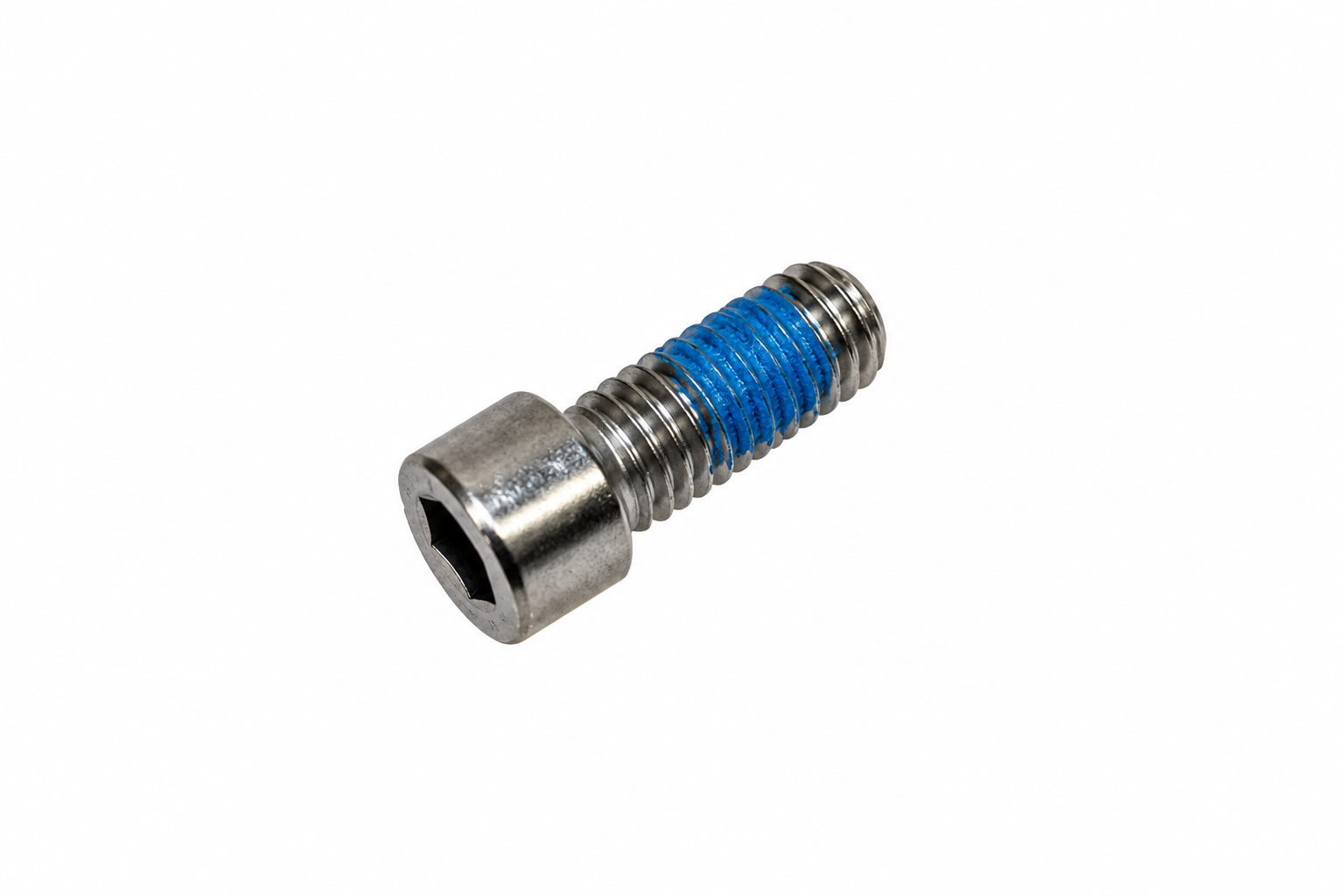

726981 | 086451 | Z24 | Screw;Hex Socket;Round;M10x1.5Px25L | No | Model Compatibility List | $1.12 / Each |
||
729261 | See Pad Matrix | J01 | Elbow Pad;;PU;Black;;FW213-KM; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
![]() |
732206 | 1000454351 | AD11 | Pedal Arm set;Semi-Assy;;Iced Sliver;;;G | No | Model Compatibility List | $197.58 / Each |
||
![]() |
732207 | 1000442348 | AF1 | Steel Rope-Extrawork;;1;Press Rope Hand; | No | Model Compatibility List | $36.38 / Each |
||
![]() |

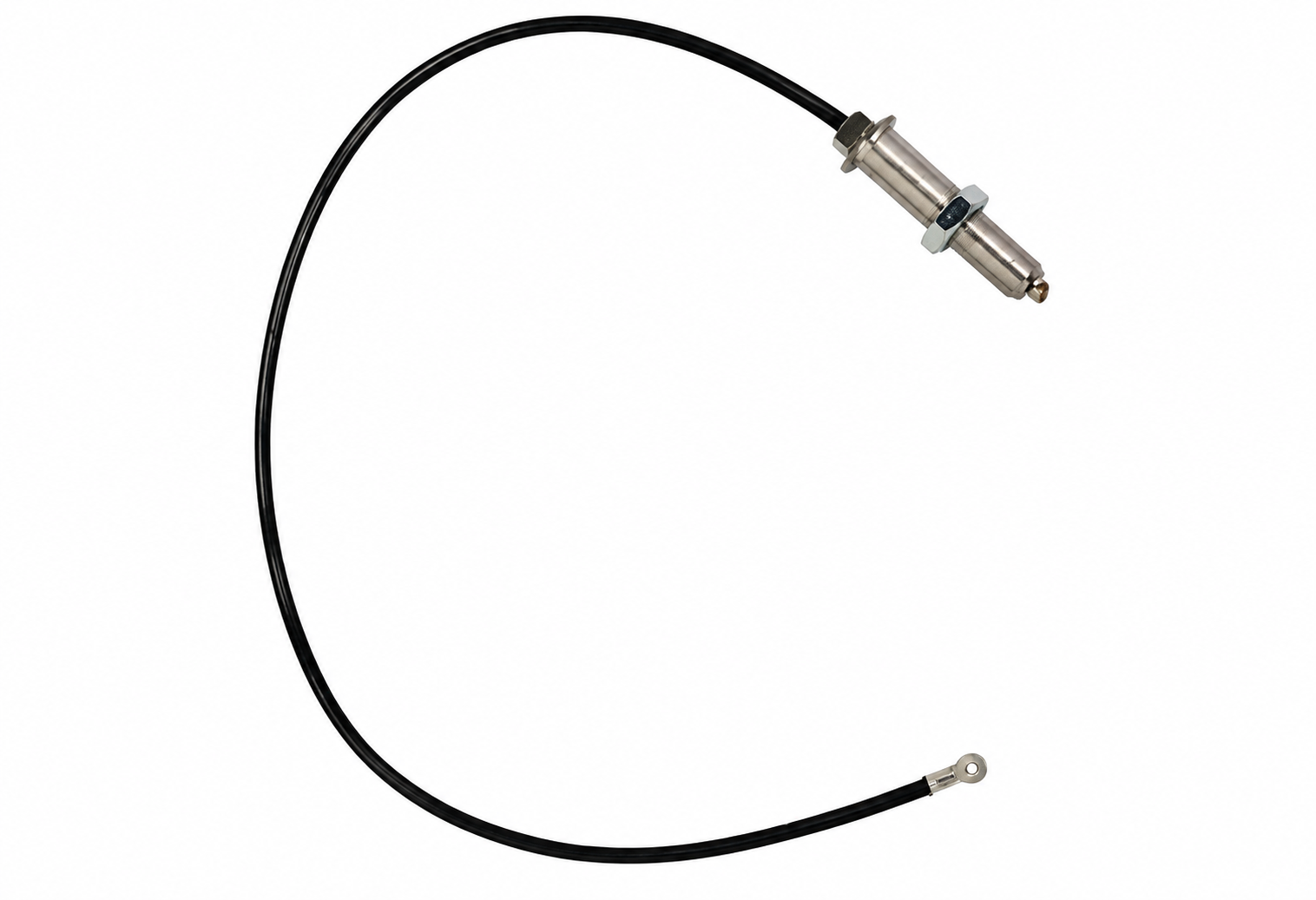

732208 | 1000442349 | AF2 | Steel Rope-Extrawork;;2;Press Rope Hand; | No | Model Compatibility List | $23.38 / Each |
||
![]() |
732209 | 1000454128 | AG1 | ConnectingTube Set;;U;painting;;Iced Sli | No | Model Compatibility List | $24.68 / Each |
||
![]() |
732210 | 1000454136 | AG2 | ConnectingTube Set;;D;;;Iced Sliver;GM13 | No | Model Compatibility List | $25.98 / Each |
||
![]() |
732211 | 1000454145 | AG3 | ConnectingTube Set;;Rear;painting;;Iced | No | Model Compatibility List | $25.98 / Each |
||
![]() |
732212 | 1000442579 | AK01 | Up Weight Plate Set;Assembly Drawing;;;G | No | Model Compatibility List | $161.18 / Each |
||
![]() |
732213 | 1000434128 | B14 | Pulley;;;;Black;Diam.114;MS51;outsourcin | No | Model Compatibility List | $7.78 / Each |
||
![]() |
732214 | 1000431611 | C03 | Cushion;;;NBR;;100x50x35;PL217; | No | Model Compatibility List | $11.68 / Each |
||
![]() |
732215 | 1000451108 | D13 | Balance Plate;;;painting;;;GM136; | No | Model Compatibility List | $97.48 / Each |
||
![]() |
732216 | 1000441980 | D19 | Axle;Link Arm;;42CrMo;;GM138;Diam.25x165 | No | Model Compatibility List | $25.98 / Each |
||
![]() |
732217 | 1000454152 | G14 | Connect Plate;;;painting;;Iced Sliver;GM | No | Model Compatibility List | $5.18 / Each |
||
![]() |
732218 | 1000442573 | K01 | Fixing Sleeve;Guide Rod;;PA66;;;GM135; | No | Model Compatibility List | $2.58 / Each |
||
![]() |
732219 | 1000442574 | K02 | Guide Rod;Weight Plate;;45#;Chrome;GM135 | No | Model Compatibility List | $51.98 / Each |
||
![]() |
732220 | 1000445907 | K03 | Plug;;;NYLON 66;BL/Black C;13;RB210;City | No | Model Compatibility List | $1.28 / Each |
||
![]() |
732221 | 1000447002 | K04 | Spring;Compression;Diam.1.3xDiam.13.5x38 | No | Model Compatibility List | $1.28 / Each |
||
![]() |
732222 | 1000375460 | K11 | Pin set;Semi-Assy;;WEIGHT PLATE;;GM106;; | No | Model Compatibility List | $33.78 / Each |
||
![]() |
732223 | 1000442357 | Not Shown | hardware set;Assembly;;;GM136-KM; | No | Model Compatibility List | $51.98 / Each |
||
![]() |
732224 | 1000442564 | Q01 | Cover;;Rear;painting;;Black Matte;GM135- | No | Model Compatibility List | $77.98 / Each |
||
![]() |
732225 | 1000442334 | Q02 | Cover;;F;painting;;Black Matte;GM136-KM; | No | Model Compatibility List | $84.48 / Each |
||
![]() |
732226 | 1000442569 | Q03 | Cover;;up;ABS Fire;;;GM135; | No | Model Compatibility List | $14.28 / Each |
||
![]() |
732227 | 1000442570 | Q04 | Kettle Plate;;left;EPDM;;;GM135; | No | Model Compatibility List | $5.18 / Each |
||
![]() |
732228 | 1000442571 | Q05 | Kettle Plate;;right;EPDM;;;GM135; | No | Model Compatibility List | $5.18 / Each |
||
![]() |
732229 | 1000377082 | Q06 | Hanging Hook;;right up;NYLON+G30%;;;GM13 | No | Model Compatibility List | $1.28 / Each |
||
![]() |
732230 | 1000376867 | Q09 | Rail;Board;Inner;NBR;;;GM135; | No | Model Compatibility List | $9.08 / Each |
||
![]() |
732231 | 1000446327 | V01 | EN LABEL;;GM136;;;;; | No | Model Compatibility List | $1.28 / Each |
||
![]() |
732232 | 1000448453 | V02 | Instructional Labe;;;;;;English;GM136 | No | Model Compatibility List | $3.88 / Each |
||
![]() |
732233 | 1000450783 | V04 | Spec Label;Weight Plate;10lbs*16;;PC;;;G | No | Model Compatibility List | $11.68 / Each |
||
![]() |
732234 | 1000454103 | AB1 | Frame Set;;;painting;;Iced Sliver;GM136; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
732235 | 1000454110 | AC1 | base set;;;painting;;Iced Sliver;GM136; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
732236 | See GO-IW page | Not Shown | Go Series Increment Weight | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
732237 | 004924-Z | Q08 | NUT LK M5 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
|
