Brand: Matrix Fitness
Category: Single Station
Type: Strength Systems

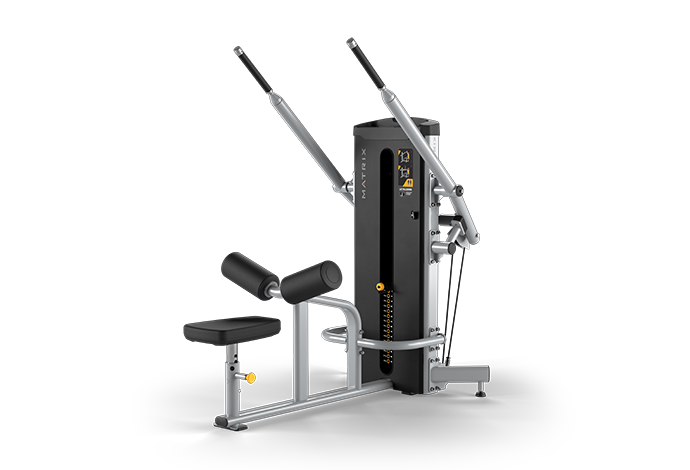

Model Name: GO-S33 - Lat Pulldown - GM137 - 2020
Serial Number Prefix: GM137
Version: 2020
"Used Only" - contact us if interested in used or refurbished parts. Send us mail:
XImage | Catalog # | MPN | Part List Key | Quantity On Model | Part Description | Notes | Available Used | Model Compatibility List | New price |
---|---|---|---|---|---|---|---|---|---|
![]() |
701478 | 004525-00 | R05 | Screw;Hex Socket;Round;M8x1.25Px50L | Yes | Model Compatibility List | $7.20 / Each |
||
![]() |
701664 | 004699-00 | B60 | Screw;Hex Socket;M8X1.25PX15L | Yes | Model Compatibility List | $1.79 / Each |
||
![]() |
701891 | 004924-00 | T10 | Nut;Nylon;M5x0.8P;Black Zinc | No | Model Compatibility List | $2.00 / Each |
||
![]() |
702030 | 005062-00 | B21 | Washer;Flat;10.2x19x2.0T;Chromed | No | Model Compatibility List | $1.59 / Each |
||
![]() |
702119 | 005145-AC | Z22 | Washer;Flat;8.2x19.0x2.0T;Chromed | No | Model Compatibility List | $2.00 / Each |
||
![]() |
702654 | 009247-A | B13 | Axle;Swivel;;S45C;10x25L | No | Model Compatibility List | $2.86 / Each |
||
![]() |
702711 | 009356-B | C46 | Stopper Mast;Foam;AL6061;GM03 | No | Model Compatibility List | $3.64 / Each |
||
![]() |
702721 | 009371-E | C26 | Cap;Grip;GM03 | No | Model Compatibility List | $15.34 / Each |
||
![]() |
703738 | 015943-AA | K06 | Weight Plate Set;15 Lbs;Dry Bearing | No | Model Compatibility List | $67.57 / Each |
||
![]() |
704004 | 020096-00 | H07 | Screw;Hex Socket;Round;M8x1.25Px15L;Chromed | Yes | Model Compatibility List | $9.99 / Each |
||
![]() |
704023 | 020112-A | B63 | Screw;Hex Socket;Round;M10x1.5Px50L(Tooth15) | No | Model Compatibility List | $1.33 / Each |
||
![]() |
704039 | 020126-DB | Z30 | Screw;Seat Stopper;M8x1.25Px20L | No | Model Compatibility List | $1.79 / Each |
||
![]() |
704217 | 020489-A | Z22 | Washer;Arc;10.2x20.0x1.5t;Chromed | No | Model Compatibility List | $2.00 / Each |
||
![]() |
704979 | 028275-AA | B21 | Adjustable Leveler | Yes | Model Compatibility List | $1.90 / Each |
||
![]() |
705465 | 049256-AB | Z03 | Screw;Hex Socket;Round;M10x1.5Px20L;Cr; | No | Model Compatibility List | $1.79 / Each |
||
707836 | 1000096178 | Z10 | Screw;BH;M5x20L;-;HS;-;BED;-;-; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
708033 | 1000098051 | C20 | Bearing Cover;Base;ABS;GM40 | No | Model Compatibility List | $8.24 / Each |
|||
708092 | 1000099579 | H34 | Screw;SH;M8X1.25PX12L;;HS;;CHM;;BP | No | Model Compatibility List | $0.60 / Each |
|||
![]() |
708402 | 1000102675 | H15 | Stopper Block;Pull Pin;GM43 | No | Model Compatibility List | $7.02 / Each |
||
![]() |
708446 | 1000102862 | B24 | Screw;Hex Socket;Round;M8x1.25Px30L;Cr P | No | Model Compatibility List | $2.00 / Each |
||
![]() |
708593 | 1000104003 | B59 | Cap;Insert Nut;GM40-KM | No | Model Compatibility List | $2.96 / Each |
||
![]() |
708686 | 1000104723 | Z31 | Washer;FLT;6.2x13.0x1.0t;CHM | No | Model Compatibility List | $0.13 / Each |
||
![]() |
708730 | 1000105174 | Z09 | Nut;Nylon;M10x1.5P;G12.9;CHM | No | Model Compatibility List | $1.79 / Each |
||
708742 | 1000105259 | Z05 | Screw;Round;M10x1.5Px105L;Hex Socket;G12 | No | Model Compatibility List | $6.42 / Each |
|||
709064 | 1000108796 | B18 | Screw;RND;M10x1.5Px55L;HS;CHM;BP;G12.9 | No | Model Compatibility List | $3.95 / Each |
|||
709068 | 1000108800 | Z06 | Screw;RND;M6x1.0Px12L;HS;CHM;BP;G10.9 | No | Model Compatibility List | $0.44 / Each |
|||
![]() |
709081 | 1000109127 | V02 | Decal;Pinch Point ;MS21KM-G3 | No | Model Compatibility List | $1.77 / Each |
||
709204 | 1000111017 | C21 | cushion plug;Rubber;GM49-KM | No | Model Compatibility List | $1.66 / Each |
|||
![]() |
709307 | 1000112985 | B13 | Elastomer;Weight Plate;GM59 | No | Model Compatibility List | $16.87 / Each |
||
![]() |
709315 | 1000113066 | D13 | Space Mass;Mast Bearing;20#;Chromeplate; | No | Model Compatibility List | $6.73 / Each |
||
![]() |
711198 | 1000217438 | J23 | Handle Pull Pin;;;TPP;Black Orange;;GM59 | No | Model Compatibility List | $13.49 / Each |
||
![]() |
713129 | 1000233200 | C52 | PLASTIC COVER;;NBR;BL;;;; | No | Model Compatibility List | $1.66 / Each |
||
![]() |
713139 | 1000233235 | Z10 | Bearing;Rod End;PHS;M12X1.75PX60L;Siao Y | No | Model Compatibility List | $27.01 / Each |
||
![]() |
713460 | 1000303546 | C51 | Plastic Pad;Foot Pad;-;PP;BL427 | No | Model Compatibility List | $3.35 / Each |
||
![]() |
713629 | 1000305926 | C14 | Cover Board;Back Cover;;PA746;FW207-KM | No | Model Compatibility List | $16.41 / Each |
||
717691 | 1000346841 | Z22 | Stopper Plate;Bearing;;SPHC;?35.0x5.0T;; | No | Model Compatibility List | $3.02 / Each |
|||
719082 | 1000355733 | C03 | Tube Cap;Base;;TPU;BL/Black C;F40xF80;FW | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
719682 | 1000363760 | V51 | Warning Label;Frame;;;PC;;English; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
![]() |
720821 | 1000376827 | J12 | PLASTIC LINER;Seat Adjustment;;PA66;BL/B | No | Model Compatibility List | $5.90 / Each |
||
![]() |
722509 | 1000393222 | B39 | Spring;Compression;1.3x12.7x38Lx7;SWP; | No | Model Compatibility List | $1.66 / Each |
||
722707 | 1000397915 | Q96 | Kettle Plate;;mid;TPU;426C/80393;113.0x7 | No | Model Compatibility List | $6.73 / Each |
|||
723522 | 1000407605 | D27 | Cap;Base;back;TPU;;;GM114; | No | Model Compatibility List | $6.73 / Each |
|||
![]() |
726707 | 084241 | Z06 | Screw Set;M6X1.0PX5L;BP;POT | No | Model Compatibility List | $0.39 / Each |
||
![]() |
728704 | 096073 | H12 | CON Plate; Cap;SPHC3.0t;GM42 | No | Model Compatibility List | $2.37 / Each |
||
![]() |
728705 | 096074 | H13 | Stopper Ring;Cap;AL6061;GM42 | No | Model Compatibility List | $19.81 / Each |
||
729261 | See Pad Matrix | J01 | Elbow Pad;;PU;Black;;FW213-KM; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
![]() |
713629 | 1000305926 | Console Board Back Cover | No | Model Compatibility List | $13.08 / Each |
|||
![]() |
730719 | 005040-AB | Z07 | Washer;Flat;8.4X15.5X1.6T | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
730925 | 0000086517 | D43 | Screw;Round Hex Socket;M10x1.5Px25L | No | Model Compatibility List | $1.02 / Each |
||
![]() |
732073 | 005485-E | B39 | Spring;Stretch;SWP; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
732212 | 1000442579 | AK01 | Up Weight Plate Set;Assembly Drawing;;;G | No | Model Compatibility List | $161.18 / Each |
||
![]() |
732213 | 1000434128 | B14 | Pulley;;;;Black;Diam.114;MS51;outsourcin | No | Model Compatibility List | $7.78 / Each |
||
![]() |
732214 | 1000431611 | C03 | Cushion;;;NBR;;100x50x35;PL217; | No | Model Compatibility List | $11.68 / Each |
||
![]() |
732218 | 1000442573 | K01 | Fixing Sleeve;Guide Rod;;PA66;;;GM135; | No | Model Compatibility List | $2.58 / Each |
||
![]() |
732219 | 1000442574 | K02 | Guide Rod;Weight Plate;;45#;Chrome;GM135 | No | Model Compatibility List | $51.98 / Each |
||
![]() |
732220 | 1000445907 | K03 | Plug;;;NYLON 66;BL/Black C;13;RB210;City | No | Model Compatibility List | $1.28 / Each |
||
![]() |
732221 | 1000447002 | K04 | Spring;Compression;Diam.1.3xDiam.13.5x38 | No | Model Compatibility List | $1.28 / Each |
||
![]() |
732222 | 1000375460 | K11 | Pin set;Semi-Assy;;WEIGHT PLATE;;GM106;; | No | Model Compatibility List | $33.78 / Each |
||
![]() |
732226 | 1000442569 | Q03 | Cover;;up;ABS Fire;;;GM135; | No | Model Compatibility List | $14.28 / Each |
||
![]() |
732227 | 1000442570 | Q04 | Kettle Plate;;left;EPDM;;;GM135; | No | Model Compatibility List | $5.18 / Each |
||
![]() |
732228 | 1000442571 | Q05 | Kettle Plate;;right;EPDM;;;GM135; | No | Model Compatibility List | $5.18 / Each |
||
![]() |
732229 | 1000377082 | Q06 | Hanging Hook;;right up;NYLON+G30%;;;GM13 | No | Model Compatibility List | $1.28 / Each |
||
![]() |
732230 | 1000376867 | Q09 | Rail;Board;Inner;NBR;;;GM135; | No | Model Compatibility List | $9.08 / Each |
||
![]() |
732233 | 1000450783 | V04 | Spec Label;Weight Plate;10lbs*16;;PC;;;G | No | Model Compatibility List | $11.68 / Each |
||
![]() |
732236 | See GO-IW page | Not Shown | Go Series Increment Weight | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
732237 | 004924-Z | Q08 | NUT LK M5 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
733344 | 020126-D | C51 | Screw;Set;M8X1.25PX20L;;;;CHM;;BP;STOP | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
733669 | 1000443689 | Not Shown | Manual;;;;URL;Matrix; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
733670 | 1000442674 | Q02 | Cover;;F;painting;;Black Matte;GM143-KM; | No | Model Compatibility List | $87.08 / Each |
||
![]() |

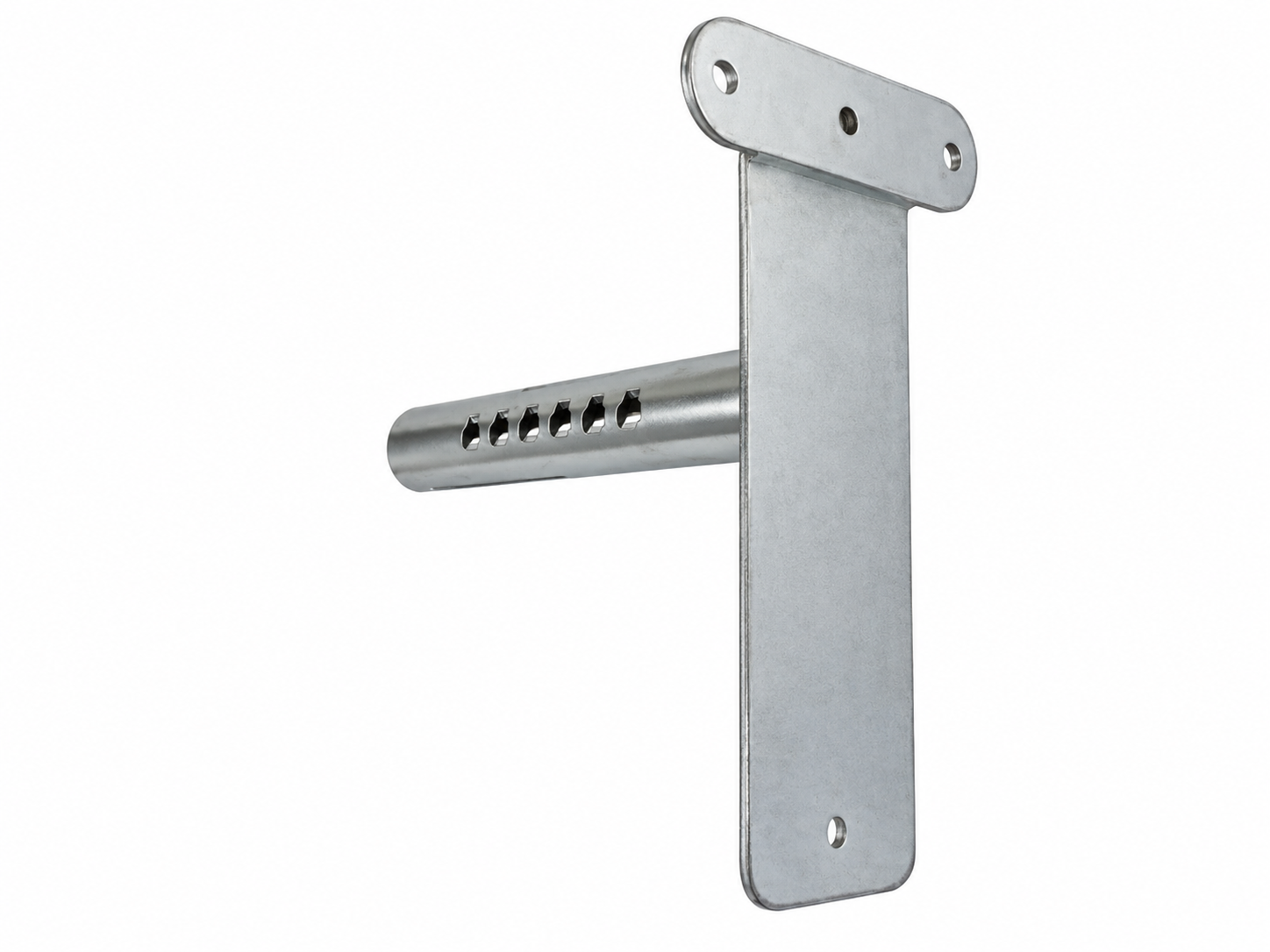

734608 | 1000447313 | AC2 | Seat Pad Adjust Set-Exreawork;seat pad;; | No | Model Compatibility List | $90.98 / Each |
||
![]() |

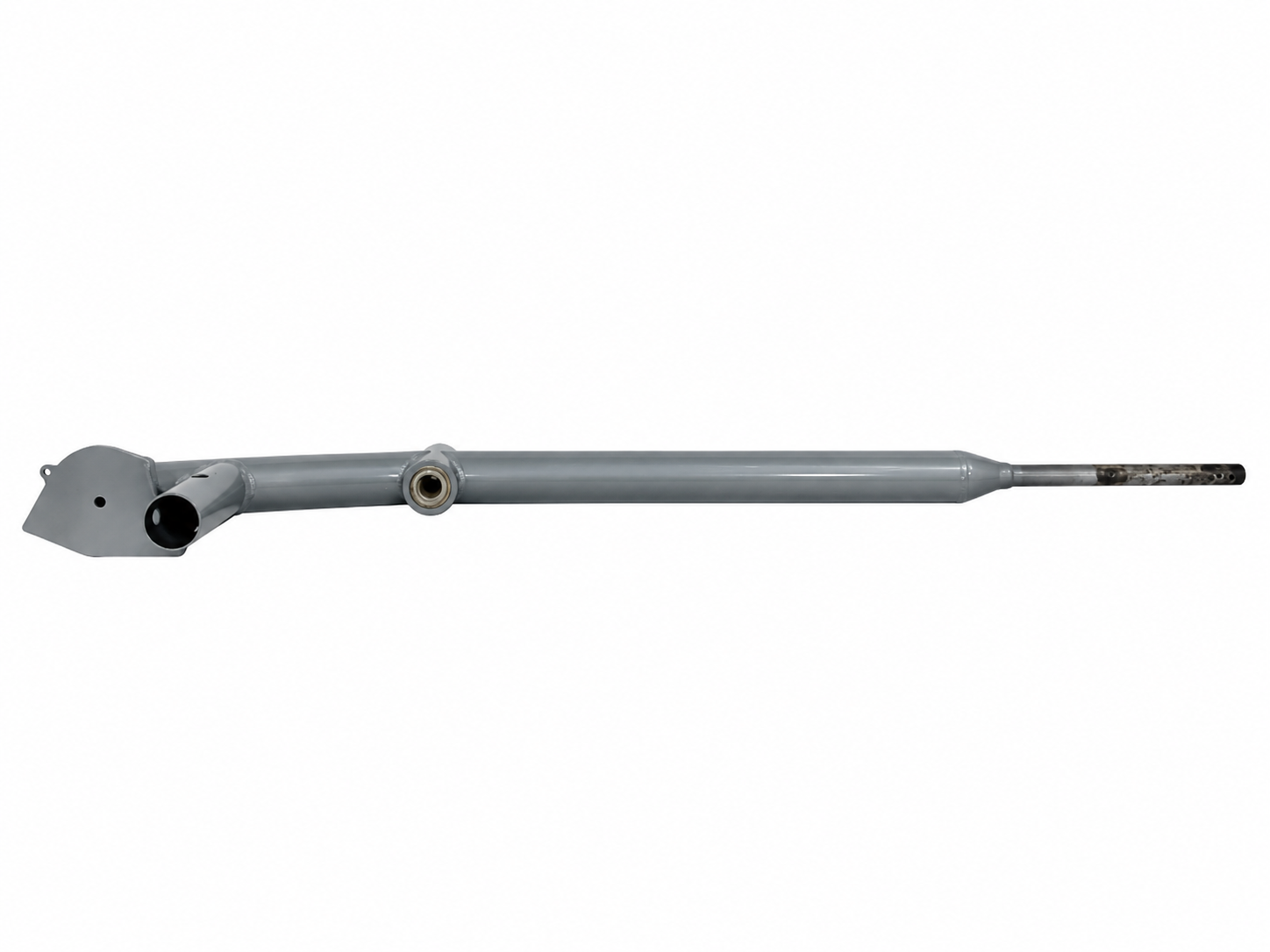

734609 | 1000456337 | AD02 | Pedal Arm Set3;;R;painting;;Iced Sliver; | No | Model Compatibility List | $89.68 / Each |
||
![]() |

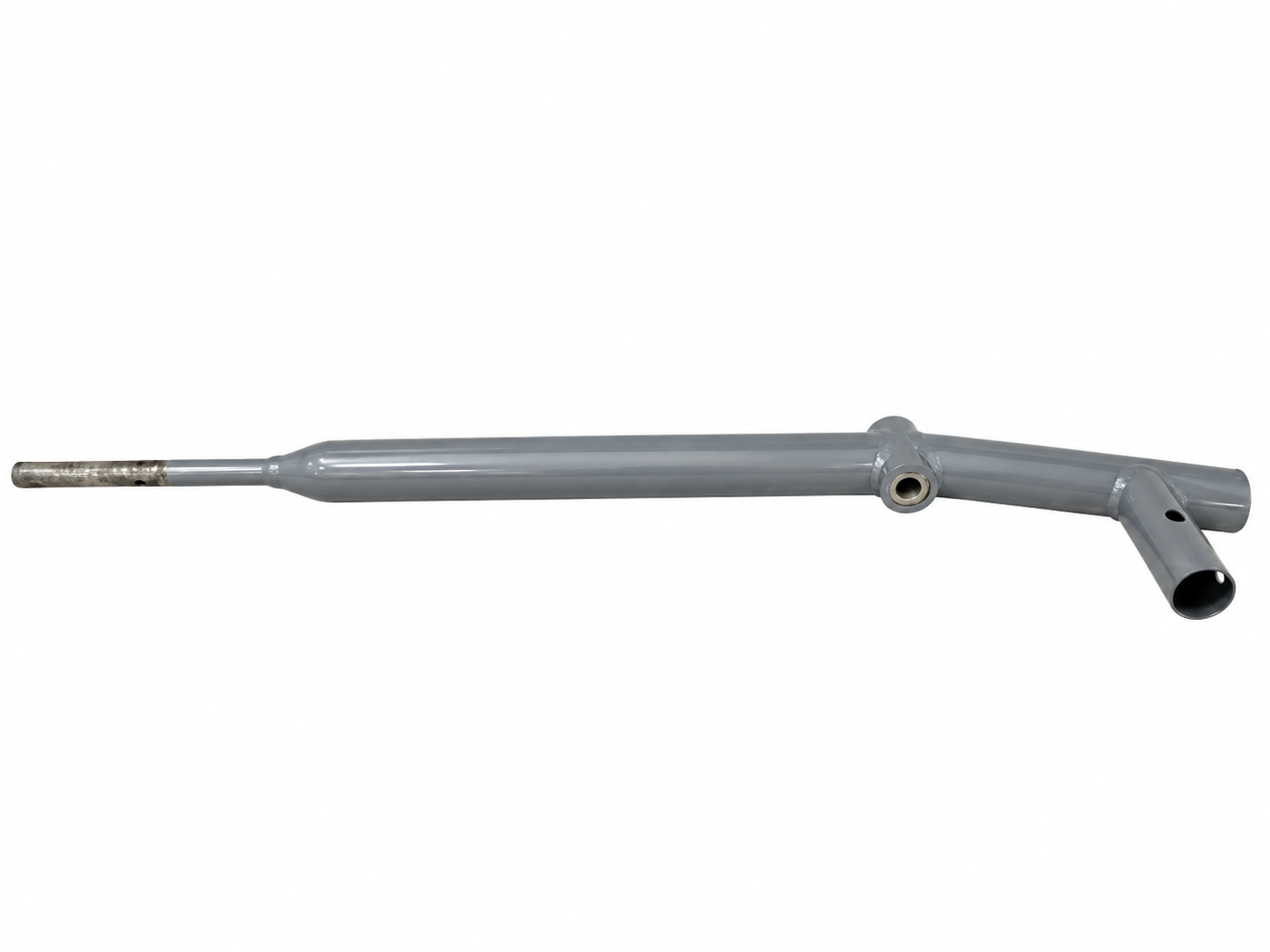

734610 | 1000456345 | AD03 | Pedal Arm Set3;;L;painting;;Iced Sliver; | No | Model Compatibility List | $77.98 / Each |
||
![]() |
734611 | 1000456329 | AD1 | Pedal Arm Con Set;;;painting;;Iced Slive | No | Model Compatibility List | $93.58 / Each |
||
![]() |
734612 | 1000456353 | AD4 | Stopper set;;;painting;;Iced Sliver;GM13 | No | Model Compatibility List | $24.68 / Each |
||
![]() |
734613 | 1000456363 | AE1 | ConnectingTube Set;;;painting;;Iced Sliv | No | Model Compatibility List | $32.48 / Each |
||
![]() |

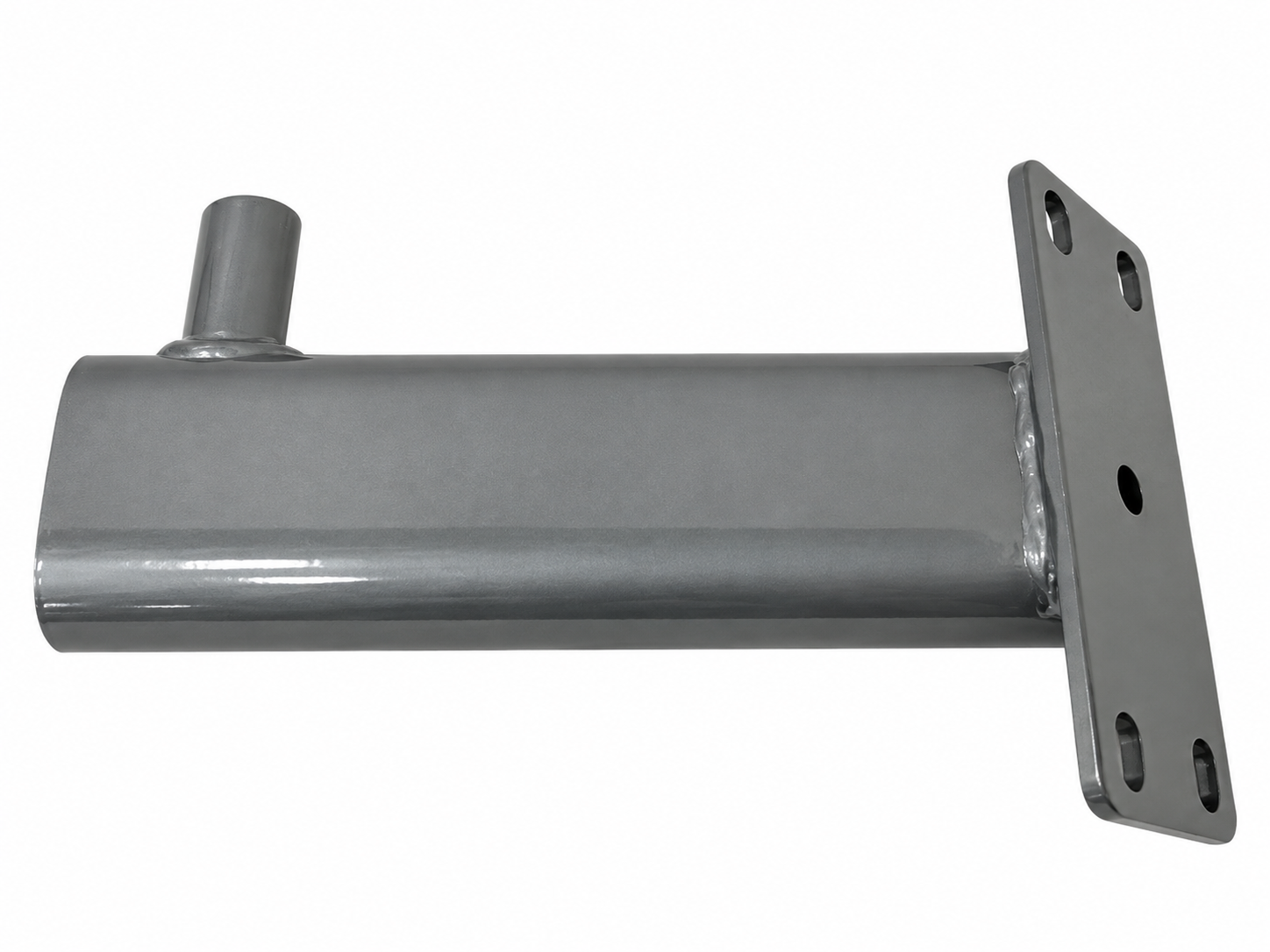

734614 | 1000456371 | AE2 | Frame Support Rack Set;;L;painting;;Iced | No | Model Compatibility List | $19.48 / Each |
||
![]() |

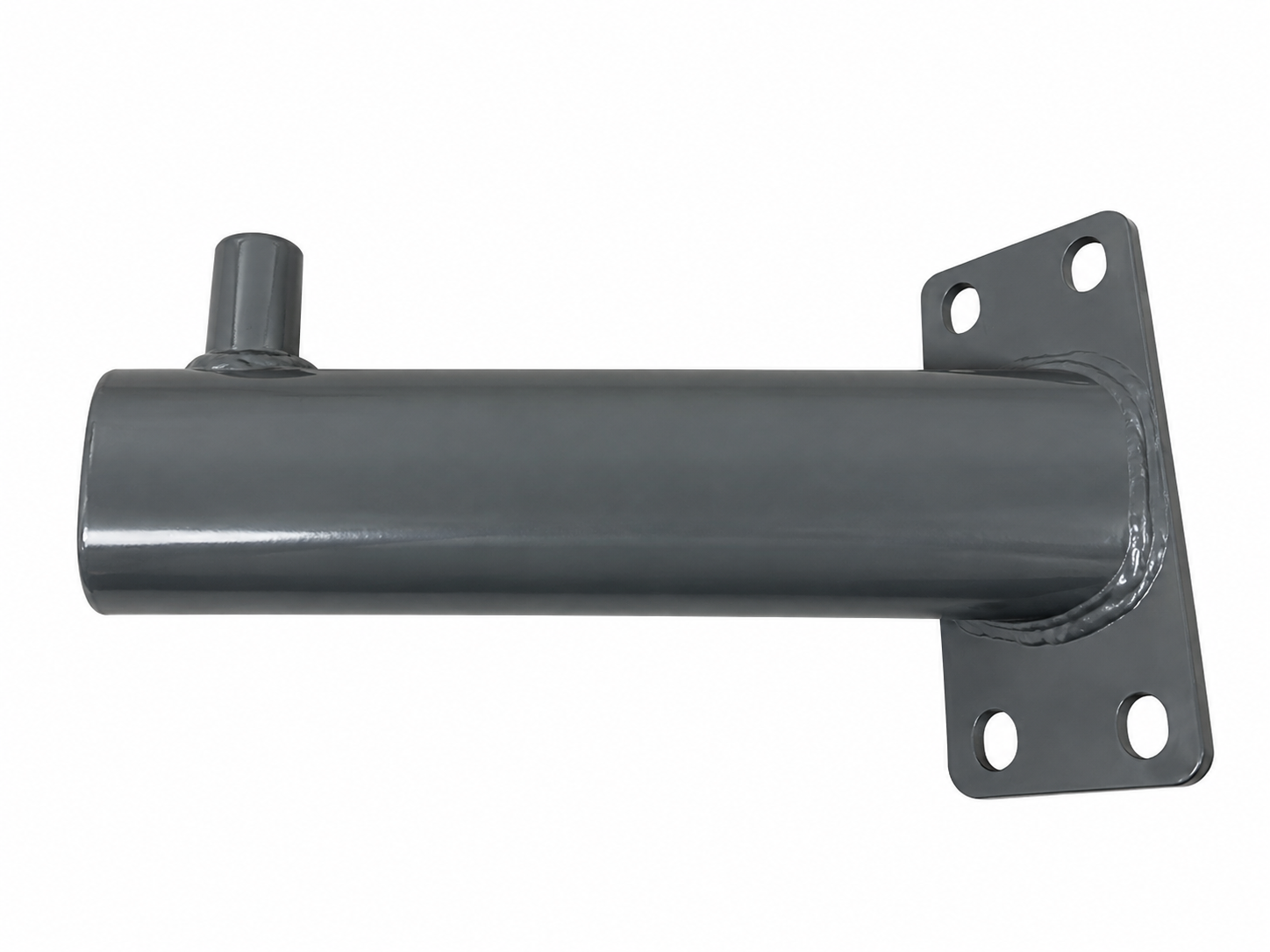

734615 | 1000456379 | AE3 | Frame Support Rack Set;;R;painting;;Iced | No | Model Compatibility List | $19.48 / Each |
||
![]() |

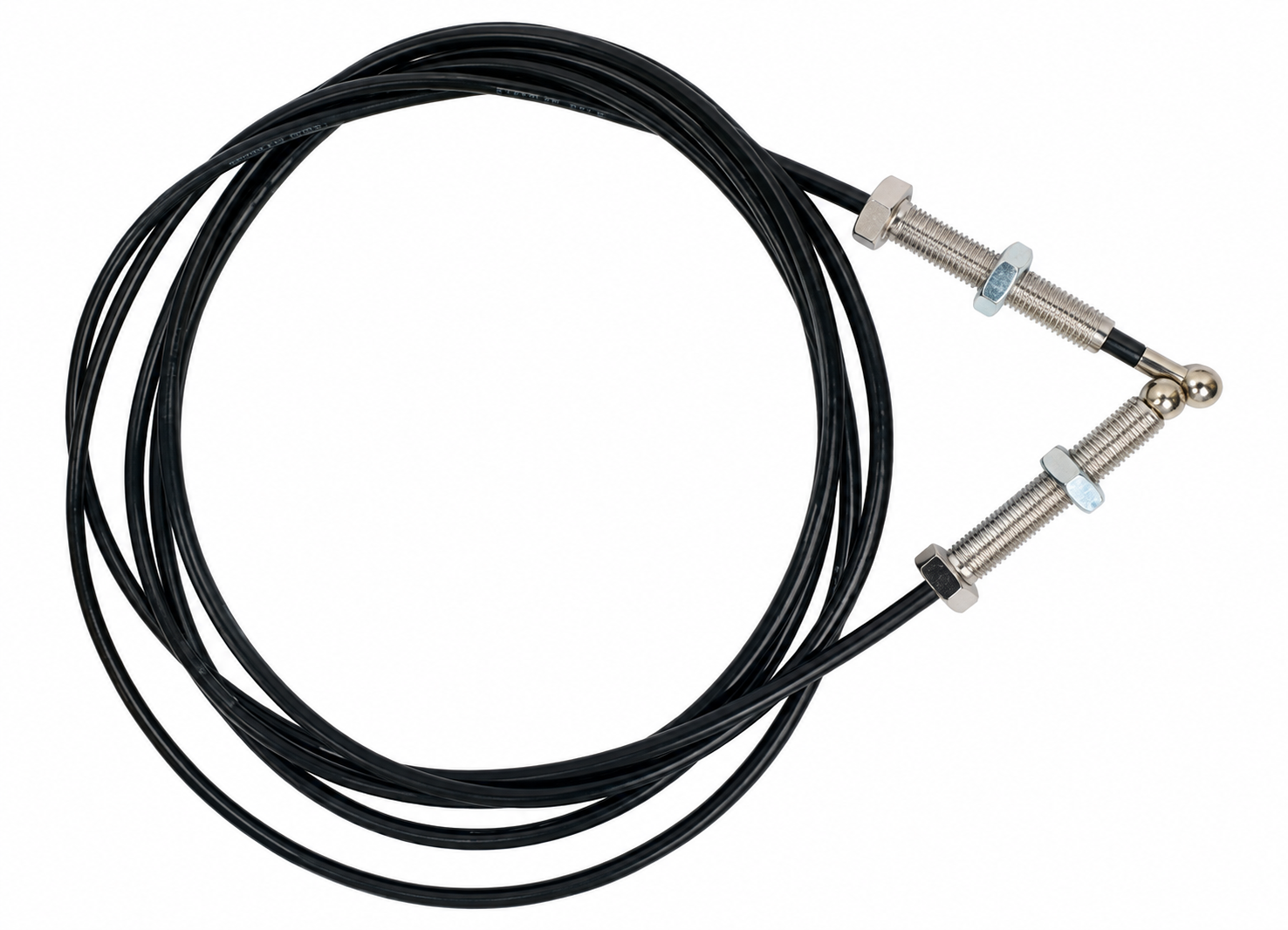

734616 | 1000447407 | AF1 | Steel Rope-Extrawork;;1;Press Rope Hand; | No | Model Compatibility List | $62.38 / Each |
||
![]() |
734617 | 1000447507 | C16 | Direction Label;;;;PC;;;GM137 | No | Model Compatibility List | $2.58 / Each |
||
![]() |
734618 | 1000447382 | D05 | Pulley Fixing Plate;;L;painting;;;GM137- | No | Model Compatibility List | $3.88 / Each |
||
![]() |
734619 | 004929-Z | D18 | Nut;Nylon;M8x1.25P;Cr; | No | Model Compatibility List | $1.28 / Each |
||
![]() |
734620 | 1000448886 | D33 | Foam;Arm Rest Handle;;;;Diam.25X5.0TX251 | No | Model Compatibility List | $6.48 / Each |
||
![]() |

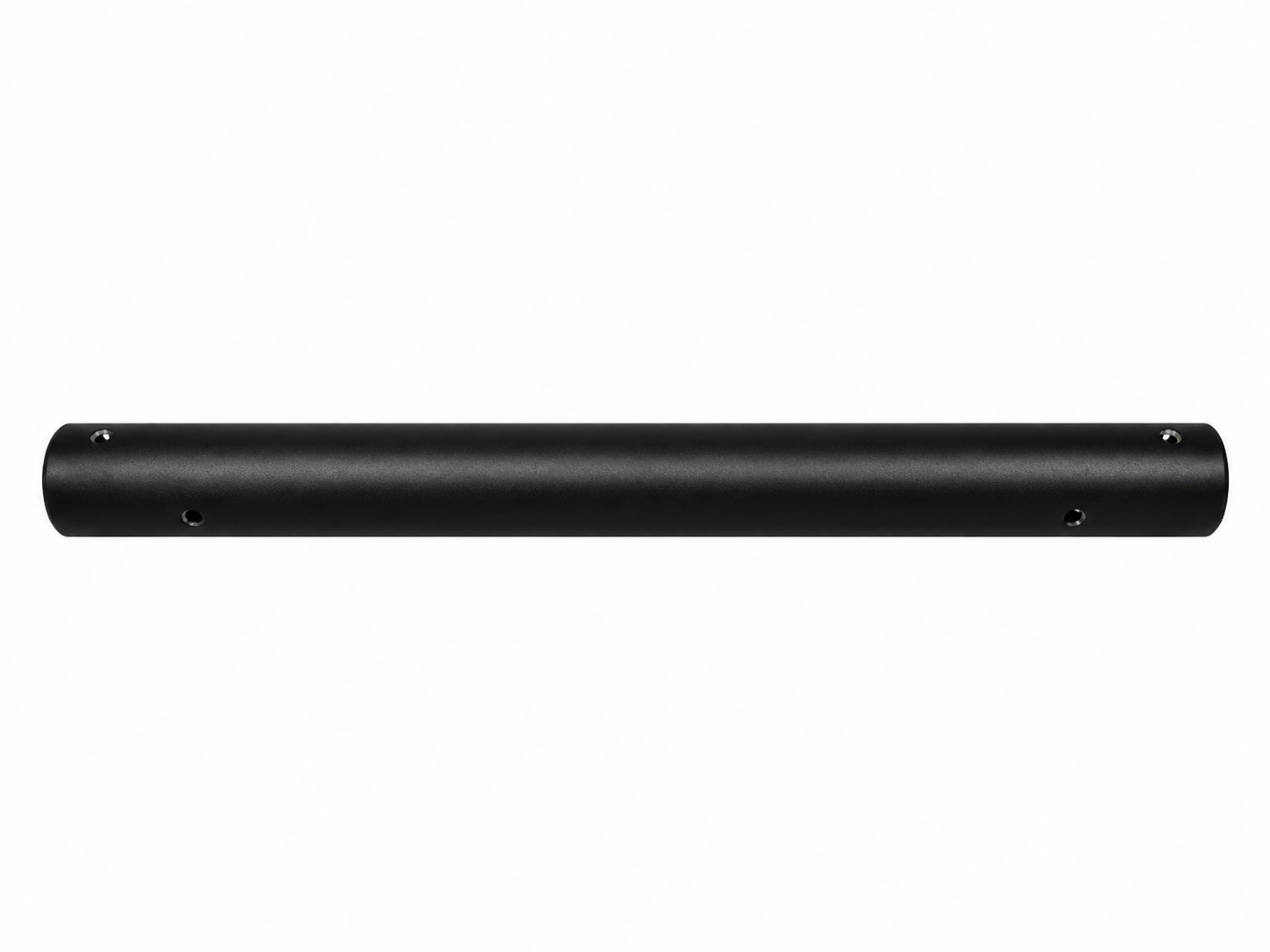

734621 | 1000448946 | G17 | Connect Mast;Pedal Arm;U;painting;;Black | No | Model Compatibility List | $80.58 / Each |
||
![]() |

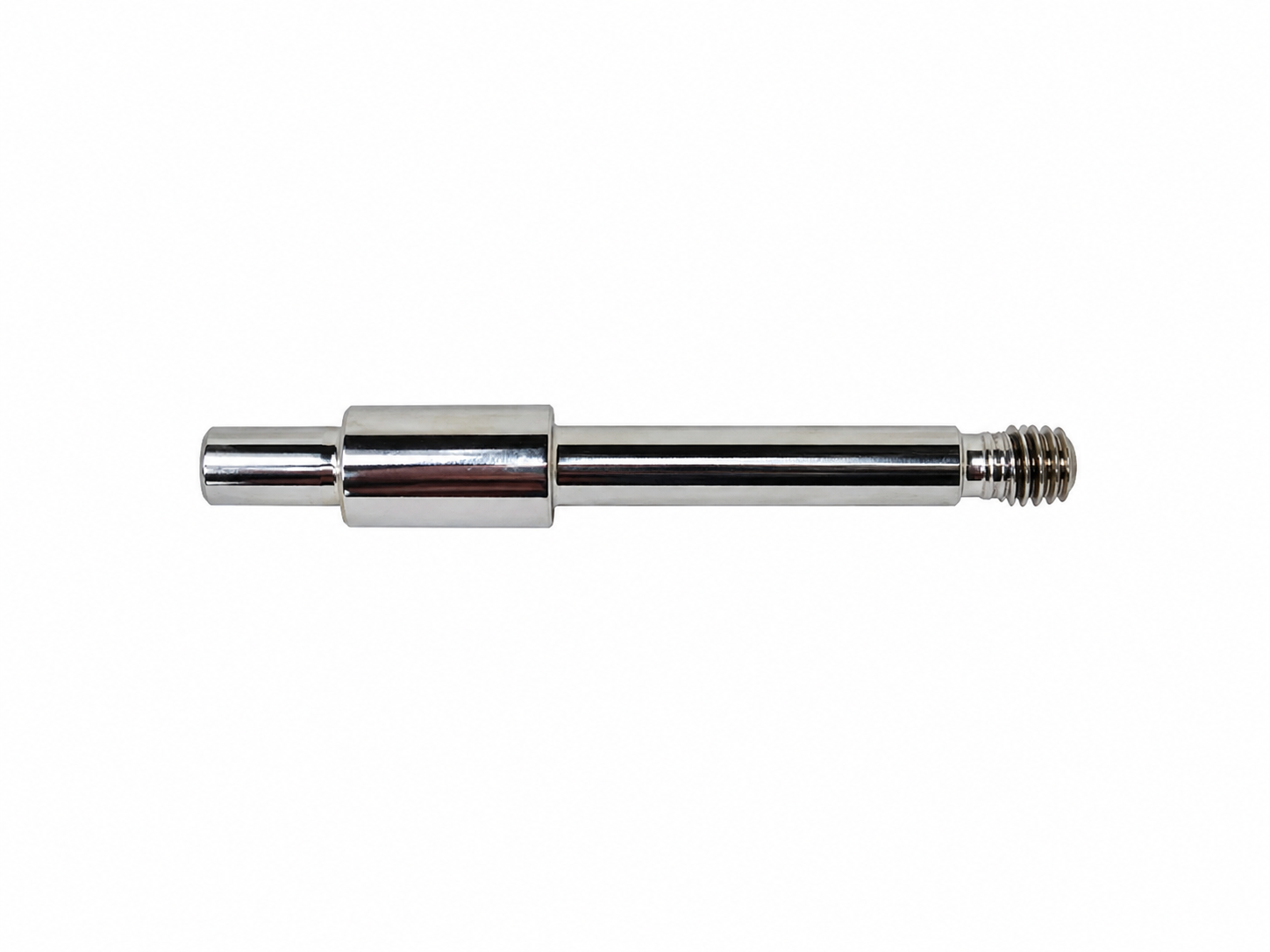

734622 | 1000448884 | H02 | Pull Pin;Pull pin;;45#;thermal refining; | No | Model Compatibility List | $7.78 / Each |
||
![]() |

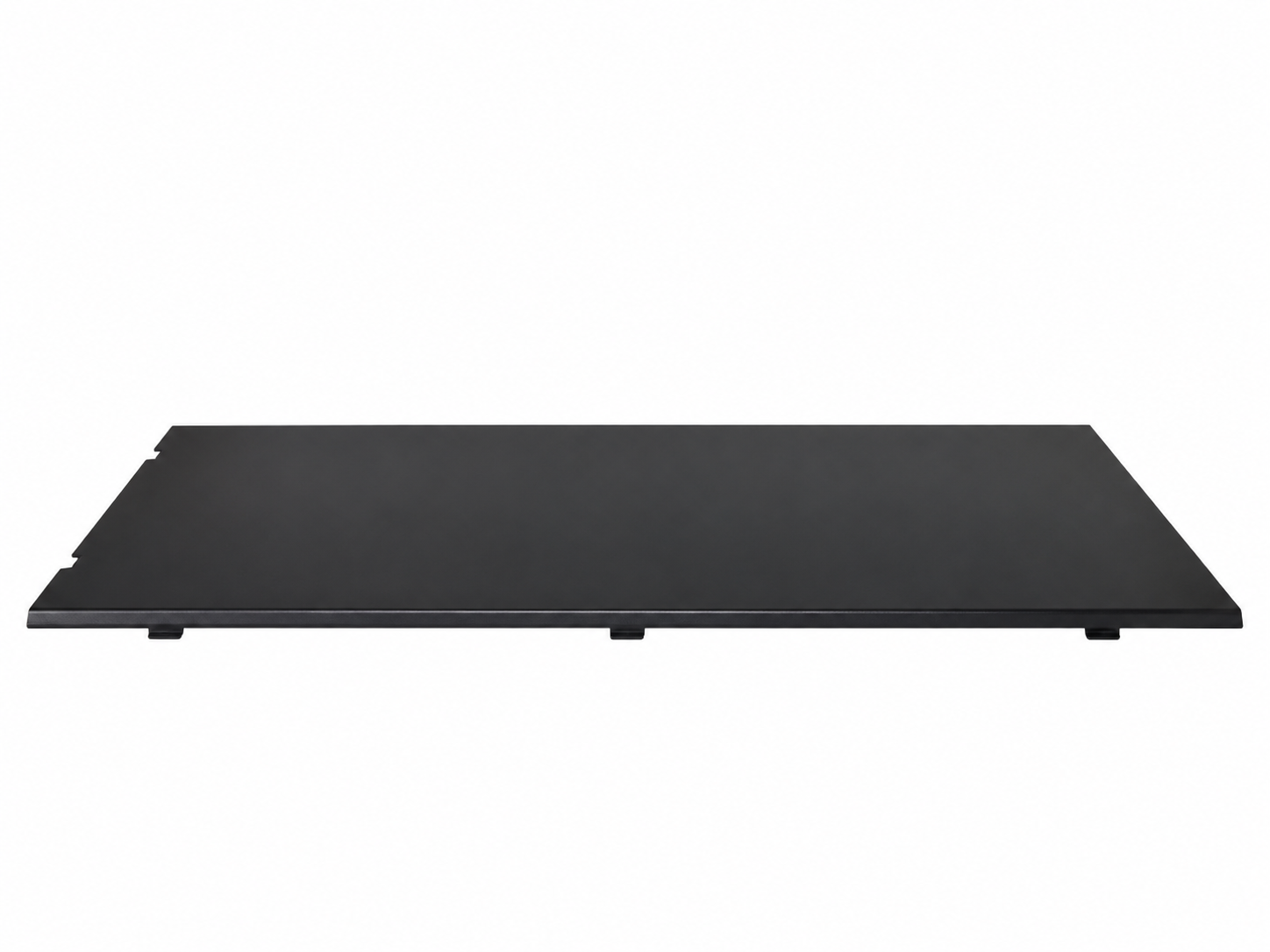

734623 | 1000447292 | Q01 | Cover;;Rear;painting;;Black Matte;GM137- | No | Model Compatibility List | $75.38 / Each |
||
![]() |
734624 | 1000454063 | V02 | Warning Label Set;Semi-Assy;up;;;;GM137; | No | Model Compatibility List | $6.48 / Each |
||
![]() |
734625 | 1000447528 | V03 | Instructional Labe;;;;;Down;English;GM13 | No | Model Compatibility List | $3.88 / Each |
||
![]() |
734626 | 1000459276 | Z11 | Screw;Flat Head;M10x1.5Px20L;;Hex Socket | No | Model Compatibility List | $1.68 / Each |
||
![]() |
734627 | 1000456312 | AB1 | Frame Set;;;painting;;Iced Sliver;GM137; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
734628 | 1000456321 | AC1 | base set;;;painting;;Iced Sliver;GM137; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
734629 | 1000447405 | Not Shown | hardware set;Assembly;;;GM137-KM;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
734630 | 1000447523 | Not Shown | Manual set;Semi-Assy;;;;;GM137-KM;Englis | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
|
