Brand: Matrix Fitness
Category: Single Station
Type: Strength Systems
Model Name: GO-S40 - Biceps Curl - GM139 - 2020
Serial Number Prefix: GM139
Version: 2020
"Used Only" - contact us if interested in used or refurbished parts. Send us mail:
XImage | Catalog # | MPN | Part List Key | Quantity On Model | Part Description | Notes | Available Used | Model Compatibility List | New price |
---|---|---|---|---|---|---|---|---|---|
![]() |
700145 | 000514-C | C14 | Foot pad;Tube;Rubber;GM07 | No | Model Compatibility List | $3.64 / Each |
||
![]() |
701664 | 004699-00 | B60 | Screw;Hex Socket;M8X1.25PX15L | Yes | Model Compatibility List | $1.79 / Each |
||
![]() |
701693 | 004720-AC | Z01 | Screw;Hex Socket;Umbrella;M8x1.25Px20L; | No | Model Compatibility List | $4.00 / Each |
||
![]() |
701891 | 004924-00 | T10 | Nut;Nylon;M5x0.8P;Black Zinc | No | Model Compatibility List | $2.00 / Each |
||
![]() |
701970 | 005009-AB | Z03 | Washer;Spring;SW8 8.2x15.4x2T;Zinc Plating | No | Model Compatibility List | $2.00 / Each |
||
![]() |
702030 | 005062-00 | B21 | Washer;Flat;10.2x19x2.0T;Chromed | No | Model Compatibility List | $1.59 / Each |
||
![]() |
702098 | 005130-00 | Z33 | Washer;Flat;8.4x15.5x1.6T;Chromed | No | Model Compatibility List | $2.00 / Each |
||
![]() |
702654 | 009247-A | B13 | Axle;Swivel;;S45C;10x25L | No | Model Compatibility List | $2.86 / Each |
||
![]() |
702711 | 009356-B | C46 | Stopper Mast;Foam;AL6061;GM03 | No | Model Compatibility List | $3.64 / Each |
||
![]() |
702714 | 009358-D | C48 | Washer;Swivel Axle;SS41; | No | Model Compatibility List | $20.18 / Each |
||
![]() |
702716 | 009360-AA | D24 | Washer;Grip;Chromed | No | Model Compatibility List | $2.83 / Each |
||
![]() |
703737 | 015942-AA | K06 | Weight Plate Set;10 Lbs;Dry Bearing | No | Model Compatibility List | $42.22 / Each |
||
![]() |
704023 | 020112-A | B63 | Screw;Hex Socket;Round;M10x1.5Px50L(Tooth15) | No | Model Compatibility List | $1.33 / Each |
||
![]() |
704217 | 020489-A | Z22 | Washer;Arc;10.2x20.0x1.5t;Chromed | No | Model Compatibility List | $2.00 / Each |
||
![]() |
704319 | 022400-A | C40 | Spring Pin;5x30L | No | Model Compatibility List | $3.64 / Each |
||
![]() |
705459 | 049249-00 | Z07 | Screw;SH;M10X1.5PX65L;;HS;;CHM;; | No | Model Compatibility List | $3.35 / Each |
||
707836 | 1000096178 | Z10 | Screw;BH;M5x20L;-;HS;-;BED;-;-; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
![]() |
708028 | 1000097854 | Z23 | WASHER;FLT;Diam.10.2XDiam.38X3.0T;SPHC ; | No | Model Compatibility List | $1.66 / Each |
||
708092 | 1000099579 | H34 | Screw;SH;M8X1.25PX12L;;HS;;CHM;;BP | No | Model Compatibility List | $0.60 / Each |
|||

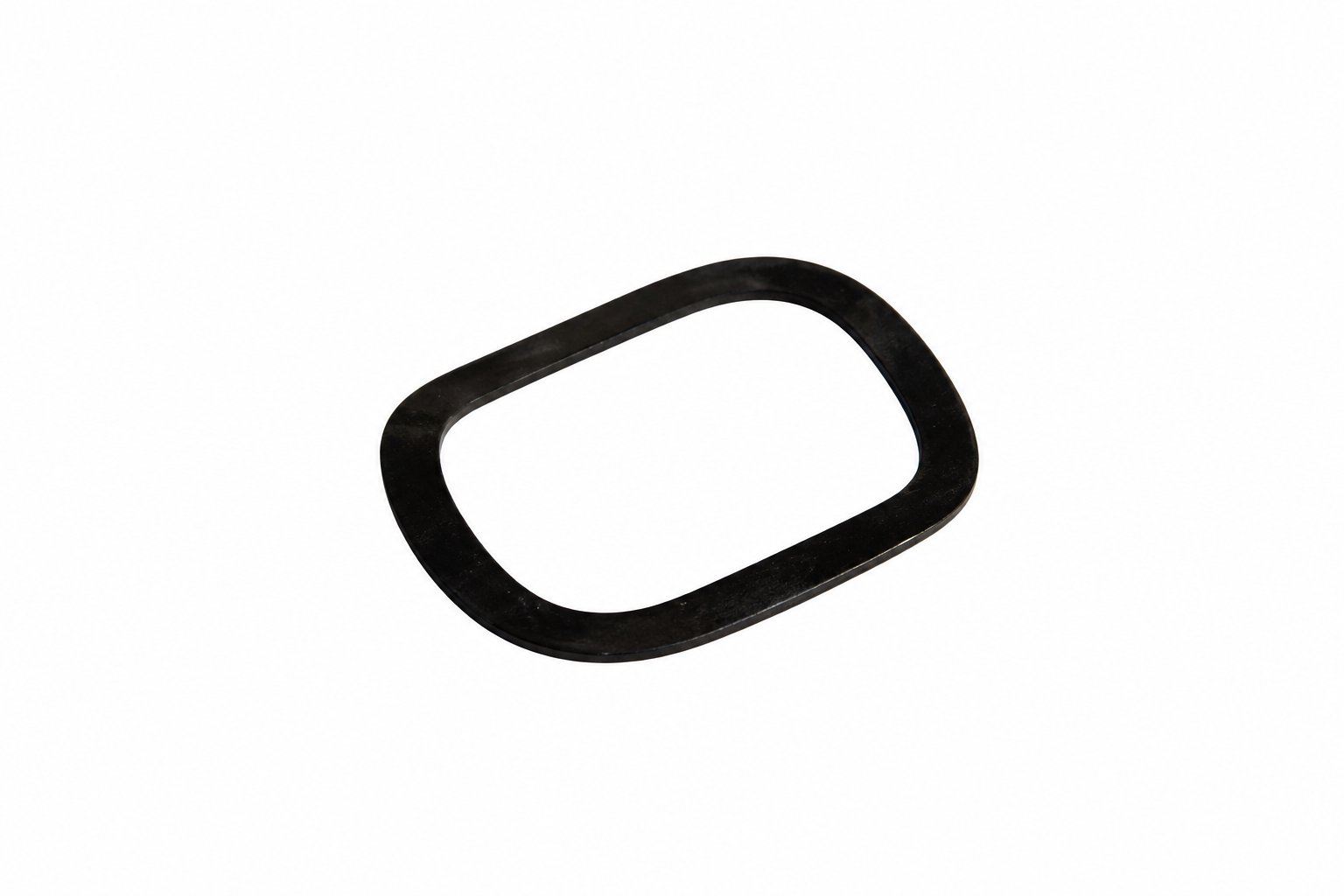

708628 | 1000104329 | C34 | Washer;WW;26.0x34.0x0.5t;65Mn; | No | Model Compatibility List | $2.00 / Each |
|||
![]() |
708662 | 1000104691 | H26 | Screw;RND;M10x1.5Px30L;HS;G12.9;CHM;BP | No | Model Compatibility List | $3.64 / Each |
||
![]() |
708730 | 1000105174 | Z09 | Nut;Nylon;M10x1.5P;G12.9;CHM | No | Model Compatibility List | $1.79 / Each |
||
709068 | 1000108800 | Z06 | Screw;RND;M6x1.0Px12L;HS;CHM;BP;G10.9 | No | Model Compatibility List | $0.44 / Each |
|||
![]() |
709081 | 1000109127 | V02 | Decal;Pinch Point ;MS21KM-G3 | No | Model Compatibility List | $1.77 / Each |
||
709204 | 1000111017 | C21 | cushion plug;Rubber;GM49-KM | No | Model Compatibility List | $1.66 / Each |
|||
![]() |
709461 | 1000200252 | B18 | RUBBER;STOPPER;-;GM59; | No | Model Compatibility List | $8.42 / Each |
||
709497 | 1000200716 | K10 | ELASTOMER;WEIGHT;RUBBER;;;;GM61; | No | Model Compatibility List | $25.04 / Each |
|||
711984 | 1000224684 | Z12 | Screw;RND;M10x1.5Px125L;-;HS;-;CHM;BP;G1 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
![]() |
712934 | 1000231572 | B40 | SCREW;SH;M10X1.5PX20L;;;HS;BP;CHM; | No | Model Compatibility List | $2.00 / Each |
||
![]() |
713129 | 1000233200 | C52 | PLASTIC COVER;;NBR;BL;;;; | No | Model Compatibility List | $1.66 / Each |
||
![]() |
713460 | 1000303546 | C51 | Plastic Pad;Foot Pad;-;PP;BL427 | No | Model Compatibility List | $3.35 / Each |
||
![]() |
713629 | 1000305926 | C14 | Cover Board;Back Cover;;PA746;FW207-KM | No | Model Compatibility List | $16.41 / Each |
||
719682 | 1000363760 | V51 | Warning Label;Frame;;;PC;;English; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
![]() |
719865 | 1000366461 | D57 | Limit Pillar;Stopper;;;Chrome;GM67;; | No | Model Compatibility List | $16.41 / Each |
||
![]() |
720322 | 1000371560 | C18 | Cap;Elliptical;;TPU;;Diam.50.0xDiam.100. | No | Model Compatibility List | $6.73 / Each |
||
![]() |
721916 | 1000386527 | Z36 | Screw;Set Screw;M10X1.5PX10L;;Hex Socket | No | Model Compatibility List | $1.66 / Each |
||
722707 | 1000397915 | Q96 | Kettle Plate;;mid;TPU;426C/80393;113.0x7 | No | Model Compatibility List | $6.73 / Each |
|||
723980 | 1000413780 | J41 | Bearing Sheath;Base;;ABS/PA757;137C;55x | No | Model Compatibility List | $5.04 / Each |
|||
![]() |
726707 | 084241 | Z06 | Screw Set;M6X1.0PX5L;BP;POT | No | Model Compatibility List | $0.39 / Each |
||
![]() |
727687 | 090440 | H08 | Stopper BlockRubber;GM30 | No | Model Compatibility List | $2.73 / Each |
||
729261 | See Pad Matrix | J01 | Elbow Pad;;PU;Black;;FW213-KM; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
![]() |
713629 | 1000305926 | Console Board Back Cover | No | Model Compatibility List | $13.08 / Each |
|||
![]() |
730061 | 005009-00 | Z28 | Washer;Spring;8.2X15.4X2.0T;Chromed | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
730925 | 0000086517 | D43 | Screw;Round Hex Socket;M10x1.5Px25L | No | Model Compatibility List | $1.02 / Each |
||
![]() |
732212 | 1000442579 | AK01 | Up Weight Plate Set;Assembly Drawing;;;G | No | Model Compatibility List | $161.18 / Each |
||
![]() |
732213 | 1000434128 | B14 | Pulley;;;;Black;Diam.114;MS51;outsourcin | No | Model Compatibility List | $7.78 / Each |
||
![]() |
732217 | 1000454152 | G14 | Connect Plate;;;painting;;Iced Sliver;GM | No | Model Compatibility List | $5.18 / Each |
||
![]() |
732218 | 1000442573 | K01 | Fixing Sleeve;Guide Rod;;PA66;;;GM135; | No | Model Compatibility List | $2.58 / Each |
||
![]() |
732219 | 1000442574 | K02 | Guide Rod;Weight Plate;;45#;Chrome;GM135 | No | Model Compatibility List | $51.98 / Each |
||
![]() |
732220 | 1000445907 | K03 | Plug;;;NYLON 66;BL/Black C;13;RB210;City | No | Model Compatibility List | $1.28 / Each |
||
![]() |
732221 | 1000447002 | K04 | Spring;Compression;Diam.1.3xDiam.13.5x38 | No | Model Compatibility List | $1.28 / Each |
||
![]() |
732222 | 1000375460 | K11 | Pin set;Semi-Assy;;WEIGHT PLATE;;GM106;; | No | Model Compatibility List | $33.78 / Each |
||
![]() |
732224 | 1000442564 | Q01 | Cover;;Rear;painting;;Black Matte;GM135- | No | Model Compatibility List | $77.98 / Each |
||
![]() |
732226 | 1000442569 | Q03 | Cover;;up;ABS Fire;;;GM135; | No | Model Compatibility List | $14.28 / Each |
||
![]() |
732227 | 1000442570 | Q04 | Kettle Plate;;left;EPDM;;;GM135; | No | Model Compatibility List | $5.18 / Each |
||
![]() |
732228 | 1000442571 | Q05 | Kettle Plate;;right;EPDM;;;GM135; | No | Model Compatibility List | $5.18 / Each |
||
![]() |
732229 | 1000377082 | Q06 | Hanging Hook;;right up;NYLON+G30%;;;GM13 | No | Model Compatibility List | $1.28 / Each |
||
![]() |
732230 | 1000376867 | Q09 | Rail;Board;Inner;NBR;;;GM135; | No | Model Compatibility List | $9.08 / Each |
||
![]() |
732233 | 1000450783 | V04 | Spec Label;Weight Plate;10lbs*16;;PC;;;G | No | Model Compatibility List | $11.68 / Each |
||
![]() |
732237 | 004924-Z | Q08 | NUT LK M5 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
733669 | 1000443689 | Not Shown | Manual;;;;URL;Matrix; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
733670 | 1000442674 | Q02 | Cover;;F;painting;;Black Matte;GM143-KM; | No | Model Compatibility List | $87.08 / Each |
||
![]() |

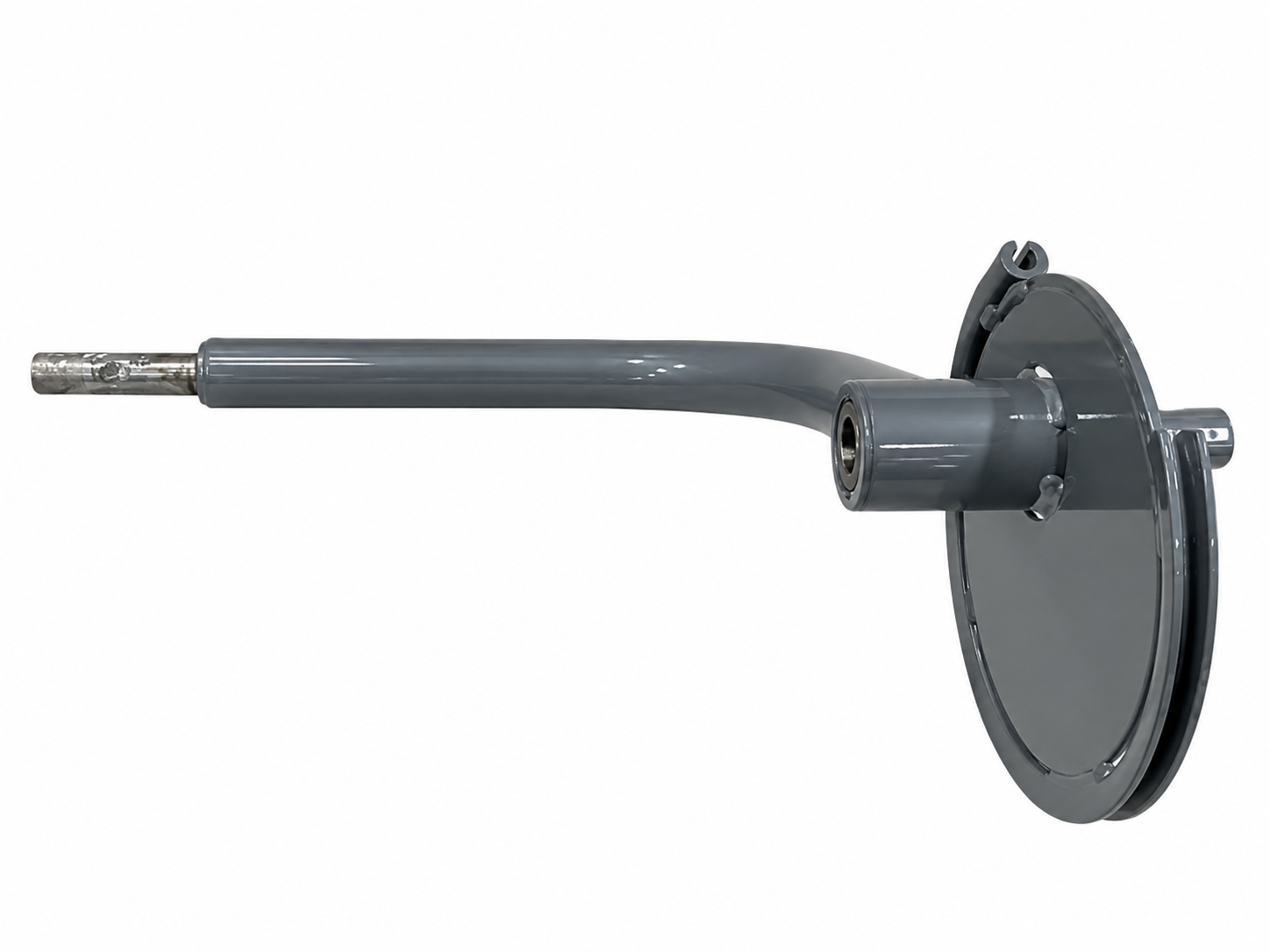

733684 | 1000454555 | AD11 | pedal arm set;Assembly;;Iced Sliver;GM13 | No | Model Compatibility List | $133.88 / Each |
||
![]() |

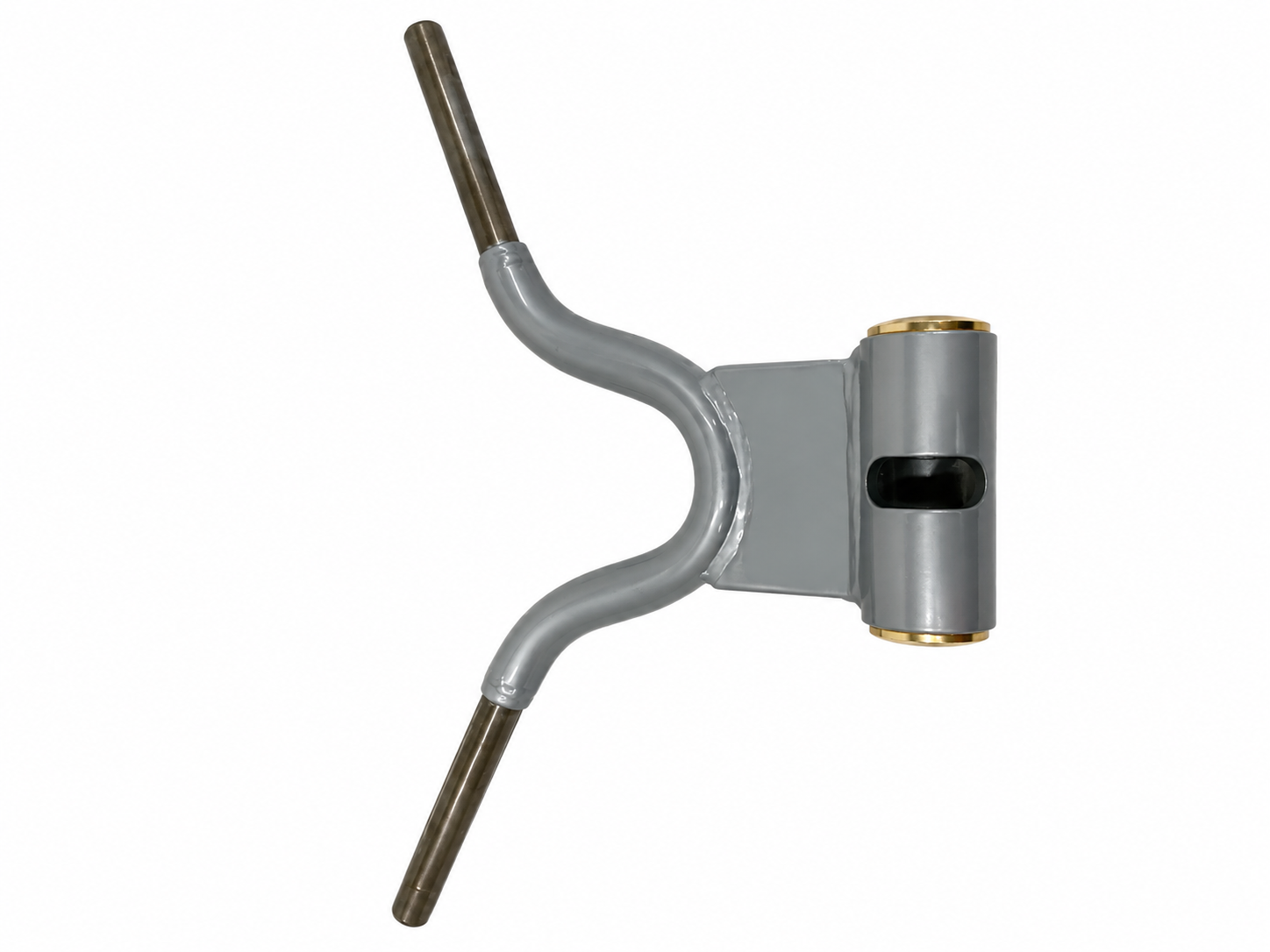

733685 | 1000454546 | AE11 | Handle Set;Assembly;;Iced Sliver;GM139;; | No | Model Compatibility List | $74.08 / Each |
||
![]() |

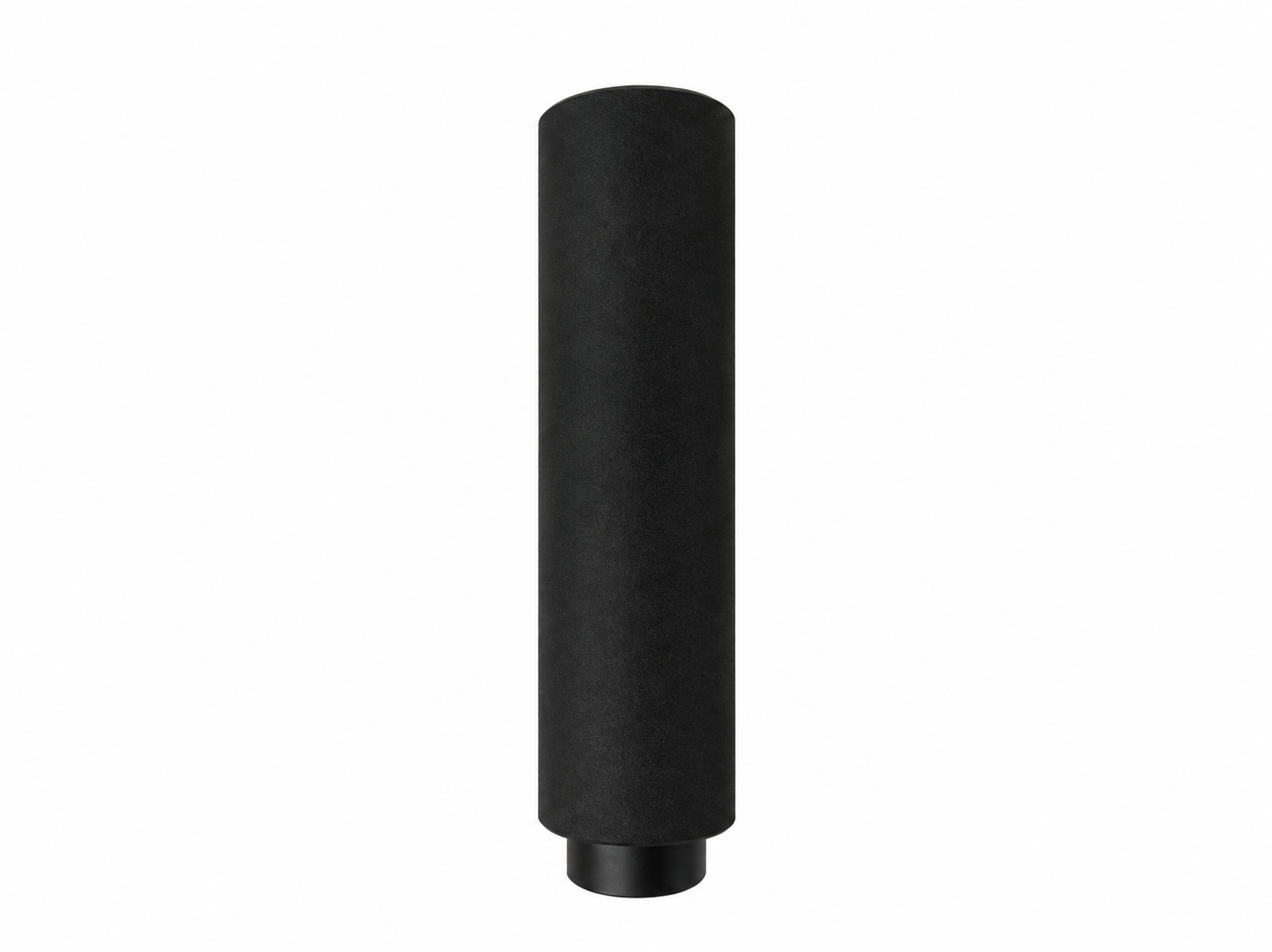

733686 | 1000454554 | AE12 | Handle Set;Assembly;;Black Matte;GM139;; | No | Model Compatibility List | $16.88 / Each |
||
![]() |
733687 | 1000454497 | AG1 | Disassembly ConnectingTube Set;;D;;;Iced | No | Model Compatibility List | $24.68 / Each |
||
![]() |
733688 | 1000454505 | AG2 | Disassembly ConnectingTube Set;;F/R;;;Ic | No | Model Compatibility List | $54.58 / Each |
||
![]() |
733689 | 1000454513 | AG3 | Disassembly ConnectingTube Set;;U;;;Iced | No | Model Compatibility List | $53.28 / Each |
||
![]() |

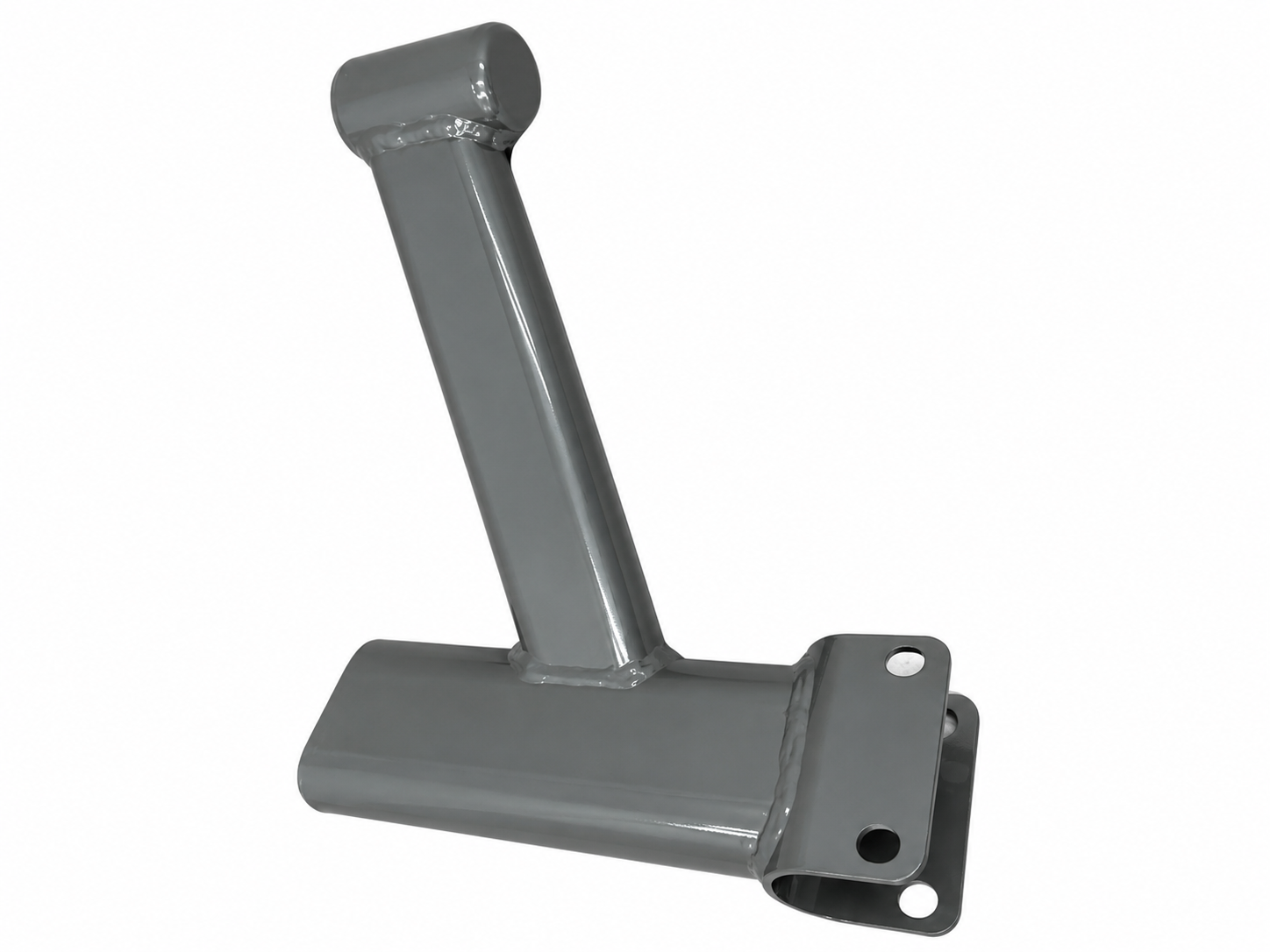

733690 | 1000454521 | AG4 | Support Set;;D;painting;;Iced Sliver;GM1 | No | Model Compatibility List | $31.18 / Each |
||
![]() |
733691 | 1000448777 | D14 | Spacer;;;20#;;GM139;32x8L; | No | Model Compatibility List | $3.88 / Each |
||
![]() |
733692 | 1000442222 | F03 | Steel Rope-Extrawork;;;Press Rope Hand;D | No | Model Compatibility List | $38.98 / Each |
||
![]() |
733693 | 1000446865 | F04 | Axle;Pedal Arm;;42CrMo;;GM139;Diam.25x13 | No | Model Compatibility List | $15.58 / Each |
||
![]() |

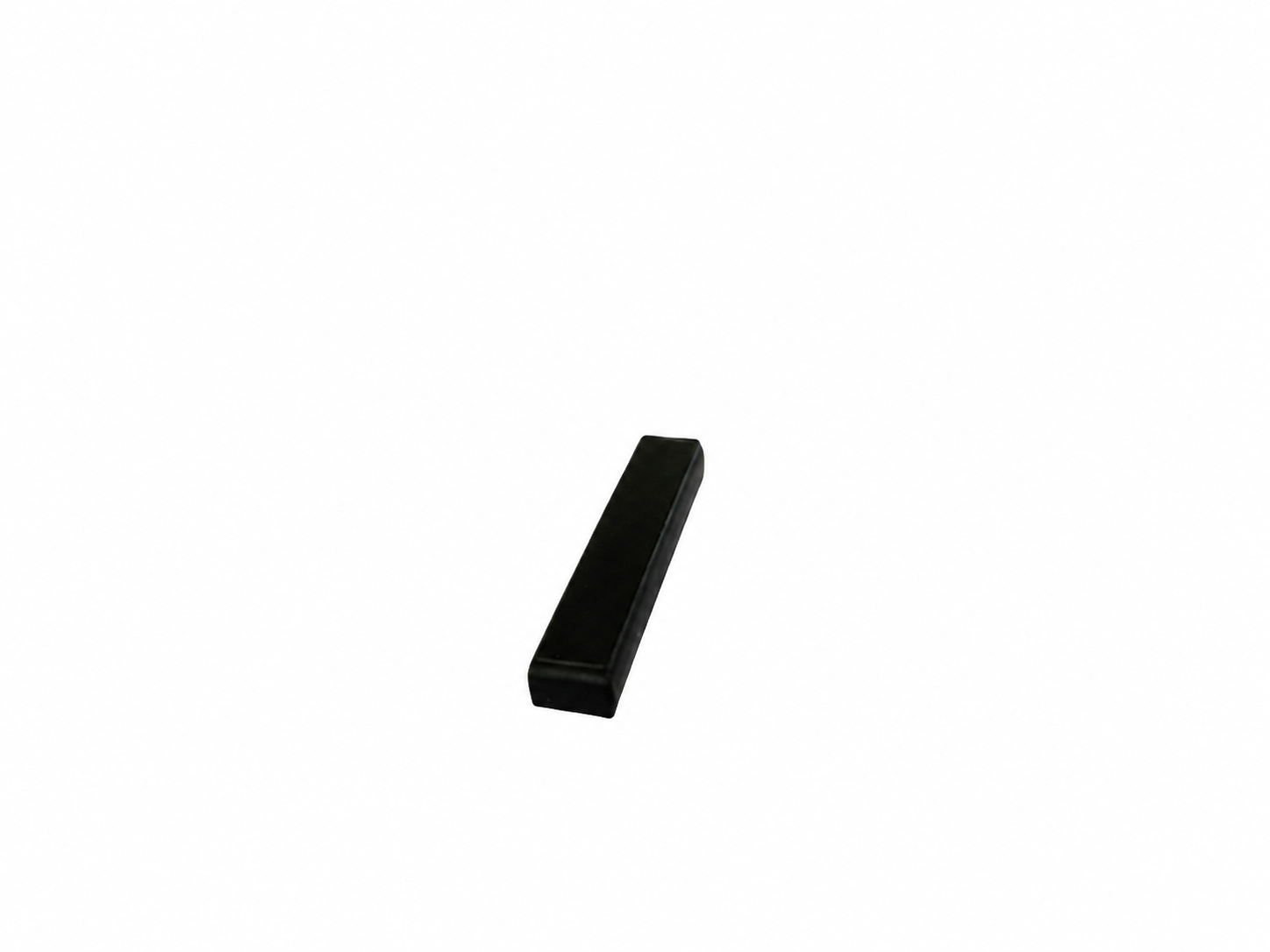

733694 | 1000446863 | F14 | Fixing Cap;Guide Rail;;PP;BL/Black C;30x | No | Model Compatibility List | $1.28 / Each |
||
![]() |
733695 | 1000446880 | V02 | Instructional Labe;;;;;Down;English;GM13 | No | Model Compatibility List | $3.88 / Each |
||
![]() |
733696 | 1000453756 | V03 | Instructional Labe;;;;;Up;;GM139 | No | Model Compatibility List | $6.48 / Each |
||
![]() |
733697 | 1000454481 | AB1 | Frame Set;;;painting;;Iced Sliver;GM139; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
733698 | 1000454489 | AC1 | base set;;;painting;;Iced Sliver;GM139; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
733699 | 1000446871 | V01 | EN LABEL;;GM139;;;;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
733700 | 1000446874 | Not Shown | Manual;Use Manipulate;;English;;GM139-KM | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
733701 | 1000446866 | Not Shown | hardware set;;;;GM139; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
733702 | 1000453754 | Not Shown | Instructional Labe Set;Semi-Assy;;;;Mult | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
|
