Matrix Fitness - GO-S72 - Seated Leg Curl - GM144 - 2020 - 2020

Repair Parts for Matrix Fitness GO-S72 - Seated Leg Curl - GM144 - 2020 GM144

Brand: Matrix Fitness

Category: Single Station

Type: Strength Systems

Model Name: GO-S72 - Seated Leg Curl - GM144 - 2020

Serial Number Prefix: GM144

Version: 2020

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
WASHER;FLT;Diam.10.2XDiam.35.0X3.0T;;; 730157 0000085922 R27 WASHER;FLT;Diam.10.2XDiam.35.0X3.0T;;; No Model Compatibility List $2.58 / Each

Screw;Round Hex Socket;M10x1.5Px25L 730925 0000086517 D43 Screw;Round Hex Socket;M10x1.5Px25L No Model Compatibility List $1.02 / Each

Up Weight Plate Set;Assembly Drawing;;;G 732212 1000442579 AK01 Up Weight Plate Set;Assembly Drawing;;;G No Model Compatibility List $161.18 / Each

Pulley;;;;Black;Diam.114;MS51;outsourcin 732213 1000434128 B14 Pulley;;;;Black;Diam.114;MS51;outsourcin No Model Compatibility List $7.78 / Each

Balance Plate;;;painting;;;GM136; 732215 1000451108 D13 Balance Plate;;;painting;;;GM136; No Model Compatibility List $97.48 / Each

Connect Plate;;;painting;;Iced Sliver;GM 732217 1000454152 G14 Connect Plate;;;painting;;Iced Sliver;GM No Model Compatibility List $5.18 / Each

Fixing Sleeve;Guide Rod;;PA66;;;GM135; 732218 1000442573 K01 Fixing Sleeve;Guide Rod;;PA66;;;GM135; No Model Compatibility List $2.58 / Each

Guide Rod;Weight Plate;;45#;Chrome;GM135 732219 1000442574 K02 Guide Rod;Weight Plate;;45#;Chrome;GM135 No Model Compatibility List $51.98 / Each

Plug;;;NYLON 66;BL/Black C;13;RB210;City 732220 1000445907 K03 Plug;;;NYLON 66;BL/Black C;13;RB210;City No Model Compatibility List $1.28 / Each

Spring;Compression;Diam.1.3xDiam.13.5x38 732221 1000447002 K04 Spring;Compression;Diam.1.3xDiam.13.5x38 No Model Compatibility List $1.28 / Each

Pin set;Semi-Assy;;WEIGHT PLATE;;GM106;; 732222 1000375460 K11 Pin set;Semi-Assy;;WEIGHT PLATE;;GM106;; No Model Compatibility List $33.78 / Each

Cover;;Rear;painting;;Black Matte;GM135- 732224 1000442564 Q01 Cover;;Rear;painting;;Black Matte;GM135- No Model Compatibility List $77.98 / Each

Cover;;up;ABS Fire;;;GM135; 732226 1000442569 Q03 Cover;;up;ABS Fire;;;GM135; No Model Compatibility List $14.28 / Each

Kettle Plate;;left;EPDM;;;GM135; 732227 1000442570 Q04 Kettle Plate;;left;EPDM;;;GM135; No Model Compatibility List $5.18 / Each

Kettle Plate;;right;EPDM;;;GM135; 732228 1000442571 Q05 Kettle Plate;;right;EPDM;;;GM135; No Model Compatibility List $5.18 / Each

Hanging Hook;;right up;NYLON+G30%;;;GM13 732229 1000377082 Q06 Hanging Hook;;right up;NYLON+G30%;;;GM13 No Model Compatibility List $1.28 / Each

Rail;Board;Inner;NBR;;;GM135; 732230 1000376867 Q09 Rail;Board;Inner;NBR;;;GM135; No Model Compatibility List $9.08 / Each

Spec Label;Weight Plate;10lbs*16;;PC;;;G 732233 1000450783 V04 Spec Label;Weight Plate;10lbs*16;;PC;;;G No Model Compatibility List $11.68 / Each

NUT LK M5 732237 004924-Z Q08 NUT LK M5 No Model Compatibility List $0.00 / Each
Out Of Stock
Spacer;Bearing;;;Black coating;GM135;20 733530 1000446798 D15 Spacer;Bearing;;;Black coating;GM135;20 No Model Compatibility List $3.88 / Each

Washer;Wave;20.7x29.1x0.3t;65Mn 733540 019845-00 D13 Washer;Wave;20.7x29.1x0.3t;65Mn No Model Compatibility List $0.00 / Each
Out Of Stock
Disassembly connect set;;D;;;Iced Sliver 733660 1000453947 AG1 Disassembly connect set;;D;;;Iced Sliver No Model Compatibility List $25.98 / Each

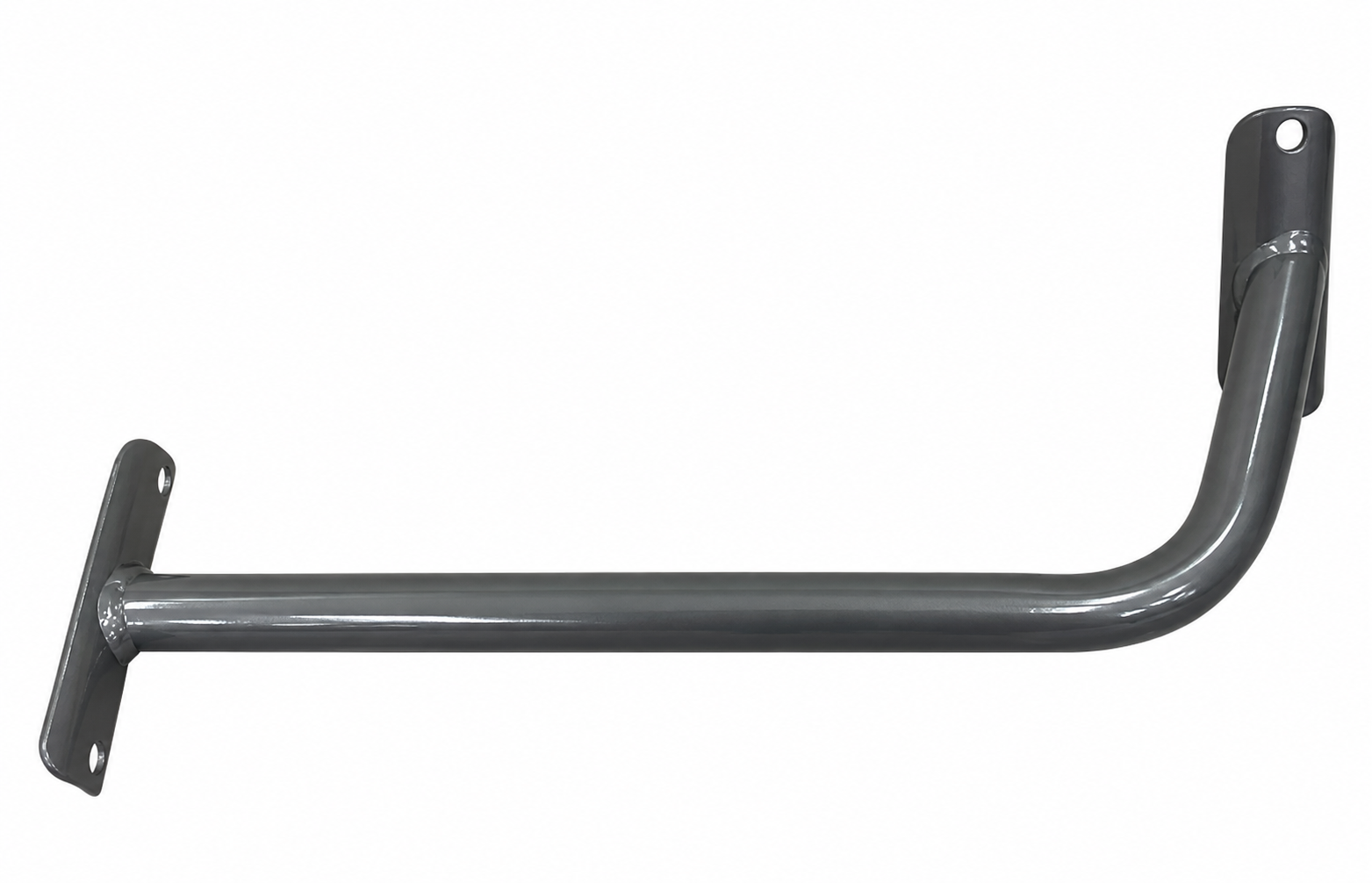

Disassembly connect set;;U;;;Iced Sliver 733661 1000454419 AG3 Disassembly connect set;;U;;;Iced Sliver No Model Compatibility List $25.98 / Each

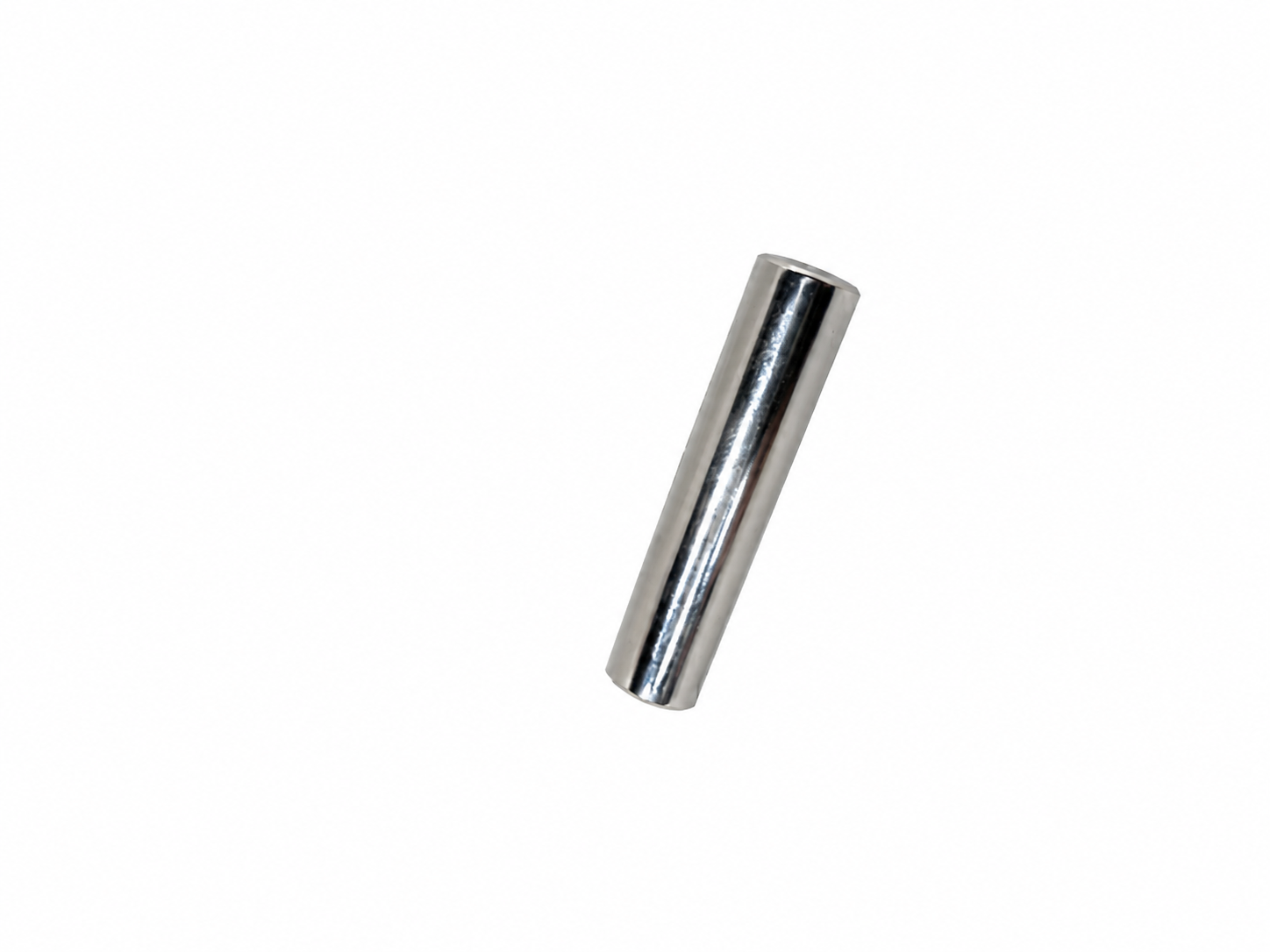

Spacing Sleeve;Cam;;20#;Chrome;GM59;Diam 733665 1000446168 B04 Spacing Sleeve;Cam;;20#;Chrome;GM59;Diam No Model Compatibility List $3.88 / Each

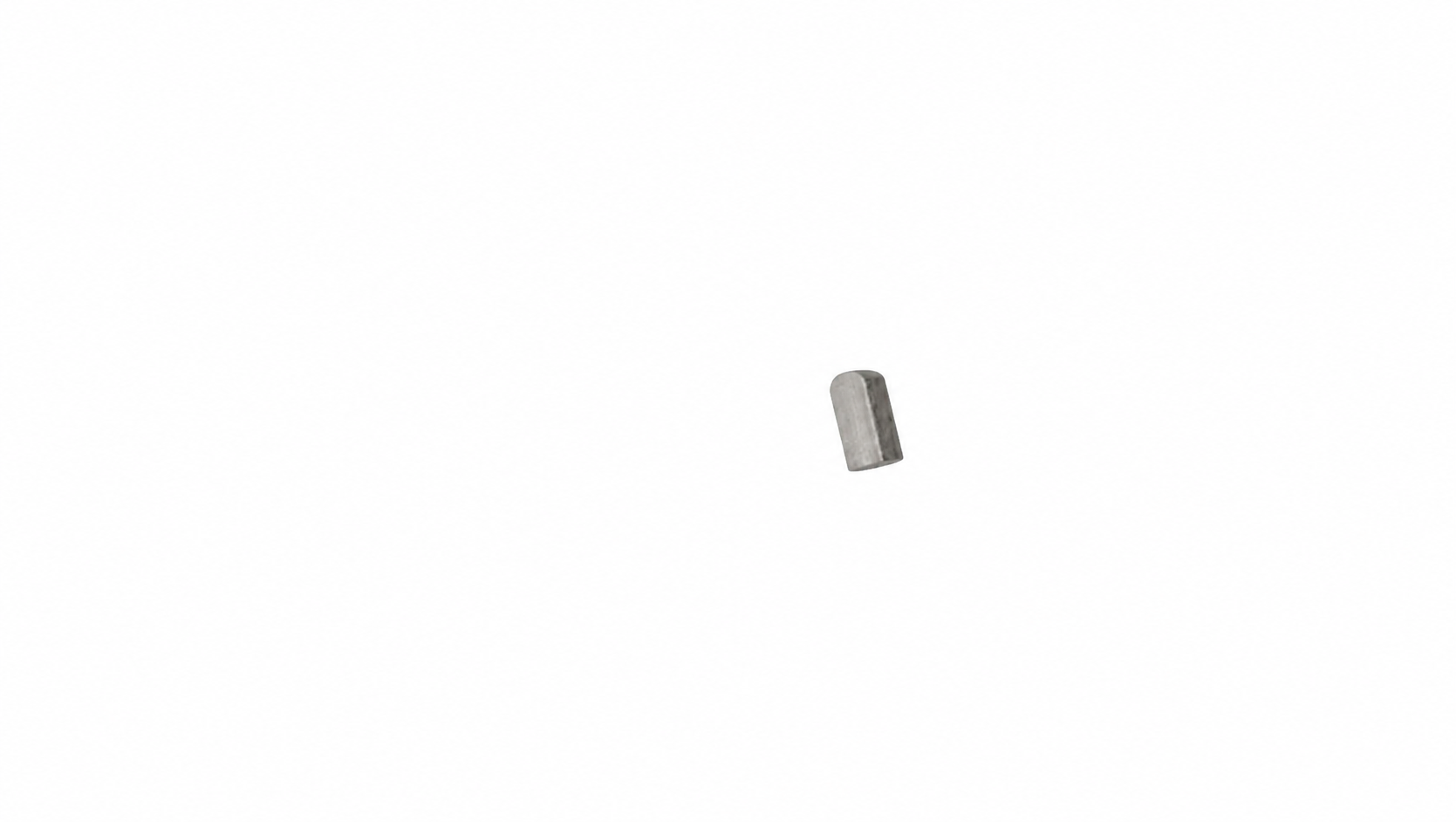

Key;C-Shaped;10x8x20L;S45C;;GM105 733667 1000413876 F14 Key;C-Shaped;10x8x20L;S45C;;GM105 No Model Compatibility List $2.32 / Each

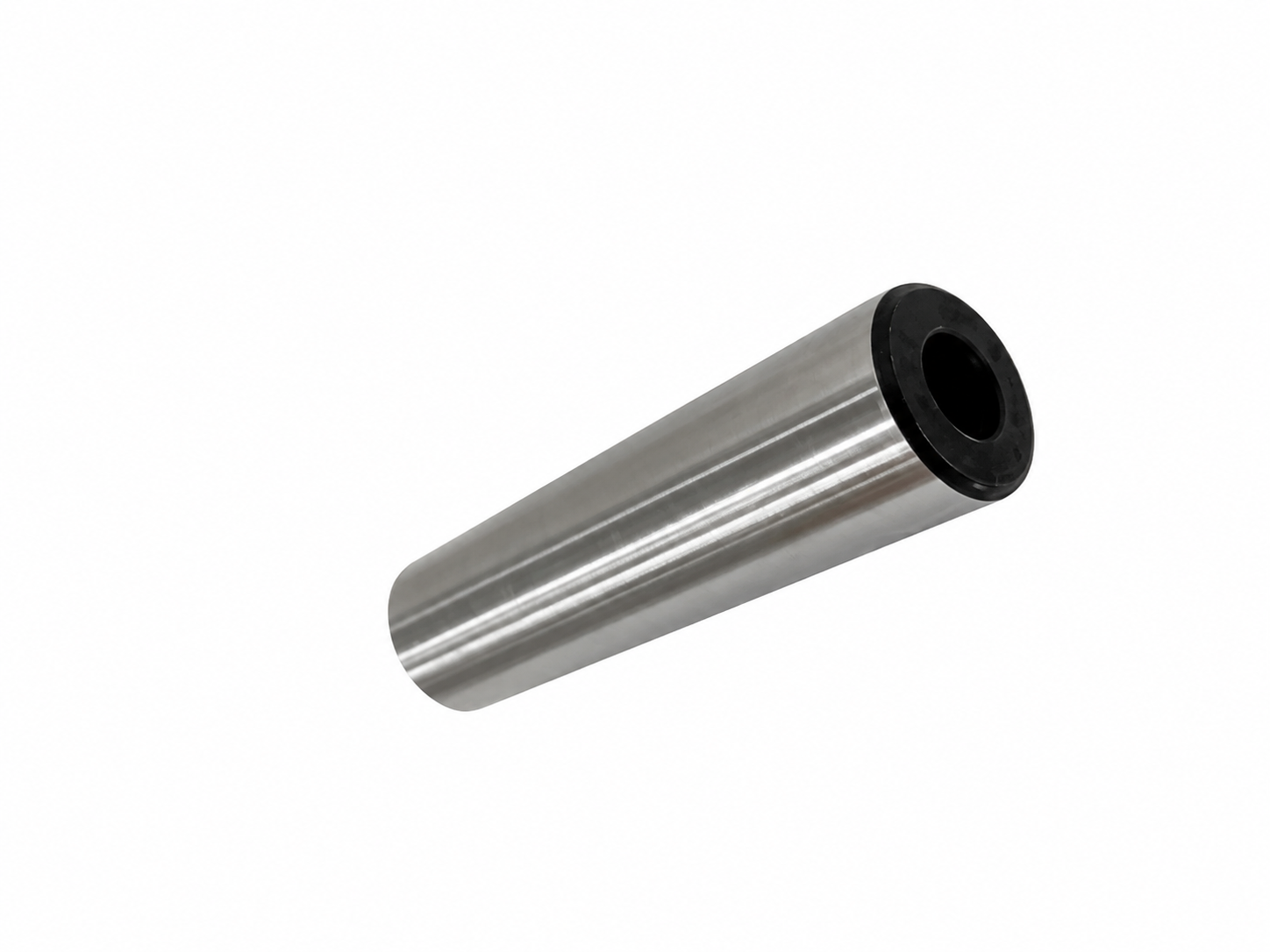

Axle, central;Swivel;;40CRMO;Anti-rust o 733668 1000447294 H06 Axle, central;Swivel;;40CRMO;Anti-rust o No Model Compatibility List $10.38 / Each

Cover;;F;painting;;Black Matte;GM143-KM; 733670 1000442674 Q02 Cover;;F;painting;;Black Matte;GM143-KM; No Model Compatibility List $87.08 / Each

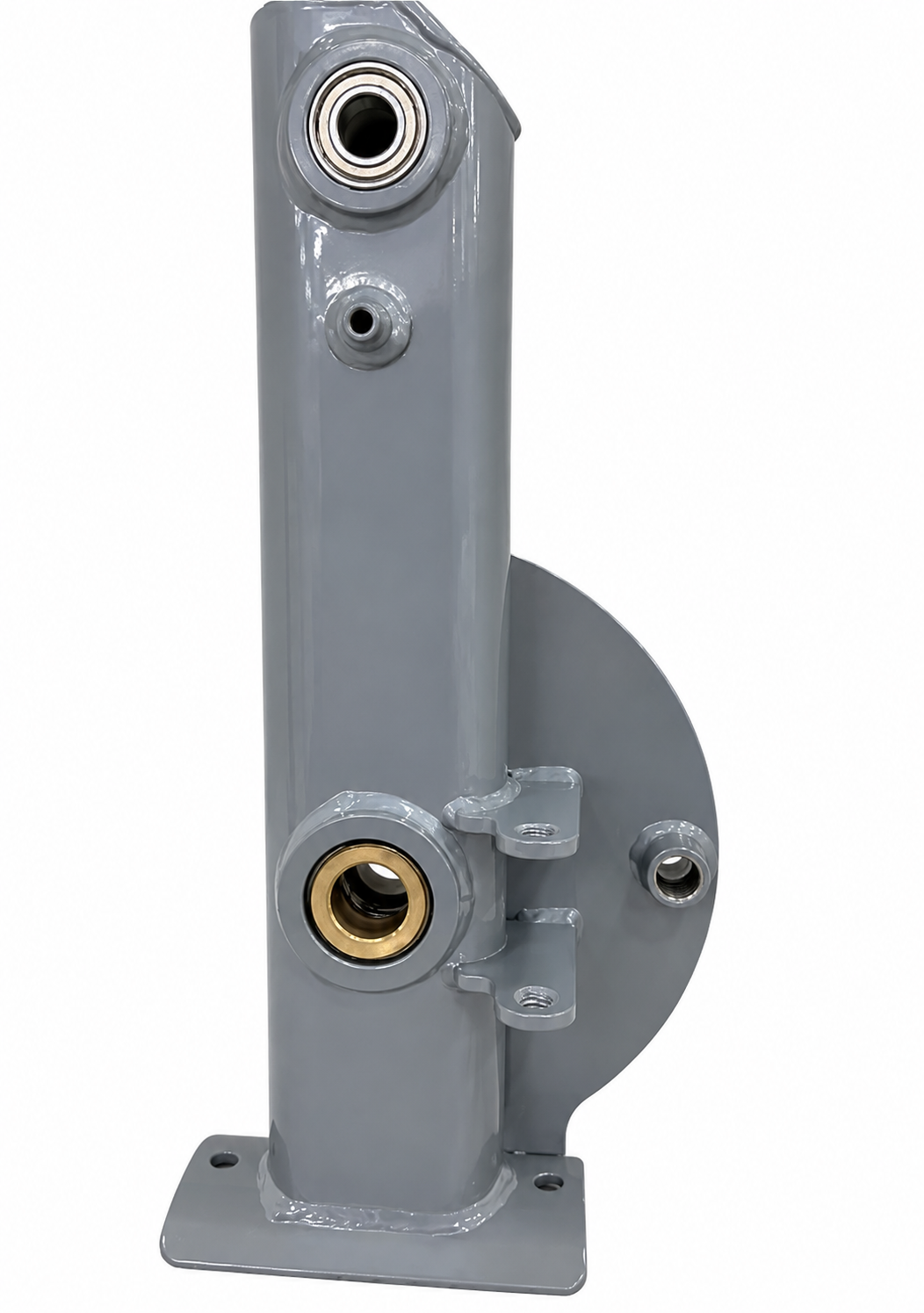

Pedal Arm Weldment;Assembly;;Iced Sliver 733710 1000465070 AD02 Pedal Arm Weldment;Assembly;;Iced Sliver No Model Compatibility List $0.00 / Each
Out Of Stock

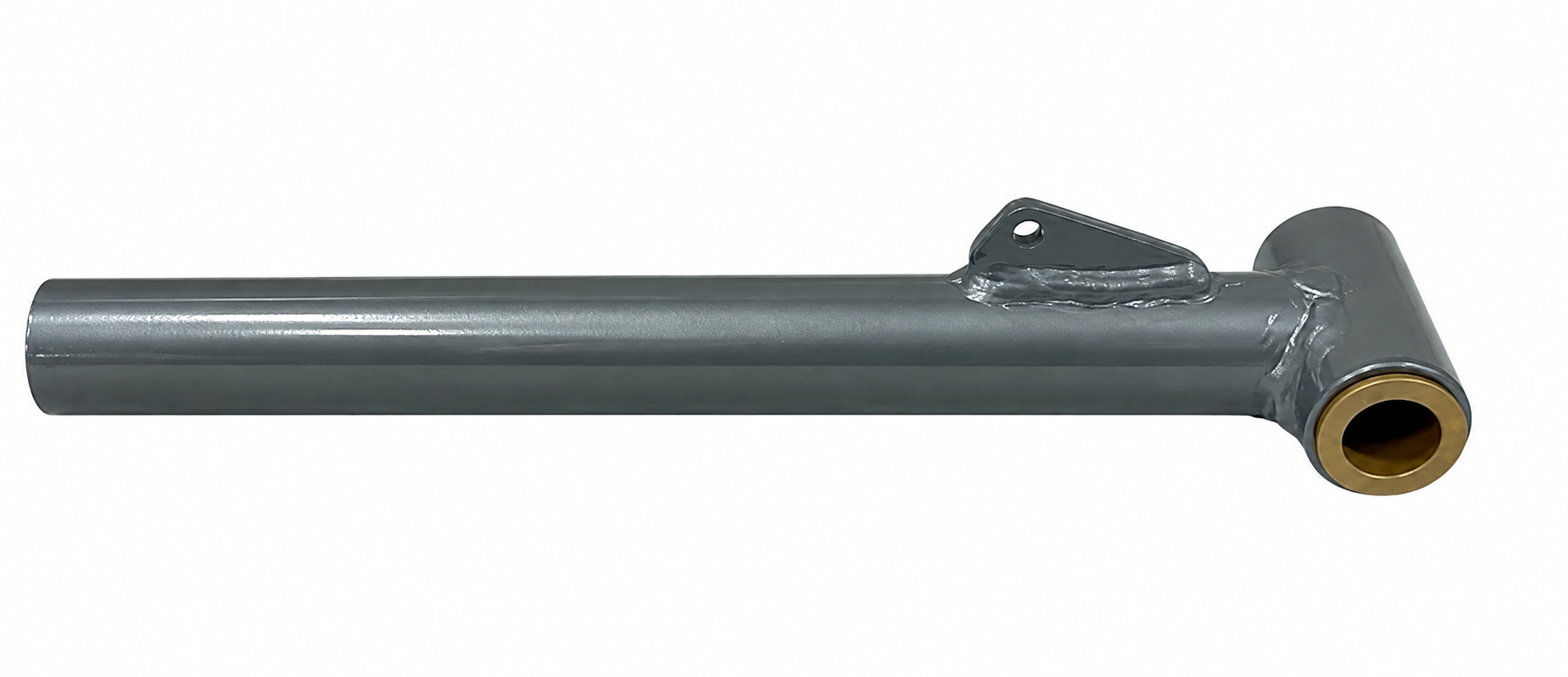

Adjust Grip Set;Assembly;;Iced Sliver;GM 733711 1000465071 AD04 Adjust Grip Set;Assembly;;Iced Sliver;GM No Model Compatibility List $0.00 / Each
Out Of Stock
Kick set;;;painting;;Iced Sliver;GM144; 733712 1000456110 AD5 Kick set;;;painting;;Iced Sliver;GM144; No Model Compatibility List $31.18 / Each

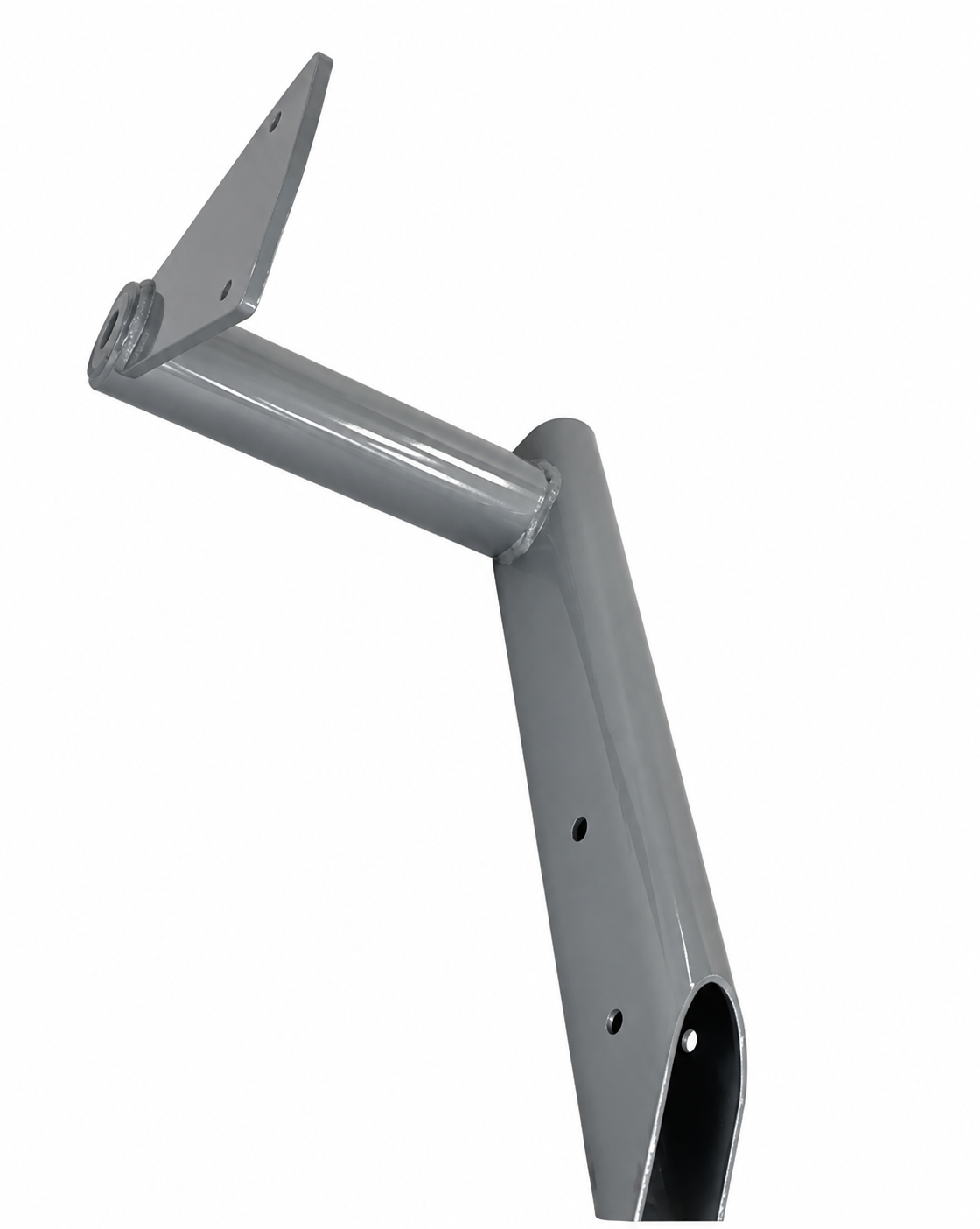

Support Set;;U;painting;;Iced Sliver;GM1 733713 1000462596 AD6 Support Set;;U;painting;;Iced Sliver;GM1 No Model Compatibility List $0.00 / Each
Out Of Stock

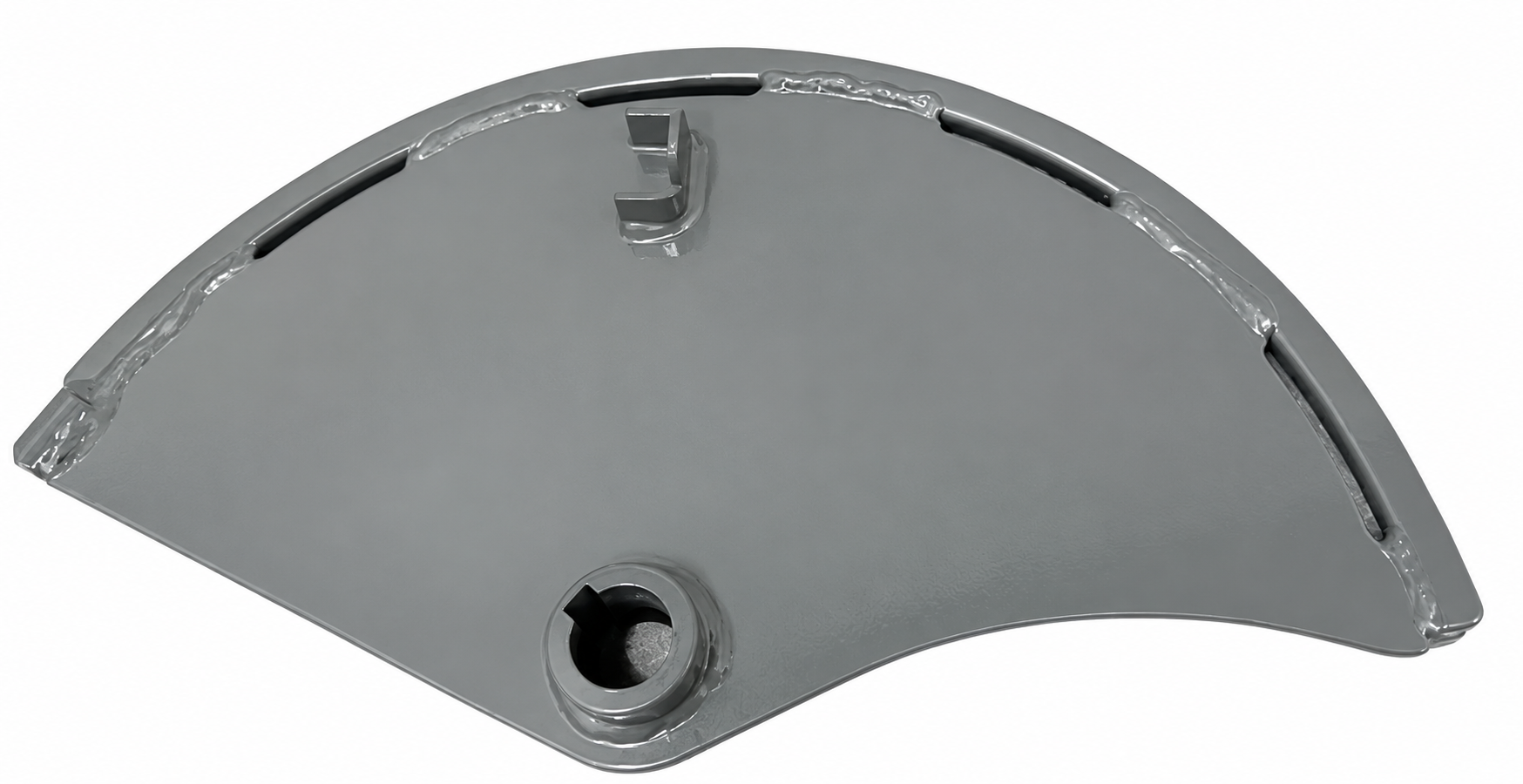

Cam Set;;;painting;;Iced Sliver;GM144; 733714 1000456053 AF1 Cam Set;;;painting;;Iced Sliver;GM144; No Model Compatibility List $77.98 / Each

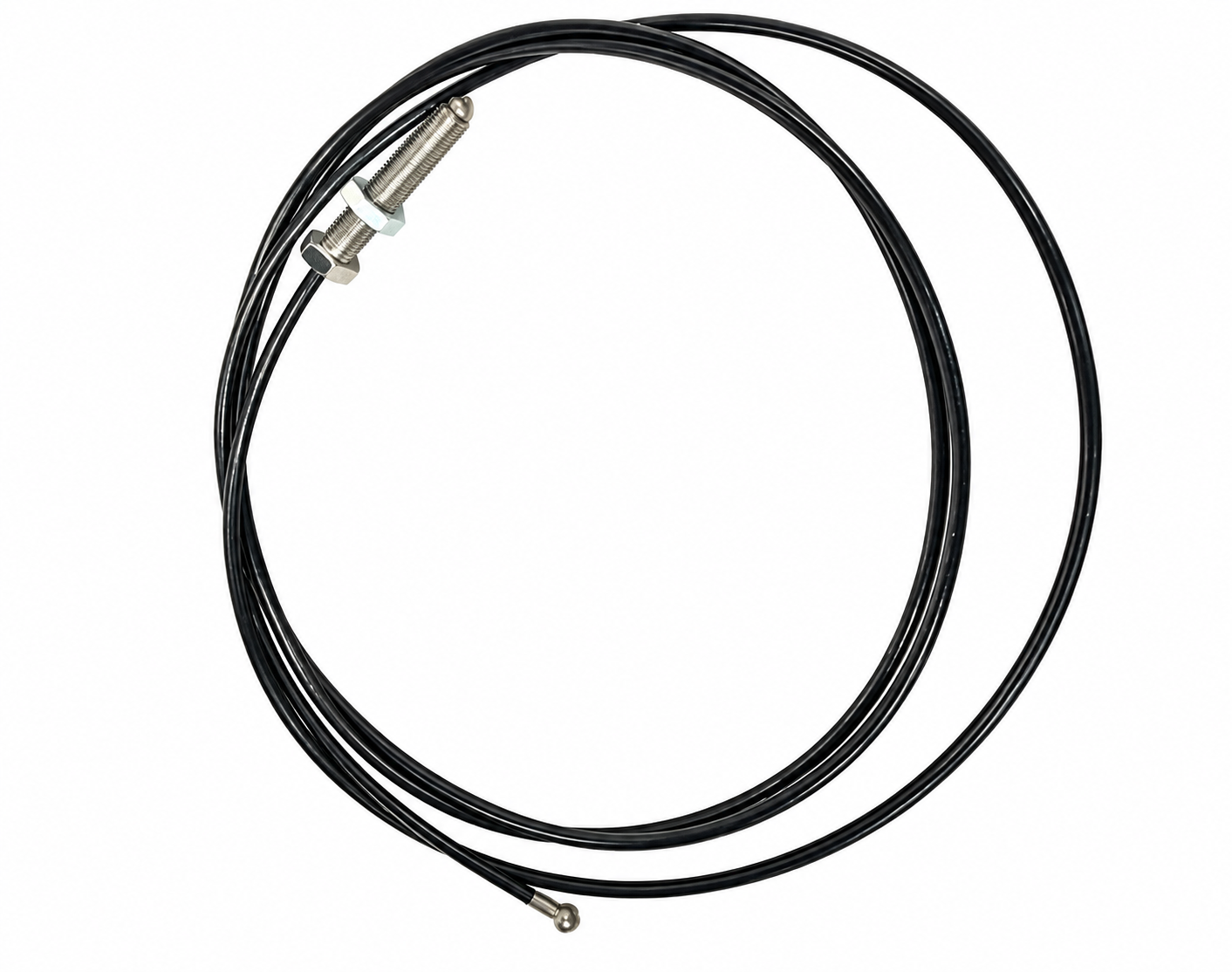

Drive set;Semi-Assy;;;;;GM144; 733715 1000443016 AF3 Drive set;Semi-Assy;;;;;GM144; No Model Compatibility List $55.88 / Each

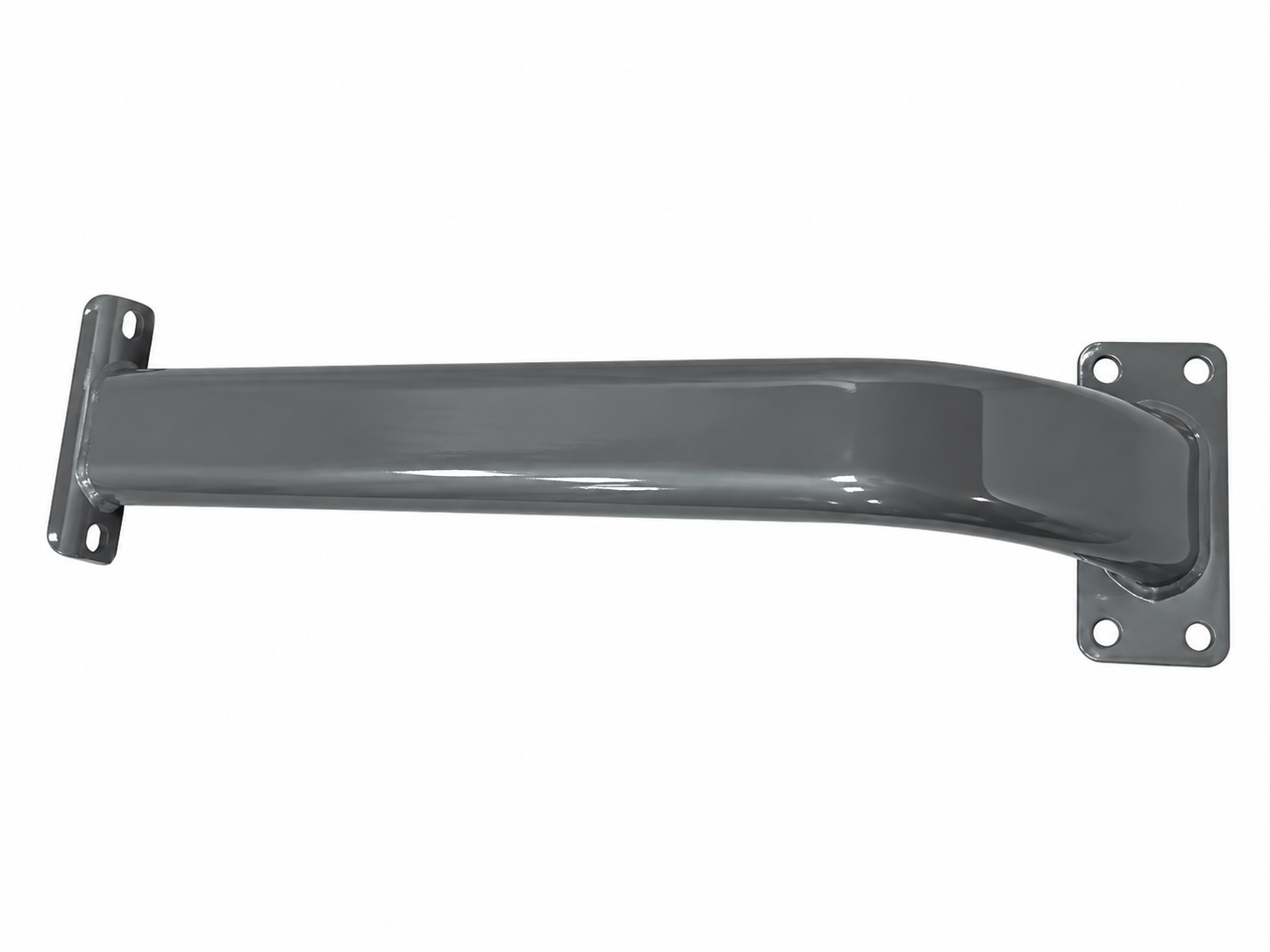

Disassembly connect set;;U;;;Iced Sliver 733716 1000462588 AG4 Disassembly connect set;;U;;;Iced Sliver No Model Compatibility List $0.00 / Each
Out Of Stock

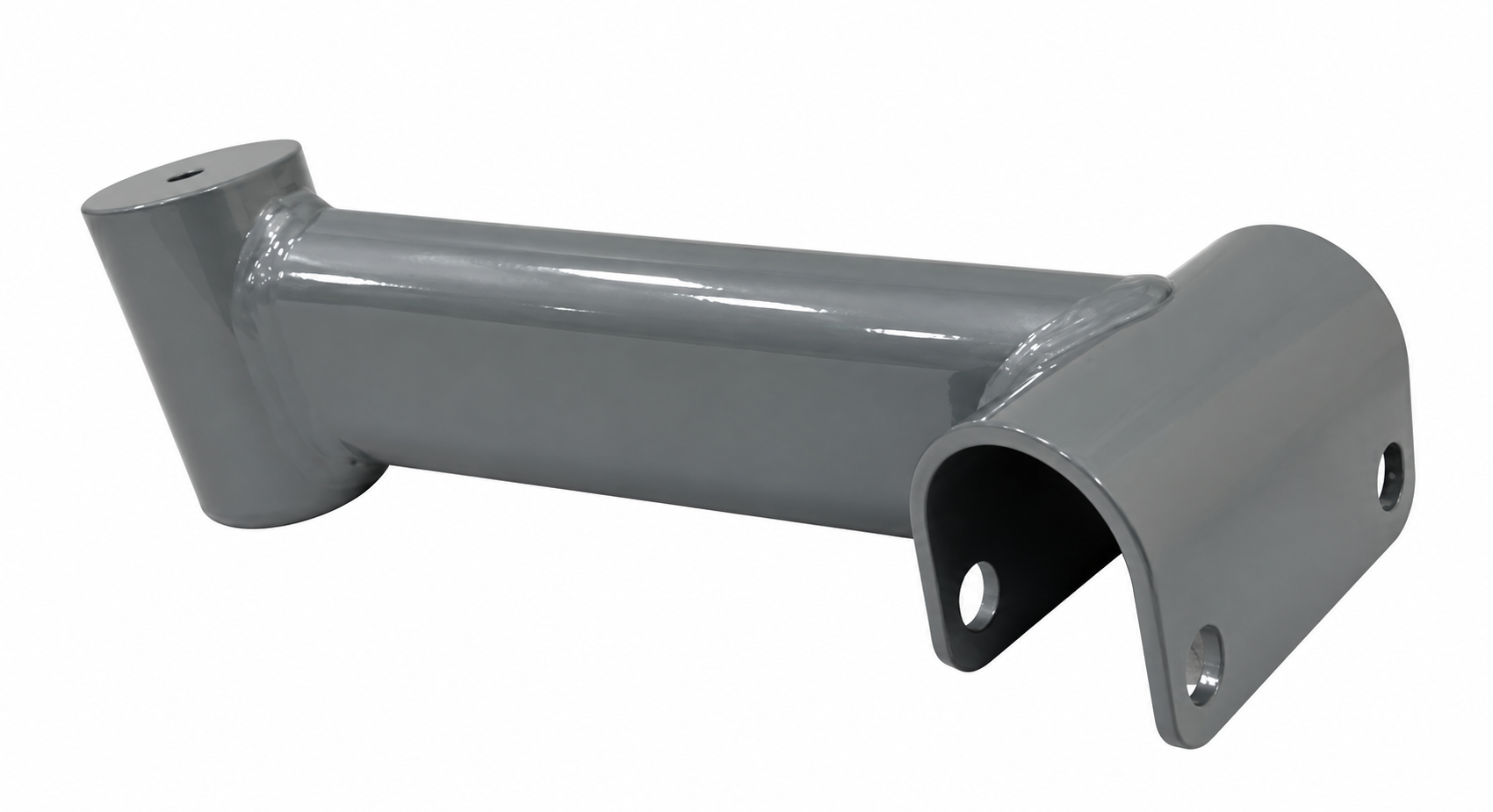

Support Set;;;painting;;Iced Sliver;GM14 733717 1000456070 AG5 Support Set;;;painting;;Iced Sliver;GM14 No Model Compatibility List $23.38 / Each

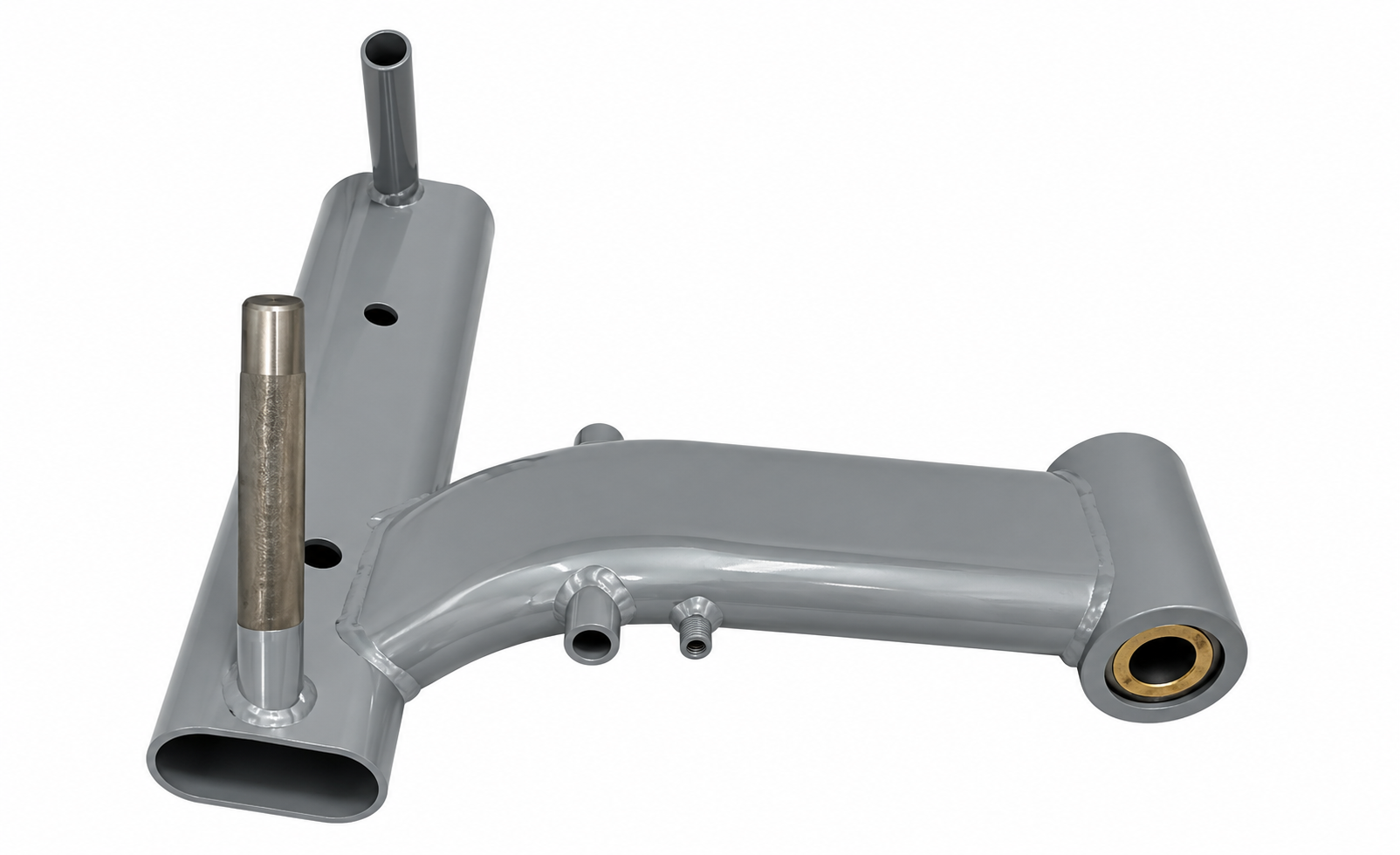

Leg Pad Set;Assembly;;Iced Sliver;GM144; 733718 1000462612 AH02 Leg Pad Set;Assembly;;Iced Sliver;GM144; No Model Compatibility List $0.00 / Each
Out Of Stock

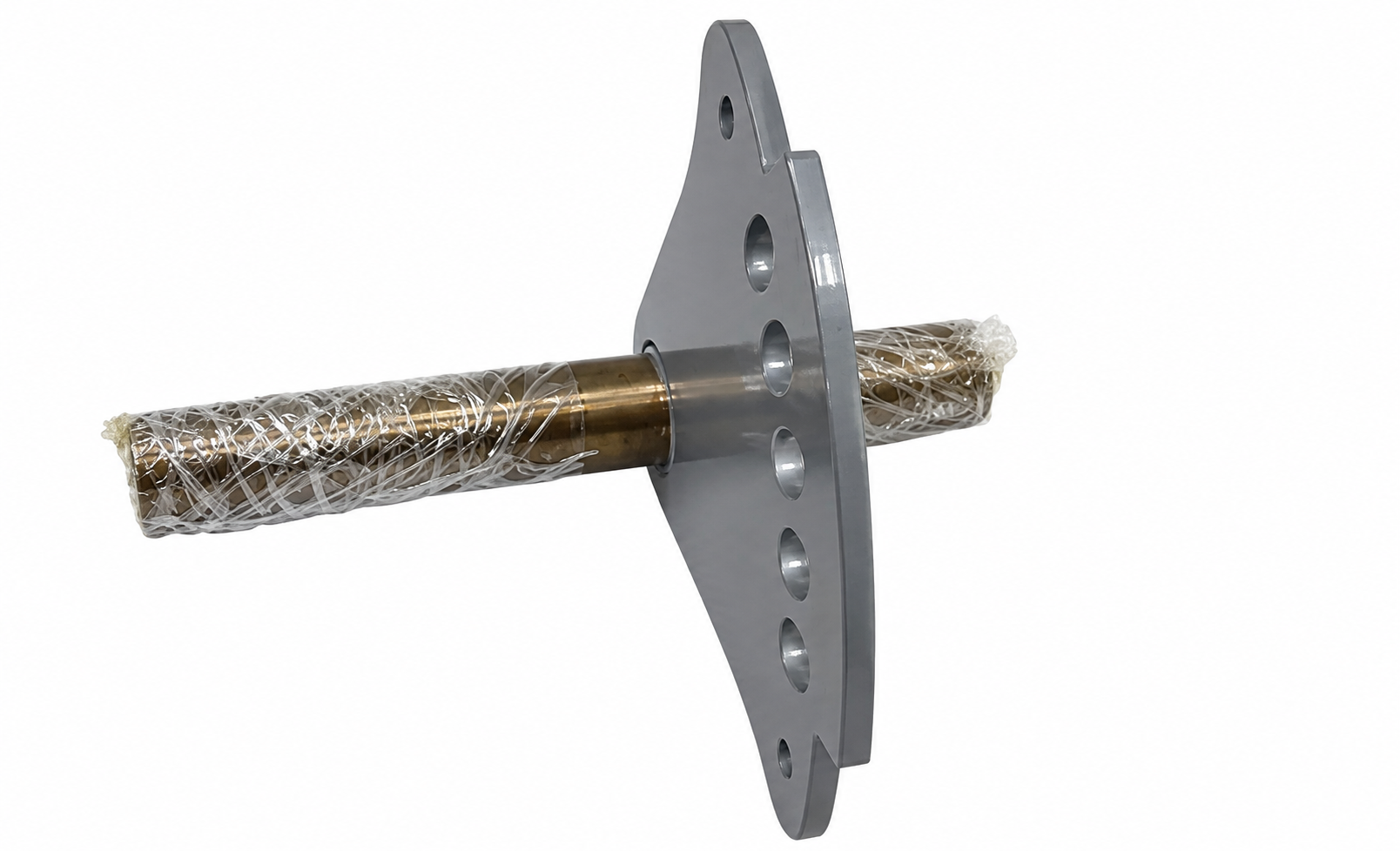

Adjustable Set;;;painting;;Iced Sliver;G 733719 1000456061 AH1 Adjustable Set;;;painting;;Iced Sliver;G No Model Compatibility List $48.08 / Each

Adjustment Pull Pin;;;20#;Chrome;GM144;; 733720 1000443002 D17 Adjustment Pull Pin;;;20#;Chrome;GM144;; No Model Compatibility List $11.68 / Each

Axle, Swivel;;;20#;Anti-rust oil coating 733721 1000442999 D20 Axle, Swivel;;;20#;Anti-rust oil coating No Model Compatibility List $7.78 / Each

Protected Plate;;;SPHC;136.2x250x3.0t;CH 733722 1000442938 H03 Protected Plate;;;SPHC;136.2x250x3.0t;CH No Model Compatibility List $22.08 / Each

Screw;Round Head;M8x1.25Px30L;;Hex Socke 733723 1000353668 H10 Screw;Round Head;M8x1.25Px30L;;Hex Socke No Model Compatibility List $1.28 / Each

hardware set;;;;GM144;; 733724 1000442821 Not Shown hardware set;;;;GM144;; No Model Compatibility List $57.18 / Each

Space Ring;;;ABS;Black Orange;Diam.35.1X 733725 1000450341 T06 Space Ring;;;ABS;Black Orange;Diam.35.1X No Model Compatibility List $5.18 / Each

Instructional Labe;;;;;UP;;GM144 733726 1000443027 V02 Instructional Labe;;;;;UP;;GM144 No Model Compatibility List $0.00 / Each
Out Of Stock
Instructional Labe Set;Semi-Assy;down;;; 733727 1000453751 V03 Instructional Labe Set;Semi-Assy;down;;; No Model Compatibility List $0.00 / Each
Out Of Stock
Direction Label;Adjustic;;;PC;;;GM144 733728 1000442843 V07 Direction Label;Adjustic;;;PC;;;GM144 No Model Compatibility List $3.88 / Each

Frame Set;;;painting;;Iced Sliver;GM144; 733729 1000456036 AB1 Frame Set;;;painting;;Iced Sliver;GM144; No Model Compatibility List $0.00 / Each
Out Of Stock
base set;;;painting;;Iced Sliver;GM144; 733730 1000462867 AC1 base set;;;painting;;Iced Sliver;GM144; No Model Compatibility List $0.00 / Each
Out Of Stock

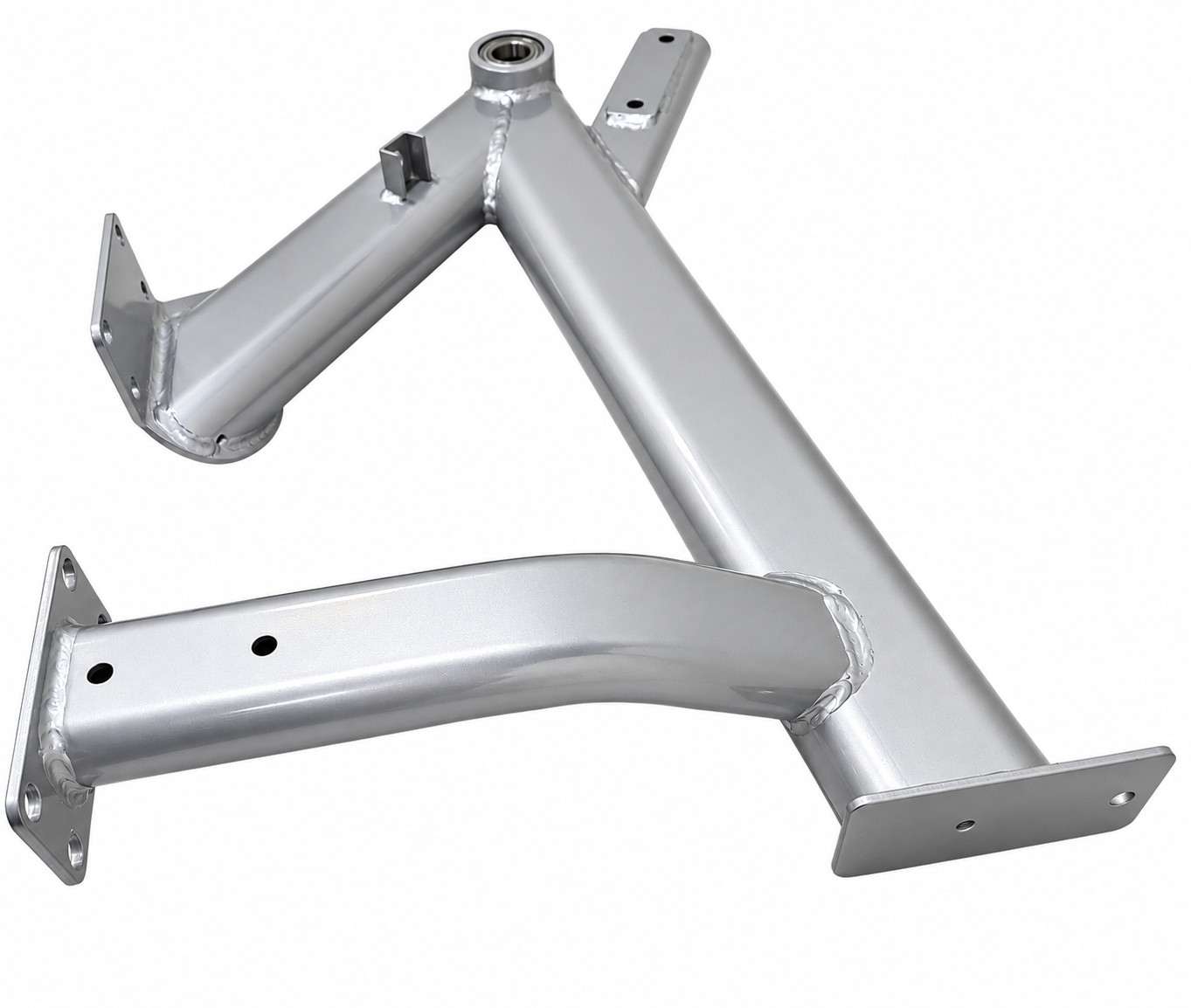

Support Set;Assembly;;Iced Sliver;GM144; 733731 1000465032 AD01 Support Set;Assembly;;Iced Sliver;GM144; No Model Compatibility List $0.00 / Each
Out Of Stock
