Brand: Matrix Fitness
Category: Single Station
Type: Strength Systems

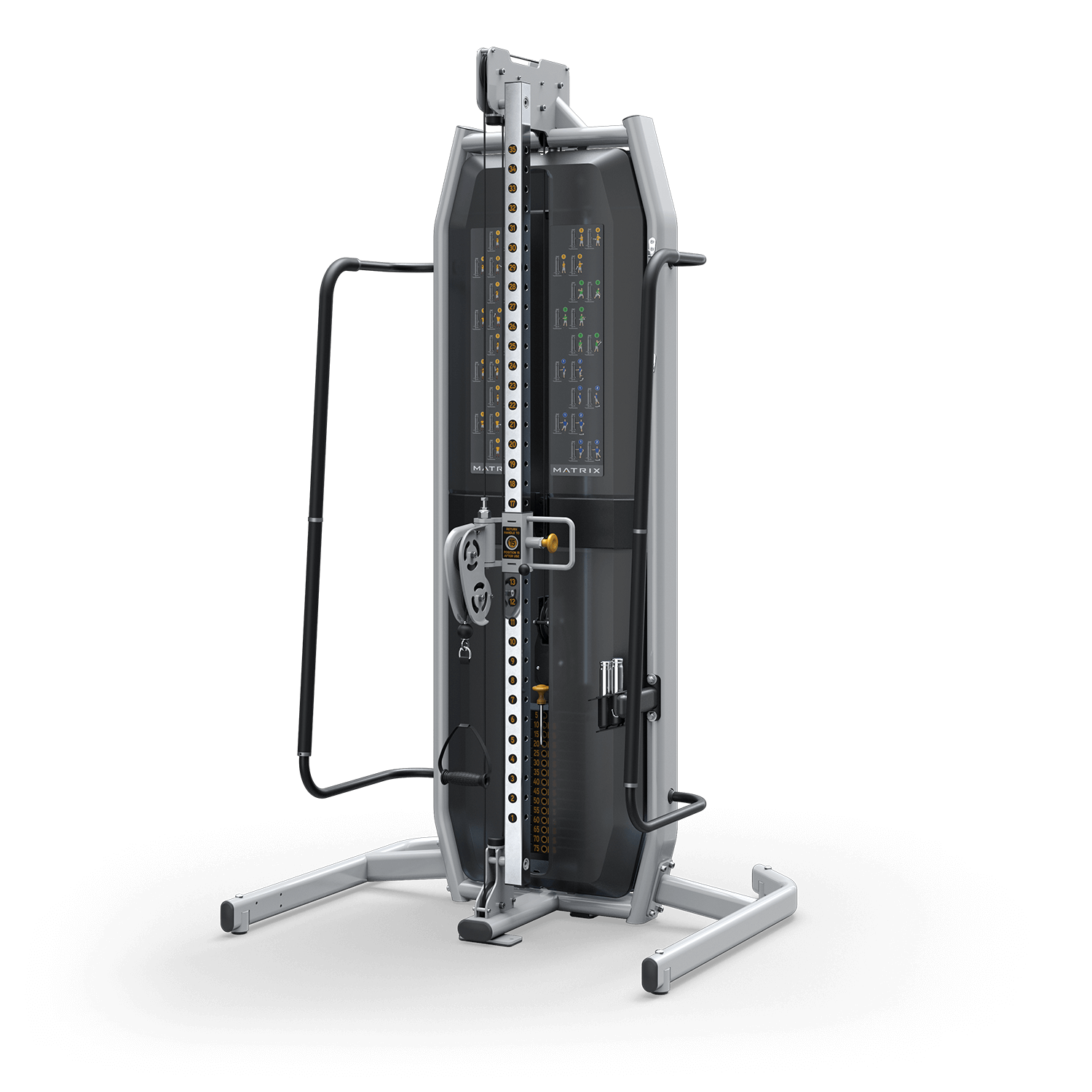

Model Name: MD-AP - Medical Adjustable Pulley - MS26 - 2018
Serial Number Prefix: MS26
Version: 2018
"Used Only" - contact us if interested in used or refurbished parts. Send us mail:
XImage | Catalog # | MPN | Part List Key | Quantity On Model | Part Description | Notes | Available Used | Model Compatibility List | New price |
---|---|---|---|---|---|---|---|---|---|
![]() |
700275 | 000845-F | T29 | Sleeve;60x60;Delrin;GM19 | No | Model Compatibility List | $3.64 / Each |
||
![]() |
700452 | 001407-A | B09 | End-Cover;Square Tube;GM03 | No | Model Compatibility List | $1.66 / Each |
||
![]() |
701414 | 004464-00 | S52 | Screw;Round;Hex;M6X10;Zn-BL | No | Model Compatibility List | $1.79 / Each |
||
![]() |
701418 | 004468-00 | B51 | Screw;Hex Socket;Round;M6x1.0Px25L;;Zn-B | No | Model Compatibility List | $1.79 / Each |
||
![]() |

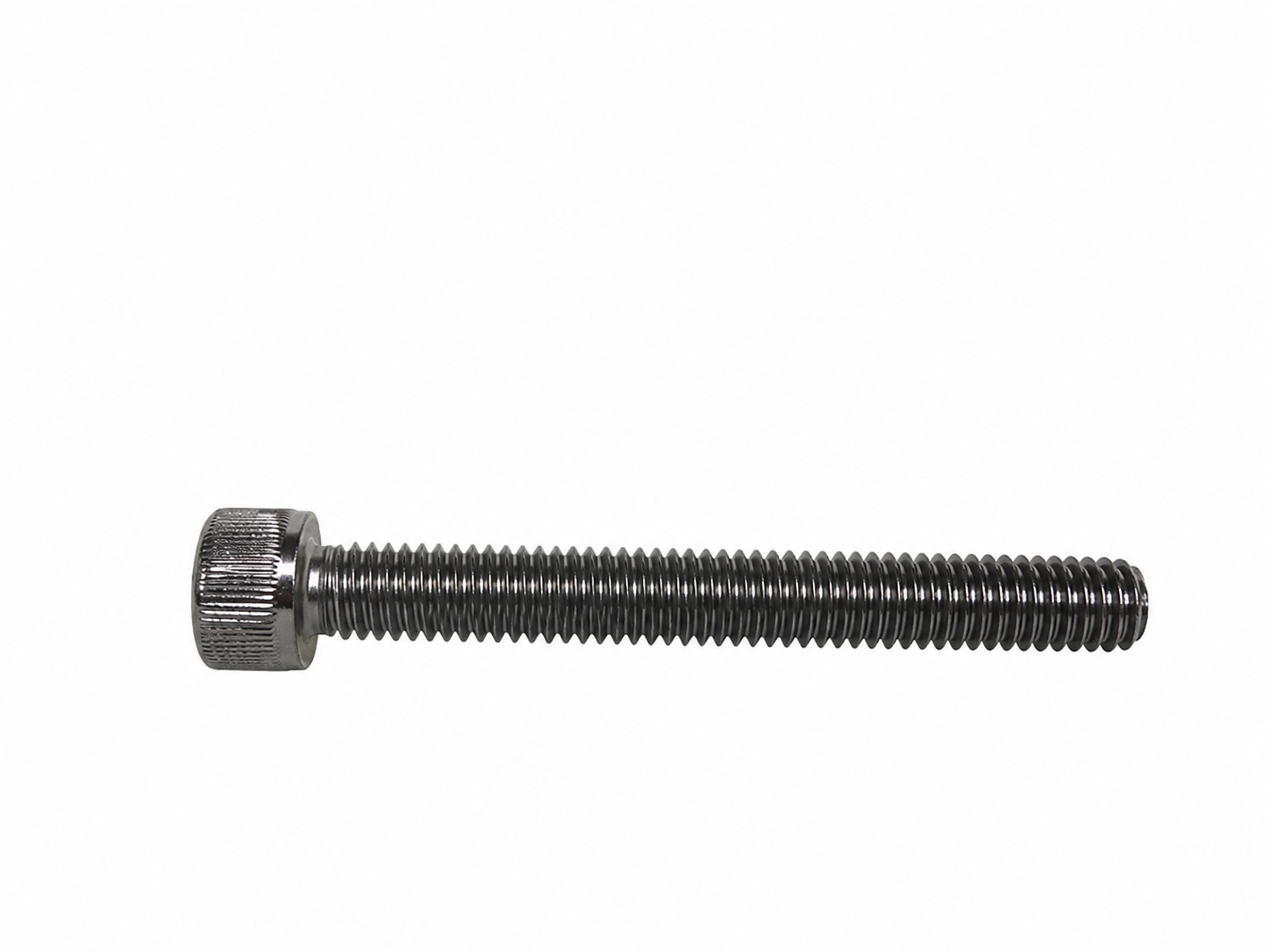

701491 | 004533-AD | Z26 | Screw;SH;M8X1.25PX65L;;HS;;CHM;;BP | No | Model Compatibility List | $3.35 / Each |
||
![]() |
701522 | 004555-AB | H65 | Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A | No | Model Compatibility List | $4.00 / Each |
||
![]() |
701670 | 004703-AF | Z01 | Screw;Flat Hex Socket;M8x1.25Px20L | No | Model Compatibility List | $1.79 / Each |
||
![]() |
701673 | 004706-A | J33 | Screw;TH;M6X1.0PX16L;;HS;;BZN;; | No | Model Compatibility List | $1.66 / Each |
||
![]() |
701694 | 004720-AH | Z08 | Screw;Hex Socket;Oval;M8X1.25PX20L | No | Model Compatibility List | $2.00 / Each |
||
![]() |
701911 | 004938-00 | K009 | Nut;Nylon;M6X1.0P;Chromed | No | Model Compatibility List | $2.00 / Each |
||
![]() |
701914 | 004943-00 | F18 | Nut;Nylon;M10x1.5P;Cr Plate; | No | Model Compatibility List | $2.00 / Each |
||
![]() |
702000 | 005040-00 | G35 | Washer;Flat;Diam.8.5xDiam.19.0x1.5T;;Bla | No | Model Compatibility List | $1.85 / Each |
||
![]() |
702026 | 005058-AB | H24 | Washer;Flat;12x26x2T;Chromed | No | Model Compatibility List | $1.66 / Each |
||
![]() |
702030 | 005062-00 | B21 | Washer;Flat;10.2x19x2.0T;Chromed | No | Model Compatibility List | $1.59 / Each |
||
![]() |
702308 | 005847-A | K08 | Lanyard;Weight Selection Pin | No | Model Compatibility List | $20.05 / Each |
||
![]() |
702654 | 009247-A | B13 | Axle;Swivel;;S45C;10x25L | No | Model Compatibility List | $2.86 / Each |
||
![]() |

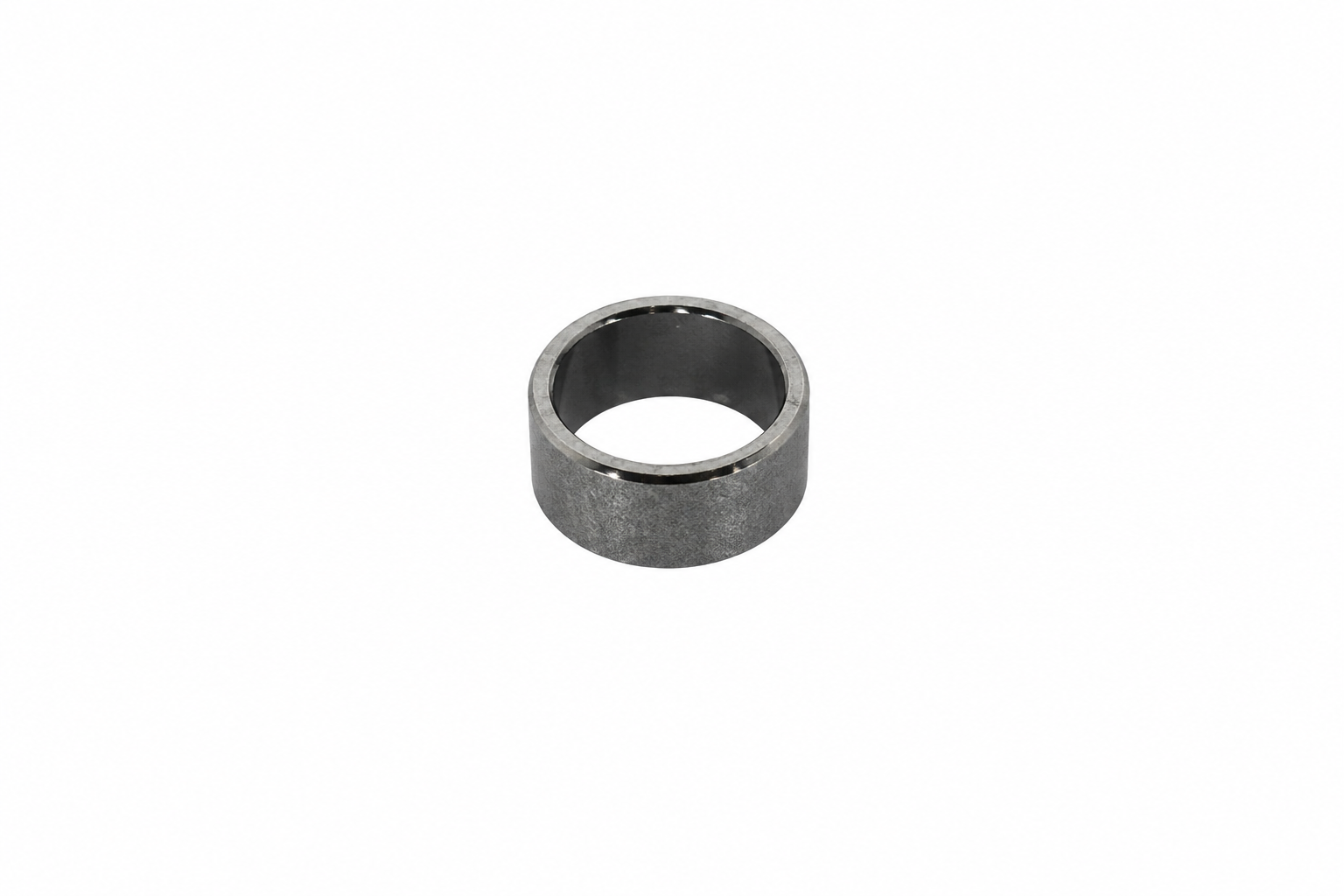

702709 | 009354-A | H19 | Stopper Mast;SS41;Zn Plate;MS21 | No | Model Compatibility List | $3.64 / Each |
||
![]() |
703737 | 015942-AA | K06 | Weight Plate Set;10 Lbs;Dry Bearing | No | Model Compatibility List | $42.22 / Each |
||
![]() |
704023 | 020112-A | B63 | Screw;Hex Socket;Round;M10x1.5Px50L(Tooth15) | No | Model Compatibility List | $1.33 / Each |
||
![]() |
705014 | 029160-AA | T15 | End Cap;Handlebar | No | Model Compatibility List | $1.79 / Each |
||
707859 | 1000096510 | D43 | Nut;HX;M12X1.75P;SS41;CHM;; | No | Model Compatibility List | $1.38 / Each |
|||
![]() |
708453 | 1000102869 | B14 | Screw;Hex Socket;Round;M12x1.75Px25L;Cr | No | Model Compatibility List | $3.43 / Each |
||
708663 | 1000104692 | Z10 | Screw;RND;M10x1.5Px45L;HS;CHM;BP;G12.9 | No | Model Compatibility List | $4.26 / Each |
|||
![]() |
709081 | 1000109127 | V02 | Decal;Pinch Point ;MS21KM-G3 | No | Model Compatibility List | $1.77 / Each |
||
709497 | 1000200716 | K10 | ELASTOMER;WEIGHT;RUBBER;;;;GM61; | No | Model Compatibility List | $25.04 / Each |
|||
![]() |
713129 | 1000233200 | C52 | PLASTIC COVER;;NBR;BL;;;; | No | Model Compatibility List | $1.66 / Each |
||
![]() |
713453 | 1000303486 | Q13 | Clamp;Cover;- | No | Model Compatibility List | $1.66 / Each |
||
![]() |
713460 | 1000303546 | C51 | Plastic Pad;Foot Pad;-;PP;BL427 | No | Model Compatibility List | $3.35 / Each |
||
715521 | 1000324927 | Not Shown | Insert;Assembly;;English;Torque;GM01 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
717511 | 1000345659 | J12 | Cap;Elliptical;;TPU;BL/Black C;Diam.50.0 | No | Model Compatibility List | $15.18 / Each |
|||
717702 | 1000346928 | Not Shown | Insert;Assembly Manual;;English;battery | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
![]() |
718892 | 1000354060 | H08 | Rubber Plate;Stopper;;NBR;Q520-7-3 MATTE | No | Model Compatibility List | $6.73 / Each |
||
![]() |

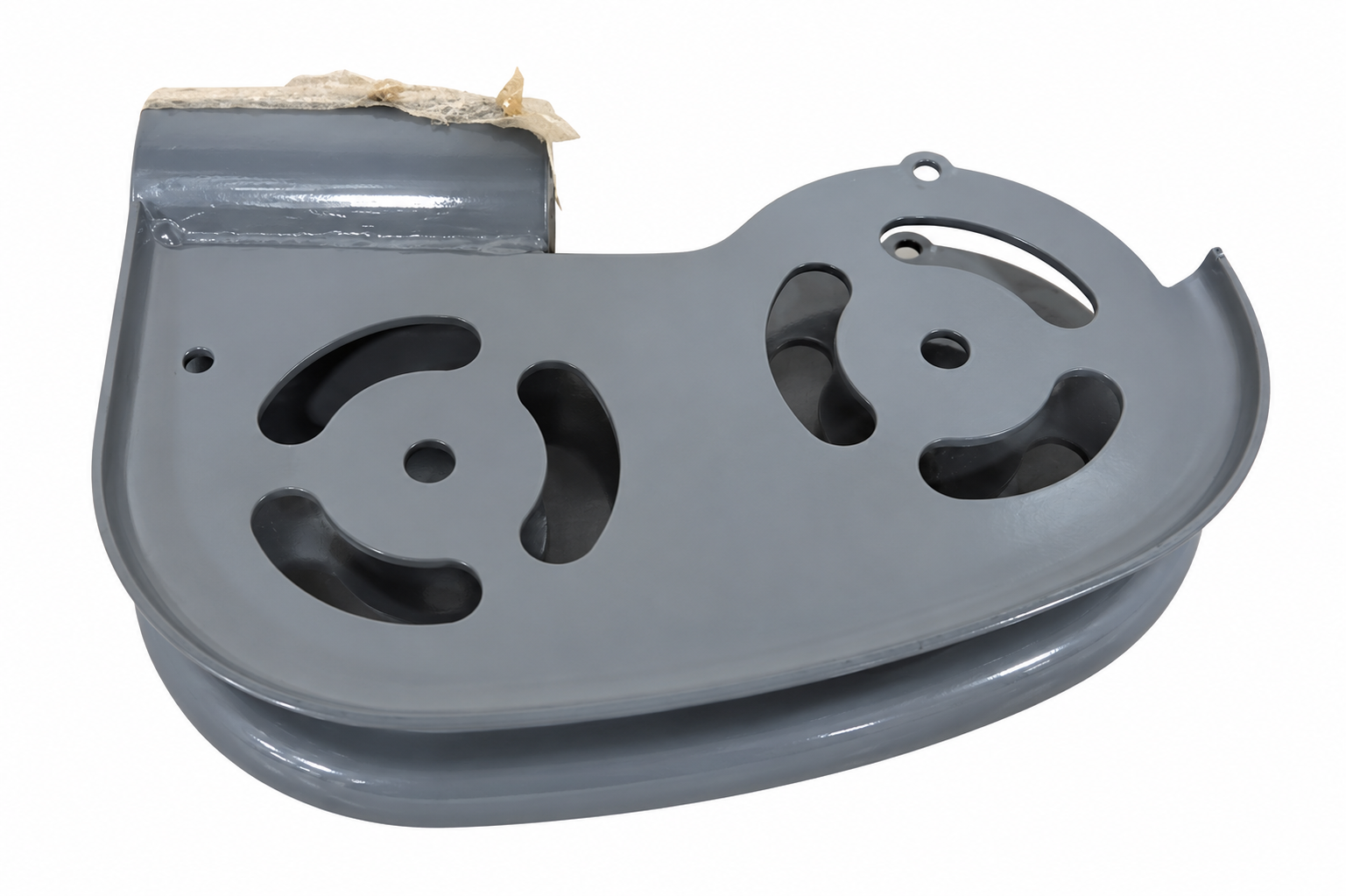

718971 | 1000354841 | 3 | Guide base set;Semi-Assy;;;;MS24B-KM;Ice | No | Model Compatibility List | $219.00 / Each |
||
719082 | 1000355733 | C03 | Tube Cap;Base;;TPU;BL/Black C;F40xF80;FW | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
719682 | 1000363760 | V51 | Warning Label;Frame;;;PC;;English; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
![]() |
720322 | 1000371560 | C18 | Cap;Elliptical;;TPU;;Diam.50.0xDiam.100. | No | Model Compatibility List | $6.73 / Each |
||
720801 | 1000376099 | DP V27 | Warning Label;Heavy End;;;PVC;;;GM106 | No | Model Compatibility List | $10.11 / Each |
|||
![]() |
721052 | 1000380094 | F10 | Karabiner Spring Snap;;9(45mmx90mm);Sta | No | Model Compatibility List | $24.91 / Each |
||
724356 | 1000418395 | Not Shown | Insert;;;;Sale service address;GM113;All | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
![]() |
725583 | 073572 | F17 | Pulley; 90mm | No | Model Compatibility List | $44.28 / Each |
||
![]() |
725584 | 073573 | F21 | Pulley; 115mm | No | Model Compatibility List | $42.17 / Each |
||
726927 | 086032 | Q38 | Bolt;Cover;GM16 | No | Model Compatibility List | $2.34 / Each |
|||
![]() |
727687 | 090440 | H08 | Stopper BlockRubber;GM30 | No | Model Compatibility List | $2.73 / Each |
||
![]() |
728614 | 0000095638 | J15 | Foot Pad;Adjustable;M12X58H;12.9;EP304; | Yes | Model Compatibility List | $33.85 / Each |
||
![]() |

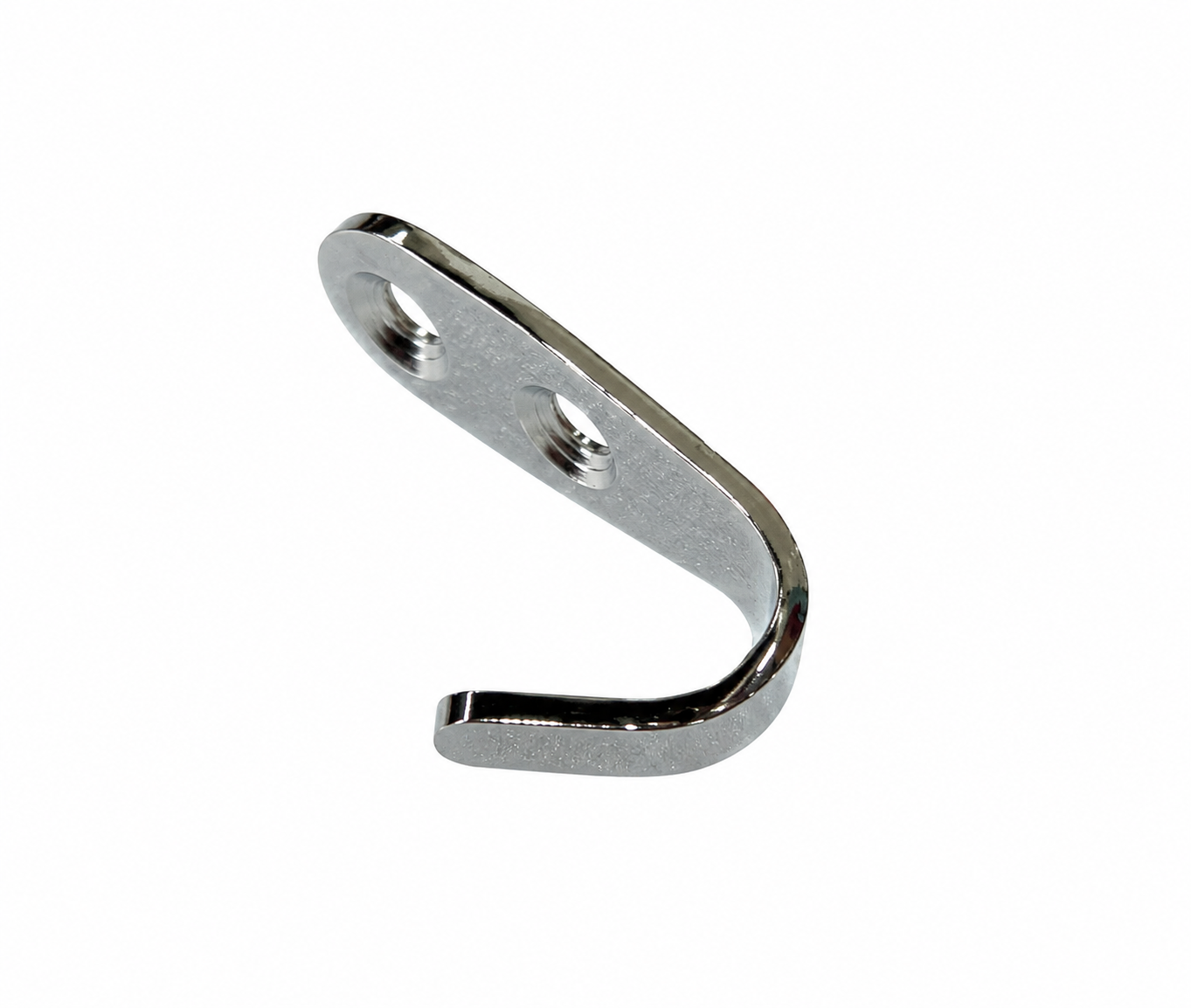

731393 | 1000372729 | G20 | Hook;;;Stainless Steel;3T;;GM106CK;outso | No | Model Compatibility List | $6.48 / Each |
||
![]() |
731394 | 1000103171 | Z36 | Screw;FH;M4x10L;-;HS;-;CHM;BP;-; | No | Model Compatibility List | $1.02 / Each |
||
![]() |
732872 | 1000379486 | B24 | Plug;;;PA6+G15%;BL/Black C;8;MR47;market | No | Model Compatibility List | $1.68 / Each |
||
![]() |
732934 | 1000397161 | K04 | Butt Plate;;;ABS;;101x85x2.0T;GM107; | No | Model Compatibility List | $2.32 / Each |
||
![]() |
735113 | 001542-A | Not Shown | Touch-up Paint | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
735797 | 1000420669 | AC1 | User frame set;Semi-Assy;right;Iced Sliv | No | Model Compatibility List | $46.78 / Each |
||
![]() |
735798 | 1000420681 | AC2 | User frame set;Semi-Assy;left;Iced Slive | No | Model Compatibility List | $46.78 / Each |
||
![]() |
735799 | 1000431545 | AF1 | Steel Rope Set;;;Diam.4.8x8117L;MS26; | No | Model Compatibility List | $153.38 / Each |
||
![]() |
735800 | 1000397533 | AH1 | Pulley Adjust Tube-Exreawork;;;electropl | No | Model Compatibility List | $542.08 / Each |
||
![]() |
735801 | 1000420690 | AH23 | Adjust set;Semi-Assy;;Iced Sliver;;;MS26 | No | Model Compatibility List | $92.28 / Each |
||
![]() |
735802 | 1000390876 | AK13 | Adjustment set;Assembly;;;MS26;; | No | Model Compatibility List | $124.78 / Each |
||
![]() |
735803 | 1000397517 | AK2 | Slide Pulley Fixing Base;;;painting;;Bla | No | Model Compatibility List | $45.48 / Each |
||
![]() |
735804 | 1000392095 | AQ2 | Fix set;;;Black Matte;;;GM106;Service | No | Model Compatibility List | $38.98 / Each |
||
![]() |
735805 | 1000376310 | B22 | Tight bar;Cover;M;painting;;Black Matte; | No | Model Compatibility List | $3.88 / Each |
||
![]() |
735806 | 1000405332 | B23 | Grip;;;PA6;;;MS26-KM; | No | Model Compatibility List | $22.08 / Each |
||
![]() |
735807 | 1000398066 | H04 | Sleeve;Adjustment;;;;;GM106 | No | Model Compatibility List | $20.78 / Each |
||
![]() |
735808 | 1000415529 | H13 | Pin set;Semi-Assy;;;;;MS26; | No | Model Compatibility List | $24.68 / Each |
||
![]() |
735809 | 1000376176 | H30 | Adjustable Tube;Bracket1;Middle;SPHC;0.5 | No | Model Compatibility List | $1.68 / Each |
||
![]() |
735810 | 1000422225 | H31 | Fixing Plate;Pulley Supt Plate;L;Stainle | No | Model Compatibility List | $31.18 / Each |
||
![]() |
735811 | 1000422226 | H32 | Fixing Plate;Pulley Supt Plate;Rt;Stainl | No | Model Compatibility List | $31.18 / Each |
||
![]() |

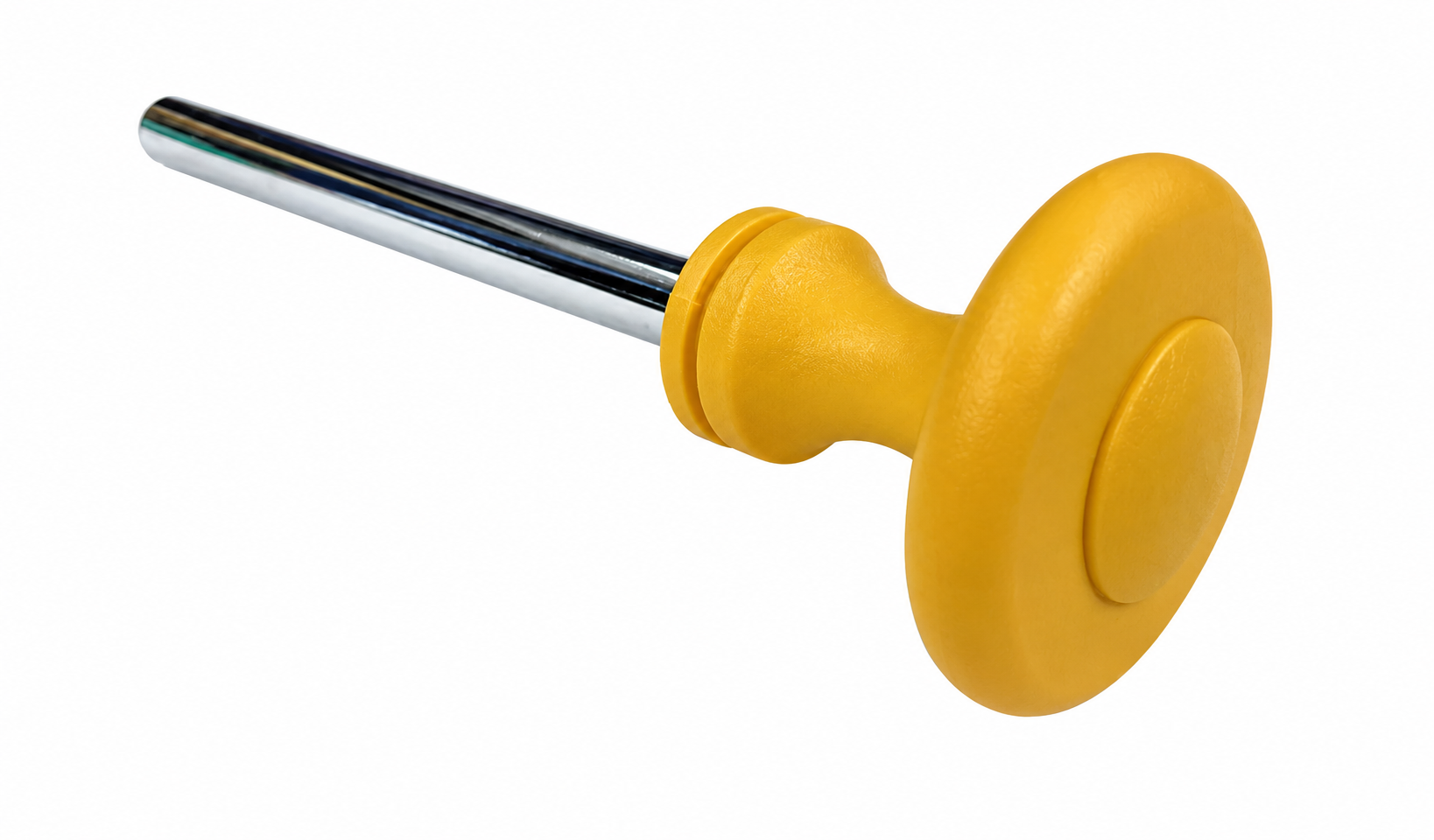

735812 | 1000404900 | K16 | Adjustable Bolt;Weight Plate;;PA6;Black | No | Model Compatibility List | $28.58 / Each |
||
![]() |
735813 | 1000365411 | Q01 | Cover;Weight Plate;ABS;;3T;GM106; | No | Model Compatibility List | $66.28 / Each |
||
![]() |
735814 | 1000372739 | Q03 | Plastic Bar;Label;up;PVC;;1895L;GM106; | No | Model Compatibility List | $14.28 / Each |
||
![]() |
735815 | 1000397660 | V02 | EN LABEL;;;;;;;MS26-KM | No | Model Compatibility List | $1.02 / Each |
||
![]() |
735816 | 1000415114 | V21 | Weight Plate Decal;;75lbs34kg;;;;;MS26 | No | Model Compatibility List | $15.58 / Each |
||
![]() |
735817 | 1000415115 | V34 | Instructional Labe;;152.4X660.4;;;Left;; | No | Model Compatibility List | $27.28 / Each |
||
![]() |
735818 | 1000415116 | V35 | Instructional Labe;;152.4X660.4;;;Right; | No | Model Compatibility List | $27.28 / Each |
||
![]() |
735819 | 1000108190 | Z14 | Screw;RND;M6x1.0Px45L;-;HS;-;CHM;BP;-; | No | Model Compatibility List | $1.02 / Each |
||
![]() |
735820 | 1000399550 | Z20 | Nut;Nylon;M20x2.5P;Grade 12.9;Chrome; | No | Model Compatibility List | $5.18 / Each |
||
![]() |
735821 | 1000421179 | AB1 | Frame Set;Semi-Assy;;Iced Sliver;;;MS26; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
735822 | 1000397532 | K05 | Guide Rod-Extrawork;;;grinding;F19.0x184 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
735823 | 1000397600 | Not Shown | Manual;;;;;MS26-KM | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
735824 | 1000429827 | Not Shown | Manual;;;;NA and Europe;MS26 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
735825 | 1000397584 | Not Shown | Hardware Set;Semi-Assy;;;;;MS26-KM; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
735826 | 1000397560 | AF1 | Steel Rope-Extrawork;;;;Diam.4.8x8123L;M | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |

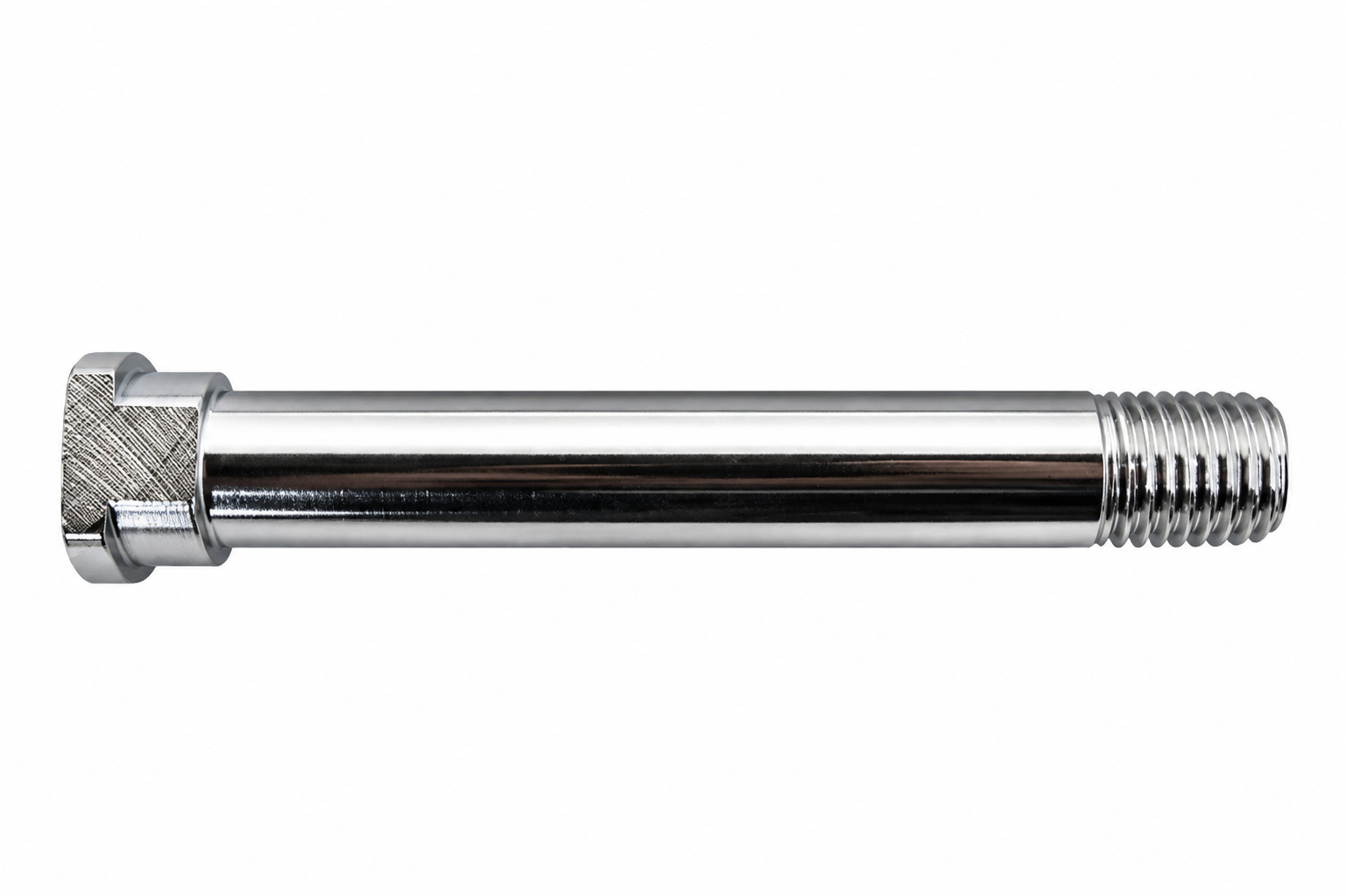

735827 | 1000399446 | H04 | Adjustable Sleeve;ADJ;;20CrMo;;GM106;Dia | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
735828 | 1000233199 | K19 | PLASTIC PAD;;PP;BL;;;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
735829 | 1000404913 | Q01 | Cover;Weight Plate;;ABS;;;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |

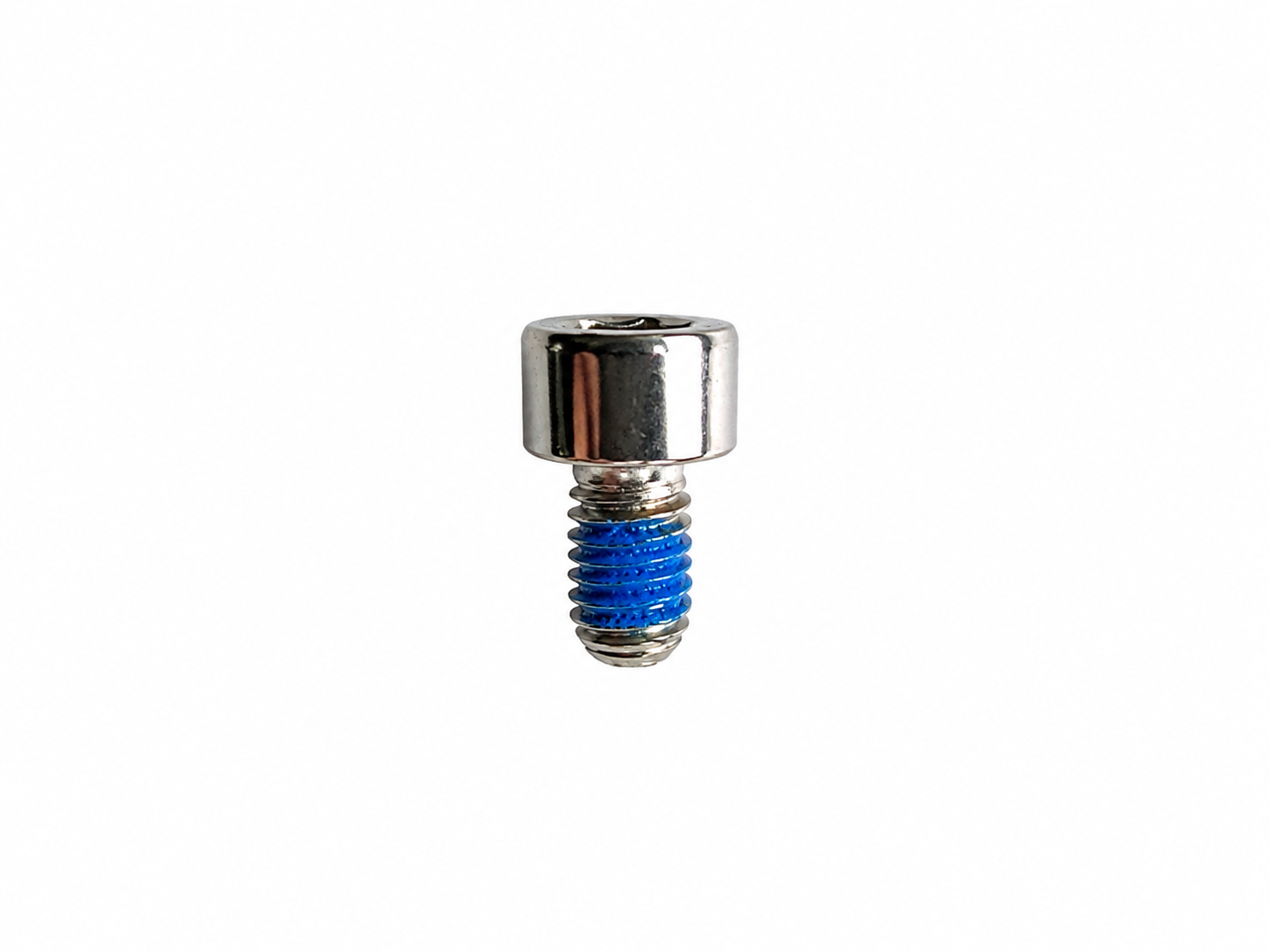

735830 | 004464-Z | Z01 | BOLT SH M6X10 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
|
