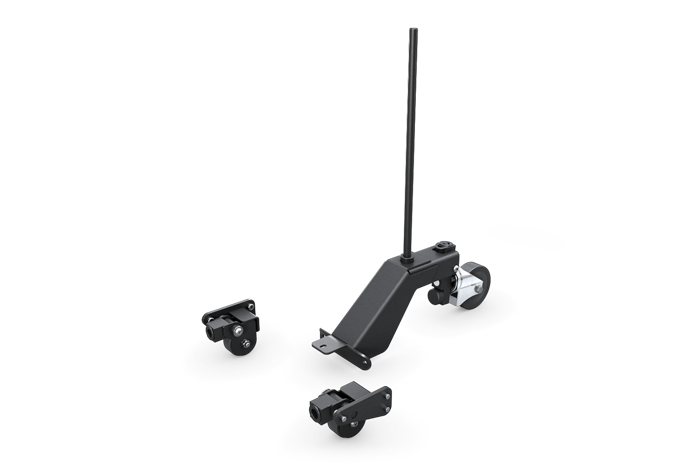

Matrix Fitness - MD-AP-WP - Medical Adjustable Pulley - Wheel Package - AS1849 - 2018 - 2018

Repair Parts for Matrix Fitness MD-AP-WP - Medical Adjustable Pulley - Wheel Package - AS1849 - 2018 AS1849

Brand: Matrix Fitness

Category: Single Station

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

AS1849

Model Name: MD-AP-WP - Medical Adjustable Pulley - Wheel Package - AS1849 - 2018

Serial Number Prefix: AS1849

Version: 2018

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

diag_32_Parts List.pdf

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
700024	000041-AA	J19	Transport Wheel	Yes	Model Compatibility List	$9.10 / Each	1
701522	004555-AB	H65	Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A	No	Model Compatibility List	$4.00 / Each	1
701914	004943-00	F18	Nut;Nylon;M10x1.5P;Cr Plate;	No	Model Compatibility List	$2.00 / Each	1
702030	005062-00	B21	Washer;Flat;10.2x19x2.0T;Chromed	No	Model Compatibility List	$1.59 / Each	1
702531	008523-B	Z13	Washer;Arc;M10x28x10.5T;SS41	No	Model Compatibility List	$9.10 / Each	1
704027	020115-AE	Z01	Screw;SH;M10X1.5PX95-20L ;;HS;;CHM;;P-T	No	Model Compatibility List	$9.28 / Each	1
704193	020465-AB	Z03	Washer;Flat;M10.2X25PX2.0T;Chromed	No	Model Compatibility List	$1.79 / Each	1
708679	1000104712	C44	Screw;BH;M10x1.5Px60L;HS;CHM;BP;G8.8	No	Model Compatibility List	$6.63 / Each	1
709081	1000109127	V02	Decal;Pinch Point ;MS21KM-G3	No	Model Compatibility List	$1.77 / Each	1
713618	1000305791	G08	SLEEVE;Support Tube;;20#;FW212	No	Model Compatibility List	$8.42 / Each	1
727687	090440	H08	Stopper BlockRubber;GM30	No	Model Compatibility List	$2.73 / Each	1
734210	1000420388	AB12	Wheel Set;Semi-Assy;back;Black Matte;;;M	No	Model Compatibility List	$58.48 / Each	1
734211	1000397926	C10	Swivel Axle-Exreawork;;;;Diam.20.0x43.0;	No	Model Compatibility List	$9.08 / Each	1
734212	1000397938	C20	Rotating Roller;;;;;;MS26-KM;	No	Model Compatibility List	$59.78 / Each	1
734213	1000397952	C27	Swivel Shaft-Extrawork;;;electroplating;	No	Model Compatibility List	$42.88 / Each	1
734214	1000397944	AB13	Fixing Rack;;;painting;;Black Matte;MS26	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
734215	1000420386	AC15	Wheel Set;Semi-Assy;front;Black Matte;;;	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
734216	1000397935	AC3	Fixing Rack;;L;painting;;Black Matte;MS2	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
734217	1000397929	AC4	Fixing Rack;;R;painting;;Black Matte;MS2	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
734218	1000397953	Not Shown	Hardware Set;Semi-Assy;;;;;MD-AP-WP;	No	Model Compatibility List	$0.00 / Each Out Of Stock	1

View Drawing
