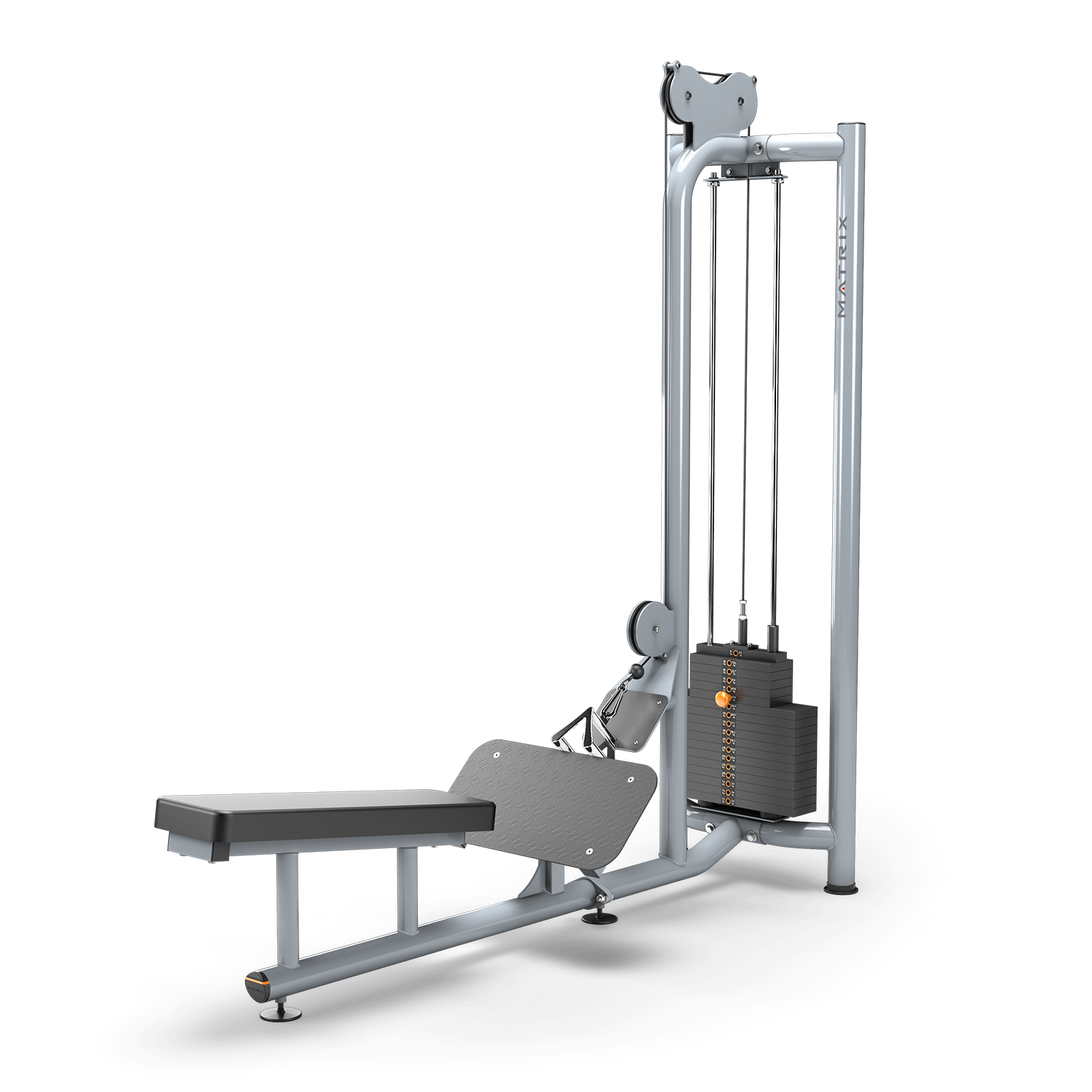

Matrix Fitness - MG-926-06 - MG-FS926-06 - Low Row - 2018 - 2018

Repair Parts for Matrix Fitness MG-926-06 - MG-FS926-06 - Low Row - 2018 MGPTS63

Brand: Matrix Fitness

Category: Single Station

Type: Strength Systems

Model Name: MG-926-06 - MG-FS926-06 - Low Row - 2018

Serial Number Prefix: MGPTS63

Version: 2018

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
2 713806 1000308417 B41 2" x 2" END CAP No Model Compatibility List $5.46 / Each

1
3/8 713814 1000308428 Z34 3/8" NUT No Model Compatibility List $1.43 / Each

1
WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 713818 1000308436 Z19 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $1.43 / Each

1
WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06 713826 1000308444 Z9 WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06 No Model Compatibility List $1.43 / Each

1
713827 1000308445 Z24 5/16" - 3" BOLT No Model Compatibility List $2.18 / Each

1
WASHER;FLT;USS;Diam.0.281XDiam.0.734X.06 713828 1000308446 Z23 WASHER;FLT;USS;Diam.0.281XDiam.0.734X.06 No Model Compatibility List $1.43 / Each

1
Lable, hand pinch 713842 1000308473 V45 Lable, hand pinch No Model Compatibility List $3.02 / Each

1
713943 1000309851 WS Pulley 4 SCREW;HH;.375-16 x 2.25;ZN; No Model Compatibility List $2.18 / Each

1
NUT;NLK;.250-20;ZN; 713946 1000309854 Z35 NUT;NLK;.250-20;ZN; No Model Compatibility List $1.43 / Each

1
3/4 713950 1000309858 Z52 3/4" FLAT WASHER No Model Compatibility List $1.33 / Each

1
End Cap 713981 1000310014 B13 End Cap No Model Compatibility List $5.90 / Each

1
Washer, Curved, 1/2 713991 1000310088 Z25 Washer, Curved, 1/2" No Model Compatibility List $3.02 / Each

1
713996 1000310095 B27 1/2" OD x 1/4" ID Plastic Spacer - 1" No Model Compatibility List $1.33 / Each

1
713998 1000310097 Z42 SCREW;HH;.250-20 x 2.00;ZN; No Model Compatibility List $1.33 / Each

1
SCREW;HH;.250-20 x 0.75;ZN; 714016 1000310219 Z13 SCREW;HH;.250-20 x 0.75;ZN; No Model Compatibility List $1.33 / Each

1
4 714018 1000310273 B4 4" FOOT (SHORT) No Model Compatibility List $20.05 / Each

1
714026 1000310302 B62 6" CABLE PULLEY w/ NARROW BUSHING No Model Compatibility List $36.48 / Each

1
714038 1000310334 WS 4 6000 TOP PLATE No Model Compatibility List $78.47 / Each

1
ROUND WEIGHT STACK BUMPER 714040 1000310339 B46 ROUND WEIGHT STACK BUMPER No Model Compatibility List $5.90 / Each

1
714041 1000310343 WS 3 Orange SELECTOR PIN w/ 6 1/2" CORD No Model Compatibility List $25.53 / Each

1
714079 1000311963 Z26 Screw;HH;.375-16x1.25;Zinc No Model Compatibility List $0.00 / Each
Out Of Stock 		1
SCREW;HH;.500-13 x 1.75;ZN; 714105 1000312091 Z6 SCREW;HH;.500-13 x 1.75;ZN; No Model Compatibility List $3.28 / Each

1
714109 1000312099 Z101 HCS 1/2-13 x 4 1/4" No Model Compatibility List $5.04 / Each

1
BHS 5/16 714118 1000312127 B7 BHS 5/16" - 1" No Model Compatibility List $5.46 / Each

1
NUT;NLK;.500-13;ZN;TALL; 714127 1000312161 Z33 NUT;NLK;.500-13;ZN;TALL; No Model Compatibility List $1.43 / Each

1
3 714153 1000312233 B5 3" ROUND END CAP No Model Compatibility List $6.73 / Each

1
3 714156 1000312237 Spot Stand B9 3" FOOT No Model Compatibility List $16.87 / Each

1
714193 1000312342 V18 DECAL,WARNING: BOLT DOWN;English No Model Compatibility List $0.00 / Each
Out Of Stock 		1
7/16 714235 1000312700 Z22 7/16" FLAT WASHER No Model Compatibility List $2.44 / Each

1
1/4 714236 1000312711 Z37 1/4" x 1/2" BUTTON HEAD No Model Compatibility List $1.46 / Each

1
714240 1000312817 WS 6 5/16" SPLIT LOCK WASHER No Model Compatibility List $1.33 / Each

1
714249 1000312880 Weight Stack 8 CAST IRON No Model Compatibility List $104.75 / Each

1
714253 1000312893 B39 3/8" SAFETY CLIP No Model Compatibility List $16.82 / Each

1
714341 1000313851 B21 HANDLE DOUBLE TRIANGLE ROW No Model Compatibility List $0.00 / Each
Out Of Stock 		1
SCREW;HH;.375-16 x 3.50;ZN; 714390 1000314246 Z9 SCREW;HH;.375-16 x 3.50;ZN; No Model Compatibility List $3.90 / Each

1
714538 1000315894 V47 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

1
714740 1000317727 B10 5/8" RUBBER GROMMET No Model Compatibility List $9.49 / Each

1
715263 1000321910 B13 5/8" GUIDE ROD - 76" No Model Compatibility List $211.22 / Each

1
715264 1000321944 WS 2 WEIGHT PLATE 20# W_BUSHINGS 18.4 X 4.3X No Model Compatibility List $103.06 / Each

1
717215 1000342962 B4 Stack Guard;Grey No Model Compatibility List $493.45 / Each

1
Pipe;3/4 717216 1000342964 Kit 5 Pipe;3/4"ODx1/2"ID;With Zinc Coating No Model Compatibility List $20.25 / Each

1
717233 1000343290 Kit 1 Connect Plate;;;painting;;Black C;900 To No Model Compatibility List $13.49 / Each

1
717333 1000344108 Clamp Kit Set 900 Series Coupler Set;Metal; No Model Compatibility List $131.79 / Each

1
717500 1000345600 B21 5/8# Single Split Collar No Model Compatibility List $10.92 / Each

1
718779 1000353447 AB4 WELDMENT FRAME 900 SERIES WEIGHT STACK;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		1
718780 1000353448 AB4 WELDMENT FRAME 900 SERIES WEIGHT STACK;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		1
718781 1000353449 AB4 WELDMENT FRAME 900 SERIES WEIGHT STACK;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		1
719128 1000356181 Weight Stack 7 WELDMENT; CENTER STICK No Model Compatibility List $0.00 / Each
Out Of Stock 		1
719322 1000359722 Weight Stack 6 Cable Clip Top Half Assembly No Model Compatibility List $0.00 / Each
Out Of Stock 		1
719338 1000359953 V25 Warning Label;Anti Falling Down;MS24B;;; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
719682 1000363760 V51 Warning Label;Frame;;;PC;;English; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
719683 1000363766 V02 Warning Label;Frame;;;PC;;French;GM40 No Model Compatibility List $5.04 / Each

1
719705 1000364025 V31 Warning Label;Anti Falling Down;MS24B;;; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
720298 1000371230 Z30 Screw;HH;.375-16 x 3;ZN No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721552 1000384006 V13 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
724529 1000421523 V36 900 Step Stack Decal No Model Compatibility List $0.00 / Each
Out Of Stock 		1
724684 1000423449 B3 Weight Stack Bracket;900 SRS; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
729261 See Pad Matrix J01 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
16ga Plasma, Guard, FS900s 730015 1000444832 B47 16ga Plasma, Guard, FS900s No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Bracket;;;;0.187in;;900 Tower;Assembly;J 730659 1000337789 Coupler 1 Bracket;;;;0.187in;;900 Tower;Assembly;J No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Seat Frame;926;Black Glossy 730806 1000342618 AB4 Seat Frame;926;Black Glossy No Model Compatibility List $1405.28 / Each

1
Seat Frame;926;Iced Silver 730812 1000342617 AB4 Seat Frame;926;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Seat Frame;926;Lace White 730813 1000342619 AB4 Seat Frame;926;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		1
WELDMENT TIP OVER FOOT;Iced Silver 730814 1000328373 AB5 WELDMENT TIP OVER FOOT;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		1
WELDMENT TIP OVER FOOT;Black Glossy 730815 1000328374 AB5 WELDMENT TIP OVER FOOT;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		1
WELDMENT TIP OVER FOOT;Lace White 730816 1000328375 AB5 WELDMENT TIP OVER FOOT;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		1
TAPE;Double faced 2 730820 1000393238 B57 TAPE;Double faced 2" x 8.5 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
900 SERIES TOWER CLAMP (SET OF 2) 731570 1000328307 Clamp Kit Set 900 SERIES TOWER CLAMP (SET OF 2) No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Main Frame Assy;926;Iced Silver 733122 1000345767 AB1 Main Frame Assy;926;Iced Silver No Model Compatibility List $1593.78 / Each

1
Main Frame Assy;926;Black Glossy 733123 1000345768 AB1 Main Frame Assy;926;Black Glossy No Model Compatibility List $1578.18 / Each

1
Cable Assy;926; 733124 1000421276 B16 Cable Assy;926; No Model Compatibility List $193.68 / Each

1
PLATE 1/8 733125 1000324023 B6 PLATE 1/8" ABS - 8 1/2" x 7 7/16" No Model Compatibility List $23.38 / Each

1
Main Frame Assy;926;Lace White 733126 1000345769 AB1 Main Frame Assy;926;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		1
FOOTPLATE PU - 926M 733127 1000381843 B3 FOOTPLATE PU - 926M No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Weight Stack Assy;Stepped;#310; 733128 1000421551 Weight Stack Set Weight Stack Assy;Stepped;#310; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
View Drawing
