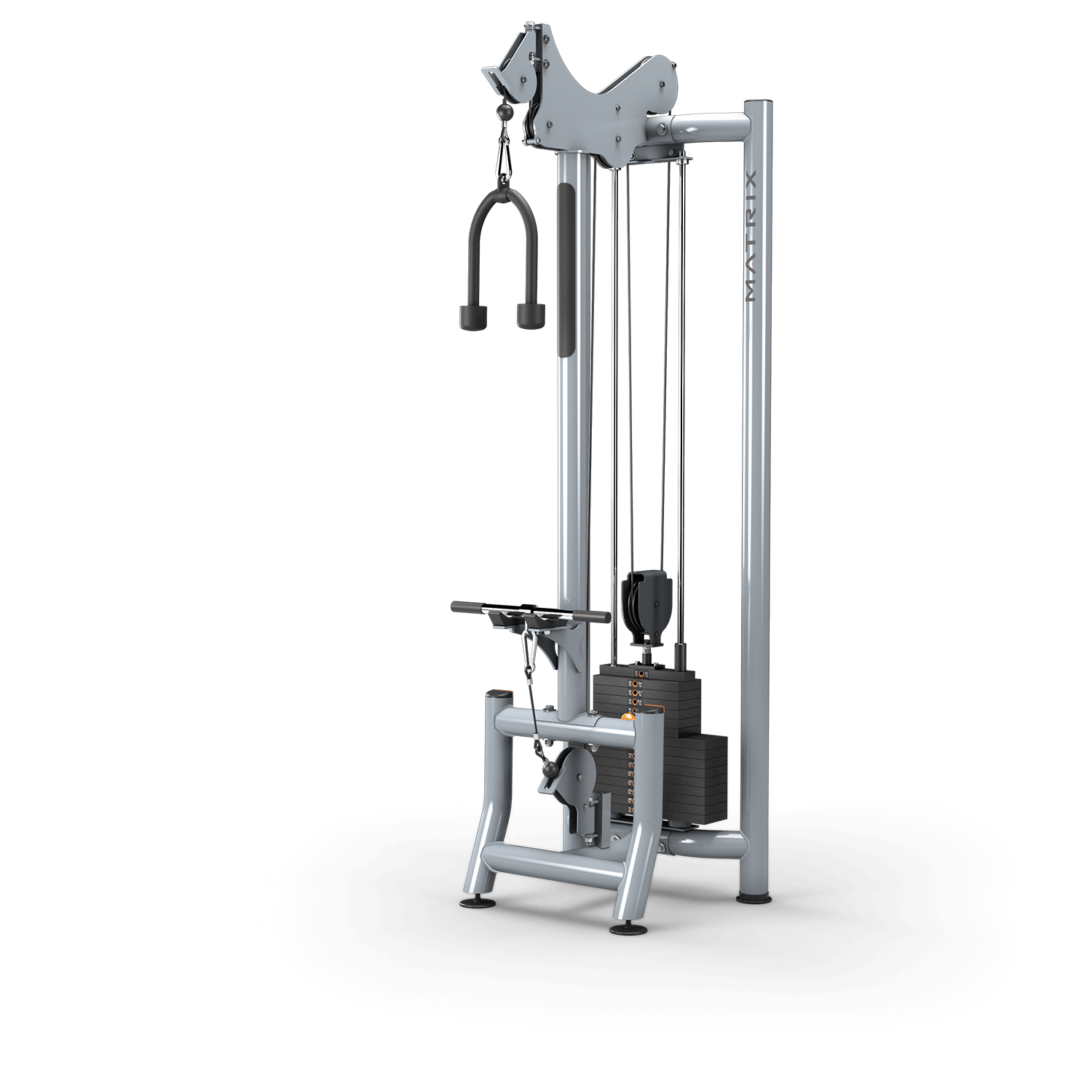

Matrix Fitness - MG-947-06 - MG-FS947-06 - Biceps / Triceps - 2018 - 2018

Repair Parts for Matrix Fitness MG-947-06 - MG-FS947-06 - Biceps / Triceps - 2018

Brand: Matrix Fitness

Category: Single Station

Type: Strength Systems

Model Name: MG-947-06 - MG-FS947-06 - Biceps / Triceps - 2018

Version: 2018

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
3/8 713814 1000308428 Z34 3/8" NUT No Model Compatibility List $1.43 / Each

1
WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 713818 1000308436 Z19 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $1.43 / Each

1
WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06 713826 1000308444 Z9 WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06 No Model Compatibility List $1.43 / Each

1
713827 1000308445 Z24 5/16" - 3" BOLT No Model Compatibility List $2.18 / Each

1
WASHER;FLT;USS;Diam.0.281XDiam.0.734X.06 713828 1000308446 Z23 WASHER;FLT;USS;Diam.0.281XDiam.0.734X.06 No Model Compatibility List $1.43 / Each

1
713831 1000308449 Z32 NUT;NLK;.313-18;ZN; No Model Compatibility List $1.33 / Each

1
Lable, hand pinch 713842 1000308473 V45 Lable, hand pinch No Model Compatibility List $3.02 / Each

1
1 1/2 713938 1000309842 B40 1 1/2" X 2" END CAP No Model Compatibility List $5.04 / Each

1
1/2 713939 1000309846 Spotter Stand 1 1/2" JAM NUT No Model Compatibility List $1.43 / Each

1
WASHER, .50 OD X .38 ID X .05 713940 1000309847 Z66 WASHER, .50 OD X .38 ID X .05 No Model Compatibility List $1.43 / Each

1
713943 1000309851 WS Pulley 4 SCREW;HH;.375-16 x 2.25;ZN; No Model Compatibility List $2.18 / Each

1
713945 1000309853 Z19 SCREW;HH;.250-20 x 1.75;ZN; No Model Compatibility List $2.44 / Each

1
NUT;NLK;.250-20;ZN; 713946 1000309854 Z35 NUT;NLK;.250-20;ZN; No Model Compatibility List $1.43 / Each

1
3/4 713950 1000309858 Z52 3/4" FLAT WASHER No Model Compatibility List $1.33 / Each

1
713953 1000309871 DP 9 SCREW;HH;.375-16 x 2.00;ZN; No Model Compatibility List $2.18 / Each

1
End Cap 713981 1000310014 B13 End Cap No Model Compatibility List $5.90 / Each

1
Washer, Curved, 1/2 713991 1000310088 Z25 Washer, Curved, 1/2" No Model Compatibility List $3.02 / Each

1
SCREW;HH;.500-13 x 4.00;ZN; 713992 1000310089 Z26 SCREW;HH;.500-13 x 4.00;ZN; No Model Compatibility List $5.04 / Each

1
713996 1000310095 B27 1/2" OD x 1/4" ID Plastic Spacer - 1" No Model Compatibility List $1.33 / Each

1
713998 1000310097 Z42 SCREW;HH;.250-20 x 2.00;ZN; No Model Compatibility List $1.33 / Each

1
SCREW;HH;.250-20 x 0.75;ZN; 714016 1000310219 Z13 SCREW;HH;.250-20 x 0.75;ZN; No Model Compatibility List $1.33 / Each

1
4 714018 1000310273 B4 4" FOOT (SHORT) No Model Compatibility List $20.05 / Each

1
714024 1000310289 B2 3" Connector Joint No Model Compatibility List $10.11 / Each

1
714025 1000310301 Z30 SCREW;HH;.500-13 x 4.50;ZN; No Model Compatibility List $5.04 / Each

1
714026 1000310302 B62 6" CABLE PULLEY w/ NARROW BUSHING No Model Compatibility List $36.48 / Each

1
SCREW;HH;.375-16 x 1.00;ZN;SAE 5 714031 1000310307 Z10 SCREW;HH;.375-16 x 1.00;ZN;SAE 5 No Model Compatibility List $2.37 / Each

1
714038 1000310334 WS 4 6000 TOP PLATE No Model Compatibility List $78.47 / Each

1
ROUND WEIGHT STACK BUMPER 714040 1000310339 B46 ROUND WEIGHT STACK BUMPER No Model Compatibility List $5.90 / Each

1
714041 1000310343 WS 3 Orange SELECTOR PIN w/ 6 1/2" CORD No Model Compatibility List $25.53 / Each

1
714079 1000311963 Z26 Screw;HH;.375-16x1.25;Zinc No Model Compatibility List $0.00 / Each
Out Of Stock 		1
SCREW;HH;.500-13 x 1.75;ZN; 714105 1000312091 Z6 SCREW;HH;.500-13 x 1.75;ZN; No Model Compatibility List $3.28 / Each

1
714109 1000312099 Z101 HCS 1/2-13 x 4 1/4" No Model Compatibility List $5.04 / Each

1
BHS 5/16 714118 1000312127 B7 BHS 5/16" - 1" No Model Compatibility List $5.46 / Each

1
714126 1000312159 Z55 1/2 - 13 NUT No Model Compatibility List $1.33 / Each

1
NUT;NLK;.500-13;ZN;TALL; 714127 1000312161 Z33 NUT;NLK;.500-13;ZN;TALL; No Model Compatibility List $1.43 / Each

1
3 714153 1000312233 B5 3" ROUND END CAP No Model Compatibility List $6.73 / Each

1
3 714156 1000312237 Spot Stand B9 3" FOOT No Model Compatibility List $16.87 / Each

1
1/2 714176 1000312298 Z15 1/2" BRASS BUSHING No Model Compatibility List $5.04 / Each

1
714193 1000312342 V18 DECAL,WARNING: BOLT DOWN;English No Model Compatibility List $0.00 / Each
Out Of Stock 		1
DUMBBELL CRADLE 714205 1000312386 B4 DUMBBELL CRADLE No Model Compatibility List $14.59 / Each

1
7/16 714235 1000312700 Z22 7/16" FLAT WASHER No Model Compatibility List $2.44 / Each

1
714240 1000312817 WS 6 5/16" SPLIT LOCK WASHER No Model Compatibility List $1.33 / Each

1
714246 1000312876 Z37 SCREW;HH;.375-16 x 3.25;ZN; No Model Compatibility List $3.74 / Each

1
714249 1000312880 Weight Stack 8 CAST IRON No Model Compatibility List $104.75 / Each

1
714253 1000312893 B39 3/8" SAFETY CLIP No Model Compatibility List $16.82 / Each

1
TRICEP ROPE (MA-TA) 714344 1000313871 B5 TRICEP ROPE (MA-TA) No Model Compatibility List $213.54 / Each

1
SCREW;HH;.375-16 x 3.50;ZN; 714390 1000314246 Z9 SCREW;HH;.375-16 x 3.50;ZN; No Model Compatibility List $3.90 / Each

1
714538 1000315894 V47 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

1
714740 1000317727 B10 5/8" RUBBER GROMMET No Model Compatibility List $9.49 / Each

1
715260 1000321753 B7 Revolving Curl Bar No Model Compatibility List $0.00 / Each
Out Of Stock 		1
715263 1000321910 B13 5/8" GUIDE ROD - 76" No Model Compatibility List $211.22 / Each

1
715264 1000321944 WS 2 WEIGHT PLATE 20# W_BUSHINGS 18.4 X 4.3X No Model Compatibility List $103.06 / Each

1
715535 1000325813 Weight Stack 7 WELDMENT CENTER STICK 16 HOLES No Model Compatibility List $0.00 / Each
Out Of Stock 		1
717215 1000342962 B4 Stack Guard;Grey No Model Compatibility List $493.45 / Each

1
Pipe;3/4 717216 1000342964 Kit 5 Pipe;3/4"ODx1/2"ID;With Zinc Coating No Model Compatibility List $20.25 / Each

1
717233 1000343290 Kit 1 Connect Plate;;;painting;;Black C;900 To No Model Compatibility List $13.49 / Each

1
717333 1000344108 Clamp Kit Set 900 Series Coupler Set;Metal; No Model Compatibility List $131.79 / Each

1
717443 1000345209 Z13 Screw;HH;.375-16x5.00;Zinc No Model Compatibility List $0.00 / Each
Out Of Stock 		1
717500 1000345600 B21 5/8# Single Split Collar No Model Compatibility List $10.92 / Each

1
717650 1000346601 B81 Stabilizer Foot;Black Ridge No Model Compatibility List $45.60 / Each

1
717779 1000347532 B16 4.5" Pulley for Rope / Cable No Model Compatibility List $18.56 / Each

1
718282 1000350082 V55 3M safety walk; 4" x 18" No Model Compatibility List $0.00 / Each
Out Of Stock 		1
718779 1000353447 AB4 WELDMENT FRAME 900 SERIES WEIGHT STACK;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		1
718780 1000353448 AB4 WELDMENT FRAME 900 SERIES WEIGHT STACK;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		1
718781 1000353449 AB4 WELDMENT FRAME 900 SERIES WEIGHT STACK;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		1
719322 1000359722 Weight Stack 6 Cable Clip Top Half Assembly No Model Compatibility List $0.00 / Each
Out Of Stock 		1
719338 1000359953 V25 Warning Label;Anti Falling Down;MS24B;;; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
719682 1000363760 V51 Warning Label;Frame;;;PC;;English; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
719683 1000363766 V02 Warning Label;Frame;;;PC;;French;GM40 No Model Compatibility List $5.04 / Each

1
719705 1000364025 V31 Warning Label;Anti Falling Down;MS24B;;; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721552 1000384006 V13 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
722461 1000392484 Z22 SCREW;HH;.500-13 x 4.75;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
723046 1000402697 WS Pulley 6 Pulley No Model Compatibility List $0.00 / Each
Out Of Stock 		1
724529 1000421523 V36 900 Step Stack Decal No Model Compatibility List $0.00 / Each
Out Of Stock 		1
16ga Plasma, Guard, FS900s 730015 1000444832 B47 16ga Plasma, Guard, FS900s No Model Compatibility List $0.00 / Each
Out Of Stock 		1
10ga PLASMA - 1 1/2 730027 1000310331 B29 10ga PLASMA - 1 1/2" x 5 1/4" No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Weldment, 6 730436 1000463081 Single Pulley 1 Weldment, 6" Formed Pulley Top No Model Compatibility List $0.00 / Each
Out Of Stock 		1
900 TOWER SERIES FREE STANDING SIDE SET 730651 1000329670 FS Side Set 900 TOWER SERIES FREE STANDING SIDE SET No Model Compatibility List $5.18 / Each

1
Bracket;;;;0.187in;;900 Tower;Assembly;J 730659 1000337789 Coupler 1 Bracket;;;;0.187in;;900 Tower;Assembly;J No Model Compatibility List $0.00 / Each
Out Of Stock 		1
WELDMENT TIP OVER FOOT;Iced Silver 730814 1000328373 AB5 WELDMENT TIP OVER FOOT;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		1
WELDMENT TIP OVER FOOT;Black Glossy 730815 1000328374 AB5 WELDMENT TIP OVER FOOT;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		1
WELDMENT TIP OVER FOOT;Lace White 730816 1000328375 AB5 WELDMENT TIP OVER FOOT;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		1
6 730821 1000402695 Single Pulley Set 6" Pulley Top; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
900 SERIES TOWER CLAMP (SET OF 2) 731570 1000328307 Clamp Kit Set 900 SERIES TOWER CLAMP (SET OF 2) No Model Compatibility List $0.00 / Each
Out Of Stock 		1
FS Arm Assy;Right 732373 1000394473 FS Sides 1 FS Arm Assy;Right No Model Compatibility List $0.00 / Each
Out Of Stock 		1
FS Arm Assy;Left 732374 1000394458 FS Sides 2 FS Arm Assy;Left No Model Compatibility List $0.00 / Each
Out Of Stock 		1
FS Weight Stack Frame Assy;923-02;Iced S 733678 1000394444 AB1 FS Weight Stack Frame Assy;923-02;Iced S No Model Compatibility List $1310.38 / Each

1
FS Weight Stack Frame Assy;923-02;Black 733679 1000394445 AB1 FS Weight Stack Frame Assy;923-02;Black No Model Compatibility List $1294.78 / Each

1
FS Frame Set;900 Series;Lace White 733680 1000394446 AB1 FS Frame Set;900 Series;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Front Sub Frame Assy;947;Iced Silver 735143 1000412628 AB2 Front Sub Frame Assy;947;Iced Silver No Model Compatibility List $1263.58 / Each

1
WELDMENT FS947 CENTER;Iced Silver 735144 1000331405 AB1 WELDMENT FS947 CENTER;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		1
WELDMENT FS947 CENTER;Black Glossy 735145 1000331406 AB1 WELDMENT FS947 CENTER;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		1
WELDMENT FS947 CENTER;Lace White 735146 1000331407 AB1 WELDMENT FS947 CENTER;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Front Sub Frame Assy;947;Black Glossy 735147 1000412629 AB2 Front Sub Frame Assy;947;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Front Sub Frame Assy;947;Lace White 735148 1000412630 AB2 Front Sub Frame Assy;947;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		1
WELDMENT PIVOT;Iced Silver 735149 1000331431 AB3 WELDMENT PIVOT;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		1
WELDMENT PIVOT;Black Glossy 735150 1000331432 AB3 WELDMENT PIVOT;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		1
WELDMENT PIVOT;Lace White 735151 1000331433 AB3 WELDMENT PIVOT;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		1
WELDMENT SWIVEL PULLEY;Iced Silver 735152 1000331444 AB4 WELDMENT SWIVEL PULLEY;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		1
WELDMENT SWIVEL PULLEY;Black Glossy 735153 1000331445 AB4 WELDMENT SWIVEL PULLEY;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		1
WELDMENT SWIVEL PULLEY;Lace White 735154 1000331446 AB4 WELDMENT SWIVEL PULLEY;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		1
WELDMENT PULLEY PIVOT;Iced Silver 735155 1000331457 AB7 WELDMENT PULLEY PIVOT;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		1
WELDMENT PULLEY PIVOT;Black Glossy 735156 1000331458 AB7 WELDMENT PULLEY PIVOT;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		1
WELDMENT PULLEY PIVOT;Lace White 735157 1000331459 AB7 WELDMENT PULLEY PIVOT;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Weight Stack Bracket;900 SRS; 735158 1000421272 B8 Weight Stack Bracket;900 SRS; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Cable Assy;947; 735159 1000421280 B10 Cable Assy;947; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Weight Stack Assy;Stepped;#262; 735160 1000421670 Weight Stack Set Weight Stack Assy;Stepped;#262; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
View Drawing
