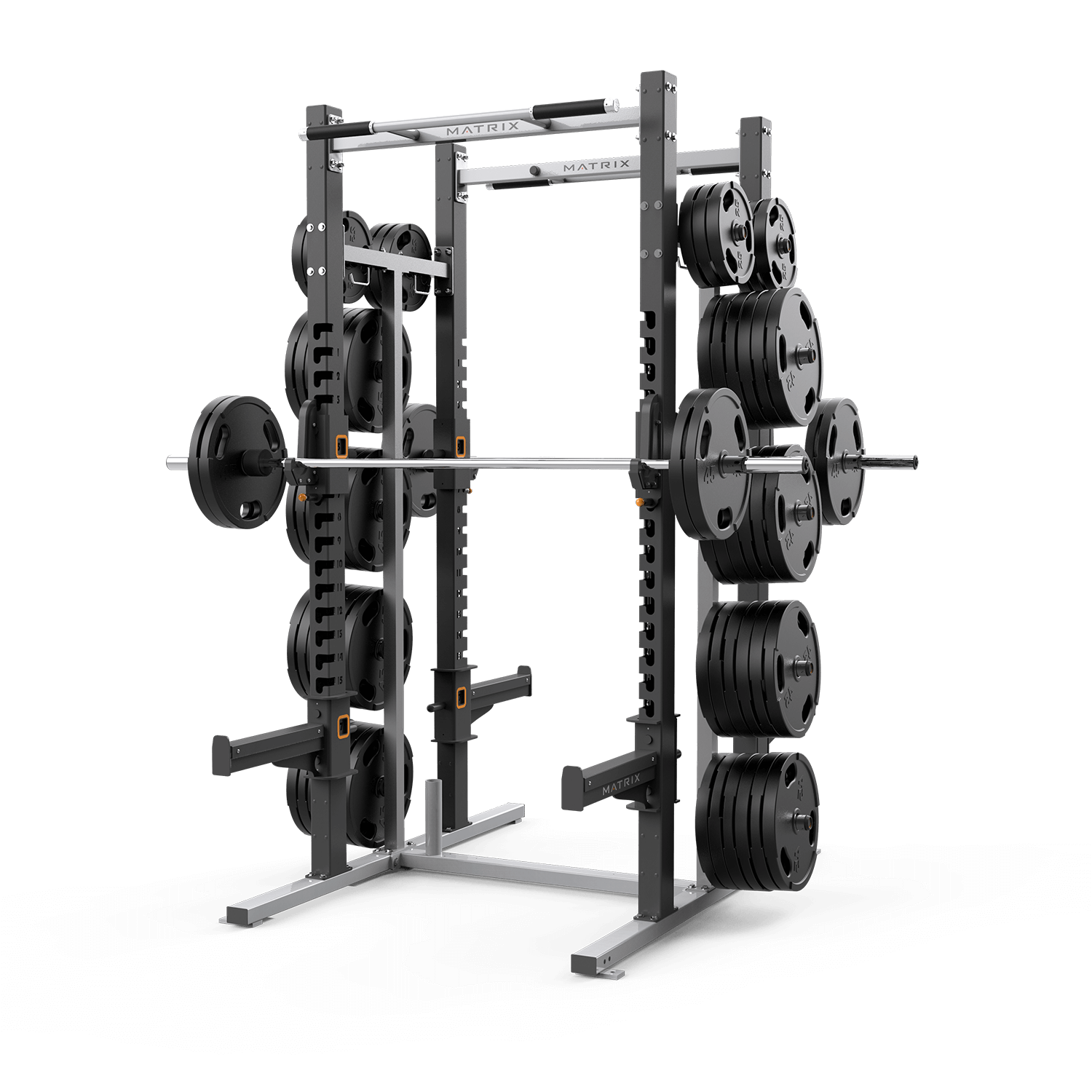

Matrix Fitness - MG-A691S-05 - Compact Double Half Rack - 2019 - 2020

Repair Parts for Matrix Fitness MG-A691S-05 - Compact Double Half Rack - 2019

Brand: Matrix Fitness

Category: Freeweight

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

Model Name: MG-A691S-05 - Compact Double Half Rack - 2019

Version: 2020

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

diag_205_Parts List.pdf

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
713814	1000308428	Z34	3/8" NUT	No	Model Compatibility List	$1.43 / Each	1
713820	1000308438	Z12	SCREW;HH;.375-16 x 3.00;ZN;	No	Model Compatibility List	$3.02 / Each	1
713826	1000308444	Z9	WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06	No	Model Compatibility List	$1.43 / Each	1
713838	1000308466	B3	Flat Bumper - Weight Horn	No	Model Compatibility List	$3.02 / Each	1
713839	1000308467	B12	End cap - weight horn	No	Model Compatibility List	$5.90 / Each	1
713935	1000309773	Z16	Screw Set;M6x1.0Px5L;BP;POT	No	Model Compatibility List	$3.28 / Each	1
713940	1000309847	Z66	WASHER, .50 OD X .38 ID X .05	No	Model Compatibility List	$1.43 / Each	1
713976	1000310009	K2	CAP, END TUBE, 31.8MM	No	Model Compatibility List	$7.28 / Each	1
713977	1000310010	K1	COLLAR, TUBE, 31.8MM	No	Model Compatibility List	$15.18 / Each	1
714008	1000310115	KZ2	FHSCS 1/4"-20 X 1/2"	No	Model Compatibility List	$1.33 / Each	1
714031	1000310307	Z10	SCREW;HH;.375-16 x 1.00;ZN;SAE 5	No	Model Compatibility List	$2.37 / Each	1
714101	1000312084	Spot Stand Z7	3/8" x 4" BOLT	No	Model Compatibility List	$3.02 / Each	1
714152	1000312231	B24	1 1/2" Round End Cap	No	Model Compatibility List	$2.18 / Each	1
714191	1000312336	V49	DECAL,WARNING: ADJ STOP 1;English	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
714236	1000312711	Z37	1/4" x 1/2" BUTTON HEAD	No	Model Compatibility List	$1.46 / Each	1
714279	1000313142	J-Hook Left 8	1/4" ABS	No	Model Compatibility List	$16.87 / Each	1
714283	1000313151	J-Hook Left 7	1/4" ABS	No	Model Compatibility List	$21.94 / Each	1
714286	1000313161	J-Hook Left 10	LABEL, J-HOOK SELECTOR	No	Model Compatibility List	$3.25 / Each	1
714538	1000315894	V47	DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame	No	Model Compatibility List	$6.73 / Each	1
714649	1000316731	Safety Bar 5	2" Tubing Extrusion	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
717337	1000344140	Pull Up AB1A	WELDMENT; PULL-UP BAR	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
717377	1000344562	V47	Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame	No	Model Compatibility List	$15.18 / Each	1
717443	1000345209	Z13	Screw;HH;.375-16x5.00;Zinc	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
717444	1000345210	3	7/16" HOLE PLUG; NYLON	No	Model Compatibility List	$1.33 / Each	1
717445	1000345211	Pull Up Bar Set	UPPER PULL UP BAR; 690 SERIES	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
717729	1000347153	2	ABS Wear Guard	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
717931	1000348681	B14	1" Grip;3.25" Long;Closed End	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
718749	1000353136	K3 - Kit 2	1.25" Grip;Order by 1" increments;	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
718939	1000354629	B3	5/16" HOLE PLUG; NYLON	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
720771	1000375920	V19	Decal;Warning;Bench;English	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
720773	1000375926	V42	Decal;Warning;Sled Press;English	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
721552	1000384006	V13	Serial Number Label;4" x 1.5";3M;	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
723695	1000411863	B22	Endcap;3" x 4";	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
724743	1000426421	J Hook Set	J Hook Set;Pair;Black Ridge	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
730736	1000448877	B8	Tube Cap;;;TPU;slate black;;FW342-KM;	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
735008	1000447584	AB1	Center Connector Assy;A691S;	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
735009	1000428149	Weight Horn Set	Weight Storage Assy;A691S;	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
735010	1000428161	Weight Horn AB1	Weldment;Weight Storage	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
735011	1000445877	Top Support Z32	1/2-13 FHN JAM NUT	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
735012	1000443240	Top Support B27	MR SERIES BAND HOOK; 1/2"	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
735013	1000380438	AB3	Upright Assy;A Series;	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
735014	1000380440	AB4	Upright Assy;A Series;	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
735015	1000450339	AB2	Base Assembly;A691S;	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
735016	1000450557	Top Support Set	Top Brace Assembly;A691S;	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
735017	1000450558	Top Support AB7	WELDMENT, CENTER BRACE	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
735018	1000450561	Not Shown	A691S-05;Hardware Kit	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
735019	See J-Hooks - Power Racks Page	J-Hook Parts	J-Hook Components	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
735020	1000474241	Safety Arms	A691S SHORT SAFETY PAIR	No	Model Compatibility List	$0.00 / Each Out Of Stock	1

View Drawing
