Replacement Parts for Matrix Fitness MG-A98 - Barbell Rack - FW338

Matrix Fitness - MG-A98 - Barbell Rack - FW338 - 2019 - 2019

Repair Parts for Matrix Fitness MG-A98 - Barbell Rack - FW338 - 2019

Brand: Matrix Fitness

Category: Freeweight

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

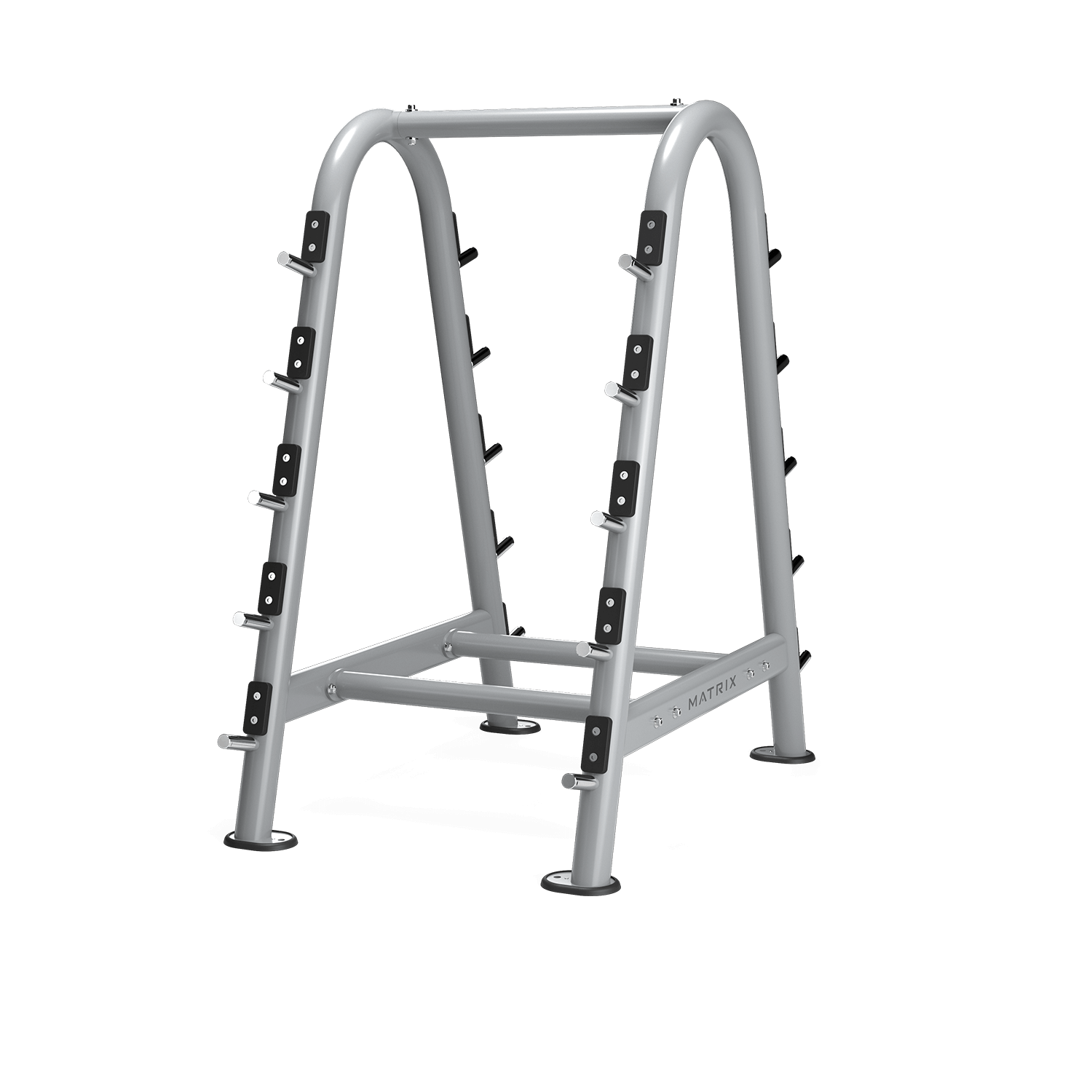

Model Name: MG-A98 - Barbell Rack - FW338 - 2019

Version: 2019

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

diag_204_MG-A98 Parts List.pdf

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
700166	000554-A	C21	Foot pad;Rubber	No	Model Compatibility List	$14.46 / Each	1
701466	004518-AB	C20	ROUND HEX SOCKET SCREW M10X1.5PX75L	No	Model Compatibility List	$8.42 / Each	1
701653	004693-AC	H15	Screw;Hex Socket;M8x1.25Px15L;Cr	No	Model Compatibility List	$2.44 / Each	1
701914	004943-00	F18	Nut;Nylon;M10x1.5P;Cr Plate;	No	Model Compatibility List	$2.00 / Each	1
702531	008523-B	Z13	Washer;Arc;M10x28x10.5T;SS41	No	Model Compatibility List	$9.10 / Each	1
704193	020465-AB	Z03	Washer;Flat;M10.2X25PX2.0T;Chromed	No	Model Compatibility List	$1.79 / Each	1
712032	1000225334	B11	Hanging Rod;45#;Cr Plate;FW96	No	Model Compatibility List	$29.30 / Each	1
712129	1000226827	E09	Elastomer;Plastic;;	No	Model Compatibility List	$43.71 / Each	1
719680	1000363753	V15	Warning Label;Plate Loaded;	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
719681	1000363756	V15	Warning Label;Plate Loaded;French	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
725312	069801	C29	Screw, Flat Hex Socket, M8x1.25Px8L	No	Model Compatibility List	$1.79 / Each	1
728949	991668-AC	B17	Screw;FH;M8X1.25PX30L;;HS;;CHM;;	No	Model Compatibility List	$3.64 / Each	1
733606	089659	Not Shown	Hardware;Semi-Assy;FW96KM-G3	No	Model Compatibility List	$53.98 / Each	1
733607	1000445617	AB11	Frame Set;Semi-Assy;;Iced Silver;;;FW338	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733608	1000445640	AG1	ConnectingTube Set;;D;painting;;Iced Sli	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733609	1000445653	AG2	ConnectingTube Set;;U;painting;;Iced Sli	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733610	1000441191	V01	EN LABEL;;FW338;	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
