Brand: Matrix Fitness
Category: Single Station
Type: Strength Systems

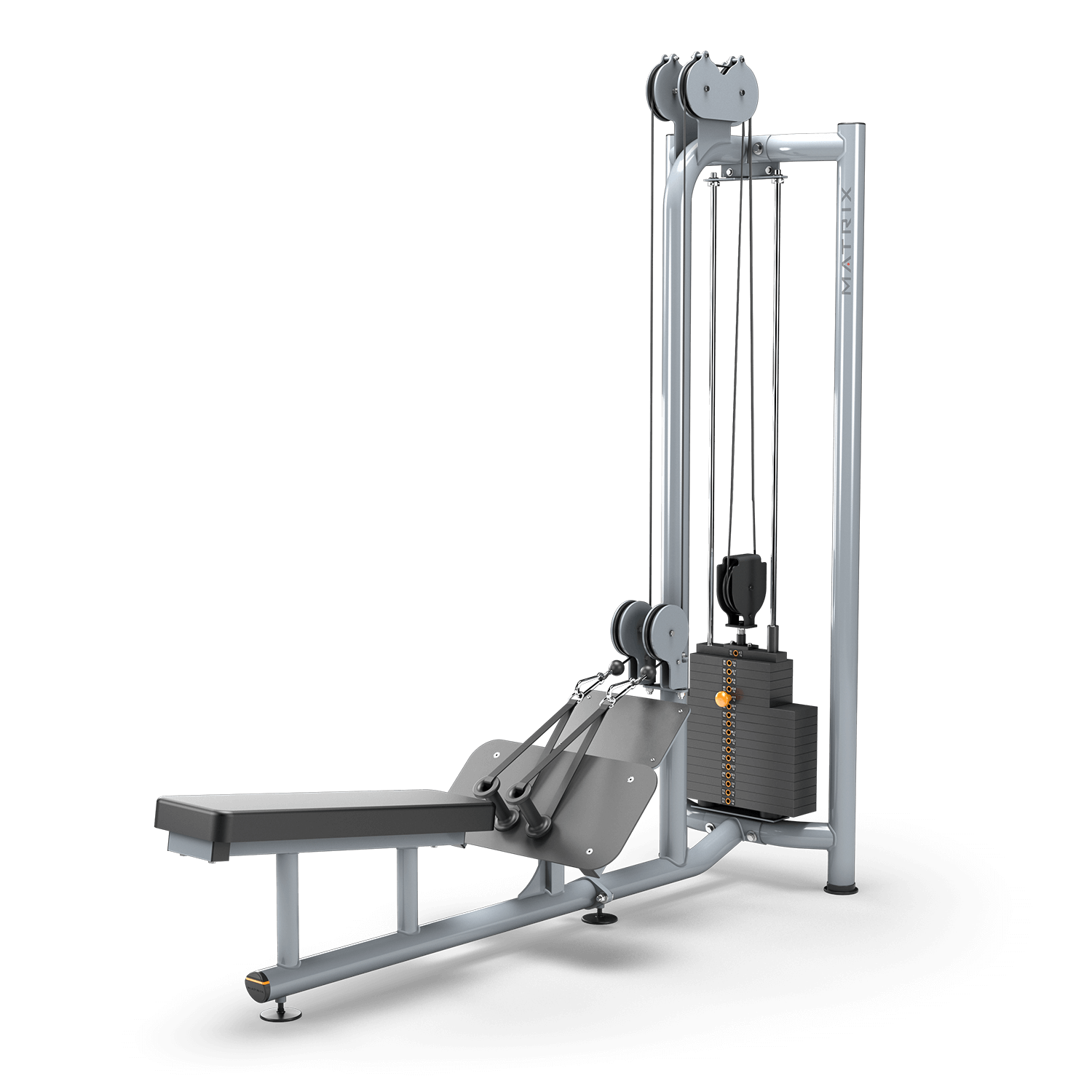

Model Name: MG-DP926-06 - MG-FSDP926-06 - Dual-pulley Low Row - MGPTS79, MGPTS80 - 2018
Serial Number Prefix: MGPTS80, MGPTS79
Version: 2018
"Used Only" - contact us if interested in used or refurbished parts. Send us mail:
XImage | Catalog # | MPN | Part List Key | Quantity On Model | Part Description | Notes | Available Used | Model Compatibility List | New price |
---|---|---|---|---|---|---|---|---|---|
![]() |
713806 | 1000308417 | B41 | 2" x 2" END CAP | No | Model Compatibility List | $5.46 / Each |
||
![]() |
713814 | 1000308428 | Z34 | 3/8" NUT | No | Model Compatibility List | $1.43 / Each |
||
![]() |
713818 | 1000308436 | Z19 | WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 | No | Model Compatibility List | $1.43 / Each |
||
713820 | 1000308438 | Z12 | SCREW;HH;.375-16 x 3.00;ZN; | No | Model Compatibility List | $3.02 / Each |
|||
![]() |
713826 | 1000308444 | Z9 | WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06 | No | Model Compatibility List | $1.43 / Each |
||
713827 | 1000308445 | Z24 | 5/16" - 3" BOLT | No | Model Compatibility List | $2.18 / Each |
|||
![]() |
713828 | 1000308446 | Z23 | WASHER;FLT;USS;Diam.0.281XDiam.0.734X.06 | No | Model Compatibility List | $1.43 / Each |
||
713831 | 1000308449 | Z32 | NUT;NLK;.313-18;ZN; | No | Model Compatibility List | $1.33 / Each |
|||
![]() |
713842 | 1000308473 | V45 | Lable, hand pinch | No | Model Compatibility List | $3.02 / Each |
||
![]() |
713939 | 1000309846 | Spotter Stand 1 | 1/2" JAM NUT | No | Model Compatibility List | $1.43 / Each |
||
![]() |
713940 | 1000309847 | Z66 | WASHER, .50 OD X .38 ID X .05 | No | Model Compatibility List | $1.43 / Each |
||
713943 | 1000309851 | WS Pulley 4 | SCREW;HH;.375-16 x 2.25;ZN; | No | Model Compatibility List | $2.18 / Each |
|||
![]() |
713946 | 1000309854 | Z35 | NUT;NLK;.250-20;ZN; | No | Model Compatibility List | $1.43 / Each |
||
![]() |
713950 | 1000309858 | Z52 | 3/4" FLAT WASHER | No | Model Compatibility List | $1.33 / Each |
||
![]() |
713981 | 1000310014 | B13 | End Cap | No | Model Compatibility List | $5.90 / Each |
||
![]() |
713991 | 1000310088 | Z25 | Washer, Curved, 1/2" | No | Model Compatibility List | $3.02 / Each |
||
713996 | 1000310095 | B27 | 1/2" OD x 1/4" ID Plastic Spacer - 1" | No | Model Compatibility List | $1.33 / Each |
|||
713997 | 1000310096 | DP 14 | 1/4" SPLIT LOCK WASHER | No | Model Compatibility List | $1.33 / Each |
|||
713998 | 1000310097 | Z42 | SCREW;HH;.250-20 x 2.00;ZN; | No | Model Compatibility List | $1.33 / Each |
|||
![]() |
714016 | 1000310219 | Z13 | SCREW;HH;.250-20 x 0.75;ZN; | No | Model Compatibility List | $1.33 / Each |
||
![]() |
714018 | 1000310273 | B4 | 4" FOOT (SHORT) | No | Model Compatibility List | $20.05 / Each |
||
714026 | 1000310302 | B62 | 6" CABLE PULLEY w/ NARROW BUSHING | No | Model Compatibility List | $36.48 / Each |
|||
714038 | 1000310334 | WS 4 | 6000 TOP PLATE | No | Model Compatibility List | $78.47 / Each |
|||
![]() |
714040 | 1000310339 | B46 | ROUND WEIGHT STACK BUMPER | No | Model Compatibility List | $5.90 / Each |
||
714041 | 1000310343 | WS 3 | Orange SELECTOR PIN w/ 6 1/2" CORD | No | Model Compatibility List | $25.53 / Each |
|||
714079 | 1000311963 | Z26 | Screw;HH;.375-16x1.25;Zinc | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
![]() |
714105 | 1000312091 | Z6 | SCREW;HH;.500-13 x 1.75;ZN; | No | Model Compatibility List | $3.28 / Each |
||
714109 | 1000312099 | Z101 | HCS 1/2-13 x 4 1/4" | No | Model Compatibility List | $5.04 / Each |
|||
![]() |
714118 | 1000312127 | B7 | BHS 5/16" - 1" | No | Model Compatibility List | $5.46 / Each |
||
714126 | 1000312159 | Z55 | 1/2 - 13 NUT | No | Model Compatibility List | $1.33 / Each |
|||
![]() |
714127 | 1000312161 | Z33 | NUT;NLK;.500-13;ZN;TALL; | No | Model Compatibility List | $1.43 / Each |
||
![]() |
714153 | 1000312233 | B5 | 3" ROUND END CAP | No | Model Compatibility List | $6.73 / Each |
||
![]() |
714156 | 1000312237 | Spot Stand B9 | 3" FOOT | No | Model Compatibility List | $16.87 / Each |
||
![]() |
714176 | 1000312298 | Z15 | 1/2" BRASS BUSHING | No | Model Compatibility List | $5.04 / Each |
||
![]() |
714235 | 1000312700 | Z22 | 7/16" FLAT WASHER | No | Model Compatibility List | $2.44 / Each |
||
![]() |
714236 | 1000312711 | Z37 | 1/4" x 1/2" BUTTON HEAD | No | Model Compatibility List | $1.46 / Each |
||
714240 | 1000312817 | WS 6 | 5/16" SPLIT LOCK WASHER | No | Model Compatibility List | $1.33 / Each |
|||
714246 | 1000312876 | Z37 | SCREW;HH;.375-16 x 3.25;ZN; | No | Model Compatibility List | $3.74 / Each |
|||
714249 | 1000312880 | Weight Stack 8 | CAST IRON | No | Model Compatibility List | $104.75 / Each |
|||
714253 | 1000312893 | B39 | 3/8" SAFETY CLIP | No | Model Compatibility List | $16.82 / Each |
|||
![]() |
714390 | 1000314246 | Z9 | SCREW;HH;.375-16 x 3.50;ZN; | No | Model Compatibility List | $3.90 / Each |
||
714538 | 1000315894 | V47 | DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame | No | Model Compatibility List | $6.73 / Each |
|||
714740 | 1000317727 | B10 | 5/8" RUBBER GROMMET | No | Model Compatibility List | $9.49 / Each |
|||
715263 | 1000321910 | B13 | 5/8" GUIDE ROD - 76" | No | Model Compatibility List | $211.22 / Each |
|||
715264 | 1000321944 | WS 2 | WEIGHT PLATE 20# W_BUSHINGS 18.4 X 4.3X | No | Model Compatibility List | $103.06 / Each |
|||
716115 | 1000332787 | B16 | 10ga PLASMA PULLEY PLATE | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
![]() |

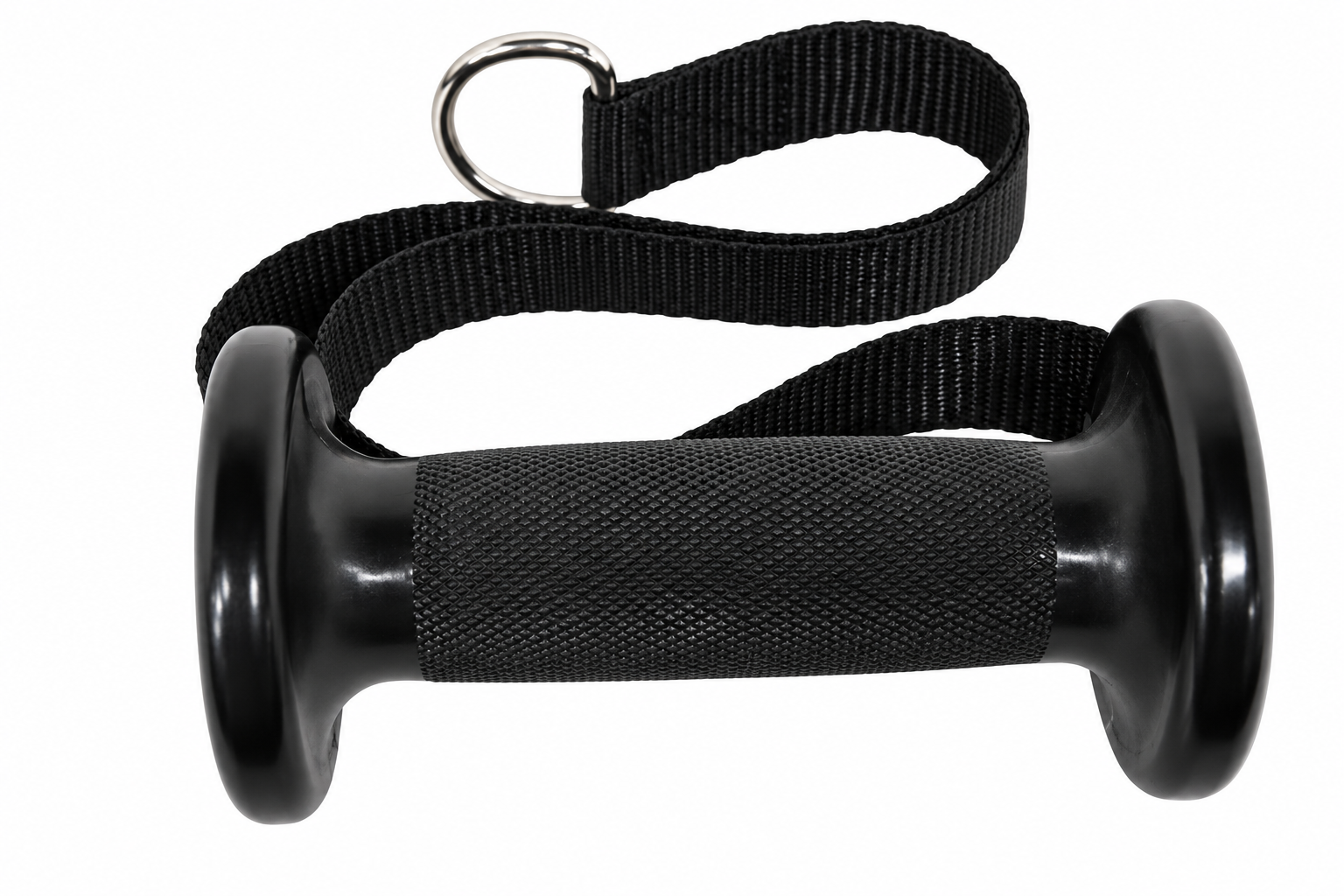

716585 | 1000337623 | B8 | Handle;Long;M564 (DP926-02) | No | Model Compatibility List | $25.53 / Each |
||
717215 | 1000342962 | B4 | Stack Guard;Grey | No | Model Compatibility List | $493.45 / Each |
|||
![]() |
717216 | 1000342964 | Kit 5 | Pipe;3/4"ODx1/2"ID;With Zinc Coating | No | Model Compatibility List | $20.25 / Each |
||
717233 | 1000343290 | Kit 1 | Connect Plate;;;painting;;Black C;900 To | No | Model Compatibility List | $13.49 / Each |
|||
717333 | 1000344108 | Clamp Kit Set | 900 Series Coupler Set;Metal; | No | Model Compatibility List | $131.79 / Each |
|||
717500 | 1000345600 | B21 | 5/8# Single Split Collar | No | Model Compatibility List | $10.92 / Each |
|||
717650 | 1000346601 | B81 | Stabilizer Foot;Black Ridge | No | Model Compatibility List | $45.60 / Each |
|||
718779 | 1000353447 | AB4 | WELDMENT FRAME 900 SERIES WEIGHT STACK;Iced Silver | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
718780 | 1000353448 | AB4 | WELDMENT FRAME 900 SERIES WEIGHT STACK;Black Glossy | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
718781 | 1000353449 | AB4 | WELDMENT FRAME 900 SERIES WEIGHT STACK;Lace White | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
719322 | 1000359722 | Weight Stack 6 | Cable Clip Top Half Assembly | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
719338 | 1000359953 | V25 | Warning Label;Anti Falling Down;MS24B;;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
719682 | 1000363760 | V51 | Warning Label;Frame;;;PC;;English; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
719683 | 1000363766 | V02 | Warning Label;Frame;;;PC;;French;GM40 | No | Model Compatibility List | $5.04 / Each |
|||
719705 | 1000364025 | V31 | Warning Label;Anti Falling Down;MS24B;;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
720191 | 1000369204 | Weight Stack 6 | Center Stick - 18" C125, J6036, Black Ridge | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
720298 | 1000371230 | Z30 | Screw;HH;.375-16 x 3;ZN | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
721552 | 1000384006 | V13 | Serial Number Label;4" x 1.5";3M; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
722461 | 1000392484 | Z22 | SCREW;HH;.500-13 x 4.75;ZN; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
723046 | 1000402697 | WS Pulley 6 | Pulley | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
724529 | 1000421523 | V36 | 900 Step Stack Decal | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
724564 | 1000422093 | AB6 | WELDMENT PULLEY;Iced Silver | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
724565 | 1000422094 | AB6 | WELDMENT PULLEY;Black Glossy | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
724566 | 1000422095 | AB6 | WELDMENT PULLEY;Lace White | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
724684 | 1000423449 | B3 | Weight Stack Bracket;900 SRS; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
729261 | See Pad Matrix | J01 | Elbow Pad;;PU;Black;;FW213-KM; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
![]() |
730015 | 1000444832 | B47 | 16ga Plasma, Guard, FS900s | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
730027 | 1000310331 | B29 | 10ga PLASMA - 1 1/2" x 5 1/4" | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
730436 | 1000463081 | Single Pulley 1 | Weldment, 6" Formed Pulley Top | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
730659 | 1000337789 | Coupler 1 | Bracket;;;;0.187in;;900 Tower;Assembly;J | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
730806 | 1000342618 | AB4 | Seat Frame;926;Black Glossy | No | Model Compatibility List | $1405.28 / Each |
||
![]() |
730807 | 1000332785 | B8 | 1/8" ABS - 15" x 8 1/2" | No | Model Compatibility List | $59.78 / Each |
||
![]() |
730808 | 1000332772 | AB1 | WELDMENT FRAME 900 SERIES DOUBLE PULLEY;Iced Silver | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
730809 | 1000332773 | AB1 | WELDMENT FRAME 900 SERIES DOUBLE PULLEY;Black Glossy | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
730810 | 1000332774 | AB1 | WELDMENT FRAME 900 SERIES DOUBLE PULLEY;Lace White | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
730811 | 1000353450 | AB2 | Frame Set;900 Series;Blood Red | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
730812 | 1000342617 | AB4 | Seat Frame;926;Iced Silver | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
730813 | 1000342619 | AB4 | Seat Frame;926;Lace White | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
730814 | 1000328373 | AB5 | WELDMENT TIP OVER FOOT;Iced Silver | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
730815 | 1000328374 | AB5 | WELDMENT TIP OVER FOOT;Black Glossy | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
730816 | 1000328375 | AB5 | WELDMENT TIP OVER FOOT;Lace White | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
730817 | 1000324019 | B7 | DIAMOND PLATE | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
730818 | 1000332786 | B9 | 10ga PLASMA - 67.4 SQ IN | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
730819 | 1000421282 | B39 | Cable Assy;DP926; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
730820 | 1000393238 | B57 | TAPE;Double faced 2" x 8.5 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
730821 | 1000402695 | Single Pulley Set | 6" Pulley Top; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
730822 | 1000421798 | Weight Stack Set | Weight Stack Assy;Stepped;#310; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
731570 | 1000328307 | Clamp Kit Set | 900 SERIES TOWER CLAMP (SET OF 2) | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
|
