Brand: Matrix Fitness
Category: Freeweight
Type: Strength Systems
Model Name: MG-PL62-03 - Smith Machine - PL219 - 2019
Serial Number Prefix: PL219
Version: 2019
"Used Only" - contact us if interested in used or refurbished parts. Send us mail:
XImage | Catalog # | MPN | Part List Key | Quantity On Model | Part Description | Notes | Available Used | Model Compatibility List | New price |
---|---|---|---|---|---|---|---|---|---|
![]() |
700232 | 000751-C | E16 | Elastomer;;;Rubber;;;;FW10 | No | Model Compatibility List | $9.10 / Each |
||
![]() |
700235 | 000754-CA | Z20 | Elastomer;Rubber;BL;FW62 | No | Model Compatibility List | $9.10 / Each |
||
![]() |
700253 | 000783-AA | N06 | Stopper Pad;Rubber;FW62 | No | Model Compatibility List | $1.66 / Each |
||
![]() |
700277 | 000847-CA | B42 | Bushing;Nylon | No | Model Compatibility List | $8.81 / Each |
||
![]() |
700496 | 001512-C | B22 | Cover;Pulley;ABS;GM01 ABS | No | Model Compatibility List | $1.79 / Each |
||
![]() |
700518 | 001522-B | D15 | Stopper Block;Rubber | No | Model Compatibility List | $3.64 / Each |
||
![]() |
700548 | 001585-F | F28 | Rubber Stop | No | Model Compatibility List | $1.79 / Each |
||
![]() |
701655 | 004694-00 | C53 | Screw;TH;M8X1.25PX10L;;Hex Socket;;Chrom | No | Model Compatibility List | $1.33 / Each |
||
![]() |
701914 | 004943-00 | F18 | Nut;Nylon;M10x1.5P;Cr Plate; | No | Model Compatibility List | $2.00 / Each |
||
701968 | 005007-00 | G28 | Washer;Spring;12.2x21.5x3.0t | No | Model Compatibility List | $2.00 / Each |
|||
![]() |
701981 | 005017-00 | B41 | Washer;Spring;SW10 10.2X18.4X2.5T;Chromed | No | Model Compatibility List | $1.33 / Each |
||
![]() |
702098 | 005130-00 | Z33 | Washer;Flat;8.4x15.5x1.6T;Chromed | No | Model Compatibility List | $2.00 / Each |
||
![]() |
702102 | 005132-00 | Z03 | Washer;Flat;13x26x2.5T;Chromed | No | Model Compatibility List | $1.79 / Each |
||
![]() |
702531 | 008523-B | Z13 | Washer;Arc;M10x28x10.5T;SS41 | No | Model Compatibility List | $9.10 / Each |
||
![]() |
702728 | 009381-A | B16 | Weight Plate Hanging Rod;Storage Horn;38.1x250 | No | Model Compatibility List | $34.68 / Each |
||
![]() |
702730 | 009383-D | B26 | Support Rod;Hook;;S45C;;Cr Plate;;;FW62 | No | Model Compatibility List | $16.12 / Each |
||
![]() |
702738 | 009391-C | B32 | Belt Fixing Ring | No | Model Compatibility List | $8.42 / Each |
||
![]() |
705030 | 031487-A | B35 | Stopper, Frame | No | Model Compatibility List | $9.10 / Each |
||
![]() |
705311 | 040778-BA | M18 | Outside Tube;POM;FW62 | No | Model Compatibility List | $208.65 / Each |
||
![]() |
708028 | 1000097854 | Z23 | WASHER;FLT;Diam.10.2XDiam.38X3.0T;SPHC ; | No | Model Compatibility List | $1.66 / Each |
||
![]() |
708082 | 1000099212 | Z01 | Screw;SH;M6x1.0Px15L;-;HS;-;CHM;-;-; | No | Model Compatibility List | $0.86 / Each |
||
![]() |
708451 | 1000102867 | Z04 | Screw;Hex Socket;Round;M10x1.5Px100L;Cr | No | Model Compatibility List | $12.95 / Each |
||
![]() |
708452 | 1000102868 | B69 | Screw;RND;M10x120L-32L;-;HS;-;CHM;BP;G12 | No | Model Compatibility List | $6.73 / Each |
||
![]() |
708453 | 1000102869 | B14 | Screw;Hex Socket;Round;M12x1.75Px25L;Cr | No | Model Compatibility List | $3.43 / Each |
||
![]() |
708455 | 1000102871 | Z01 | Screw;Hex Socket;BH;M8x1.25Px15L;Cr Plat | No | Model Compatibility List | $1.66 / Each |
||
![]() |
708487 | 1000102913 | M13 | Circlip;Internal C Type;R-47;BED | No | Model Compatibility List | $1.79 / Each |
||
![]() |
708488 | 1000102914 | M10 | Circlip;Internal C Type;R-55;BED | No | Model Compatibility List | $1.79 / Each |
||
![]() |
713129 | 1000233200 | C52 | PLASTIC COVER;;NBR;BL;;;; | No | Model Compatibility List | $1.66 / Each |
||
![]() |
713460 | 1000303546 | C51 | Plastic Pad;Foot Pad;-;PP;BL427 | No | Model Compatibility List | $3.35 / Each |
||
![]() |
713705 | 1000306719 | V03 | Warning Label;;;;;;;Bolt down required; | No | Model Compatibility List | $3.35 / Each |
||
![]() |
713706 | 1000306727 | V03 | Warning Label;;;;;;;Adjustable Stops 2; | No | Model Compatibility List | $3.35 / Each |
||
![]() |
715801 | 1000328438 | V10 | Decal;Weight;5lbs;;;;;FW13B-KM | No | Model Compatibility List | $3.02 / Each |
||
![]() |
715802 | 1000328439 | V11 | Decal;Weight;10lbs;;;;;FW13B-KM | No | Model Compatibility List | $3.02 / Each |
||
![]() |
715803 | 1000328440 | V12 | Decal;Weight;25lbs;;;;;FW13B-KM | No | Model Compatibility List | $3.02 / Each |
||
![]() |
715804 | 1000328441 | V04 | Decal;Weight;45lbs;;;;;FW13B-KM | No | Model Compatibility List | $3.35 / Each |
||
717511 | 1000345659 | J12 | Cap;Elliptical;;TPU;BL/Black C;Diam.50.0 | No | Model Compatibility List | $15.18 / Each |
|||
718183 | 1000349459 | AG1 | CON Tube Set;;U;painting;;Iced Sliver;PL | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
718185 | 1000349461 | B31 | Sung Base;Guide Rod;;painting;;Iced Sliv | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
![]() |
718927 | 1000354311 | V11 | Decal;;25LBS;;;;;Starting Resistance PL0 | No | Model Compatibility List | $3.35 / Each |
||
![]() |
719047 | 1000355317 | 2 | Slipping sleeve Set;Semi-Assy;left;;;PL6 | No | Model Compatibility List | $1184.66 / Each |
||
![]() |
719122 | 1000356077 | M18 | Connect Inner Tube;Weight Lifting;;POM;; | No | Model Compatibility List | $152.07 / Each |
||
![]() |
719140 | 1000356271 | AN3 | Weight Lifting Mast-Exreawork;;;rigidity | No | Model Compatibility List | $980.17 / Each |
||
![]() |
719145 | 1000356388 | 1 | Slipping sleeve Set;Semi-Assy;right;;;PL | No | Model Compatibility List | $1184.66 / Each |
||
719681 | 1000363756 | V15 | Warning Label;Plate Loaded;French | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
719701 | 1000363994 | V31 | Decal;Warning;Sled;English | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
719702 | 1000363997 | V31 | Decal;Warning;Sled;French | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
719826 | 1000366216 | V07 | Warning Label;Frame;G3FW13;;PC;;English/ | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
![]() |
725583 | 073572 | F17 | Pulley; 90mm | No | Model Compatibility List | $44.28 / Each |
||
![]() |
730925 | 0000086517 | D43 | Screw;Round Hex Socket;M10x1.5Px25L | No | Model Compatibility List | $1.02 / Each |
||
![]() |

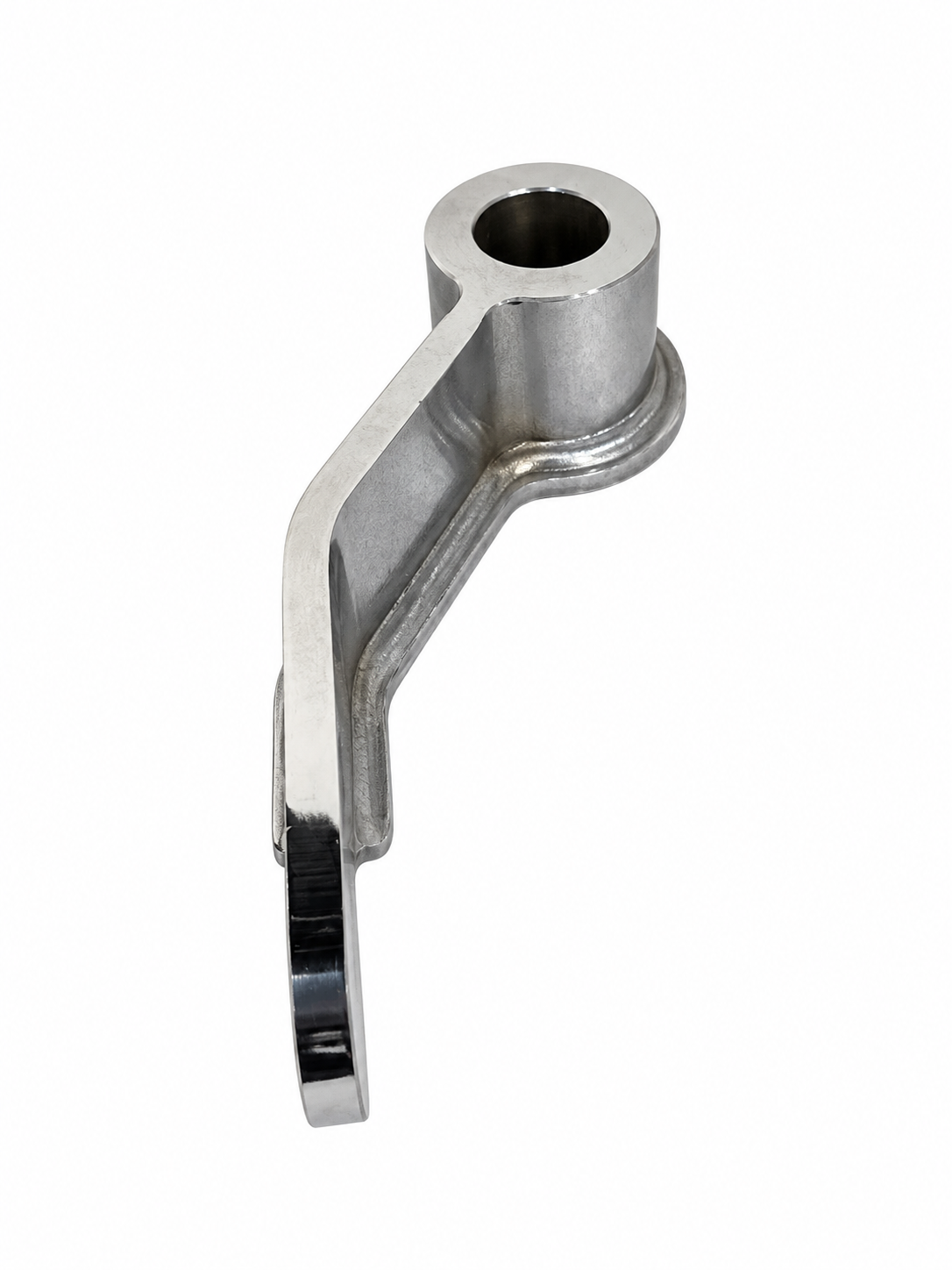

735116 | 1000439998 | AN11 | Weight Rod Stopper Set;;right;;PL219;; | No | Model Compatibility List | $119.58 / Each |
||
![]() |

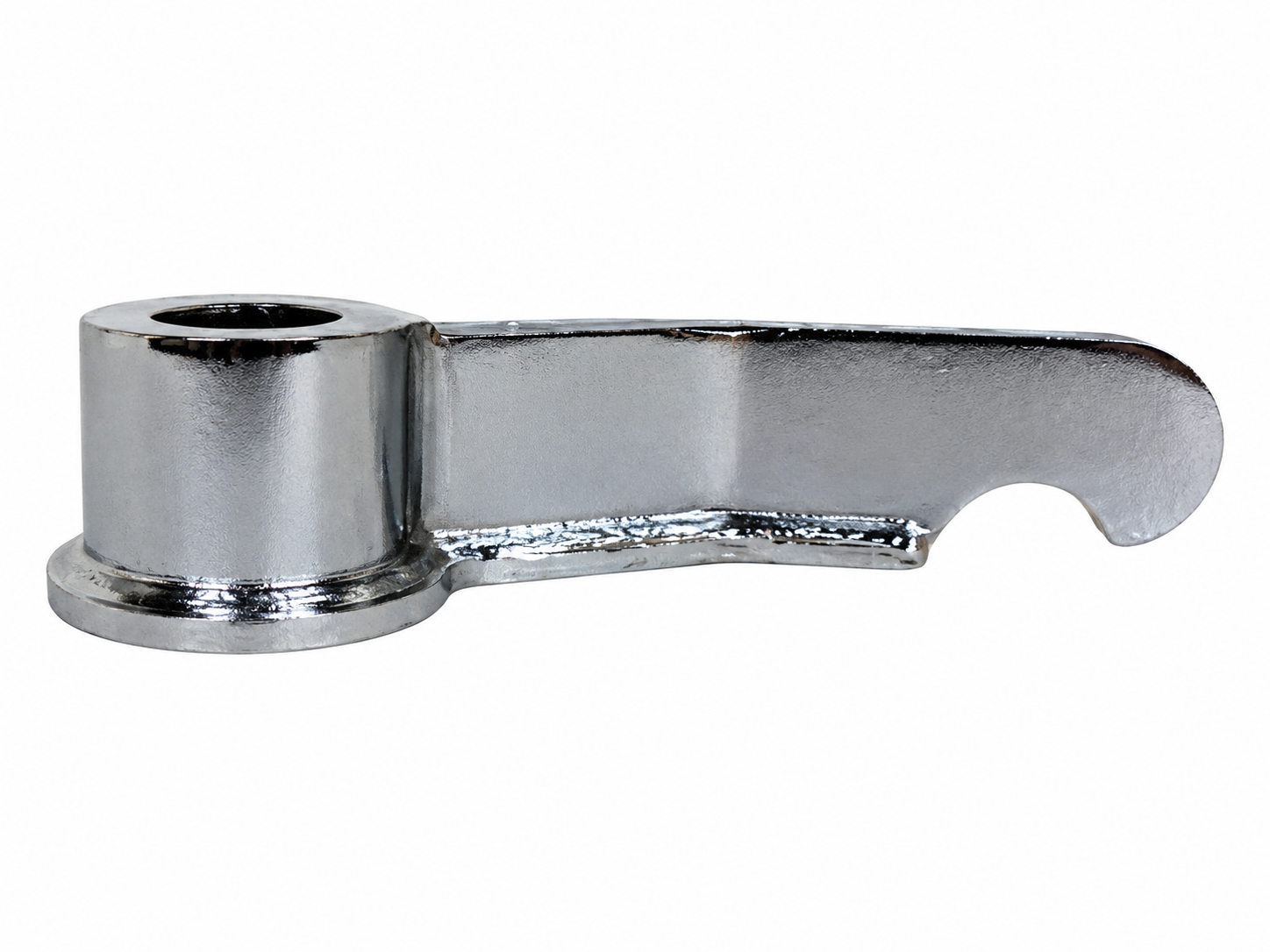

735117 | 1000439999 | AN22 | Weight Rod Stopper Set;;left;;PL219;; | No | Model Compatibility List | $119.58 / Each |
||
![]() |
735118 | 1000436406 | B15 | Rubber Pad;Stopper;up;NBR;;Diam.56x4.0T; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
735119 | 1000436889 | B18 | Stopper;;;painting;;Black Matte;PL219; | No | Model Compatibility List | $3.88 / Each |
||
![]() |
735120 | 1000436151 | B21 | Stopper Mast;Rop;;SUS304;;PL219;Diam.6.0 | No | Model Compatibility List | $7.78 / Each |
||
![]() |
735121 | 1000436359 | B24 | Balance Plate;;;painting;;Black2;PL219; | No | Model Compatibility List | $120.88 / Each |
||
![]() |
735122 | 1000436385 | B25 | Steel Rope-Extrawork;;;Press Rope Hand;D | No | Model Compatibility List | $24.68 / Each |
||
![]() |

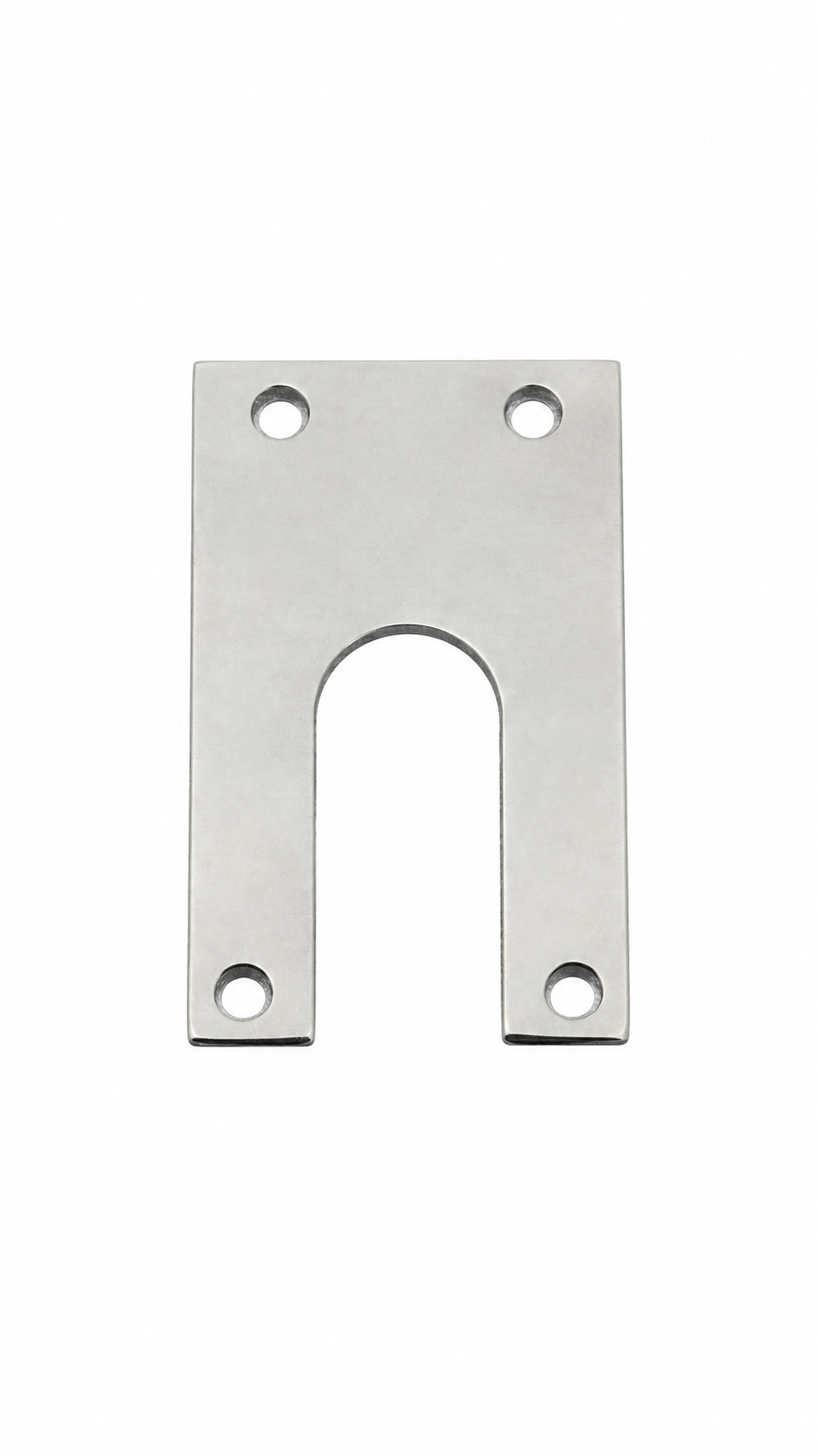

735123 | 1000436869 | B33 | Stopper Plate;Balance Block;;SPHC;110x70 | No | Model Compatibility List | $11.68 / Each |
||
![]() |
735124 | 1000390621 | M10 | Bearing;Linear;LBCD 30 D-2LS;Diam.30;SKF | No | Model Compatibility List | $227.48 / Each |
||
![]() |

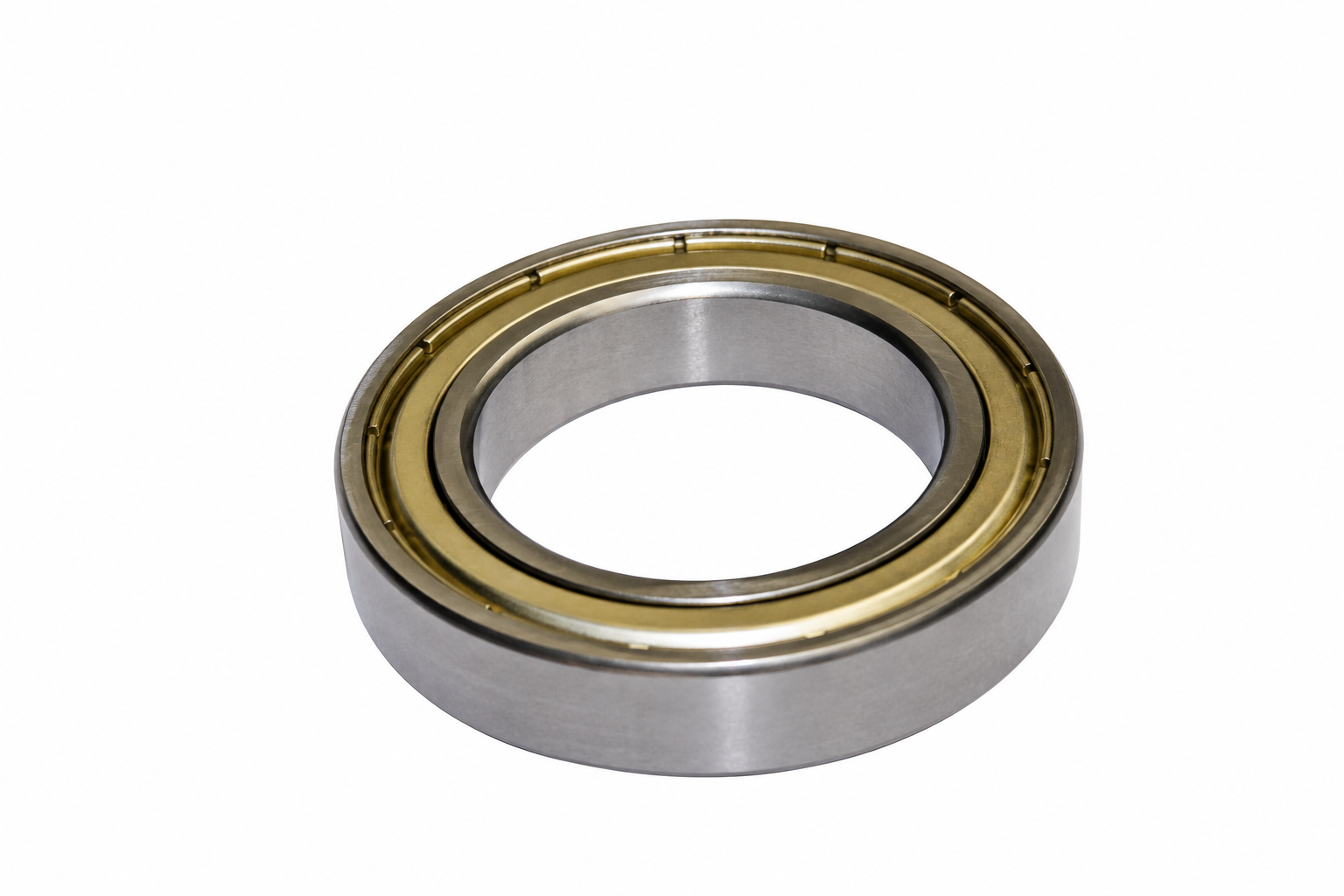

735125 | 049238-A | M11 | BEARING 61907ZZ | No | Model Compatibility List | $24.10 / Each |
||
![]() |
735126 | 1000436363 | M34 | Guide Rod;;;SUJ-2;Hard Cr;PL219;Diam.30x | No | Model Compatibility List | $288.58 / Each |
||
![]() |
735127 | 1000447066 | N13 | Sleeve Tube;;;PA6;;Diam.54.8X22.3L;PL219 | No | Model Compatibility List | $7.78 / Each |
||
![]() |
735128 | 1000436366 | Not Shown | hardware set;semi-manufactured goods;;;P | No | Model Compatibility List | $45.48 / Each |
||
![]() |
735129 | 1000436391 | Not Shown | Manual;Assembly/Manipulate;;NA/EU;;PL219 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
735130 | 1000436369 | V05 | Instructional Labe;;;;;;;PL219 | No | Model Compatibility List | $7.78 / Each |
||
![]() |
735131 | 1000306725 | V08 | Warning Label;;Adjustable Stops 1;;PC;;; | No | Model Compatibility List | $2.32 / Each |
||
![]() |
735132 | 1000439802 | AB1 | Frame Set;;R;;;Iced Sliver;PL219; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
735133 | 1000439810 | AB2 | Frame Set;;L;;;Iced Sliver;PL219; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
735134 | 1000439920 | AG1 | ConnectingTube Set;;;;;Iced Sliver;PL219 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
735135 | 1000439820 | AG2 | ConnectingTube Set;;Rear;painting;;Iced | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
735136 | 1000356266 | AM1 | slide Sleeve set-Extrawork;;right;Cr Pla | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
735137 | 1000356267 | AM2 | slide Sleeve set-Extrawork;;left;Cr Plat | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
735138 | 1000436368 | V01 | EN LABEL;;;;;;;PL219 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
735139 | 005018-00 | B27 | Washer;Spring;SW12 12.2X21.5X3T;Chromed | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
735140 | 1000380275 | N13 | sleeve-Extrawork;;;Cr Plate;Diam.54.8X22 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
|
