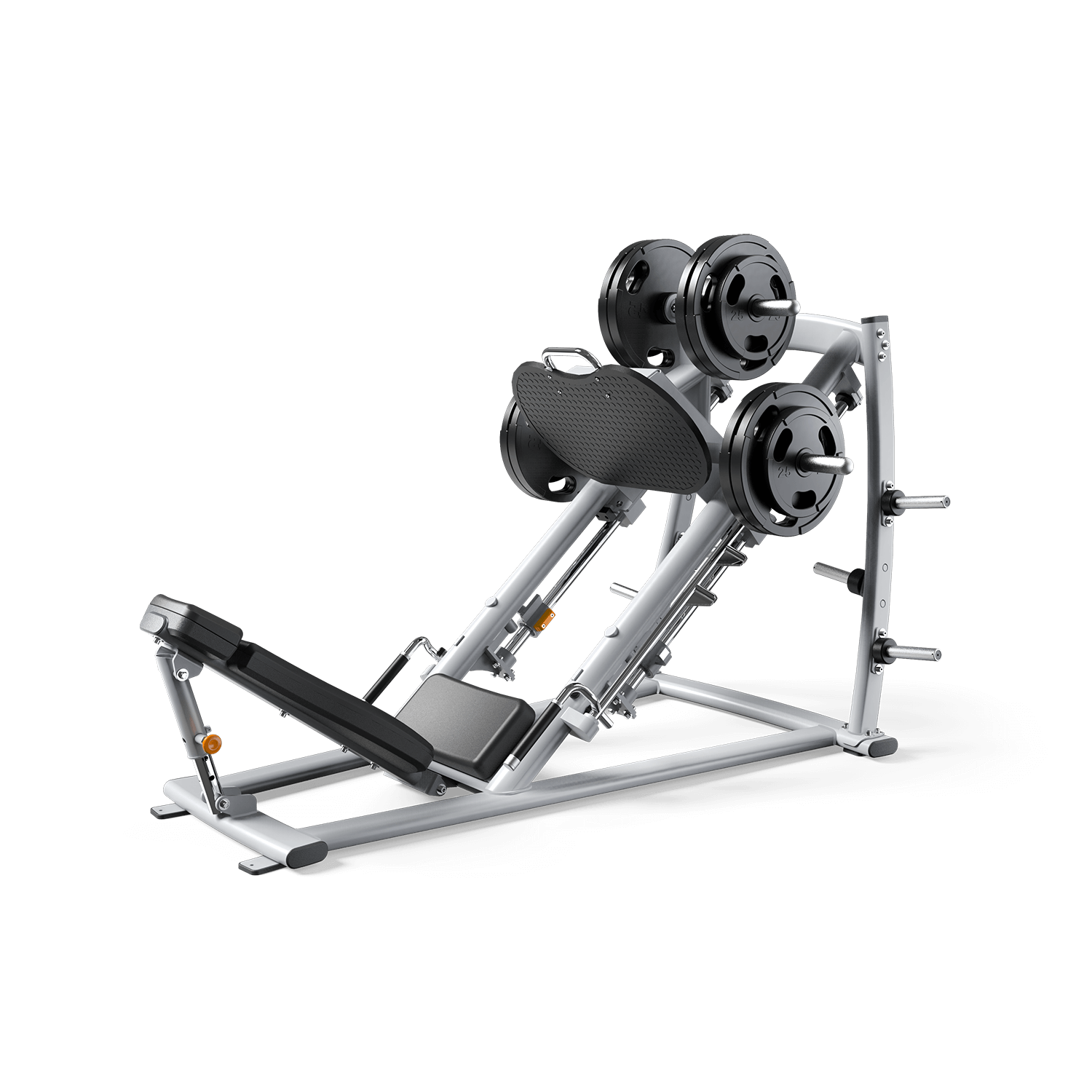

Matrix Fitness - MG-PL70-03 - 45-Degree Leg Press - PL04F - 2020 - 2020

Repair Parts for Matrix Fitness MG-PL70-03 - 45-Degree Leg Press - PL04F - 2020 PL04F

Brand: Matrix Fitness

Category: Single Station

Type: Strength Systems

Model Name: MG-PL70-03 - 45-Degree Leg Press - PL04F - 2020

Serial Number Prefix: PL04F

Version: 2020

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Washer;Flat;8.4X15.5X1.6T 730719 005040-AB Z07 Washer;Flat;8.4X15.5X1.6T No Model Compatibility List $0.00 / Each
Out Of Stock
Screw;Hex Socket;Flat;M8x1.25Px10L;Cr Pl 732987 1000102891 B25 Screw;Hex Socket;Flat;M8x1.25Px10L;Cr Pl No Model Compatibility List $1.28 / Each

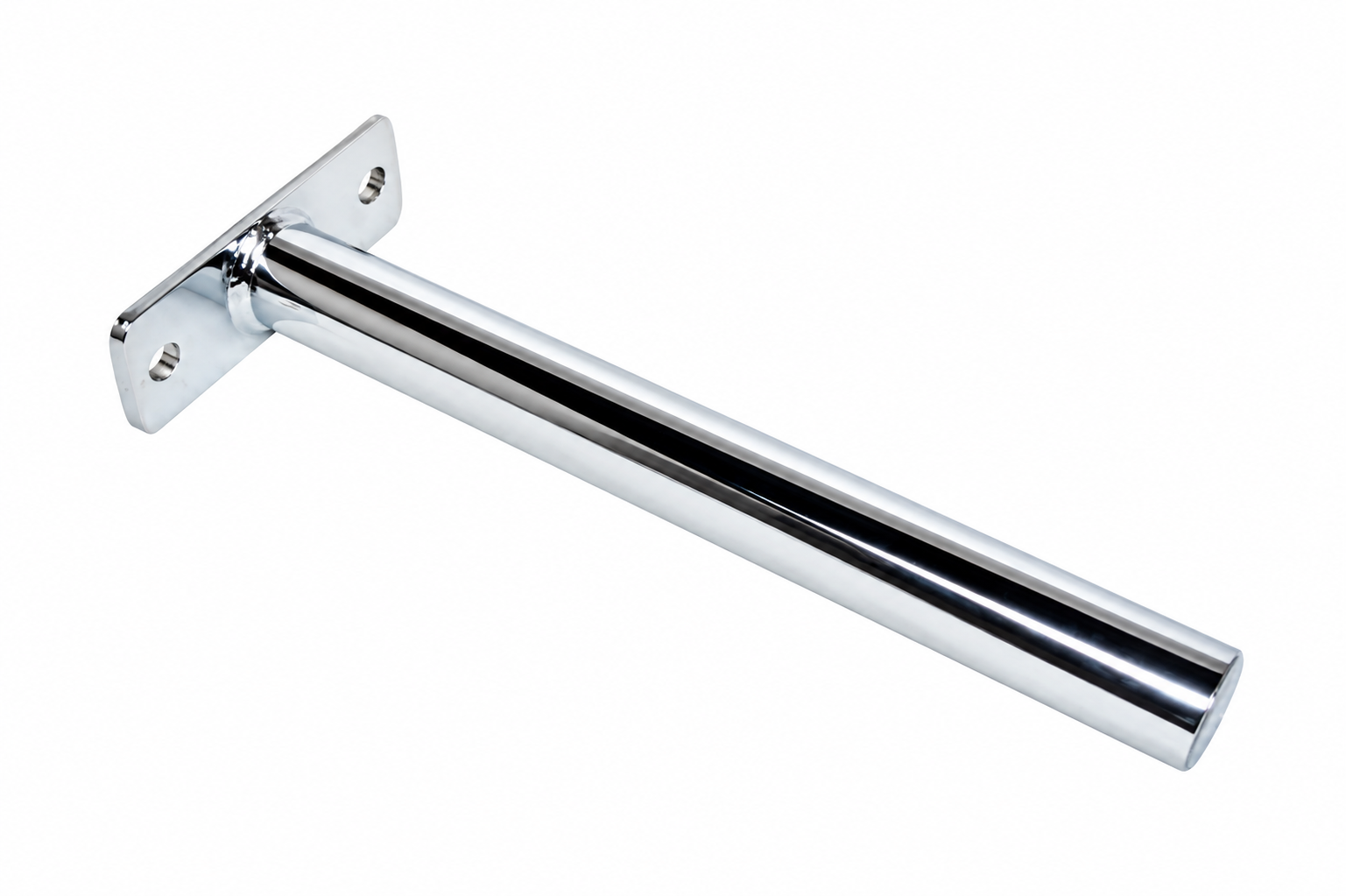

Storage Horn set-Exreawork;;;Cr Plate;;P 733309 1000450028 AG3 Storage Horn set-Exreawork;;;Cr Plate;;P No Model Compatibility List $93.58 / Each

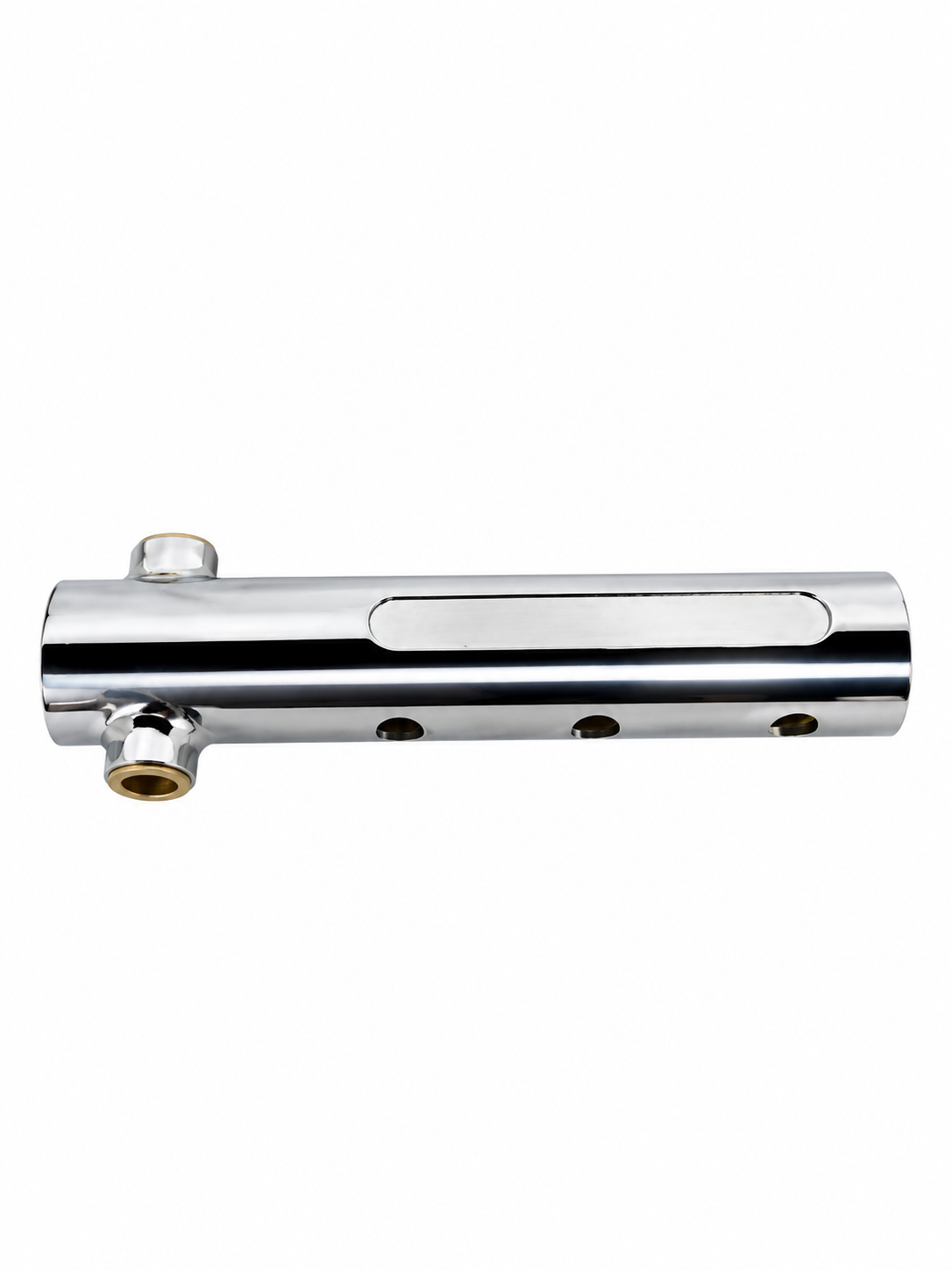

Adjustment set;Assembly;down;;PL04B;elec 733310 1000367002 AJ13 Adjustment set;Assembly;down;;PL04B;elec No Model Compatibility List $88.38 / Each

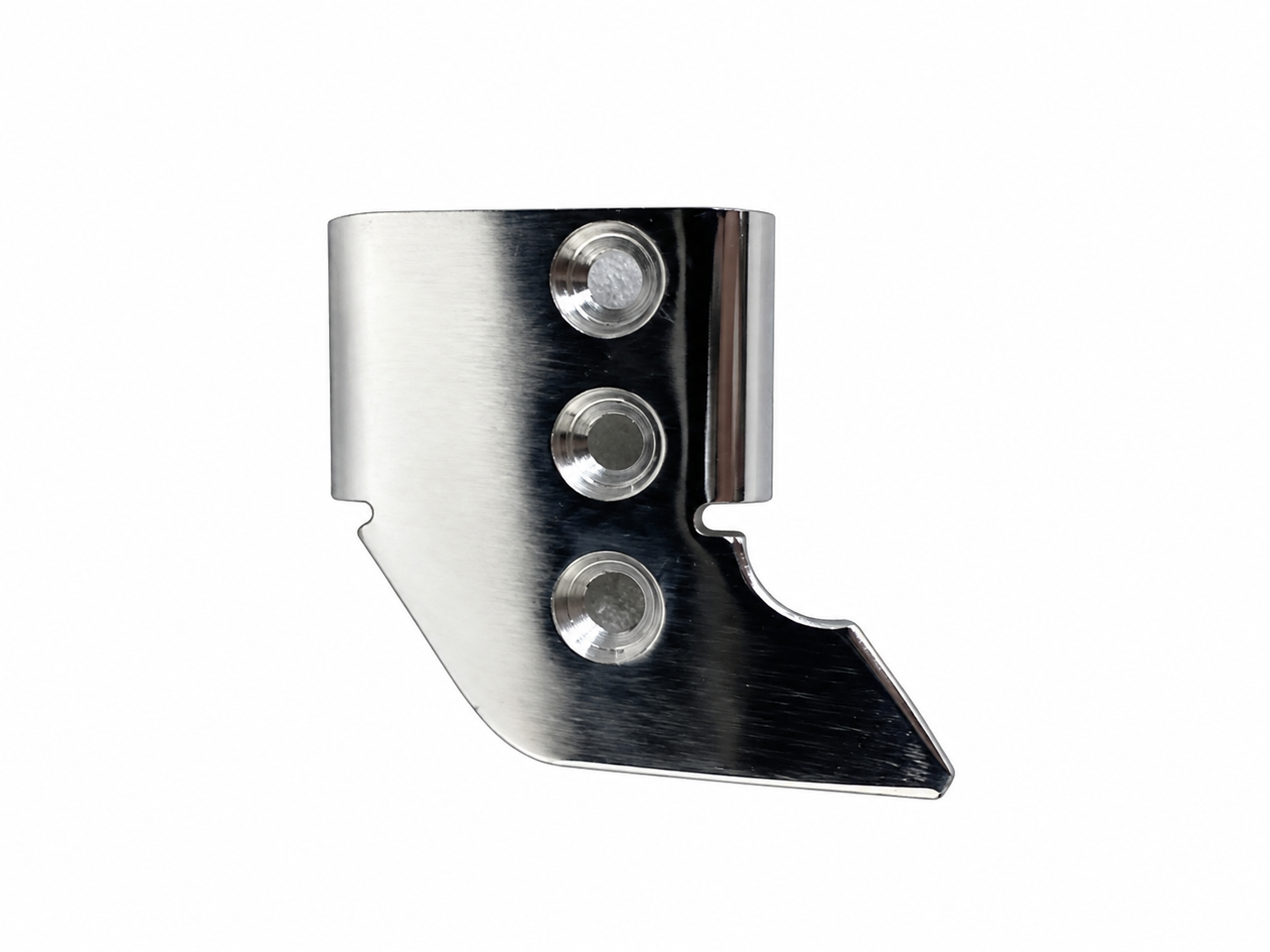

Stopper Plate;Foot Pedal;L;SPHC;106.9x90 733311 1000444769 P21 Stopper Plate;Foot Pedal;L;SPHC;106.9x90 No Model Compatibility List $18.18 / Each

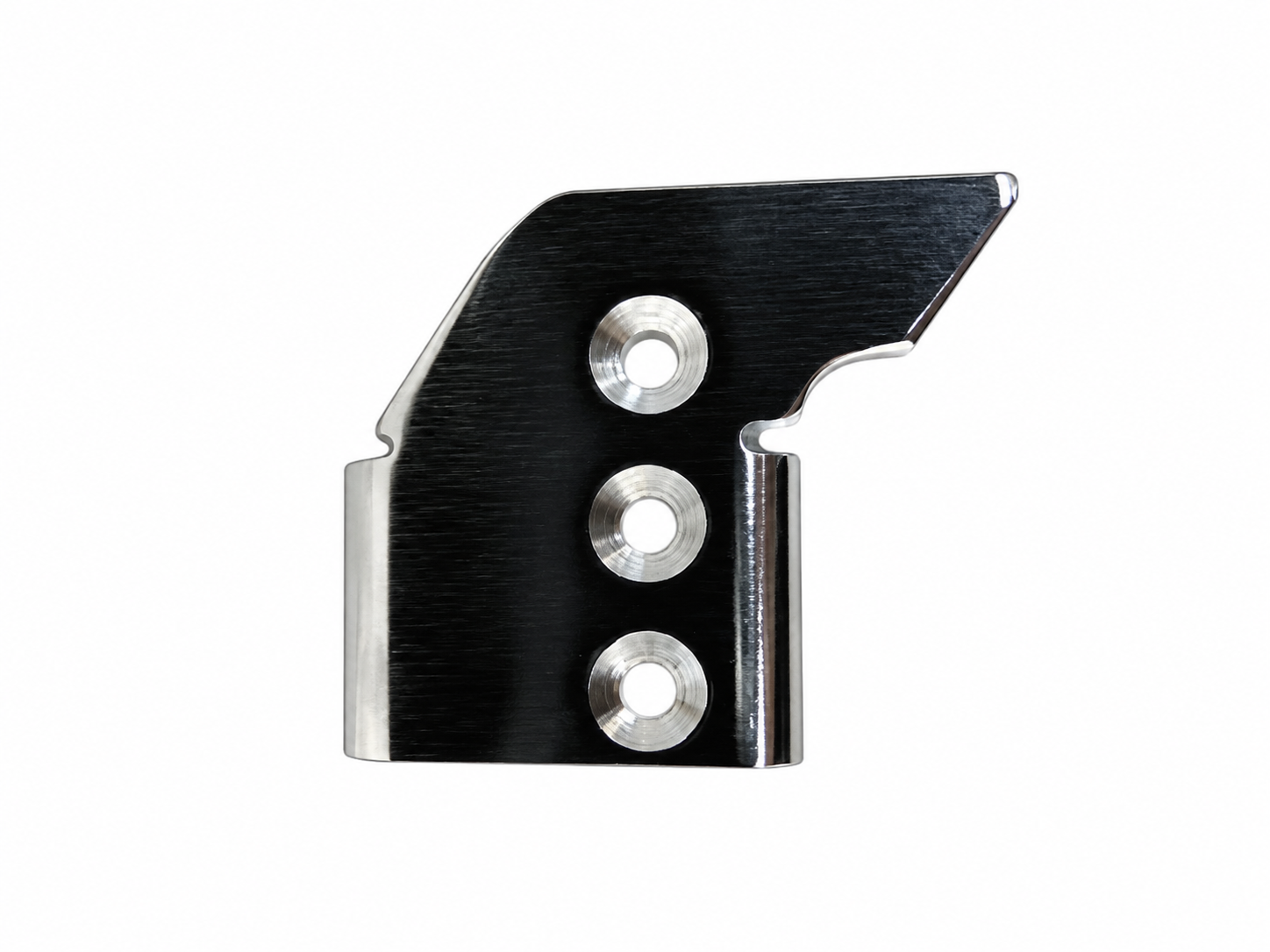

Stopper Plate;Foot Pedal;Rt;SPHC;106.9x9 733312 1000444770 P24 Stopper Plate;Foot Pedal;Rt;SPHC;106.9x9 No Model Compatibility List $0.00 / Each
Out Of Stock

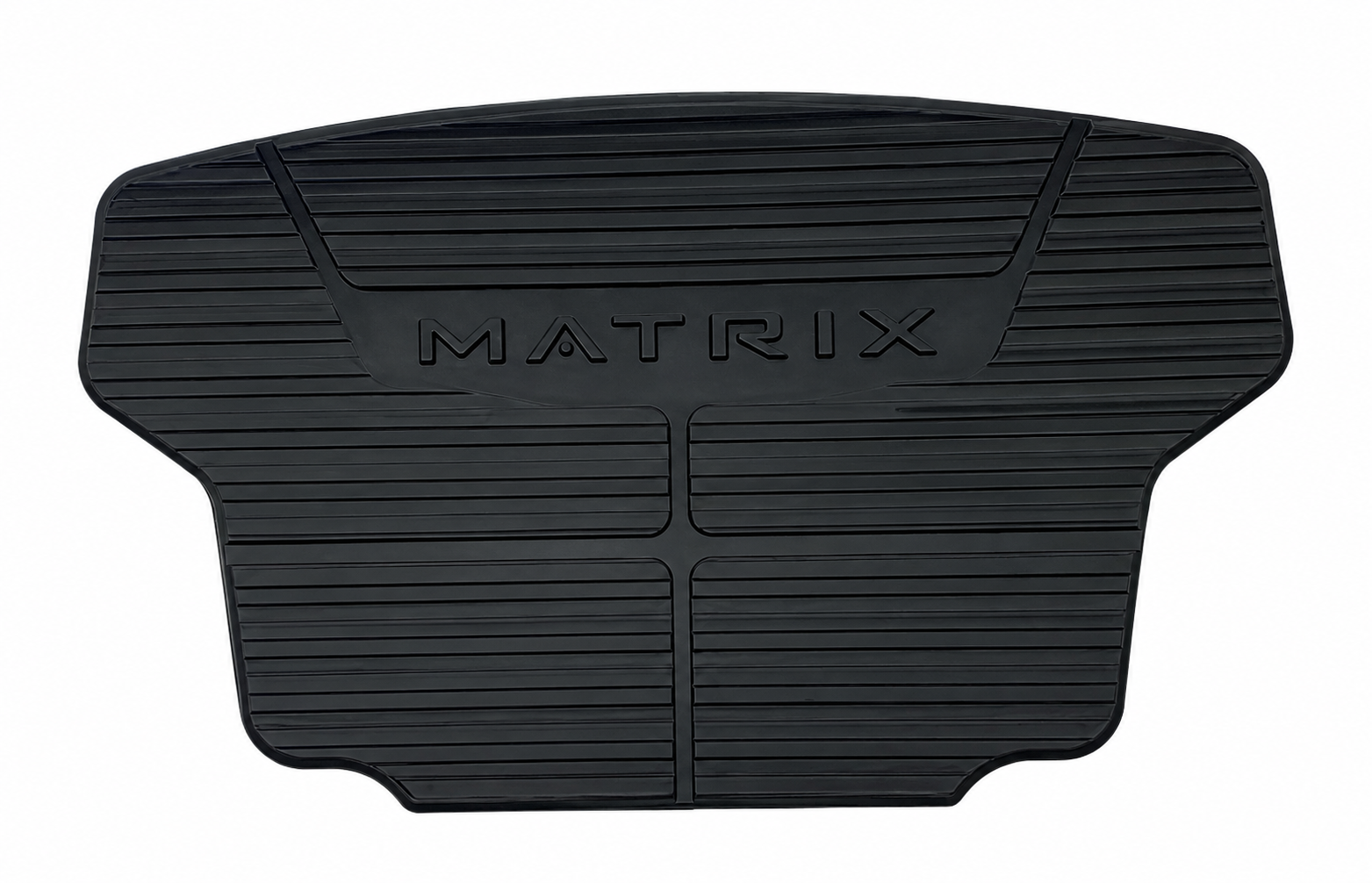

Foot Pad;;;SBR;;;PL04F; 733313 1000449270 T01 Foot Pad;;;SBR;;;PL04F; No Model Compatibility List $120.88 / Each

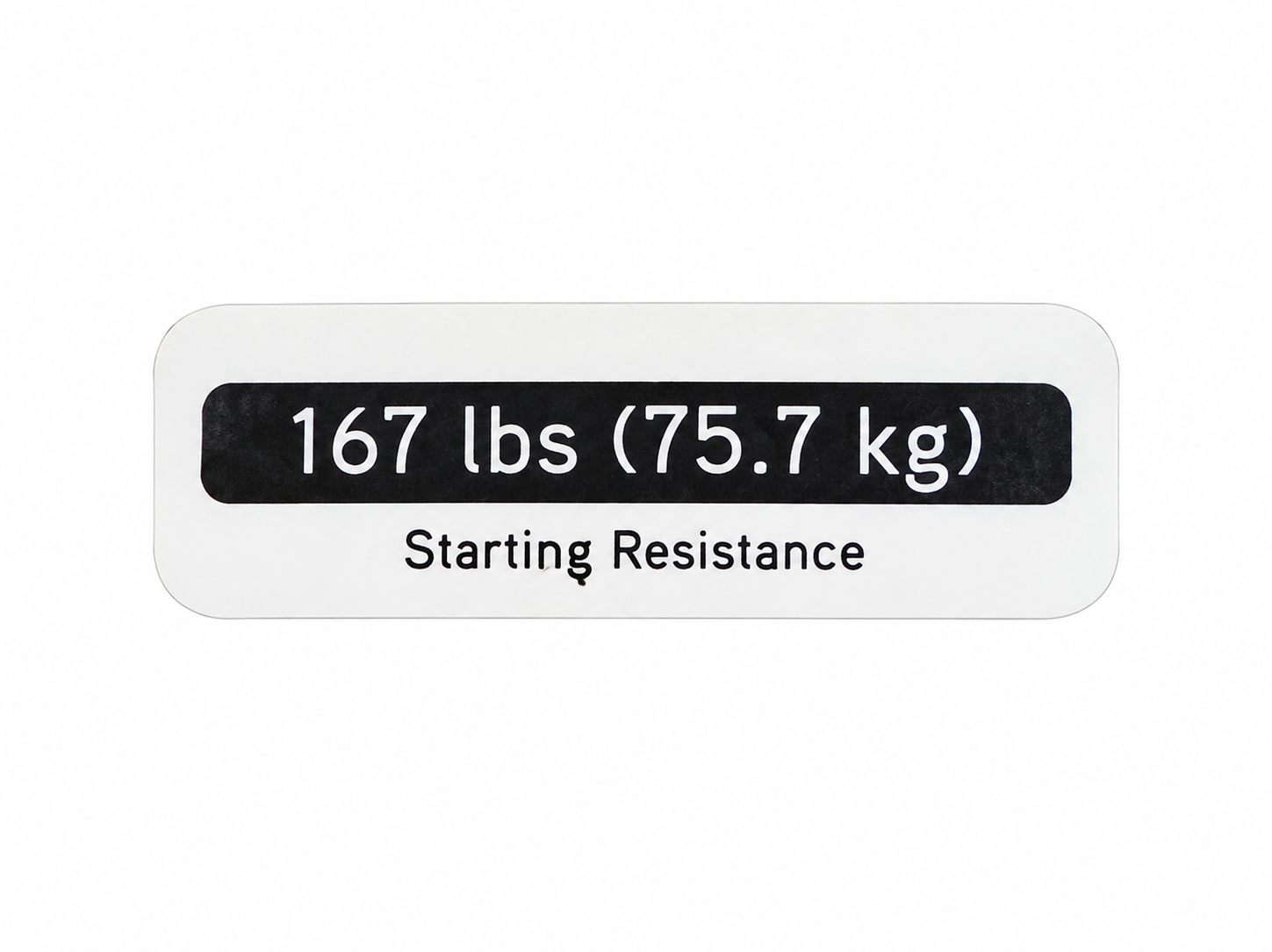

Decal;Weight;;;PC;;English;PL04B 733314 1000366604 V100 Decal;Weight;;;PC;;English;PL04B No Model Compatibility List $2.32 / Each

Frame set;;;Iced Sliver;PL04F;; 733315 1000460116 AB11 Frame set;;;Iced Sliver;PL04F;; No Model Compatibility List $0.00 / Each
Out Of Stock
Fixed Base Set;;D;painting;;Iced Sliver; 733316 1000460134 AB2 Fixed Base Set;;D;painting;;Iced Sliver; No Model Compatibility List $0.00 / Each
Out Of Stock
Fixed Base Set;;U;painting;;Iced Sliver; 733317 1000460141 AB3 Fixed Base Set;;U;painting;;Iced Sliver; No Model Compatibility List $0.00 / Each
Out Of Stock
PEDAL SET;;;painting;;Iced Sliver;PL04F; 733318 1000460179 AD1 PEDAL SET;;;painting;;Iced Sliver;PL04F; No Model Compatibility List $0.00 / Each
Out Of Stock

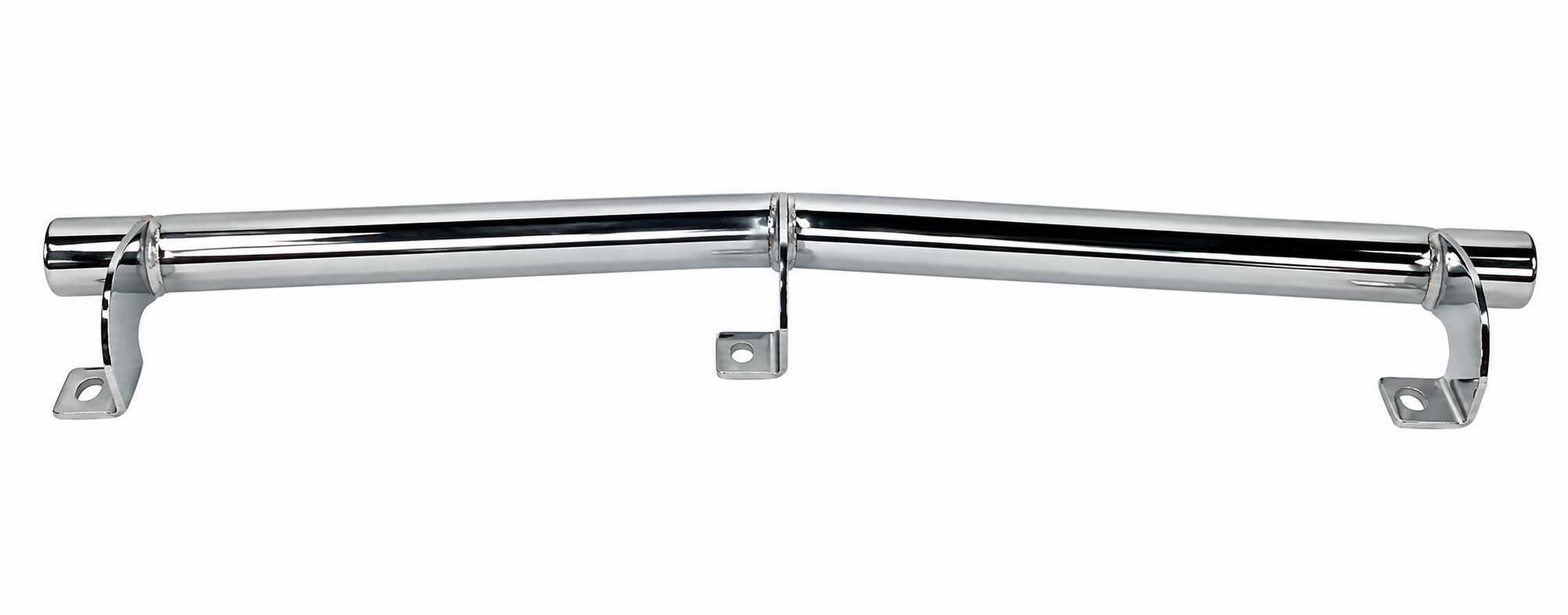

Grip-Exreawork;;;Cr Plate;;PL04F; 733319 1000450054 AD2 Grip-Exreawork;;;Cr Plate;;PL04F; No Model Compatibility List $0.00 / Each
Out Of Stock

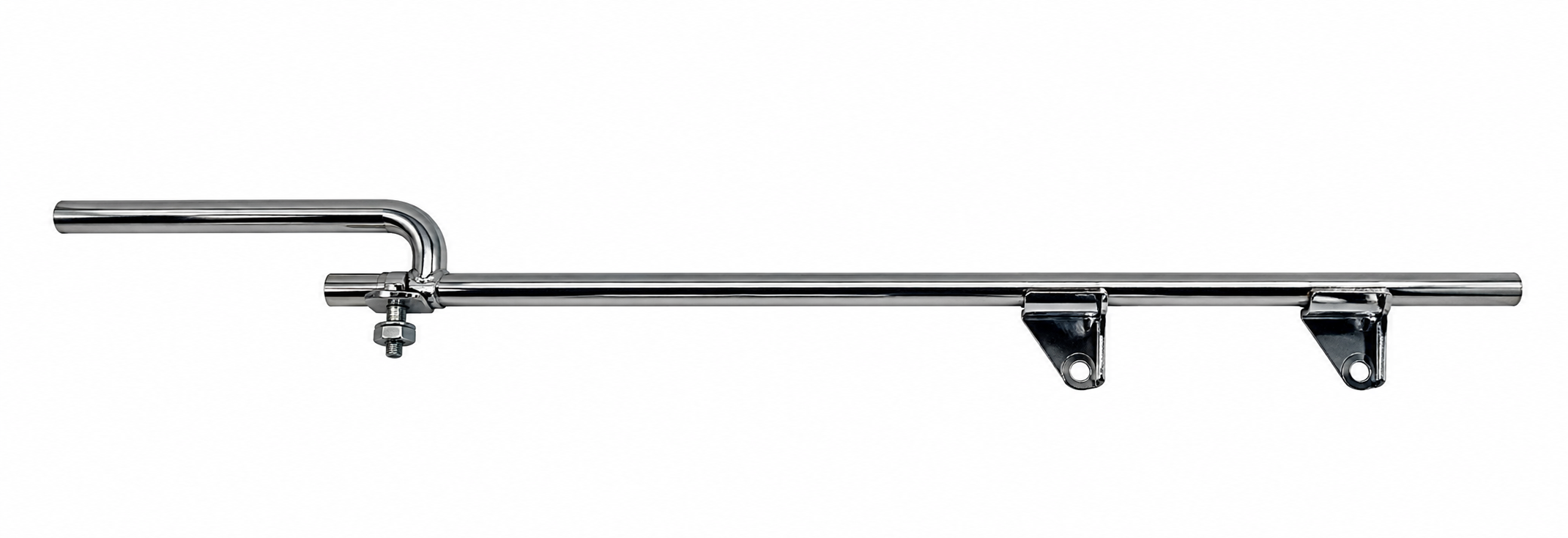

Grip Set-Exreawork;;left;Cr Plate;CR;PL0 733320 1000348128 AE1 Grip Set-Exreawork;;left;Cr Plate;CR;PL0 No Model Compatibility List $0.00 / Each
Out Of Stock

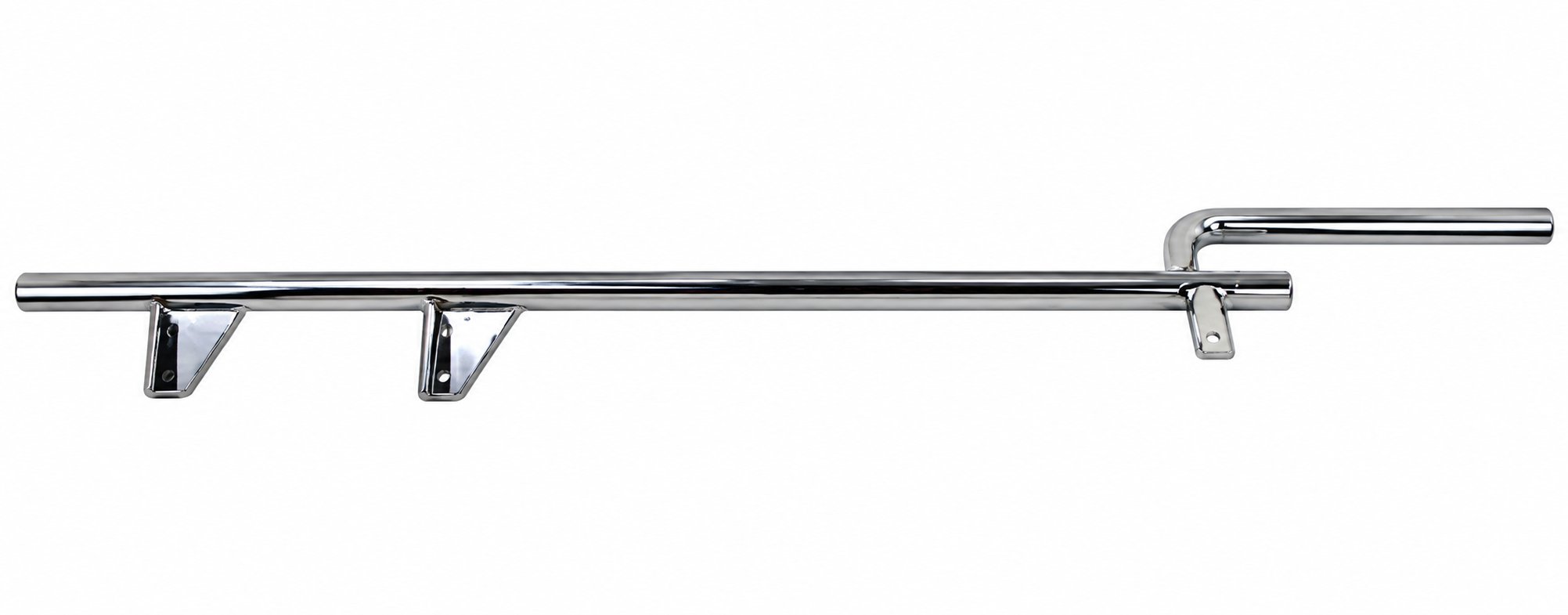

Grip Set-Exreawork;;right;Cr Plate;CR;PL 733321 1000348135 AE2 Grip Set-Exreawork;;right;Cr Plate;CR;PL No Model Compatibility List $0.00 / Each
Out Of Stock

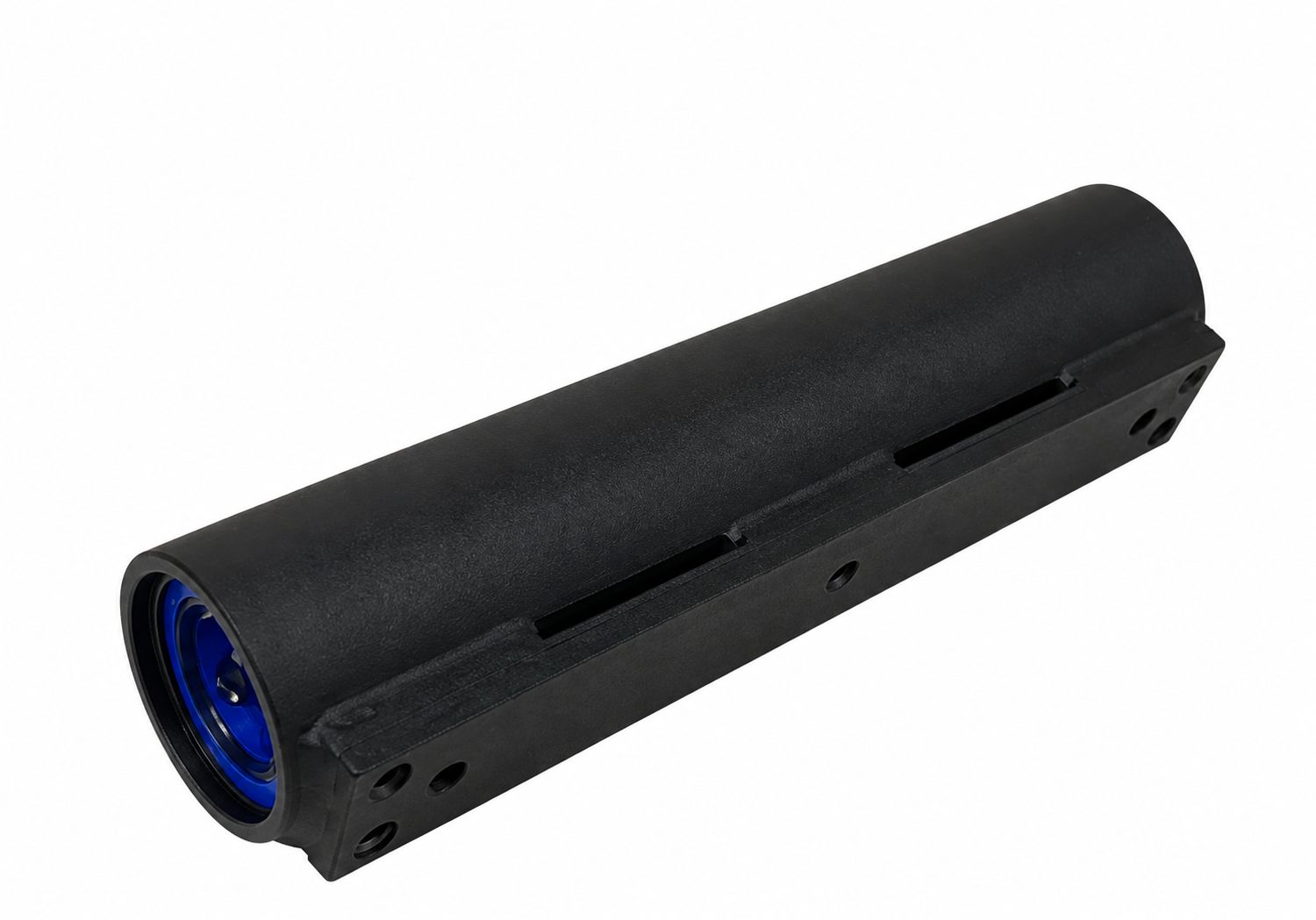

Guide base set;;;;;;PL04F;SKF 733322 1000449922 AF1 Guide base set;;;;;;PL04F;SKF No Model Compatibility List $0.00 / Each
Out Of Stock
Side Frame;;L;painting;;Iced Sliver;PL04 733323 1000460212 AG1 Side Frame;;L;painting;;Iced Sliver;PL04 No Model Compatibility List $0.00 / Each
Out Of Stock
Side Frame;;R;painting;;Iced Sliver;PL04 733324 1000460220 AG2 Side Frame;;R;painting;;Iced Sliver;PL04 No Model Compatibility List $0.00 / Each
Out Of Stock
Beginning Adjustable Set;;left;Iced Sliv 733325 1000460148 AH11 Beginning Adjustable Set;;left;Iced Sliv No Model Compatibility List $0.00 / Each
Out Of Stock
Beginning Adjustable Set;;right;Iced Sli 733326 1000460163 AH12 Beginning Adjustable Set;;right;Iced Sli No Model Compatibility List $0.00 / Each
Out Of Stock
Back pad adjust set;;;painting;;Iced Sli 733327 1000460172 AJ1 Back pad adjust set;;;painting;;Iced Sli No Model Compatibility List $0.00 / Each
Out Of Stock

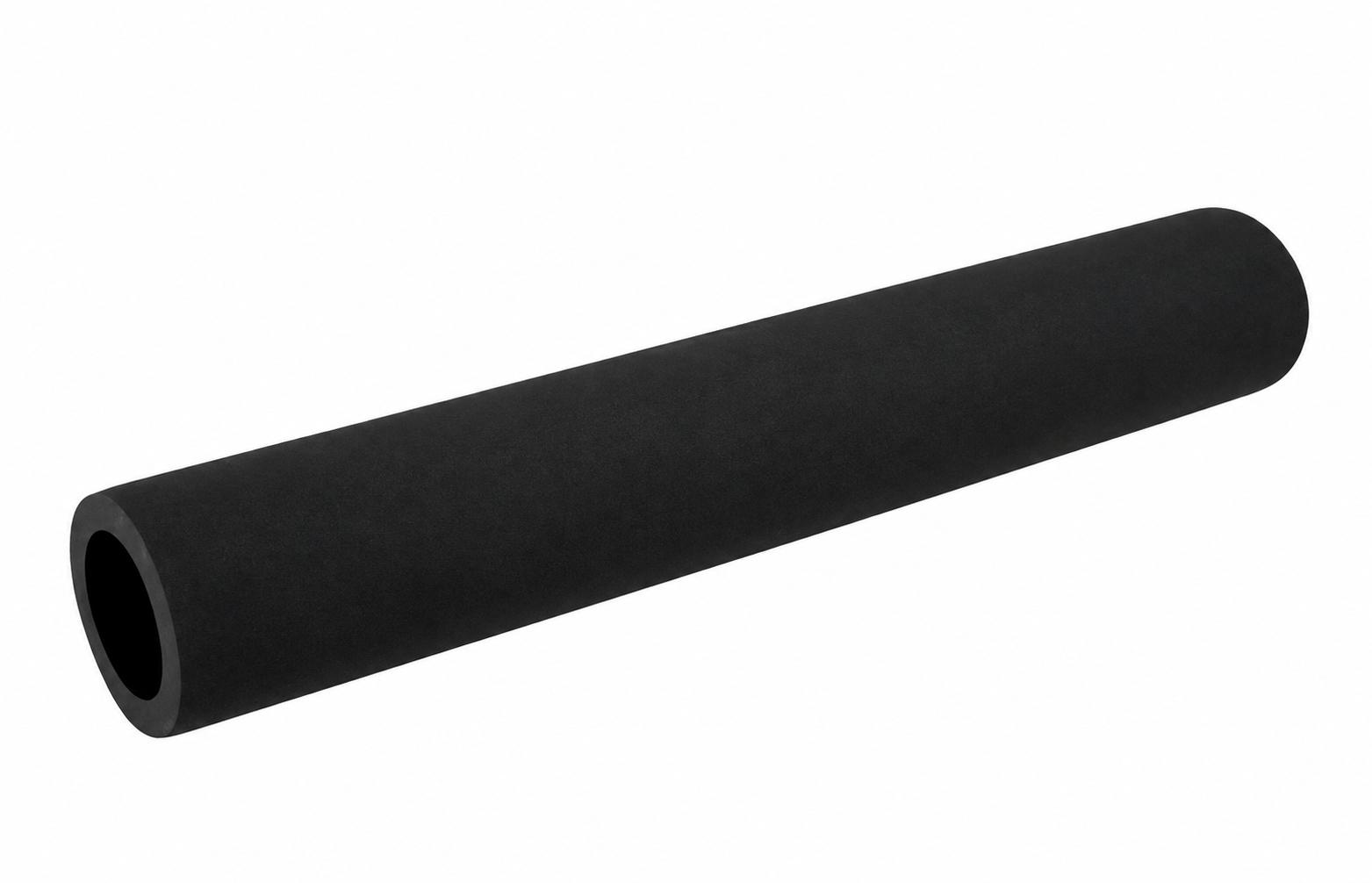

Foam;Adjustable Grip;;;;F24X5.0TX230;PL0 733328 1000455012 E07 Foam;Adjustable Grip;;;;F24X5.0TX230;PL0 No Model Compatibility List $0.00 / Each
Out Of Stock
Tube Cap;;;EPDM+PP;BL/Black C;f50.5x100; 733329 1000463037 G09 Tube Cap;;;EPDM+PP;BL/Black C;f50.5x100; No Model Compatibility List $0.00 / Each
Out Of Stock

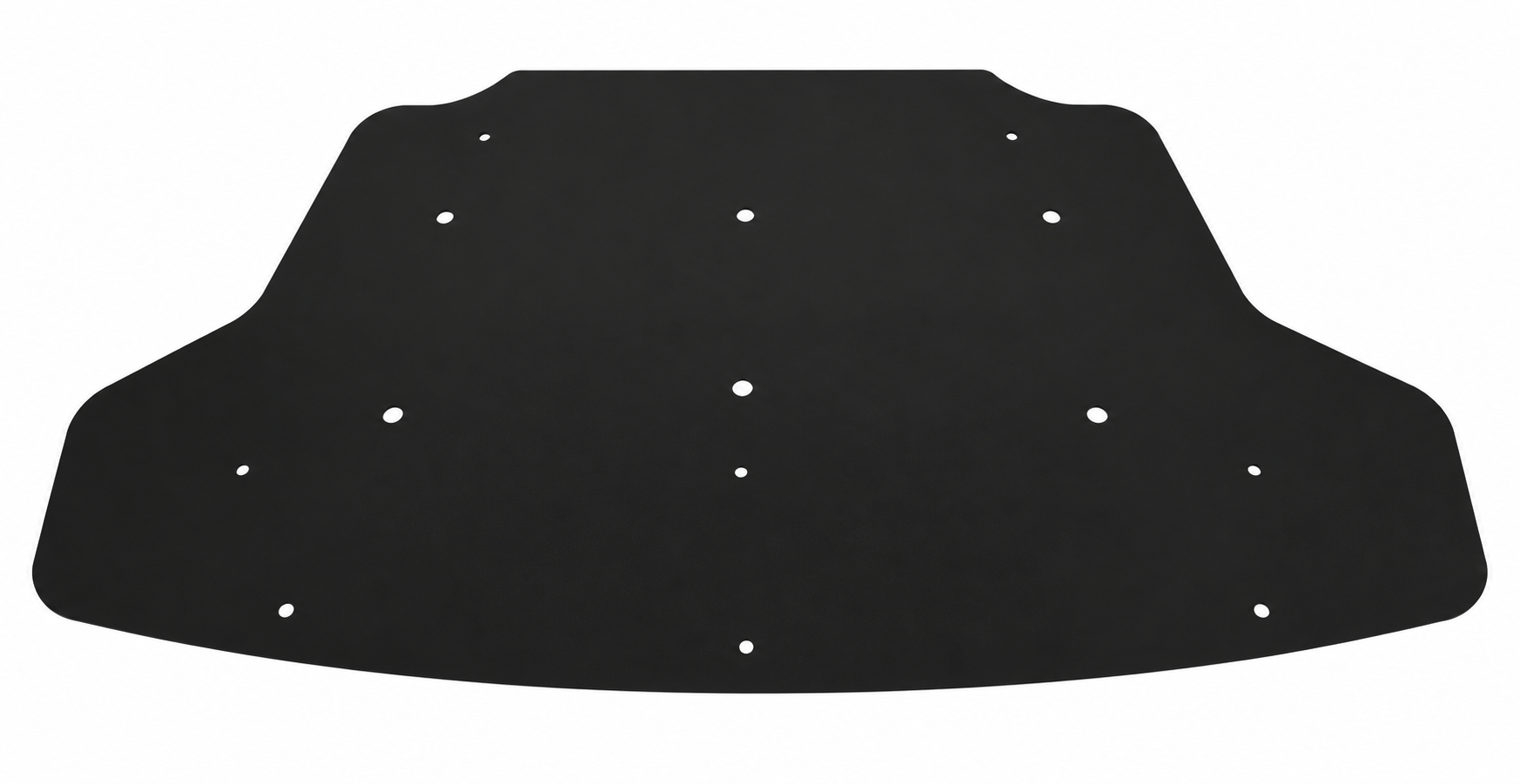

Pedal;;;painting;;Black Matte;PL04F; 733330 1000460187 T02 Pedal;;;painting;;Black Matte;PL04F; No Model Compatibility List $0.00 / Each
Out Of Stock

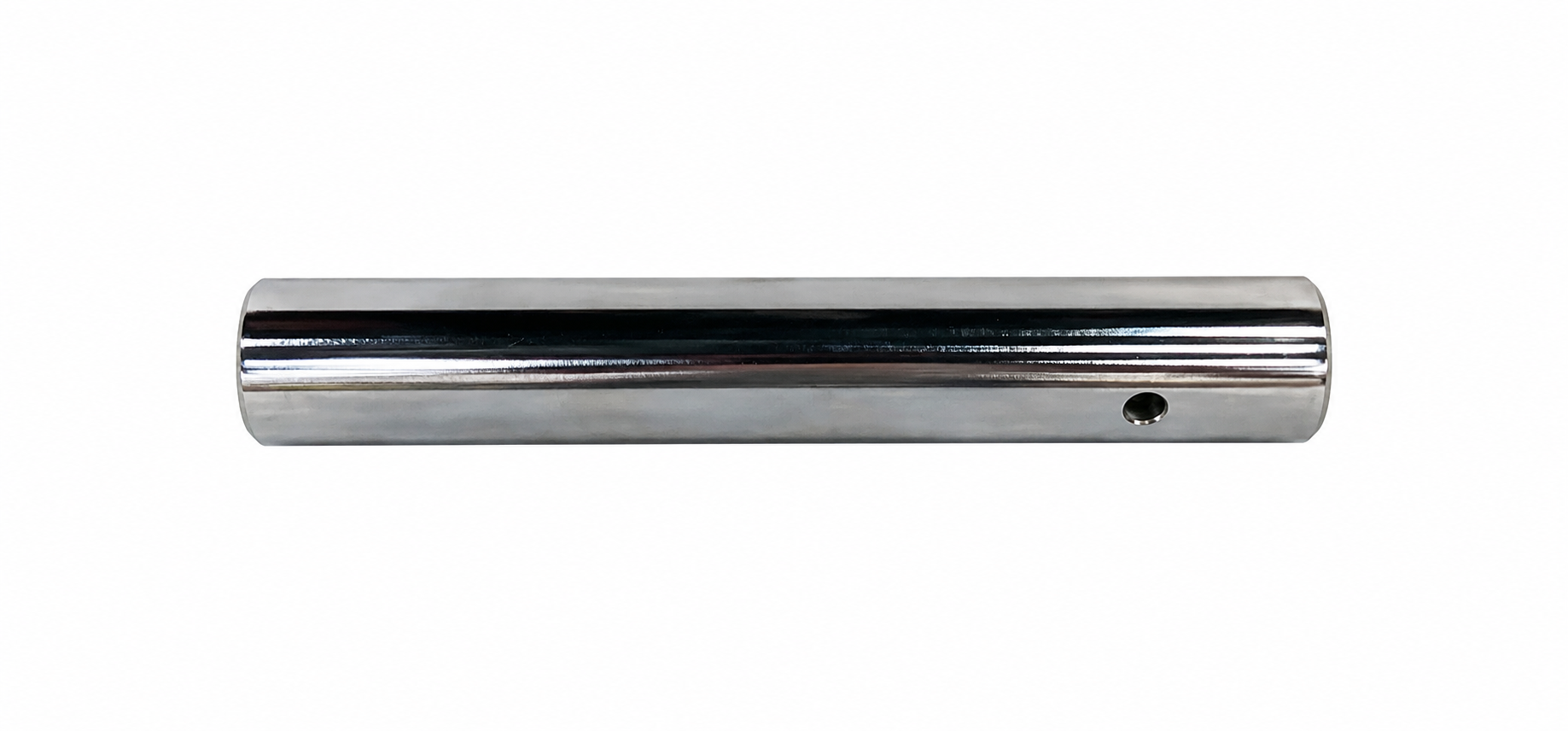

Hang Tube;;f50x410x5.0t;Front;CHM;20#; 733331 1000450059 T03 Hang Tube;;f50x410x5.0t;Front;CHM;20#; No Model Compatibility List $0.00 / Each
Out Of Stock

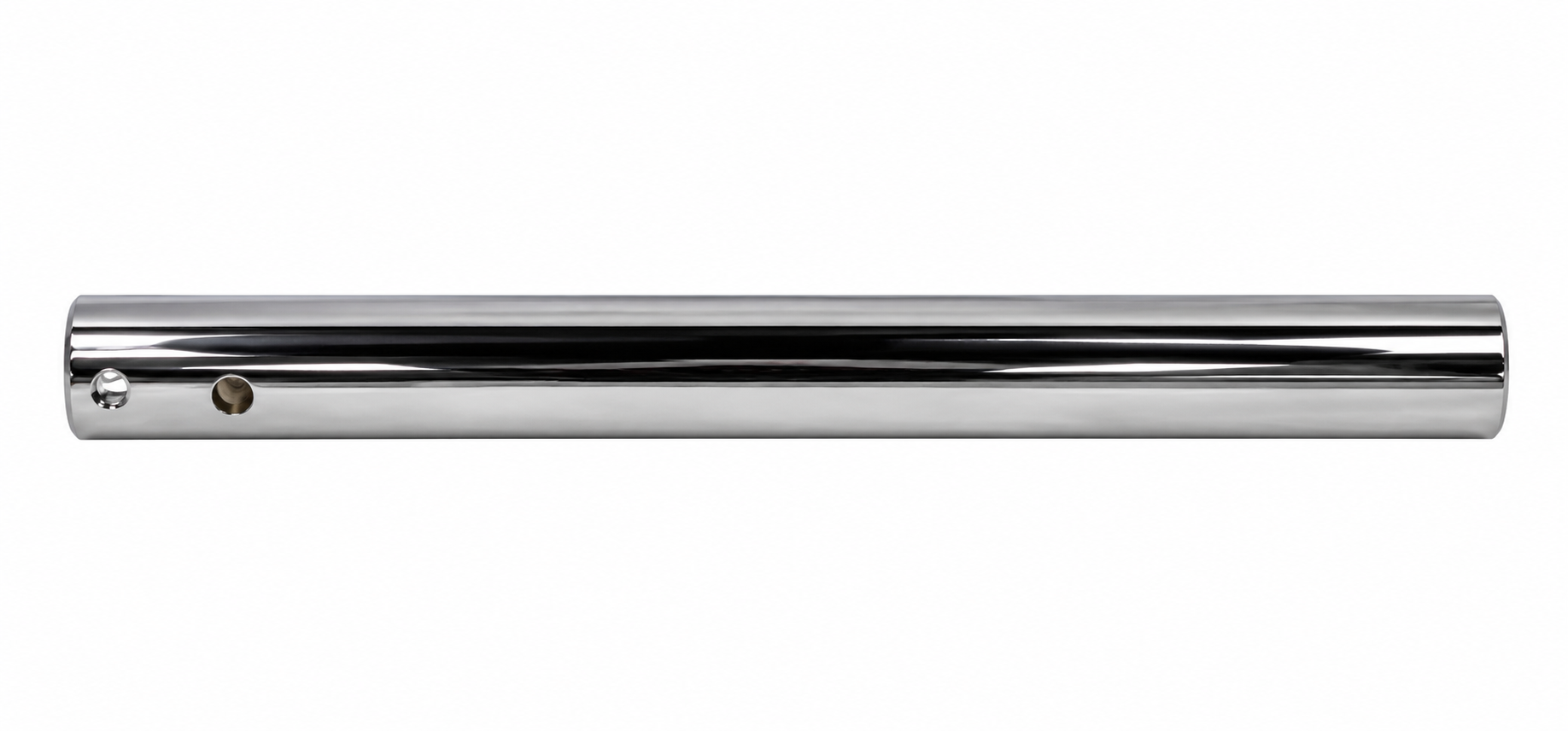

Hang Tube;;f50x305x5.0t;Rear;CHM;20#; 733332 1000450060 T04 Hang Tube;;f50x305x5.0t;Rear;CHM;20#; No Model Compatibility List $0.00 / Each
Out Of Stock

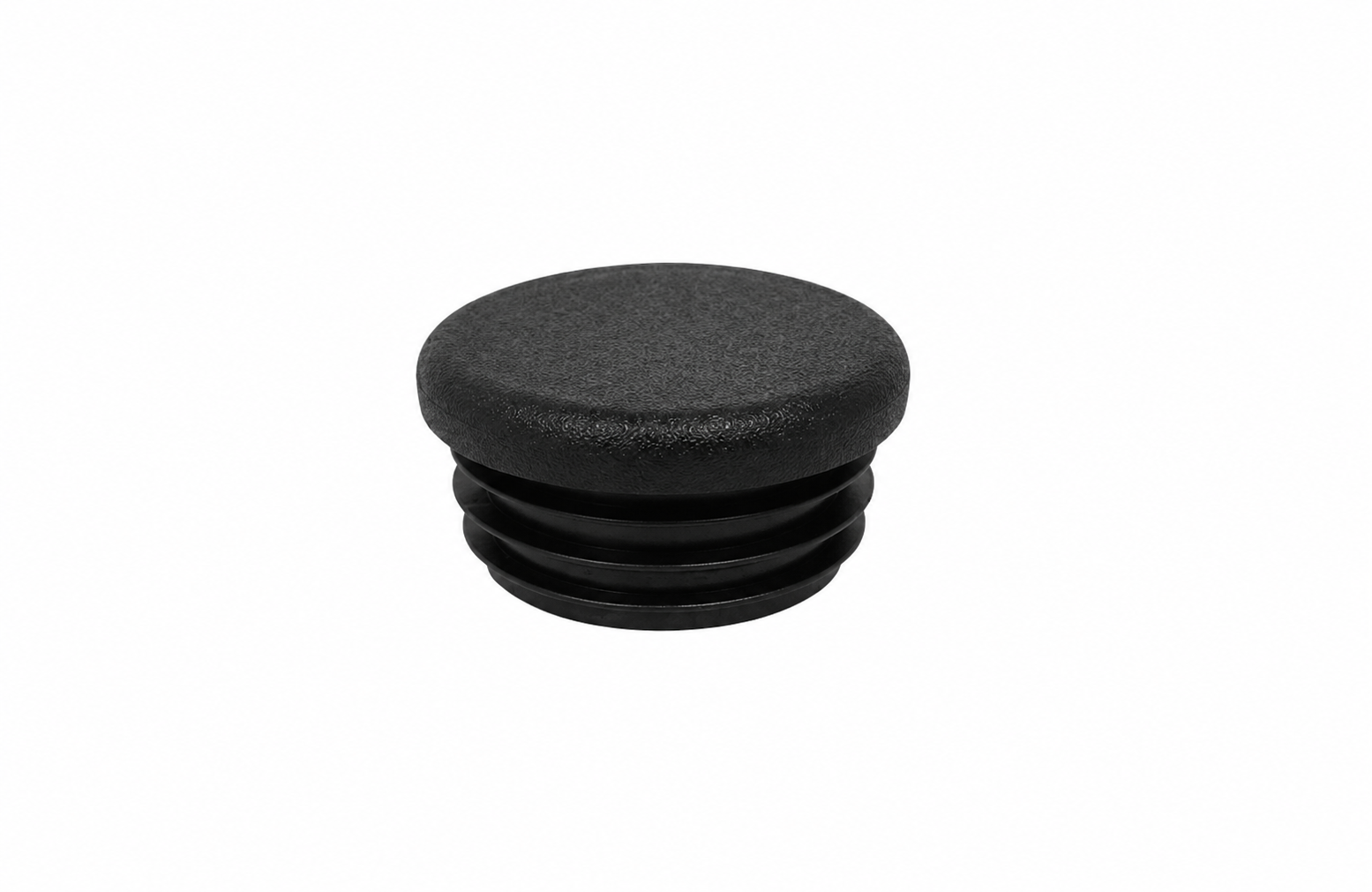

Cap;;;;BL/Black C;f38.1x3.0t;GM108;RN1-1 733333 1000426271 T06 Cap;;;;BL/Black C;f38.1x3.0t;GM108;RN1-1 No Model Compatibility List $0.00 / Each
Out Of Stock

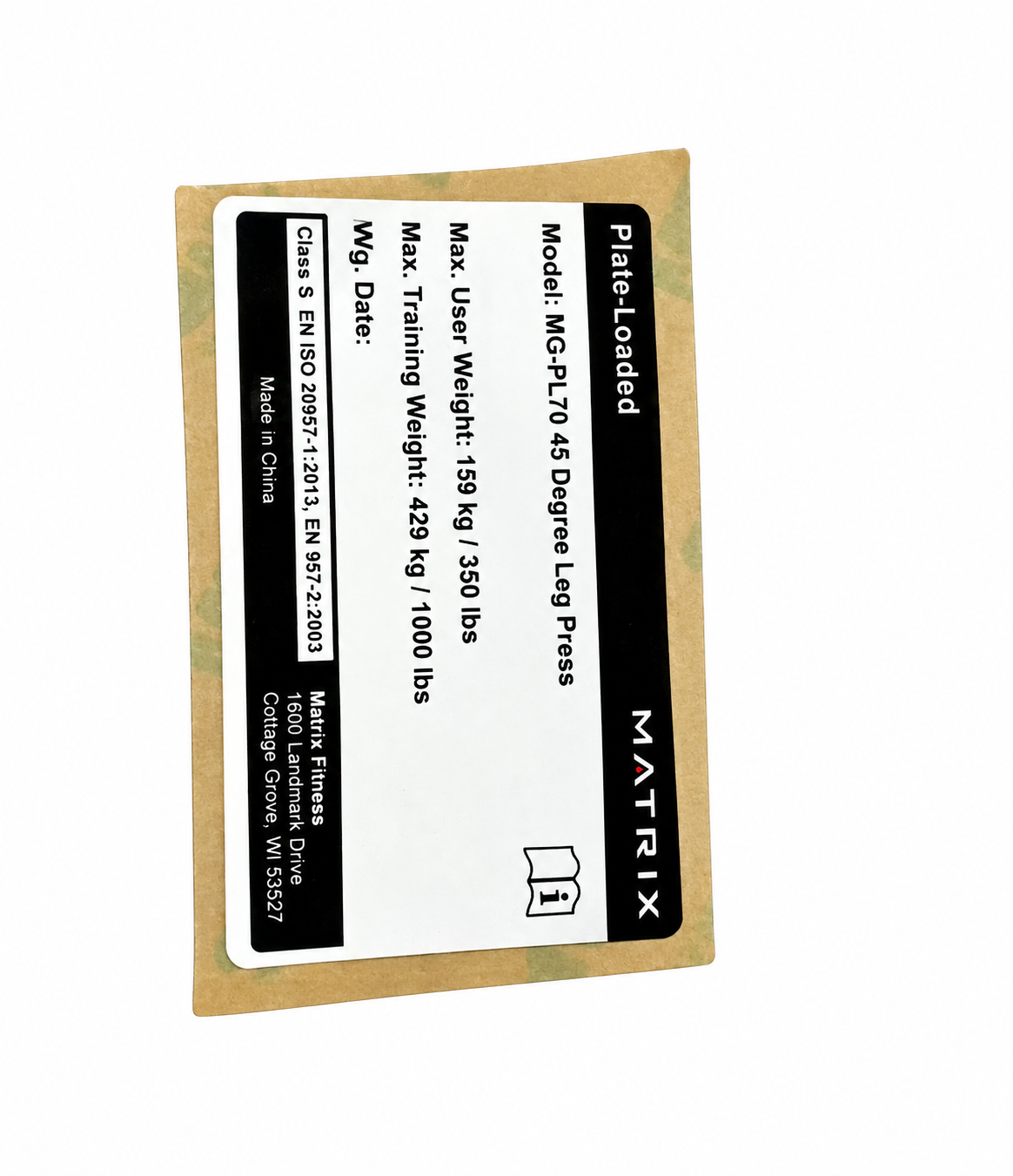

Marking;EN 957;;;PETP;;;PL04F 733334 1000450084 V02 Marking;EN 957;;;PETP;;;PL04F No Model Compatibility List $0.00 / Each
Out Of Stock

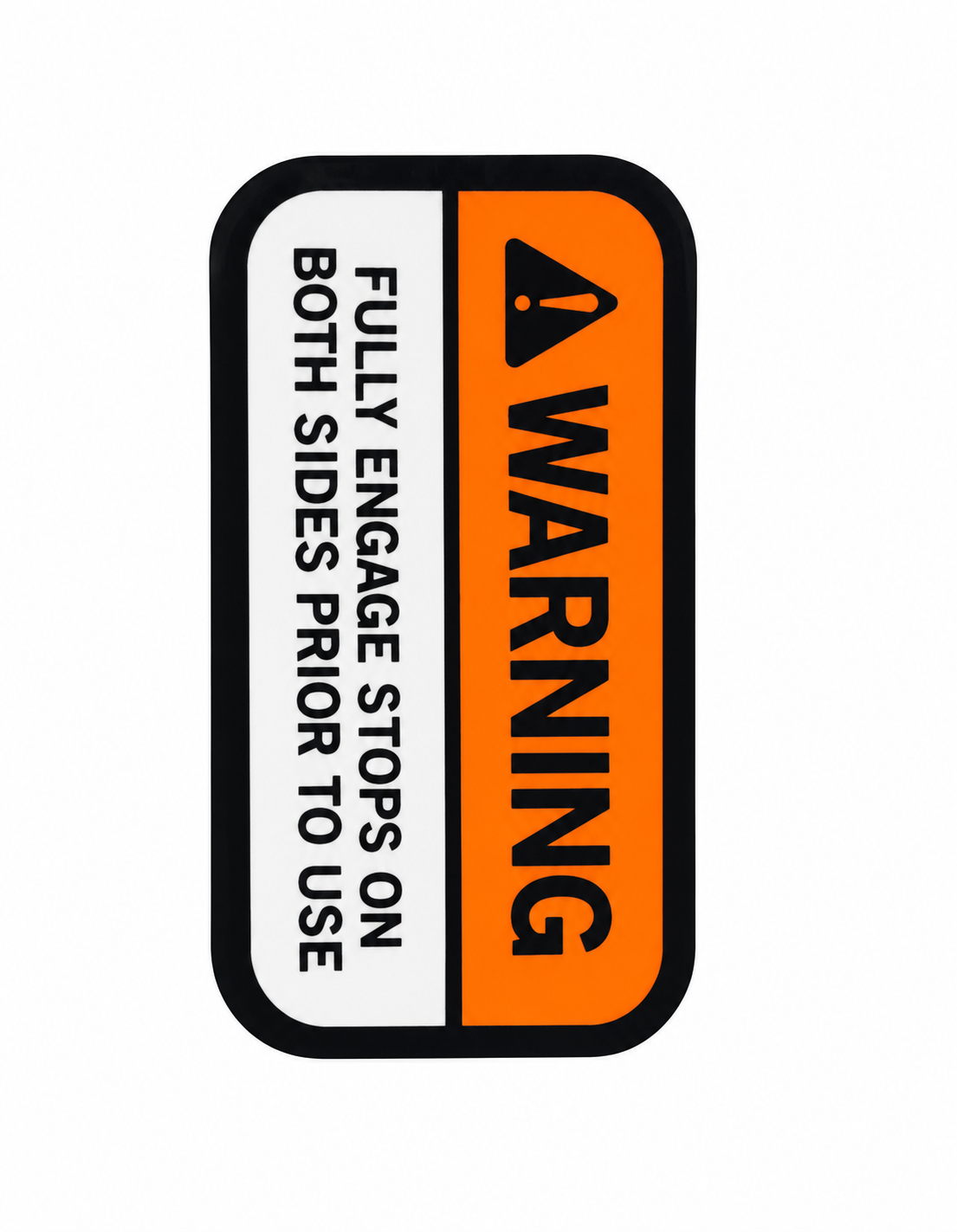

Warning Label;Stopper;56x30;;;;;PL04B; 733335 1000361664 V04 Warning Label;Stopper;56x30;;;;;PL04B; No Model Compatibility List $0.00 / Each
Out Of Stock
Serial No Sticker;;;;;;;PL04F 733336 1000450083 V06 Serial No Sticker;;;;;;;PL04F No Model Compatibility List $0.00 / Each
Out Of Stock

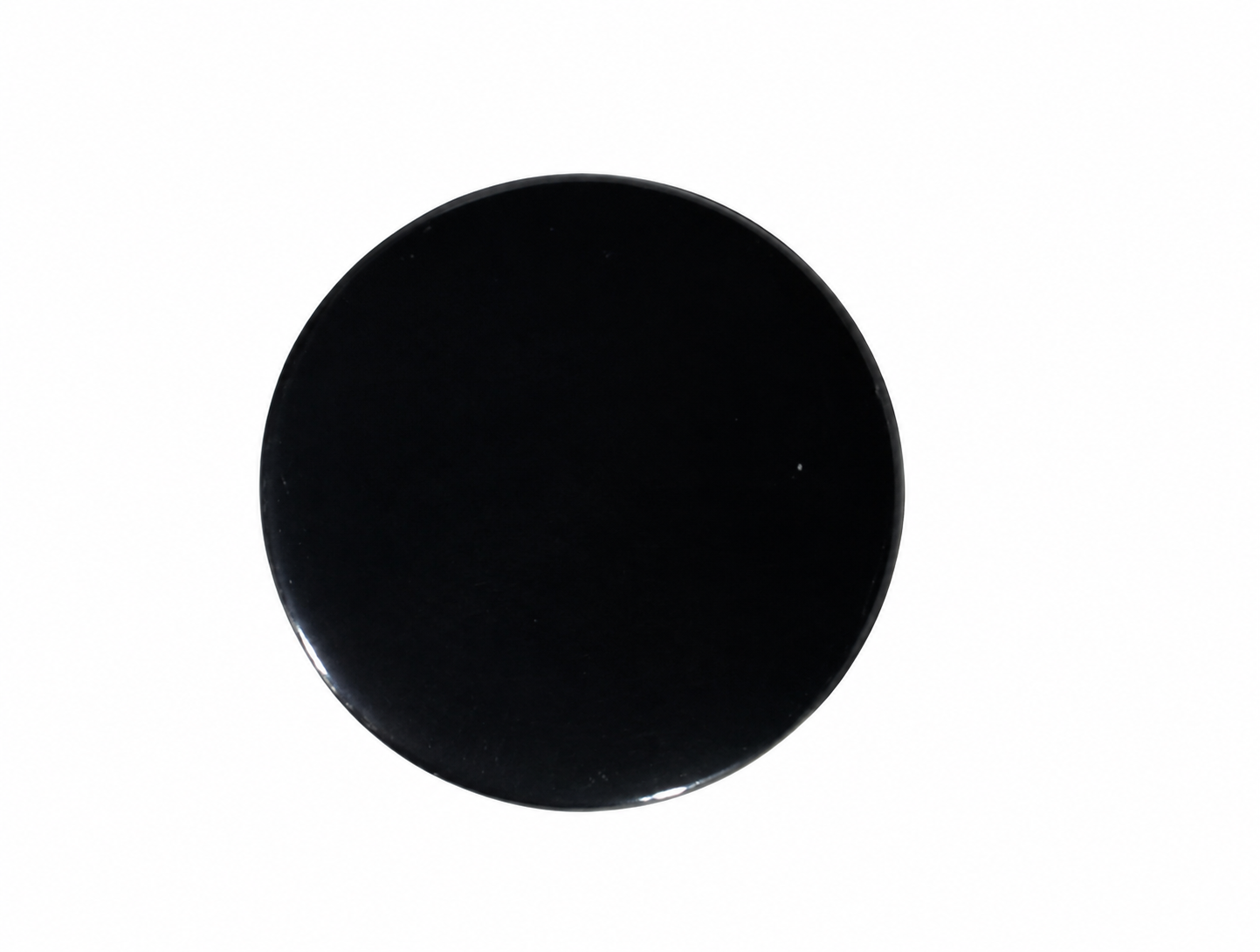

Decal;Aperture;;;;;;PL04F 733337 1000457040 V12 Decal;Aperture;;;;;;PL04F No Model Compatibility List $0.00 / Each
Out Of Stock
Instructional Labe;;;;;;;PL04F 733338 1000455722 V14 Instructional Labe;;;;;;;PL04F No Model Compatibility List $0.00 / Each
Out Of Stock

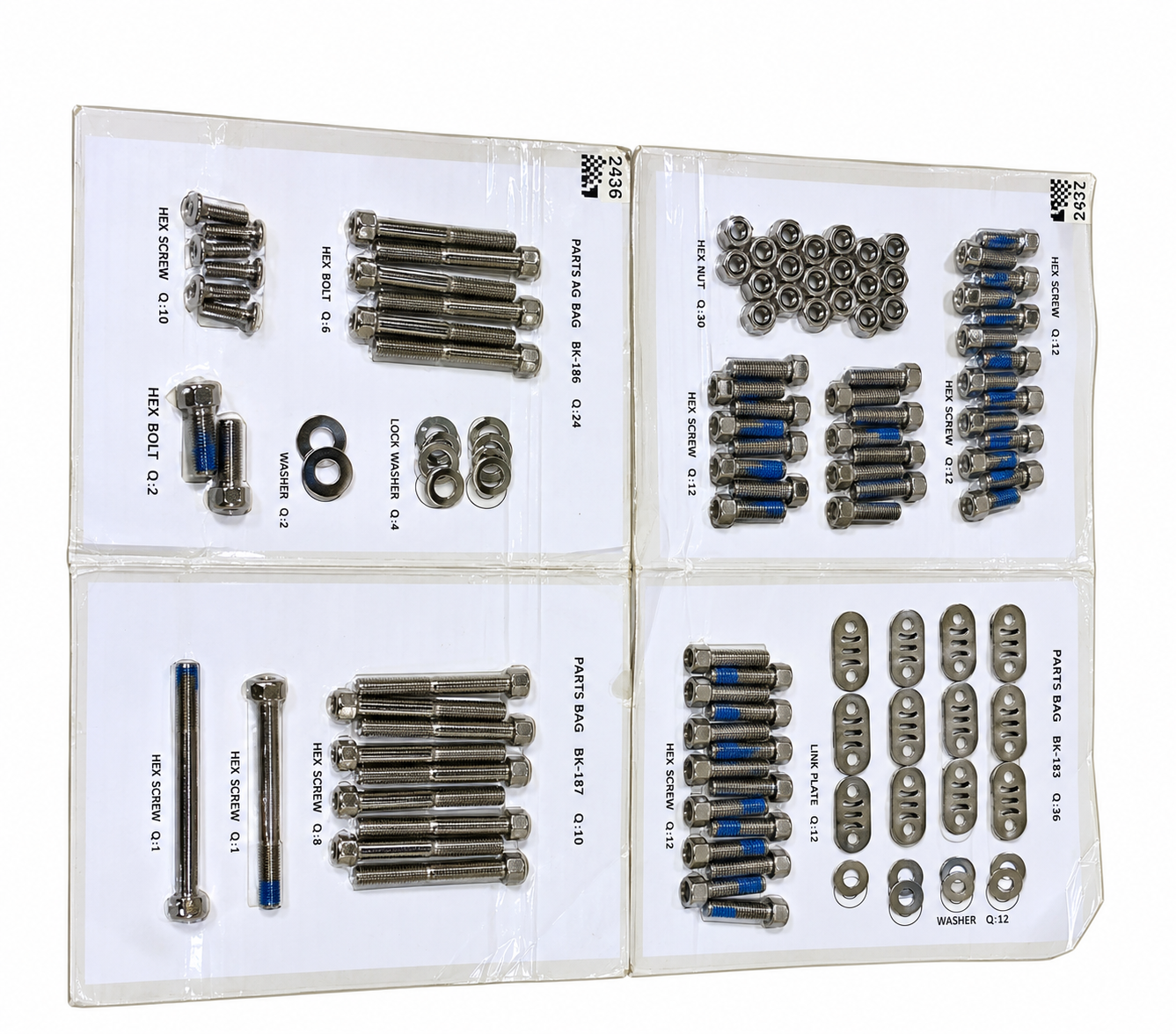

Hardware Set;;;;;;PL04F; 733339 1000450458 Not Shown Hardware Set;;;;;;PL04F; No Model Compatibility List $0.00 / Each
Out Of Stock
