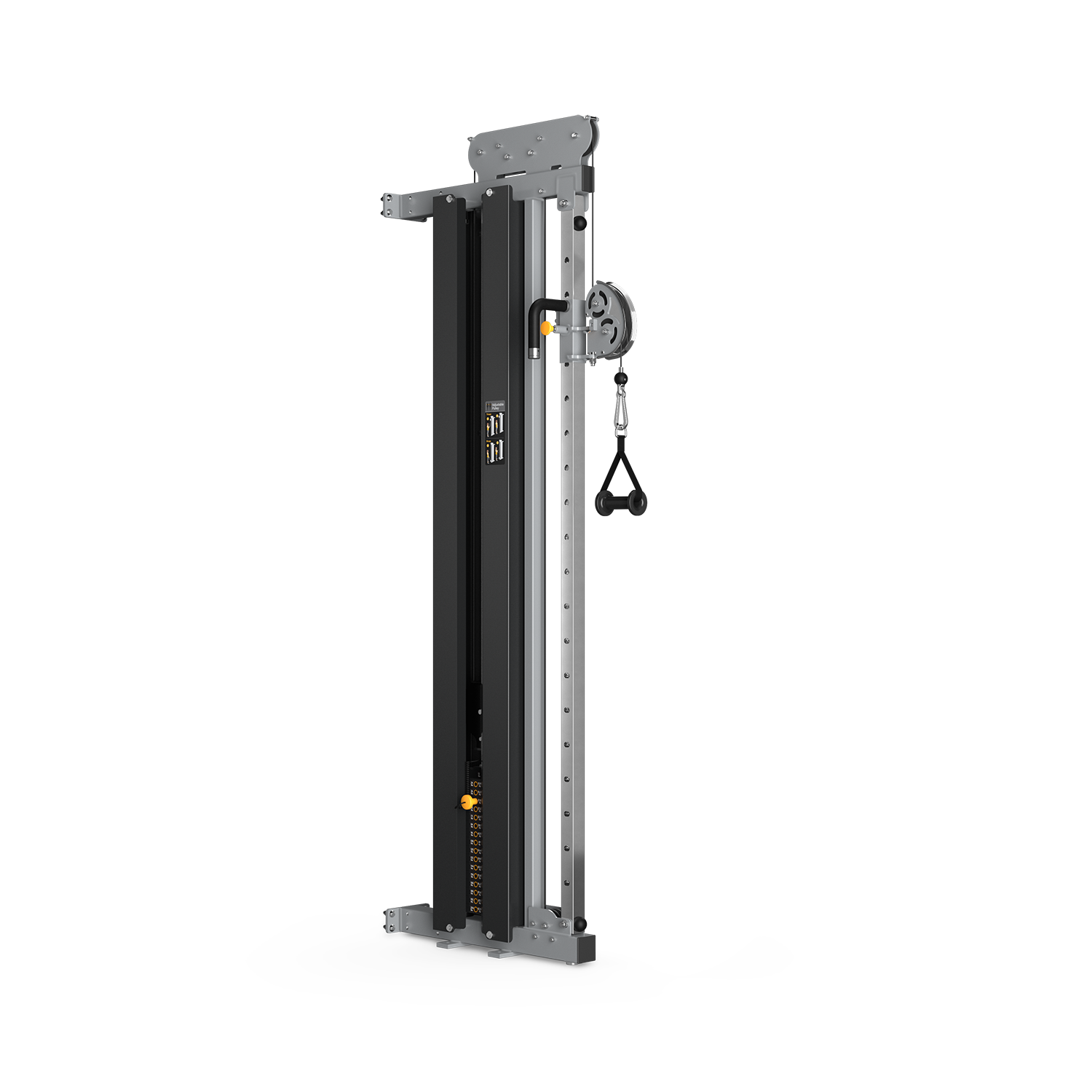

Matrix Fitness - MG-S23-02 - Adjustable Pulley - MGPPR223 - 2019 - 2019

Repair Parts for Matrix Fitness MG-S23-02 - Adjustable Pulley - MGPPR223 - 2019 MGPR223

Brand: Matrix Fitness

Category: Single Station

Type: Strength Systems

Model Name: MG-S23-02 - Adjustable Pulley - MGPPR223 - 2019

Serial Number Prefix: MGPR223

Version: 2019

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
HALF-ROUND RUBBER BUMPER 713810 1000308421 B12 HALF-ROUND RUBBER BUMPER No Model Compatibility List $29.99 / Each

1
SPRING PIN ASSEMBLY 713811 1000308424 B7 SPRING PIN ASSEMBLY No Model Compatibility List $45.60 / Each

1
3/8 713814 1000308428 Z34 3/8" NUT No Model Compatibility List $1.43 / Each

1
SCREW;HH;.375-16 x 1.50;ZN; 713819 1000308437 Z37 SCREW;HH;.375-16 x 1.50;ZN; No Model Compatibility List $2.37 / Each

1
713824 1000308442 B11 SCREW;SET; .3125-18 X 1.00;SS No Model Compatibility List $1.43 / Each

1
WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06 713826 1000308444 Z9 WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06 No Model Compatibility List $1.43 / Each

1
713827 1000308445 Z24 5/16" - 3" BOLT No Model Compatibility List $2.18 / Each

1
WASHER;FLT;USS;Diam.0.281XDiam.0.734X.06 713828 1000308446 Z23 WASHER;FLT;USS;Diam.0.281XDiam.0.734X.06 No Model Compatibility List $1.43 / Each

1
713831 1000308449 Z32 NUT;NLK;.313-18;ZN; No Model Compatibility List $1.33 / Each

1
713840 1000308469 B13 CAP, END TUBE, 25.4MM ID No Model Compatibility List $11.80 / Each

1
Lable, hand pinch 713842 1000308473 V45 Lable, hand pinch No Model Compatibility List $3.02 / Each

1
Screw Set;M6x1.0Px5L;BP;POT 713935 1000309773 Z16 Screw Set;M6x1.0Px5L;BP;POT No Model Compatibility List $3.28 / Each

1
2 713937 1000309841 B42 2" X 3" END CAP No Model Compatibility List $7.28 / Each

1
1/2 713939 1000309846 Spotter Stand 1 1/2" JAM NUT No Model Compatibility List $1.43 / Each

1
WASHER, .50 OD X .38 ID X .05 713940 1000309847 Z66 WASHER, .50 OD X .38 ID X .05 No Model Compatibility List $1.43 / Each

1
713943 1000309851 WS Pulley 4 SCREW;HH;.375-16 x 2.25;ZN; No Model Compatibility List $2.18 / Each

1
NUT;NLK;.250-20;ZN; 713946 1000309854 Z35 NUT;NLK;.250-20;ZN; No Model Compatibility List $1.43 / Each

1
3/4 713950 1000309858 Z52 3/4" FLAT WASHER No Model Compatibility List $1.33 / Each

1
713953 1000309871 DP 9 SCREW;HH;.375-16 x 2.00;ZN; No Model Compatibility List $2.18 / Each

1
713996 1000310095 B27 1/2" OD x 1/4" ID Plastic Spacer - 1" No Model Compatibility List $1.33 / Each

1
713997 1000310096 DP 14 1/4" SPLIT LOCK WASHER No Model Compatibility List $1.33 / Each

1
713998 1000310097 Z42 SCREW;HH;.250-20 x 2.00;ZN; No Model Compatibility List $1.33 / Each

1
714000 1000310102 Z40 SCREW;HH;.250-20 x 0.50;ZN; No Model Compatibility List $1.33 / Each

1
SCREW;HH;.250-20 x 0.75;ZN; 714016 1000310219 Z13 SCREW;HH;.250-20 x 0.75;ZN; No Model Compatibility List $1.33 / Each

1
714021 1000310285 Z12 SCREW;HH;.375-16 x 2.75;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
714025 1000310301 Z30 SCREW;HH;.500-13 x 4.50;ZN; No Model Compatibility List $5.04 / Each

1
ROUND WEIGHT STACK BUMPER 714040 1000310339 B46 ROUND WEIGHT STACK BUMPER No Model Compatibility List $5.90 / Each

1
714041 1000310343 WS 3 Orange SELECTOR PIN w/ 6 1/2" CORD No Model Compatibility List $25.53 / Each

1
714092 1000312060 Z19 SCREW;HH;.250-20 x 2.50;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
714093 1000312062 Z25 5/16" x 3/4" BOLT No Model Compatibility List $1.33 / Each

1
714097 1000312070 Z30 SCREW;HH;.313-18 x 2.50;ZN; No Model Compatibility List $2.18 / Each

1
SCREW;HH;.500-13 x 1.75;ZN; 714105 1000312091 Z6 SCREW;HH;.500-13 x 1.75;ZN; No Model Compatibility List $3.28 / Each

1
714107 1000312095 Z44 SCREW;HH;.500-13 x 3.25;ZN; No Model Compatibility List $5.04 / Each

1
BHS 5/16 714118 1000312127 B7 BHS 5/16" - 1" No Model Compatibility List $5.46 / Each

1
714126 1000312159 Z55 1/2 - 13 NUT No Model Compatibility List $1.33 / Each

1
NUT;NLK;.500-13;ZN;TALL; 714127 1000312161 Z33 NUT;NLK;.500-13;ZN;TALL; No Model Compatibility List $1.43 / Each

1
1/2 714176 1000312298 Z15 1/2" BRASS BUSHING No Model Compatibility List $5.04 / Each

1
714240 1000312817 WS 6 5/16" SPLIT LOCK WASHER No Model Compatibility List $1.33 / Each

1
714246 1000312876 Z37 SCREW;HH;.375-16 x 3.25;ZN; No Model Compatibility List $3.74 / Each

1
714249 1000312880 Weight Stack 8 CAST IRON No Model Compatibility List $104.75 / Each

1
714253 1000312893 B39 3/8" SAFETY CLIP No Model Compatibility List $16.82 / Each

1
HANDLE W-STRAP D-RING (SHORT) 714266 1000312976 B36 HANDLE W-STRAP D-RING (SHORT) No Model Compatibility List $25.98 / Each

1
714465 1000315136 V21 6000 STACK DECALS, MEDIUM No Model Compatibility List $30.39 / Each

1
714478 1000315296 12 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $3.35 / Each

1
714672 1000316932 B11 1" Grip;Order by 1" increments No Model Compatibility List $0.00 / Each
Out Of Stock 		1
714764 1000318101 Kit 1 HAND GRIP 1.0" 0-12"LONG No Model Compatibility List $45.60 / Each

1
716313 1000335318 B82 CLAMP - COVER No Model Compatibility List $0.00 / Each
Out Of Stock 		1
717323 1000344063 B40 End Cap;Plastic;3" x 3"; No Model Compatibility List $6.73 / Each

1
717377 1000344562 V47 Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame No Model Compatibility List $15.18 / Each

1
717500 1000345600 B21 5/8# Single Split Collar No Model Compatibility List $10.92 / Each

1
717779 1000347532 B16 4.5" Pulley for Rope / Cable No Model Compatibility List $18.56 / Each

1
718939 1000354629 B3 5/16" HOLE PLUG; NYLON No Model Compatibility List $0.00 / Each
Out Of Stock 		1
719338 1000359953 V25 Warning Label;Anti Falling Down;MS24B;;; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
719682 1000363760 V51 Warning Label;Frame;;;PC;;English; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
719683 1000363766 V02 Warning Label;Frame;;;PC;;French;GM40 No Model Compatibility List $5.04 / Each

1
719705 1000364025 V31 Warning Label;Anti Falling Down;MS24B;;; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
719707 1000364027 V36 Warning Label;Anti Falling Down;MS24B;;; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
719708 1000364028 V41 Warning Label;Anti Falling Down;MS24B;;; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
719711 1000364031 V46 Warning Label;Anti Falling Down;MS24B;;; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
719712 1000364032 V51 Warning Label;Anti Falling Down;MS24B;;; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
720237 1000369933 B12 Tube Collar;25.4MM; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721552 1000384006 V13 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721921 1000386597 Pulley 2 HCS 1/4"-20 x 3.00" Zinc No Model Compatibility List $0.00 / Each
Out Of Stock 		1
723046 1000402697 WS Pulley 6 Pulley No Model Compatibility List $0.00 / Each
Out Of Stock 		1
723047 1000402698 WS Pulley Set WS Pulley Set;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		1
723166 1000404452 B12 Half Round Rubber Bumper;Hard; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
723853 1000412711 DP V1 Decal;Warning Pull Pin No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Warning Label 730023 1000421609 DP V27 Warning Label No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Cable Assm; MG-S23 730414 1000437532 AB7 Cable Assm; MG-S23 No Model Compatibility List $265.18 / Each

1
WELDMNT;MG-S23;MAIN FRAME 730415 1000437513 AB1 WELDMNT;MG-S23;MAIN FRAME No Model Compatibility List $0.00 / Each
Out Of Stock 		1
2 730416 1000437510 B8 2" X 2" TUBE; 85.25"CHROME No Model Compatibility List $0.00 / Each
Out Of Stock 		1
WEIGHT GUARD;MG-S21 FRONT 730417 1000437341 B9 WEIGHT GUARD;MG-S21 FRONT No Model Compatibility List $0.00 / Each
Out Of Stock 		1
WEIGHT GUARD;MG-S21;BACK 730418 1000437340 B10 WEIGHT GUARD;MG-S21;BACK No Model Compatibility List $0.00 / Each
Out Of Stock 		1
5/8 730419 1000437511 B11 5/8" GUIDE ROD;88 3/8" No Model Compatibility List $0.00 / Each
Out Of Stock 		1
LEVELER 730420 1000445900 B19 LEVELER No Model Compatibility List $0.00 / Each
Out Of Stock 		1
1 730421 1000437512 B20 1"OD X 5/8"ID BLACK NYLON;4.0" No Model Compatibility List $0.00 / Each
Out Of Stock 		1
SPACER;0.75 730422 1000437336 B24 SPACER;0.75"OD X 0.38"ID X 2.0"NYLON No Model Compatibility List $0.00 / Each
Out Of Stock 		1
NYLON SPACER;3/4 730423 1000437337 B25 NYLON SPACER;3/4"OD X .380ID No Model Compatibility List $0.00 / Each
Out Of Stock 		1
PULLEY; 90MM 730424 1000437531 B30 PULLEY; 90MM No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Spacer;.630 730425 1000458982 B51 Spacer;.630"OD x .378"ID x .5;Nylon; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Decal, Warning Selectorized, German 730426 1000363757 V16 Decal, Warning Selectorized, German No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Decal, Warning Selectorized, Italian 730427 1000363758 V16 Decal, Warning Selectorized, Italian No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Decal, Warning Selectorized, Portuguese 730428 1000363764 V16 Decal, Warning Selectorized, Portuguese No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Decal, Warning Selectorized, Japanese 730429 1000363759 V16 Decal, Warning Selectorized, Japanese No Model Compatibility List $0.00 / Each
Out Of Stock 		1
PLACARD;MG-S23 ADJ PULLEY 730430 1000444058 V55 PLACARD;MG-S23 ADJ PULLEY No Model Compatibility List $0.00 / Each
Out Of Stock 		1
SCREW;HH;.250-20 x 3.50;ZN; 730431 1000445961 Z38 SCREW;HH;.250-20 x 3.50;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
NUT;CLIP ON;250-20 .025-.15 PANEL 730432 1000437534 Z57 NUT;CLIP ON;250-20 .025-.15 PANEL No Model Compatibility List $0.00 / Each
Out Of Stock 		1
WEIGHT STACK;12# 16 CR125 730433 1000437519 Weight Stack Set WEIGHT STACK;12# 16 CR125 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Top Plate;Sub Assy; 730434 1000443783 Weight Stack 1 Top Plate;Sub Assy; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
CENTERSTICK;17 1/4 730435 1000445962 Weight Stack 7 CENTERSTICK;17 1/4";CR125 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Weldment, 6 730436 1000463081 Single Pulley 1 Weldment, 6" Formed Pulley Top No Model Compatibility List $0.00 / Each
Out Of Stock 		1
SLIDE ASSEMBLY;S23 730437 1000437520 Slide Set SLIDE ASSEMBLY;S23 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
WELDMENT;SLIDE MG-S23 730438 1000443328 Slide Set AB1 WELDMENT;SLIDE MG-S23 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
HIGH-LOW PULLEY 730439 1000437521 High-Low Pulley Set HIGH-LOW PULLEY No Model Compatibility List $0.00 / Each
Out Of Stock 		1
WELDMENT; HIGH LOW PULLEY 730440 1000437522 High-Low Pulley AB1 WELDMENT; HIGH LOW PULLEY No Model Compatibility List $0.00 / Each
Out Of Stock 		1
FIXING PLATE;PULLEY SUPT PLATE 730441 1000437526 High-Low Pulley B2 FIXING PLATE;PULLEY SUPT PLATE No Model Compatibility List $0.00 / Each
Out Of Stock 		1
FIXING PLATE;PULLEY SUPT PLATE 730442 1000437525 High-Low Pulley B3 FIXING PLATE;PULLEY SUPT PLATE No Model Compatibility List $0.00 / Each
Out Of Stock 		1
SWIVEL AXLE 730443 1000437529 High-Low Pulley B6 SWIVEL AXLE No Model Compatibility List $0.00 / Each
Out Of Stock 		1
RUBBER PLATE 730444 1000437530 High-Low Pulley B7 RUBBER PLATE No Model Compatibility List $0.00 / Each
Out Of Stock 		1
SCREW;BH;HS M6X1X12 730445 1000437527 High-Low Pulley Z11 SCREW;BH;HS M6X1X12 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
SCREW;BH;HS M6X1X20 730446 1000437528 High-Low Pulley Z12 SCREW;BH;HS M6X1X20 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
