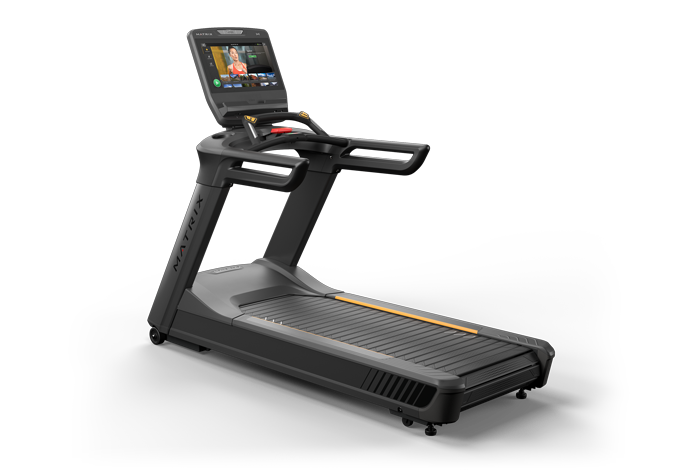

Matrix Fitness - Performance Plus Treadmill (T-PP-F) - TM543 - 2020 - 2020-2030

Repair Parts for Matrix Fitness Performance Plus Treadmill (T-PP-F) - TM543 - 2020 TM543, TM543B, TM543D

Brand: Matrix Fitness

Category: Non Folding

Type: Non Folding Treadmills

Model Name: Performance Plus Treadmill (T-PP-F) - TM543 - 2020

Serial Number Prefix: TM543, TM543B, TM543D

Version: 2020-2030

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Power Entry Plate Switch Breaker Inlet 1000019 1000211092 Power Entry Plate Switch Breaker Inlet Yes Model Compatibility List $34.99 / Each
Cap;C-SAFE;NYION 6/6;BL;T1x; 730127 0000089860 P27 Cap;C-SAFE;NYION 6/6;BL;T1x; No Model Compatibility List $6.48 / Each

Power board;DC;;;12.6V/3.3A;HBPB;;;AC100 730138 1000433184 P76 Power board;DC;;;12.6V/3.3A;HBPB;;;AC100 No Model Compatibility List $53.28 / Each

GROMMET;NYLON;WHT 730284 001597-A C40 GROMMET;NYLON;WHT No Model Compatibility List $121.38 / Each

Washer;Flat;10.2X20.0X2.0T;Black Zinc 730372 020477-00 H37 Washer;Flat;10.2X20.0X2.0T;Black Zinc No Model Compatibility List $0.00 / Each
Out Of Stock
Washer;Flat;10.5X18.0X2.6T 730374 020487-A S65 Washer;Flat;10.5X18.0X2.6T No Model Compatibility List $0.00 / Each
Out Of Stock
Quick Key;;left up;ABS/PA746;137C/80395; 730391 1000433332 N45 Quick Key;;left up;ABS/PA746;137C/80395; No Model Compatibility List $1.28 / Each

Quick Key;;right up;ABS/PA746;137C/80395 730392 1000433333 N46 Quick Key;;right up;ABS/PA746;137C/80395 No Model Compatibility List $1.28 / Each

Earphone board;;;U138A3/H001;;;EP621; 730644 1000348689 W81 Earphone board;;;U138A3/H001;;;EP621; No Model Compatibility List $37.68 / Each

Washer;Senated;M5.3X10X0.6;Zinc Plate 730751 0000082734 P59 Washer;Senated;M5.3X10X0.6;Zinc Plate No Model Compatibility List $1.38 / Each

Screw;BH;M3x0.5Px6L;MT;PH;CST;BZN;BP 730772 0000092900 G53 Screw;BH;M3x0.5Px6L;MT;PH;CST;BZN;BP No Model Compatibility List $1.02 / Each

Tape;Dual Sided;20x30x3t;TM501; 730776 0000089111 N103 Tape;Dual Sided;20x30x3t;TM501; No Model Compatibility List $0.08 / Each

Safety Switch;R13-69;TM501; 730790 0000084630 T02 Safety Switch;R13-69;TM501; No Model Compatibility List $14.28 / Each

Screw;Phillip;BH;Tapped;4x8L;Zn-BL; 730792 0000093244 T58 Screw;Phillip;BH;Tapped;4x8L;Zn-BL; No Model Compatibility List $1.62 / Each

Washer;FLT;8.2X16.0X2.0T;SPHC ;CHM; 730794 0000086571 Z14 Washer;FLT;8.2X16.0X2.0T;SPHC ;CHM; No Model Compatibility List $1.02 / Each

NUT;NLK;M5X0.8P;SS41;BAN;; 730878 0000086251 Seat Adj 003 NUT;NLK;M5X0.8P;SS41;BAN;; No Model Compatibility List $0.00 / Each
Out Of Stock
Motor Cover Set;;up;;TM538; 730940 1000433957 10 Motor Cover Set;;up;;TM538; No Model Compatibility List $102.68 / Each

Pulse Sensor Set;Quickly Key;left;;TM538 730943 1000437154 20 Pulse Sensor Set;Quickly Key;left;;TM538 No Model Compatibility List $16.88 / Each

Pulse Sensor Set;Quickly Key;right;;TM53 730945 1000437157 22 Pulse Sensor Set;Quickly Key;right;;TM53 No Model Compatibility List $16.88 / Each

Handlebar Set;;;;TM538; 730946 1000433966 4 Handlebar Set;;;;TM538; No Model Compatibility List $556.38 / Each

Overlay Set;Start Quick;;English;TM538;; 730947 1000443081 6 Overlay Set;Start Quick;;English;TM538;; No Model Compatibility List $77.98 / Each

Safety Switch Set;console;;;TM538;; 730948 1000454400 8 Safety Switch Set;console;;;TM538;; No Model Compatibility List $63.68 / Each

Safety Key Set;;;;TM538;; 730949 1000454402 9 Safety Key Set;;;;TM538;; No Model Compatibility List $0.00 / Each
Out Of Stock
Console Mast Set;;R;painting;202020;Grap 730950 1000447280 AC1 Console Mast Set;;R;painting;202020;Grap No Model Compatibility List $427.68 / Each

Console Mast Set;;L;painting;202020;Grap 730951 1000447277 AC2 Console Mast Set;;L;painting;202020;Grap No Model Compatibility List $427.68 / Each

Overlay Set;Start Quick;;English;TM538;; 730952 1000433968 AG10 Overlay Set;Start Quick;;English;TM538;; No Model Compatibility List $46.78 / Each

Console Base Frame Set;;;painting;;Flat 730954 1000458966 AN1 Console Base Frame Set;;;painting;;Flat No Model Compatibility List $309.38 / Each

Console Base Frame Set;;;painting;;Flat 730955 1000465977 AN1 Console Base Frame Set;;;painting;;Flat No Model Compatibility List $327.58 / Each

Safety Switch Set;BL Rope;TM501-1US;TM50 730956 1000231246 AN13 Safety Switch Set;BL Rope;TM501-1US;TM50 No Model Compatibility List $28.06 / Each

cover-Extrawork;console;up;Print;;TM538; 730957 1000441057 AQ15 cover-Extrawork;console;up;Print;;TM538; No Model Compatibility List $44.18 / Each

Fixing Base;Winding;;ABS/PA746;slate bla 730959 1000437152 B37 Fixing Base;Winding;;ABS/PA746;slate bla No Model Compatibility List $2.58 / Each

Mounting Plate;Console Mast Rear;B;SPHC; 730965 0000084537 C04 Mounting Plate;Console Mast Rear;B;SPHC; No Model Compatibility List $6.48 / Each

Sensor Grip;;left up;ABS/PA746+SUS304;Bl 730966 1000433690 G21 Sensor Grip;;left up;ABS/PA746+SUS304;Bl No Model Compatibility List $27.48 / Each

Sensor Grip;;right up;ABS/PA746+SUS304;B 730967 1000433691 G22 Sensor Grip;;right up;ABS/PA746+SUS304;B No Model Compatibility List $5.18 / Each

Sensor Grip;;left down;ABS/PA746+SUS304; 730968 1000433692 G23 Sensor Grip;;left down;ABS/PA746+SUS304; No Model Compatibility List $3.88 / Each

Sensor Grip;;right down;ABS/PA746+SUS304 730969 1000433693 G24 Sensor Grip;;right down;ABS/PA746+SUS304 No Model Compatibility List $3.88 / Each

Quickly Key Wire;;Right;;;;;350+320(TKP, 730970 1000433516 G31 Quickly Key Wire;;Right;;;;;350+320(TKP, No Model Compatibility List $7.78 / Each

Quickly Key Wire;;Left;;;;;350+320(TKP,H 730971 1000433517 G32 Quickly Key Wire;;Left;;;;;350+320(TKP,H No Model Compatibility List $7.78 / Each

Board Wire;;;;;;;450(TKP,H20J2-09+TKP,H6 730972 1000433518 G33 Board Wire;;;;;;;450(TKP,H20J2-09+TKP,H6 No Model Compatibility List $7.78 / Each

Screw;Socket Head;M3x0.5Px10L;;Hex Socke 730973 1000444732 G44 Screw;Socket Head;M3x0.5Px10L;;Hex Socke No Model Compatibility List $1.28 / Each

Screw;Button Head;M3x0.5Px25L;;Phillip;S 730974 1000400109 G45 Screw;Button Head;M3x0.5Px25L;;Phillip;S No Model Compatibility List $1.02 / Each

730984 0000095368 M14 Screw;SH;M10X1.5PX25L;;HS;;BZN;; Yes Model Compatibility List $0.78 / Each

Guard;Fan;PG-80;BLACK; 730985 0000086524 M21 Guard;Fan;PG-80;BLACK; No Model Compatibility List $6.48 / Each

Fixing Rack;Safety Switch;;SPHC;T2.0;BED 730987 1000436965 N21 Fixing Rack;Safety Switch;;SPHC;T2.0;BED No Model Compatibility List $3.88 / Each

Key;Quick;L;2Keys;TM538; 730988 1000437144 N25 Key;Quick;L;2Keys;TM538; No Model Compatibility List $10.38 / Each

Key;Quick;R;2Keys;TM538; 730989 1000437145 N26 Key;Quick;R;2Keys;TM538; No Model Compatibility List $10.38 / Each

Kettle Rack;;left;TPR;BL/Black C;;TM538; 730990 1000433679 N36 Kettle Rack;;left;TPR;BL/Black C;;TM538; No Model Compatibility List $9.08 / Each

Kettle Rack;;right;TPR;BL/Black C;;TM538 730991 1000433680 N37 Kettle Rack;;right;TPR;BL/Black C;;TM538 No Model Compatibility List $9.08 / Each

Handlebar-Extrawork;;left;muffle;PU/Blac 730992 1000449648 N39 Handlebar-Extrawork;;left;muffle;PU/Blac No Model Compatibility List $248.28 / Each

Arm Rest Set-Exreawork;;left;muffle;PU/B 730993 1000458873 N39 Arm Rest Set-Exreawork;;left;muffle;PU/B No Model Compatibility List $101.38 / Each

Handlebar-Extrawork;;right;muffle;PU/Bla 730994 1000449649 N40 Handlebar-Extrawork;;right;muffle;PU/Bla No Model Compatibility List $248.28 / Each

Arm Rest Set-Exreawork;;right;muffle;PU/ 730995 1000458878 N40 Arm Rest Set-Exreawork;;right;muffle;PU/ No Model Compatibility List $100.08 / Each

TV Signal Wire;;;;;;;2100(FM-0086-NBG7x2 730996 1000446804 N41 TV Signal Wire;;;;;;;2100(FM-0086-NBG7x2 No Model Compatibility List $11.68 / Each

Network Signal Wire;;;;;;;2100(3203A4242 730998 1000433511 N43 Network Signal Wire;;;;;;;2100(3203A4242 No Model Compatibility List $29.88 / Each

Network Signal Wire;;;;;;;2100(COMMSCOPE 730999 1000455169 N43 Network Signal Wire;;;;;;;2100(COMMSCOPE No Model Compatibility List $0.00 / Each
Out Of Stock
TV Power Wire;;;;;;;1950(SCD-554DCS103BB 731000 1000433512 N44 TV Power Wire;;;;;;;1950(SCD-554DCS103BB No Model Compatibility List $15.58 / Each

CTRL Keypad Ground Wire;;;;;;;1900(KST,M 731001 1000433513 N45 CTRL Keypad Ground Wire;;;;;;;1900(KST,M No Model Compatibility List $6.48 / Each

Console connected wire;;;;;;;1050x6(PAP- 731002 1000433515 N47 Console connected wire;;;;;;;1050x6(PAP- No Model Compatibility List $37.68 / Each

Power Wire;;;;;;;2100(TKP,H6630R1-1x5)x2 731003 1000435177 N48 Power Wire;;;;;;;2100(TKP,H6630R1-1x5)x2 No Model Compatibility List $14.28 / Each

Quick Key Base;;right down;ABS PA746;BL/ 731004 1000437159 N50 Quick Key Base;;right down;ABS PA746;BL/ No Model Compatibility List $1.28 / Each

Quick Key;;Left-Inner;PC 510;137C/80395; 731005 1000437155 N57 Quick Key;;Left-Inner;PC 510;137C/80395; No Model Compatibility List $3.88 / Each

Quick Key;;Right-Inner;PC 510;137C/80395 731006 1000437158 N58 Quick Key;;Right-Inner;PC 510;137C/80395 No Model Compatibility List $2.58 / Each

Quick Key Base;;left down;ABS PA746;BL/B 731007 1000437156 N59 Quick Key Base;;left down;ABS PA746;BL/B No Model Compatibility List $1.28 / Each

Safety Key Cover;;down;ABS;Q510-7-2 Red; 731009 1000444480 N80 Safety Key Cover;;down;ABS;Q510-7-2 Red; No Model Compatibility List $2.58 / Each

WRENCH;Hex L-Type;M10x245L;;; 731010 1000443691 Not Shown WRENCH;Hex L-Type;M10x245L;;; No Model Compatibility List $0.00 / Each
Out Of Stock
0.55mm 3M Clear Shim for TM538 T-PS 731014 ZMS4011597 Not Shown 0.55mm 3M Clear Shim for TM538 T-PS No Model Compatibility List $1.02 / Each

PowerCord;15ft;5-20P;C19;12AWG; 731015 ZMS4011061 Not Shown PowerCord;15ft;5-20P;C19;12AWG; No Model Compatibility List $233.98 / Each

Hardware Set;;;For Service;TM538;; 731016 1000438207 Not Shown Hardware Set;;;For Service;TM538;; No Model Compatibility List $36.38 / Each

Connector;;;8PIN;;KINSUN 3101B10300;Yell 731017 1000454709 Not Shown Connector;;;8PIN;;KINSUN 3101B10300;Yell No Model Compatibility List $16.88 / Each

Fixing Plate;Power Cord;B;SPCC;1.6t;BED; 731019 1000433639 P05 Fixing Plate;Power Cord;B;SPCC;1.6t;BED; No Model Compatibility List $2.58 / Each

Ground Wire;;;;;100(KST,FDFNYD2-250-1+WS 731025 1000437146 P19 Ground Wire;;;;;100(KST,FDFNYD2-250-1+WS No Model Compatibility List $0.00 / Each
Out Of Stock
Cover;Console;down;ABS/PA746;slate black 731036 1000433683 Q16 Cover;Console;down;ABS/PA746;slate black No Model Compatibility List $24.68 / Each

Cover;Console;back;ABS/PA746;Gray/80435; 731037 1000433689 Q19 Cover;Console;back;ABS/PA746;Gray/80435; No Model Compatibility List $11.68 / Each

Plastic Pad;Motor Cover;;NBR;Black Orang 731038 1000433677 Q31 Plastic Pad;Motor Cover;;NBR;Black Orang No Model Compatibility List $1.28 / Each

Elastomer;;;EPDM;;20x20x3t;TM538;wrench; 731039 1000452124 Q32 Elastomer;;;EPDM;;20x20x3t;TM538;wrench; No Model Compatibility List $1.28 / Each

The entire line of Block;Power Wire;;PP; 731040 1000437053 Q33 The entire line of Block;Power Wire;;PP; No Model Compatibility List $2.58 / Each

Plastic Plate;;;;WHITE;NYLON;WS-5LT-N2W; 731041 1000437163 Q35 Plastic Plate;;;;WHITE;NYLON;WS-5LT-N2W; No Model Compatibility List $1.28 / Each

Safety Key Cover;;down;ABS/PA746;Gray/80 731044 1000433695 T11 Safety Key Cover;;down;ABS/PA746;Gray/80 No Model Compatibility List $3.88 / Each

Label Plate;Motor Cover;;AL;;;TM742-1US/ 731045 1000446653 V05 Label Plate;Motor Cover;;AL;;;TM742-1US/ No Model Compatibility List $11.68 / Each

Screw;Button Head;M5x0.8Px10L;;Phillip;; 731046 0000082608 Z15 Screw;Button Head;M5x0.8Px10L;;Phillip;; No Model Compatibility List $0.00 / Each
Out Of Stock
Bushing;;;Diam.18mmxDiam.14mmx9mm;TM538; 731047 1000437133 Z20 Bushing;;;Diam.18mmxDiam.14mmx9mm;TM538; No Model Compatibility List $2.58 / Each

Handlebar Set-Exreawork;;;muffle;;TM538; 731050 1000433706 AG2 Handlebar Set-Exreawork;;;muffle;;TM538; No Model Compatibility List $0.00 / Each
Out Of Stock
Console Fixed Base Set;;;painting;;Flat 731051 1000433964 AN4 Console Fixed Base Set;;;painting;;Flat No Model Compatibility List $0.00 / Each
Out Of Stock
Clamp;;ColorPantone Q510;;;;0 731055 1000399413 N67 Clamp;;ColorPantone Q510;;;;0 No Model Compatibility List $0.00 / Each
Out Of Stock
Fixing Plate;Socket;;SPCC;1.6t;BED;TM538 731056 1000433637 P03 Fixing Plate;Socket;;SPCC;1.6t;BED;TM538 No Model Compatibility List $0.00 / Each
Out Of Stock
Motor Cover Set;;up;w/o Sticker;TM538; 731059 1000433958 Q11 Motor Cover Set;;up;w/o Sticker;TM538; No Model Compatibility List $0.00 / Each
Out Of Stock
Cover;Quick Key;up;ABS/PA746;slate black 731060 1000444517 T09 Cover;Quick Key;up;ABS/PA746;slate black No Model Compatibility List $0.00 / Each
Out Of Stock
Safety Key Cover-Extrawork;;;;PRINTING A 731061 1000454401 AN11 Safety Key Cover-Extrawork;;;;PRINTING A No Model Compatibility List $0.00 / Each
Out Of Stock
Safety Key Set;;;;TM538;; 731062 1000454403 AN18 Safety Key Set;;;;TM538;; No Model Compatibility List $0.00 / Each
Out Of Stock
Wire Buckle;TM06 731065 001676-00 N68 Wire Buckle;TM06 No Model Compatibility List $0.00 / Each
Out Of Stock
Key ring;19;CHM;Outside Purchase; D/C, NO REPL: Part will show as orderable until stock is depleted. 731066 1000231248 N69 Key ring;19;CHM;Outside Purchase; D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $0.00 / Each
Out Of Stock
POWERCORD SET;US;1US;TM507D-1US; 731067 1000229194 P33 POWERCORD SET;US;1US;TM507D-1US; No Model Compatibility List $0.00 / Each
Out Of Stock
Safety Switch Cable;;;;;;;600(TKP,H6630R 731071 1000433520 T03 Safety Switch Cable;;;;;;;600(TKP,H6630R No Model Compatibility List $0.00 / Each
Out Of Stock
Console Mast Set;;R;painting;;Black Matt 731149 1000441841 AC1 Console Mast Set;;R;painting;;Black Matt No Model Compatibility List $427.68 / Each

Console Mast Set;;L;painting;;Black Matt 731150 1000441839 AC2 Console Mast Set;;L;painting;;Black Matt No Model Compatibility List $427.68 / Each

Nut;Nylon;M12x1.75P 731970 004927-00 B44 Nut;Nylon;M12x1.75P No Model Compatibility List $0.00 / Each
Out Of Stock
Motor Set;;;For Matrix;TM543;; 732260 1000435327 2 Motor Set;;;For Matrix;TM543;; No Model Compatibility List $1504.08 / Each

Power Switch Set;;;;T-PP-F;;TM543; 732261 1000435338 21 Power Switch Set;;;;T-PP-F;;TM543; No Model Compatibility List $68.88 / Each

Console Mast Set;;R;painting;BP-920S;;TM 732262 1000433972 AC1 Console Mast Set;;R;painting;BP-920S;;TM No Model Compatibility List $427.68 / Each

Console Mast Set;;L;painting;BP-920S;;TM 732263 1000433970 AC2 Console Mast Set;;L;painting;BP-920S;;TM No Model Compatibility List $427.68 / Each

Rack Set;Elevator;;painting;;Flat Black; 732264 1000436074 AH1 Rack Set;Elevator;;painting;;Flat Black; No Model Compatibility List $185.88 / Each

Moving Wheel Set;;left;;TM543;; 732265 1000436217 AL11 Moving Wheel Set;;left;;TM543;; No Model Compatibility List $122.18 / Each

Moving Wheel Set;;right;;TM543;; 732266 1000436221 AL12 Moving Wheel Set;;right;;TM543;; No Model Compatibility List $122.18 / Each

Roller Set;Rear;;;TM543 732267 1000436106 AR1 Roller Set;Rear;;;TM543 No Model Compatibility List $239.18 / Each

Treadmill Belt-Extrawork;;Left;Print;;T 732268 1000448655 AR10 Treadmill Belt-Extrawork;;Left;Print;;T No Model Compatibility List $59.78 / Each

Roller Set;Front;;;TM543 732269 1000436111 AR2 Roller Set;Front;;;TM543 No Model Compatibility List $322.38 / Each

Connect Base Set;;R;painting;;Flat Black 732270 1000439651 AR4 Connect Base Set;;R;painting;;Flat Black No Model Compatibility List $70.18 / Each

Treadmill Belt-Extrawork;;;No Mark;;TM543 732271 1000436132 AR8 Treadmill Belt-Extrawork;;;No Mark;;TM543 No Model Compatibility List $53.28 / Each

Treadmill Belt-Extrawork;;Right;Print;;TM 732272 1000448654 AR9 Treadmill Belt-Extrawork;;Right;Print;;TM No Model Compatibility List $59.78 / Each

Service Cover;;;painting;;Flat Black;TM5 732273 1000453115 B46 Service Cover;;;painting;;Flat Black;TM5 No Model Compatibility List $81.88 / Each

Fixing Pin;;B;SCM440;Anti-rust oil coati 732274 1000436066 H08 Fixing Pin;;B;SCM440;Anti-rust oil coati No Model Compatibility List $9.08 / Each

Fixing Pin;;A;SCM440;NKL;TM543;; 732275 1000436083 H11 Fixing Pin;;A;SCM440;NKL;TM543;; No Model Compatibility List $7.78 / Each

Adjustable Pin;;;;;TM543;SSP-12; 732276 1000439065 H13 Adjustable Pin;;;;;TM543;SSP-12; No Model Compatibility List $1.28 / Each

Adjustable Pin;;;;;TM538;; 732277 1000433664 H15 Adjustable Pin;;;;;TM538;; No Model Compatibility List $1.28 / Each

Elevator motor Set;;;AC;110V;1650lbs;1/6 732278 1000435330 JM14 Elevator motor Set;;;AC;110V;1650lbs;1/6 No Model Compatibility List $475.78 / Each

Transport Wheel;;;;;202a;Black;TM538; 732279 1000437121 L10 Transport Wheel;;;;;202a;Black;TM538; No Model Compatibility List $12.98 / Each

MCB;;;;;;TM543;110V;JHT022M11C; 732280 1000435334 M03 MCB;;;;;;TM543;110V;JHT022M11C; No Model Compatibility List $1141.38 / Each

Cover;MCB;;ABS/PA765;BL/Black C;;TM543; 732281 1000435335 M20 Cover;MCB;;ABS/PA765;BL/Black C;;TM543; No Model Compatibility List $7.78 / Each

Elastomer;Motor;;NBR;RED;;TM543; 732282 1000441405 M38 Elastomer;Motor;;NBR;RED;;TM543; No Model Compatibility List $12.98 / Each

BOLT BH M4X35 732283 004348-A M53 BOLT BH M4X35 No Model Compatibility List $0.16 / Each

Digital COMM Wire;;;;;;;2350(MOLEX,50-57 732284 1000462045 N42 Digital COMM Wire;;;;;;;2350(MOLEX,50-57 No Model Compatibility List $0.00 / Each
Out Of Stock
Ground Wire;;;;;100(KST,FRFNYD2-156+WST, 732285 1000462451 Not Shown Ground Wire;;;;;100(KST,FRFNYD2-156+WST, No Model Compatibility List $3.88 / Each

Power Resistor;100?;300W;;;;TM543; 732286 1000435336 P02 Power Resistor;100?;300W;;;;TM543; No Model Compatibility List $113.08 / Each

PowerSocket,,100+400,,,,(SS-3B+KST,FDFNY 732287 1000439036 P06 PowerSocket,,100+400,,,,(SS-3B+KST,FDFNY No Model Compatibility List $9.08 / Each

BS Connect Wire;;;;;;450;(KST,FDFNYD5-25 732288 1000439037 P11 BS Connect Wire;;;;;;450;(KST,FDFNYD5-25 No Model Compatibility List $3.88 / Each

Filter Power Wire;;;;;;350;(KST,RVS3-5x2 732289 1000435340 P12 Filter Power Wire;;;;;;350;(KST,RVS3-5x2 No Model Compatibility List $6.48 / Each

Extensionend Wire;;;;;;;Fan;300(TKP,H775 732290 1000442798 P14 Extensionend Wire;;;;;;;Fan;300(TKP,H775 No Model Compatibility List $3.88 / Each

MCB power wire;;;;;;500+500;(TKP,H10M1R- 732291 1000435341 P16 MCB power wire;;;;;;500+500;(TKP,H10M1R- No Model Compatibility List $12.98 / Each

Socket grounding Wire;;;;;;250;(KST,FDFN 732292 1000439038 P21 Socket grounding Wire;;;;;;250;(KST,FDFN No Model Compatibility List $10.38 / Each

Adapter Wire;;;;;;250;(JST,VHR-3N+KST,RV 732293 1000439039 P22 Adapter Wire;;;;;;250;(JST,VHR-3N+KST,RV No Model Compatibility List $3.88 / Each

Side Rail Set;;left up;;TM543; 732294 1000436087 Q01 Side Rail Set;;left up;;TM543; No Model Compatibility List $29.88 / Each

Side Rail Set;;right up;;TM543; 732295 1000436089 Q02 Side Rail Set;;right up;;TM543; No Model Compatibility List $29.88 / Each

Side Rail;;left down;ABS/PA746;Gray/8043 732296 1000436092 Q03 Side Rail;;left down;ABS/PA746;Gray/8043 No Model Compatibility List $15.58 / Each

Side Rail;;right down;ABS/PA746;Gray/804 732297 1000436096 Q04 Side Rail;;right down;ABS/PA746;Gray/804 No Model Compatibility List $15.58 / Each

Accent Plate Set;;left;;;;TM543; 732298 1000447568 Q07 Accent Plate Set;;left;;;;TM543; No Model Compatibility List $269.08 / Each

Accent Plate Set;;right;;;;TM543; 732299 1000447569 Q08 Accent Plate Set;;right;;;;TM543; No Model Compatibility List $269.08 / Each

End Cap;;L;painting;80435;Deep GY;TM543; 732300 1000436098 Q09 End Cap;;L;painting;80435;Deep GY;TM543; No Model Compatibility List $63.68 / Each

End Cap;;R;painting;80435;Deep GY;TM543; 732301 1000436100 Q10 End Cap;;R;painting;80435;Deep GY;TM543; No Model Compatibility List $63.68 / Each

Cover;Motor;front;ABS/PA765A;Gray/80435; 732302 1000436086 Q12 Cover;Motor;front;ABS/PA765A;Gray/80435; No Model Compatibility List $31.18 / Each

Screw;TH;M5x0.8Px10L;;Phillip;;;;; 732303 020363-00 Q26 Screw;TH;M5x0.8Px10L;;Phillip;;;;; No Model Compatibility List $1.28 / Each

End Cap;Consoel Mast;left;ABS/PA757;Gray 732304 1000438584 Q39 End Cap;Consoel Mast;left;ABS/PA757;Gray No Model Compatibility List $5.18 / Each

End Cap;Consoel Mast;right;ABS/PA757;Gra 732305 1000438583 Q40 End Cap;Consoel Mast;right;ABS/PA757;Gra No Model Compatibility List $5.18 / Each

Cover;Incline Motor;;ABS/PA765A;BL/Black 732306 1000439148 Q41 Cover;Incline Motor;;ABS/PA765A;BL/Black No Model Compatibility List $3.88 / Each

Cover;Incline Motor;Inner;ABS/PA765;BL/B 732307 1000447751 Q42 Cover;Incline Motor;Inner;ABS/PA765;BL/B No Model Compatibility List $3.88 / Each

Belt Rail;;;Structural Steel;5.0t;BED;TM 732308 1000436119 R14 Belt Rail;;;Structural Steel;5.0t;BED;TM No Model Compatibility List $37.68 / Each

Spacer;Bearing;A;;Anti-rust oil coating; 732309 1000436125 R16 Spacer;Bearing;A;;Anti-rust oil coating; No Model Compatibility List $1.28 / Each

Spacer;Bearing;B;;Anti-rust oil coating; 732310 1000436127 R17 Spacer;Bearing;B;;Anti-rust oil coating; No Model Compatibility List $1.28 / Each

guide wheel;;;S45C;Zinc;TM543;; 732311 1000436128 R18 guide wheel;;;S45C;Zinc;TM543;; No Model Compatibility List $7.78 / Each

Fixing Plate;;;SPHC;1.4t;WZN;TM543; 732312 1000436131 R20 Fixing Plate;;;SPHC;1.4t;WZN;TM543; No Model Compatibility List $1.28 / Each

Housing;;;S45C;Zinc;TM543;; 732313 1000458202 R24 Housing;;;S45C;Zinc;TM543;; No Model Compatibility List $0.00 / Each
Out Of Stock
Screw;;M10x1.5Px30L;;;SCM435;BED;Shoulde 732314 1000439069 R25 Screw;;M10x1.5Px30L;;;SCM435;BED;Shoulde No Model Compatibility List $2.58 / Each

Bushing;Screw;;S45C;Zinc;TM534; 732315 1000439070 R26 Bushing;Screw;;S45C;Zinc;TM534; No Model Compatibility List $3.88 / Each

Belt;POLY-V;Flexonic;805-PJ10;;Jie Han 732316 1000439160 R30 Belt;POLY-V;Flexonic;805-PJ10;;Jie Han No Model Compatibility List $48.08 / Each

Belt;;;PU;AT10-3600-50-D12;;Jie Han; 732317 1000448261 R33 Belt;;;PU;AT10-3600-50-D12;;Jie Han; No Model Compatibility List $722.78 / Each

Foam;Anti-Vibration;;50x47x3.0t;;TM543 732318 1000439164 R34 Foam;Anti-Vibration;;50x47x3.0t;;TM543 No Model Compatibility List $1.28 / Each

Bearing;Ball;608DDM4MTLY551;Diam.22xDiam 732319 1000450051 R45 Bearing;Ball;608DDM4MTLY551;Diam.22xDiam No Model Compatibility List $3.88 / Each

Screw;Special-Round Head;M8x1.25P-6gx45. 732320 1000443641 R52 Screw;Special-Round Head;M8x1.25P-6gx45. No Model Compatibility List $1.28 / Each

Screw;Socket Head;M10x1.5Px110L;;Hex Soc 732321 1000449762 R53 Screw;Socket Head;M10x1.5Px110L;;Hex Soc No Model Compatibility List $2.58 / Each

Frame Set;;;painting;;Flat Black;TM543; 732322 1000453032 AB10 Frame Set;;;painting;;Flat Black;TM543; No Model Compatibility List $0.00 / Each
Out Of Stock
fixing base-Extrawork;;;Zn Plate;;TM538; 732323 1000443690 AL3 fixing base-Extrawork;;;Zn Plate;;TM538; No Model Compatibility List $0.00 / Each
Out Of Stock
Roller Set;Assembly;back;;TM543;; 732324 1000451696 AR11 Roller Set;Assembly;back;;TM543;; No Model Compatibility List $0.00 / Each
Out Of Stock
Extrawork;Pulley;Plane;Cutting;T5x-02; 732325 0000092592 AR13 Extrawork;Pulley;Plane;Cutting;T5x-02; No Model Compatibility List $0.00 / Each
Out Of Stock
Guide Tape Axle Set;;;;TM543;; 732326 1000436117 AR3 Guide Tape Axle Set;;;;TM543;; No Model Compatibility List $0.00 / Each
Out Of Stock
Transmission system Set;;;;TM543;; 732327 1000436129 AR7 Transmission system Set;;;;TM543;; No Model Compatibility List $0.00 / Each
Out Of Stock
Bearing;Dry;Q2FM-1618-12;F16xF18x12L;;IG 732328 1000433700 H16 Bearing;Dry;Q2FM-1618-12;F16xF18x12L;;IG No Model Compatibility List $0.00 / Each
Out Of Stock
Marking;Motor;TM543;;;;; 732329 1000455826 JM53 Marking;Motor;TM543;;;;; No Model Compatibility List $0.00 / Each
Out Of Stock
Cam;;;;FD-0205;12.0t;Anti-Rust;TM543; 732330 1000436196 L01 Cam;;;;FD-0205;12.0t;Anti-Rust;TM543; No Model Compatibility List $0.00 / Each
Out Of Stock
Base Plate;Wheel;;SPHC;3.0t;WZN;TM543; 732331 1000436199 L12 Base Plate;Wheel;;SPHC;3.0t;WZN;TM543; No Model Compatibility List $0.00 / Each
Out Of Stock
Axle, Swivel;Wheel;;SCM435;Zinc;TM543; 732332 1000436200 L13 Axle, Swivel;Wheel;;SCM435;Zinc;TM543; No Model Compatibility List $0.00 / Each
Out Of Stock
Bearing;Dry;MCM-12-03;F12xF13.6x4.6L;;IG 732333 1000443655 L19 Bearing;Dry;MCM-12-03;F12xF13.6x4.6L;;IG No Model Compatibility List $0.00 / Each
Out Of Stock
Torsional Spring;;f1.0x14.6L;2N;SWPB;Pre 732334 1000443656 L20 Torsional Spring;;f1.0x14.6L;2N;SWPB;Pre No Model Compatibility List $0.00 / Each
Out Of Stock
Torsional Spring;;f1.0x14.6L;2N;SWPB;Pre 732335 1000449223 L22 Torsional Spring;;f1.0x14.6L;2N;SWPB;Pre No Model Compatibility List $0.00 / Each
Out Of Stock
Screw;Socket Head;M8x1.25Px60L-30L;;Hex 732336 020072-AB L24 Screw;Socket Head;M8x1.25Px60L-30L;;Hex No Model Compatibility List $0.00 / Each
Out Of Stock
Cam;;;;FD-0205;Anti-Rust;TM543; 732337 1000449224 L29 Cam;;;;FD-0205;Anti-Rust;TM543; No Model Compatibility List $0.00 / Each
Out Of Stock
LEAF SPRING;;;SUS301;0.6t;;TM538; 732338 1000449225 L30 LEAF SPRING;;;SUS301;0.6t;;TM538; No Model Compatibility List $0.00 / Each
Out Of Stock
Spacer;Wheel;;SS41;Zinc;TM543; 732339 1000443642 L34 Spacer;Wheel;;SS41;Zinc;TM543; No Model Compatibility List $0.00 / Each
Out Of Stock
Block;;;SS41;Zinc;TM543;; 732340 1000449760 L35 Block;;;SS41;Zinc;TM543;; No Model Compatibility List $0.00 / Each
Out Of Stock
Screw;Socket Head;M4x0.7Px16L;;Hex Socke 732341 004446-AB L51 Screw;Socket Head;M4x0.7Px16L;;Hex Socke No Model Compatibility List $0.00 / Each
Out Of Stock
Driver Motor;;;;PMSM;2200W;220V;8A;3135R 732342 1000435328 M01 Driver Motor;;;;PMSM;2200W;220V;8A;3135R No Model Compatibility List $0.00 / Each
Out Of Stock
Pulley;;Oil;SS41;;For Motor;TM543 732343 1000435329 M04 Pulley;;Oil;SS41;;For Motor;TM543 No Model Compatibility List $0.00 / Each
Out Of Stock
Fixing Plate;Master Switch;;SPHC;1.6t;BE 732344 1000439066 P10 Fixing Plate;Master Switch;;SPHC;1.6t;BE No Model Compatibility List $0.00 / Each
Out Of Stock
Screw;Socket Head;M5x0.8Px16L;;Hex Socke 732345 1000449761 Q54 Screw;Socket Head;M5x0.8Px16L;;Hex Socke No Model Compatibility List $0.00 / Each
Out Of Stock
Axle;Roller;Rear;S45C;;TM543;BED; 732346 1000436107 R01 Axle;Roller;Rear;S45C;;TM543;BED; No Model Compatibility List $0.00 / Each
Out Of Stock
Roller;;back;Nylon66+30%Fiberglass;BL/Bl 732347 1000436108 R02 Roller;;back;Nylon66+30%Fiberglass;BL/Bl No Model Compatibility List $0.00 / Each
Out Of Stock
Axle;Roller;Front;S45C;;TM543;BED; 732348 1000436112 R05 Axle;Roller;Front;S45C;;TM543;BED; No Model Compatibility List $0.00 / Each
Out Of Stock
Spacer;Bearing;C;STKM11A;Zinc;TM543; 732349 1000436114 R07 Spacer;Bearing;C;STKM11A;Zinc;TM543; No Model Compatibility List $0.00 / Each
Out Of Stock
Connet Base;Pully;;S45C;Zinc;TM543; 732350 1000436116 R09 Connet Base;Pully;;S45C;Zinc;TM543; No Model Compatibility List $0.00 / Each
Out Of Stock
Roller;;Left-Front;Nylon66+30%Fiberglass 732351 1000439428 R10 Roller;;Left-Front;Nylon66+30%Fiberglass No Model Compatibility List $0.00 / Each
Out Of Stock
Bearing Housing;;UCFL 204;;;; 732352 1000439162 R23 Bearing Housing;;UCFL 204;;;; No Model Compatibility List $0.00 / Each
Out Of Stock
Roller;;Right-Front;Nylon66+30%Fiberglas 732353 1000447592 R31 Roller;;Right-Front;Nylon66+30%Fiberglas No Model Compatibility List $0.00 / Each
Out Of Stock
Bearing;Ball;6304LUZ;F20xF52x15T;TPI; 732354 1000439161 R32 Bearing;Ball;6304LUZ;F20xF52x15T;TPI; No Model Compatibility List $0.00 / Each
Out Of Stock
Bearing Housing;;UKFL205+H2305X;;;; 732355 1000439163 R24 Bearing Housing;;UKFL205+H2305X;;;; No Model Compatibility List $0.00 / Each
Out Of Stock
Bushing1;Bearing;;;;;H2305X; 732356 1000447795 R27 Bushing1;Bearing;;;;;H2305X; No Model Compatibility List $0.00 / Each
Out Of Stock
WASHER FT 20.2X30X2.0 - D/C, NO REPL Part will show as orderable until stock is depleted 732357 066415-A R43 WASHER FT 20.2X30X2.0 - D/C, NO REPL Part will show as orderable until stock is depleted No Model Compatibility List $0.00 / Each
Out Of Stock
Cover Side Rail-Exreawork;;right down;Pr 733422 1000448653 Q04 Cover Side Rail-Exreawork;;right down;Pr No Model Compatibility List $36.38 / Each

Accent Plate;;L;painting;;Graphite Grey; 733423 1000453108 Q07 Accent Plate;;L;painting;;Graphite Grey; No Model Compatibility List $269.08 / Each

Accent Plate;;R;painting;;Graphite Grey; 733424 1000458949 Q08 Accent Plate;;R;painting;;Graphite Grey; No Model Compatibility List $269.08 / Each

Accent Plate Set;;left;Graphite Gray;;;T 733425 1000449272 Q07 Accent Plate Set;;left;Graphite Gray;;;T No Model Compatibility List $0.00 / Each
Out Of Stock
Accent Plate Set;;right;Graphite Gray;;; 733426 1000449273 Q08 Accent Plate Set;;right;Graphite Gray;;; No Model Compatibility List $0.00 / Each
Out Of Stock
Accent Plate;;L;painting;;Black Matte;TM 733546 1000453102 Q07 Accent Plate;;L;painting;;Black Matte;TM No Model Compatibility List $269.08 / Each

Accent Plate;;R;painting;;Black Matte;TM 733547 1000458947 Q08 Accent Plate;;R;painting;;Black Matte;TM No Model Compatibility List $0.00 / Each
Out Of Stock
Accent Plate Set;;left;Black Matte;;;TM5 733548 1000453100 Q07 Accent Plate Set;;left;Black Matte;;;TM5 No Model Compatibility List $0.00 / Each
Out Of Stock
Accent Plate Set;;right;Black Matte;;;TM 733549 1000453101 Q08 Accent Plate Set;;right;Black Matte;;;TM No Model Compatibility List $0.00 / Each
Out Of Stock
Nylon Lock Nut M8x1.25P (New) 976932 004926-00 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

View Drawing
