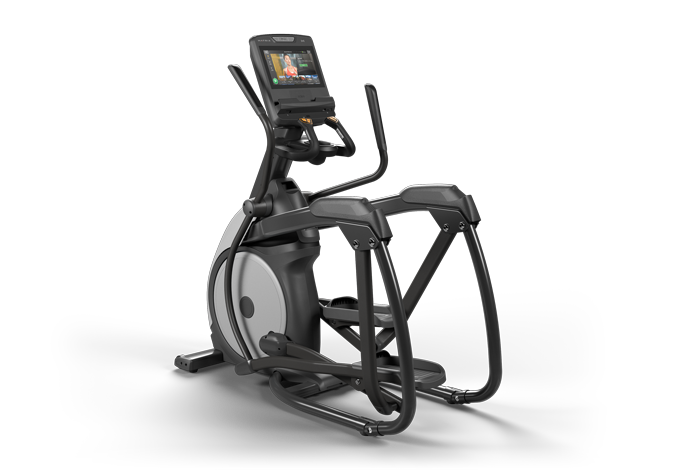

Matrix Fitness - Performance Series Elliptical (E-PS-F) - EP629 - 2020 - 2020-2030

Repair Parts for Matrix Fitness Performance Series Elliptical (E-PS-F) - EP629 - 2020 EP629, EP629B, EP629D

Brand: Matrix Fitness

Category: Ascent

Type: Elliptical

Model Name: Performance Series Elliptical (E-PS-F) - EP629 - 2020

Serial Number Prefix: EP629, EP629B, EP629D

Version: 2020-2030

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Catalog #
MPN
Part List Key
Quantity On Model
Part Description
Notes
Available Used
Model Compatibility List
New price
Screw Round Hex Socket M8-1.25-20MM (Used) 1020692 1000211360 0 1 Screw Round Hex Socket M8-1.25-20MM (Used) No Model Compatibility List $7.79 / Each

Generator 1001194 0000089783 0 1 Generator Yes Model Compatibility List $299.00 / Each

1
Crank Set, EP304 (Used) 1035616 0000095121 0 1 Crank Set, EP304 (Used) Yes Model Compatibility List $53.99 / Each

Disk Set, -, EP304, (Used) 1034446 1000206970 0 1 Disk Set, -, EP304, (Used) Yes Model Compatibility List $17.99 / Each

Console mast set;;;;Double Black Matte;; 730251 1000442289 01 Console mast set;;;;Double Black Matte;; No Model Compatibility List $694.18 / Each

Console mast set;;;;MATRIX/SL/GY;;EP629; 730376 1000433240 01 Console mast set;;;;MATRIX/SL/GY;;EP629; No Model Compatibility List $735.78 / Each

Console mast set;;;;Graphite Grey 202020 730608 1000447608 01 Console mast set;;;;Graphite Grey 202020 No Model Compatibility List $0.00 / Each
Out Of Stock
pedal arm set;;right;Black Matte;EP304M; 730252 1000417427 02 pedal arm set;;right;Black Matte;EP304M; No Model Compatibility List $149.48 / Each

pedal arm set;;left;Black Matte;EP304M;; 730253 1000417429 03 pedal arm set;;left;Black Matte;EP304M;; No Model Compatibility List $149.48 / Each

Arm Rest set;;right;Black Matte;EP304M;; 730377 1000417433 05 Arm Rest set;;right;Black Matte;EP304M;; No Model Compatibility List $272.98 / Each

Arm Rest set;;left;Black Matte;EP304M;;D 730378 1000417435 06 Arm Rest set;;left;Black Matte;EP304M;;D No Model Compatibility List $272.98 / Each

Arm Rest set;;front;;EP629; 732809 1000433248 07 Arm Rest set;;front;;EP629; No Model Compatibility List $640.88 / Each

Link Arm;;right;Black Matte;EP304M;;Doub 732810 1000417438 09 Link Arm;;right;Black Matte;EP304M;;Doub No Model Compatibility List $360.08 / Each

Link Arm;;left;Black Matte;EP304M;;Doubl 732811 1000417440 10 Link Arm;;left;Black Matte;EP304M;;Doubl No Model Compatibility List $360.08 / Each

Connection Tube;;right;Double Black Matt 732812 1000442293 11 Connection Tube;;right;Double Black Matt No Model Compatibility List $503.08 / Each

Connection Tube;;right;Graphite Grey 202 733910 1000447611 11 Connection Tube;;right;Graphite Grey 202 No Model Compatibility List $503.08 / Each

Connection Tube;;right;MATRIX/SL/GY;EP62 734200 1000433362 11 Connection Tube;;right;MATRIX/SL/GY;EP62 No Model Compatibility List $503.08 / Each

Connection Tube;;left;Double Black Matte 732813 1000442294 12 Connection Tube;;left;Double Black Matte No Model Compatibility List $503.08 / Each

Connection Tube;;left;Graphite Grey 2020 733911 1000447612 12 Connection Tube;;left;Graphite Grey 2020 No Model Compatibility List $503.08 / Each

Connection Tube;;left;MATRIX/SL/GY;EP629 734201 1000433363 12 Connection Tube;;left;MATRIX/SL/GY;EP629 No Model Compatibility List $503.08 / Each

Swing Arm Set;;;Black Matte;EP304M;;Doub 730261 1000417448 13 Swing Arm Set;;;Black Matte;EP304M;;Doub No Model Compatibility List $230.08 / Each

Adjustment Arm Set;;;Black Matte;EP629C; 730262 1000448720 15 Adjustment Arm Set;;;Black Matte;EP629C; No Model Compatibility List $374.38 / Each

Adjustment Arm Set;;;MATRIX/SL/GY;EP629; 730382 1000448717 15 Adjustment Arm Set;;;MATRIX/SL/GY;EP629; No Model Compatibility List $236.58 / Each

Adjustment Arm Set;;;Graphite Grey 20202 730611 1000447622 15 Adjustment Arm Set;;;Graphite Grey 20202 No Model Compatibility List $0.00 / Each
Out Of Stock
Side Cover Set;Left;EP304; 730264 0000095068 26 Side Cover Set;Left;EP304; No Model Compatibility List $93.44 / Each

Side Cover Set;Right;EP304; 730265 0000095071 27 Side Cover Set;Right;EP304; Yes Model Compatibility List $87.98 / Each

Pulley Axle Set;S70;US;EP78 730266 0000089635 30 Pulley Axle Set;S70;US;EP78 No Model Compatibility List $87.08 / Each

shield set;handlebar;Big;;EP629;; 732814 1000433364 41 shield set;handlebar;Big;;EP629;; No Model Compatibility List $146.88 / Each

Swivel Axle Set;DA Arm;EP304; 730269 0000094951 52 Swivel Axle Set;DA Arm;EP304; Yes Model Compatibility List $96.18 / Each

Hand Pulse Set;Quickly Key;left;;EP629;; 732815 1000433342 57 Hand Pulse Set;Quickly Key;left;;EP629;; No Model Compatibility List $32.48 / Each

Hand Pulse Set;Quickly Key;right;;EP629; 732816 1000433343 58 Hand Pulse Set;Quickly Key;right;;EP629; No Model Compatibility List $32.48 / Each

Screw;Button Head;M5X0.8PX16L;;Phillip;S 730097 1000388975 C21 Screw;Button Head;M5X0.8PX16L;;Phillip;S No Model Compatibility List $1.28 / Each

GROMMET;NYLON;WHT 730284 001597-A C40 GROMMET;NYLON;WHT No Model Compatibility List $121.38 / Each

Fixing Plate;;;painting;;Flat Black;EP62 730280 1000449536 B60 Fixing Plate;;;painting;;Flat Black;EP62 No Model Compatibility List $14.28 / Each

SCREW;FH;M5X0.8PX10L;;PH;;BAN;; 730281 004424-00 B61 SCREW;FH;M5X0.8PX10L;;PH;;BAN;; No Model Compatibility List $1.02 / Each

Screw;Hex Socket;Round;M8x1.25Px20.0L;Ad 730282 0000085361 C34 Screw;Hex Socket;Round;M8x1.25Px20.0L;Ad No Model Compatibility List $1.66 / Each

Crank Sleeve Axle;S45C;EP72-E14C; 730286 0000081718 E14 Crank Sleeve Axle;S45C;EP72-E14C; No Model Compatibility List $8.98 / Each

End Protect Cap;EP-1216; 730283 0000095600 C35 End Protect Cap;EP-1216; No Model Compatibility List $1.28 / Each

Crank Sleeve;;;;BED;AISI 1018; 730353 1000346827 E15 Crank Sleeve;;;;BED;AISI 1018; No Model Compatibility List $0.00 / Each
Out Of Stock
Ring;;;;SS41;25.1x44.65;EP72 730287 0000089475 E16 Ring;;;;SS41;25.1x44.65;EP72 No Model Compatibility List $9.68 / Each

Tube Cap;FK01004(38.1) 730289 0000095097 G33 Tube Cap;FK01004(38.1) No Model Compatibility List $1.28 / Each

Swivel Shaft A;SCM440;EP304; 730293 0000095050 H23 Swivel Shaft A;SCM440;EP304; No Model Compatibility List $9.44 / Each

Bearing;Tapered Roller;(PEER 2204-2RS) 730295 0000092805 H41 Bearing;Tapered Roller;(PEER 2204-2RS) No Model Compatibility List $16.88 / Each

Axle;Link Arm;B;SS41;EP304; 730285 0000094927 E09 Axle;Link Arm;B;SS41;EP304; No Model Compatibility List $13.48 / Each

Kettle Rack;;;TPR;Gray/80435;;EP630; 730291 1000433522 G43 Kettle Rack;;;TPR;Gray/80435;;EP630; No Model Compatibility List $0.00 / Each
Out Of Stock
Swivel Shaft B;SCM440;EP304; 730294 0000095051 H24 Swivel Shaft B;SCM440;EP304; No Model Compatibility List $10.38 / Each

Bearing;Needle;HK2016 730297 0000095048 H51 Bearing;Needle;HK2016 No Model Compatibility List $11.68 / Each

Shaft;Swing Arm;SS41;EP304; 730292 0000095036 H07 Shaft;Swing Arm;SS41;EP304; No Model Compatibility List $7.78 / Each

Spacing Ring;Bearing;SS41; 730296 0000082795 H45 Spacing Ring;Bearing;SS41; No Model Compatibility List $2.80 / Each

Nut;HEX;M10X1.5P;10 730093 0000086127 B88 Nut;HEX;M10X1.5P;10 No Model Compatibility List $2.80 / Each

Bearing;Needle;HK2518-RS 730288 0000094958 G29 Bearing;Needle;HK2518-RS No Model Compatibility List $20.78 / Each

Side Cover;;right;ABS/PA757;Gray/80435;; 730317 0000095072 Q01 Side Cover;;right;ABS/PA757;Gray/80435;; No Model Compatibility List $48.08 / Each

Washer;Flat;10.2X20.0X2.0T;Black Zinc 730372 020477-00 H37 Washer;Flat;10.2X20.0X2.0T;Black Zinc No Model Compatibility List $0.00 / Each
Out Of Stock
SCREW;SH;M10X1.5PX75L;(35L);HS;G12.9; 730373 004518-AC J53 SCREW;SH;M10X1.5PX75L;(35L);HS;G12.9; No Model Compatibility List $0.00 / Each
Out Of Stock
Boot;Crank;ABS/PA746;DG/80435; 730375 0000095066 Q10 Boot;Crank;ABS/PA746;DG/80435; No Model Compatibility List $0.00 / Each
Out Of Stock
Kettle Rack-Extrawork;fixing Plate;;muff 730389 1000433254 G38 Kettle Rack-Extrawork;fixing Plate;;muff No Model Compatibility List $94.88 / Each

Pulse Connect Wire;;;;;;;1000+1050(TKP,H 732817 1000433256 P11 Pulse Connect Wire;;;;;;;1000+1050(TKP,H No Model Compatibility List $27.28 / Each

Console Wire Set;;;;;;;1450(MOLEX,50-57- 730308 1000433261 P21 Console Wire Set;;;;;;;1450(MOLEX,50-57- No Model Compatibility List $19.48 / Each

Jacket;PVC;A5X-03-F;US;EP79 730311 0000093219 P30 Jacket;PVC;A5X-03-F;US;EP79 No Model Compatibility List $1.28 / Each

Side Cover;;left;ABS/PA757;Gray/80435;;E 730318 0000095069 Q02 Side Cover;;left;ABS/PA757;Gray/80435;;E No Model Compatibility List $51.98 / Each

Main Axle;Pully;;S45C;Anti-rust oil coat 730348 0000089636 R01 Main Axle;Pully;;S45C;Anti-rust oil coat No Model Compatibility List $0.00 / Each
Out Of Stock
Quick Key Base;;right down;PC 510;slate 730407 1000433337 N50 Quick Key Base;;right down;PC 510;slate No Model Compatibility List $0.00 / Each
Out Of Stock
Sensor Fix Plate;Pulse;Left-Outer;ABS/PA 730408 1000433326 N41 Sensor Fix Plate;Pulse;Left-Outer;ABS/PA No Model Compatibility List $0.00 / Each
Out Of Stock
Cable Clamp;KSS UC-04 730312 0000080701 P31 Cable Clamp;KSS UC-04 No Model Compatibility List $31.82 / Each

COVER;SWING ARM;ABS/PA746;DG/80435; 730323 0000095035 Q12 COVER;SWING ARM;ABS/PA746;DG/80435; No Model Compatibility List $2.32 / Each

Pulley;Poly-V;;;FC25;J8198;;S70 730337 0000089637 R02 Pulley;Poly-V;;;FC25;J8198;;S70 No Model Compatibility List $60.72 / Each

Generator;210 CE EP MX/600SERIES400W;J 730340 012819-00 S01 Generator;210 CE EP MX/600SERIES400W;J No Model Compatibility List $249.00 / Each

Sensor Fix Plate;Pulse;Right-Outer;ABS/P 730410 1000433328 N42 Sensor Fix Plate;Pulse;Right-Outer;ABS/P No Model Compatibility List $0.00 / Each
Out Of Stock
Disk;PAINTING;MATRIX SL/GY/BP-920S;EP304 732825 1000206971 Q03 Disk;PAINTING;MATRIX SL/GY/BP-920S;EP304 No Model Compatibility List $0.00 / Each
Out Of Stock
TV Power Wire;;;;;;;2650(SCD-554DCS103BB 730313 1000433263 P41 TV Power Wire;;;;;;;2650(SCD-554DCS103BB No Model Compatibility List $18.18 / Each

Outside Cover;Handlebar;ABS/PA746;DG/804 730325 0000095174 Q22 Outside Cover;Handlebar;ABS/PA746;DG/804 Yes Model Compatibility List $9.90 / Each

Bearing;Ball;6306LUZ(C3);;;TPI;;; 730339 0000092813 R21 Bearing;Ball;6306LUZ(C3);;;TPI;;; No Model Compatibility List $37.48 / Each

Screw;Button Head;M4x15L;;Phillip;Stainl 730390 1000388974 N34 Screw;Button Head;M4x15L;;Phillip;Stainl No Model Compatibility List $37.16 / Each

Key;Quick;L;2Keys;EP630; 730402 1000433257 N25 Key;Quick;L;2Keys;EP630; No Model Compatibility List $0.00 / Each
Out Of Stock
Sensor Fix Plate;Pulse;Left-Inner;ABS/PA 730409 1000433327 N43 Sensor Fix Plate;Pulse;Left-Inner;ABS/PA No Model Compatibility List $0.00 / Each
Out Of Stock
Cover;;front;ABS/PA746;Gray/60461;;EP304 732819 1000427089 Q04 Cover;;front;ABS/PA746;Gray/60461;;EP304 No Model Compatibility List $36.38 / Each

Cable Fix Button;KSS/UC-2 730132 001678-A P33 Cable Fix Button;KSS/UC-2 No Model Compatibility List $1.28 / Each

Washer;Ribbed lock;8.5x12.8x0.8tx1.3h; 730298 0000089835 J57 Washer;Ribbed lock;8.5x12.8x0.8tx1.3h; No Model Compatibility List $3.88 / Each

Generator Wire;550L;JST VHR-5+MOLEX 4202 730305 0000080692 P06 Generator Wire;550L;JST VHR-5+MOLEX 4202 No Model Compatibility List $10.14 / Each

730326 0000095175 Q23 Inside Cover;Handlebar;ABS/PA746;DG/8043 Yes Model Compatibility List $18.00 / Each

Key;Quick;R;2Keys;EP630; 730405 1000433258 N26 Key;Quick;R;2Keys;EP630; No Model Compatibility List $0.00 / Each
Out Of Stock
Sensor Fix Plate;Pulse;Right-Inner;ABS/P 730411 1000433329 N44 Sensor Fix Plate;Pulse;Right-Inner;ABS/P No Model Compatibility List $0.00 / Each
Out Of Stock
Cover;Middle Stabilizer;ABS/PA746;80393;EP304; 732820 0000095074 Q05 Cover;Middle Stabilizer;ABS/PA746;80393;EP304; Yes Model Compatibility List $31.74 / Each

TV Signal Wire;;;;;;;2750(FM-0086-NBG7x2 730309 1000446801 P25 TV Signal Wire;;;;;;;2750(FM-0086-NBG7x2 No Model Compatibility List $11.68 / Each

Screw;BH;M5X0.8PX65L;;PH;;NKL; 730316 0000093983 P61 Screw;BH;M5X0.8PX65L;;PH;;NKL; No Model Compatibility List $2.58 / Each

730319 0000095075 Q06 Cover;Handlebar;Right;ABS/PA746;DG/80435; Yes Model Compatibility List $20.44 / Each

Outside Cover;Swing Arm;ABS/PA746;DG/804 730327 0000095178 Q24 Outside Cover;Swing Arm;ABS/PA746;DG/804 Yes Model Compatibility List $18.00 / Each

Spacer;ABS/PA746;BLACK;EP304; 730330 0000095180 Q33 Spacer;ABS/PA746;BLACK;EP304; Yes Model Compatibility List $3.88 / Each

Screw;Socket Head;M5X0.8PX10L;;Hex Socke 730335 1000388973 Q60 Screw;Socket Head;M5X0.8PX10L;;Hex Socke No Model Compatibility List $1.02 / Each

Quick Key;;left up;ABS PC510;137C/80395; 732823 1000433340 N45 Quick Key;;left up;ABS PC510;137C/80395; No Model Compatibility List $0.00 / Each
Out Of Stock
Ground Wire;;;Yellow/Green1;;14AWG 1150; 730306 1000436993 P08 Ground Wire;;;Yellow/Green1;;14AWG 1150; No Model Compatibility List $0.00 / Each
Out Of Stock
Network Signal Wire;;;;;;;2800(??,3203A4 730310 1000433262 P26 Network Signal Wire;;;;;;;2800(??,3203A4 No Model Compatibility List $33.78 / Each

Cover;Handlebar;Left;ABS/PA746;DG/80435; 730320 0000095076 Q07 Cover;Handlebar;Left;ABS/PA746;DG/80435; Yes Model Compatibility List $20.44 / Each

Inside Cover;Swing Arm;ABS//PA746;DG/804 730328 0000095179 Q25 Inside Cover;Swing Arm;ABS//PA746;DG/804 Yes Model Compatibility List $18.00 / Each

Quick Key;;right up;ABS PC510;137C/80395 732824 1000433341 N46 Quick Key;;right up;ABS PC510;137C/80395 No Model Compatibility List $0.00 / Each
Out Of Stock
Cap;C-SAFE;NYION 6/6;BL;T1x; 730127 0000089860 P27 Cap;C-SAFE;NYION 6/6;BL;T1x; No Model Compatibility List $6.48 / Each

Washer;TOOTH;M5.3X10X0.6;Nickel 730134 0000083692 P45 Washer;TOOTH;M5.3X10X0.6;Nickel No Model Compatibility List $1.28 / Each

Water Bottle Holder;ABS/PA746;DG/80435; 730321 0000095077 Q08 Water Bottle Holder;ABS/PA746;DG/80435; Yes Model Compatibility List $22.86 / Each

Pedal Plastic;Left;PP-3015;DG/80435;EP308; 730324 0000095152 Q17 Pedal Plastic;Left;PP-3015;DG/80435;EP308; Yes Model Compatibility List $29.00 / Each

SCREW;BH;M5X0.8PX16L;CT;PH;SSTSUS304;;; 730333 0000081545 Q53 SCREW;BH;M5X0.8PX16L;CT;PH;SSTSUS304;;; No Model Compatibility List $1.02 / Each

Drive Belt;Poly-V;460-J16;FGD;Carlisle; 730338 0000094297 R16 Drive Belt;Poly-V;460-J16;FGD;Carlisle; Yes Model Compatibility List $69.88 / Each

Quick Key;;left-Inner;PC 510+TPU;137C/80 730403 1000433334 N47 Quick Key;;left-Inner;PC 510+TPU;137C/80 No Model Compatibility List $0.00 / Each
Out Of Stock
Screw;Hex Socket;Round;M10x1.5Px40L 730159 0000086513 R35 Screw;Hex Socket;Round;M10x1.5Px40L No Model Compatibility List $1.28 / Each

End Cap,ROUND Plate;ABS/PA746;SL/GY/8054 730322 0000095103 Q09 End Cap,ROUND Plate;ABS/PA746;SL/GY/8054 Yes Model Compatibility List $3.88 / Each

Stabilizer Cover;Middle;ABS/PA746;DG/80435;EP 730329 0000095182 Q27 Stabilizer Cover;Middle;ABS/PA746;DG/80435;EP No Model Compatibility List $12.98 / Each

Quick Key;;Right-Inner;PC 510+TPU;137C/8 730406 1000433335 N48 Quick Key;;Right-Inner;PC 510+TPU;137C/8 No Model Compatibility List $0.00 / Each
Out Of Stock
Pad;Water Bottle Holder;TPR;426C;80393;EP308 730331 0000095315 Q37 Pad;Water Bottle Holder;TPR;426C;80393;EP308 Yes Model Compatibility List $9.00 / Each

Washer;Ribbed;Lock;10.5X16X1TX1.6H;BED 730341 0000093717 S62 Washer;Ribbed;Lock;10.5X16X1TX1.6H;BED No Model Compatibility List $1.28 / Each

Pulley;Flat;;FC25;F282;S70; 730352 0000092113 R09 Pulley;Flat;;FC25;F282;S70; No Model Compatibility List $0.00 / Each
Out Of Stock
Quick Key Base;;left down;PC 510;BL/Blac 730404 1000433336 N49 Quick Key Base;;left down;PC 510;BL/Blac No Model Compatibility List $0.00 / Each
Out Of Stock
Power cover;;;ABS/PA757;Gray/80435;;EP30 730334 1000427083 Q56 Power cover;;;ABS/PA757;Gray/80435;;EP30 No Model Compatibility List $2.32 / Each

Power Wire;;A;;;;;500+950(KST-FLDNY2-250 732818 1000438743 P48 Power Wire;;A;;;;;500+950(KST-FLDNY2-250 No Model Compatibility List $7.78 / Each

Power board;DC;;;12.6V/3.3A;HBPB;;;AC100 730138 1000433184 P76 Power board;DC;;;12.6V/3.3A;HBPB;;;AC100 No Model Compatibility List $53.28 / Each

Power Wire;;B;;;;;1800(TKP,H6630R1-1x5(P 730315 1000438745 P49 Power Wire;;B;;;;;1800(TKP,H6630R1-1x5(P No Model Compatibility List $0.00 / Each
Out Of Stock
Cushion;Pedal;Left;NBR;426C;80393; 730332 0000095209 Q39 Cushion;Pedal;Left;NBR;426C;80393; No Model Compatibility List $28.58 / Each

730344 0000089822 Z21 Screw;Hex Socket;Round;M10x1.5Px100L Yes Model Compatibility List $1.68 / Each

Washer;Flat;10.5X18.0X2.6T 730374 020487-A S65 Washer;Flat;10.5X18.0X2.6T No Model Compatibility List $0.00 / Each
Out Of Stock
Cover;Console;back;ABS PA746;Gray/80435; 730336 1000433360 Q69 Cover;Console;back;ABS PA746;Gray/80435; No Model Compatibility List $0.00 / Each
Out Of Stock
Washer;Lock;8.2x13.5x2.0t 730343 0000083458 Z17 Washer;Lock;8.2x13.5x2.0t No Model Compatibility List $1.42 / Each

Frame Set;;;painting;;Black Matte-Double 732821 1000442287 AB1 Frame Set;;;painting;;Black Matte-Double No Model Compatibility List $0.00 / Each
Out Of Stock
Frame Set;;;painting;202020;Graphite Gre 733912 1000447604 AB1 Frame Set;;;painting;202020;Graphite Gre No Model Compatibility List $0.00 / Each
Out Of Stock
Frame Set;;;painting;BP-920S;MATRIX/SL/G 734203 1000433236 AB1 Frame Set;;;painting;BP-920S;MATRIX/SL/G No Model Compatibility List $0.00 / Each
Out Of Stock
Console Mast Set;;;painting;;Black Matte 730362 1000442290 AC1 Console Mast Set;;;painting;;Black Matte No Model Compatibility List $0.00 / Each
Out Of Stock
Console Mast Set;;;painting;BP-920S;MATR 730398 1000433242 AC1 Console Mast Set;;;painting;BP-920S;MATR No Model Compatibility List $0.00 / Each
Out Of Stock
Console Mast Set;;;painting;202020;Graph 730614 1000447609 AC1 Console Mast Set;;;painting;202020;Graph No Model Compatibility List $0.00 / Each
Out Of Stock
Pedal Arm Set;;L;painting;;Black Matte;E 730355 1000417430 AE1 Pedal Arm Set;;L;painting;;Black Matte;E No Model Compatibility List $0.00 / Each
Out Of Stock
Pedal Arm Set;;R;painting;;Black Matte;E 730354 1000417428 AE2 Pedal Arm Set;;R;painting;;Black Matte;E No Model Compatibility List $0.00 / Each
Out Of Stock
Arm Rest set;;L;painting;;Black Matte;EP 730397 1000417436 AG1 Arm Rest set;;L;painting;;Black Matte;EP No Model Compatibility List $0.00 / Each
Out Of Stock
link arm set;;L;painting;;Black Matte;EP 730358 1000417441 AH1 link arm set;;L;painting;;Black Matte;EP No Model Compatibility List $0.00 / Each
Out Of Stock
Arm Rest set;;R;painting;;Black Matte;EP 730396 1000417434 AG2 Arm Rest set;;R;painting;;Black Matte;EP No Model Compatibility List $0.00 / Each
Out Of Stock
link arm set;;R;painting;;Black Matte;EP 730357 1000417439 AH2 link arm set;;R;painting;;Black Matte;EP No Model Compatibility List $0.00 / Each
Out Of Stock
Crank Set-Exreawork;;;Electroplate;;EP30 730350 1000224905 AJ1 Crank Set-Exreawork;;;Electroplate;;EP30 No Model Compatibility List $0.00 / Each
Out Of Stock
CON TUBE SET;;L;painting;;Black Matte;EP 730360 1000417446 AH3 CON TUBE SET;;L;painting;;Black Matte;EP No Model Compatibility List $0.00 / Each
Out Of Stock
Pedal Arm Con Set;;left;;EP304;; 730388 0000095019 AH3 Pedal Arm Con Set;;left;;EP304;; No Model Compatibility List $315.88 / Each

Horizontal Stabilizer Arm;Left;SL/GY/BP-920S 730412 0000095020 AH3 Horizontal Stabilizer Arm;Left;SL/GY/BP-920S No Model Compatibility List $0.00 / Each
Out Of Stock
CON TUBE SET;;L;painting;202020;Graphite 730616 1000447614 AH3 CON TUBE SET;;L;painting;202020;Graphite No Model Compatibility List $0.00 / Each
Out Of Stock
CON TUBE SET;;R;painting;;Black Matte;EP 730359 1000417444 AH4 CON TUBE SET;;R;painting;;Black Matte;EP No Model Compatibility List $0.00 / Each
Out Of Stock
CON TUBE SET;;R;painting;BP-920S;MATRIX/ 730413 0000095011 AH4 CON TUBE SET;;R;painting;BP-920S;MATRIX/ No Model Compatibility List $0.00 / Each
Out Of Stock
CON TUBE SET;;R;painting;202020;Graphite 730615 1000447613 AH4 CON TUBE SET;;R;painting;202020;Graphite No Model Compatibility List $0.00 / Each
Out Of Stock
Pedal Arm Con Set;;right;;EP304;; 734202 0000095010 AH4 Pedal Arm Con Set;;right;;EP304;; No Model Compatibility List $330.18 / Each

Swivel Base Set-Exreawork;Handlebar;;Ele 730367 1000224906 AG6 Swivel Base Set-Exreawork;Handlebar;;Ele No Model Compatibility List $0.00 / Each
Out Of Stock
Swing Arm Set;;;painting;;Black Matte;EP 730356 1000417449 AH8 Swing Arm Set;;;painting;;Black Matte;EP No Model Compatibility List $0.00 / Each
Out Of Stock
Adjustable Arm Set;;;painting;;Black Mat 730365 1000448723 AH11 Adjustable Arm Set;;;painting;;Black Mat No Model Compatibility List $0.00 / Each
Out Of Stock
Pulse Sensor Set;Grip;left;;EP630; 730386 1000433330 AG21 Pulse Sensor Set;Grip;left;;EP630; No Model Compatibility List $25.98 / Each

Adjustable Arm Set;;;painting;BP-920S;MA 730400 1000448722 AH11 Adjustable Arm Set;;;painting;BP-920S;MA No Model Compatibility List $0.00 / Each
Out Of Stock
Adjustable Arm Set;;L;painting;202020;Gr 730617 1000447623 AH11 Adjustable Arm Set;;L;painting;202020;Gr No Model Compatibility List $0.00 / Each
Out Of Stock
Pulse Sensor Set;Grip;right;;EP630;; 730387 1000433331 AG22 Pulse Sensor Set;Grip;right;;EP630;; No Model Compatibility List $25.98 / Each

Arm Rest Set-Exreawork;;front;muffle;PU; 730399 1000433249 AG23 Arm Rest Set-Exreawork;;front;muffle;PU; No Model Compatibility List $0.00 / Each
Out Of Stock
Hub group;Power supply;;;EP304B; 730274 1000412359 AP15 Hub group;Power supply;;;EP304B; No Model Compatibility List $33.78 / Each

Cover;Arm Rest;Big;PU;426C/80393;;EP629; 732822 1000433365 AQ19 Cover;Arm Rest;Big;PU;426C/80393;;EP629; No Model Compatibility List $0.00 / Each
Out Of Stock
Hardware Set;;;Service BOM;EP629 / EP630 730393 1000440222 Not Shown Hardware Set;;;Service BOM;EP629 / EP630 No Model Compatibility List $24.68 / Each

Generator Brake Set 1002227 0000089783 Generator Brake Set Yes Model Compatibility List $92.19 / Each

CUSHION, PEDAL, R, NBR, 1036195 0000095200 CUSHION, PEDAL, R, NBR, Yes Model Compatibility List $11.99 / Each

GRIP SENSOR U 1036196 1000210480 GRIP SENSOR U Yes Model Compatibility List $14.39 / Each

CON. Plate, CON. ARM SPHC 4.0T EP304 1036246 0000095026 CON. Plate, CON. ARM SPHC 4.0T EP304 Yes Model Compatibility List $3.00 / Each

View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2025. All Rights Reserved.

Payment options
