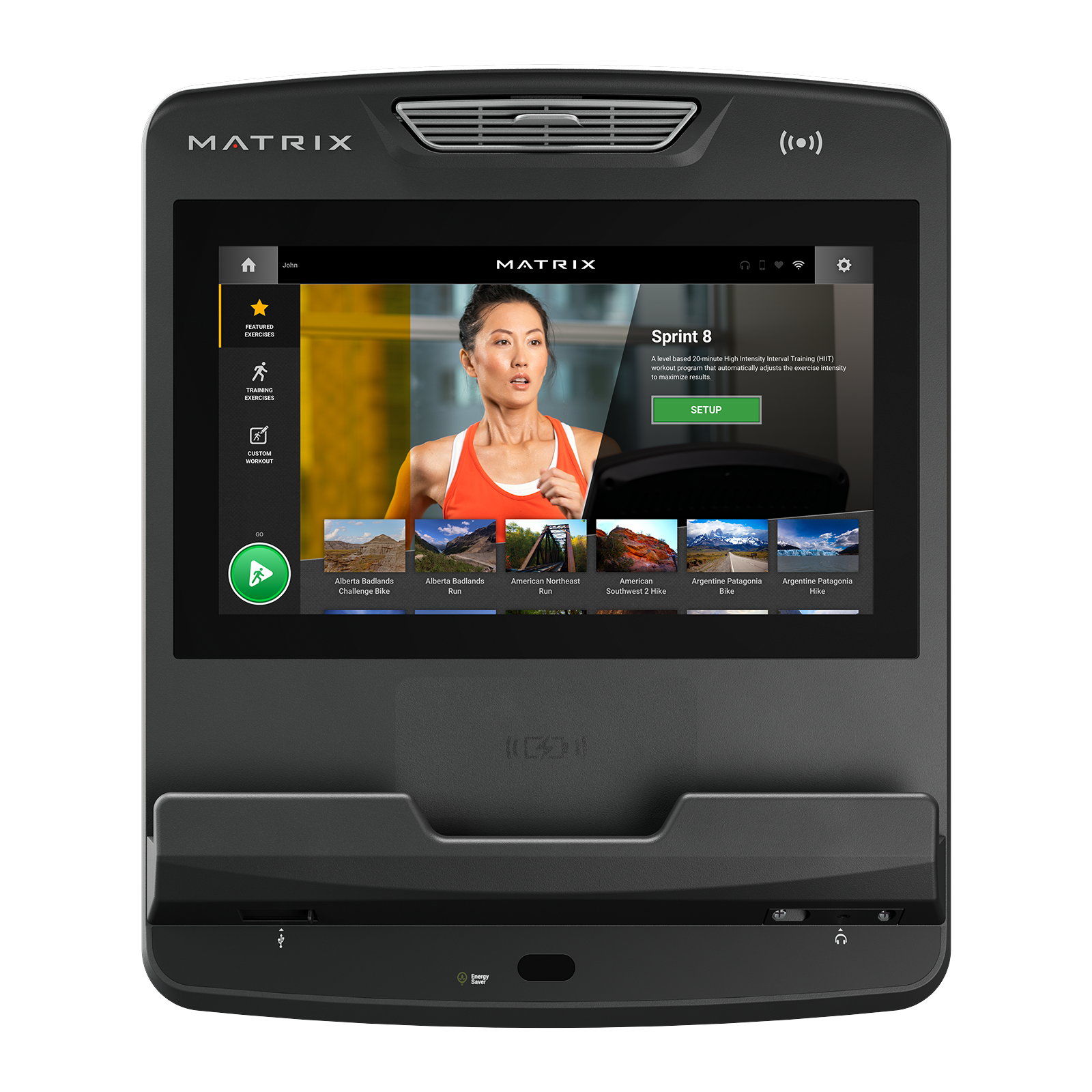

Matrix Fitness - Touch Console - CTM756 - 2020 - 2020-2030

Repair Parts for Matrix Fitness Touch Console - CTM756 - 2020 TM756B, TM756C, TM756D, TM756H, TM756I, TM756J

Brand: Matrix Fitness

Category: Consoles

Type: Non Folding Treadmills

Model Name: Touch Console - CTM756 - 2020

Serial Number Prefix: TM756B, TM756C, TM756D, TM756H, TM756I, TM756J

Version: 2020-2030

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Module;Charging;UNIQT-0023 7 5W;TM756/15 730514 1000441589 AW34 Module;Charging;UNIQT-0023 7 5W;TM756/15 No Model Compatibility List $0.00 / Each
Out Of Stock
Cover;USB;;ABS/PA746;Q520-7-3;;TM749; ; 730516 1000433451 N06 Cover;USB;;ABS/PA746;Q520-7-3;;TM749; ; No Model Compatibility List $0.00 / Each
Out Of Stock
Fairing;Fan;;ABS 746;BL/Black C;;TM756; 730517 1000439135 N08 Fairing;Fan;;ABS 746;BL/Black C;;TM756; No Model Compatibility List $0.00 / Each
Out Of Stock
Warning Label;Console;;;;;;TM756; 730518 1000441206 N10 Warning Label;Console;;;;;;TM756; No Model Compatibility List $0.00 / Each
Out Of Stock
Polar Fixed Seat;;;ABS PA746;BL/Black C; 730519 1000437030 N109 Polar Fixed Seat;;;ABS PA746;BL/Black C; No Model Compatibility List $0.00 / Each
Out Of Stock
Screw;Round Head;M5x0.8Px10L;;Phillip;;C 730520 1000444203 N148 Screw;Round Head;M5x0.8Px10L;;Phillip;;C No Model Compatibility List $0.00 / Each
Out Of Stock
Screw;Round Head;Diam.2.9x1.06Px12L;Hi/L 730521 1000443416 N150 Screw;Round Head;Diam.2.9x1.06Px12L;Hi/L No Model Compatibility List $0.00 / Each
Out Of Stock
SCREW;BH;M3X0.5PX6L;;PH;;WZN;ROHS; 730522 010616-00 N154 SCREW;BH;M3X0.5PX6L;;PH;;WZN;ROHS; No Model Compatibility List $0.40 / Each

Screw;Button Head;M5x12L;Machine Thread; 730523 1000446038 N155 Screw;Button Head;M5x12L;Machine Thread; No Model Compatibility List $0.00 / Each
Out Of Stock
Spring;Extension;Diam.6.5x34.5L;SUS304;; 730525 1000433452 N16 Spring;Extension;Diam.6.5x34.5L;SUS304;; No Model Compatibility List $0.00 / Each
Out Of Stock
Screw;RND;M3X0.5PX4L;;PH;;BZN;; 730526 0000086701 N160 Screw;RND;M3X0.5PX4L;;PH;;BZN;; No Model Compatibility List $0.40 / Each

Cover;Wind Tube;left;ABS/PA746;BL/Black 730527 1000433443 N33 Cover;Wind Tube;left;ABS/PA746;BL/Black No Model Compatibility List $0.00 / Each
Out Of Stock
Cover;Wind Tube;right;ABS/PA746;BL/Black 730528 1000433444 N34 Cover;Wind Tube;right;ABS/PA746;BL/Black No Model Compatibility List $0.00 / Each
Out Of Stock
Cover1;Earphone;;ABS/PA746;Q520-7-3;;TM7 730529 1000433449 N35 Cover1;Earphone;;ABS/PA746;Q520-7-3;;TM7 No Model Compatibility List $0.00 / Each
Out Of Stock
Terminal;;KTCC-5;; 730532 1000438617 N43 Terminal;;KTCC-5;; No Model Compatibility List $0.00 / Each
Out Of Stock
Terminal;250;PC1L250;; 730533 1000433499 N45 Terminal;250;PC1L250;; No Model Compatibility List $0.00 / Each
Out Of Stock
Fixing Base;Fan;;SUS304;;;TM750; 730536 1000433441 N72 Fixing Base;Fan;;SUS304;;;TM750; No Model Compatibility List $0.00 / Each
Out Of Stock
Cover;Fan;;ABS PA746;BL/Black C;;TM750; 730537 1000433442 N73 Cover;Fan;;ABS PA746;BL/Black C;;TM750; No Model Compatibility List $0.00 / Each
Out Of Stock
WiFi;WiFi;Ver A;;; 730542 1000433467 Not Shown WiFi;WiFi;Ver A;;; No Model Compatibility List $145.58 / Each

SD CARD SET;;;Micro SDXC I U3;TM756;;128 730543 1000433468 Not Shown SD CARD SET;;;Micro SDXC I U3;TM756;;128 No Model Compatibility List $144.28 / Each

CTRL Keypad GND;;L/R;;;;;200(KST,FDFNYD2 730544 053427-A P39 CTRL Keypad GND;;L/R;;;;;200(KST,FDFNYD2 No Model Compatibility List $3.88 / Each

Exchanged Board;C-SAFE;;H001;;;EP625;COA 730545 1000375479 W06 Exchanged Board;C-SAFE;;H001;;;EP625;COA No Model Compatibility List $24.68 / Each

Reader;;;V1.2;V4.1.0.0;GAT-RM310 3.0;EP6 730546 1000418735 W11 Reader;;;V1.2;V4.1.0.0;GAT-RM310 3.0;EP6 No Model Compatibility List $352.28 / Each

Antena board;;;GAT-MAXI LA 3.1;;;EP614C; 730547 1000355791 W12 Antena board;;;GAT-MAXI LA 3.1;;;EP614C; No Model Compatibility List $89.68 / Each

Tuner Module;;;ATSC Pro:idiom/H1.0;S1.03 730548 1000432863 W135 Tuner Module;;;ATSC Pro:idiom/H1.0;S1.03 No Model Compatibility List $627.88 / Each

GymKit/Phone sync board;;H001;Q15_V10.5.11 730549 1000444491 W20 GymKit/Phone sync board;;H001;Q15_V10.5.11 No Model Compatibility List $0.00 / Each
Out Of Stock
Control Board;15.6 inch;;;GUI 1.1.6.15/O 730550 1000433457 W40 Control Board;15.6 inch;;;GUI 1.1.6.15/O No Model Compatibility List $0.00 / Each
Out Of Stock
USB Wire;;;;2.0;;;260(USB2.0 AM+AF);TM75 730552 1000433453 W52 USB Wire;;;;2.0;;;260(USB2.0 AM+AF);TM75 No Model Compatibility List $0.00 / Each
Out Of Stock
Heart rate receiver;;;SALUTRON 8700;V453 730553 1000433454 W53 Heart rate receiver;;;SALUTRON 8700;V453 No Model Compatibility List $0.00 / Each
Out Of Stock
Pulse Connect Wire;;;;;;450;TKP H2510A-0 730554 1000433865 W54 Pulse Connect Wire;;;;;;450;TKP H2510A-0 No Model Compatibility List $0.00 / Each
Out Of Stock
H/P Wire;;;;;;;250(TKP,H2510A-06+TKP,H66 730555 1000433456 W55 H/P Wire;;;;;;;250(TKP,H2510A-06+TKP,H66 No Model Compatibility List $0.00 / Each
Out Of Stock
WIFI Antenna Wire;;Right;;;;;300(IPEX+AL 730558 1000433404 W59 WIFI Antenna Wire;;Right;;;;;300(IPEX+AL No Model Compatibility List $0.00 / Each
Out Of Stock
TV Signal Wire;;;;;;;470(JST,PAP-12V-Sx2 730560 1000433475 W61 TV Signal Wire;;;;;;;470(JST,PAP-12V-Sx2 No Model Compatibility List $0.00 / Each
Out Of Stock
Translator Board Ground Wire;;;;;;;100(? 730561 1000433476 W62 Translator Board Ground Wire;;;;;;;100(? No Model Compatibility List $0.00 / Each
Out Of Stock
Connect Wire;;;;C-Safe+CAB;;;200+200(TKP 730562 1000433477 W63 Connect Wire;;;;C-Safe+CAB;;;200+200(TKP No Model Compatibility List $0.00 / Each
Out Of Stock
VF Wire;;;;;;;150(JST,XAP-07V-1+JST,PAP- 730563 1000433478 W64 VF Wire;;;;;;;150(JST,XAP-07V-1+JST,PAP- No Model Compatibility List $0.00 / Each
Out Of Stock
Signal connected wire;;;;;;350;RFID;JST, 730564 1000433870 W66 Signal connected wire;;;;;;350;RFID;JST, No Model Compatibility List $0.00 / Each
Out Of Stock
Earphone board;;;U184A1/H001;;;TM657; 730565 1000433445 W81 Earphone board;;;U184A1/H001;;;TM657; No Model Compatibility List $0.00 / Each
Out Of Stock
Fan;;12VDC;UL1007 24AWG;250(JST,XHP-4);E 730566 1000433480 W90 Fan;;12VDC;UL1007 24AWG;250(JST,XHP-4);E No Model Compatibility List $0.00 / Each
Out Of Stock
IR module;;;400(TDL-5001+TKP,H20Y2-06);T 730567 1000433500 W92 IR module;;;400(TDL-5001+TKP,H20Y2-06);T No Model Compatibility List $0.00 / Each
Out Of Stock
LED Board;;;H001;;;;TM756;Chimera 730568 1000433501 W93 LED Board;;;H001;;;;TM756;Chimera No Model Compatibility List $0.00 / Each
Out Of Stock
Control Board;;;Chimera-SOM,VER C;GUI 1. 730574 1000444531 W32 Control Board;;;Chimera-SOM,VER C;GUI 1. No Model Compatibility List $0.00 / Each
Out Of Stock
Control Board;;;VER F;IO 68.0.0.0;;Chime 730575 1000444541 W35 Control Board;;;VER F;IO 68.0.0.0;;Chime No Model Compatibility List $0.00 / Each
Out Of Stock
cover-Extrawork;console;back;Print;;TM74 730897 1000433437 AN67 cover-Extrawork;console;back;Print;;TM74 No Model Compatibility List $0.00 / Each
Out Of Stock
Console Base Set;Semi-Assy;;;;;TM749; 730898 1000437036 AN90 Console Base Set;Semi-Assy;;;;;TM749; No Model Compatibility List $40.28 / Each

TFT LCD Set;;;;;;TM756; 730899 1000438544 AW35 TFT LCD Set;;;;;;TM756; No Model Compatibility List $0.00 / Each
Out Of Stock
Screw;Round Head;M5x0.8Px8L;;Phillip;Sta 730900 1000448459 N147 Screw;Round Head;M5x0.8Px8L;;Phillip;Sta No Model Compatibility List $1.28 / Each

Reading Rack;;;ABS/PA746;Q520-7-3;;TM749 730901 1000433845 N36 Reading Rack;;;ABS/PA746;Q520-7-3;;TM749 No Model Compatibility List $0.00 / Each
Out Of Stock
Manipulate Overlay;Console;Front;;;TM756 730902 1000426696 N41 Manipulate Overlay;Console;Front;;;TM756 No Model Compatibility List $0.00 / Each
Out Of Stock
Cover;Console;Rear-Down;ABS PA746;Gray/8 730903 1000437029 N57 Cover;Console;Rear-Down;ABS PA746;Gray/8 No Model Compatibility List $0.00 / Each
Out Of Stock
Fan Cover;;;painting;877C;;TM750; 730904 1000433439 N71 Fan Cover;;;painting;877C;;TM750; No Model Compatibility List $0.00 / Each
Out Of Stock
PLASTIC SHEET;FPC;30Mx10MM; 730905 1000229514 W130 PLASTIC SHEET;FPC;30Mx10MM; No Model Compatibility List $154.50 / Each

Head Phone Board Connect wire;;;;;;;600( 730906 1000448033 W51 Head Phone Board Connect wire;;;;;;;600( No Model Compatibility List $0.00 / Each
Out Of Stock
LVDS Wire;;;;;;;200(WL1058H-30Px2);TM756 730907 1000433473 W56 LVDS Wire;;;;;;;200(WL1058H-30Px2);TM756 No Model Compatibility List $0.00 / Each
Out Of Stock
Touch Switch Wire;;;;;;;150(JST XAP-06V- 730908 1000433405 W57 Touch Switch Wire;;;;;;;150(JST XAP-06V- No Model Compatibility List $0.00 / Each
Out Of Stock
WIFI Antenna Wire;;Left;;;;;200(IPEX+ALT 730909 1000433403 W58 WIFI Antenna Wire;;Left;;;;;200(IPEX+ALT No Model Compatibility List $0.00 / Each
Out Of Stock
Control Board;;;;;;TM756H; 730910 1000456007 1 Control Board;;;;;;TM756H; No Model Compatibility List $0.00 / Each
Out Of Stock
Console Set;;;US5/GUI1.3.6.6/OS1.1.5.0/u 730911 1000456156 21 Console Set;;;US5/GUI1.3.6.6/OS1.1.5.0/u No Model Compatibility List $0.00 / Each
Out Of Stock
Control Board;;;;GUI1.3.6.6/OS1.1.5.0/uB 730912 1000456008 4 Control Board;;;;GUI1.3.6.6/OS1.1.5.0/uB No Model Compatibility List $0.00 / Each
Out Of Stock
Overlay Set;Touch panel;;16inch;TM756K;; 730913 1000458739 AN62 Overlay Set;Touch panel;;16inch;TM756K;; No Model Compatibility List $0.00 / Each
Out Of Stock
Overlay Set;console;front;16inch;TM756; 730914 1000433429 AN63 Overlay Set;console;front;16inch;TM756; No Model Compatibility List $0.00 / Each
Out Of Stock
Panel Board Cover-Exreawork;console;fron 730915 1000433430 AN64 Panel Board Cover-Exreawork;console;fron No Model Compatibility List $0.00 / Each
Out Of Stock
Overlay Set;Touch panel;;16 Inch/PCTP;TM 730916 1000461109 N53 Overlay Set;Touch panel;;16 Inch/PCTP;TM No Model Compatibility List $0.00 / Each
Out Of Stock
Synthetic Label;Europe;;;;;;TM756H 730917 1000456009 V21 Synthetic Label;Europe;;;;;;TM756H No Model Compatibility List $0.00 / Each
Out Of Stock
Adhesive;A;369.4x6.5x0.4T/SONY UT2640MLG 730918 1000433483 W131 Adhesive;A;369.4x6.5x0.4T/SONY UT2640MLG No Model Compatibility List $0.00 / Each
Out Of Stock
Adhesive;Right;220.4x5.5x0.4T/SONY UT264 730919 1000433484 W132 Adhesive;Right;220.4x5.5x0.4T/SONY UT264 No Model Compatibility List $0.00 / Each
Out Of Stock
Adhesive;C;358.4x6.5x0.4T/SONY UT2640MLG 730920 1000443565 W133 Adhesive;C;358.4x6.5x0.4T/SONY UT2640MLG No Model Compatibility List $0.00 / Each
Out Of Stock
Adhesive;Left;220.4x5.5x0.4T/SONY UT2640 730921 1000453151 W141 Adhesive;Left;220.4x5.5x0.4T/SONY UT2640 No Model Compatibility List $0.00 / Each
Out Of Stock
Control Board Set;;;GUI1.3.6.6/OS1.1.5.0 730922 1000453510 W32 Control Board Set;;;GUI1.3.6.6/OS1.1.5.0 No Model Compatibility List $0.00 / Each
Out Of Stock
Inverter Wire;;;;;;;250(WL1256H-5Px2);EP 730923 1000433474 W60 Inverter Wire;;;;;;;250(WL1256H-5Px2);EP No Model Compatibility List $0.00 / Each
Out Of Stock
Cable Tie;Nylon66;CV-300S;;;;;KSS 731217 005817-00 P20 Cable Tie;Nylon66;CV-300S;;;;;KSS No Model Compatibility List $0.00 / Each
Out Of Stock
Set top box;;US4/E-POR HD3300;;EP625G 731367 1000425735 AW35 Set top box;;US4/E-POR HD3300;;EP625G No Model Compatibility List $1454.68 / Each

Tuner Module;;;US/H1.0;S1.03;;TM757;ATSC 731809 1000423828 W135 Tuner Module;;;US/H1.0;S1.03;;TM757;ATSC No Model Compatibility List $597.98 / Each

Fixing Plate;;;SPHC;;BED;TM756-US4; 731976 1000444836 N11 Fixing Plate;;;SPHC;;BED;TM756-US4; No Model Compatibility List $0.00 / Each
Out Of Stock
Ethernet switch;;D-LINK,DES-1005A;5V/0.5 731977 1000435398 W102 Ethernet switch;;D-LINK,DES-1005A;5V/0.5 No Model Compatibility List $0.00 / Each
Out Of Stock
Network Signal Wire;;;;;24AWG;160L;CAT6; 731978 1000444751 W107 Network Signal Wire;;;;;24AWG;160L;CAT6; No Model Compatibility List $0.00 / Each
Out Of Stock
Power wire;;;;STB;;500+300;JST,PAP-07V-S 731979 1000444752 W108 Power wire;;;;STB;;500+300;JST,PAP-07V-S No Model Compatibility List $0.00 / Each
Out Of Stock
Power wire;;;;;JST,PAP-03V-S+DC;450mm;; 731980 1000444753 W109 Power wire;;;;;JST,PAP-03V-S+DC;450mm;; No Model Compatibility List $0.00 / Each
Out Of Stock
Ground Wire;;;;;;120(?5.2????+?3.2O???); 731981 1000446069 W16 Ground Wire;;;;;;120(?5.2????+?3.2O???); No Model Compatibility List $0.00 / Each
Out Of Stock
Console Set;;;US4/GUI1.3.6.6/OS1.1.5.0/u 731982 1000456006 21 Console Set;;;US4/GUI1.3.6.6/OS1.1.5.0/u No Model Compatibility List $0.00 / Each
Out Of Stock
Set top box;;with conductive clothx4;;US 731983 1000445280 3 Set top box;;with conductive clothx4;;US No Model Compatibility List $0.00 / Each
Out Of Stock
Cuprum Thread rod;;;;;;M3x5L+6mm;hexagon 731984 1000461111 W103 Cuprum Thread rod;;;;;;M3x5L+6mm;hexagon No Model Compatibility List $0.00 / Each
Out Of Stock
Tape;;70x18x2;;;two-sided;3M 731985 1000444827 W104 Tape;;70x18x2;;;two-sided;3M No Model Compatibility List $0.00 / Each
Out Of Stock
Cuprum Thread rod;;;;;;M3x6L;hexagona 732533 1000444834 W103 Cuprum Thread rod;;;;;;M3x6L;hexagona No Model Compatibility List $0.00 / Each
Out Of Stock
RFID SET;;;;;;Chimera; 732534 1000448031 2 RFID SET;;;;;;Chimera; No Model Compatibility List $0.00 / Each
Out Of Stock
TFT Module;;;;;;Chimera 16 732535 1000438371 4 TFT Module;;;;;;Chimera 16"; No Model Compatibility List $0.00 / Each
Out Of Stock
Overlay Set;Touch panel;;16inch;TM756;; 732536 1000444975 AN62 Overlay Set;Touch panel;;16inch;TM756;; No Model Compatibility List $0.00 / Each
Out Of Stock
Control Board Module;;;;;;MX Chimera 16 732537 1000438369 1 Control Board Module;;;;;;MX Chimera 16" No Model Compatibility List $0.00 / Each
Out Of Stock
Console Set;;;;Chimera 16;;TM756-US6; 732538 1000433422 21 Console Set;;;;Chimera 16;;TM756-US6; No Model Compatibility List $0.00 / Each
Out Of Stock
Spec Label;ETL;;;;;;TM756 732539 1000433418 V21 Spec Label;ETL;;;;;;TM756 No Model Compatibility List $0.00 / Each
Out Of Stock
Console Set;;;;Chimera 16;;TM756-US4; 734193 1000444820 21 Console Set;;;;Chimera 16;;TM756-US4; No Model Compatibility List $0.00 / Each
Out Of Stock
Console Set;;;US6/GUI1.3.6.6/OS1.1.5.0/u 734207 1000456158 21 Console Set;;;US6/GUI1.3.6.6/OS1.1.5.0/u No Model Compatibility List $0.00 / Each
Out Of Stock
Console Set;;;;Chimera 16;;TM756-US5; 735021 1000444817 21 Console Set;;;;Chimera 16;;TM756-US5; No Model Compatibility List $0.00 / Each
Out Of Stock
