Brand: Matrix Fitness
Category: Upright
Type: Stationary Bikes

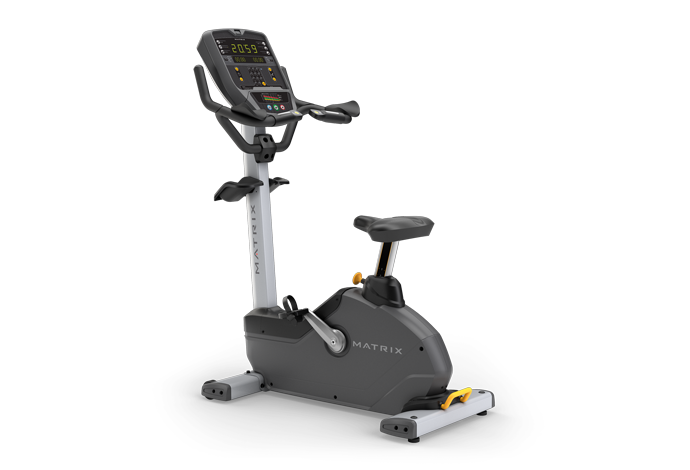

Model Name: U1x - 02 - CB171 - EP592 - 2016-2020
Serial Number Prefix: CB171, EP592, EP592
Version: 2016-0
"Used Only" - contact us if interested in used or refurbished parts. Send us mail:
X
| Image | Catalog # | MPN | Part List Key | Quantity On Model | Part Description | Notes | Available Used | Model Compatibility List | New price |
|---|---|---|---|---|---|---|---|---|---|
 |
700024 | 000041-AA | J19 | Transport Wheel | Yes | Model Compatibility List | $9.10 / Each |
||
 |
701159 | 004077-A2 | E17 | Ball Bearing;6004ZZ;20X42X12T;;SKF;;; | No | Model Compatibility List | $20.05 / Each |
||
 |
701312 | 004370-00 | N93 | Screw;Phillip;BH;M5x0.8Px10L;;Zn-BL | No | Model Compatibility List | $2.00 / Each |
||
 |
701314 | 004371-00 | S10 | Screw;Phillip;BH;M5x0.8Px25L;;Zn-BL | No | Model Compatibility List | $1.66 / Each |
||
 |
701335 | 004385-AD | J13 | Screw;Button Head;M5x0.8Px12L;Cutting;Ph | No | Model Compatibility List | $1.66 / Each |
||
 |
701437 | 004482-AC | Z21 | Screw;Hex Socket;Round;M8x1.25Px20L;BED; | No | Model Compatibility List | $2.00 / Each |
||
 |
701446 | 004488-AC | Z04 | Screw;Hex Socket;Round;M8x1.25Px55L | No | Model Compatibility List | $1.79 / Each |
||
 |
701502 | 004538-AC | Z11 | Screw;Socket Head;M8x1.25Px20L;;Hex Sock | No | Model Compatibility List | $3.35 / Each |
||
 |
701631 | 004653-00 | 63 | Screw;Round;PH;Tapped;4X12L | No | Model Compatibility List | $2.00 / Each |
||
 |
701658 | 004695-AB | Z08 | Screw;Hex Socket;Flat;M8x1.25Px12L | No | Model Compatibility List | $2.00 / Each |
||
 |
701713 | 004730-00 | Z03 | Screw;Oval Hex Socket;M8X1.25PX50L | Yes | Model Compatibility List | $2.00 / Each |
||
| 701897 | 004926-00 | D34 | Nut;Nylon;M8x1.25P | No | Model Compatibility List | $2.00 / Each |
|||
 |
702004 | 005042-00 | H06 | Washer;Flat;8.2X30.0X2.0T;Black Zinc | Yes | Model Compatibility List | $2.00 / Each |
||
 |
702017 | 005052-00 | 79 | Washer;Flat;8.0x16.0x1.0T;Black Zinc | No | Model Compatibility List | $1.66 / Each |
||
 |
702046 | 005075-00 | E18 | Washer;Flat;6.2X16X2.0T;Black Zinc | No | Model Compatibility List | $2.00 / Each |
||
| 702178 | 005220-00 | Z20 | Washer;Wavy;20.7x29.1x.3T | No | Model Compatibility List | $2.00 / Each |
|||
 |
702193 | 005239-00 | R18 | Washer;Lock;10.0x20.0x1.0T | No | Model Compatibility List | $2.00 / Each |
||
 |
702229 | 005354-00 | U09 | C-Clip;Internal;R-42 | No | Model Compatibility List | $1.79 / Each |
||
 |
702241 | 005366-00 | T11 | C-Clip;External;S-25 | No | Model Compatibility List | $1.59 / Each |
||
 |
703809 | 017657-00 | U05 | Spacer;Generator Shoulder;Right | Yes | Model Compatibility List | $1.90 / Each |
||
 |
703852 | 018652-B | 31 | Screw;SH;M6X1.0PX16.5L-8L;;HS;CRMO;BAN;; | No | Model Compatibility List | $3.64 / Each |
||
 |
703990 | 020069-00 | J16 | Screw;SH;M8X1.25PX12L;HS;BP;G12.9; | Yes | Model Compatibility List | $1.79 / Each |
||
 |
704192 | 020465-A | M24 | Washer;Flat;10.2x25x2.0T | No | Model Compatibility List | $2.00 / Each |
||
| 706754 | 065248-A | P17 | TV Coax Adaptor;Female;F-A028-NBX7-C | Yes | Model Compatibility List | $7.00 / Each |
|||
| 709912 | 1000204420 | U01 | Fixing Plate;Idler;;SPHC;176x130x15.3x4; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 712643 | 1000230018 | Z81 | Screw;SH;M8x1.25Px25L;HS;SST;BP; | No | Model Compatibility List | $2.18 / Each |
|||
 |
712644 | 1000230019 | Z82 | Washer;FLT;8.2x16.0x2.0t;SST; | No | Model Compatibility List | $1.33 / Each |
||
 |
712715 | 1000230349 | T04 | Screw;;;;;;;;; | No | Model Compatibility List | $9.10 / Each |
||
 |
712717 | 1000230354 | 22 | Fixed chipset;Idler;;;U-3x/5x/7x-05-F;; | Yes | Model Compatibility List | $59.12 / Each |
||
| 712718 | 1000230356 | U04 | Axle;Idler;;SS41;Anti-rust oil coating;C | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 713167 | 1000233513 | P18 | Wire Tie;Releasible;KSS HV-250SBK;250L;N | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 713368 | 1000301942 | S06 | Screw;-;Hex Head;M6x1.0Px16L;-;-;Black Z | No | Model Compatibility List | $1.66 / Each |
|||
 |
713491 | 1000304372 | Z12 | Washer;Sawtooth;Diam.8.5XDiam.18.0X2.0T; | No | Model Compatibility List | $1.66 / Each |
||
 |
713498 | 1000304387 | U10 | Spring Extension 15.8x2.5x83.0Lx23.75N | Yes | Model Compatibility List | $16.87 / Each |
||
 |
713519 | 1000304478 | Q10 | Screw;Button Head;M5x0.8Px12L;-;Phillip; | No | Model Compatibility List | $1.79 / Each |
||
| 713743 | 1000307358 | 38 | Idler Set;;;;CB92;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
 |
714874 | 1000319375 | J21 | Cap;;;PVC;BL/Black C;;; | No | Model Compatibility List | $1.66 / Each |
||
 |
717457 | 1000345278 | 2 | Crank set;;left;;;RB162;; | No | Model Compatibility List | $84.47 / Each |
||
 |
717458 | 1000345280 | 3 | Crank set;;right;;;RB162;; | No | Model Compatibility List | $84.47 / Each |
||
| 717607 | 1000346210 | P01 | Fixing Plate;E-PORT;;SPHC;78.6x40x70x1.6 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
 |
717608 | 1000346212 | D05 | PLASTIC LINER;Seat Tube Sleeve;;PA66;BL/ | No | Model Compatibility List | $6.73 / Each |
||
 |
717609 | 1000346214 | AC1 | Console mast set;;;;;CB171;; | No | Model Compatibility List | $84.47 / Each |
||
 |
717610 | 1000346226 | C04 | Kettle Rack;;;PP;Q520-7-3;;CB171; | No | Model Compatibility List | $13.49 / Each |
||
| 717612 | 1000346235 | AD1 | Seat Tube-Extrawork;;;Cr Plate;;CB171; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
 |
717615 | 1000346247 | Q05 | Boot;Base Tube;;TPE;Q520-7-3;;; | No | Model Compatibility List | $11.80 / Each |
||
 |
717616 | 1000346252 | AG2 | Handlebar Set-Exreawork;grip;;Dipping pl | No | Model Compatibility List | $45.60 / Each |
||
 |
717633 | 1000346367 | B17 | grip-Extrawork;;;Dipping PVC;orange;RB16 | No | Model Compatibility List | $33.77 / Each |
||
 |
717673 | 1000346714 | Q03 | Cover;;Front-Up;ABS/PA757;Q520-7-3;;; | No | Model Compatibility List | $10.11 / Each |
||
 |
717674 | 1000346715 | Q04 | Cover;;Rear-Up;ABS/PA757;Q520-7-3;;CB171 | No | Model Compatibility List | $27.01 / Each |
||
 |
717675 | 1000346716 | Q07 | Cover;Handlebar;Rear-Down;TPE;Q520-7-3;; | No | Model Compatibility List | $10.11 / Each |
||
 |
717701 | 1000346917 | Not Shown | Hardware Set;;;;CB171;; | No | Model Compatibility List | $18.56 / Each |
||
 |
717785 | 1000347577 | S01 | Generator;;350W;480rpm;;50.6VA;(Steel ri | No | Model Compatibility List | $591.47 / Each |
||
 |
717791 | 1000347632 | S02 | LCB;Generator;;L13CA1_H001;;;;MATRIX R-1 | No | Model Compatibility List | $305.86 / Each |
||
 |
719115 | 1000356012 | P09 | Console Wire Set;;;;;22AWG;1600L;MOLEX,5 | No | Model Compatibility List | $30.39 / Each |
||
 |
719118 | 1000356031 | P10 | Generator connected wire;;;;;;880mm;TKP, | No | Model Compatibility List | $28.70 / Each |
||
 |
719119 | 1000356032 | P04 | DC Power Wire;;;;;;360mm;DC025M+H6630R1- | No | Model Compatibility List | $15.18 / Each |
||
 |
719239 | 1000358248 | R02 | Bearing;Ball;6005ZZ;?25x?47x12T;TPI;C3 | No | Model Compatibility List | $17.24 / Each |
||
 |
719366 | 1000360701 | P13 | GND;;;Yellow/Green1;;14AWG 1015;1200;Dia | No | Model Compatibility List | $7.25 / Each |
||
 |
719399 | 1000361025 | P05 | TV Signal Wire;;;;;;1700mm;FM-0086-NBG7x | No | Model Compatibility List | $13.49 / Each |
||
 |
719415 | 1000361140 | Q01 | Side Cover-Exreawork;cover;left;Screen p | No | Model Compatibility List | $104.75 / Each |
||
 |
719416 | 1000361141 | Q02 | Side Cover-Exreawork;cover;right;Screen | No | Model Compatibility List | $104.75 / Each |
||
 |
719433 | 1000361276 | Z14 | Screw;Special;Diam.8.0/M6.0;Machine Thre | No | Model Compatibility List | $8.42 / Each |
||
 |
719657 | 1000363478 | P03 | Network Signal;;;;;;1700mm;QS 3205615600 | No | Model Compatibility List | $23.63 / Each |
||
 |
719659 | 1000363496 | A21 | Hand Pulse Grip Set;Semi-Assy;left;;;CB1 | No | Model Compatibility List | $48.98 / Each |
||
 |
719660 | 1000363497 | A22 | Hand Pulse Grip Set;Semi-Assy;right;;;CB | No | Model Compatibility List | $48.98 / Each |
||
 |
720644 | 1000374445 | Q15 | Cover;Arm Rest;front;ABS/PA757;Q520-7-3; | No | Model Compatibility List | $5.90 / Each |
||
 |
721307 | 1000381729 | AJ3 | Stabilizer set;Semi-Assy;front;;;RB162;; | No | Model Compatibility List | $111.51 / Each |
||
 |
721308 | 1000381730 | AJ4 | Stabilizer set;Semi-Assy;back;;;RB162;;S | No | Model Compatibility List | $147.00 / Each |
||
 |
721309 | 1000381731 | 1 | Drive set;Semi-Assy;;;;RB162;;SBOM | No | Model Compatibility List | $118.27 / Each |
||
| 721902 | 1000386228 | D03 | Decal;Seat Tube;;;PVC;Left;;CB171 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 721903 | 1000386229 | D04 | Decal;Seat Tube;;;PVC;Right;;CB171 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
 |
721930 | 1000386657 | R10 | Belt;POLY-V;FIBERGLASS;430-J10;;Wu De Fu | No | Model Compatibility List | $50.67 / Each |
||
| 721995 | 1000387042 | T01 | Crank;;L;painting;BP-920S;MATRIX/SL/GY;R | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 721996 | 1000387045 | T02 | Crank;;R;painting;BP-920S;MATRIX/SL/GY;R | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 722306 | 1000390875 | G12 | Screw;Round Head;M3x0.5Px30L;;Phillip;St | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
 |
722312 | 1000390956 | AD12 | Seat Tube Set;Semi-Assy;;;;CB171;;SBOM | No | Model Compatibility List | $140.24 / Each |
||
 |
722338 | 1000391118 | G11 | Screw;Round Head;M3x0.5Px12L;Machine Thr | No | Model Compatibility List | $1.66 / Each |
||
| 722389 | 1000391682 | P15 | Battery Set;;;;;1015 16AWG;350;;E1-F | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 722441 | 1000392033 | P08 | Connect;;;;;;1150L;TKP-10P+(TKP-3P)X2+11 | No | Model Compatibility List | $32.08 / Each |
|||
| 722613 | 1000395799 | AR11 | Transmission set+Tools;;;;;;RB162;SBOM | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 723653 | 1000411443 | A23 | Handlebar Set;Semi-Assy;;;;;CB171;SBOM | No | Model Compatibility List | $233.19 / Each |
|||
 |
725395 | 070817 | Z31 | Screw;SH;M8X1.25PX20L;;HS;;CHM;; | No | Model Compatibility List | $0.99 / Each |
||
 |
727707 | 0000090518 | 66 | Pedal Set | Yes | Model Compatibility List | $72.98 / Each |
||
| 728450 | 0000094929 | J11 | Cap;Stabilizer;Left-Front;ABS/PA757;P804 | Yes | Model Compatibility List | $12.04 / Each |
|||
 |
728498 | 0000095100 | J12 | Cap;Stabilizer;Right-Front;ABS/PA757;P80 | Yes | Model Compatibility List | $9.44 / Each |
||
 |
728614 | 0000095638 | J15 | Foot Pad;Adjustable;M12X58H;12.9;EP304; | Yes | Model Compatibility List | $33.85 / Each |
||
| 729899 | ZMS4008362 | P17 | Battery, Rechargeable; 12V 1.2AH NP1.2-1 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
 |
1020692 | 1000211360 | 0 | 1 | Screw Round Hex Socket M8-1.25-20MM (Used) | No | Model Compatibility List | $3.25 / Each |
|
 |
1004804 | 0000090518 | 0 | 1 | Foot Pedal Set w/Strap 9/16” | Yes | Model Compatibility List | $56.99 / Each |
|
 |
020069-00 | 020069-00 | 0 | 1 | SCREW, SH, M8X1.25PX12L, HS, BP, G12.9 | Yes | Model Compatibility List | $6.99 / Each |
|
 |
730298 | 0000089835 | J57 | Washer;Ribbed lock;8.5x12.8x0.8tx1.3h; | No | Model Compatibility List | $3.88 / Each |
||
 |
730311 | 0000093219 | P30 | Jacket;PVC;A5X-03-F;US;EP79 | No | Model Compatibility List | $1.28 / Each |
||
 |
730464 | 0000082214 | D08 | Seat Pad;Black;LS-A26;Triple;CB66 | No | Model Compatibility List | $59.90 / Each |
||
 |
730506 | 004488-AB | Z08 | SCREW HEX M8X1.25X55 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
730508 | 1000217582 | U02 | Bushing;SS41;NKL;IDLER; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
730509 | 0000090274 | D08 | Seat Pad;Black;LS-A26;Triple;CB66 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
730586 | 0000080058 | B39 | Rubber;1.0t;CB66; | No | Model Compatibility List | $6.48 / Each |
||
 |
730597 | 0000080059 | Q11 | Rear Cover 2 Hole Fixing Plate;CST;RB85; | No | Model Compatibility List | $1.28 / Each |
||
 |
730598 | 0000082604 | Z13 | Screw;Button Head;M6X1.0PX12L;-;Phillip; | No | Model Compatibility List | $6.48 / Each |
||
 |
730607 | 004787-00 | B32 | Screw;Hex Socket;BH;M8x1.25Px50L(Tooth20) | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
730644 | 1000348689 | W81 | Earphone board;;;U138A3/H001;;;EP621; | No | Model Compatibility List | $37.68 / Each |
||
 |
731254 | 1000347209 | Q24 | Cover;Hand Pulse;down;ABS/PA757;Q520-7-3 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
732360 | 0000094065 | U08 | SCREW;TRH;M5X0.8PX13L; | No | Model Compatibility List | $1.28 / Each |
||
 |
734858 | 1000357427 | N62 | Overlay;ENTAERTAINMENT;;French;No;EP619; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
734859 | 1000348746 | 11 | Console Set;;;;EP592-1US;; D/C, NO REPL: Part will show as orderable until stock is depleted. | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
734895 | 0000090275 | AD3 | Seat Pad Pull Pin set;M16;orange;U1x | No | Model Compatibility List | $37.24 / Each |
||
 |
976932 | 004926-00 | Nylon Lock Nut M8x1.25P (New) | No | Model Compatibility List | $12.99 / Each |
|||
 |
941989 | 004370-00 | Screw (New) | No | Model Compatibility List | $12.00 / Each |
|||
|
|
|||||||||
