Matrix Fitness - U5x - CB92 - EP624B - EP624D - 2016-2020 - 2016-0

Repair Parts for Matrix Fitness U5x - CB92 - EP624B - EP624D - 2016-2020 CB92, EP624B, EP624D, CB92H, CB92B

Brand: Matrix Fitness

Category: Upright

Type: Stationary Bikes

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

CB92, EP624B, EP624D, CB92H, CB92B

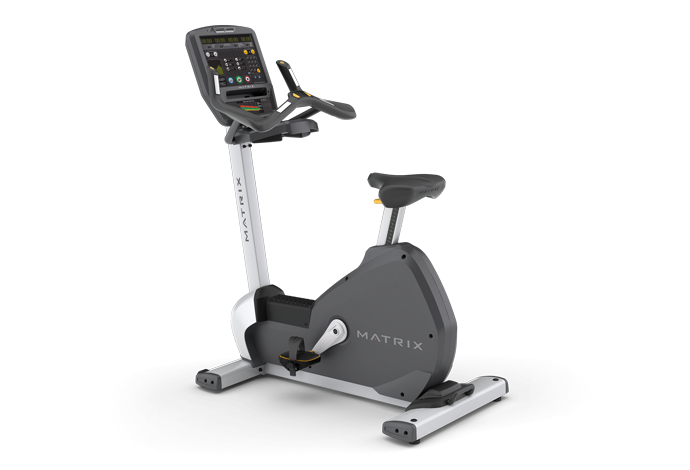

Model Name: U5x - CB92 - EP624B - EP624D - 2016-2020

Serial Number Prefix: CB92, EP624B, EP624D, CB92H, CB92B

Version: 2016-0

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

diag_239_Console Parts List.pdf

VIEWS

Catalog #	MPN	Part List Key	Quantity On Model	Part Description	Available Used	Model Compatibility List	New price
700024	000041-AA	J19		Transport Wheel	Yes	Model Compatibility List	$9.10 / Each
700924	002782-C	Not Shown		Power Cord;External(USA);3000,14AWG;110V(non-nema)	Yes	Model Compatibility List	$72.98 / Each
700925	002787-C	Not Shown		Power Cord;External(USA);3000,14AWG;110V(nema)	No	Model Compatibility List	$72.98 / Each	4,5,6
701032	003383-A	P20		Ferrite Choke;FH0900B-2;Lian Ci;TM38	No	Model Compatibility List	$9.10 / Each
701035	003393-A	P21		Ferrite Core;FH1500B;TM87 K1 RH12.5x12.5x8	No	Model Compatibility List	$3.64 / Each
701146	004050-A	Not Shown		Pedal Strap Set(includes both sides);Rub	No	Model Compatibility List	$36.48 / Each
701159	004077-A2	E17		Ball Bearing;6004ZZ;20X42X12T;;SKF;;;	No	Model Compatibility List	$20.05 / Each
701285	004354-00	J13		SCREW;BH;M5X0.8PX12L;;PH;;BAN;;	Yes	Model Compatibility List	$1.66 / Each
701289	004356-AB	183		Screw;Phillip;BH;M4x0.7Px12L;BED;	No	Model Compatibility List	$1.66 / Each	2
701314	004371-00	S10		Screw;Phillip;BH;M5x0.8Px25L;;Zn-BL	No	Model Compatibility List	$1.66 / Each
701318	004374-00	S03		Screw;Phillip;BH;M5x0.8Px10L;Gap;;Zn-BL	No	Model Compatibility List	$2.00 / Each
701321	004375-AC	Q23		Screw;Phillip;BH;Stainess;M5x0.8Px15L;BE	No	Model Compatibility List	$1.79 / Each
701332	004385-00	E60		Screw;BH;M5X0.8PX12L;;PH;;BAN;;	Yes	Model Compatibility List	$1.79 / Each
701390	004447-AB	S13		Screw;Hex Socket;Round;M5x0.8Px12L;Adher	No	Model Compatibility List	$1.43 / Each
701391	004447-AC	G21		SCREW;SH;M5X0.8PX12L;CT;HS;;BAN;;	No	Model Compatibility List	$1.66 / Each
701413	004463-00	S06		Screw;Hex Socket;Round;M6x1.0Px16L	No	Model Compatibility List	$1.79 / Each
701426	004475-00	M11		SCREW;SH;M8X1.25PX15L;;HS;;BZN;;	No	Model Compatibility List	$0.52 / Each
701437	004482-AC	Z21		Screw;Hex Socket;Round;M8x1.25Px20L;BED;	No	Model Compatibility List	$2.00 / Each
701502	004538-AC	Z11		Screw;Socket Head;M8x1.25Px20L;;Hex Sock	No	Model Compatibility List	$3.35 / Each
701617	004636-AC	L06		Screw;Umbrella Cross Tapped;4x15L	No	Model Compatibility List	$1.66 / Each
701658	004695-AB	Z08		Screw;Hex Socket;Flat;M8x1.25Px12L	No	Model Compatibility List	$2.00 / Each
701862	004884-00	D47		Nut;Hex;M8X1.25P	No	Model Compatibility List	$1.79 / Each
701866	004889-00	P19		Nut;Hex;M5x0.8P;Nickel	No	Model Compatibility List	$2.00 / Each
701912	004941-00	L08		Nut;Nylon;M10x1.5P	Yes	Model Compatibility List	$2.00 / Each
701924	004957-00	R09		Nut;Lock;M25X1.5P;SS41;BAN	Yes	Model Compatibility List	$3.64 / Each
701944	004979-00	B39		Insert Nut;Hex;NHS-8125-3.0(M8x1.25P)	No	Model Compatibility List	$1.79 / Each
701945	004980-A	B21		Insert Nut;Hex;NHS-580-3.0(M5X0.8P)	Yes	Model Compatibility List	$1.79 / Each
701951	004987-00	R22		Key;Round;Dual End;6X6X12L	No	Model Compatibility List	$1.66 / Each
701984	005020-AB	Z08		Washer;;SPL;10.2X18.4X2.5T;;BAN;	No	Model Compatibility List	$1.59 / Each
702004	005042-00	H06		Washer;Flat;8.2X30.0X2.0T;Black Zinc	Yes	Model Compatibility List	$2.00 / Each
702038	005067-AB	D26		WASHER;FLT;Diam.10.2XDiam.15.0X1.5T;;CHM	No	Model Compatibility List	$1.66 / Each
702046	005075-00	E18		Washer;Flat;6.2X16X2.0T;Black Zinc	No	Model Compatibility List	$2.00 / Each
702063	005091-00	S04		Washer;Flat;4.2X10.0X1.2T;BAN	No	Model Compatibility List	$2.00 / Each
702131	005157-A	N153		Washer;Flat;4.3x12.0x1.0T;Black Zinc	No	Model Compatibility List	$1.79 / Each
702178	005220-00	Z20		Washer;Wavy;20.7x29.1x.3T	No	Model Compatibility List	$2.00 / Each
702192	005238-00	B29		Washer;Lock;8.2x16x1.25T	No	Model Compatibility List	$1.66 / Each
702193	005239-00	R18		Washer;Lock;10.0x20.0x1.0T	No	Model Compatibility List	$2.00 / Each
702229	005354-00	U09		C-Clip;Internal;R-42	No	Model Compatibility List	$1.79 / Each
702241	005366-00	T11		C-Clip;External;S-25	No	Model Compatibility List	$1.59 / Each
702246	005371-00	D22		Clamp;E-Shaped;E-5;	No	Model Compatibility List	$1.66 / Each
702325	006078-00	V18		Decal;Grounding;TM08	No	Model Compatibility List	$1.90 / Each
702418	006714-C	JM55		DECAL;GENERATOR;GRAY;JOHNSON;JM55	No	Model Compatibility List	$1.66 / Each
702589	008864-A	N50		Screw;Special;Round;2.9x1.06Px7L(Hi-Lo)	No	Model Compatibility List	$1.79 / Each
702591	008866-A	N152		Screw;Special;Round;4.0x1.34Px12L(Hi-Lo	No	Model Compatibility List	$1.66 / Each
703809	017657-00	U05		Spacer;Generator Shoulder;Right	Yes	Model Compatibility List	$1.90 / Each
703852	018652-B	31		Screw;SH;M6X1.0PX16.5L-8L;;HS;CRMO;BAN;;	No	Model Compatibility List	$3.64 / Each
703962	020005-00	P02		Screw;Phillip;Round;M3x6L;;Zn-BL	No	Model Compatibility List	$1.79 / Each
703990	020069-00	J16		Screw;SH;M8X1.25PX12L;HS;BP;G12.9;	Yes	Model Compatibility List	$1.79 / Each
704192	020465-A	M24		Washer;Flat;10.2x25x2.0T	No	Model Compatibility List	$2.00 / Each
705752	056008-A	W37		Ground Wire;Pulse Grip;100L;(KST FDFNYD2-250-1 HSG	No	Model Compatibility List	$3.35 / Each	4,5,6,12,13,14,11
705777	056225-A	53		Ferrite;PART OF #79 CABLE;NOT ORDERABLE;	No	Model Compatibility List	$8.42 / Each
706354	061339-B	W56		Fan;DC12V/0.3A PMB1297PYB3-AY;EP70	Yes	Model Compatibility List	$117.29 / Each
706754	065248-A	P17		TV Coax Adaptor;Female;F-A028-NBX7-C	Yes	Model Compatibility List	$7.00 / Each
706800	065712-A	P18		Screw;;Umbrella Cross;M5x0.8Px25L;	No	Model Compatibility List	$1.85 / Each
706993	068134-A	Q09		Clip;C-Shaped;M5 Tapped;A-00163-16;	No	Model Compatibility List	$1.66 / Each
709912	1000204420	U01		Fixing Plate;Idler;;SPHC;176x130x15.3x4;	No	Model Compatibility List	$0.00 / Each Out Of Stock
710100	1000206777	P32		C Safe+TV Connect Wire;200(TKP H20J2-15x	No	Model Compatibility List	$40.51 / Each
710102	1000206779	P33		Console Cable;250(MOLEX,50-57-9408+MOLEX,	No	Model Compatibility List	$56.58 / Each
710103	1000206783	Not Shown		E-ORT CONNECT WIRE;400(AMP569532x2);	No	Model Compatibility List	$47.87 / Each	4,5,6
710289	1000208535	AN51		Heart Rate Board Set;SALUTRON 8600;EP93C;	No	Model Compatibility List	$300.61 / Each
710454	1000210330	P03		Wire;Connect;USB;250(JST,XAP-06V-1)x2;	No	Model Compatibility List	$19.16 / Each
710483	1000210553	N16		USB;EP90B	No	Model Compatibility List	$14.40 / Each	1
710607	1000211294	N98		Screw;FH;M3X0.5PX30L;-;PH;BZN;	No	Model Compatibility List	$1.66 / Each	2
710678	1000212322	N25		Shim;Rubber;D;NBR;BLACK;TM507C;	No	Model Compatibility List	$1.66 / Each	4,5,6
710798	1000213752	W04		Control Board;USB;H001;U10CA1;	No	Model Compatibility List	$27.69 / Each
710880	1000214924	P08		Battery;650(FDFNYD2-187)X2 VHR-2N+FUSE	Yes	Model Compatibility List	$32.89 / Each
712097	1000226648	AB1		CONSOLE Reinforce Tube;PAINTING;BLACK;EP	No	Model Compatibility List	$164.24 / Each	7,3,4,5,6
712102	1000226667	N55		COVER;CONSOLE;U;ABS/PA746;DG/80435;EP612	No	Model Compatibility List	$67.57 / Each	7,9
712107	1000226718	N54		COVER;CONSOLE;RE;ABS/PA746;DG/80435;EP61	No	Model Compatibility List	$33.77 / Each	7,9
712282	1000228099	P04		PWR Switch Set;;;;;;;550+140(JST,VHR-3N+	Yes	Model Compatibility List	$25.32 / Each
712391	1000228688	N82		SCREW;BH;M5X0.8PX12L;PH;BAN;	No	Model Compatibility List	$1.66 / Each
712398	1000228705	W52		CONTROL BOARD;C-SAFE;U11AA2;H001;COATING	No	Model Compatibility List	$33.77 / Each	7
712551	1000229467	W53		CONSOLE CONTROL BOARD;H001;COATING;EP611	No	Model Compatibility List	$32.84 / Each	7
712577	1000229587	D06		Link Rod;Seat Tube;-;SS41;White Zinc;U-3	No	Model Compatibility List	$8.42 / Each
712578	1000229588	D07		Block;-;CB92	No	Model Compatibility List	$16.87 / Each
712590	1000229648	Q05		Sleeve;Seat Tube;up;NYLON 66;Black;;CB92	Yes	Model Compatibility List	$16.87 / Each
712593	1000229654	D16		PLASTIC LINER;Seat Tube;down;NYLON66;BL/	Yes	Model Compatibility List	$16.87 / Each
712594	1000229655	C11		Kettle Rack;;;ABS/PA757;Gray/80435;;U-3x	Yes	Model Compatibility List	$33.77 / Each
712595	1000229656	C12		Kettle Rack;;left;TPR;BL/Black C;;U-3x/5	Yes	Model Compatibility List	$24.67 / Each
712596	1000229657	C13		Kettle Rack - Right TPR;BL/Black C;;U-3x	Yes	Model Compatibility List	$24.67 / Each
712597	1000229660	Q02		Cover Up - ABS/709;BL/GY/80393;;CB92;?	Yes	Model Compatibility List	$22.07 / Each
712603	1000229697	D09		Torsional Spring;;Diam.2.3;SWPB;Prevent-	No	Model Compatibility List	$8.42 / Each
712604	1000229702	D08		Axle, Swivel;Stopper;-;SS41;White Zinc;C	Yes	Model Compatibility List	$3.35 / Each
712605	1000229704	D11		Axle, Swivel;Link Rod;Down;SS41;White Zi	No	Model Compatibility List	$3.35 / Each
712606	1000229705	D12		Axle, Swivel;Link Rod;Up;SS41;White Zinc	Yes	Model Compatibility List	$3.35 / Each
712607	1000229709	AD2		seat post tube set;;;welding;U-3x/5x/7x-	No	Model Compatibility List	$0.00 / Each Out Of Stock
712624	1000229948	G15		Pulse Sensor;;Right;;;;;790+640(TKP,H663	Yes	Model Compatibility List	$42.22 / Each
712637	1000229998	AB1		Frame Set;;;painting;BP-920S;MATRIX/SL/G	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
712638	1000230001	H36		Snap Ring;External;S-10;	No	Model Compatibility List	$1.79 / Each
712639	1000230003	AC11		Console Mast Set;;;painting;BP-920S;MATR	No	Model Compatibility List	$0.00 / Each Out Of Stock	7
712640	1000230007	2		Seat Post Set;;;U-3x/5x/7x-05-F;US,U-3x/	Yes	Model Compatibility List	$422.47 / Each
712641	1000230015	14		Stabilizer Tube Set;;front;;U-3x/5x/7x-0	No	Model Compatibility List	$253.47 / Each
712642	1000230016	AJ3		stabilizer set;;F;painting;BP-920S;MATRI	No	Model Compatibility List	$0.00 / Each Out Of Stock
712643	1000230018	Z81		Screw;SH;M8x1.25Px25L;HS;SST;BP;	No	Model Compatibility List	$2.18 / Each
712645	1000230023	15		Stabilizer Tube Set;;back;;U-3x/5x/7x-05	No	Model Compatibility List	$337.97 / Each
712646	1000230024	AJ4		stabilizer set;;Rear;painting;BP-920S;MA	No	Model Compatibility List	$0.00 / Each Out Of Stock
712647	1000230034	V05		Spec Label;ETL;U-3x/5x/7x-05-F;Black Wor	No	Model Compatibility List	$0.00 / Each Out Of Stock	4,5,6
712659	1000230081	Not Shown		Network signal extend wire;600;(TKP H663	Yes	Model Compatibility List	$38.97 / Each	9,4,5,6
712661	1000230086	Not Shown		TV PWR EXT;600;(TKP H6630R1-04(PITCH 3.0	No	Model Compatibility List	$38.97 / Each	4,5,6
712663	1000230092	R02		Pulley;Flat;;FC25;f270;CB92;	No	Model Compatibility List	$0.00 / Each Out Of Stock
712715	1000230349	T04		Screw;;;;;;;;;	No	Model Compatibility List	$9.10 / Each
712716	1000230353	T07		Pedal;w/ Belt;L/R;JD-61A;Black1;;RB307;	Yes	Model Compatibility List	$91.23 / Each
712717	1000230354	22		Fixed chipset;Idler;;;U-3x/5x/7x-05-F;;	Yes	Model Compatibility List	$59.12 / Each
712718	1000230356	U04		Axle;Idler;;SS41;Anti-rust oil coating;C	No	Model Compatibility List	$0.00 / Each Out Of Stock
712735	1000230479	S01		Generator;;350W;480rpm;50.6VA;3??V;	Yes	Model Compatibility List	$784.81 / Each
712736	1000230480	S02		Controller Generator U-3x/5x/7x-04	Yes	Model Compatibility List	$638.79 / Each
712866	1000231078	N85		SCREW;BH;?X5X1.6PX12L(HI-LO);PH;BZN;	No	Model Compatibility List	$1.66 / Each
712869	1000231121	N86		SCREW;BH;(##10.5);M5X0.8PX15L;-;PH;-;BAN	No	Model Compatibility List	$1.66 / Each	2
712940	1000231589	Not Shown		SCREW;BH;M3X0.5PX6L;CT;PH;SST;BAN;	No	Model Compatibility List	$1.66 / Each	2
713009	1000232278	35		SENSOR SET;-;U-3X/5X/7X-05-F;QUICKLY KEY	Yes	Model Compatibility List	$45.60 / Each
713010	1000232279	Q26		Plastic Base;Quick Key;;ABS/PA746;BL/Bla	No	Model Compatibility List	$0.00 / Each Out Of Stock	9,3
713011	1000232280	N30		Plastic Cover;Quick Key;;ABS/PA746;137C/	No	Model Compatibility List	$0.00 / Each Out Of Stock	9
713012	1000232284	3		Handlebar Set;;;;U-3x/5x/7x-05-F;;	Yes	Model Compatibility List	$675.97 / Each
713013	1000232285	AG5		Handlebar Set-Exreawork;;;muffle;;CB92;U	No	Model Compatibility List	$253.47 / Each
713167	1000233513	P18		Wire Tie;Releasible;KSS HV-250SBK;250L;N	No	Model Compatibility List	$0.00 / Each Out Of Stock
713168	1000233514	G16		Pulse Sensor;;Left;;;;;790+640(TKP,H6630	Yes	Model Compatibility List	$42.22 / Each
713342	1000301795	P08		Battery Set;;;;;;350mm;KST,FDFNYD2-187x	No	Model Compatibility List	$23.63 / Each
713343	1000301796	P13		Network Signal Extend Wire - 1300L(3	Yes	Model Compatibility List	$33.77 / Each
713344	1000301797	P16		Digital COMM;;;;;;;1350;MOLEX,50-57-9408	No	Model Compatibility List	$36.48 / Each
713345	1000301798	P46		ECB Load 700(TKP,H9848R-02+KP,H984	Yes	Model Compatibility List	$21.94 / Each
713346	1000301805	N32		Membrane Keypad;Control;L;1KEY;CB92-US-F	No	Model Compatibility List	$0.00 / Each Out Of Stock	7,9,12,13,14
713349	1000301857	B35		Adjustable Plate;Seat Pad;;POM+20%FRP;BL	No	Model Compatibility List	$16.87 / Each
713350	1000301858	AD3		grip-Extrawork;Adjustable;-;Dipping;CB92	Yes	Model Compatibility List	$42.22 / Each
713354	1000301910	D27		Decal;Seat Tube;CB92;;PVC;;;	No	Model Compatibility List	$3.35 / Each
713355	1000301915	N31		Plastic Base;Quick Key;;ABS/PA746;137C/8	No	Model Compatibility List	$0.00 / Each Out Of Stock	9,3
713356	1000301916	36		Sensor Set Quickly Key - Left CB92-Q27	Yes	Model Compatibility List	$18.23 / Each
713357	1000301917	Q27		Plastic Base;Quick Key;left;ABS/PA746;BL	No	Model Compatibility List	$0.00 / Each Out Of Stock
713358	1000301918	AD8		Overlay Set;Quickly Key;left;PET/A180L;E	No	Model Compatibility List	$16.87 / Each
713359	1000301920	37		Sensor Set Quickly Key - Right CB92-Q28	Yes	Model Compatibility List	$18.23 / Each
713360	1000301921	Q28		Plastic Base;Quick Key;right;ABS/PA746;B	No	Model Compatibility List	$0.00 / Each Out Of Stock
713361	1000301922	AD9		Overlay Set;Quickly Key;right;PET/A180L;	No	Model Compatibility List	$16.87 / Each
713363	1000301925	AQ3		cover-Extrawork;frame;left;Print;;CB92;	No	Model Compatibility List	$116.32 / Each
713364	1000301926	AQ4		cover-Extrawork;frame;right;Print;;CB92;	No	Model Compatibility List	$92.92 / Each
713382	1000302035	P102		Adapter - In AC90-264VAC; Out DC12V/5A	Yes	Model Compatibility List	$118.27 / Each
713395	1000302135	N33		Membrane Keypad;Control;;#k;1KEY;CB92-US	No	Model Compatibility List	$0.00 / Each Out Of Stock	7,9,12,13,14
713450	1000303373	G17		Pulse Sensor EXT;;;;;;;150+200L(H6630P1-	Yes	Model Compatibility List	$33.77 / Each
713451	1000303374	P45		TV Power;;;;;;;1300L(SCD-554DCS103BB1G+H	Yes	Model Compatibility List	$21.94 / Each
713452	1000303375	P01		TV Signal Wire;;;;;1350L;FM-0086-NBG7x2;	No	Model Compatibility List	$16.87 / Each
713482	1000304292	P11		Console Board GND;;;;;;;1350(KST,STRV5-5	No	Model Compatibility List	$16.87 / Each
713487	1000304346	P10		Adjustable Cable Clamp;Adjustable;ATC-26	No	Model Compatibility List	$3.35 / Each
713488	1000304368	P21		Fixing Plate;Adaptor;;SPHC;150x53x1.5T;P	No	Model Compatibility List	$8.42 / Each
713490	1000304371	B45		Foam;-;150x45x40;-;CB92	No	Model Compatibility List	$3.35 / Each
713491	1000304372	Z12		Washer;Sawtooth;Diam.8.5XDiam.18.0X2.0T;	No	Model Compatibility List	$1.66 / Each
713492	1000304377	AG7		Support Rack Set;Kettle Rack;;painting;T	No	Model Compatibility List	$0.00 / Each Out Of Stock
713493	1000304381	R10		Belt;POLY-V;FIBERGLASS;450-J10;Wu De Fu	Yes	Model Compatibility List	$54.73 / Each
713498	1000304387	U10		Spring Extension 15.8x2.5x83.0Lx23.75N	Yes	Model Compatibility List	$16.87 / Each
713504	1000304405	B17		Grip Extrawork Dipping PVC;Black;CB93;	Yes	Model Compatibility List	$42.22 / Each
713519	1000304478	Q10		Screw;Button Head;M5x0.8Px12L;-;Phillip;	No	Model Compatibility List	$1.79 / Each
713521	1000304481	Q01		Frame Cover;-;F;painting;BP-920S;MATRIX	Yes	Model Compatibility List	$84.47 / Each
713532	1000304669	P22		Insulation Plate;;;;;PET/FR700;0.25mm;CB	No	Model Compatibility List	$3.35 / Each
713640	1000306044	R06		Washer;Flat;25.4x34x1.2t;Zinc plate;;R	No	Model Compatibility List	$1.66 / Each
713662	1000306192	P06		MCB power wire;;;;;;;300(TKP,H6630R1-06x	No	Model Compatibility List	$18.23 / Each
713666	1000306288	1		console mast set;;;U-3x/5x/7x-05-F;CB92-	No	Model Compatibility List	$337.97 / Each
713743	1000307358	38		Idler Set;;;;CB92;;	No	Model Compatibility List	$0.00 / Each Out Of Stock
713881	1000309219	P09		Battery WP1.2-12;12V 1.2Ah;	Yes	Model Compatibility List	$72.98 / Each
713910	1000309516	N152b		Tape;;;40x10x0.2;;EP614	No	Model Compatibility List	$0.00 / Each Out Of Stock
713926	1000309653	33		Shield Set Sensor- Right;;CB92;; TM501-Q17	Yes	Model Compatibility List	$21.94 / Each
713927	1000309655	34		shield set;Sensor;left;;CB92;;	No	Model Compatibility List	$21.94 / Each
714874	1000319375	J21		Cap;;;PVC;BL/Black C;;;	No	Model Compatibility List	$1.66 / Each
715325	1000323981	Not Shown		Service Hardware Kit;;;US;HUR-3x/5x/7x-0	No	Model Compatibility List	$38.84 / Each Out Of Stock
715558	1000326130	Z23		Screw;TRUSS Head;M5x0.8Px13L;;Phillip;St	No	Model Compatibility List	$1.33 / Each
716616	1000337835	1		console mast set;;;MATRIX Purple;CB92B;;	No	Model Compatibility List	$192.63 / Each
716619	1000337860	14		Stabilizer Tube Set;;front;MATRIX Purple	No	Model Compatibility List	$217.98 / Each
716620	1000337863	15		Stabilizer Tube Set;;back;MATRIX Purple;	No	Model Compatibility List	$326.14 / Each
717677	1000346722	21		Drive axle set;;L/F;crank;S-BOM;;CB93;;NEW	No	Model Compatibility List	$401.52 / Each
717678	1000346723	21		Transmission set;;S-BOM;;CB93;;NE	No	Model Compatibility List	$199.39 / Each
717679	1000346724	R13		Axle;Transmission;;SCM440;;CB92;f30X148.	No	Model Compatibility List	$0.00 / Each Out Of Stock
717680	1000346725	T11		Crank;Single side;Right;170mm;;Painting;	No	Model Compatibility List	$0.00 / Each Out Of Stock
717681	1000346726	T12		Crank;Single side;Left;170mm;;Painting;B	No	Model Compatibility List	$0.00 / Each Out Of Stock
717682	1000346727	16		crank set;;right;NEW;CB92;;	Yes	Model Compatibility List	$67.57 / Each
717683	1000346728	17		crank set;;left;NEW;CB92;;	Yes	Model Compatibility List	$84.47 / Each
717921	1000348662	N51		Cover;Overlay;;PC510;Gray/80435;;EP619;	No	Model Compatibility List	$0.00 / Each Out Of Stock
717923	1000348667	N54		Cover;Console;back;ABS PA746;Gray/80435;	No	Model Compatibility List	$37.15 / Each	7,9,4,5,6
717924	1000348668	N52		Console Cover;Service;front;PC510;Gray/8	No	Model Compatibility List	$89.54 / Each
717925	1000348669	N53		Console Cover;Service;back;ABS PA746;Gra	No	Model Compatibility List	$15.18 / Each
717926	1000348670	AN16		cover-Extrawork;USB;;Print;;EP619;	No	Model Compatibility List	$3.35 / Each
717927	1000348672	N27		Torsional Spring;;;SUS304;;EP619;	No	Model Compatibility List	$1.66 / Each
717928	1000348673	N28		Fixing Block;USB;;ABS PA746;Gray/80435;;	No	Model Compatibility List	$1.66 / Each
717932	1000348688	W70		Exchanged Board;Keypad;;U143A3/H001;;;EP	No	Model Compatibility List	$33.77 / Each
717935	1000348695	Not Shown		Repair Cover;Earphone;front;PC510;Gray/8	No	Model Compatibility List	$25.32 / Each
717936	1000348697	Not Shown		TV Support Bracker Set;;;English/EP619-U	No	Model Compatibility List	$346.42 / Each	3,4,5,6
718662	1000352783	W51		Control Board;Console;;H001/U143A1;V2.2;	No	Model Compatibility List	$967.33 / Each	7
718663	1000352790	W58		Quickly Key Wire;;;;;;;250(TKP,H254M2-2x	No	Model Compatibility List	$54.73 / Each	9,4,5,6
718664	1000352791	W66		Digital COMM;;;;;;;400(MOLEX,50-57-9408+	No	Model Compatibility List	$50.67 / Each	1
718929	1000354340	W45		Pulse Sensor;;;;;;;250mm(H2510A-06N,TKP,	No	Model Compatibility List	$16.41 / Each
719040	1000355287	1		console mast set;;;American Beauty Red;C	No	Model Compatibility List	$0.00 / Each Out Of Stock
719179	1000356725	AN4		cover-Extrawork;Overlay;;Print;;EP624;	No	Model Compatibility List	$84.47 / Each	9
719182	1000356740	Not Shown		Quickly Key Wire;;;;;;;200+250(TKP,H254M	No	Model Compatibility List	$18.56 / Each	9,4,5,6
719186	1000356785	W01		Control Board;;;H001;V2.3;;EP624;	No	Model Compatibility List	$895.67 / Each	7
719560	1000362459	AN9		Overlay Set;Entertainment;;No/English;EP	No	Model Compatibility List	$101.37 / Each	1
719561	1000362460	Not Shown		Overlay Set;Entertainment;;English;EP619	No	Model Compatibility List	$168.97 / Each	1
719562	1000362481	AN8		Overlay Set;Program;;English;EP622;;key	No	Model Compatibility List	$304.17 / Each	9
719868	1000366472	Not Shown		WIFI Wireness module Set;;;;EP619/EP623;	No	Model Compatibility List	$532.32 / Each
719870	1000366515	9		Earphone board set;;;;EP620;	No	Model Compatibility List	$42.22 / Each
719883	1000366596	Z41		Screw;Socket Head;M5x0.8Px12L;;Hex Socke	No	Model Compatibility List	$1.43 / Each
721086	1000380493	N66		Overlay Set;TV;;key pad;EP623D;;	No	Model Compatibility List	$219.67 / Each	9,4,5,6,12,13,14
721087	1000380499	21		Console Set;;;ES/H001/V1.002;EP624D;	No	Model Compatibility List	$0.00 / Each Out Of Stock	7
721088	1000380500	AN8		Overlay Set;Program;;English;EP624D;;key	No	Model Compatibility List	$0.00 / Each Out Of Stock	9
721171	1000381156	Not Shown		Overlay Set;Entertainment;;NO;EP623D;;	No	Model Compatibility List	$84.47 / Each	1
721632	1000384862	AD7		Seat Pad Set;;;with Fixing Housing;;CB92	Yes	Model Compatibility List	$99.00 / Each
721756	1000385415	2		Control Board;;;HF-A11-0;V2.050;;;	No	Model Compatibility List	$517.11 / Each
722281	1000390571	Not Shown		Manual;Manipulate;;English;;EP619;	No	Model Compatibility List	$18.23 / Each
722832	1000398811	Q11		Cover;;back;TPR;BL/Black C;;CB92;	No	Model Compatibility List	$0.00 / Each Out Of Stock
725395	070817	Z31		Screw;SH;M8X1.25PX20L;;HS;;CHM;;	No	Model Compatibility List	$0.99 / Each
726115	080058	Q28		Rubber;1.0t;CB66;	No	Model Compatibility List	$8.42 / Each
726540	082661	B39		Screw;Wagon;M8x1.25Px20L;BLACK	No	Model Compatibility List	$0.70 / Each
726545	082701	B40		SCREW;BH;M10X1.5PX55L-10L;;HS;;BAN;;P-T	No	Model Compatibility List	$1.66 / Each
726549	082734	P59		Washer;Senated;M5.3X10X0.6;Zinc Plate	No	Model Compatibility List	$1.79 / Each
726550	082736	Z82		Washer;Flat;8.2X16.0X2.0T;;BZN;	No	Model Compatibility List	$1.66 / Each
726594	0000083278	Z22		USB Cover;USB-03	No	Model Compatibility List	$1.90 / Each
726607	083458	Z62		Washer;Lock;8.2x13.5x2.0t	No	Model Compatibility List	$2.00 / Each
726614	083502	Not Shown			No	Model Compatibility List	$0.00 / Each Out Of Stock
726749	084585	D21		WASHER;SPL;Diam.5.2XDiam.10X1.5T;SPHC ;B	No	Model Compatibility List	$1.66 / Each
726752	084592	B42		WASHER;FLT;?X10.2x?X20x2.0T;SPHC ;BAN;	No	Model Compatibility List	$1.66 / Each
726817	0000085274	N25		Cover;Sensor;L;ABS/PA-746;426C;TM501;	Yes	Model Compatibility List	$13.47 / Each
726818	085275	N26		Cover;Sensor;R;ABS/PA-746;426C;TM501;	No	Model Compatibility List	$18.67 / Each
726878	085758	T05		Washer;Lock;10.0x20.0x1.5t;;;;	No	Model Compatibility List	$0.44 / Each
726928	0000086064	N33		Cover;Console;Right;ABS/PA-746;BL;TM501;	No	Model Compatibility List	$3.35 / Each
726929	0000086065	N34		Cover;Console;Left;ABS/PA-746;BL;TM501;	Yes	Model Compatibility List	$3.35 / Each
726930	0000086068	N24		Cover;Sensor;Upper;ABS/PA-746;MT-11010;	Yes	Model Compatibility List	$31.33 / Each
726972	086280	KIT		Decal;Weight Plate;LBS;GM204	No	Model Compatibility List	$38.74 / Each
727017	0000086684	W13		Speaker Set;AK-402808BC-3T+280+XAP-02;TM	No	Model Compatibility List	$17.65 / Each
727024	086721	N151		SCREW;RND;M2X0.5PX6L;;PH;;BZN;;	No	Model Compatibility List	$1.33 / Each
727025	0000086724	N35		Cover;Console Display;TV Rack;Printing;T	No	Model Compatibility List	$47.63 / Each
727076	0000087056	N13		Vent;Fan;ABS/PA-746;Pantone:877C;TM501;	No	Model Compatibility List	$45.24 / Each
727220	087858	G25		Screw;Round;M3X0.5PX12L;;PH;SSTSUS304;BAN;	No	Model Compatibility List	$3.64 / Each
727351	0000088743	N81		Screw;TRH;M3x.5Px6L;MT;PH;CST;ZNC;F-T	No	Model Compatibility List	$1.79 / Each
727358	0000088790	N52		Anti-Slippery Pad;TPR+30%PP;BL;MX-E5XC-F	No	Model Compatibility List	$9.10 / Each
727362	088806	W70		Grip Pulse Ground Wire;200L(KST FDFNYD2-	No	Model Compatibility List	$8.42 / Each
727437	089190	N18		Cover;IPOD Fixing;ABS/PA746;80435;MX-E5X	No	Model Compatibility List	$3.35 / Each
727474	089506	Not Shown			No	Model Compatibility List	$0.00 / Each Out Of Stock
727533	089832	R08		BEARING;BALL;6205LUZ(TUTZ)/C3;#25X#52X15	No	Model Compatibility List	$16.87 / Each
727534	089835	Not Shown			No	Model Compatibility List	$0.00 / Each Out Of Stock
727543	0000089849	W45		Wire;Hand Pulse Sensor;350L(2510A-06,TKP	No	Model Compatibility List	$20.90 / Each
727961	0000092217	W75		Heart Rate Power Wire;250L(2510A-03+XAP-	No	Model Compatibility List	$9.13 / Each
728026	0000092696	N202		Fixing Plate;Fan;0.8t;T5x-02;	No	Model Compatibility List	$9.10 / Each
728132	093219	AB1		RIGHT MAIN FRAME SET	No	Model Compatibility List	$589.11 / Each
728337	094065	U08		SCREW;TRH;M5X0.8PX13L;	No	Model Compatibility List	$1.66 / Each
728371	094425	Not Shown			No	Model Compatibility List	$0.00 / Each Out Of Stock
728450	0000094929	J11		Cap;Stabilizer;Left-Front;ABS/PA757;P804	Yes	Model Compatibility List	$12.04 / Each
728498	0000095100	J12		Cap;Stabilizer;Right-Front;ABS/PA757;P80	Yes	Model Compatibility List	$9.44 / Each
728541	095229	W05		Pulse Receiver Set;Salutron 4600;EP603	No	Model Compatibility List	$305.11 / Each
728542	0000095231	W04		Control Board;USB;H001;U105A5;EP603;	No	Model Compatibility List	$28.29 / Each
728600	0000095575	N203		Tape;Foam;One-Sided;50x15x1.5T;	No	Model Compatibility List	$1.66 / Each
728614	0000095638	J15		Foot Pad;Adjustable;M12X58H;12.9;EP304;	Yes	Model Compatibility List	$33.85 / Each
728616	095641	N157		SCREW;RND;#X4.0X1.34PX8L(HI-LO);PH;BZN;	No	Model Compatibility List	$1.66 / Each
728977	N/A	AC1		Console Mast,Old version (4 holes on front)	No	Model Compatibility List	$0.00 / Each Out Of Stock	8,,1,,1
729118	Part of Kit 1	AB2		Stabilizer Frame;Rear;B;Panting;MM330;EP212	No	Model Compatibility List	$0.00 / Each Out Of Stock
729127	Part of Kit 14	E08		Crank Pin Sleeve;Aluminum Casting;EP525-	No	Model Compatibility List	$0.00 / Each Out Of Stock
729129	Part of Kit 15	AH2		Link Arm;Left;Panting;MM330;EP212	No	Model Compatibility List	$0.00 / Each Out Of Stock
729133	Part of Kit 16	AL1		Stabilizer;Front;Panting;MM330;EP212	No	Model Compatibility List	$0.00 / Each Out Of Stock
729135	Part of Kit 17	R01		Transmission Axle;42CrMo;EP217	No	Model Compatibility List	$0.00 / Each Out Of Stock
729138	Part of Kit 2	AC1		Console Mast;Painting;MM330;6027-45-	No	Model Compatibility List	$0.00 / Each Out Of Stock
729144	Part of Kit 22	R04		Generator;-;8.0KG EP537-1US;-;-;-;	No	Model Compatibility List	$0.00 / Each Out Of Stock
729161	Part of Kit 35	N30		Plastic Cover;Quick Key;ABS/PA746;137C/	No	Model Compatibility List	$0.00 / Each Out Of Stock
729162	Part of Kit 36	Q27		Plastic Base;Quick Key;left;ABS/PA746;BL	No	Model Compatibility List	$0.00 / Each Out Of Stock
729163	Part of Kit 37	Q28		Plastic Base;Quick Key;right;ABS/PA746;B	No	Model Compatibility List	$0.00 / Each Out Of Stock
729165	Part of Kit 4	AE1		Pedal Arm;Left;EP212	No	Model Compatibility List	$0.00 / Each Out Of Stock
729301	ZMF4001697	21		Console, Bx HURE-3x RC	No	Model Compatibility List	$0.00 / Each Out Of Stock	7
729302	ZMF4001698	21		Console, Bx HURE-3x w/ WIFI RC	No	Model Compatibility List	$0.00 / Each Out Of Stock	7
729303	ZMF4001699	21		Console, Bx HURE-3x w/ 900 RC	No	Model Compatibility List	$0.00 / Each Out Of Stock	7
1020692	1000211360	0	1	Screw Round Hex Socket M8-1.25-20MM (Used)	No	Model Compatibility List	$3.25 / Each
1023569	0000085275	0	1	Cover Sensor Right (Used)	No	Model Compatibility List	$17.41 / Each	1
matr450-j8	1000304381	0	1	Belt Drive	Yes	Model Compatibility List	$51.99 / Each
1024511	1000346727	0	1	Crank Set Right (Used)	Yes	Model Compatibility List	$46.64 / Each
1024498	1000346728	0	1	Crank Set Left (Used)	Yes	Model Compatibility List	$47.90 / Each
1024472	1000229655	0	1	Kettle Rack ABS/PA757 Gray/80435 U-3x (Used)	Yes	Model Compatibility List	$31.51 / Each
1024709	1000301925	0	1	cover-Extrawork frame left Print CB92 (Used)	No	Model Compatibility List	$69.34 / Each
1024682	1000301926	0	1	cover-Extrawork frame right Print CB92 (Used)	No	Model Compatibility List	$69.34 / Each
020069-00	020069-00	0	1	SCREW, SH, M8X1.25PX12L, HS, BP, G12.9	Yes	Model Compatibility List	$6.99 / Each
1036673	0000089849			Wire;Hand Pluse Sensor;350L(2510A-06,TKP	Yes	Model Compatibility List	$6.99 / Each
730118	0000094425	Not Shown		Power Cord Set;3000;18AWG	Yes	Model Compatibility List	$43.78 / Each
730164	0000082736	R60		Washer;Flat;8.2X16.0X2.0T;;BZN;	No	Model Compatibility List	$1.28 / Each
730311	0000093219	P30		Jacket;PVC;A5X-03-F;US;EP79	No	Model Compatibility List	$1.28 / Each
730343	0000083458	Z17		Washer;Lock;8.2x13.5x2.0t	No	Model Compatibility List	$1.42 / Each
730508	1000217582	U02		Bushing;SS41;NKL;IDLER;	No	Model Compatibility List	$0.00 / Each Out Of Stock
730586	0000080058	B39		Rubber;1.0t;CB66;	No	Model Compatibility List	$6.48 / Each
730587	0000082661	B41		Screw;Wagon;M8x1.25Px20L;BLACK	No	Model Compatibility List	$0.54 / Each
730591	1000417073	Not Shown		crank set;;;For KITS;RB315;;	No	Model Compatibility List	$1471.58 / Each
730622	0000095641	N155		SCREW;RND;#X4.0X1.34PX8L(HI-LO);PH;BZN;	No	Model Compatibility List	$1.28 / Each
730626	1000216152	N51		Fan ADJ Plate;SUS304;0.3t;T9000;	No	Model Compatibility List	$2.58 / Each
730644	1000348689	W81		Earphone board;;;U138A3/H001;;;EP621;	No	Model Compatibility List	$37.68 / Each
730751	0000082734	P59		Washer;Senated;M5.3X10X0.6;Zinc Plate	No	Model Compatibility List	$1.38 / Each
730752	0000089832	R08		BEARING;BALL;6205LUZ(TUTZ)/C3;#25X#52X15	No	Model Compatibility List	$12.98 / Each
730756	0000086280	Z81		Screw;SH;M8X1.25PX25L;;HS;;BAN;;	No	Model Compatibility List	$1.28 / Each
730761	1000230347	16		crank set;;right;;U-3x/5x/7x-05-F;;	No	Model Compatibility List	$0.00 / Each Out Of Stock
730762	1000230350	17		crank set;;left;;U-3x/5x/7x-05-F;;	No	Model Compatibility List	$0.00 / Each Out Of Stock
730763	1000230123	21		transmission set;;;;H-3x/5x/7x-05-F;;	No	Model Compatibility List	$0.00 / Each Out Of Stock
730764	005825-00	P14		Wrapping Tape;KS-10;WH;	No	Model Compatibility List	$0.00 / Each Out Of Stock
730770	0000087858	G51		Screw;Round;M3X0.5PX12L;;PH;SSTSUS304;BAN;	No	Model Compatibility List	$2.80 / Each
731129	0000085758	C81		Washer;Lock;10.0x20.0x1.5t;;;;	No	Model Compatibility List	$0.34 / Each
731235	0000086721	N151		SCREW;RND;M2X0.5PX6L;;PH;;BZN;;	No	Model Compatibility List	$0.20 / Each
731475	0000084592	M25		WASHER;FLT;?X10.2x?X20x2.0T;SPHC ;BAN;	No	Model Compatibility List	$1.28 / Each
731845	0000082701	B40		SCREW;BH;M10X1.5PX55L-10L;;HS;;BAN;;P-T	No	Model Compatibility List	$1.28 / Each
731846	0000084585	D21		WASHER;SPL;Diam.5.2XDiam.10X1.5T;SPHC ;B	No	Model Compatibility List	$1.28 / Each
732359	1000345631	Not Shown		Hardware Set;;;;CB92;;	No	Model Compatibility List	$15.58 / Each
732360	0000094065	U08		SCREW;TRH;M5X0.8PX13L;	No	Model Compatibility List	$1.28 / Each
732361	1000229658	AD7		Seat Pad;;Vesicant,PU/Self-Skin;Black;U-	No	Model Compatibility List	$0.00 / Each Out Of Stock
734087	1000362179	AN8		Overlay Set;Program;;English;EP624;;key	No	Model Compatibility List	$148.18 / Each	1
734088	0000089190	N18		Cover;IPOD Fixing;ABS/PA746;80435;MX-E5X	No	Model Compatibility List	$2.58 / Each
734089	1000356728	N62		Overlay;Heart Rate Zone;;English;No;EP623	No	Model Compatibility List	$20.78 / Each
734090	1000356729	N63		Shim;;;;;PC;EP623;	No	Model Compatibility List	$10.38 / Each
734091	1000356737	Not Shown		TV Bracket Set;;;5X PCTV&MYE TV;;EP623;;	No	Model Compatibility List	$262.58 / Each	1
734092	1000364289	Not Shown		RFID SET;;;Offspring;;BIKE;	No	Model Compatibility List	$573.28 / Each	1
734093	1000357080	Not Shown		Overlay Set;TV;;key pad;EP623;;	No	Model Compatibility List	$70.18 / Each
734094	0000088806	W70		Grip Pulse Ground Wire;200L(KST FDFNYD2-	No	Model Compatibility List	$6.48 / Each
734095	1000380470	21		Console Set;;;ES/H001/V1.002;EP624B;	No	Model Compatibility List	$0.00 / Each Out Of Stock
734096	1000357113	N61		Overlay;Program;;French;;EP624;	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
734097	1000357062	N62		Overlay;ENTAERTAINMENT;;French;No;EP623;	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
986204	004374-00			Button Head Phillip Screw (New)	No	Model Compatibility List	$12.99 / Each Out Of Stock

View Drawing

Chat with us

Matrix Fitness - U5x - CB92 - EP624B - EP624D - 2016-2020 - 2016-0

Exploded Diagrams

general Info

Customer Service

About us

Address
