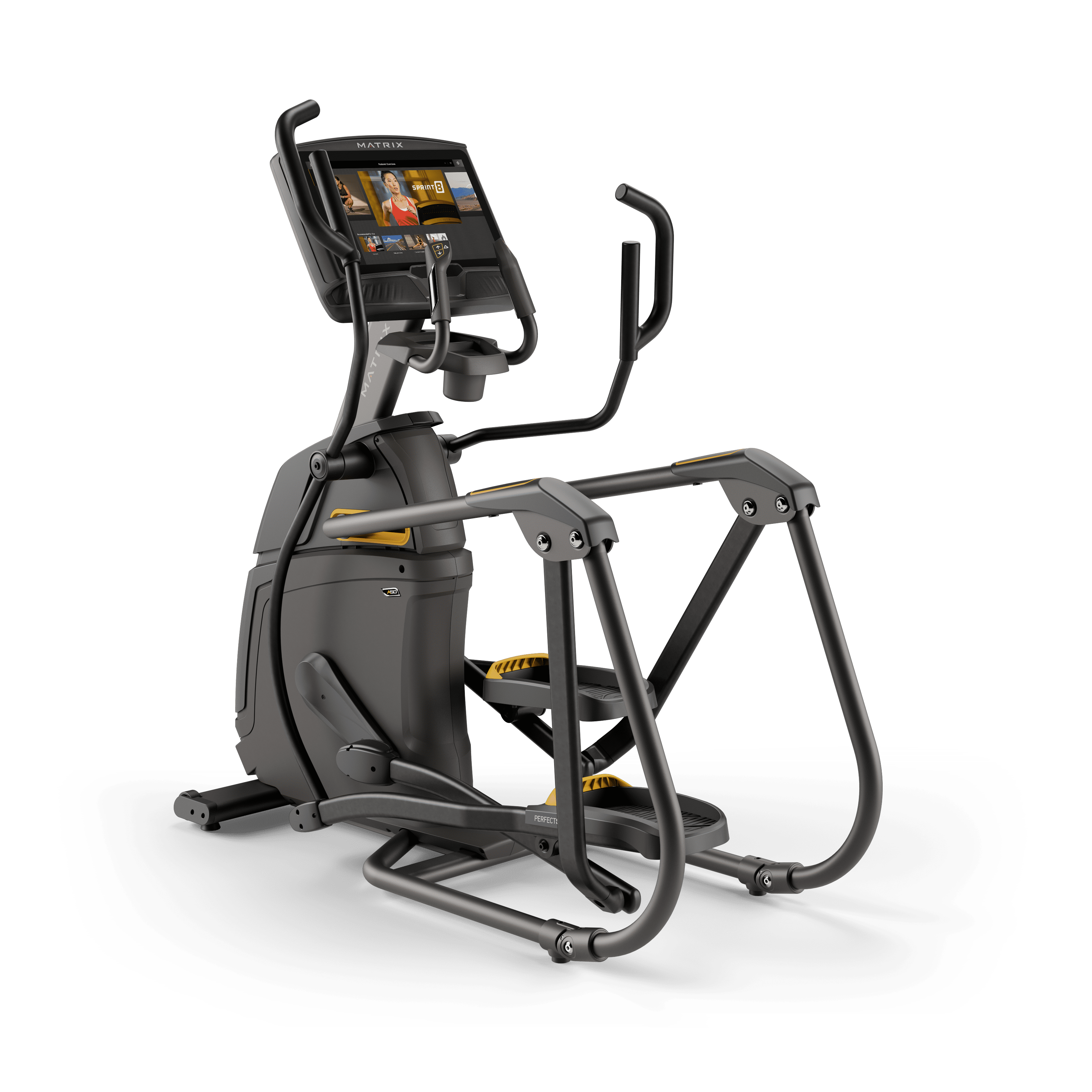

Matrix Retail - A50-04 - EP727 - EP298 - 2020 - 2020-2025

Repair Parts for Matrix Retail A50-04 - EP727 - EP298 - 2020 EP727, EP298

Brand: Matrix Retail

Category: Ascent

Type: Elliptical

Model Name: A50-04 - EP727 - EP298 - 2020

Serial Number Prefix: EP727, EP298

Version: 2020-2025

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Catalog #
MPN
Part List Key
Quantity On Model
Part Description
Notes
Available Used
Model Compatibility List
New price
Power Switch on Off 040695-A 040695-A 0 1 Power Switch on Off Yes Model Compatibility List $9.99 / Each

Power Switch 1000730 040695-A 0 1 Power Switch Yes Model Compatibility List $9.99 / Each

Handgrip Set;;left;;Quick button;;EP727; 732518 1000459546 3 Handgrip Set;;left;;Quick button;;EP727; No Model Compatibility List $24.58 / Each

Handgrip Set;;right;;Quick button;;EP727 732519 1000459554 4 Handgrip Set;;right;;Quick button;;EP727 No Model Compatibility List $12.58 / Each

Adjustable Plate;;;painting;DM334;;EP590 733446 1000346920 B40 Adjustable Plate;;;painting;DM334;;EP590 No Model Compatibility List $6.48 / Each

Cable Tie;250 M/ROL 732531 066090-A C15 Cable Tie;250 M/ROL No Model Compatibility List $0.00 / Each
Out Of Stock
Pedal-Extrawork;;left;Screen print;;EP59 733448 1000366545 H13 Pedal-Extrawork;;left;Screen print;;EP59 No Model Compatibility List $35.38 / Each

Swivel Shaft A;SCM440;EP304; 730293 0000095050 H23 Swivel Shaft A;SCM440;EP304; No Model Compatibility List $9.44 / Each

Screw;Hex;M10X1.5X65L-35L 731912 0000085366 E44 Screw;Hex;M10X1.5X65L-35L No Model Compatibility List $1.38 / Each

Swivel Shaft B;SCM440;EP304; 730294 0000095051 H24 Swivel Shaft B;SCM440;EP304; No Model Compatibility List $10.38 / Each

Cover;Hand Pulse;right down;ABS PA757S;B 731359 1000341898 D82 Cover;Hand Pulse;right down;ABS PA757S;B No Model Compatibility List $0.00 / Each
Out Of Stock
Cover;Connect Rod;up;ABS+TPR;;;EP702-1US 733447 1000367249 H06 Cover;Connect Rod;up;ABS+TPR;;;EP702-1US No Model Compatibility List $10.34 / Each

Screw;FH;M5x0.8Px15L;;PH;;BAN;CT 732523 0000093400 H18 Screw;FH;M5x0.8Px15L;;PH;;BAN;CT No Model Compatibility List $1.42 / Each

Pedal-Extrawork;;right;Screen print;;EP5 733449 1000366546 H27 Pedal-Extrawork;;right;Screen print;;EP5 No Model Compatibility List $35.08 / Each

LCB;electromagnet;AC;HEPD;V2.004;;MLH120 733450 1000301188 M31 LCB;electromagnet;AC;HEPD;V2.004;;MLH120 No Model Compatibility List $216.96 / Each

Nut;HEX;M10X1.5P;10 730093 0000086127 B88 Nut;HEX;M10X1.5P;10 No Model Compatibility List $2.80 / Each

Washer;Flat;10.2X20.0X2.0T;Black Zinc 730372 020477-00 H37 Washer;Flat;10.2X20.0X2.0T;Black Zinc No Model Compatibility List $0.00 / Each
Out Of Stock
SCREW;SH;M10X1.5PX75L;(35L);HS;G12.9; 730373 004518-AC J53 SCREW;SH;M10X1.5PX75L;(35L);HS;G12.9; No Model Compatibility List $0.00 / Each
Out Of Stock
Fixing Plate;LCB;;painting;;;EP701-1US;D 733451 1000366455 M32 Fixing Plate;LCB;;painting;;;EP701-1US;D No Model Compatibility List $7.90 / Each

Cover;Hand Pulse;left down;ABS PA757S;BL 731358 1000341896 D78 Cover;Hand Pulse;left down;ABS PA757S;BL No Model Compatibility List $0.00 / Each
Out Of Stock
WASHER;FLT;?X10.2x?X20x2.0T;SPHC ;BAN; 731475 0000084592 M25 WASHER;FLT;?X10.2x?X20x2.0T;SPHC ;BAN; No Model Compatibility List $1.28 / Each

Console Power Wire;;;;;22AWG;1850;TKP H6 731199 1000434473 P32 Console Power Wire;;;;;22AWG;1850;TKP H6 No Model Compatibility List $12.98 / Each

Electromagnet PWR;;;;;;750mm;EL-2Y+VH-2Y 733452 1000379319 P05 Electromagnet PWR;;;;;;750mm;EL-2Y+VH-2Y No Model Compatibility List $8.42 / Each

CTRL Board PWR;;;Black;;16AWG;550mm;BLA2 733453 1000205705 P23 CTRL Board PWR;;;Black;;16AWG;550mm;BLA2 No Model Compatibility List $6.54 / Each

Filter Wire;;;;;14AWG+18AWG;300+550mm;TP 733454 1000449786 P24 Filter Wire;;;;;14AWG+18AWG;300+550mm;TP No Model Compatibility List $13.28 / Each

Bearing;Ball;6206LUZC3;;CSC;?? 732524 1000425409 R06 Bearing;Ball;6206LUZC3;;CSC;?? No Model Compatibility List $10.38 / Each

Screw;Phillip;BH;M5x0.8Px20L; 733455 004368-Z P26 Screw;Phillip;BH;M5x0.8Px20L; No Model Compatibility List $0.40 / Each

Decal;Side Cover;;;;Left;;EP590 733456 1000352505 V03 Decal;Side Cover;;;;Left;;EP590 No Model Compatibility List $1.42 / Each

Decal;Side Cover;;;;Right;;EP590 733457 1000352506 V04 Decal;Side Cover;;;;Right;;EP590 No Model Compatibility List $1.42 / Each

Screw;SH;M10X1.5PX20L;;HS;;BZN;;BP 731942 0000087428 Z11 Screw;SH;M10X1.5PX20L;;HS;;BZN;;BP No Model Compatibility List $1.38 / Each

Sticker;Instruction;L; 732526 006643-BX V06 Sticker;Instruction;L; No Model Compatibility List $0.60 / Each

Power board;DC;;;12.6V/3.3A;HBPB;;;AC100 730138 1000433184 P76 Power board;DC;;;12.6V/3.3A;HBPB;;;AC100 No Model Compatibility List $53.28 / Each

Washer;Flat;Diam.6.2xDiam.12.0x2.0T;;Chr 730706 005155-ZA Z14 Washer;Flat;Diam.6.2xDiam.12.0x2.0T;;Chr No Model Compatibility List $1.28 / Each

Slipping sleeve Set;Semi-Assy;;;;;EP727; 732527 1000454939 AB3 Slipping sleeve Set;Semi-Assy;;;;;EP727; No Model Compatibility List $0.00 / Each
Out Of Stock
Console Mast-Extrawork;;;Screen print;;E 732528 1000455015 AC2 Console Mast-Extrawork;;;Screen print;;E No Model Compatibility List $0.00 / Each
Out Of Stock
Handgrip Set;;left up;;;;EP727;SBOM 733458 1000459548 AD3 Handgrip Set;;left up;;;;EP727;SBOM No Model Compatibility List $0.00 / Each
Out Of Stock
Handgrip Set;;right up;;;;EP727;SBOM 733459 1000459555 AD4 Handgrip Set;;right up;;;;EP727;SBOM No Model Compatibility List $0.00 / Each
Out Of Stock
CON TUBE SET;;;painting;DM334;;EP727; 732520 1000454942 AH1 CON TUBE SET;;;painting;DM334;;EP727; No Model Compatibility List $201.08 / Each

Adjustable Arm Set;Semi-Assy;;;;;EP711; 732521 1000402732 AH4 Adjustable Arm Set;Semi-Assy;;;;;EP711; No Model Compatibility List $75.64 / Each

Arm Rest Set;Semi-Assy;left;;;;EP727; 733444 1000450233 AG5 Arm Rest Set;Semi-Assy;left;;;;EP727; No Model Compatibility List $311.60 / Each

Arm Rest Set;Semi-Assy;right;;;;EP727; 733445 1000450241 AG6 Arm Rest Set;Semi-Assy;right;;;;EP727; No Model Compatibility List $311.60 / Each

Right Handgrip Hand Sensor 1000733 1000337708 Right Handgrip Hand Sensor Yes Model Compatibility List $19.99 / Each

4,5,6
Power Switch On Off 1001368 040695-A Power Switch On Off Yes Model Compatibility List $19.99 / Each

Nut Locking Nylon 3/8 912107 1000465333 Nut Locking Nylon 3/8 No Model Compatibility List $11.99 / Each

Black Nylon Nut (New) 917260 004942-00 Black Nylon Nut (New) No Model Compatibility List $12.99 / Each
