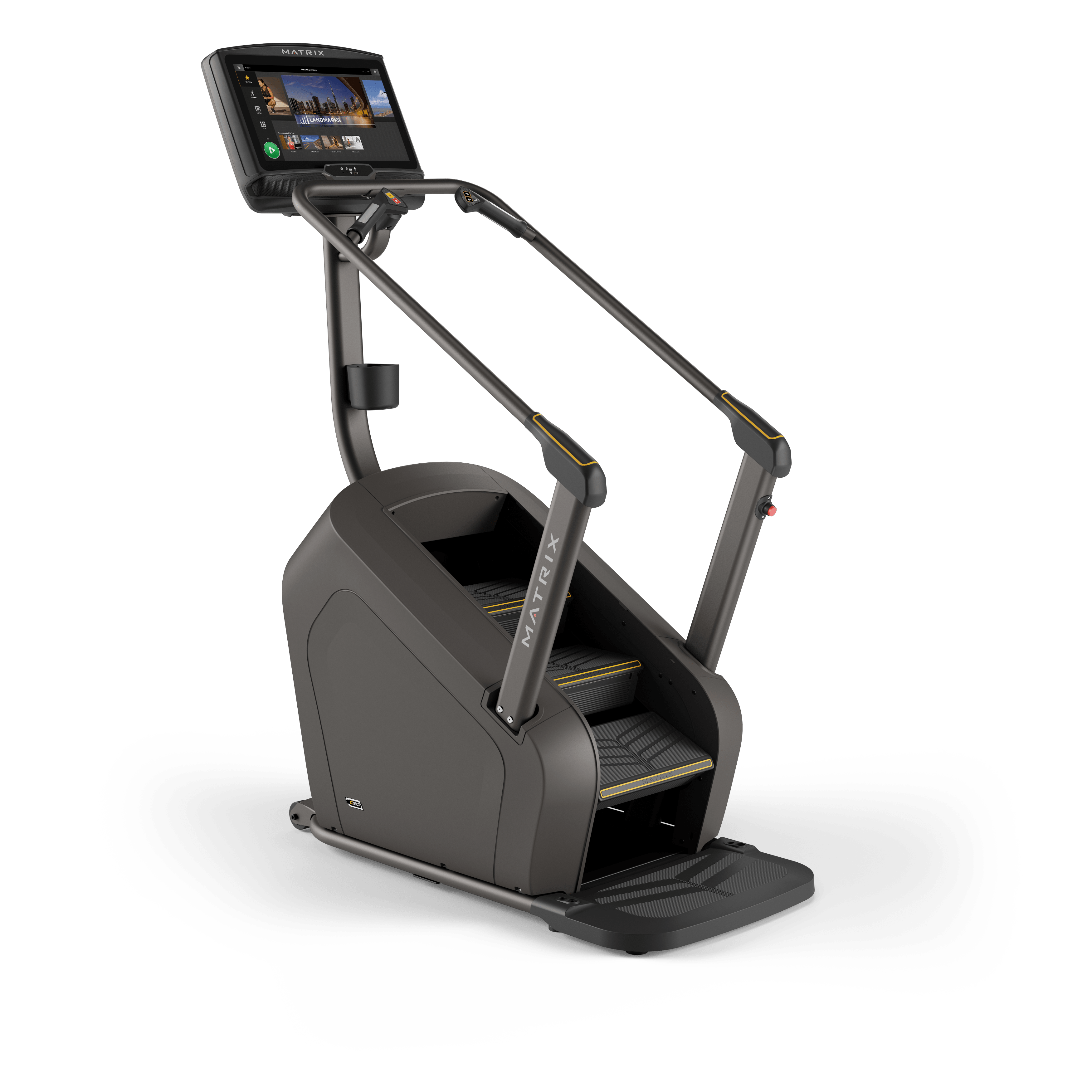

Matrix Retail - C50-02 - CS38 - 2020 - 2020-2025

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Filter Board Set 1003980 069859 Filter Board Set Yes Model Compatibility List $27.99 / Each

Holder, Cup without Bracket (Used) 1035694 0000088923 C11 1 Holder, Cup without Bracket (Used) Yes Model Compatibility List $14.99 / Each

Front Roller Screw M8-1.25 1020604 004483-00 Front Roller Screw M8-1.25"x25mm No Model Compatibility List $11.99 / Each

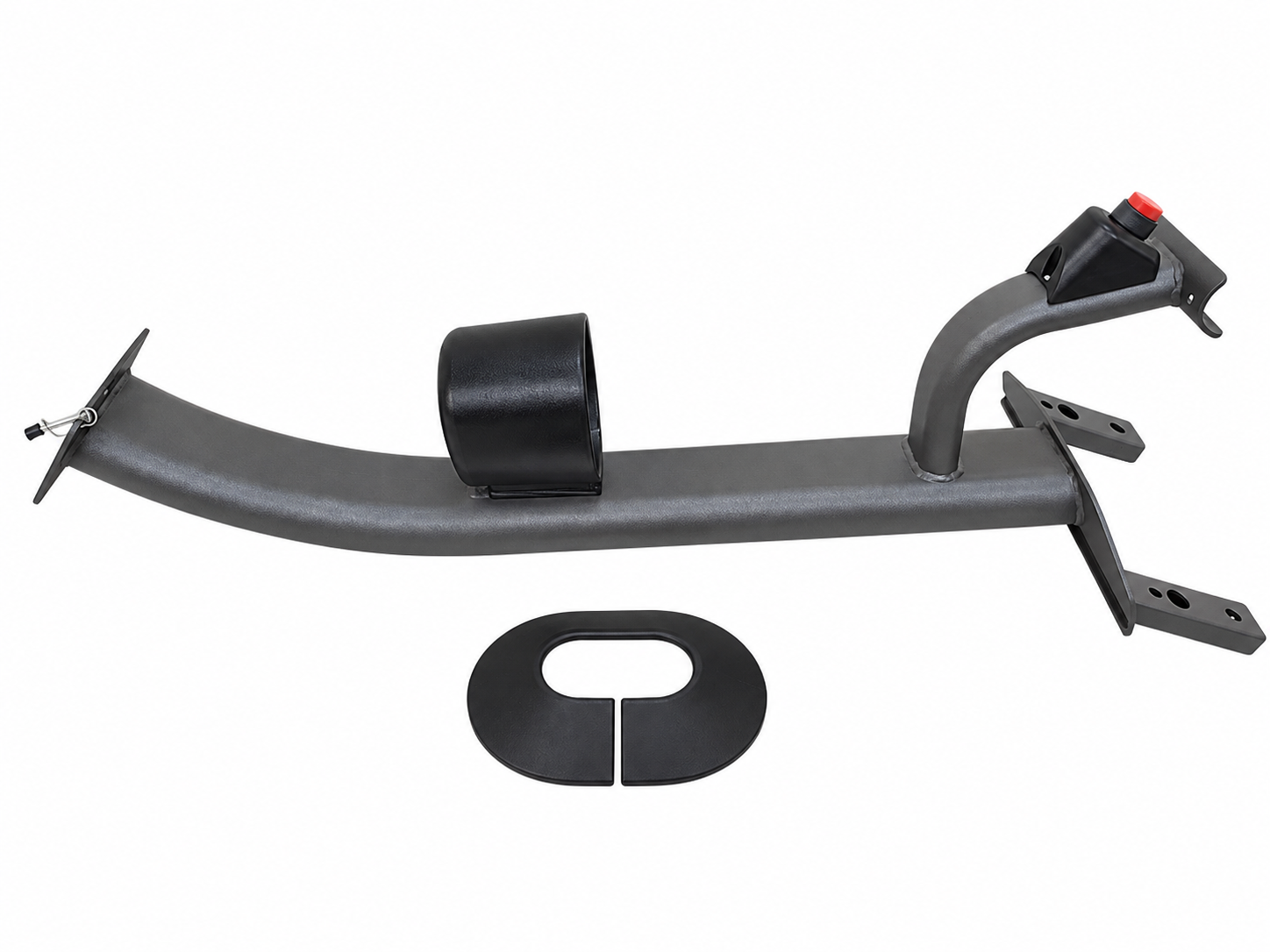

console mast set;;;;CS31; 730063 1000404214 02 console mast set;;;;CS31; No Model Compatibility List $895.76 / Each

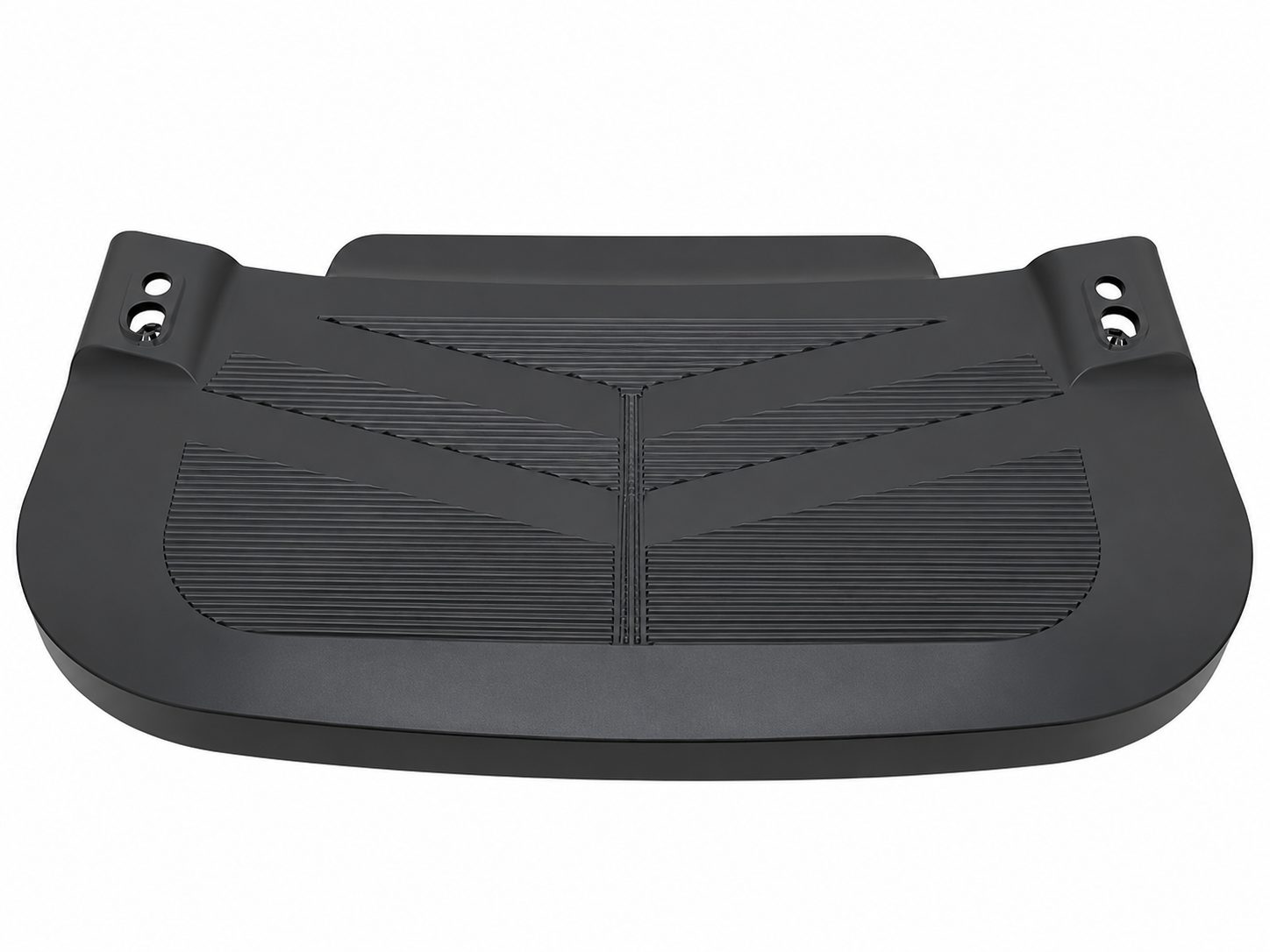

Frame set;;back;??;CS31; 730064 1000404288 03 Frame set;;back;??;CS31; No Model Compatibility List $678.98 / Each

Pedal Set;;up;;CS31; 730065 1000412150 04 Pedal Set;;up;;CS31; No Model Compatibility List $196.50 / Each

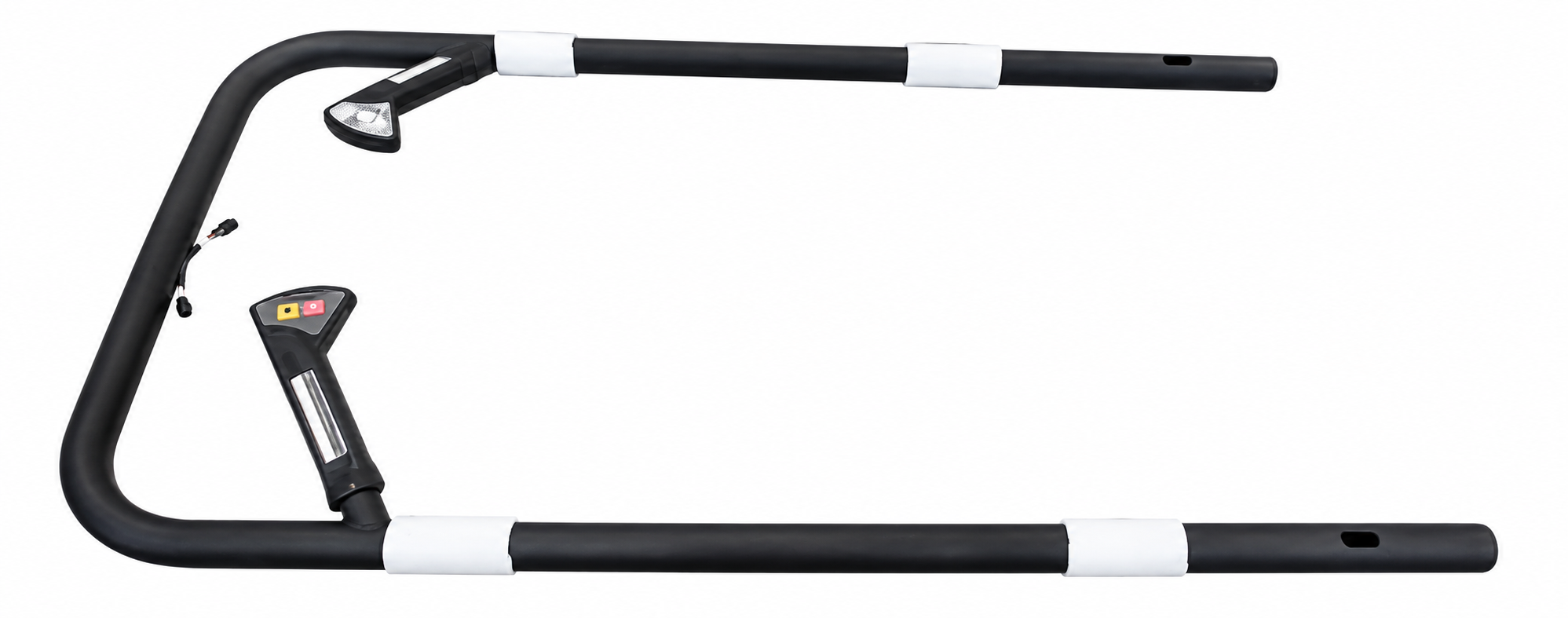

Arm Rest set;;up;;CS31B; 730066 1000417711 05 Arm Rest set;;up;;CS31B; No Model Compatibility List $777.02 / Each

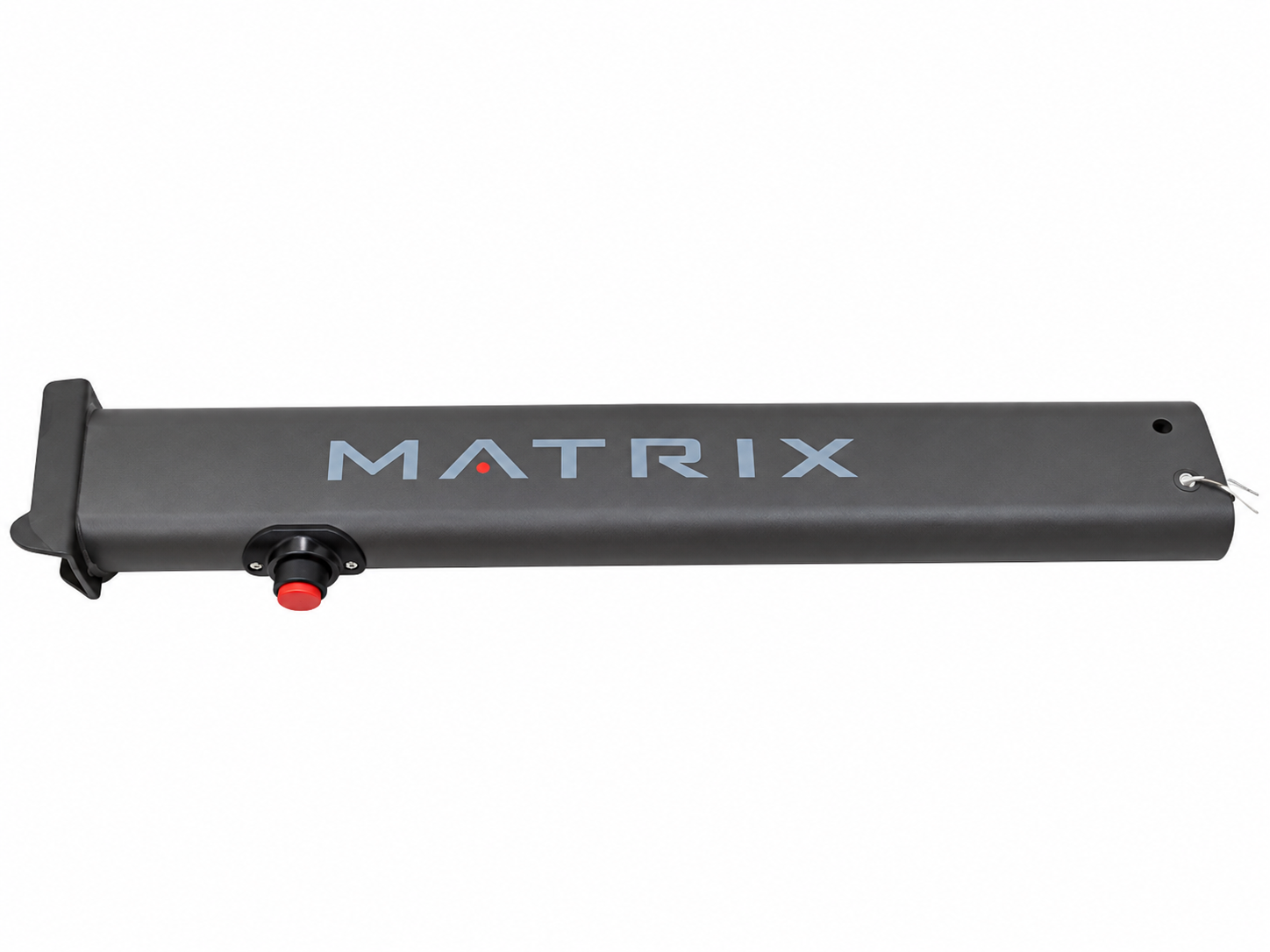

Link Tube Set;handlebar;right;;CS31; 730067 1000404266 06 Link Tube Set;handlebar;right;;CS31; No Model Compatibility List $301.56 / Each

Fixed chipset;E-PORT;;;CS31; 730068 1000404757 07 Fixed chipset;E-PORT;;;CS31; No Model Compatibility List $91.44 / Each

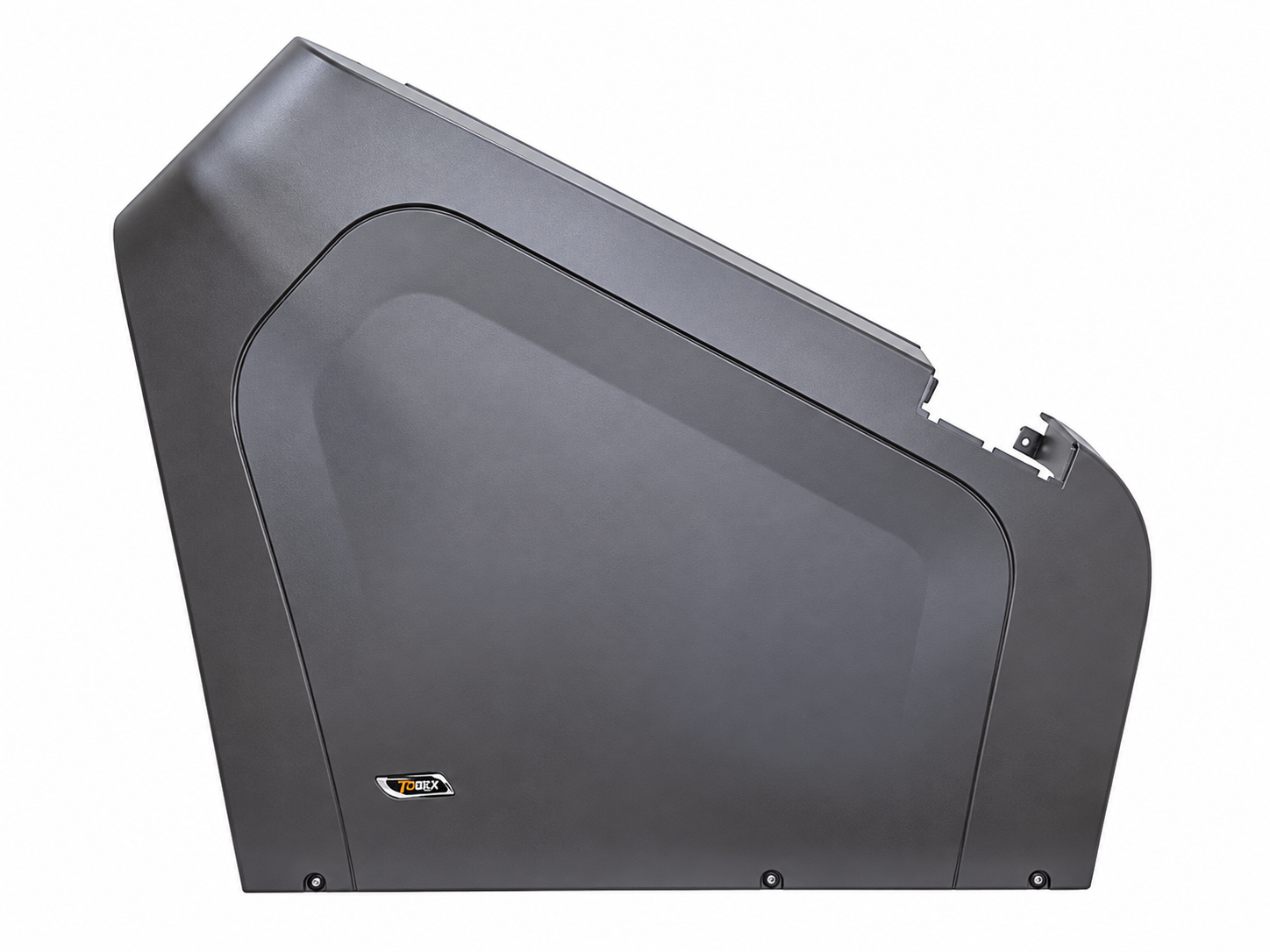

shield set;;left;;CS31; 730069 1000404459 09 shield set;;left;;CS31; No Model Compatibility List $364.44 / Each

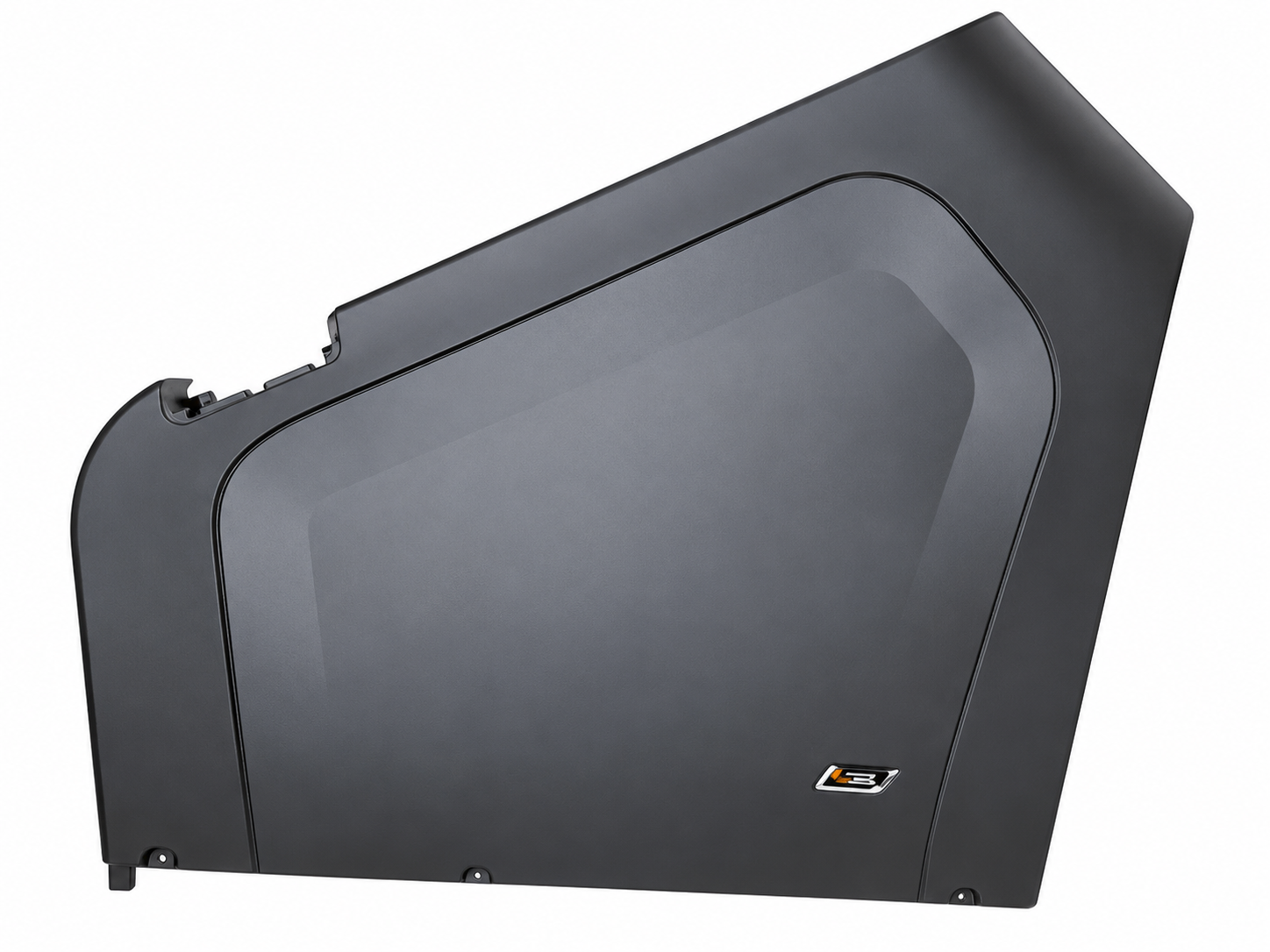

shield set;;right;;CS31; 730070 1000404471 10 shield set;;right;;CS31; No Model Compatibility List $364.54 / Each

Sprocket Set;;front;;CS31;; 730071 1000404319 11 Sprocket Set;;front;;CS31;; No Model Compatibility List $872.24 / Each

Sprocket Set;;back;;CS31; 730072 1000404337 15 Sprocket Set;;back;;CS31; No Model Compatibility List $326.00 / Each

Electromagnet flywheel group;;;;CS31; 730073 1000404365 16 Electromagnet flywheel group;;;;CS31; No Model Compatibility List $2696.12 / Each

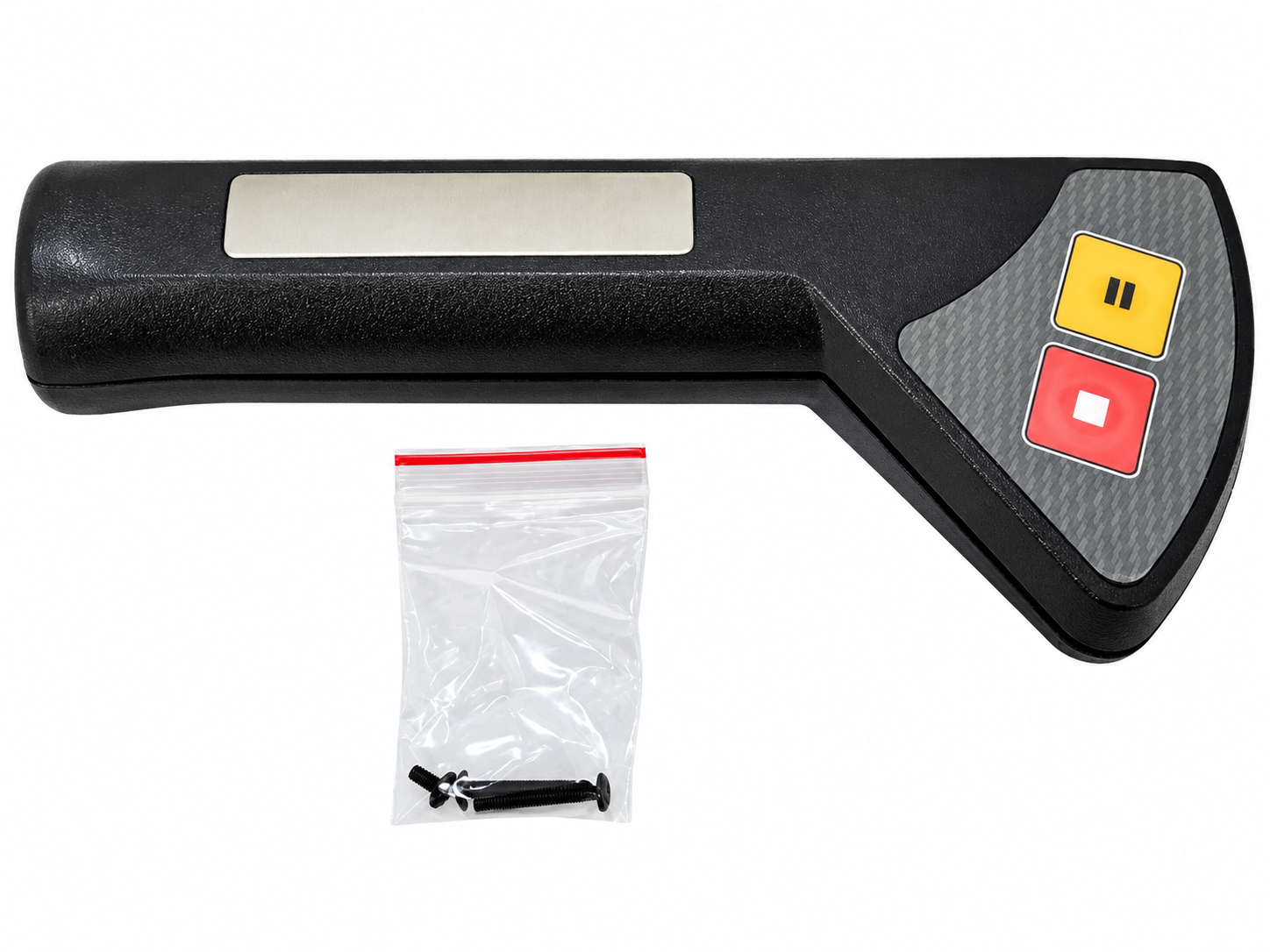

Hand Grip Set;Quickly Key;left;;CS31; 730074 1000430733 51 Hand Grip Set;Quickly Key;left;;CS31; No Model Compatibility List $147.16 / Each

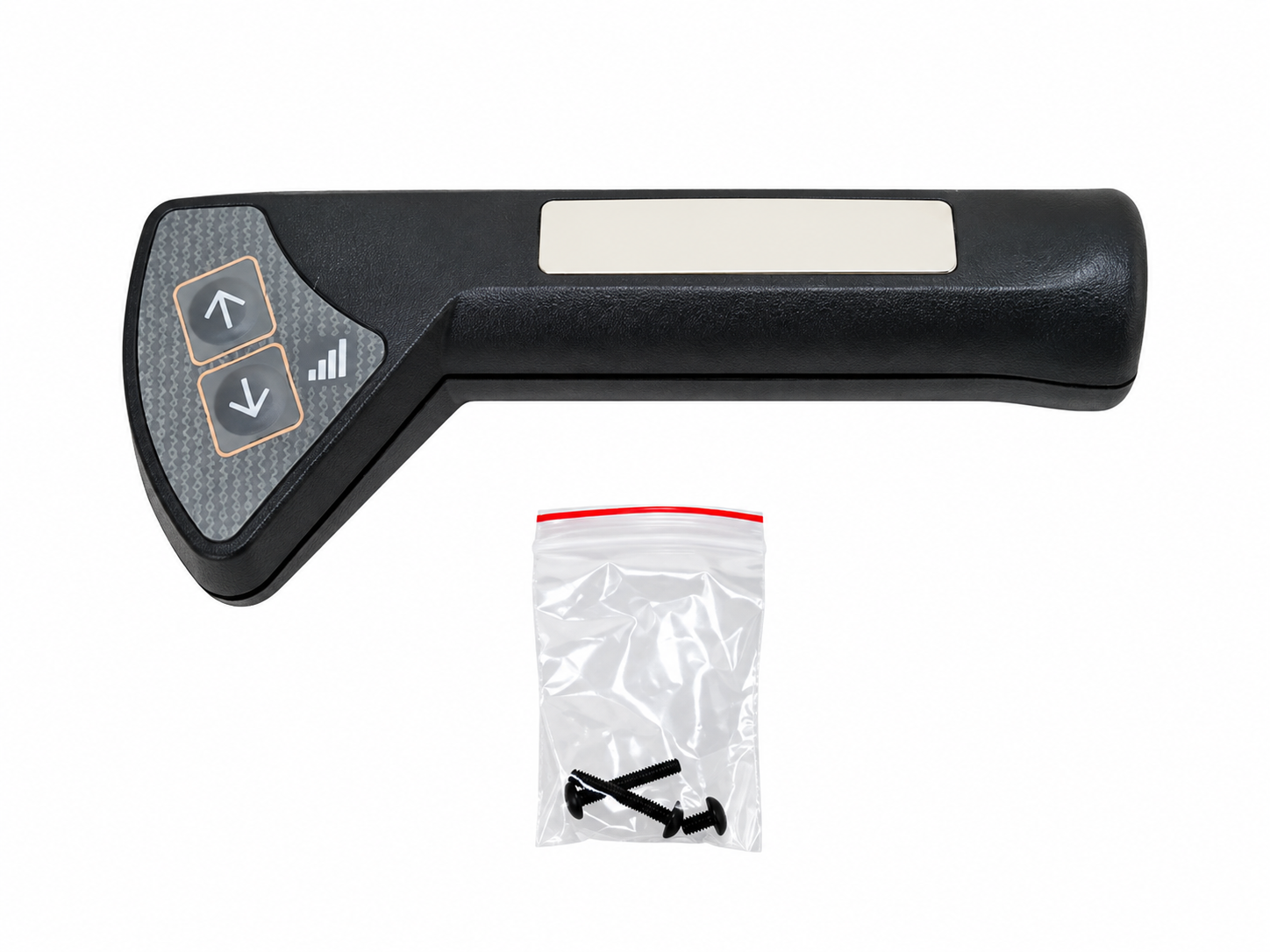

Hand Grip Set;Quickly Key;right;;CS31; 730075 1000430735 52 Hand Grip Set;Quickly Key;right;;CS31; No Model Compatibility List $146.82 / Each

Safety Switch Set;console mast;;;CS31; 730076 1000404234 AC15 Safety Switch Set;console mast;;;CS31; No Model Compatibility List $133.80 / Each

Strengthen Block Set;Foot Pad;Rear;paint 730077 1000417323 AE12 Strengthen Block Set;Foot Pad;Rear;paint No Model Compatibility List $40.66 / Each

Safety Switch Set;handlebar;;;CS31; 730078 1000404267 AG12 Safety Switch Set;handlebar;;;CS31; No Model Compatibility List $158.64 / Each

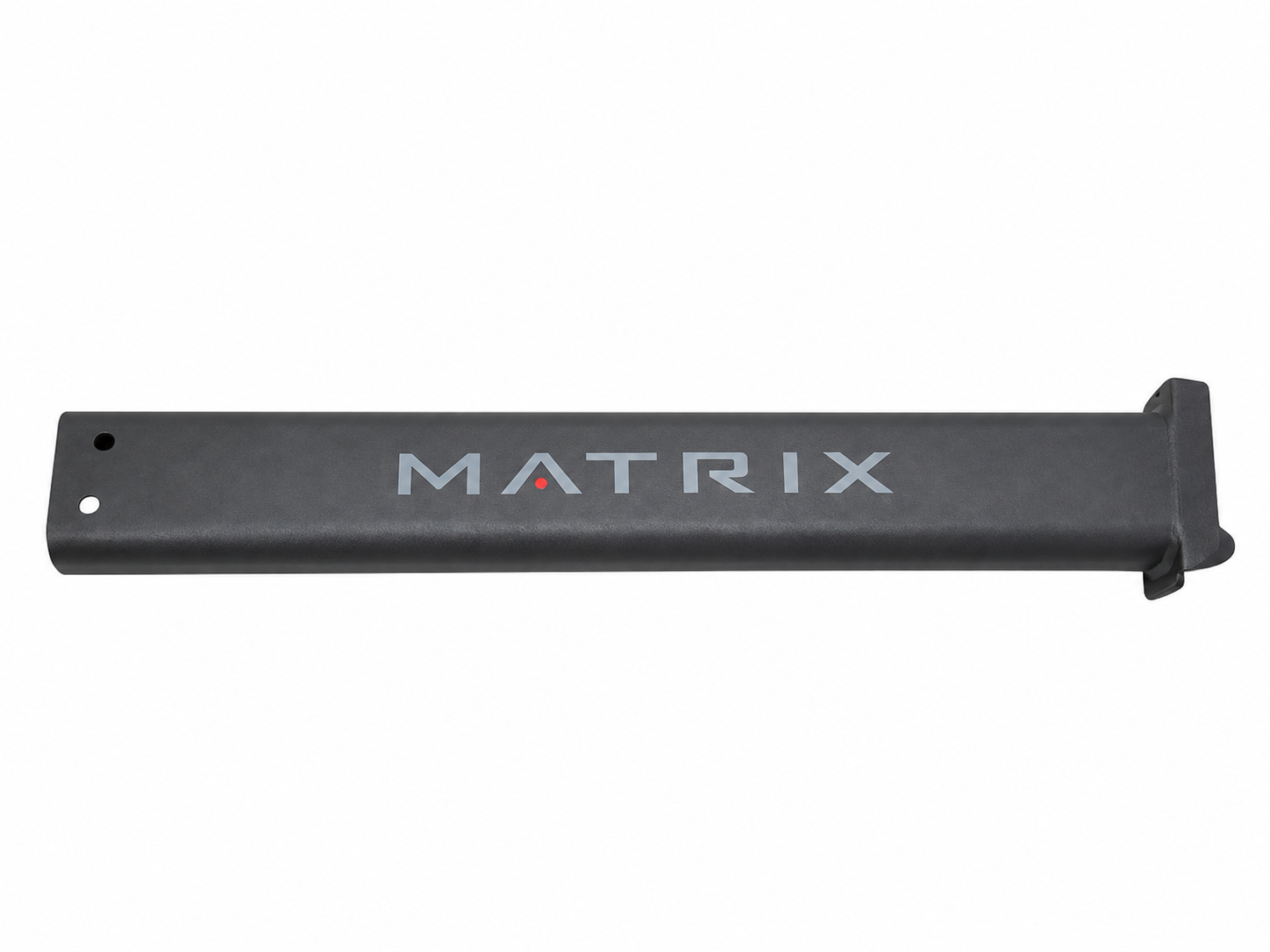

ConnectingTube;Arm Rest;L;painting;DM334 730079 1000404260 AG6 ConnectingTube;Arm Rest;L;painting;DM334 No Model Compatibility List $213.30 / Each

Photo Interrupter Set;;;;CS31;; 730080 1000404336 AP56 Photo Interrupter Set;;;;CS31;; No Model Compatibility List $40.16 / Each

Fly Wheel Set;;;;CS31; 730081 1000430876 AR14 Fly Wheel Set;;;;CS31; No Model Compatibility List $1281.50 / Each

Sproket Set;TRANSMISSION;F;painting;;Fla 730082 1000404321 AR2 Sproket Set;TRANSMISSION;F;painting;;Fla No Model Compatibility List $523.74 / Each

Belt pulley set;;Little;;;;CS31; 730083 1000410450 AR21 Belt pulley set;;Little;;;;CS31; No Model Compatibility List $144.08 / Each

Coded disc;;;;CS31;; 730084 1000404428 AR5 Coded disc;;;;CS31;; No Model Compatibility List $22.00 / Each

Fixing Plate;Guide Rail;U;SS41;5.7T;WZN; 730085 1000404206 B23 Fixing Plate;Guide Rail;U;SS41;5.7T;WZN; No Model Compatibility List $57.60 / Each

Fixing Plate;Guide Rail;D;SS41;5.7T;;CS3 730086 1000404207 B24 Fixing Plate;Guide Rail;D;SS41;5.7T;;CS3 No Model Compatibility List $188.58 / Each

Fixing Plate;L Shape;;SPHC;3.0T;;CS31; 730087 1000424208 B37 Fixing Plate;L Shape;;SPHC;3.0T;;CS31; No Model Compatibility List $7.60 / Each

Fixing Plate;L Shape;;SPHC;2.0T;;CS31; 730088 1000404361 B39 Fixing Plate;L Shape;;SPHC;2.0T;;CS31; No Model Compatibility List $6.70 / Each

Axle;Wheel;;SS41;Zinc;CS31;; 730089 1000404212 B48 Axle;Wheel;;SS41;Zinc;CS31;; No Model Compatibility List $8.52 / Each

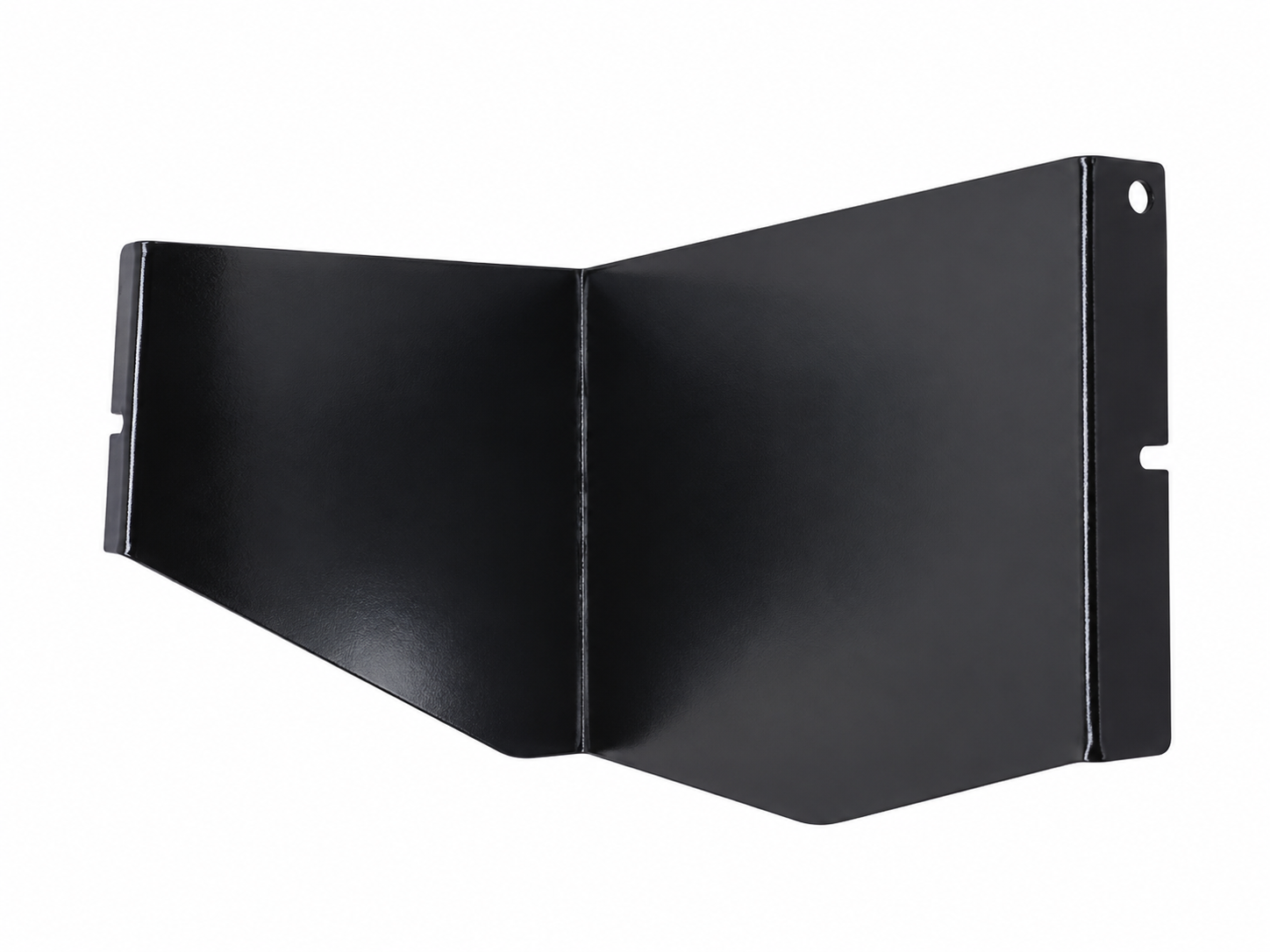

Waterproof cover;;;SPHC;1.6T;BED;CS31; 730090 1000404210 B49 Waterproof cover;;;SPHC;1.6T;BED;CS31; No Model Compatibility List $39.54 / Each

Strengthen Plate;Side Cover;;painting;;F 730091 1000431612 B63 Strengthen Plate;Side Cover;;painting;;F No Model Compatibility List $20.78 / Each

Strengthen Plate;Stopper Cover;;painting 730092 1000436618 B73 Strengthen Plate;Stopper Cover;;painting No Model Compatibility List $0.00 / Each
Out Of Stock
Nut;HEX;M10X1.5P;10 730093 0000086127 B88 Nut;HEX;M10X1.5P;10 No Model Compatibility List $2.80 / Each

Cushion;;;TPR;BL/Black C;;CS31; 730094 1000404455 C16 Cushion;;;TPR;BL/Black C;;CS31; No Model Compatibility List $3.88 / Each

Plastic Sleeve;Consoel Mast;;TPR;BL/Blac 730095 1000404456 C18 Plastic Sleeve;Consoel Mast;;TPR;BL/Blac No Model Compatibility List $13.48 / Each

Cover1;Kettle Rack;;ABS/PA757;BL/Black C 730096 1000404457 C20 Cover1;Kettle Rack;;ABS/PA757;BL/Black C No Model Compatibility List $3.88 / Each

Screw;Button Head;M5X0.8PX16L;;Phillip;S 730097 1000388975 C21 Screw;Button Head;M5X0.8PX16L;;Phillip;S No Model Compatibility List $1.28 / Each

Location Plate;FRAME;A;SPHC;2.0T;;CS36; 730098 1000445874 D14 Location Plate;FRAME;A;SPHC;2.0T;;CS36; No Model Compatibility List $2.32 / Each

Location Plate;FRAME;B;SPHC;2.0T;;CS36; 730099 1000445878 D15 Location Plate;FRAME;B;SPHC;2.0T;;CS36; No Model Compatibility List $2.32 / Each

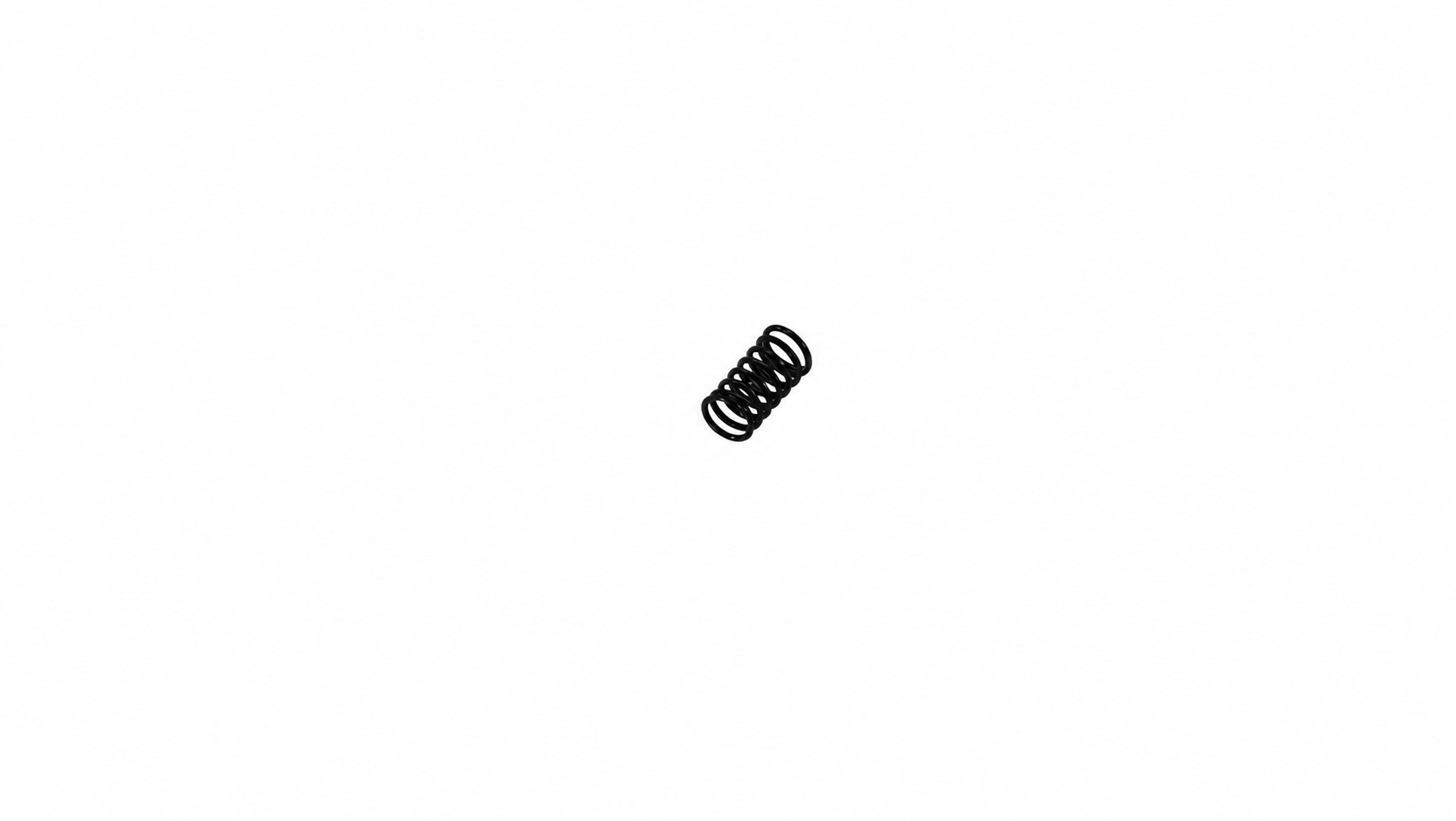

Spring;Compression;Diam.8.0XDiam.1.0X16L 730100 1000408874 D16 Spring;Compression;Diam.8.0XDiam.1.0X16L No Model Compatibility List $3.66 / Each

Axle;Pedal;Long;SCM440;Zinc;CS31;; 730101 1000404237 E03 Axle;Pedal;Long;SCM440;Zinc;CS31;; No Model Compatibility List $25.56 / Each

Axle;Pedal;Short;S45C;Zinc;CS31; 730102 1000404238 E04 Axle;Pedal;Short;S45C;Zinc;CS31; No Model Compatibility List $16.84 / Each

Space Ring;Pedal;Long;POM;BL/Black C;;CS 730103 1000404239 E05 Space Ring;Pedal;Long;POM;BL/Black C;;CS No Model Compatibility List $1.42 / Each

Space Ring;Pedal;Short;POM;BL/Black C;;C 730104 1000404240 E06 Space Ring;Pedal;Short;POM;BL/Black C;;C No Model Compatibility List $1.42 / Each

Bearing;Ball;608ZZ;;;NMB 730105 1000408871 E07 Bearing;Ball;608ZZ;;;NMB No Model Compatibility List $7.00 / Each

Strengthen Plate;Pedal;A;painting;;Flat 730106 1000444079 E14 Strengthen Plate;Pedal;A;painting;;Flat No Model Compatibility List $0.00 / Each
Out Of Stock
Pedal;;down;PP-3015;BL/Black C;;CS31; 730107 1000404242 E22 Pedal;;down;PP-3015;BL/Black C;;CS31; No Model Compatibility List $23.62 / Each

Bearing;Dry;J4FM-0810-05;;;IGUS 730108 1000425061 E24 Bearing;Dry;J4FM-0810-05;;;IGUS No Model Compatibility List $2.24 / Each

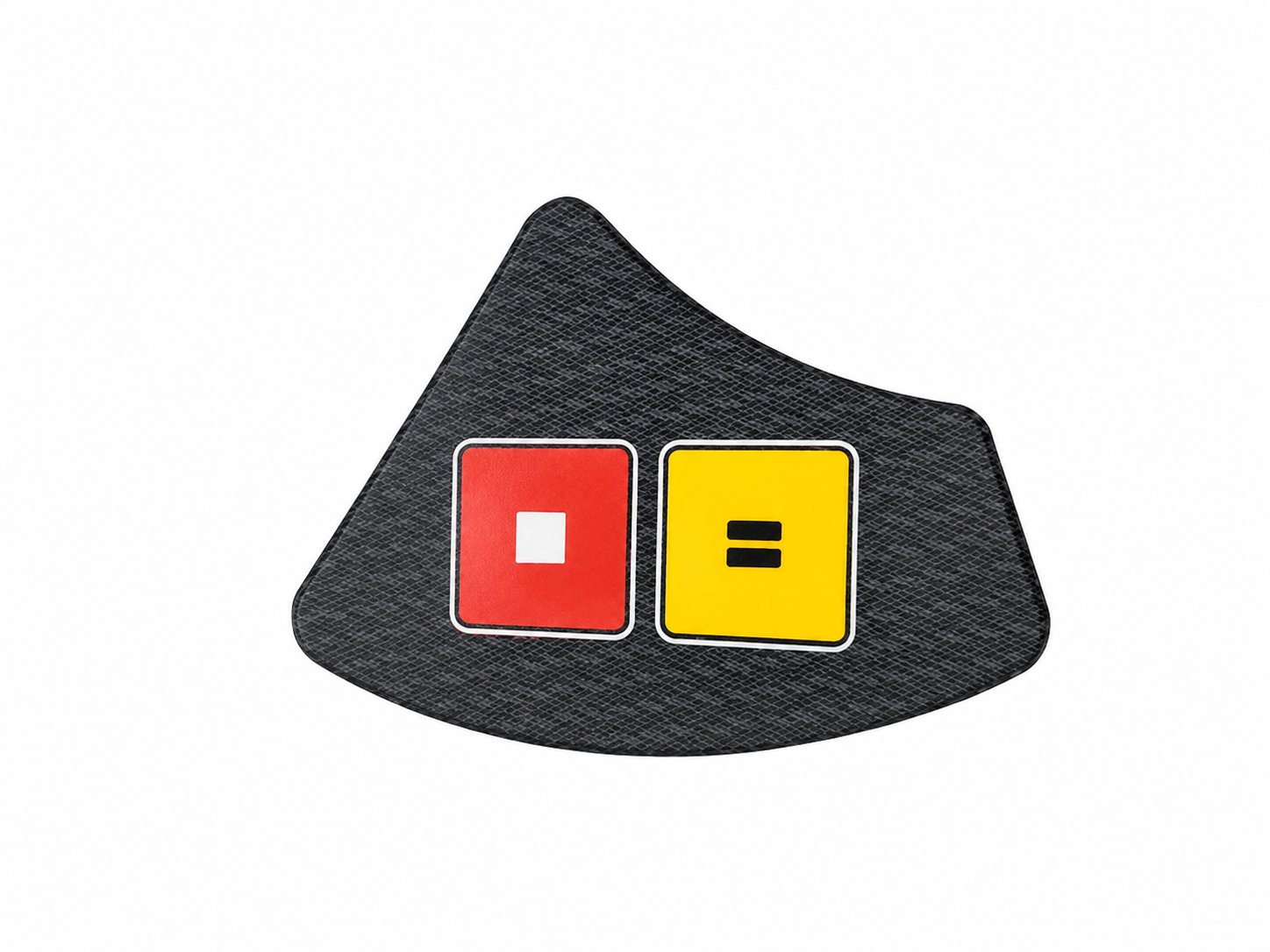

Overlay;Quick Key;Left;;PET G180;CS31; 730109 1000430734 G31 Overlay;Quick Key;Left;;PET G180;CS31; No Model Compatibility List $8.36 / Each

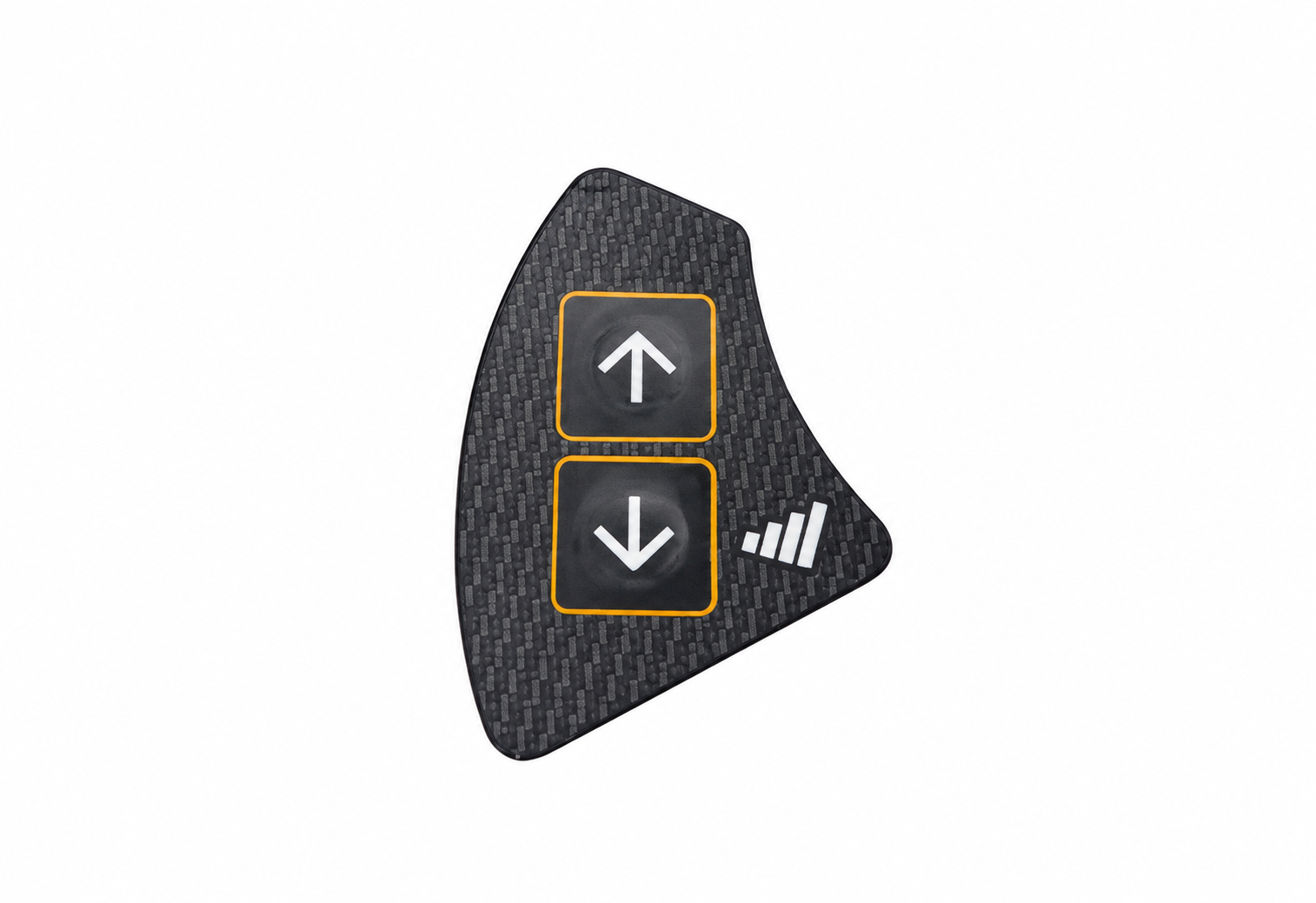

Overlay;Quick Key;Right;;PET G180;CS31 730110 1000430736 G32 Overlay;Quick Key;Right;;PET G180;CS31 No Model Compatibility List $8.36 / Each

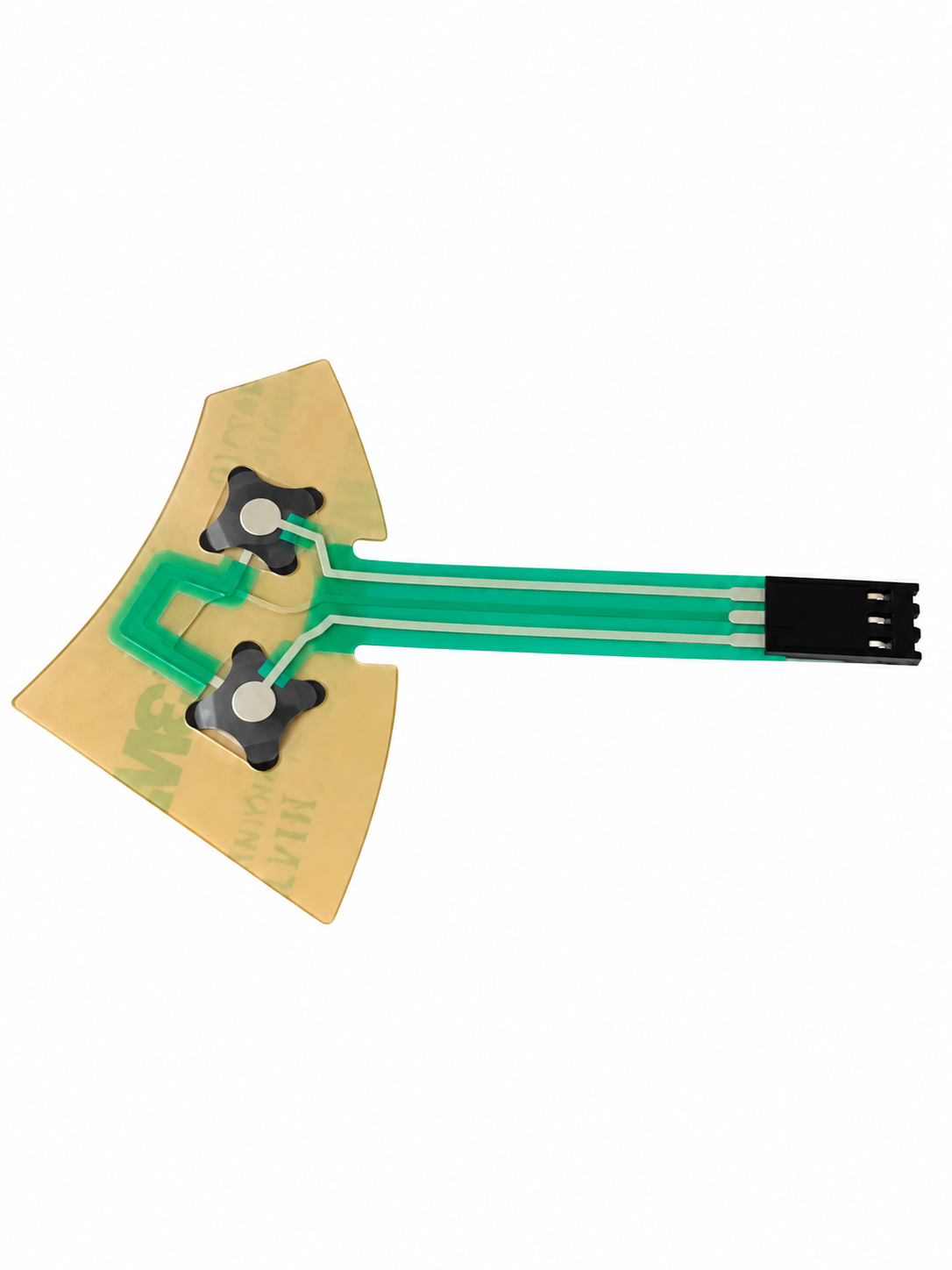

Key;Quick;L;;CS24; 730111 1000359162 G33 Key;Quick;L;;CS24; No Model Compatibility List $9.08 / Each

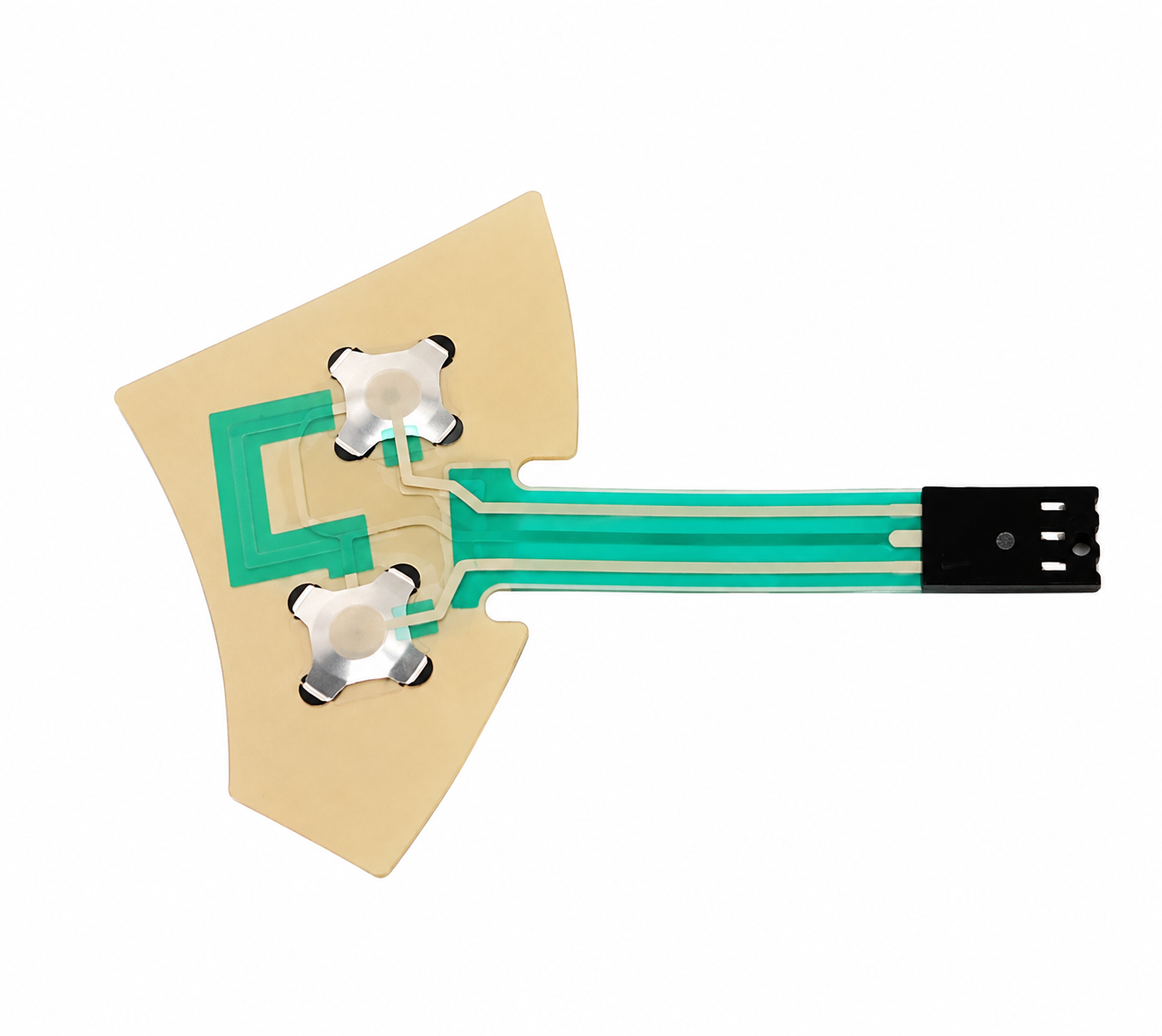

Key;Quick;R;;CS31; 730112 1000430836 G35 Key;Quick;R;;CS31; No Model Compatibility List $13.58 / Each

Screw;BH;M3X0.5PX20L;;PH;;BZN;; 730113 0000082875 G36 Screw;BH;M3X0.5PX20L;;PH;;BZN;; No Model Compatibility List $1.28 / Each

Screw;Button Head;M4x0.7Px8L;;Hex Socket 730114 1000405750 G37 Screw;Button Head;M4x0.7Px8L;;Hex Socket No Model Compatibility List $0.40 / Each

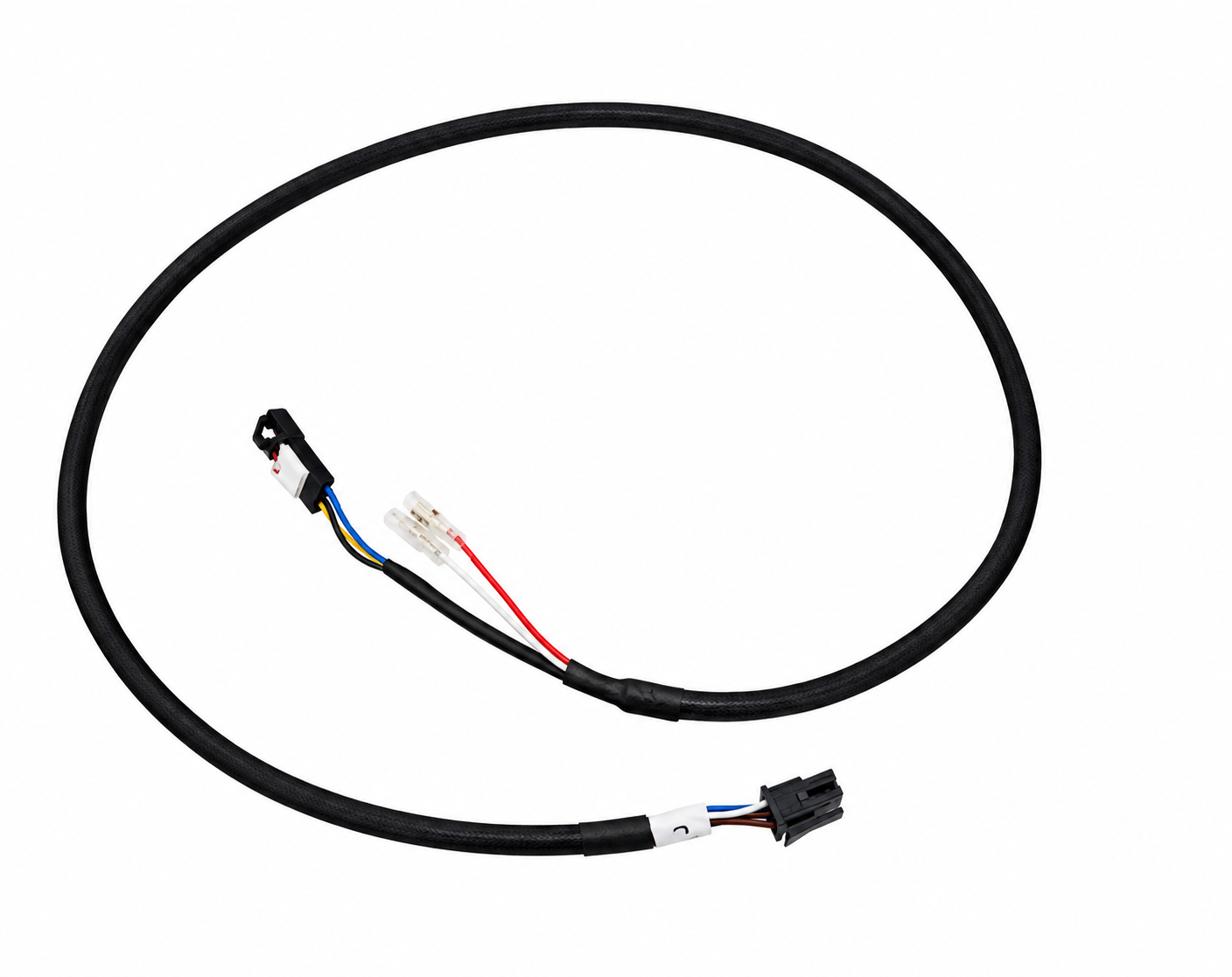

H/P Sensor Wire;;Left;;;;;750(TKP H6630R 730115 1000409149 G39 H/P Sensor Wire;;Left;;;;;750(TKP H6630R No Model Compatibility List $25.04 / Each

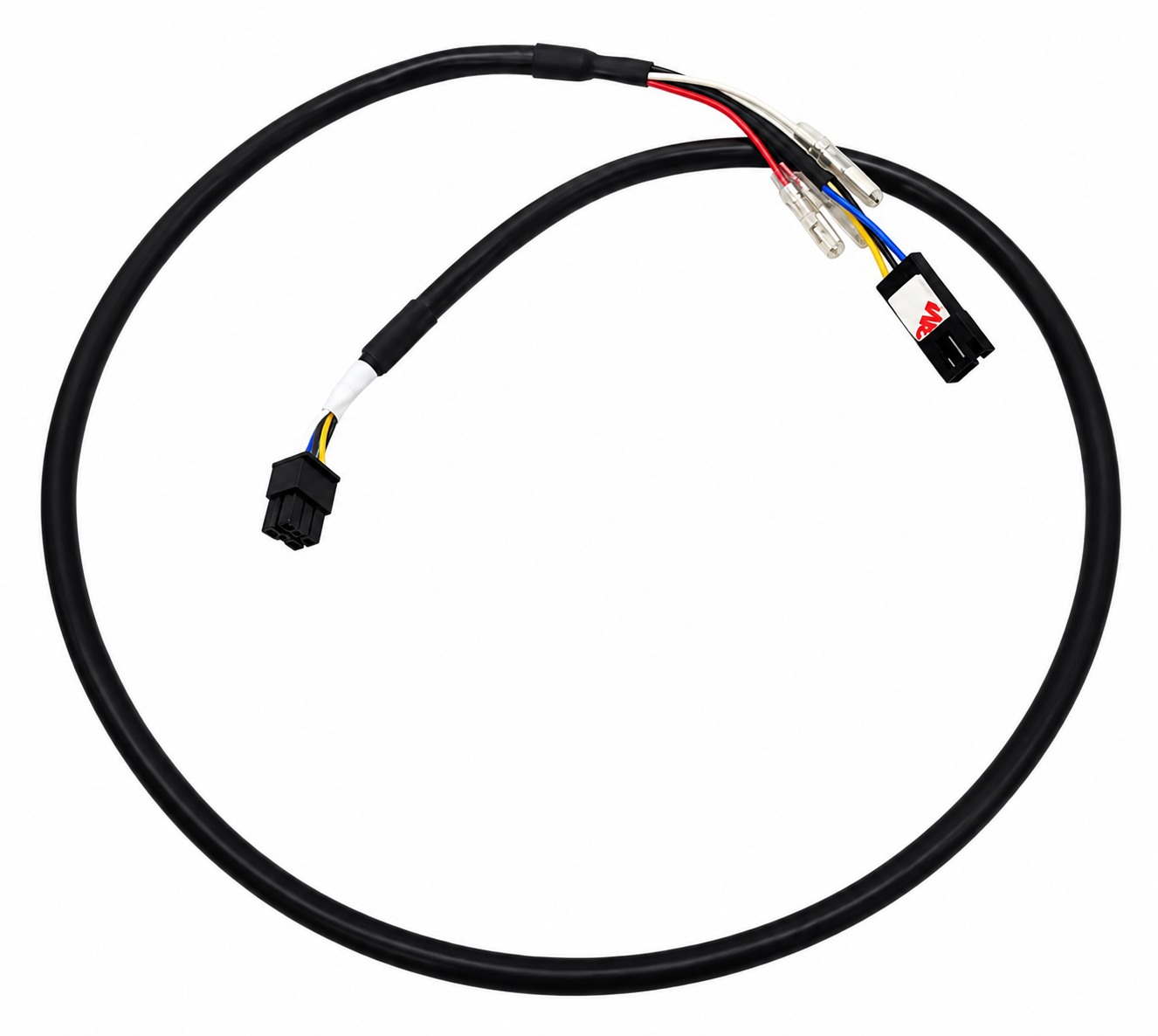

H/P Sensor Wire;;Right;;;;;750(TKP H6630 730116 1000409150 G40 H/P Sensor Wire;;Right;;;;;750(TKP H6630 No Model Compatibility List $25.04 / Each

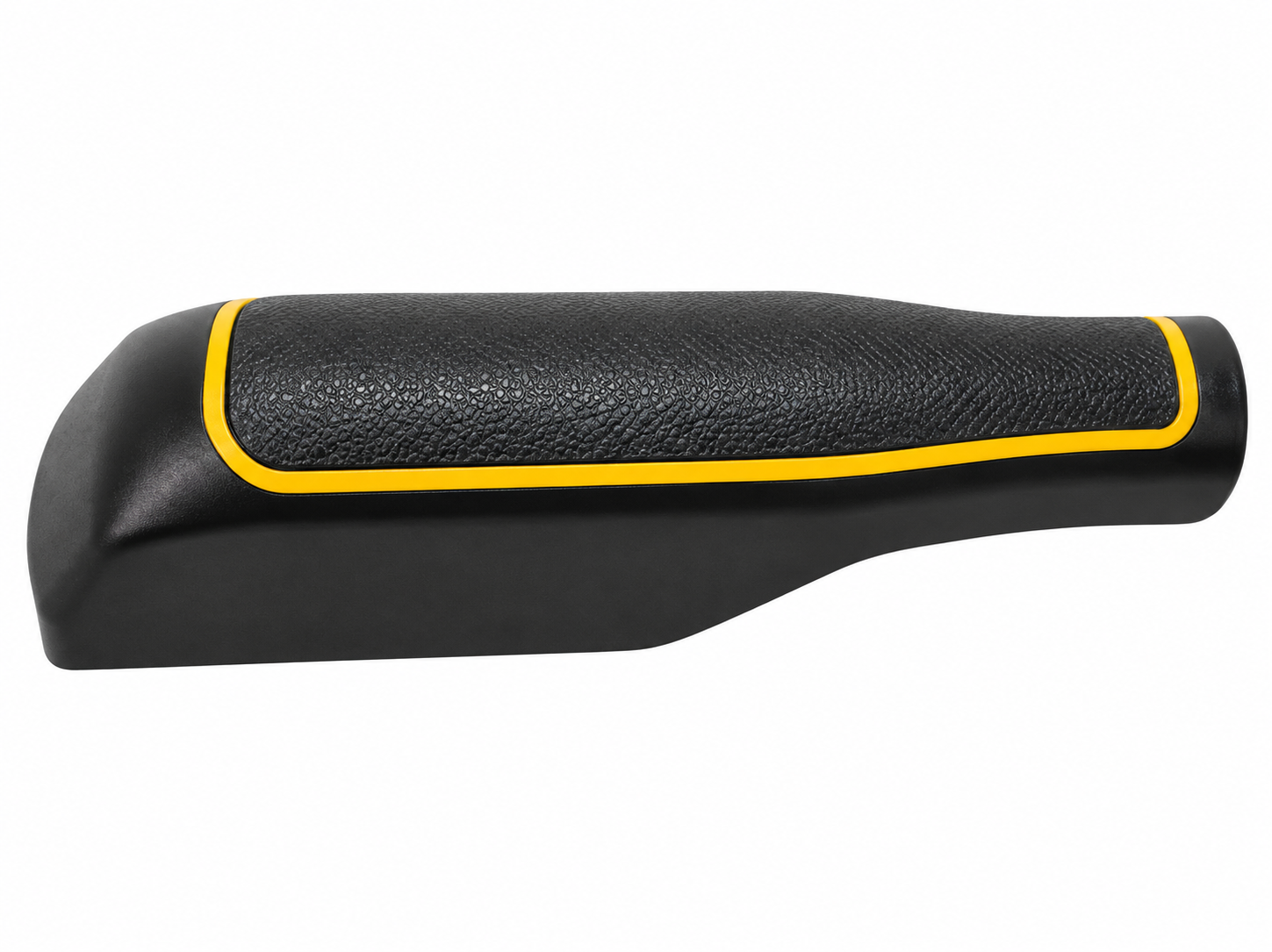

Cover;Arm Rest;;ABS PA746+TPU;BL/Black C 730117 1000431618 G41 Cover;Arm Rest;;ABS PA746+TPU;BL/Black C No Model Compatibility List $25.00 / Each

Power Cord Set;3000;18AWG 730118 0000094425 Not Shown Power Cord Set;3000;18AWG Yes Model Compatibility List $43.78 / Each

Power Wire;;;;;;;500(JST,VHR-3N)+300(KST 730119 1000449584 P02 Power Wire;;;;;;;500(JST,VHR-3N)+300(KST No Model Compatibility List $10.38 / Each

ECB Load Wire;;;;;;;600(JST,VHR-4N+CWB E 730120 1000404271 P16 ECB Load Wire;;;;;;;600(JST,VHR-4N+CWB E No Model Compatibility List $7.80 / Each

Speed Feedback Extension Wire;;;;;;;800( 730121 1000404272 P17 Speed Feedback Extension Wire;;;;;;;800( No Model Compatibility List $9.22 / Each

Speed Feedback Extension Wire;;;;;Pulley 730122 1000404273 P18 Speed Feedback Extension Wire;;;;;Pulley No Model Compatibility List $10.24 / Each

Power Extension Wire;;;;;;;600(Hu Lane,3 730123 1000404274 P19 Power Extension Wire;;;;;;;600(Hu Lane,3 No Model Compatibility List $8.22 / Each

Power Wire;;;;;;;1850(TKP,H6630R1-1x5(PI 730124 1000438720 P20 Power Wire;;;;;;;1850(TKP,H6630R1-1x5(PI No Model Compatibility List $12.98 / Each

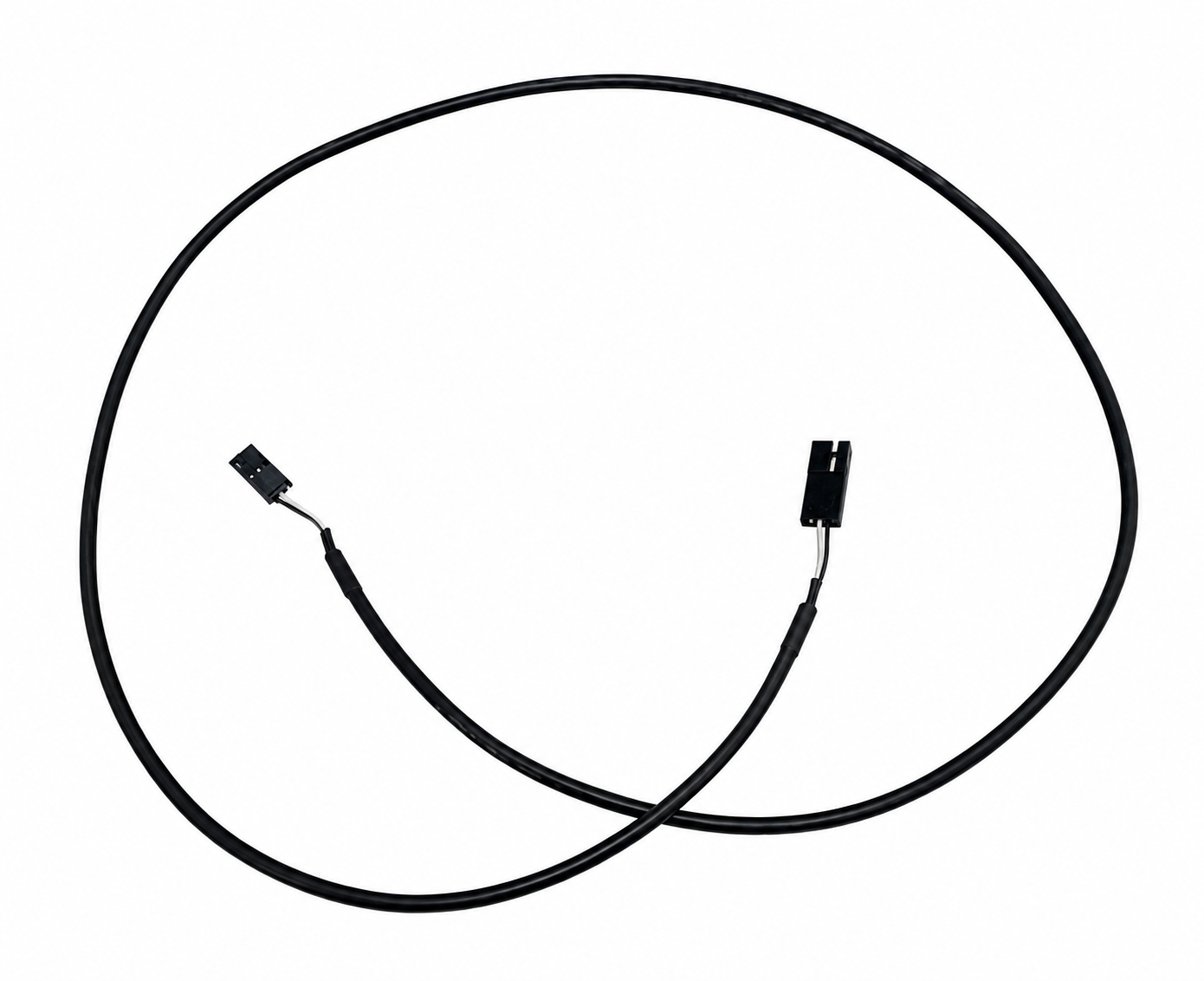

Sensor Extension Wire;;;;;;;1050(TKP,H55 730125 1000409167 P21 Sensor Extension Wire;;;;;;;1050(TKP,H55 No Model Compatibility List $9.84 / Each

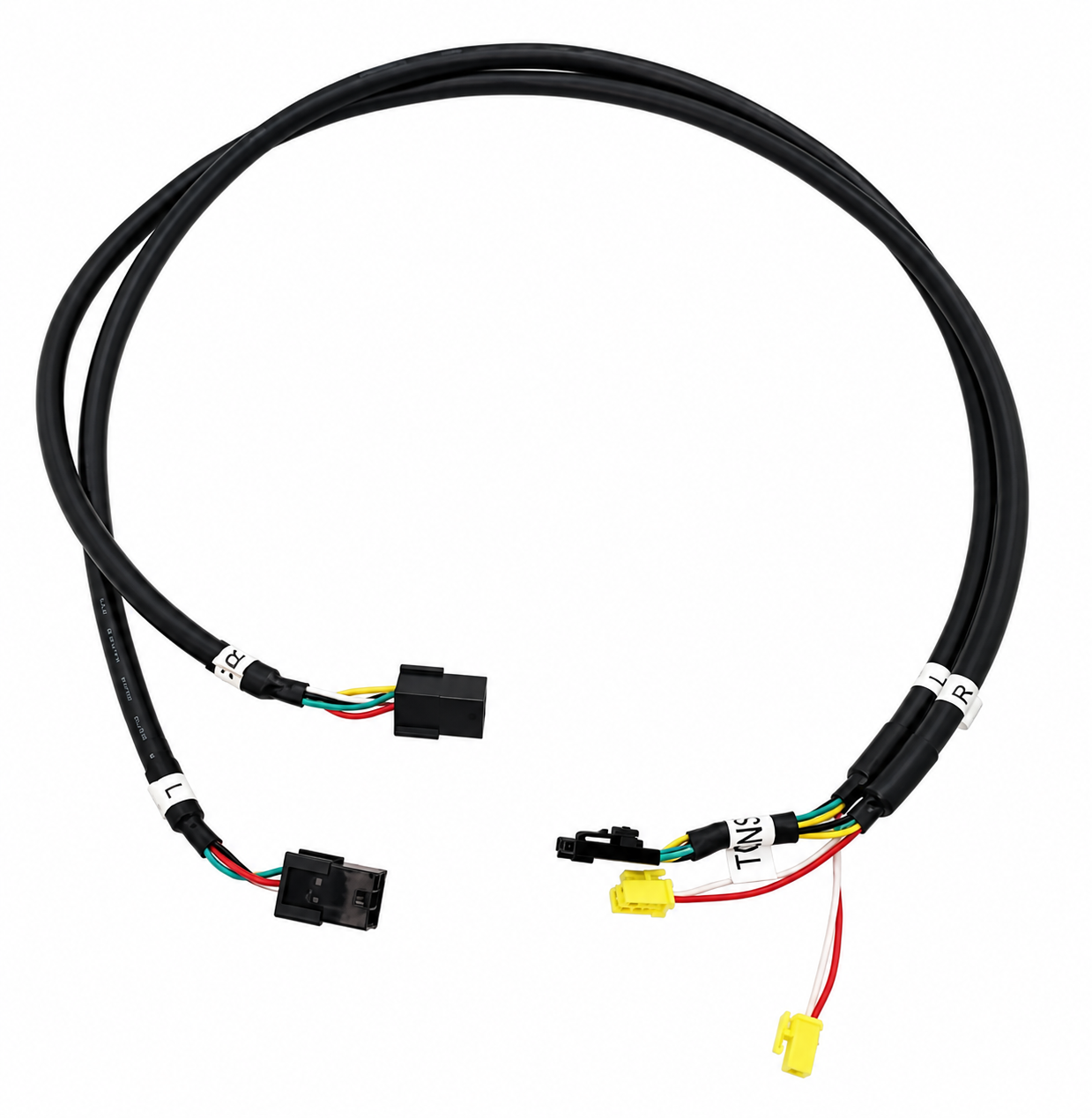

Pulse Connect Wire;;;;;;;550(MOLEX,50-57 730126 1000404281 P27 Pulse Connect Wire;;;;;;;550(MOLEX,50-57 No Model Compatibility List $34.88 / Each

Cap;C-SAFE;NYION 6/6;BL;T1x; 730127 0000089860 P27 Cap;C-SAFE;NYION 6/6;BL;T1x; No Model Compatibility List $6.48 / Each

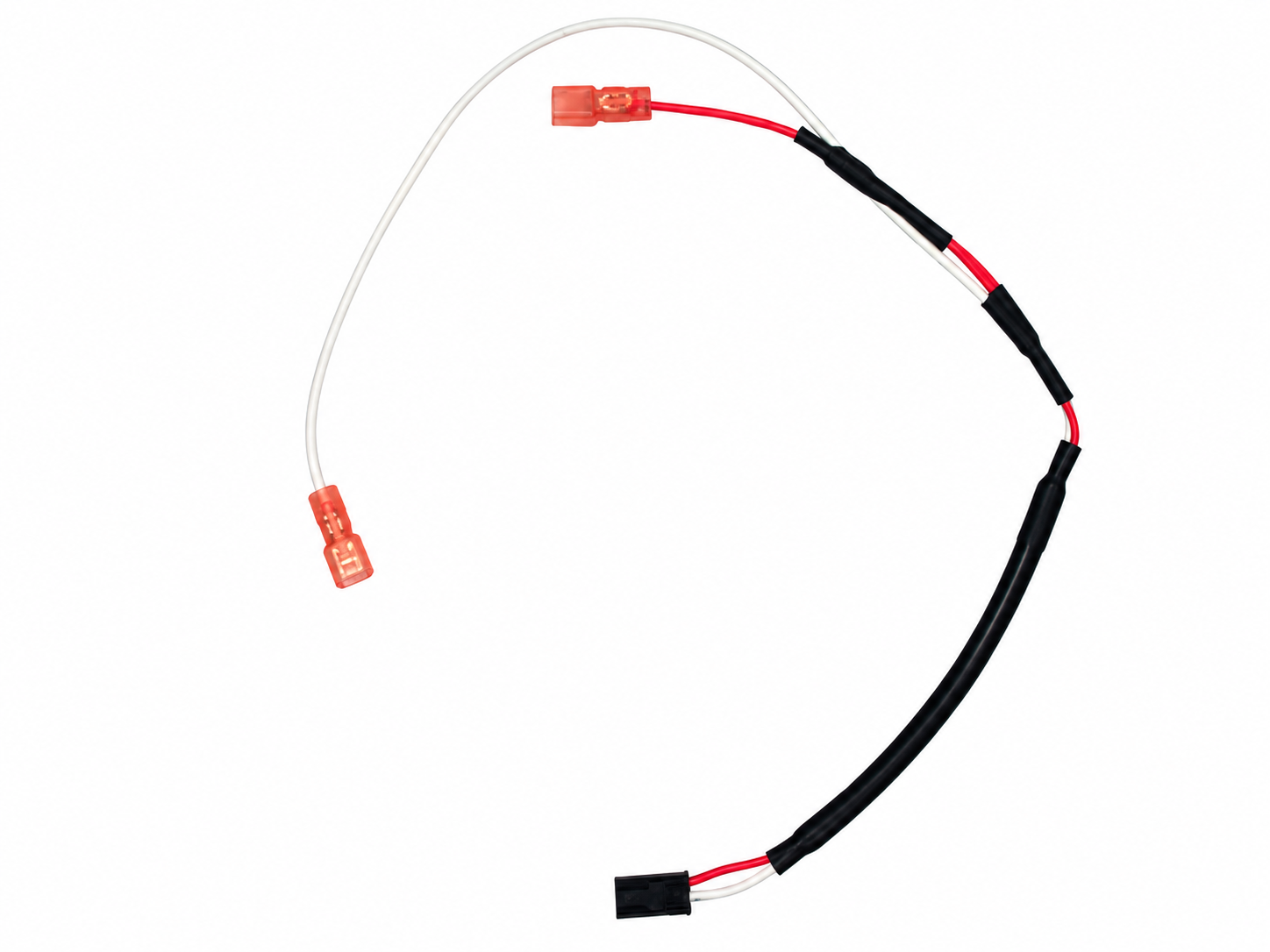

Limit Switch Wire;;A;;;;;160+80+240(KST, 730128 1000404312 P28 Limit Switch Wire;;A;;;;;160+80+240(KST, No Model Compatibility List $10.64 / Each

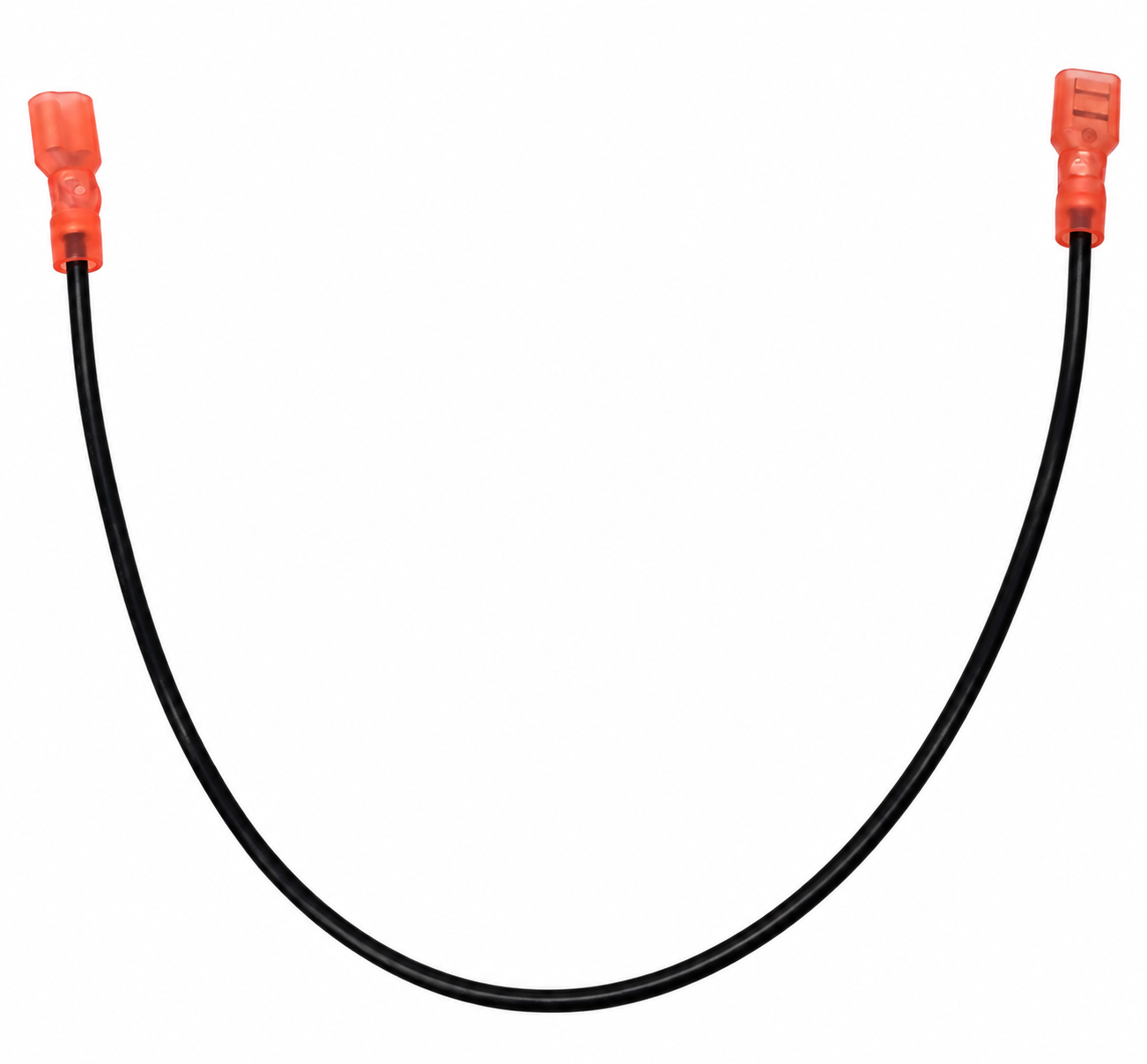

Limit Switch Wire;;B;;;;;220(KST,FDFNYD1 730129 1000408877 P29 Limit Switch Wire;;B;;;;;220(KST,FDFNYD1 No Model Compatibility List $6.08 / Each

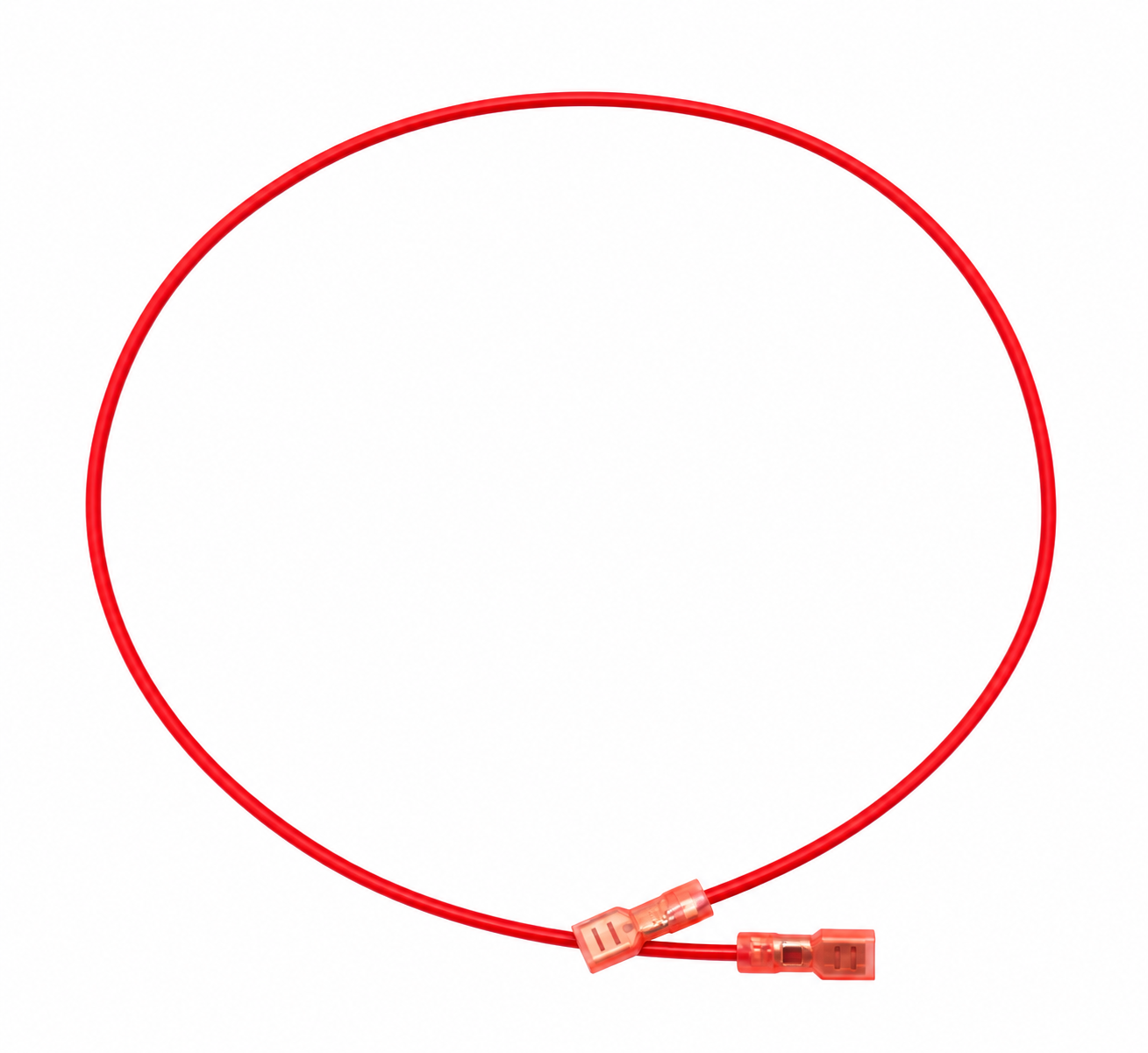

Limit Switch Wire;;;;C;;;520(KST,FDFNYD1 730130 1000411289 P31 Limit Switch Wire;;;;C;;;520(KST,FDFNYD1 No Model Compatibility List $7.90 / Each

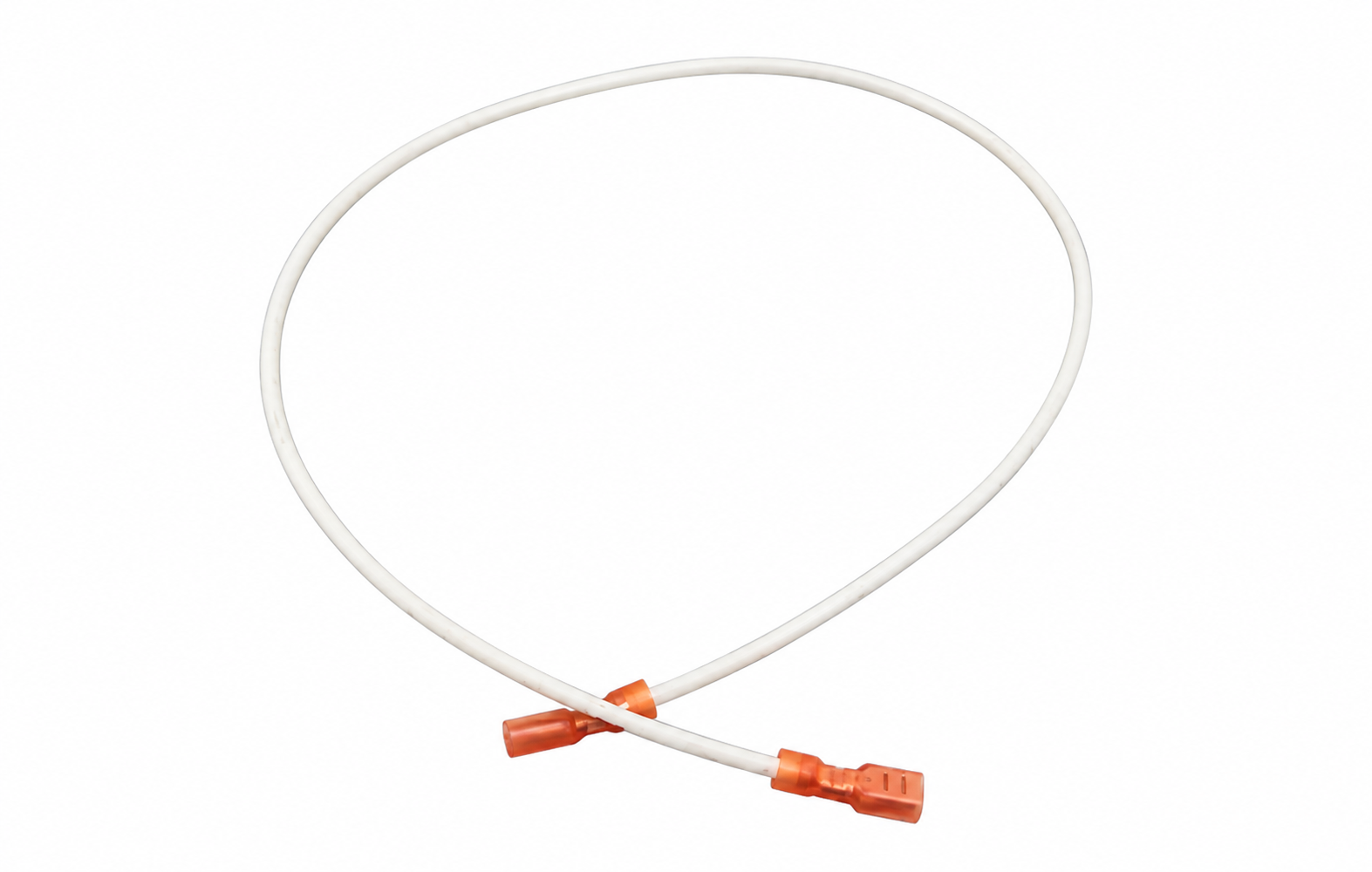

Limit Switch Wire;;;;D;;;400(KST,FDFNYD1 730131 1000411290 P32 Limit Switch Wire;;;;D;;;400(KST,FDFNYD1 No Model Compatibility List $7.30 / Each

Cable Fix Button;KSS/UC-2 730132 001678-A P33 Cable Fix Button;KSS/UC-2 No Model Compatibility List $1.28 / Each

Filter Ground Wire;;;;;;;230(KST,FLDNY2- 730133 1000409169 P34 Filter Ground Wire;;;;;;;230(KST,FLDNY2- No Model Compatibility List $5.92 / Each

Washer;TOOTH;M5.3X10X0.6;Nickel 730134 0000083692 P45 Washer;TOOTH;M5.3X10X0.6;Nickel No Model Compatibility List $1.28 / Each

Screw;Phillip;Round;M3x0.5Px15L;BED; 730135 0000086278 P53 Screw;Phillip;Round;M3x0.5Px15L;BED; No Model Compatibility List $1.28 / Each

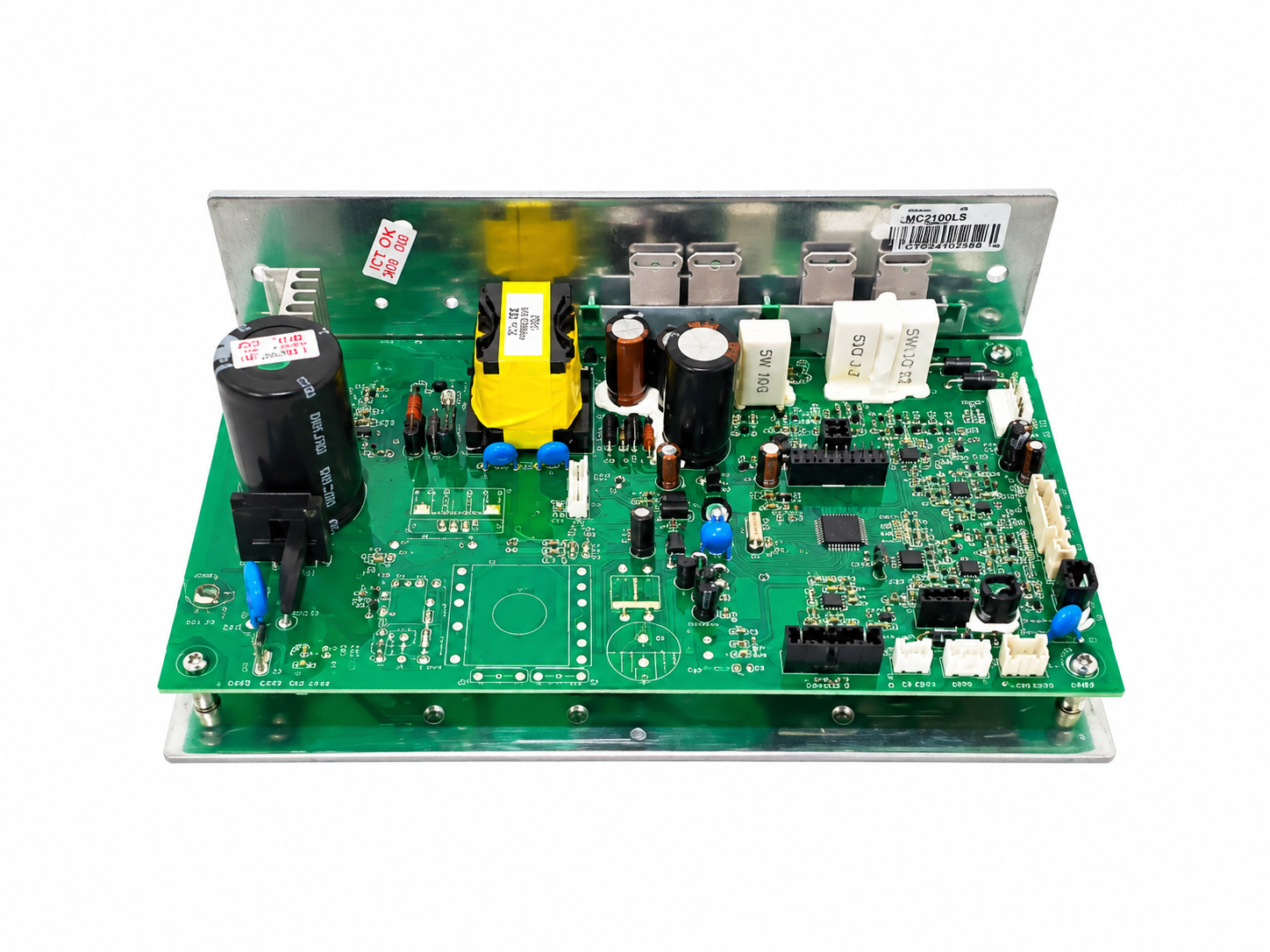

LCB;ECB;;H001;S003;JIS;CS31; 730136 1000404417 P61 LCB;ECB;;H001;S003;JIS;CS31; No Model Compatibility List $489.06 / Each

Safe Switch Extension Wire;;;;;;;1700+10 730137 1000409171 P68 Safe Switch Extension Wire;;;;;;;1700+10 No Model Compatibility List $24.64 / Each

Power board;DC;;;12.6V/3.3A;HBPB;;;AC100 730138 1000433184 P76 Power board;DC;;;12.6V/3.3A;HBPB;;;AC100 No Model Compatibility List $53.28 / Each

Cover Board;Arm Rest;left;ABS/PA757;Blac 730139 1000404462 Q03 Cover Board;Arm Rest;left;ABS/PA757;Blac No Model Compatibility List $8.12 / Each

Cover Board;Arm Rest;right;ABS/PA757;Bla 730140 1000404473 Q04 Cover Board;Arm Rest;right;ABS/PA757;Bla No Model Compatibility List $8.12 / Each

Cover;Frame;up;ABS/PA746;Black 7C;;CS31; 730141 1000404477 Q05 Cover;Frame;up;ABS/PA746;Black 7C;;CS31; No Model Compatibility List $44.62 / Each

Cover Board;Frame;;ABS/PA746;BL/Black C; 730142 1000404483 Q06 Cover Board;Frame;;ABS/PA746;BL/Black C; No Model Compatibility List $12.06 / Each

Cover Plate;;;ABS/PA756H;BL/Black C;;CS3 730143 1000404718 Q09 Cover Plate;;;ABS/PA756H;BL/Black C;;CS3 No Model Compatibility List $22.82 / Each

Pedal Pad;Frame;;PP-3015;BL/Black C;;CS3 730144 1000404484 Q10 Pedal Pad;Frame;;PP-3015;BL/Black C;;CS3 No Model Compatibility List $32.48 / Each

Dust board;Frame;;PP;BL/Black C;;CS31; 730145 1000431665 Q11 Dust board;Frame;;PP;BL/Black C;;CS31; No Model Compatibility List $41.88 / Each

Plastic Plate;Water Proof;;PA709;BL/Blac 730146 1000404453 Q12 Plastic Plate;Water Proof;;PA709;BL/Blac No Model Compatibility List $51.10 / Each

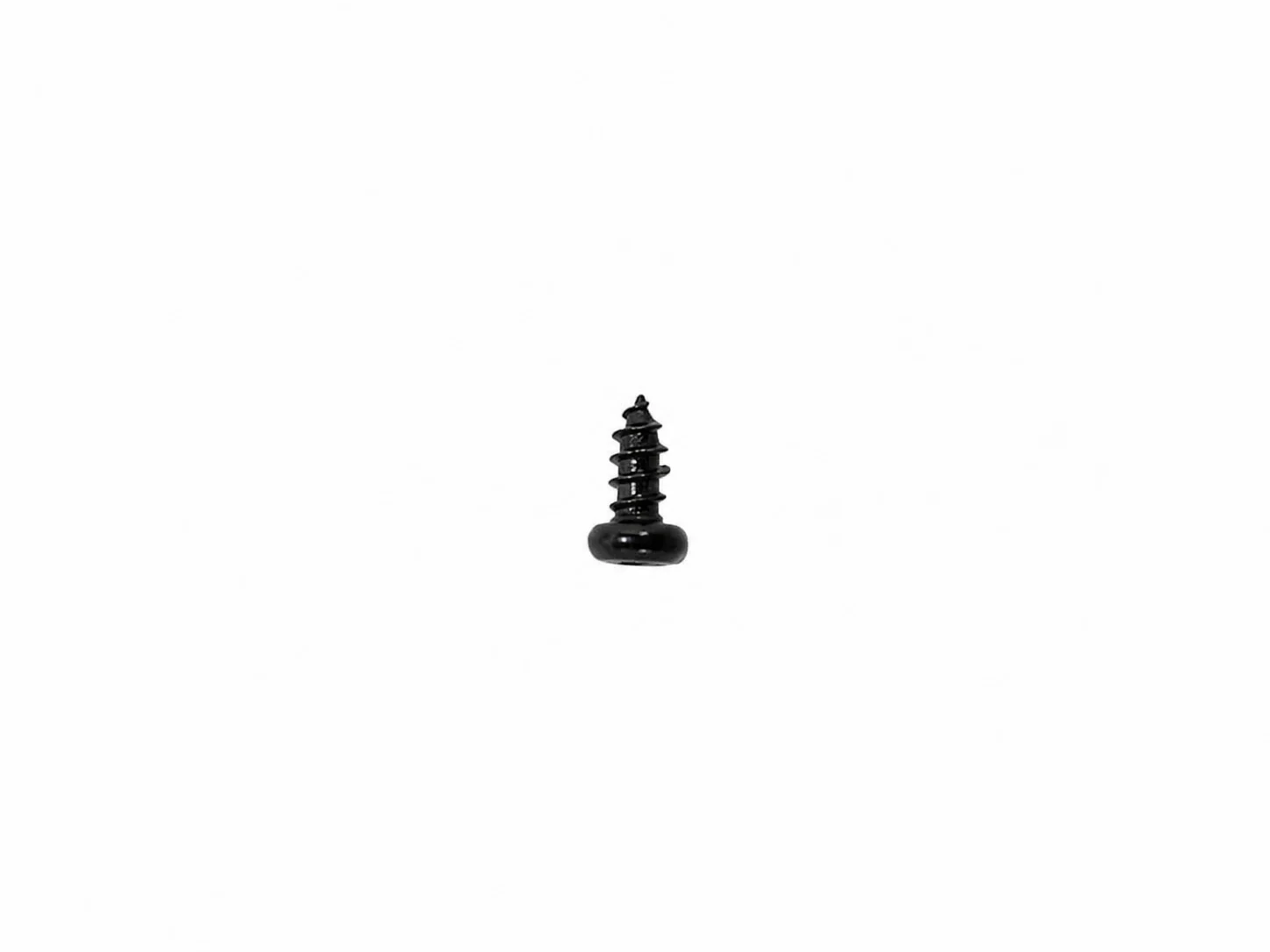

SCREW;RND;Diam.4X10L;SM;PH;-;BZN; 730147 1000221225 Q27 SCREW;RND;Diam.4X10L;SM;PH;-;BZN; No Model Compatibility List $2.58 / Each

LOW COVER;ECB;;ABS/PA757;BL/Black C;;CS3 730148 1000409074 Q46 LOW COVER;ECB;;ABS/PA757;BL/Black C;;CS3 No Model Compatibility List $19.26 / Each

Screw;TRUSS Head;M5X0.8PX13L-9L;;Phillip 730149 1000400424 Q47 Screw;TRUSS Head;M5X0.8PX13L-9L;;Phillip No Model Compatibility List $1.28 / Each

Pulley;;Painting BL;FC25;;CS31; 730150 1000404330 R05 Pulley;;Painting BL;FC25;;CS31; No Model Compatibility List $205.14 / Each

Spacer;;;SS41;Zinc;CS31;Diam.12xDiam.6.5 730151 1000409184 R15 Spacer;;;SS41;Zinc;CS31;Diam.12xDiam.6.5 No Model Compatibility List $5.92 / Each

Connect Axle;Brake Set;;;Black Oxide;CS3 730152 1000404402 R16 Connect Axle;Brake Set;;;Black Oxide;CS3 No Model Compatibility List $31.64 / Each

Bearing Housing;;;;;UCP205A;NKB;NIPPON M 730153 1000360933 R21 Bearing Housing;;;;;UCP205A;NKB;NIPPON M No Model Compatibility List $59.52 / Each

Key;Round;Dual-End;5x5x20L; 730154 068359-00 R22 Key;Round;Dual-End;5x5x20L; No Model Compatibility List $2.58 / Each

Chain;Transmission;;;;S50C;40H-10L/K1-12 730155 1000404407 R25 Chain;Transmission;;;;S50C;40H-10L/K1-12 No Model Compatibility List $224.88 / Each

Key;Round;Dual-End;8x7x22L; 730156 004995-00 R26 Key;Round;Dual-End;8x7x22L; No Model Compatibility List $2.58 / Each

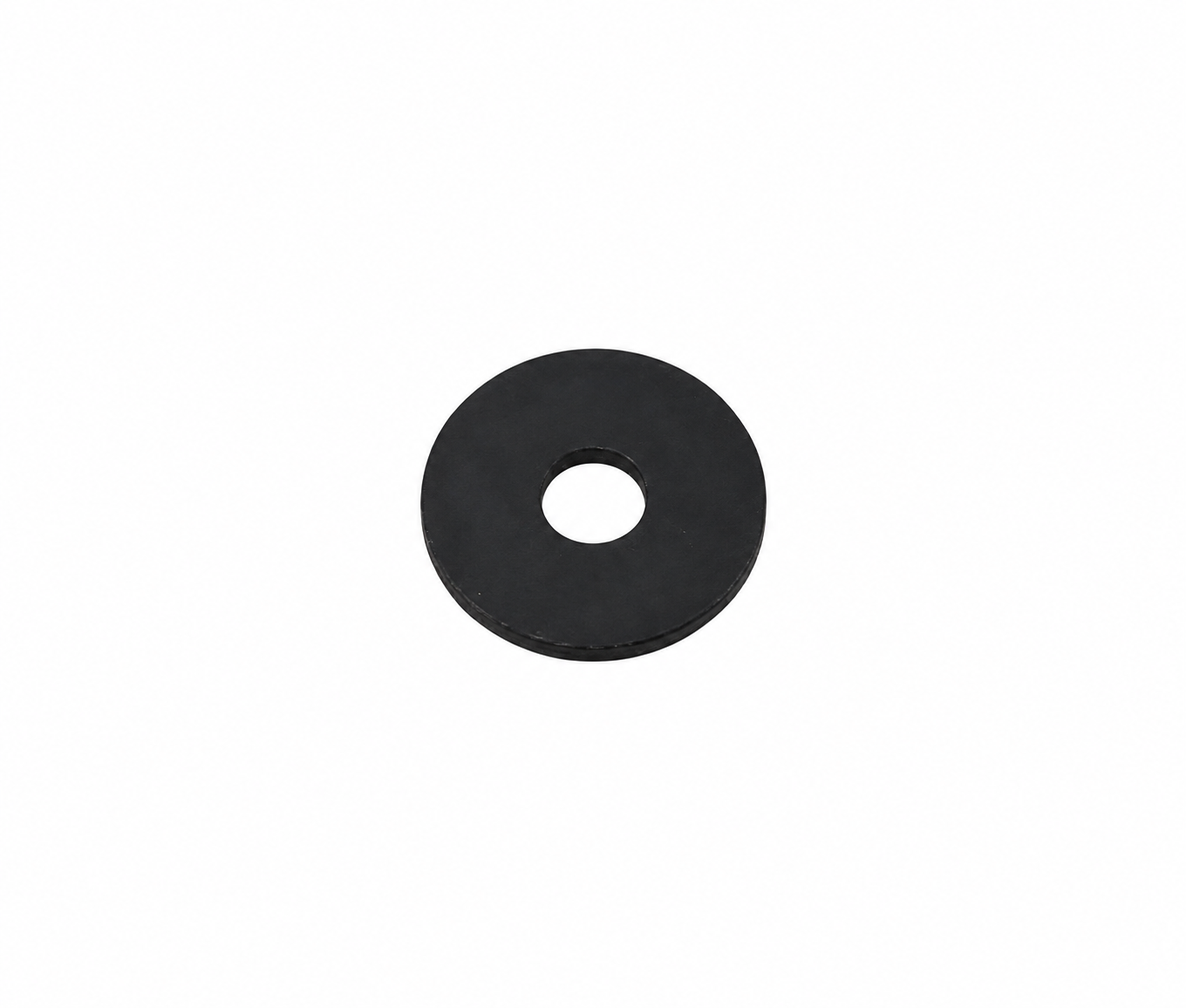

WASHER;FLT;Diam.10.2XDiam.35.0X3.0T;;; 730157 0000085922 R27 WASHER;FLT;Diam.10.2XDiam.35.0X3.0T;;; No Model Compatibility List $2.58 / Each

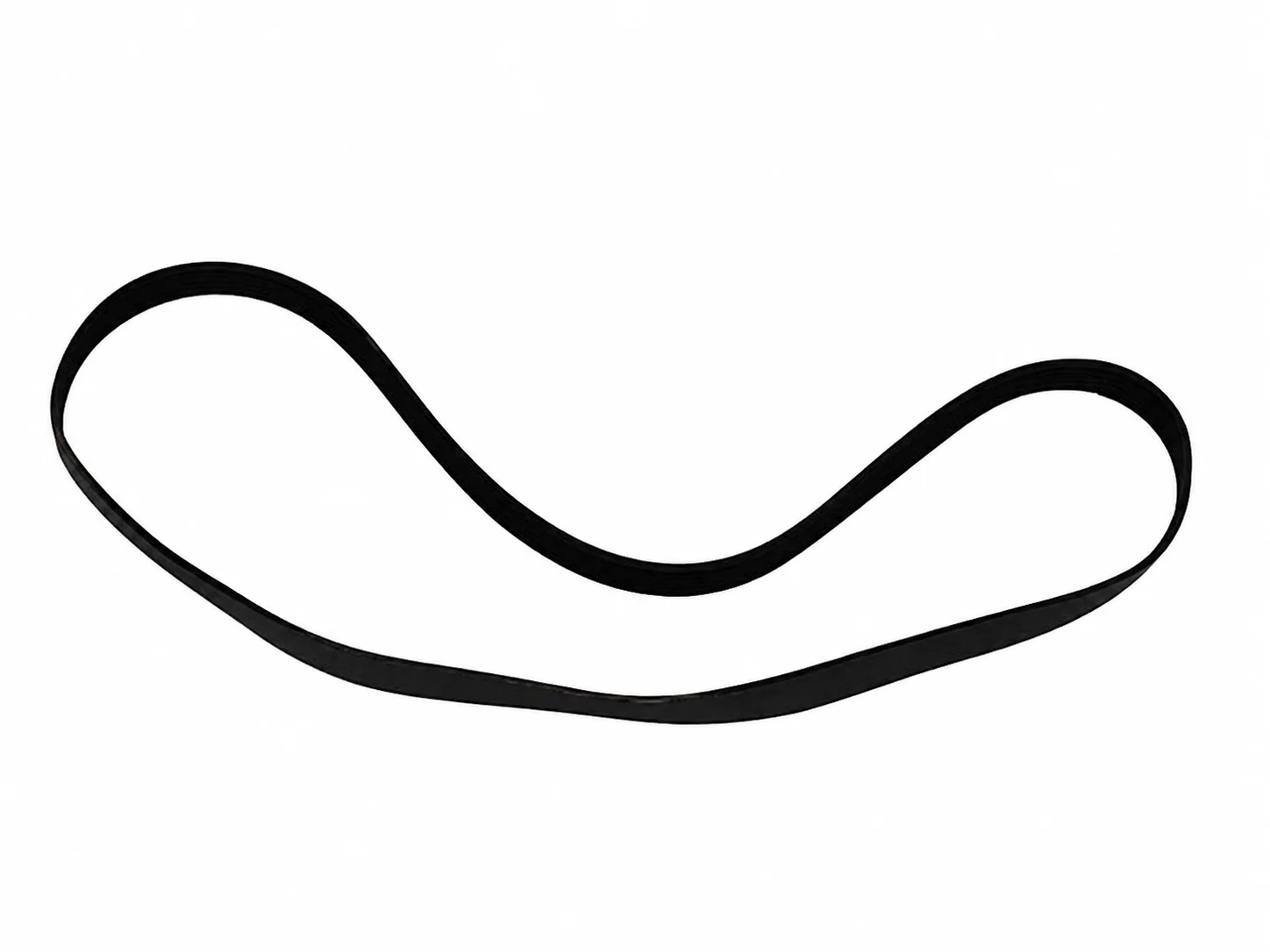

Belt;POLY-V;;610-J10;; 730158 1000404329 R31 Belt;POLY-V;;610-J10;; No Model Compatibility List $60.34 / Each

Screw;Hex Socket;Round;M10x1.5Px40L 730159 0000086513 R35 Screw;Hex Socket;Round;M10x1.5Px40L No Model Compatibility List $1.28 / Each

SCREW;SH;M6X1.0PX35L;;HS;;BZN;; 730160 056173-AB R43 SCREW;SH;M6X1.0PX35L;;HS;;BZN;; No Model Compatibility List $0.62 / Each

DC Brake;;SAB-0.8-09J,24VDC,1A,20Nm;;;CS 730161 1000403381 R45 DC Brake;;SAB-0.8-09J,24VDC,1A,20Nm;;;CS No Model Compatibility List $327.58 / Each

Washer;Flat;Diam.6.2xDiam.27.0x2.0T;;Bla 730162 1000400350 R49 Washer;Flat;Diam.6.2xDiam.27.0x2.0T;;Bla No Model Compatibility List $0.82 / Each

Nut;Hex;M8x1.25Px5T;SS41;Black Zinc; 730163 004913-A R59 Nut;Hex;M8x1.25Px5T;SS41;Black Zinc; No Model Compatibility List $2.58 / Each

Washer;Flat;8.2X16.0X2.0T;;BZN; 730164 0000082736 R60 Washer;Flat;8.2X16.0X2.0T;;BZN; No Model Compatibility List $1.28 / Each

Washer;Flat;Diam.16xDiam.28.0x1.0;;;GTM- 730165 1000410452 R65 Washer;Flat;Diam.16xDiam.28.0x1.0;;;GTM- No Model Compatibility List $5.92 / Each

Spacer;;;POM;;CS31;; 730166 1000410453 R66 Spacer;;;POM;;CS31;; No Model Compatibility List $2.24 / Each

Screw;Socket Head;M8X1.25PX95L;;Hex Sock 730167 1000423460 R68 Screw;Socket Head;M8X1.25PX95L;;Hex Sock No Model Compatibility List $3.66 / Each

SCREW;SET;M4X0.7PX5L;;;;;; 730168 004839-00 R68 SCREW;SET;M4X0.7PX5L;;;;;; No Model Compatibility List $2.58 / Each

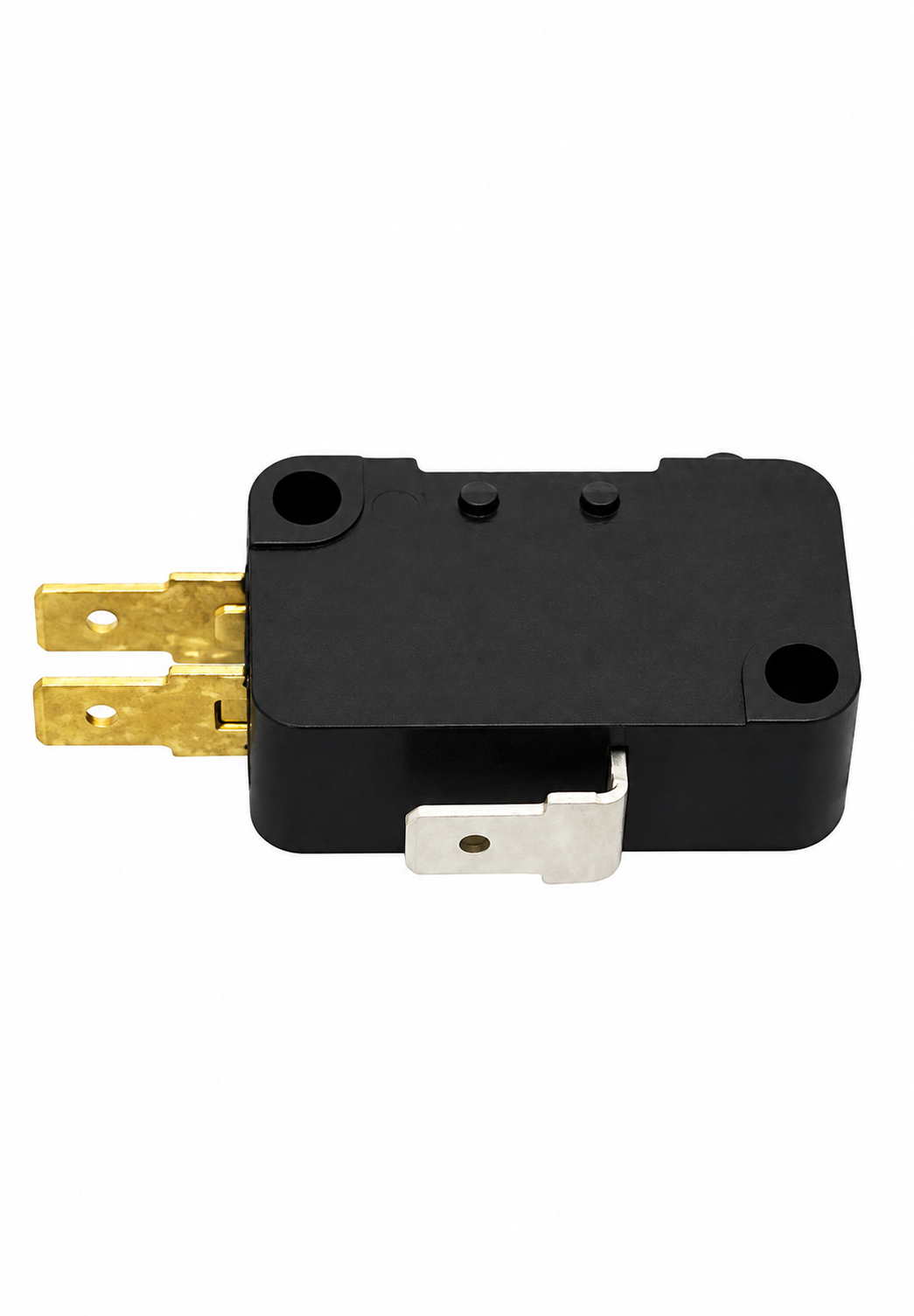

SWITCH;Fretting;ZIPPY;VA2-06D0-00D0-Z;;; 730169 1000410511 R86 SWITCH;Fretting;ZIPPY;VA2-06D0-00D0-Z;;; No Model Compatibility List $8.12 / Each

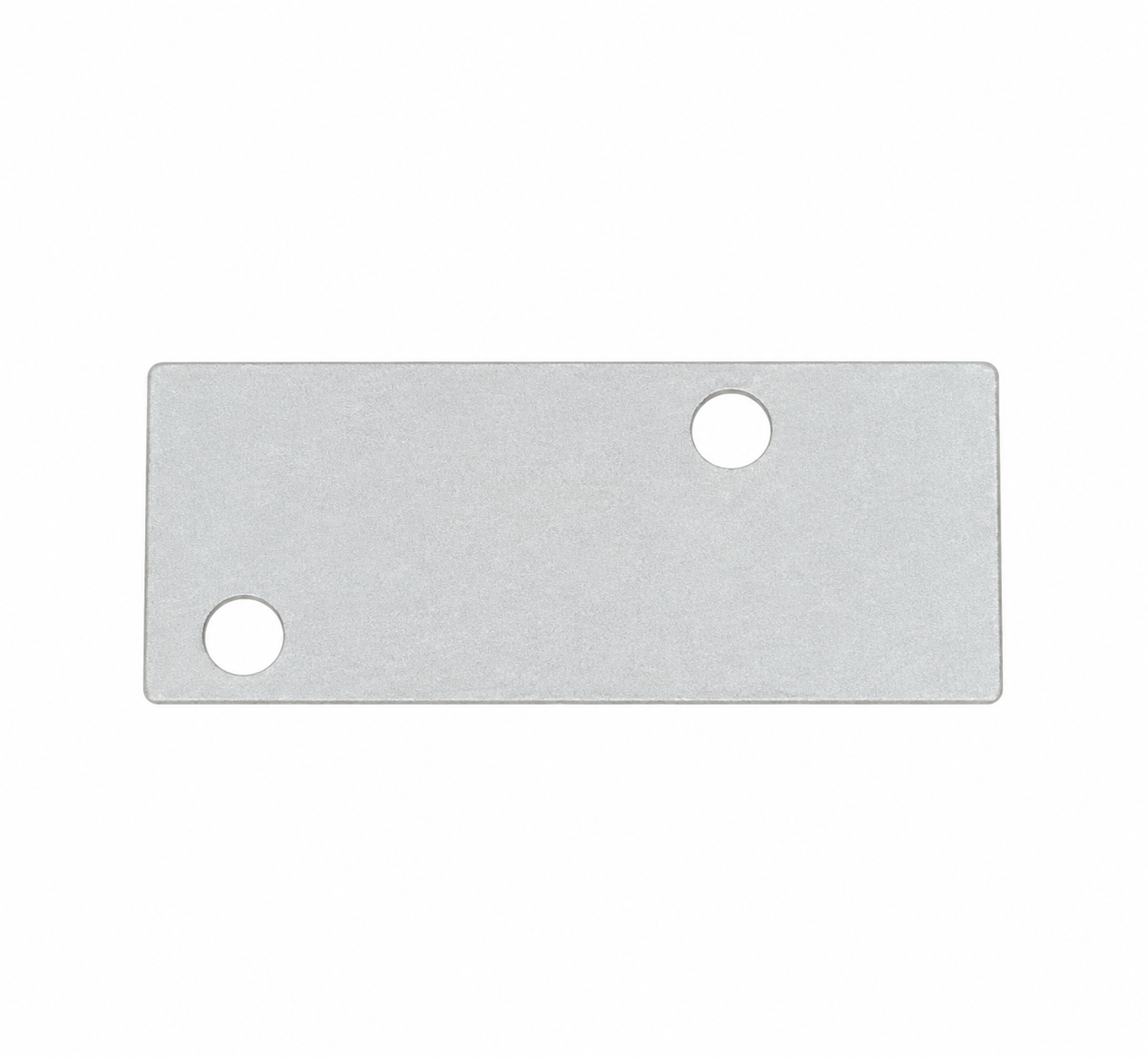

Insulator;;0.254T/Insulation Piece GE;8B 730170 1000400180 R89 Insulator;;0.254T/Insulation Piece GE;8B No Model Compatibility List $3.44 / Each

Decal;Model;3M-467;;POLY;Left;;CS31; 730171 1000404469 V01 Decal;Model;3M-467;;POLY;Left;;CS31; No Model Compatibility List $9.12 / Each

Decal;Model;3M-467;;POLY;Right;;CS31; 730172 1000404474 V02 Decal;Model;3M-467;;POLY;Right;;CS31; No Model Compatibility List $9.12 / Each

Screw;Socket Head;M10X1.5PX50L/Teeth len 730173 1000404595 Z26 Screw;Socket Head;M10X1.5PX50L/Teeth len No Model Compatibility List $4.74 / Each

SCREW;TH;M8X1.25PX15L;;HS;SSTSUS304;;;BP 730174 0000080422 Z29 SCREW;TH;M8X1.25PX15L;;HS;SSTSUS304;;;BP No Model Compatibility List $2.24 / Each

Screw;Round Head;M6x1.0Px25.5L;;Hex Sock 730175 1000395521 Z33 Screw;Round Head;M6x1.0Px25.5L;;Hex Sock No Model Compatibility List $2.58 / Each

Frame Set;;;painting;DM334;;CS31; 730176 1000404160 AB1 Frame Set;;;painting;DM334;;CS31; No Model Compatibility List $0.00 / Each
Out Of Stock
Support Rack Set;Side Cover;L;painting;; 730177 1000411041 AB5 Support Rack Set;Side Cover;L;painting;; No Model Compatibility List $0.00 / Each
Out Of Stock
Support Rack Set;Side Cover;R;painting;; 730178 1000411042 AB6 Support Rack Set;Side Cover;R;painting;; No Model Compatibility List $0.00 / Each
Out Of Stock
Support Rack Set;Side Cover;M;painting;; 730179 1000411047 AB7 Support Rack Set;Side Cover;M;painting;; No Model Compatibility List $0.00 / Each
Out Of Stock
Console Mast Set;;;painting;DM334;;CS31; 730180 1000404215 AC1 Console Mast Set;;;painting;DM334;;CS31; No Model Compatibility List $0.00 / Each
Out Of Stock
Frame Set;;Rear;painting;;Flat Black;CS3 730181 1000444136 AD1 Frame Set;;Rear;painting;;Flat Black;CS3 No Model Compatibility List $0.00 / Each
Out Of Stock
Arm Rest;;U;painting;;Black Matte-Double 730182 1000430591 AG1 Arm Rest;;U;painting;;Black Matte-Double No Model Compatibility List $0.00 / Each
Out Of Stock
ConnectingTube;Arm Rest;R;painting;DM334 730183 1000404264 AG7 ConnectingTube;Arm Rest;R;painting;DM334 No Model Compatibility List $0.00 / Each
Out Of Stock
Sproket Set;Transmission;Rr;welding;;CS3 730184 1000404339 AR3 Sproket Set;Transmission;Rr;welding;;CS3 No Model Compatibility List $0.00 / Each
Out Of Stock

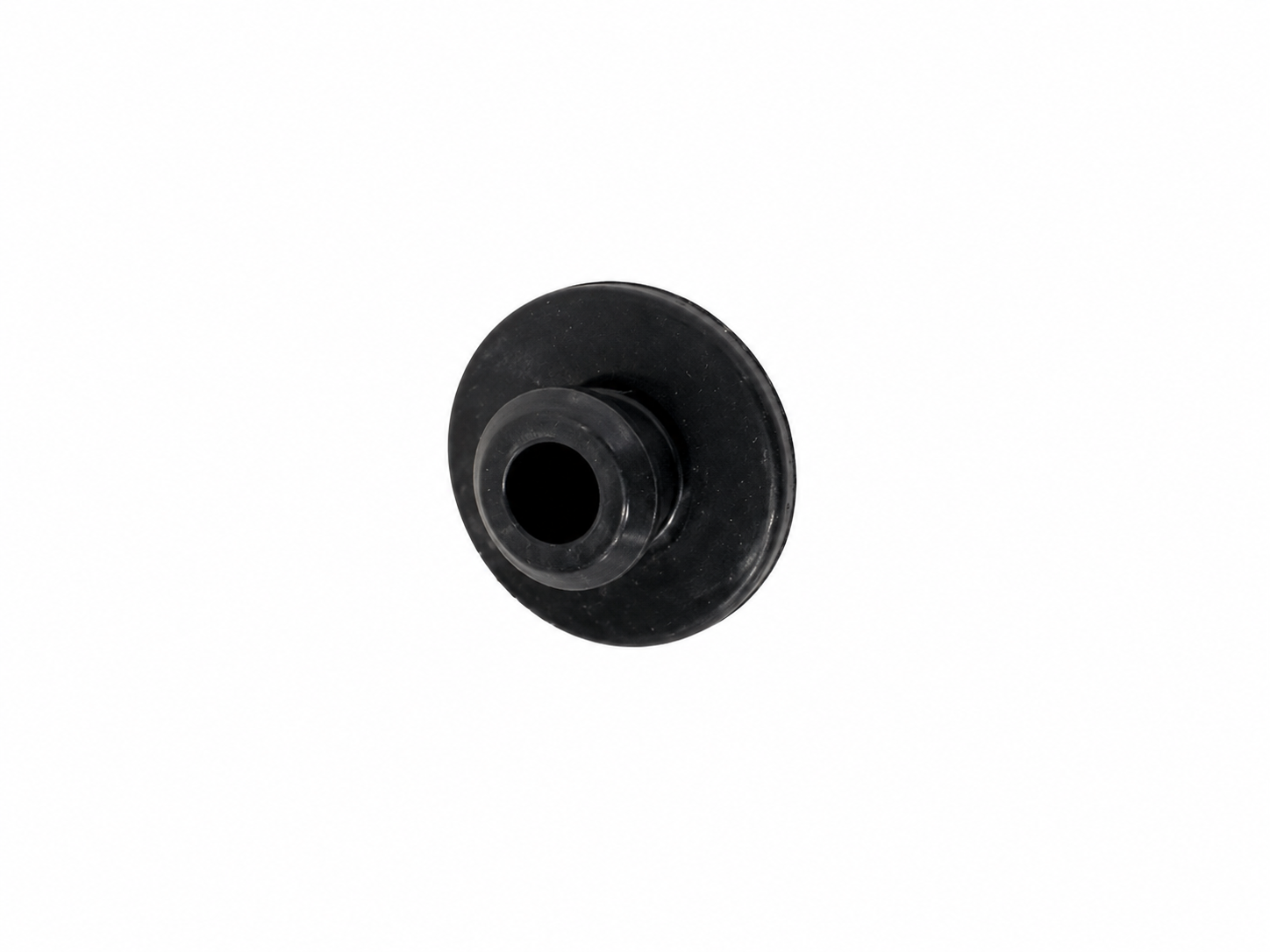

Plug;Frame;back;NBR;Black;;CS38; 730185 1000458591 D17 Plug;Frame;back;NBR;Black;;CS38; No Model Compatibility List $0.00 / Each
Out Of Stock
Pedal;;up;PP-3015;BL/Black C;;CS31; 730186 1000404241 E21 Pedal;;up;PP-3015;BL/Black C;;CS31; No Model Compatibility List $0.00 / Each
Out Of Stock
Fixing Plate;E-PORT;;SPHC;2.0T;BED;CS36; 730187 1000442177 P07 Fixing Plate;E-PORT;;SPHC;2.0T;BED;CS36; No Model Compatibility List $0.00 / Each
Out Of Stock
Side Cover;;left;ABS/PA756S;Black 7C;;CS 730188 1000404460 Q01 Side Cover;;left;ABS/PA756S;Black 7C;;CS No Model Compatibility List $0.00 / Each
Out Of Stock
Side Cover;;right;ABS/PA756S;Black 7C;;C 730189 1000404472 Q02 Side Cover;;right;ABS/PA756S;Black 7C;;C No Model Compatibility List $0.00 / Each
Out Of Stock
Repair Cover;;front;ABS/PA746;BL/Black C 730190 1000453021 Q08 Repair Cover;;front;ABS/PA746;BL/Black C No Model Compatibility List $0.00 / Each
Out Of Stock
Axle;Chain Wheel;Rear;SS41;;CS31; 730191 1000404348 R10 Axle;Chain Wheel;Rear;SS41;;CS31; No Model Compatibility List $0.00 / Each
Out Of Stock
Fixing Plate;Brake;;SPHC;4.0T;;CS31; 730192 1000404406 R11 Fixing Plate;Brake;;SPHC;4.0T;;CS31; No Model Compatibility List $0.00 / Each
Out Of Stock
Screw;Socket Head;M8x1.25Px70L-30L;;Hex 730193 1000454312 R58 Screw;Socket Head;M8x1.25Px70L-30L;;Hex No Model Compatibility List $0.00 / Each
Out Of Stock
Screw;Hex Socket;Round;M5x0.8Px12L;;Zn-B 730194 004447-00 B52 Screw;Hex Socket;Round;M5x0.8Px12L;;Zn-B No Model Compatibility List $0.00 / Each
Out Of Stock
Washer;Flat;8.2x16.0x1.0T 730195 005039-00 E09 Washer;Flat;8.2x16.0x1.0T No Model Compatibility List $0.00 / Each
Out Of Stock
GRIP;Sensor;left up;ABS/PA746;BL/Black C 730196 1000358994 G20 GRIP;Sensor;left up;ABS/PA746;BL/Black C No Model Compatibility List $0.00 / Each
Out Of Stock
GRIP;Sensor;right up;ABS/PA746;BL/Black 730197 1000358995 G21 GRIP;Sensor;right up;ABS/PA746;BL/Black No Model Compatibility List $0.00 / Each
Out Of Stock
GRIP;Sensor;left down;ABS/PA746;BL/Black 730198 1000358996 G22 GRIP;Sensor;left down;ABS/PA746;BL/Black No Model Compatibility List $0.00 / Each
Out Of Stock
GRIP;Sensor;right down;ABS/PA746;BL/Blac 730199 1000358997 G23 GRIP;Sensor;right down;ABS/PA746;BL/Blac No Model Compatibility List $0.00 / Each
Out Of Stock
Wire;Digital Comm;2000(MOLEX,50-70-9408x 730200 0000084632 P01 Wire;Digital Comm;2000(MOLEX,50-70-9408x No Model Compatibility List $0.00 / Each
Out Of Stock
Nylon Lock Nut M8x1.25P (New) 976932 004926-00 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

View Drawing
