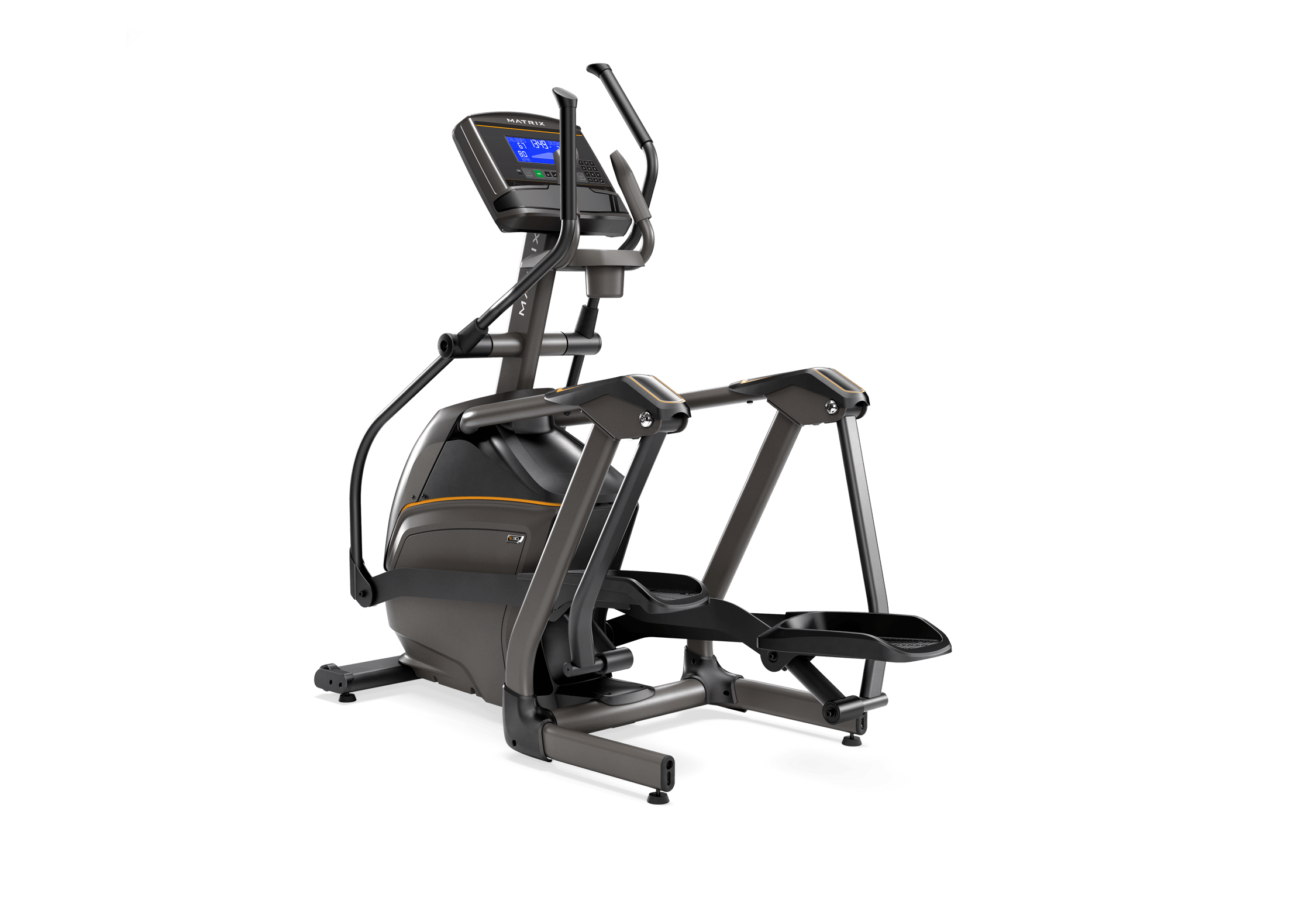

Matrix Retail - E30 XR - 2016

Repair Parts for Matrix Retail E30 XR EP597,TM697

Brand: Matrix Retail

Category: Suspension

Type: Elliptical

Model Name: E30 XR

Version: 2016

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 700024 000041-AA B24 Transport Wheel Yes Model Compatibility List $9.10 / Each

G 700319 000945-AA G30 End Cap;Handlebar;O31.8;Black No Model Compatibility List $1.90 / Each

9,4,5,6,11
D 701091 003713-00 D85 Screw;RND;M4x20L;-;PH;-;WZN;-;-;ROHS; No Model Compatibility List $1.79 / Each

701167 004083-00 R06 Ball Bearing 6206ZZ No Model Compatibility List $0.00 / Each
Out Of Stock 		8
D 701261 004321-AB D98 Screw;RND;M4x10L;-;PH;-;CHM;-;-; No Model Compatibility List $2.00 / Each

701291 004357-00 B35 Screw;Phillip;BH;M4x0.7Px15L; No Model Compatibility List $2.00 / Each

B 701301 004364-AC B44 Screw;BH;M5X0.8PX12L;CT;PH;;BAN;;HEAD 9 No Model Compatibility List $1.85 / Each

Q 701307 004368-00 Q27 Screw;Phillip;BH;M5x0.8Px20L; No Model Compatibility List $1.79 / Each

H 701309 004369-AD H13 Screw;BH;M5X0.8PX15L;;PH;;BZN;; No Model Compatibility List $2.00 / Each

2
Q 701312 004370-00 Q24 Screw;Phillip;BH;M5x0.8Px10L;;Zn-BL No Model Compatibility List $2.00 / Each

Q 701318 004374-00 Q28 Screw;Phillip;BH;M5x0.8Px10L;Gap;;Zn-BL No Model Compatibility List $2.00 / Each

Z 701348 004394-00 Z11 Screw;Phillip;BH;M6x1.0Px15L;;Zn-BL No Model Compatibility List $1.79 / Each

B 701401 004454-00 B48 Screw;Round;Hex Socket;M5X0.8PX15L No Model Compatibility List $1.79 / Each

R 701408 004462-00 R22 Screw;Round;Hex Socket;M6x1.0Px15L;Chromed No Model Compatibility List $2.00 / Each

Z 701435 004482-00 Z01 Screw;Round;Hex Socket;SH;M8X1.25PX20L No Model Compatibility List $1.79 / Each

H 701473 004522-AB H68 Screw;Round;Hex Socket;M10X1.5PX25L No Model Compatibility List $1.79 / Each

701513 004549-00 J04 Screw;Hex Socket;Round;M10x1.5Px55L;Cr; No Model Compatibility List $6.27 / Each

C 701599 004623-00 C20 Screw;Phillip;BH;Tapped;4x12L;BED;Gap; No Model Compatibility List $2.00 / Each

B 701688 004718-AC B45 Screw;BH;M8X1.25PX10L;;HS;;BZN;;BP No Model Compatibility List $2.00 / Each

701692 004720-00 Z04 Screw;BH;M8X1.25PX20L;;HS;;BZN;; No Model Compatibility List $2.00 / Each

Z 701749 004773-00 Z09 Screw;Hex Socket;BH;M8x1.25Px35L No Model Compatibility List $1.59 / Each

2
701772 004793-00 J08 Screw;Button Head;M10X1.5PX15L;;Hex Sock No Model Compatibility List $3.02 / Each

G 701827 004847-AB G11 Set Screw;M10X1.5PX12L Yes Model Compatibility List $6.99 / Each

2
R 701929 004966-00 R08 NUT;HXF;M12X1.25P;SS41;BAN;; No Model Compatibility List $1.66 / Each

2
Z 701965 005005-AC Z05 Washer;Split;8.2X15.4X2.0T;;BZN; No Model Compatibility List $1.79 / Each

701967 005006-00 B49 Washer;Spring;SW10 10.2x18.4x2.5t No Model Compatibility List $2.00 / Each

701995 005033-Z Z08 Washer;Flat;?8.6x?26.0x2.0t; No Model Compatibility List $2.57 / Each

2
B 701998 005036-00 B16 Washer;Flat;Diam.X8.5xDiam.X25.0x1.5T;;B No Model Compatibility List $1.66 / Each

2
Z 702005 005043-00 Z06 Washer;Flat;8.2x20x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

R 702046 005075-00 R21 Washer;Flat;6.2X16X2.0T;Black Zinc No Model Compatibility List $2.00 / Each

Z 702087 005119-00 Z02 Washer;Flat;8.2x16.0x1.5T No Model Compatibility List $2.00 / Each

2
C 702240 005365-00 C13 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

R 702242 005367-00 R13 C-Clip;External;S-30 No Model Compatibility List $4.00 / Each

E 703997 020082-00 E16 Screw;Hex Socket;M10X1.5X20;Zn-BL No Model Compatibility List $1.79 / Each

2
H 704028 020115-AF H67 Screw;Hex Socket;Round;M10x1.5Px95L No Model Compatibility List $9.02 / Each

2
J 704189 020459-00 J07 Washer;Flat;10.2X28.5X3.0T No Model Compatibility List $1.85 / Each

2
J 704203 020478-00 J03 Washer;Flat;10.2x20.0x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

Q 704270 022147-A Q23 PLATE CONNECTING No Model Compatibility List $1.90 / Each

3
B 704979 028275-AA B23 Adjustable Leveler Yes Model Compatibility List $1.90 / Each

H 705016 029432-00 H14 WASHER;FLT;Diam.5.0XDiam.15.0X1.0T;;; No Model Compatibility List $2.00 / Each

M 706954 067544-A M33 Screw;Phillip;M4X0.7PX12L No Model Compatibility List $2.00 / Each

2
G 708152 1000100593 G09 Cap;PVC;BL;PAHs;EP140 No Model Compatibility List $3.17 / Each

9
708252 1000101533 P04 Power Wire;DC;600mm Yes Model Compatibility List $10.01 / Each

4,5,6
708663 1000104692 J09 Screw;RND;M10x1.5Px45L;HS;CHM;BP;G12.9 No Model Compatibility List $4.26 / Each

Z 709135 1000110274 Z07 Washer;Flat;20.2x27.2x1.5T;SPHC;BAN No Model Compatibility List $1.59 / Each

Z 709792 1000203232 Z03 WASHER;WW;Diam.20.7XDiam.29.1X0.5T;65MN; No Model Compatibility List $2.00 / Each

2
H 710385 1000209856 H65 Nut;CUSTOM;M10X1.5P;S45C;CHM; Yes Model Compatibility List $9.10 / Each

G 710737 1000212982 G10 Swivel Axle Cover;Arm Rest;EP554-2KM; No Model Compatibility List $3.82 / Each

8,9,3
H 710998 1000215738 H66 Cap;Nut;S45C;EP304; Yes Model Compatibility List $9.10 / Each

Z 711208 1000217718 Z12 SCREW;FH;M5X0.8PX10L;CT;PH;G8.8;BAN;BP No Model Compatibility List $1.85 / Each

2
712874 1000231159 P51 ADAPTER;US;100-240V/50-60HZ;12V/2A;2.0M; Yes Model Compatibility List $80.29 / Each

B 714290 1000313182 B46 Screw;Socket Head;M10X1.5PX25L;;Hex Sock No Model Compatibility List $3.69 / Each

2
E 714292 1000313184 E12 Screw;Socket Head;M10X1.5PX110L(30L);;He No Model Compatibility List $3.64 / Each

P 715316 1000323653 P12 Console Wire;;;;;;1500;ckm254301-8P+Mole No Model Compatibility List $26.81 / Each

7,4,5,6
Q 716699 1000338924 Q17 Pedal;;right;PP;BL/Black C;;EP597; No Model Compatibility List $10.63 / Each

8,9,4,5,6
A 716761 1000339287 AC11 Console Mast Set-Exreawork;;;Screen prin No Model Compatibility List $131.30 / Each

7
B 717125 1000341757 B22 End Cap;Frame;Right-Front;ABS/PA757;BL/B No Model Compatibility List $6.19 / Each

G 717144 1000341889 G02 Kettle Rack;;;ABS/PA757;Black 7C;;EP589; No Model Compatibility List $19.14 / Each

B 717150 1000342040 B25 End Cap;Frame;Left-Front;ABS PA757S;BL/B No Model Compatibility List $6.68 / Each

P 717481 1000345435 P14 Quick Key Connect Wire;;;;;;60mm;CWB SM- No Model Compatibility List $12.40 / Each

9,4,5,6
P 717836 1000347982 P10 Sensor;;;;;24AWG;450L;UL 2468;OKI+CKM254 Yes Model Compatibility List $9.57 / Each

719833 1000366314 AH11 CON TUBE SET;;L;painting;;;EP598;MXR-DM3 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719834 1000366319 AH21 CON TUBE SET;;R;painting;;;EP598;MXR-DM3 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
A 719835 1000366357 AQ1 Side Cover;Frame;left;ABS/PA757;;;; No Model Compatibility List $101.14 / Each

9,3
A 719836 1000366360 AQ2 Side Cover;Frame;right;ABS/PA757;;;EP598 No Model Compatibility List $104.68 / Each

9,3
Q 719837 1000366363 Q03 Cover;Frame;Front-Up;ABS/PA757;;;; No Model Compatibility List $24.83 / Each

9,3
719838 1000366364 Q04 Cover;Frame;Rear-Up;ABS/PA757;BL/Black C No Model Compatibility List $23.06 / Each

9,3,4,5,6
Q 719839 1000366365 Q05 Cover;Frame;back;ABS/PA757;BL/Black C;;E No Model Compatibility List $15.96 / Each

9,3,4,5,6
Q 719840 1000366367 Q06 Rubber Sleeve;Connect Tube;left;NBR;BL/B No Model Compatibility List $17.73 / Each

3
Q 719841 1000366369 Q07 Rubber Sleeve;Connect Tube;right;NBR;BL/ No Model Compatibility List $17.73 / Each

3
719842 1000366374 Q08 Cover;Main Tube;back;ABS/PA757;BL/Black No Model Compatibility List $6.68 / Each

9,3,4,5,6
Q 719843 1000366375 Q09 Cover;Supt Tube;Left-Outer;ABS/PA757;BL/ No Model Compatibility List $3.82 / Each

9,3
Q 719844 1000366381 Q10 Cover;Supt Tube;Left-Inner;ABS/PA757;BL/ No Model Compatibility List $3.82 / Each

9,3
Q 719845 1000366384 Q11 Cover;Supt Tube;Right-Outer;ABS/PA757;BL No Model Compatibility List $3.82 / Each

9,3
Q 719846 1000366385 Q12 Cover;Supt Tube;Right-Inner;ABS/PA757;BL No Model Compatibility List $3.82 / Each

9,3
Q 719847 1000366393 Q15 Cover;Connect Tube;Rear-Up;ABS/PA757;BL/ No Model Compatibility List $17.73 / Each

9,3
Q 719852 1000366406 Q16 Pedal;;left;PP;BL/Black C;;EP597; No Model Compatibility List $11.49 / Each

8,9,4,5,6
H 719863 1000366458 H32 Connect Hub;Link Arm;;45#;;EP598;; No Model Compatibility List $7.64 / Each

3
N 719896 1000366782 Not Shown Manual;Assembly;;English/French/Spanish; No Model Compatibility List $17.73 / Each

3
R 719900 1000366827 R09 ECB Controller;Internal;10.5kg;EP597 No Model Compatibility List $230.67 / Each

7,8
A 720428 1000372607 AB9 Handlebar Set;;Rear;painting;;;EP598;DM5 No Model Compatibility List $21.27 / Each

11
Q 720627 1000374346 Q21 Cap;Elliptical;;ABS/PA757;Black;40x80;EP No Model Compatibility List $1.77 / Each

9,4,5,6
Q 720628 1000374350 Q20 Decorate Cover;Frame Cover;Front-Up;ABS/ No Model Compatibility List $2.29 / Each

9,3
720835 1000377284 AB5 Support Frame;Cover;;painting;;;EP598;DM No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
N 721540 1000383747 Not Shown Manual;Use Manipulate;;English/French/Sp No Model Compatibility List $18.23 / Each

721541 1000383748 Not Shown viafit brochure;;;;sprint 8;EP701-1US No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721542 1000383749 Not Shown information card;;;English;;EP701-1US No Model Compatibility List $0.00 / Each
Out Of Stock 		1
N 721559 1000384186 Not Shown Manual;EP safety direction;;EN/FR/ES;;EP No Model Compatibility List $7.64 / Each

9
N 721561 1000384190 Not Shown Protect Sleeve;;;PU;;320*240*15;EP701-1U No Model Compatibility List $13.49 / Each

N 722289 1000390665 Not Shown Hardware Set;;;;EP597; No Model Compatibility List $60.22 / Each

1
A 722299 1000390833 AG01 Handlebar Fabricate;Semi-Assy;left down; No Model Compatibility List $86.94 / Each

11
A 722300 1000390834 AG02 Handlebar Fabricate;Semi-Assy;right down No Model Compatibility List $86.94 / Each

11
A 722301 1000390835 AH03 Link Arm Assembly Set;Semi-Assy;left;;;E No Model Compatibility List $63.86 / Each

3
A 722302 1000390836 AH04 Link Arm Assembly Set;Semi-Assy;right;;; No Model Compatibility List $63.86 / Each

3
722303 1000390837 AE01 Pedal Arm Set(Press diagram);Semi-Assy;l No Model Compatibility List $72.75 / Each

8,9,3
722304 1000390838 AE02 Pedal Arm Set(Press diagram);Semi-Assy;r No Model Compatibility List $72.75 / Each

8,9,3
A 722305 1000390839 AH05 Swing Arm Set;Semi-Assy;;;;;EP598;SBOM No Model Compatibility List $106.44 / Each

3
A 722336 1000391059 AJ1 Crank set;Semi-Assy;;;;EP598;;SBOM No Model Compatibility List $159.69 / Each

8
A 722337 1000391060 AR1 Drive set;Semi-Assy;;;;EP598;;SBOM No Model Compatibility List $130.31 / Each

10
2 722428 1000391934 2 Handgrip Set;;left;;Quick button;;EP598; Yes Model Compatibility List $38.32 / Each

11
722429 1000391935 3 Handgrip Set;;right;;Quick button;;EP598 Yes Model Compatibility List $35.46 / Each

11
722499 1000393164 AB02 Frame Set;Semi-Assy;back;;;;EP598;SBOM No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722506 1000393217 AD3 Handgrip Set;;left up;;;;EP598;SBOM No Model Compatibility List $0.00 / Each
Out Of Stock 		11
722508 1000393219 AD4 Handgrip Set;;right up;;;;EP598;SBOM No Model Compatibility List $0.00 / Each
Out Of Stock 		11
722515 1000393339 AG03 Arm Rest Set;Semi-Assy;left up;;;;EP597; No Model Compatibility List $18.56 / Each

3
A 722516 1000393340 AG04 Arm Rest Set;Semi-Assy;right up;;;;EP597 No Model Compatibility List $18.56 / Each

3
R 722517 1000393341 R02 Belt;POLY-V;Flexonic;1250-J13;;HUTCHINSO No Model Compatibility List $88.71 / Each

15
G 722518 1000393342 G30 Cap;Handlebar;;PP;BL/Black C;Diam.31.8x3 No Model Compatibility List $3.02 / Each

9,4,5,6,11
N 722525 1000393378 Not Shown Others set;Semi-Assy;;;Belt;assembly;;EP No Model Compatibility List $72.75 / Each

15,3
722593 1000394795 B38 Fix Base;ECB;;painting;DM515 matte;Black No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722846 1000398934 4 Link Arm Set;Semi-Assy;left;;;;EP597;SBO No Model Compatibility List $86.16 / Each

3
722847 1000398935 5 Link Arm Set;Semi-Assy;right;;;;EP597;SB No Model Compatibility List $101.37 / Each

3
723066 1000403194 AQ1 Side Cover Set;Semi-Assy;left;;;;EP597; No Model Compatibility List $77.71 / Each

9
723067 1000403195 AQ2 Side Cover Set;Semi-Assy;right;;;;EP597; No Model Compatibility List $77.71 / Each

9
723090 1000403510 AG11 Handlebar Fabricate;Semi-Assy;left down; No Model Compatibility List $5.04 / Each

11
723091 1000403511 AG12 Handlebar Fabricate;Semi-Assy;right down No Model Compatibility List $86.16 / Each

11
M 723697 1000412073 M01 LCB;ECB Small Motor;;HBPB;V2.002;;digita No Model Compatibility List $84.47 / Each

725869 077441 C10 Sticker;Warning;Console set;38x54;EP197 No Model Compatibility List $1.77 / Each

Steel Rope;400L+66L 726621 083556 M06 Steel Rope;400L+66L Yes Model Compatibility List $14.74 / Each

Front Stabilzer Set 726649 083793 AL2 Front Stabilzer Set No Model Compatibility List $76.88 / Each

726892 085887 Z10 Nut;Nylock;M8x1.25Px6.5T;;Black Annodize No Model Compatibility List $6.37 / Each

726939 086127 H38 Nut;HEX;M10X1.5P;10 No Model Compatibility List $3.64 / Each

Cover;Lower Vertical Handlebar Rotating Axle 728346 094112 B35 Cover;Lower Vertical Handlebar Rotating Axle Yes Model Compatibility List $7.99 / Each

Q 941989 004370-00 Q24 Screw (New) No Model Compatibility List $12.00 / Each

Q 986204 004374-00 Q28 Button Head Phillip Screw (New) No Model Compatibility List $12.99 / Each
Out Of Stock
