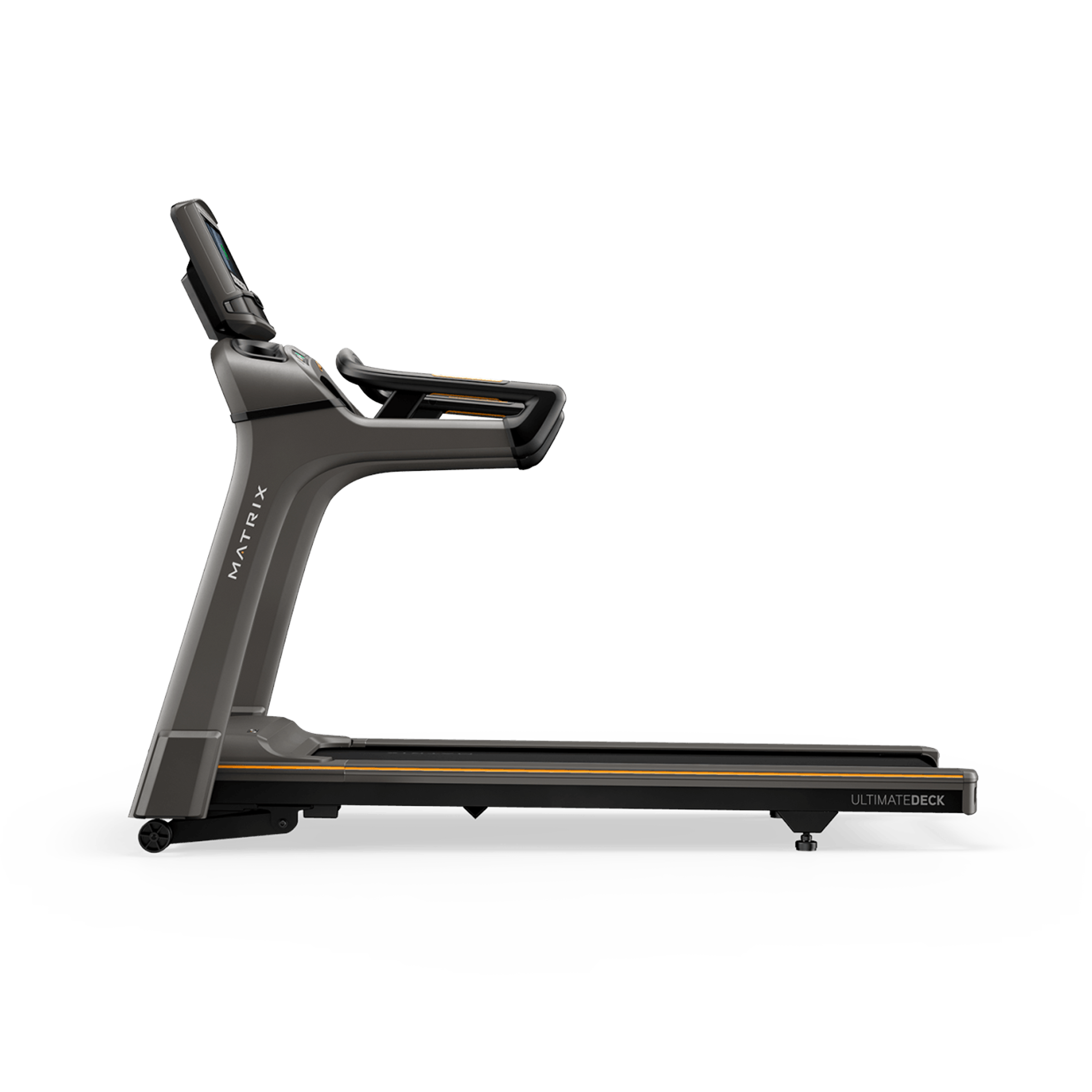

Matrix Retail - T75-02 XIR - TM703C - CTM699 - 2019 - 2019-2022

Repair Parts for Matrix Retail T75-02 XIR - TM703C - CTM699 - 2019 TM703C, CTM699

Brand: Matrix Retail

Category: Non Folding

Type: Non Folding Treadmills

Model Name: T75-02 XIR - TM703C - CTM699 - 2019

Serial Number Prefix: TM703C, CTM699

Version: 2019-2022

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Drive Belt matr250j12 1000340397 132 1 Drive Belt Yes Model Compatibility List $34.99 / Each

BS WIRE;60L;12AWG;BLACK;TM86; (Used) 1032499 002127-A 0 1 BS WIRE;60L;12AWG;BLACK;TM86; (Used) No Model Compatibility List $2.99 / Each

Matrix XER Display Console Bike Elliptical Treadmill 1034566 1000354724 0 1 Matrix XER Display Console Bike Elliptical Treadmill No Model Compatibility List $899.00 / Each

Matrix XIR Display Console CTM699 Bike Elliptical Treadmill 1034578 1000354727 0 1 Matrix XIR Display Console CTM699 Bike Elliptical Treadmill No Model Compatibility List $899.00 / Each
Out Of Stock
Transport Wheels (Used) 1035855 1000227025 L01 2 Transport Wheels (Used) No Model Compatibility List $5.00 / Each

Console Wire Set, Down, 1800mm, Molex:7 (Used) 1035846 1000323655 0 1 Console Wire Set, Down, 1800mm, Molex:7 (Used) Yes Model Compatibility List $25.00 / Each

Circuit Breaker QMB-152-11C3N-3BA (New) 1009784 003347-00 Circuit Breaker QMB-152-11C3N-3BA (New) Yes Model Compatibility List $28.99 / Each

Washer;Flat;10.2X20.0X2.0T;Black Zinc 730372 020477-00 H37 Washer;Flat;10.2X20.0X2.0T;Black Zinc No Model Compatibility List $0.00 / Each
Out Of Stock
Screw;RND;M3x8L;-;PH;-;WZN;-;-;ROHS; 730707 068287-00 Z24 Screw;RND;M3x8L;-;PH;-;WZN;-;-;ROHS; No Model Compatibility List $1.48 / Each

Clip Nut;Attached Plate;Elastomer;SPCC;1.6t;Zn Pl 730960 0000089165 B38 Clip Nut;Attached Plate;Elastomer;SPCC;1.6t;Zn Pl No Model Compatibility List $2.80 / Each

Screw;BH;M8X1.25PX20L;;HS;;BAN;; 730962 0000084584 B51 Screw;BH;M8X1.25PX20L;;HS;;BAN;; No Model Compatibility List $1.38 / Each

Washer;DSP;6.4X14.0X1.2T;SPHC ;; 731083 0000089800 B53 Washer;DSP;6.4X14.0X1.2T;SPHC ;; No Model Compatibility List $0.84 / Each

Screw;RND;M3.5X6L;TC;PH;;WZN;ROHS; 731087 0000095703 JAM04 Screw;RND;M3.5X6L;TC;PH;;WZN;ROHS; No Model Compatibility List $1.28 / Each

Console Rack Set;;;painting;;Black3;DM51 731143 1000355294 AN1 Console Rack Set;;;painting;;Black3;DM51 No Model Compatibility List $273.18 / Each

Screw;BH;M4X0.7PX25L;;PH;Z.P.B;;; 731144 0000095416 N30 Screw;BH;M4X0.7PX25L;;PH;Z.P.B;;; No Model Compatibility List $1.54 / Each

USB&EUP Wire;;;;;;350mm;JST 8P+XHS 6Yred 731145 1000354222 N61 USB&EUP Wire;;;;;;350mm;JST 8P+XHS 6Yred No Model Compatibility List $8.32 / Each

Decal;Console POP;TM698;;;;; 731146 1000379622 N81 Decal;Console POP;TM698;;;;; No Model Compatibility List $30.04 / Each

Manual;Console;;;;XER;XIR 731147 1000388647 Not Shown Manual;Console;;;;XER;XIR No Model Compatibility List $7.76 / Each

Foot Pad Set;Rear;T7000 Pro;TM512-AB6; 731163 0000095667 B52 Foot Pad Set;Rear;T7000 Pro;TM512-AB6; No Model Compatibility List $27.70 / Each

Power Resistor;100ohm;300W;Wirewound Alu 731474 1000416596 M20 Power Resistor;100ohm;300W;Wirewound Alu No Model Compatibility List $116.64 / Each

WASHER;FLT;?X10.2x?X20x2.0T;SPHC ;BAN; 731475 0000084592 M25 WASHER;FLT;?X10.2x?X20x2.0T;SPHC ;BAN; No Model Compatibility List $1.28 / Each

Pulse;;UP1;Black;;24AWG;850mm;XHS-2Y Yel 731476 1000361185 N65 Pulse;;UP1;Black;;24AWG;850mm;XHS-2Y Yel No Model Compatibility List $5.24 / Each

information card;;;English;;TM694; 731477 1000386045 Not Shown information card;;;English;;TM694; No Model Compatibility List $2.84 / Each

information card;;;Spanish;;TM694; 731478 1000386047 Not Shown information card;;;Spanish;;TM694; No Model Compatibility List $2.84 / Each

information card;;;French;;TM694; 731479 1000386048 Not Shown information card;;;French;;TM694; No Model Compatibility List $2.84 / Each

Screw;TRH;M5x0.8Px30L;MT;PS;CST;BOX;F-T 731480 0000093248 P17 Screw;TRH;M5x0.8Px30L;MT;PS;CST;BOX;F-T No Model Compatibility List $1.28 / Each

Velcro;Motor Cover;50x30mm;;;black; 731481 1000381919 Q03 Velcro;Motor Cover;50x30mm;;;black; No Model Compatibility List $4.56 / Each

Screw;Hex Socket;Round;M8x1.25Px20.0L;Ad 731482 0000093382 Z05 Screw;Hex Socket;Round;M8x1.25Px20.0L;Ad No Model Compatibility List $1.28 / Each

Frame set;;;Black2;TM703B;Screen Printin 731483 1000408689 AB1 Frame set;;;Black2;TM703B;Screen Printin No Model Compatibility List $0.00 / Each
Out Of Stock
Filter;20A;125/250V;DNF250-T-20A(2);; 731484 1000303181 M11 Filter;20A;125/250V;DNF250-T-20A(2);; No Model Compatibility List $0.00 / Each
Out Of Stock
Screw;Phillip;BH;M5x0.8Px12L;Adhere; 731485 004379-Z M16 Screw;Phillip;BH;M5x0.8Px12L;Adhere; No Model Compatibility List $0.00 / Each
Out Of Stock
SAFETY KEY ASSEMBLY;TM434# 731486 1000219592 N43 SAFETY KEY ASSEMBLY;TM434# No Model Compatibility List $0.00 / Each
Out Of Stock
Screw;Phillip;BH;M5x0.8Px35L;Ni;Gap; 731487 020035-AB P17 Screw;Phillip;BH;M5x0.8Px35L;Ni;Gap; No Model Compatibility List $0.00 / Each
Out Of Stock
FixPiece;Side Rail;TM187-141A-00 731488 066035-A C12 FixPiece;Side Rail;TM187-141A-00 No Model Compatibility List $0.00 / Each
Out Of Stock
View Drawing
