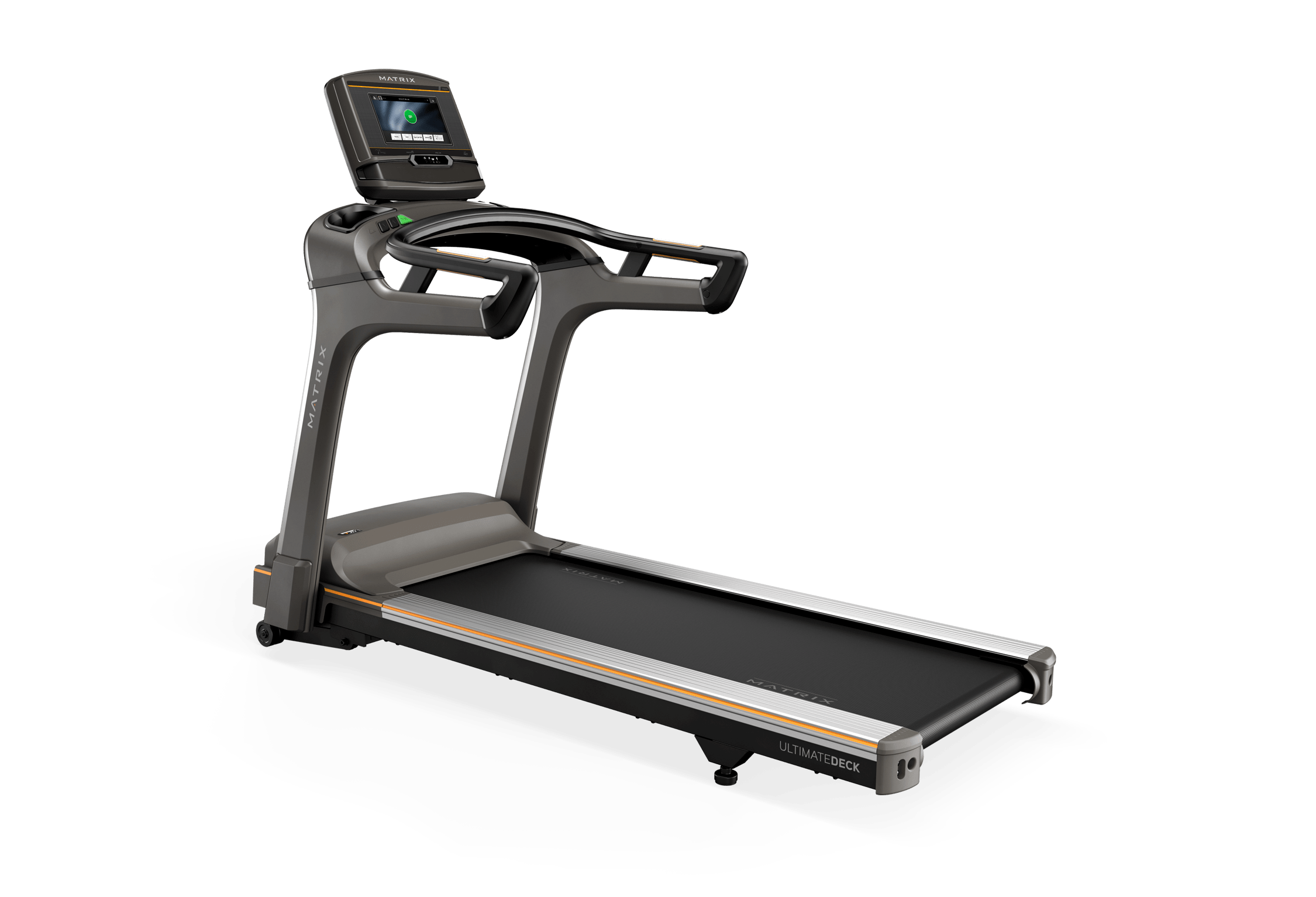

Matrix Retail - T75 XER - 2017

Repair Parts for Matrix Retail T75 XER TM703B,CTM698

Brand: Matrix Retail

Category: Non Folding

Type: Non Folding Treadmills

Model Name: T75 XER

Version: 2017

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700893 002671-A N75 Audio Wire;Three-D Earphone Yes Model Compatibility List $9.99 / Each

N 701008 003307-00 N77 Chest Strap;Polar;T34/T41 No Model Compatibility List $76.65 / Each

701579 004613-00 N26 Screw;Phillip;BH;Tapped;3x12L;Gap;;Zn-B No Model Compatibility List $2.00 / Each

N 701589 004619-00 N28 Screw;Phillip;BH;Oval Tapped;4x8L No Model Compatibility List $2.00 / Each

701591 004620-00 N27 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

N 707005 068304-00 N31 Screw;BH;M4x12L;-;PH;-;WZN;-;-; No Model Compatibility List $1.85 / Each

N 707653 1000094023 N74 Grounding Wire;250;4.0+6.0 No Model Compatibility List $3.82 / Each

N 709992 1000205707 N73 Ground Wire;Pulse;200L No Model Compatibility List $3.82 / Each

711857 1000223368 N63 SPEAKER;3W/8#;350;;JST:XAP-02V-1;;ROHS; No Model Compatibility List $11.49 / Each

N 712866 1000231078 N32 SCREW;BH;?X5X1.6PX12L(HI-LO);PH;BZN; No Model Compatibility List $1.66 / Each

N 713467 1000303747 N60 Control Board;USB;;HDPD;;;;3.2/5.2AE;Con No Model Compatibility List $38.32 / Each

N 713469 1000303833 N10 Fixing Plate;Earphone Jack;;PP;EP576 No Model Compatibility List $1.90 / Each

N 713536 1000304779 N66 VF;;;Black;;AWM 2464 24AWG;450;;Audio ou No Model Compatibility List $5.72 / Each

N 718918 1000354215 N68 Exchanged Board;Quick Key;;HBPB;;;XER;SO No Model Compatibility List $14.17 / Each

N 718922 1000354254 N67 Connect;;;;;24AWG UL2468;320;JST-2Predx2 No Model Compatibility List $6.19 / Each

N 718924 1000354261 N65 FFC WIRE;;;;;;30mm;6PIN 1.0 pitch; No Model Compatibility List $3.54 / Each

718946 1000354724 1 Console set;Semi-Assy;;;;TM698-1US-C;; No Model Compatibility List $0.00 / Each
Out Of Stock
N 718948 1000354737 N02 Plastic Cover;Console;down;ABS/PA757;;Q5 No Model Compatibility List $53.22 / Each

N 718950 1000354741 N03 Decorate Cover;Console Up Cover;;ABS/PA7 No Model Compatibility List $10.63 / Each

N 718954 1000354745 N07 Loudspeaker Cover;Console;U;ST14;409x62x No Model Compatibility List $28.37 / Each

N 718964 1000354785 N61 CTL Overlay;;UP;;;TM698-1US No Model Compatibility List $24.83 / Each

N 718965 1000354786 N62 CTL Overlay;;;;USB;TM699-1US No Model Compatibility List $3.54 / Each

N 718980 1000354899 N78 Memory card set;;TF Card;Sandisk 8G CLAS No Model Compatibility List $58.55 / Each

N 718981 1000354900 N70 TFT Module;10 inch;;E;;;G012;xer;Black w No Model Compatibility List $1.30 / Each

718982 1000354901 N71 WIFI Aerial;;;;;;;AN2450-5701RS,2.4G Hz; No Model Compatibility List $0.00 / Each
Out Of Stock
N 719072 1000355591 N76 Connect;;;;;24AWG AWM 2464;100;JST XAP-0 No Model Compatibility List $7.07 / Each

N 719097 1000355905 N64 VF;;;;;24AWG;380;PHS 4P+4P;AUD IN; No Model Compatibility List $7.07 / Each

N 719100 1000355910 N88 Pulse receiver set;;;300(JST-4Y+94032401 No Model Compatibility List $72.75 / Each

N 719187 1000356805 N25 Cover;;Speaker;TM439 No Model Compatibility List $7.62 / Each

719190 1000356818 N18 Rubber Pad;Water Proof;;;;;TM698-1US; No Model Compatibility List $0.00 / Each
Out Of Stock
N 719775 1000365378 N29 Polar Fixed Seat;;;ABS/PA757K;;;EP580-2K No Model Compatibility List $2.29 / Each

N 721033 1000379679 N69 Decal;Warning;TM697;;Synthetic Paper; No Model Compatibility List $6.19 / Each

N 721569 1000384312 N01 Console Cover2;;U;painting;DM334;Gray;TM No Model Compatibility List $81.61 / Each

N 721754 1000385377 N86 Control Board;;;HAPA;;;SOO1528;audio in No Model Compatibility List $21.27 / Each

2 722262 1000390276 2 Others set;;;;English;TM698;;POP Label; No Model Compatibility List $69.19 / Each

722280 1000390536 N80 Installation Board;;;painting;DM515 matt No Model Compatibility List $0.00 / Each
Out Of Stock
728583 095416 P58 Screw;BH;M4X0.7PX25L;;PH;Z.P.B;;; No Model Compatibility List $0.88 / Each

1 1034566 1000354724 1 1 Matrix XER Display Console Bike Elliptical Treadmill No Model Compatibility List $899.00 / Each

N 911968 004620-00 N27 Self Tapping Screw 4X12L (New) No Model Compatibility List $12.99 / Each

N 971749 003307-00 N77 Rate Chest Strap (New) No Model Compatibility List $194.99 / Each
