Matrix Retail - TF50-03 - TM768 - TM1024 - 2020 - 2020-2025

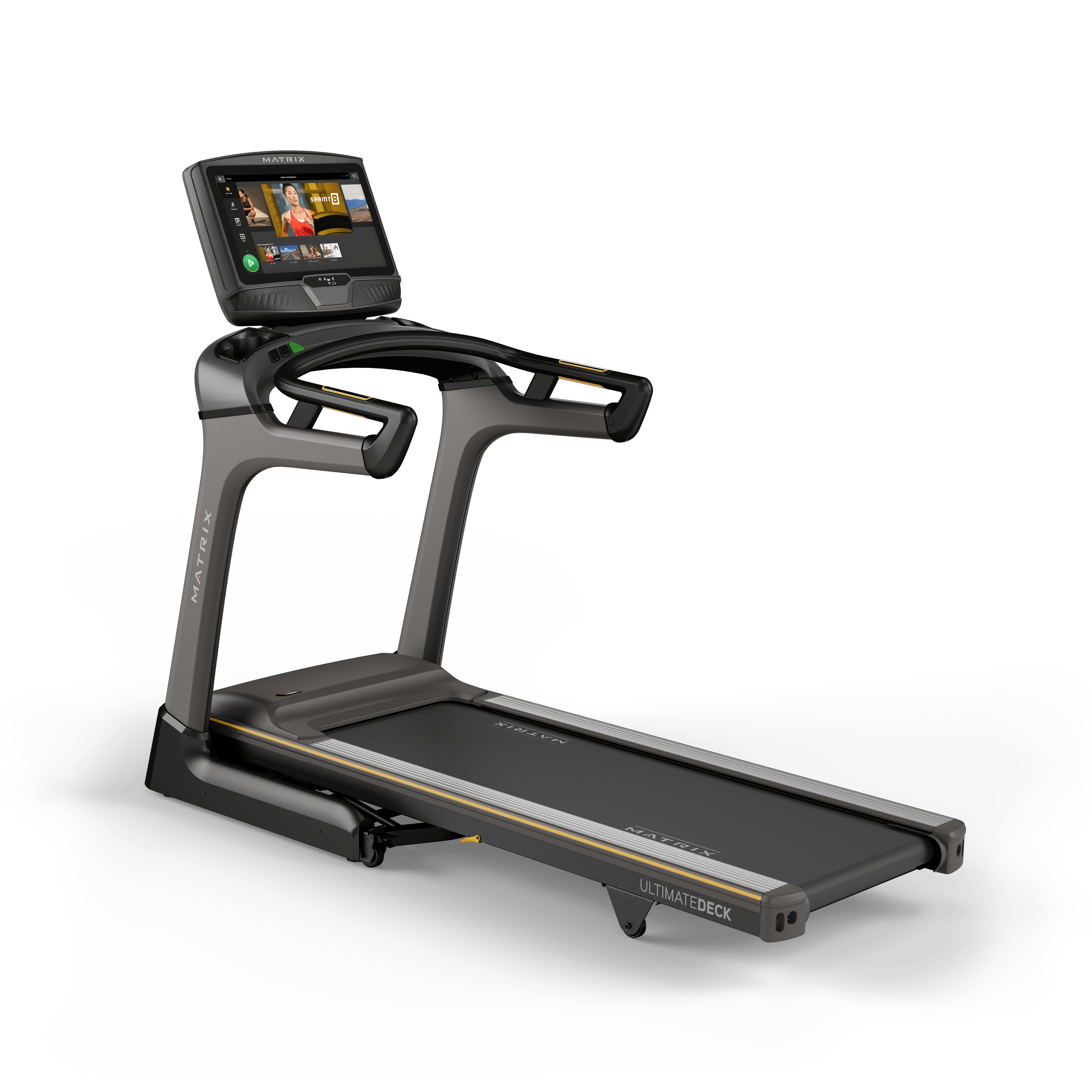

Repair Parts for Matrix Retail TF50-03 - TM768 - TM1024 - 2020 TM768, TM1024

Brand: Matrix Retail

Category: Folding

Type: Folding Treadmill

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

TM768, TM1024

Model Name: TF50-03 - TM768 - TM1024 - 2020

Serial Number Prefix: TM768, TM1024

Version: 2020-2025

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

diag_302_Parts List.pdf

VIEWS

Catalog #	MPN	Part List Key	Quantity On Model	Part Description	Available Used	Model Compatibility List	New price
1020890	000763-E	B40	1	Red Elastomer Version - Used	No	Model Compatibility List	$7.79 / Each
1001381	003326-00	0	1	Power Switch	Yes	Model Compatibility List	$29.99 / Each
1000573	003326-00			Power Entry Switch On/Off	Yes	Model Compatibility List	$20.99 / Each
1035628	039400-BA	0	1	Transport Wheel (Used)	Yes	Model Compatibility List	$5.00 / Each
1003694	003347-00			Power Entry Circuit Breaker	Yes	Model Compatibility List	$9.99 / Each
1036808	019354-A			Power harness wire	Yes	Model Compatibility List	$5.00 / Each
1009784	003347-00			Circuit Breaker QMB-152-11C3N-3BA (New)	Yes	Model Compatibility List	$28.99 / Each
1034434	003326-00			Power Entry On Off Switch EP212	Yes	Model Compatibility List	$16.99 / Each
4K-UYTS-4IA5	003326-00			Power Switch on Off (New)	Yes	Model Compatibility List	$29.99 / Each
730138	1000433184	P76		Power board;DC;;;12.6V/3.3A;HBPB;;;AC100	No	Model Compatibility List	$53.28 / Each
730279	0000095185	B46		Screw;SH;M6X1.0PX80L;;BED;	No	Model Compatibility List	$2.58 / Each
730372	020477-00	H37		Washer;Flat;10.2X20.0X2.0T;Black Zinc	No	Model Compatibility List	$0.00 / Each Out Of Stock
730960	0000089165	B38		Clip Nut;Attached Plate;Elastomer;SPCC;1.6t;Zn Pl	No	Model Compatibility List	$2.80 / Each
731083	0000089800	B53		Washer;DSP;6.4X14.0X1.2T;SPHC ;;	No	Model Compatibility List	$0.84 / Each
731108	004355-AC	B56		Screw;BH;M4X0.7PX10L;;PH;;BAN;;	No	Model Compatibility List	$0.00 / Each Out Of Stock
731216	004409-Z	P15		BOLT BH M5X20USE 004409-00	No	Model Compatibility List	$0.00 / Each Out Of Stock
731476	1000361185	N65		Pulse;;UP1;Black;;24AWG;850mm;XHS-2Y Yel	No	Model Compatibility List	$5.24 / Each
731480	0000093248	P17		Screw;TRH;M5x0.8Px30L;MT;PS;CST;BOX;F-T	No	Model Compatibility List	$1.28 / Each
731482	0000093382	Z05		Screw;Hex Socket;Round;M8x1.25Px20.0L;Ad	No	Model Compatibility List	$1.28 / Each

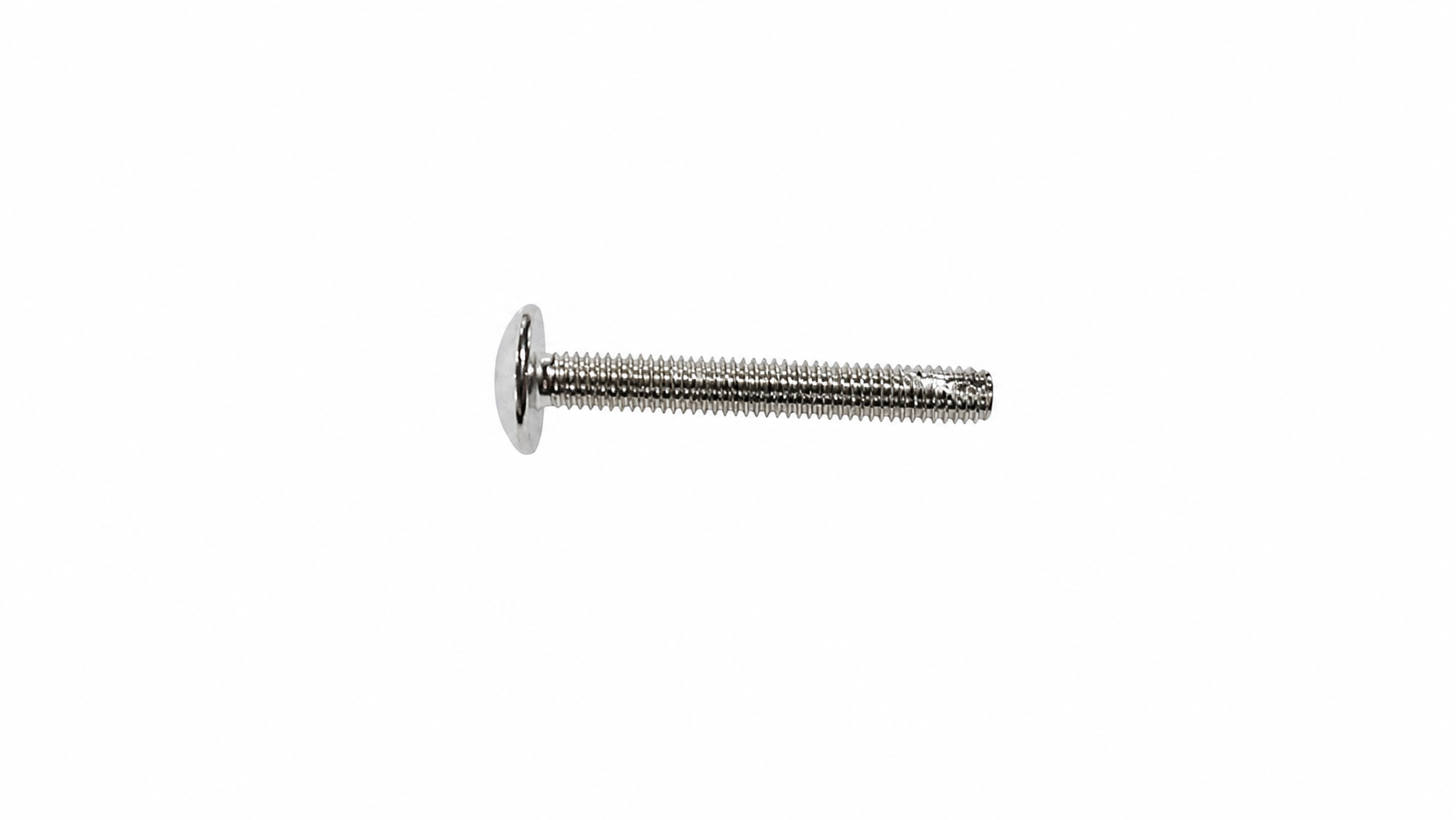

731487	020035-AB	P17		Screw;Phillip;BH;M5x0.8Px35L;Ni;Gap;	No	Model Compatibility List	$0.00 / Each Out Of Stock
731771	005038-00	B51		WASHER;FLT;Diam.8.2XDiam.18.0X1.4T;;;	No	Model Compatibility List	$0.00 / Each Out Of Stock
732182	1000458235	1		Console Base Set;Semi-Assy;;;;;TM767;ser	No	Model Compatibility List	$349.84 / Each
732183	1000458239	AQ09		Side Rail Set;deck;left;;TM767;;service	No	Model Compatibility List	$146.46 / Each
732184	1000458242	AQ10		Side Rail Set;deck;right;;TM767;;service	No	Model Compatibility List	$146.46 / Each
732185	1000399990	B41		Air Shock Set;;;;TM694;;service	No	Model Compatibility List	$37.82 / Each
732186	1000232343	K24		SCREW;BH;M10X1.5PX40L-15L;MT;HS;G8.8;	No	Model Compatibility List	$3.66 / Each
732187	1000406855	K41		Pull Rod;Round;Down;20#;Chrome;TM717;Dia	No	Model Compatibility List	$55.46 / Each
732188	1000406854	K42		PLASTIC LINER;Base frame;;POM;;;;	No	Model Compatibility List	$1.02 / Each
732189	1000406853	K43		Spring;Compression;Diam.1.6xDiam.14.6x16	No	Model Compatibility List	$8.06 / Each
732190	1000450273	N58		Console Power Wire;;UP1;;;22AWG;850;TKP	No	Model Compatibility List	$19.26 / Each
732191	1000450288	P05		SF Connect Wire;;;;;1015 14AWG iron core	No	Model Compatibility List	$12.58 / Each
732192	1000450289	P09		MCB power wire;;;;;UL1015;380+160;250fem	No	Model Compatibility List	$13.28 / Each
732193	1000450446	P22		Console Power Wire;;Down;;;22AWG;2700;TK	No	Model Compatibility List	$32.86 / Each
732194	1000450469	Q09		Side Rail;Frame;;1429L;AL 6061;Anodizing	No	Model Compatibility List	$124.56 / Each
732195	1000458333	9		Base Set;Semi-Assy;;;;;TM768;Service	No	Model Compatibility List	$0.00 / Each Out Of Stock
732196	1000458334	AK01		Bottombase Set;semi-manufactured goods;	No	Model Compatibility List	$0.00 / Each Out Of Stock
732197	1000096153	B22		Screw;FH;M4x10;-;PH;-;BED;-;-;	No	Model Compatibility List	$0.00 / Each Out Of Stock
732198	008164-B2	B43		WASHER;;;;;	No	Model Compatibility List	$0.00 / Each Out Of Stock
732199	005138-ZA	H14		WASHER FT 10.2X25X1.5	No	Model Compatibility List	$0.00 / Each Out Of Stock
732200	1000379607	K36		Brake Location Set;Semi-Assy;;;;TM332;	No	Model Compatibility List	$0.00 / Each Out Of Stock
732201	004630-00	M09		SCREW;BH;Diam.4X15L;SM;PH;;BAN;;POT	No	Model Compatibility List	$0.00 / Each Out Of Stock
912107	1000465333			Nut Locking Nylon 3/8	No	Model Compatibility List	$11.99 / Each
976932	004926-00			Nylon Lock Nut M8x1.25P (New)	No	Model Compatibility List	$12.99 / Each
911958	004608-00			Rower Button Head Phillip Screw 3x10L (New)	No	Model Compatibility List	$12.99 / Each
