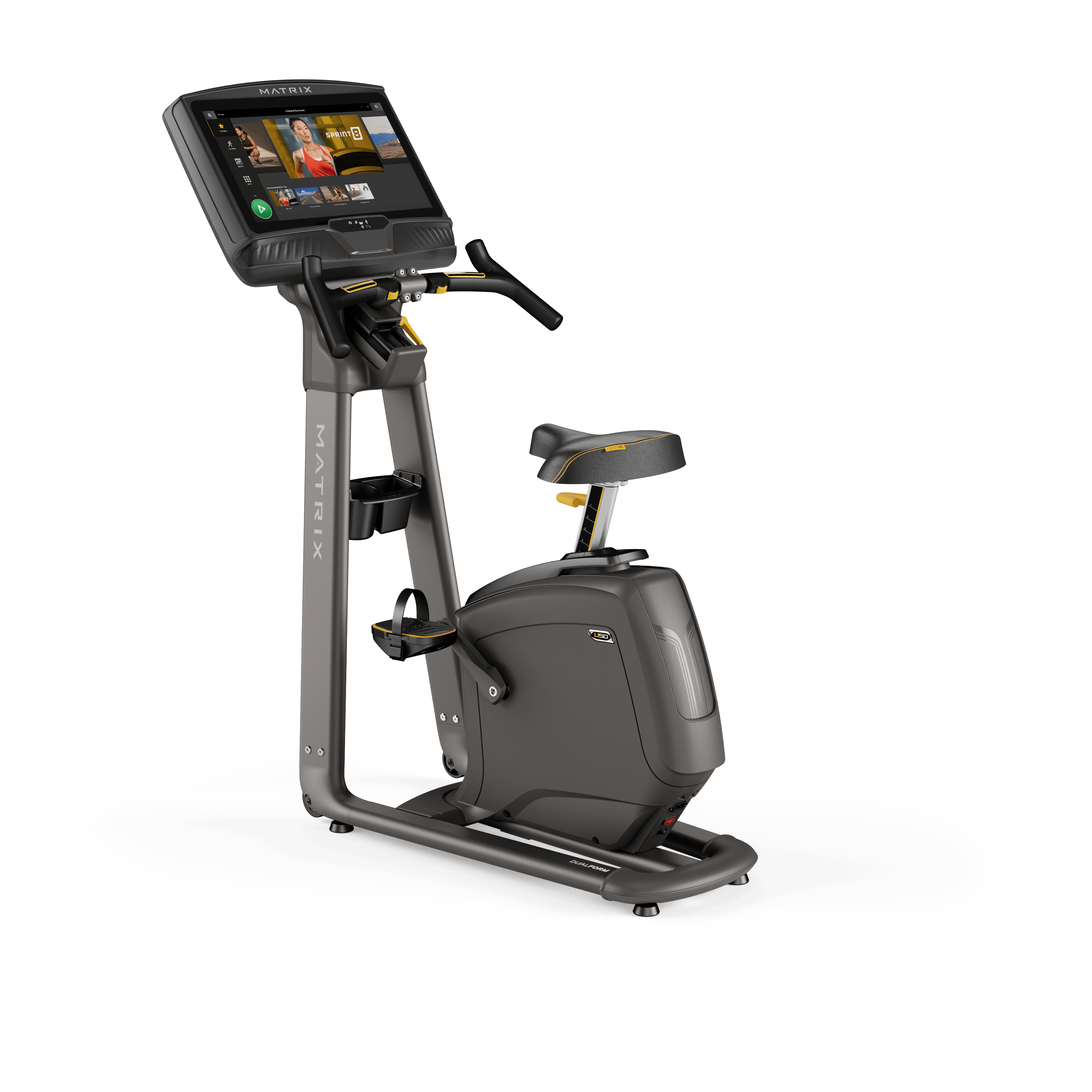

Matrix Retail - U50-02 - CB210 - CB174 - 2020 - 2020-2025

Repair Parts for Matrix Retail U50-02 - CB210 - CB174 - 2020 CB210, CB174

Brand: Matrix Retail

Category: Upright

Type: Stationary Bikes

Model Name: U50-02 - CB210 - CB174 - 2020

Serial Number Prefix: CB210, CB174

Version: 2020-2025

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Power Switch on Off 040695-A 040695-A 0 1 Power Switch on Off Yes Model Compatibility List $41.59 / Each

Power Switch 1000730 040695-A 0 1 Power Switch Yes Model Compatibility List $31.99 / Each

Right Handgrip Hand Sensor 1000733 1000337708 Right Handgrip Hand Sensor Yes Model Compatibility List $19.99 / Each
Out Of Stock 		4,5,6
Power board;DC;;;12.6V/3.3A;HBPB;;;AC100 730138 1000433184 P76 Power board;DC;;;12.6V/3.3A;HBPB;;;AC100 No Model Compatibility List $53.28 / Each

Axle;Wheel;;20#;Black Oxide;CB201;Diam.1 730457 1000346473 B32 Axle;Wheel;;20#;Black Oxide;CB201;Diam.1 No Model Compatibility List $3.88 / Each

SCREW;SH;M6X1.0PX50L-20L;;HS;G10.9;P-T; 730458 004467-00 B41 SCREW;SH;M6X1.0PX50L-20L;;HS;G10.9;P-T; No Model Compatibility List $1.94 / Each

Kettle Rack;Consoel Mast;mid;ABS/PA757;; 730462 1000442928 C03 Kettle Rack;Consoel Mast;mid;ABS/PA757;; No Model Compatibility List $7.78 / Each

Cover;;front;PP;Black 7C;;CB201; 730484 1000332674 Q04 Cover;;front;PP;Black 7C;;CB201; No Model Compatibility List $9.82 / Each

Cover;;Rear-Up;ABS;Black 7C;;CB201; 730489 1000341252 Q21 Cover;;Rear-Up;ABS;Black 7C;;CB201; No Model Compatibility List $6.48 / Each

Cover;;Rear-Down;ABS;Black 7C;;CB201; 730490 1000341254 Q22 Cover;;Rear-Down;ABS;Black 7C;;CB201; No Model Compatibility List $7.00 / Each

Screw;BH;M4X0.7PX15L;CT;PH;;BZN;; 730504 004360-00 Q16 Screw;BH;M4X0.7PX15L;CT;PH;;BZN;; No Model Compatibility List $0.00 / Each
Out Of Stock
Adjustable Plate;Seat Pad;;POM+20%FRP;Bl 730585 1000340851 B37 Adjustable Plate;Seat Pad;;POM+20%FRP;Bl No Model Compatibility List $10.96 / Each

Screw;Wagon;M8x1.25Px20L;BLACK 730587 0000082661 B41 Screw;Wagon;M8x1.25Px20L;BLACK No Model Compatibility List $0.54 / Each

Screw;BH;M4x8L;-;PS;-;BED;-;G12.9; 730588 078382 D29 Screw;BH;M4x8L;-;PS;-;BED;-;G12.9; No Model Compatibility List $1.48 / Each

Screw;BH;M3X0.5PX15L;;PH;;BAN;; 730849 0000086225 P50 Screw;BH;M3X0.5PX15L;;PH;;BAN;; No Model Compatibility List $1.28 / Each

BOLT BH M5X20**USE 004409-00** 731216 004409-Z P15 BOLT BH M5X20**USE 004409-00** No Model Compatibility List $0.00 / Each
Out Of Stock
Transmission set+Tools;;;;;;CB201-1US;SB 731339 1000432807 AR01 Transmission set+Tools;;;;;;CB201-1US;SB No Model Compatibility List $64.98 / Each

Console Power Wire;;;;;22AWG;2100;TKP,H6 732761 1000451113 P38 Console Power Wire;;;;;22AWG;2100;TKP,H6 No Model Compatibility List $29.00 / Each

Seat Tube Set;Semi-Assy;;;;CB205;; 735614 1000380675 AD01 Seat Tube Set;Semi-Assy;;;;CB205;; No Model Compatibility List $257.76 / Each

Arm Rest Set; Handlebar Set; Semi-Assy;;;;CB205;; 735615 1000366893 AG02 Arm Rest Set; Handlebar Set; Semi-Assy;;;;CB205;; No Model Compatibility List $97.48 / Each

Handlebar-Extrawork;Handlebar;;Foam;;CB2 735616 1000366895 AG3 Handlebar-Extrawork;Handlebar;;Foam;;CB2 No Model Compatibility List $432.88 / Each

Generator/Flywheel set 735617 1000341255 AM1 Generator/Flywheel set No Model Compatibility List $729.68 / Each

Console Mast-Extrawork;;left;Screen prin 735618 1000366868 C01 Console Mast-Extrawork;;left;Screen prin No Model Compatibility List $16.84 / Each

Console Mast-Extrawork;;right;Screen pri 735619 1000366870 C02 Console Mast-Extrawork;;right;Screen pri No Model Compatibility List $15.58 / Each

Fixing Plate;Seat Pad2;;;;WZN;CB201;Q235 735620 1000345434 D03 Fixing Plate;Seat Pad2;;;;WZN;CB201;Q235 No Model Compatibility List $18.24 / Each

Seat Pad;;PU,Vesicant;Black;;CB202 735621 1000345657 D04 Seat Pad;;PU,Vesicant;Black;;CB202 No Model Compatibility List $33.78 / Each

Control Board;Quick Key;;HDPD;;;U50i; 735622 1000369162 G13 Control Board;Quick Key;;HDPD;;;U50i; No Model Compatibility List $11.22 / Each

key Cover;Quick Key;;ABS/PA757;137C;;; 735623 1000366904 G14 key Cover;Quick Key;;ABS/PA757;137C;;; No Model Compatibility List $7.00 / Each

Plastic Base;Sensor;;ABS/PA757;;;; 735624 1000366906 G17 Plastic Base;Sensor;;ABS/PA757;;;; No Model Compatibility List $5.18 / Each

Plastic Base;;left down;ABS/PA757;;;; 735625 1000366915 G18 Plastic Base;;left down;ABS/PA757;;;; No Model Compatibility List $1.68 / Each

Plastic Base;;right down;ABS/PA757;;;; 735626 1000366920 G22 Plastic Base;;right down;ABS/PA757;;;; No Model Compatibility List $1.68 / Each

Cushion;Guide Rail;;NR;BL/Black C;;; 735627 1000344508 G31 Cushion;Guide Rail;;NR;BL/Black C;;; No Model Compatibility List $2.58 / Each

PLASTIC LINER;Guide Rail;;;;;; 735628 1000344509 G33 PLASTIC LINER;Guide Rail;;;;;; No Model Compatibility List $5.18 / Each

Connect;;;Black;;22AWG;550mm;;110+XHS-2Y 735629 1000378559 G38 Connect;;;Black;;22AWG;550mm;;110+XHS-2Y No Model Compatibility List $3.88 / Each

Support Base;Arm Rest;;painting;DM334;;C 735630 1000458870 G40 Support Base;Arm Rest;;painting;DM334;;C No Model Compatibility List $20.48 / Each

Handlebar Set;Adjustable;;painting;;;CB2 735631 1000366890 G43 Handlebar Set;Adjustable;;painting;;;CB2 No Model Compatibility List $14.28 / Each

Spring;Compression;Diam.0.4xDiam.5.3x3.5 735632 1000371355 G53 Spring;Compression;Diam.0.4xDiam.5.3x3.5 No Model Compatibility List $1.38 / Each

Screw;Round Head with Flange;Diam.2X6L;S 735633 1000378820 G54 Screw;Round Head with Flange;Diam.2X6L;S No Model Compatibility List $1.38 / Each

Fixing Plate;;;painting;DM334;;CB205; 735634 1000366996 P01 Fixing Plate;;;painting;DM334;;CB205; No Model Compatibility List $5.72 / Each

Power Socket Set;;;;;16AWG;100,300,1000; 735635 1000346708 P03 Power Socket Set;;;;;16AWG;100,300,1000; No Model Compatibility List $14.70 / Each

CTRL Board PWR;;;Black;;16AWG;950mm;250 735636 1000337734 P26 CTRL Board PWR;;;Black;;16AWG;950mm;250 No Model Compatibility List $5.94 / Each

Cover;;left;ABS/PA757;Black 7C;;CB201; 735637 1000332668 Q01 Cover;;left;ABS/PA757;Black 7C;;CB201; No Model Compatibility List $42.88 / Each

Cover;;right;ABS/PA757;Black 7C;;CB201; 735638 1000332671 Q02 Cover;;right;ABS/PA757;Black 7C;;CB201; No Model Compatibility List $42.88 / Each

Cover;;up;ABS/PA757;Black 7C;;CB201; 735639 1000332676 Q05 Cover;;up;ABS/PA757;Black 7C;;CB201; No Model Compatibility List $15.58 / Each

Cover;;Front-Up;ABS/PA757;Black;;CB201; 735640 1000332682 Q06 Cover;;Front-Up;ABS/PA757;Black;;CB201; No Model Compatibility List $24.94 / Each

Cover;;Rear-Up;ABS/PA757;Black;;CB201; 735641 1000344465 Q07 Cover;;Rear-Up;ABS/PA757;Black;;CB201; No Model Compatibility List $5.40 / Each

Model Label;;;;;Left;;CB201 735642 1000345506 Q23 Model Label;;;;;Left;;CB201 No Model Compatibility List $1.42 / Each

Model Label;;;;;Right;;CB201 735643 1000345507 Q24 Model Label;;;;;Right;;CB201 No Model Compatibility List $1.42 / Each

Guide rail set;;;;;;CB210; 735644 1000450702 1 Guide rail set;;;;;;CB210; No Model Compatibility List $0.00 / Each
Out Of Stock
Side Cover Set;;left;;;CB201-1US;; 735645 1000341247 2 Side Cover Set;;left;;;CB201-1US;; No Model Compatibility List $0.00 / Each
Out Of Stock
Side Cover Set;;right;;;CB201-1US;; 735646 1000341248 3 Side Cover Set;;right;;;CB201-1US;; No Model Compatibility List $0.00 / Each
Out Of Stock
Arm Rest Fixed Set;;;painting;;;CB210; 735647 1000454378 AG1 Arm Rest Fixed Set;;;painting;;;CB210; No Model Compatibility List $0.00 / Each
Out Of Stock
Console Base Frame Set;;;painting;;;CB21 735648 1000450704 AG2 Console Base Frame Set;;;painting;;;CB21 No Model Compatibility List $0.00 / Each
Out Of Stock
Slipping Frame;;;;;AL 6061;CB210 735649 1000450715 G10 Slipping Frame;;;;;AL 6061;CB210 No Model Compatibility List $0.00 / Each
Out Of Stock
Support Rod;Guide Rail;;45#;QPQ;CB210;; 735650 1000450716 G24 Support Rod;Guide Rail;;45#;QPQ;CB210;; No Model Compatibility List $0.00 / Each
Out Of Stock
Cover;Guide Rail;front;ABS/PA757;Q520-7- 735651 1000450717 G56 Cover;Guide Rail;front;ABS/PA757;Q520-7- No Model Compatibility List $0.00 / Each
Out Of Stock
Cover;Guide Rail;back;ABS/PA757;Q520-7-3 735652 1000450718 G57 Cover;Guide Rail;back;ABS/PA757;Q520-7-3 No Model Compatibility List $0.00 / Each
Out Of Stock
Fixing Plate;;;painting;DM334;;CB210; 735653 1000454379 P02 Fixing Plate;;;painting;DM334;;CB210; No Model Compatibility List $0.00 / Each
Out Of Stock
Filter Power Wire;;;;;;150L+400L;250x4+J 735654 1000451549 P08 Filter Power Wire;;;;;;150L+400L;250x4+J No Model Compatibility List $0.00 / Each
Out Of Stock
Connect Plate;;;painting;DM334;;CB205; 735655 1000366997 P15 Connect Plate;;;painting;DM334;;CB205; No Model Compatibility List $0.00 / Each
Out Of Stock
Screw;Button Head;M6x1.0Px35L;;Phillip;; 735656 1000459677 Z81 Screw;Button Head;M6x1.0Px35L;;Phillip;; No Model Compatibility List $0.00 / Each
Out Of Stock
Hardware Set;;;;;;CB210; 735657 1000458751 Not Shown Hardware Set;;;;;;CB210; No Model Compatibility List $0.00 / Each
Out Of Stock
Gear Rower Retainer Clip (New) 957398 005330-00 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

Umbrella Cross Tapped Screw 4x12L (New) 986316 004616-00 Umbrella Cross Tapped Screw 4x12L (New) No Model Compatibility List $12.00 / Each
Out Of Stock
