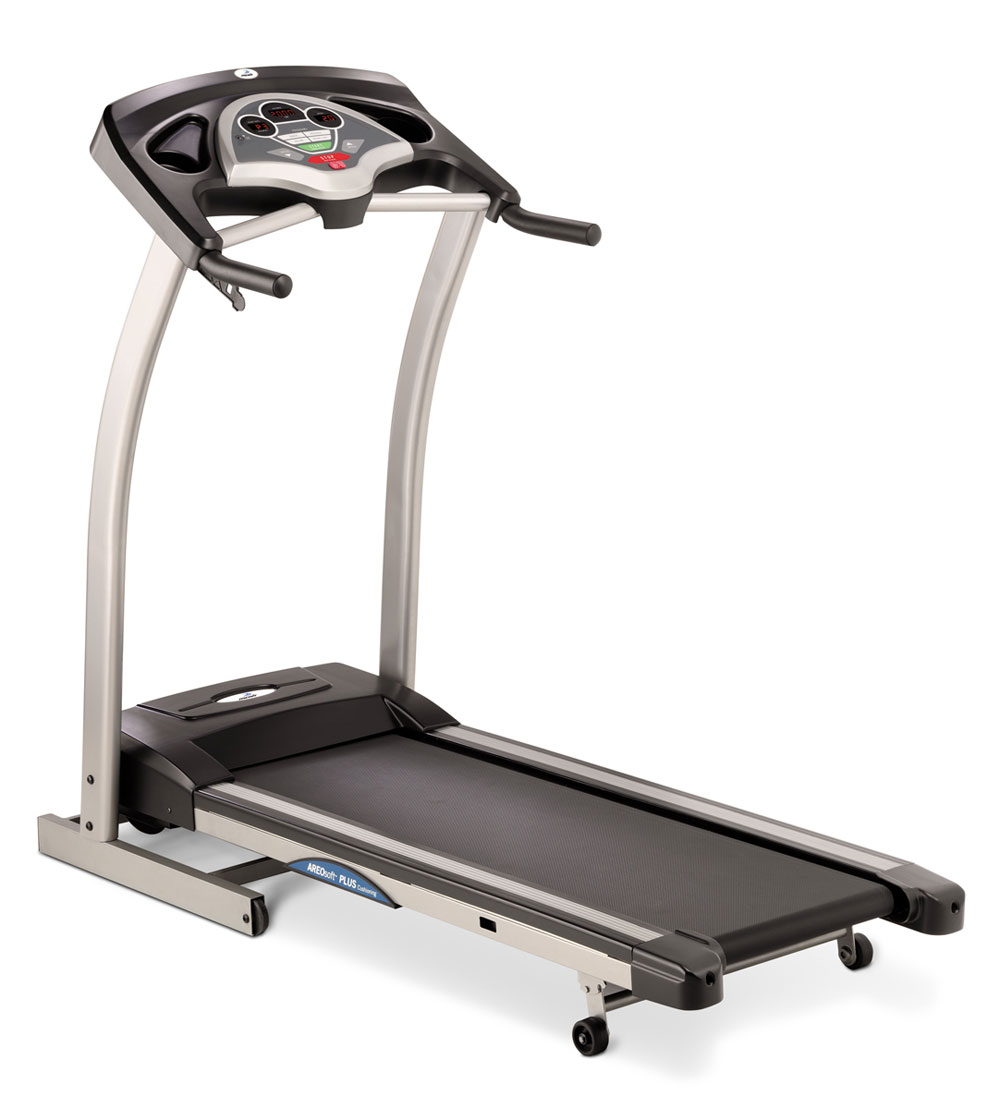

Merit - 710T - 2007-2009

Repair Parts for Merit 710T TM270

Brand: Merit

Category: Folding

Type: Folding Treadmill

Model Name: 710T

Version: 2007-2009

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
H 700004 000006-AC H16 Transport Wheel;Share D 90;BlackTM44 No Model Compatibility List $3.82 / Each

4,5,6,8
700211 000682-A B43 Foam Tape;Double Sided;150x30x3t No Model Compatibility List $1.90 / Each

1
700700 001952-00 N08 Fixing Plate;Reed Switch No Model Compatibility List $1.90 / Each

3,4,5,6
N 700702 001956-C N05 Reed Switch Yes Model Compatibility List $21.27 / Each

4,5,6
700746 002124-B P13 Connecting Cable;Socket/Breaker;60;16AWG Black No Model Compatibility List $3.82 / Each

700773 002248-D P14 Speed Sensor Wire;1000mm(Reed Switch+2.5-2P) Yes Model Compatibility List $18.15 / Each

47
701020 003346-00 P12 Circuit Breaker;12A;125V/250V Yes Model Compatibility List $30.11 / Each

M 701033 003386-A M22 Ferrite Core;T31x16x19-C No Model Compatibility List $13.26 / Each

1
B 701257 004317-B B27 Running Deck No Model Compatibility List $249.13 / Each

3
701291 004357-00 Z18 Screw;Phillip;BH;M4x0.7Px15L; No Model Compatibility List $2.00 / Each

Q 701367 004417-00 Q15 Screw;Phillip;Sink;M5x0.8Px10L; No Model Compatibility List $2.00 / Each

2
M 701434 004481-Z M08 Screw;Hex Socket;Round;M8x1.25Px45L No Model Compatibility List $2.00 / Each

2
R 701445 004488-00 R06 Screw;Hex Socket;Round;M8x1.25Px55L;BED; Yes Model Compatibility List $2.00 / Each

2
R 701476 004523-00 R05 Screw;Hex Socket;Round;M8x1.25Px40L;Adhe No Model Compatibility List $2.00 / Each

701530 004562-00 B24 Bolt;Deck;M8x1.25Px35L Yes Model Compatibility List $5.85 / Each

2
N 701572 004606-00 N17 Screw;Phillip;BH;Tapped;2x4L No Model Compatibility List $1.85 / Each

2
701577 004612-00 P19 Screw;Phillip;BH;Tapped;3x8L No Model Compatibility List $2.00 / Each

701581 004614-AB N04 Screw;Phillip;Umbrella;Tapped;3x10L;Black No Model Compatibility List $2.00 / Each

2,4,5,6
701591 004620-00 Q16 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

701605 004627-00 B36 Screw;Phillip;BH;Tapped;5x12L No Model Compatibility List $2.00 / Each

701613 004632-00 Q19 Screw;Phillip;BH;Tapped;4x16L No Model Compatibility List $2.00 / Each

701699 004724-00 Z06 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

701742 004764-00 Z10 Screw;Hex Socket;BH;M8x1.25Px25L;Adhere No Model Compatibility List $2.00 / Each

701866 004889-00 P16 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $2.00 / Each

701897 004926-00 M14 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

K 701912 004941-00 K15 Nut;Nylon;M10x1.5P No Model Compatibility List $2.00 / Each

H 701913 004942-00 H09 Nut;Nylon;M10x1.5P;Black Zinc No Model Compatibility List $2.00 / Each

701964 005005-00 Z12 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

M 701982 005017-AC M13 Washer;Spring;10.2x18.4x2.5T;Black No Model Compatibility List $2.00 / Each

2,4,5,6
M 702032 005064-A M09 Washer;Flat;8.2x20x3.0T No Model Compatibility List $1.85 / Each

2
M 702075 005108-00 M12 Washer;Flat;10.5x18.0x2.0T No Model Compatibility List $2.00 / Each

2
702092 005125-00 H10 Washer;Flat;10.2x20x1.0T No Model Compatibility List $2.00 / Each

702135 005163-00 Z11 Washer;Arc;8.4x17x1.0T No Model Compatibility List $2.57 / Each

2
702160 005196-00 K19 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.59 / Each

K 702257 005393-00 KIT Wrench;T-Type;6mm No Model Compatibility List $10.24 / Each

K 702264 005412-00 KIT Wrench;L-Type;5mm;With Screwdriver No Model Compatibility List $2.00 / Each

H 702292 005493-A H07 Spring;Ext;60MN;Zinc No Model Compatibility List $2.00 / Each

2
702450 007490-C P18 Fix Plate;Speed Sensor No Model Compatibility List $1.90 / Each

P 703925 019455-B P06 Cable;Socket to MCB;330L;16AWG;Black No Model Compatibility List $1.90 / Each

4,5,6
M 704010 020100-AB M10 Screw;Hex Socket;Round;5/16--18UNCx14L;A No Model Compatibility List $2.00 / Each

K 704135 020302-A K14 Screw;Hex Socket;BH;M10x1.5Px45L(Tooth20 No Model Compatibility List $3.69 / Each

2
Z 704175 020425-00 Z07 Washer;Flat;8.4x15.5x1.6T No Model Compatibility List $2.00 / Each

H 704290 022260-C H08 Screw;Special;45#;Adhere; No Model Compatibility List $1.85 / Each

2
P 705211 039124-B P02 Power Cord; 16AWG 2M Yes Model Compatibility List $57.49 / Each

4,5,6
Q 705251 039392-BA Q06 Insert;Side Rail No Model Compatibility List $8.87 / Each

9
Q 705256 039398-AA Q12 Accent Piece; No Model Compatibility List $9.57 / Each

4,5,6
Q 705257 039399-AA Q09 Access Panel;Console Cable No Model Compatibility List $9.57 / Each

7,4,5,6
K 705259 039400-BA K13 Transport Wheel;Nylon Yes Model Compatibility List $9.57 / Each

Q 705260 039403-BA Q08 Cap;Base tube;;;BL;TM196;TM196-Q08C No Model Compatibility List $1.77 / Each

9,3
P 705295 040647-A P03 Console Cable; 1800;PIN+2.5-9PIN No Model Compatibility List $38.32 / Each

7,4,5,6,12,13,14
P 705308 040695-A P01 Power Switch Yes Model Compatibility List $28.73 / Each

705313 040816-A N07 Screw;Phillip;BH;Tapped;3x8L; No Model Compatibility List $2.00 / Each

M 705329 048036-A M23 Screw;Phillip;BH;Tapped;4x12L;Color Zin No Model Compatibility List $2.00 / Each

K 705368 048971-AA K16 Foot Pad;/ D/C, NO REPL: Part will show as orderable until stock is depleted. Yes Model Compatibility List $1.90 / Each

9,3,12,13,14
M 705412 049105-AA M20 Elastomer; M8X1.25PX10L No Model Compatibility List $1.90 / Each

705480 049279-C H06 Screw;Special;M8X1.25PX9L-D10X9.5L;;HE;45#;BOX; No Model Compatibility List $4.00 / Each

2
B 705515 049800-BX B33 Belt Guide No Model Compatibility List $1.90 / Each

15
A 705566 051345-A AN3 Safety Key Set Yes Model Compatibility List $37.91 / Each

1
A 705589 051801-AC AM1 Bracket;Drive Motor No Model Compatibility List $137.98 / Each

2,3,4,5,6,10
V 705714 055282-A V15 Decal;Accent Piece No Model Compatibility List $3.82 / Each

7,3,4,5,6
R 705754 056037-A R03 Running Belt;407x2415x1.3T No Model Compatibility List $249.13 / Each

15
Q 705791 056261-AA Q01 Motor Cover;Upper No Model Compatibility List $56.71 / Each

9,10
M 705818 056307-AA M17 Foam Grip;Handlebar No Model Compatibility List $8.87 / Each

11
Q 705821 056315-AA Q10 Water Bottle Holder No Model Compatibility List $3.54 / Each

1
N 705841 056344-AA N01 Console Shell No Model Compatibility List $71.06 / Each

7
Q 705863 056389-BA Q04 End Cap;Rear Roller;Left No Model Compatibility List $11.73 / Each

8,9
Q 705869 056396-BA Q05 End Cap;Rear Roller;Right No Model Compatibility List $11.73 / Each

8,9
705882 056417-AA Q03 Side Rail No Model Compatibility List $30.76 / Each

9
K 705958 057013-A K18 Swivel Axle No Model Compatibility List $3.82 / Each

8
A 705965 057066-B AR1 Front Roller Set No Model Compatibility List $191.62 / Each

A 705966 057067-B AR2 Rear Roller Set No Model Compatibility List $191.62 / Each

Q 706200 060221-00 Q20 Screw;Phillip;BH;M5x0.8Px20L;Gap; No Model Compatibility List $2.00 / Each

2
K 706249 060583-A KIT Hardware Pack No Model Compatibility List $29.77 / Each

4,5,6
V 706261 060632-AX V06 Decal;Motor Cover No Model Compatibility List $18.85 / Each

7,9,3,10
V 706263 060641-AX V10 Decal; No Model Compatibility List $10.87 / Each

7,3
V 706264 060642-AX V12 Decal, POP #1; No Model Compatibility List $10.87 / Each

7,3,12,13,14
V 706265 060645-AX V05 Decal; No Model Compatibility List $10.87 / Each

7,3
706266 060666-AA AC1 Support Tube, L; No Model Compatibility List $49.61 / Each

3
Q 706314 061172-A Q07 Lock Latch;Deck No Model Compatibility List $11.18 / Each

3
706361 061371-A KIT Wrench;Hex;L-Type;M5x110L; No Model Compatibility List $9.28 / Each

2
M 706601 063746-Z M03 Drive Motor Set JM15-001 ;1.25HP/90V Yes Model Compatibility List $383.27 / Each

10
A 706719 064922-Z AN1 Console Frame Set; No Model Compatibility List $95.29 / Each

7,3
V 706733 065085-AX V17 Decal;Console;Logo No Model Compatibility List $3.82 / Each

7,3
P 706785 065535-A P15 Screw;Phillip;BH;M5x0.8Px60L;Ni;Gap; No Model Compatibility List $1.85 / Each

2
R 708921 1000107268 R04 Drive Belt;Poly-V;170-J5 No Model Compatibility List $57.49 / Each

23
Motor Control Board;(1.25-1.5)HP; H101;110V;no Elevation 728910 098847 M06 Motor Control Board;(1.25-1.5)HP; H101;110V;no Elevation Yes Model Compatibility List $383.27 / Each

N 729405 ZMS2000091 N63 Thumb Pulse; No Model Compatibility List $22.46 / Each

12,13,14
Magnetic Safety Key (Used) 1017639 013871-A # 1 Magnetic Safety Key (Used) Yes Model Compatibility List $38.99 / Each

1
P 1020937 002124-B P13 1 Power Entry Socket Input Module No Model Compatibility List $25.99 / Each

Magnetic Safety Key Lanyard (Used) 013699 013871-A 0 1 Magnetic Safety Key Lanyard (Used) No Model Compatibility List $35.09 / Each
Out Of Stock 		1
P 040695-A 040695-A P01 1 Power Switch on Off Yes Model Compatibility List $41.59 / Each

P 1000730 040695-A P01 1 Power Switch Yes Model Compatibility List $31.99 / Each

P 1002652 003346-00 P12 Power 12a Circuit Breaker Yes Model Compatibility List $8.99 / Each

P 1001433 002248-D P14 RPM Speed Sensor Reed Switch Yes Model Compatibility List $9.99 / Each

47
K 1035628 039400-BA K13 1 Transport Wheel (Used) Yes Model Compatibility List $5.00 / Each

DC Motor 1036323 039459-00 DC Motor No Model Compatibility List $193.99 / Each

12AMP Power Circuit Breaker QMB-123-11C3N-3BA (New) 1009513 pwr-cri-13 12AMP Power Circuit Breaker QMB-123-11C3N-3BA (New) Yes Model Compatibility List $32.99 / Each

P 1009798 003346-00 P12 Power Circuit Breaker 12AMP (New) Yes Model Compatibility List $32.99 / Each

Q 911968 004620-00 Q16 Self Tapping Screw 4X12L (New) No Model Compatibility List $12.99 / Each

M 976932 004926-00 M14 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

H 917260 004942-00 H09 Black Nylon Nut (New) No Model Compatibility List $12.99 / Each
