Brand: Merit
Category: Upright
Type: Stationary Bikes

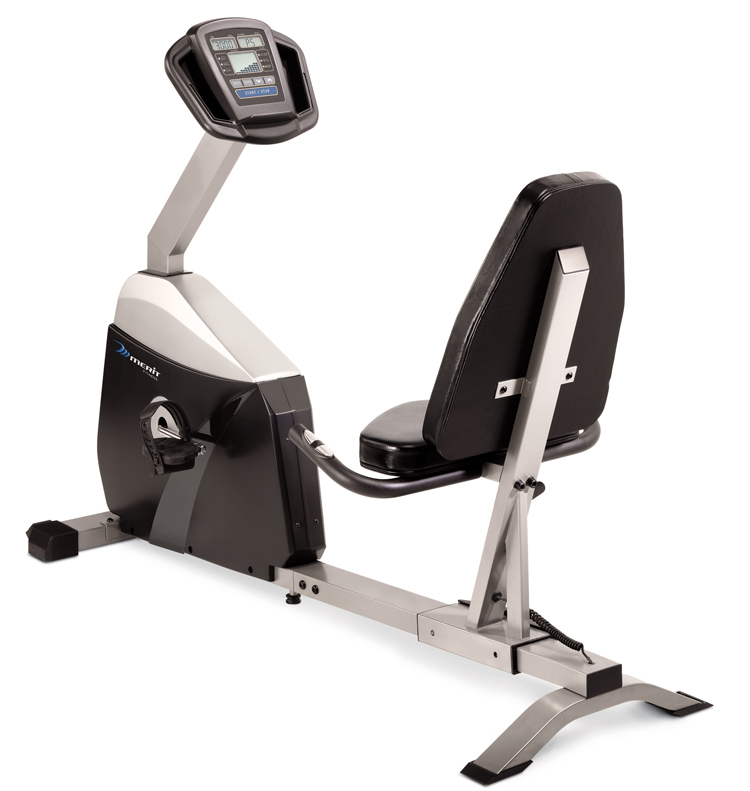

Model Name: 720B
Version: 2007-2009
"Used Only" - contact us if interested in used or refurbished parts. Send us mail:
XImage | Catalog # | MPN | Part List Key | Quantity On Model | Part Description | Notes | Available Used | Model Compatibility List | New price |
---|---|---|---|---|---|---|---|---|---|
700132 | 000485-00 | B20 | Leveler;Rubber;W3/8-16UNC | Yes | Model Compatibility List | $9.09 / Each |
|||
![]() |
700135 | 000491-B | B19 | Wing Nut;Leveler;W3/8-16UNC;BED BL SPC | No | Model Compatibility List | $2.47 / Each |
||
![]() |
700252 | 000782-B | F04 | Pad;Stopper | No | Model Compatibility List | $1.79 / Each |
||
![]() |
700298 | 000891-A | R02 | Drive Belt;Poly-V;390-J5 | Yes | Model Compatibility List | $57.49 / Each |
||
![]() |
700299 | 000893-B | G05 | End Cap;Handlebar | No | Model Compatibility List | $1.90 / Each |
||
![]() |
700770 | 002231-B | P03 | Speed Sensor Wire;2 Prong;280mm | Yes | Model Compatibility List | $9.57 / Each |
||
![]() |
701042 | 003413-00 | T10 | Magnet;Crank Wheel;15x7t | No | Model Compatibility List | $4.00 / Each |
||
701050 | 003478-A2 | P05 | Power Adapter;120V 7.5/1.0 A | Yes | Model Compatibility List | $80.29 / Each |
|||
![]() |
701112 | 003879-00 | T11 | Ball Bearing Set;Crank Wheel | No | Model Compatibility List | $25.00 / Each |
||
![]() |
701118 | 003899-C | T02 | PULLEY;POLY-V;;;NYLON+G FIBER;J5Diam.260 | No | Model Compatibility List | $38.32 / Each |
||
![]() |
701158 | 004075-A3 | U04 | Ball Bearing; 6202ZZ(BR6202ZZ) | No | Model Compatibility List | $9.57 / Each |
||
![]() |
701281 | 004350-00 | F05 | Screw;Phillip;BH;M3x0.5Px6L | No | Model Compatibility List | $2.00 / Each |
||
![]() |
701294 | 004359-00 | S03 | Screw;Phillip;BH;M4x0.7Px10L;Gap; | No | Model Compatibility List | $1.79 / Each |
||
701305 | 004366-AB | D24 | Screw;Phillip;BH;M5x0.8Px8L; | No | Model Compatibility List | $2.00 / Each |
|||
701308 | 004369-00 | N08 | Screw;Phillip;BH;M5x0.8Px15L;BED; | No | Model Compatibility List | $2.00 / Each |
|||
701579 | 004613-00 | P06 | Screw;Phillip;BH;Tapped;3x12L;Gap;;Zn-B | No | Model Compatibility List | $2.00 / Each |
|||
701586 | 004617-00 | Q08 | Screw;Console Case;Oval Tapping;4x15L | No | Model Compatibility List | $2.00 / Each |
|||
701605 | 004627-00 | P04 | Screw;Phillip;BH;Tapped;5x12L | No | Model Compatibility List | $2.00 / Each |
|||
701699 | 004724-00 | Z04 | Bolt;M8x1.25Px15L | Yes | Model Compatibility List | $2.00 / Each |
|||
701717 | 004737-00 | Z11 | Screw;BH;M8x1.25Px55L-20L | No | Model Compatibility List | $2.00 / Each |
|||
701731 | 004757-00 | Z15 | Screw;Oval;Hex Socket;M8x1.25Px12L | No | Model Compatibility List | $2.00 / Each |
|||
![]() |
701779 | 004795-00 | Z08 | Screw;Hex Socket;BH;M10x1.5Px20L;Adhere | No | Model Compatibility List | $2.00 / Each |
||
701869 | 004891-00 | R03 | Nut;Hex;3/8-26UNCX9H | No | Model Compatibility List | $2.00 / Each |
|||
701897 | 004926-00 | Z14 | Nut;Nylon;M8x1.25P | No | Model Compatibility List | $2.00 / Each |
|||
701939 | 004975-00 | L07 | Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) | No | Model Compatibility List | $1.90 / Each |
|||
701964 | 005005-00 | Z13 | Washer;Spring;Lock;8.2x15.4x2.0t | No | Model Compatibility List | $1.59 / Each |
|||
![]() |
701982 | 005017-AC | Z10 | Washer;Spring;10.2x18.4x2.5T;Black | No | Model Compatibility List | $2.00 / Each |
||
![]() |
702011 | 005047-00 | Z16 | Washer;Flat;8.2x20x1.8T;Black Zinc | No | Model Compatibility List | $2.00 / Each |
||
702025 | 005058-00 | D20 | Washer;Flat;12x26x2.0T | No | Model Compatibility List | $2.00 / Each |
|||
702076 | 005109-00 | Z02 | Washer;Flat;8.5x25x1.5T;Black Zinc | No | Model Compatibility List | $1.59 / Each |
|||
702217 | 005330-00 | Q06 | Tinnamen Nut | Yes | Model Compatibility List | $1.59 / Each |
|||
![]() |
702227 | 005352-00 | U06 | C-Clip;Internal;R-35 | No | Model Compatibility List | $2.00 / Each |
||
![]() |
702234 | 005359-00 | D21 | C-Clip;External;S-12 | No | Model Compatibility List | $2.00 / Each |
||
![]() |
702236 | 005361-00 | U05 | C-Clip;External;S-15 | No | Model Compatibility List | $2.00 / Each |
||
![]() |
702259 | 005395-00 | KIT | Wrench;T-Type;5mm | No | Model Compatibility List | $10.01 / Each |
||
![]() |
702264 | 005412-00 | KIT | Wrench;L-Type;5mm;With Screwdriver | No | Model Compatibility List | $2.00 / Each |
||
702275 | 005438-00 | U08 | Spring;Foot Lock Latch;16x2.0x50Lx12N | Yes | Model Compatibility List | $2.00 / Each |
|||
![]() |
702483 | 007964-00 | Q07 | Connecting Plate;Side Cover | Yes | Model Compatibility List | $1.90 / Each |
||
![]() |
702747 | 009486-00 | D18 | Bushing;Seat Slide Bar | No | Model Compatibility List | $1.90 / Each |
||
![]() |
702748 | 009491-E | D19 | Cam | No | Model Compatibility List | $9.75 / Each |
||
![]() |
702857 | 012847-00 | S01 | Resistance Motor | Yes | Model Compatibility List | $206.67 / Each |
||
![]() |
703447 | 014708-A | T03 T04 T05 T06 | Pedal Set;With Strap | No | Model Compatibility List | $31.85 / Each |
||
703940 | 019766-A | N15 | Pulse Grip Set | No | Model Compatibility List | $28.21 / Each |
|||
![]() |
703969 | 020024-00 | U10 | Screw;Phillip;BH;M6x1.0Px12L;BED;Adhere; | No | Model Compatibility List | $2.00 / Each |
||
![]() |
704091 | 020214-A | N16 | Screw;Phillip;Round;3x18L | No | Model Compatibility List | $1.85 / Each |
||
![]() |
704114 | 020266-00 | Z01 | Screw;Hex Socket;BH;M8x1.25Px45L | No | Model Compatibility List | $2.00 / Each |
||
704133 | 020301-A | Z05 | Screw;Hex Socket;M10x1.5Px65L | No | Model Compatibility List | $1.85 / Each |
|||
![]() |
704180 | 020438-00 | U09 | Washer;Flat;6.2x19x2.0T | No | Model Compatibility List | $1.79 / Each |
||
![]() |
704192 | 020465-A | Z09 | Washer;Flat;10.2x25x2.0T | No | Model Compatibility List | $2.00 / Each |
||
704226 | 020656-X | KIT | Wrench;Open-Type;13#17# | No | Model Compatibility List | $3.69 / Each |
|||
![]() |
704298 | 022352-B | Q09 | Grommet;Console Mast Boot | No | Model Compatibility List | $1.90 / Each |
||
![]() |
705687 | 055155-B | D17 | Locking Pad | No | Model Compatibility List | $3.82 / Each |
||
705724 | 055352-C | D16 | BLOCK FRICTION SIDE | No | Model Compatibility List | $2.42 / Each |
|||
![]() |
705810 | 056295-AA | Q05 | Console Mast Boot | No | Model Compatibility List | $3.82 / Each |
||
706023 | 058192-ABX | Q04 | Cover;Crank Arm;Left/Right | No | Model Compatibility List | $8.87 / Each |
|||
706025 | 058193-ABX | Q03 | Top Main Cover | No | Model Compatibility List | $59.10 / Each |
|||
706097 | 059070-AA | L03 | End Cap, Rear Stabilizer, Left; | No | Model Compatibility List | $3.54 / Each |
|||
706098 | 059071-AA | L05 | End Cap, Front Stabilizer; | No | Model Compatibility List | $9.57 / Each |
|||
706099 | 059072-AA | L04 | End Cap, Rear Stabilizer, Right; | No | Model Compatibility List | $3.54 / Each |
|||
706100 | 059073-AA | D11 | End Cap, Seat and Handlebar Frame; | No | Model Compatibility List | $3.54 / Each |
|||
706101 | 059074-A | D09 | Plastic Cap (Bolt Cover); | No | Model Compatibility List | $1.77 / Each |
|||
706102 | 059078-AA | F03 | End Cap;Rear Frame | No | Model Compatibility List | $8.87 / Each |
|||
706103 | 059079-BA | D10 | Sleeve, Base Frame; | No | Model Compatibility List | $3.54 / Each |
|||
706104 | 059082-B | D12 | Cover for Frame/Locking Set; | No | Model Compatibility List | $8.87 / Each |
|||
706105 | 059083-AA | D13 | Seat Bottom; | No | Model Compatibility List | $59.10 / Each |
|||
706106 | 059084-AA | D14 | Seat Back; | No | Model Compatibility List | $32.89 / Each |
|||
706107 | 059089-A | P02 | Console Cable; | No | Model Compatibility List | $57.49 / Each |
|||
706108 | 059090-C | P17 | Pulse Wire, Mast; | No | Model Compatibility List | $8.87 / Each |
|||
706109 | 059091-B | P18 | Pulse Wire, Base Frame; | No | Model Compatibility List | $14.17 / Each |
|||
706110 | 059092-A | P19 | Coiled Pulse Cable - Base to Seat Frame; | No | Model Compatibility List | $14.69 / Each |
|||
706111 | 059093-B | P20 | Pulse Wire, Seat Frame; | No | Model Compatibility List | $13.31 / Each |
|||
![]() |
706113 | 059102-BX | R01 | Drive Axle Set(w/ECB) | No | Model Compatibility List | $191.62 / Each |
||
![]() |
706116 | 059105-A | S02 | Tension Cable | No | Model Compatibility List | $9.41 / Each |
||
![]() |
706120 | 059153-B | P01 | Bracket;Speed Sensor | No | Model Compatibility List | $1.77 / Each |
||
706121 | 059168-B | D08 | Handle for Seat Adjustment; | No | Model Compatibility List | $21.94 / Each |
|||
706123 | 059277-A | KIT | Hardware Pack | No | Model Compatibility List | $22.98 / Each |
|||
706126 | 059289-AB | AF1 | Rear Base Frame; | No | Model Compatibility List | $190.48 / Each |
|||
706128 | 059291-AB | L02 | Rear Stabilizer; | No | Model Compatibility List | $107.43 / Each |
|||
![]() |
706309 | 061154-BAX | Q01 | Side Cover;Left | No | Model Compatibility List | $56.97 / Each |
||
![]() |
706310 | 061155-BAX | Q02 | Side Cover;Right | No | Model Compatibility List | $56.97 / Each |
||
706495 | 062772-AA | G07 | Foam grip- Handle Bar; | No | Model Compatibility List | $3.54 / Each |
|||
706561 | 063516-AA | AC1 | Console Mast Set; | No | Model Compatibility List | $178.54 / Each |
|||
706747 | 065140-Z | T01 | Pedal Axle and Crank Assembly; | No | Model Compatibility List | $75.58 / Each |
|||
706748 | 065141-Z | AD1 | Slide Seat Frame Set; | No | Model Compatibility List | $223.47 / Each |
|||
706749 | 065142-Z | AU1 | Tension Wheel Set; | No | Model Compatibility List | $23.63 / Each |
|||
706825 | 065949-Z | AL1 | Front Stabilizer Set; | No | Model Compatibility List | $83.90 / Each |
|||
706826 | 065950-Z | AG1 | Hand Grip Set, with Grip Pulse; | No | Model Compatibility List | $120.95 / Each |
|||
![]() |
725538 | 072810 | T02 | Pedal and Strap Set | No | Model Compatibility List | $57.49 / Each |
||
![]() |
1004184 | 003478-A2 | P05 | AC Adapter Power Supply Cord | Yes | Model Compatibility List | $38.99 / Each |
||
![]() |
1003402 | 012847-00 | S01 | Resistance Servo Motor | Yes | Model Compatibility List | $56.99 / Each |
||
![]() |
976932 | 004926-00 | Z14 | Nylon Lock Nut M8x1.25P (New) | No | Model Compatibility List | $12.99 / Each |
||
![]() |
957398 | 005330-00 | Q06 | Gear Rower Retainer Clip (New) | Yes | Model Compatibility List | $11.99 / Each |
||
|
