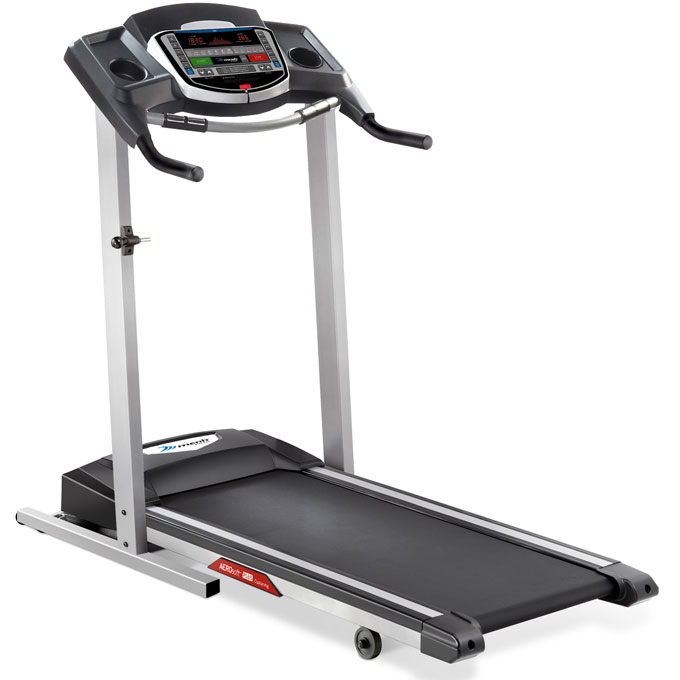

Merit - 725T - 2009

Repair Parts for Merit 725T TM611

Brand: Merit

Category: Folding

Type: Folding Treadmill

Model Name: 725T

Version: 2009

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Catalog #
MPN
Part List Key
Quantity On Model
Part Description
Notes
Available Used
Model Compatibility List
New price
Magnetic Safety Key Lanyard (Used) 013699 013871-A 0 1 Magnetic Safety Key Lanyard (Used) No Model Compatibility List $16.19 / Each

1
DC Motor 1036323 039459-00 DC Motor No Model Compatibility List $193.99 / Each

12AMP Power Circuit Breaker QMB-123-11C3N-3BA (New) 1009513 pwr-cri-13 12AMP Power Circuit Breaker QMB-123-11C3N-3BA (New) Yes Model Compatibility List $32.99 / Each

Screw w/Arc & Spring Washer 1009021 004738-00 Screw w/Arc & Spring Washer Yes Model Compatibility List $10.79 / Each

Nut Locking Nylon 3/8 912107 1000465333 Nut Locking Nylon 3/8 No Model Compatibility List $11.99 / Each

Magnetic Safety Key (Used) 1017639 013871-A # 1 Magnetic Safety Key (Used) Yes Model Compatibility List $38.99 / Each

1
707421 1000092622 AC2 Console Support Tube Set;Right;Painting; No Model Compatibility List $245.41 / Each

7,3
707422 1000092623 AH1 Elevation Frame Set;Painting;HORIZON; No Model Compatibility List $116.90 / Each

3,10
707423 1000092625 AK2 Bottom Base Welding Set;Left;Painting; No Model Compatibility List $50.26 / Each

3
707424 1000092626 AK3 Bottom Base Welding Set;Right;Painting; No Model Compatibility List $50.26 / Each

3
707144 1000090487 AM1 Painting;Motor Support Frame;;;HORIZON S No Model Compatibility List $50.67 / Each

3,10
707426 1000092628 AN2 Frame, Console No Model Compatibility List $216.03 / Each

7,3
A 705566 051345-A AN3 Safety Key Set Yes Model Compatibility List $25.00 / Each

1
A 705241 039296-A AR1 Front Roller Set Yes Model Compatibility List $191.62 / Each

8
A 705242 039346-A AR2 Rear Roller Set Yes Model Compatibility List $191.62 / Each

8
Hardware Pack; TM289-AZ1A 725335 070052 AZ1 Hardware Pack; TM289-AZ1A No Model Compatibility List $28.91 / Each

B 705514 049800-B B09 Belt Guide Yes Model Compatibility List $1.90 / Each

15
B 701544 004571-00 B21 Screw;Hex Socket;Sink;M8x1.25Px28L;Adher No Model Compatibility List $2.00 / Each

B 911951 004571-00 B21 Deck screw M8X1.25PX28L (New) No Model Compatibility List $13.99 / Each

B 705259 039400-BA B22 Transport Wheel;Nylon Yes Model Compatibility List $9.57 / Each

B 1035628 039400-BA B22 1 Transport Wheel (Used) Yes Model Compatibility List $5.00 / Each

701605 004627-00 B25 Screw;Phillip;BH;Tapped;5x12L No Model Compatibility List $2.00 / Each

B 705243 039351-B B27 Running Deck;607x1060x15T No Model Compatibility List $249.13 / Each

3
701577 004612-00 B28 Screw;Phillip;BH;Tapped;3x8L No Model Compatibility List $2.00 / Each

B 701919 004950-A B29 Nut;Nylon;M10x1.5P;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
702450 007490-C B32 Fix Plate;Speed Sensor No Model Compatibility List $1.90 / Each

C 705999 058048-A C05 Lock Latch;Deck Yes Model Compatibility List $19.76 / Each
Out Of Stock 		3
705480 049279-C H06 Screw;Special;M8X1.25PX9L-D10X9.5L;;HE;45#;BOX; No Model Compatibility List $4.00 / Each

2
H 706178 059929-B H09 Screw;Special;M8X1.25PX9L-D10X11.2L;;HE;45#;BOX No Model Compatibility List $2.00 / Each

Washer;Flat;Teflon;10.5x25.0x2.0t; 725944 078520 H10 Washer;Flat;Teflon;10.5x25.0x2.0t; No Model Compatibility List $4.00 / Each

K 705382 049024-BA K12 Flat;;;50C;TM196-K12B Yes Model Compatibility List $6.42 / Each

K 705779 056233-AA K13 Mobile Wheel;Base Frame Yes Model Compatibility List $9.57 / Each

8,3
K 701713 004730-00 K14 Screw;Oval Hex Socket;M8X1.25PX50L Yes Model Compatibility List $2.00 / Each

K 705813 056299-BA K16 Leveler;Foot Pad;;Gray;NON-ROHS;TM234-K16C No Model Compatibility List $1.90 / Each

9,3,12,13,14
707425 1000092627 KIT Console Set No Model Compatibility List $498.60 / Each

7
M 706601 063746-Z M03 Drive Motor Set JM15-001 ;1.25HP/90V Yes Model Compatibility List $383.27 / Each

10
M 705273 039679-AA M04 Motor Control Board;1.25/1.50HP No Model Compatibility List $383.27 / Each
Out Of Stock 		1
M 705262 039441-00 M07 Elevation Motor Set;110V/58MM No Model Compatibility List $249.13 / Each

10
701434 004481-Z M08 Screw;Hex Socket;Round;M8x1.25Px45L No Model Compatibility List $2.00 / Each

2
M 704010 020100-AB M11 Screw;Hex Socket;Round;5/16--18UNCx14L;A No Model Compatibility List $2.00 / Each

M 702075 005108-00 M12 Washer;Flat;10.5x18.0x2.0T No Model Compatibility List $2.00 / Each

2
M 701982 005017-AC M13 Washer;Spring;10.2x18.4x2.5T;Black No Model Compatibility List $2.00 / Each

2,4,5,6
701897 004926-00 M14 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

M 976932 004926-00 M14 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

M 705469 049262-00 M15 Screw;Hex;3/8-16UNCX55L-14L;;HE;;;;P-T No Model Compatibility List $4.00 / Each

M 701562 004595-00 M16 Screw;Hex;3/8-16UNC-42L/Tooth14L; No Model Compatibility List $2.00 / Each

2
701908 004934-00 M18 Nut;Nylon;3/8 No Model Compatibility List $1.59 / Each

M 705412 049105-AA M20 Elastomer; M8X1.25PX10L No Model Compatibility List $1.90 / Each

M 701033 003386-A M22 Ferrite Core;T31x16x19-C No Model Compatibility List $13.26 / Each

1
M 705329 048036-A M23 Screw;Phillip;BH;Tapped;4x12L;Color Zin No Model Compatibility List $2.00 / Each

M 702032 005064-A M26 Washer;Flat;8.2x20x3.0T No Model Compatibility List $1.85 / Each

2
707242 1000091554 N01 Console Base;Black;TM289 No Model Compatibility List $66.01 / Each

7,3,4,5,6
Faceplate; 725945 078522 N02 Faceplate; No Model Compatibility List $13.91 / Each

N 705257 039399-AA N03 Access Panel;Console Cable Yes Model Compatibility List $9.57 / Each

7,4,5,6
701581 004614-AB N04 Screw;Phillip;Umbrella;Tapped;3x10L;Black No Model Compatibility List $2.00 / Each

2,4,5,6
N 700702 001956-C N05 Reed Switch Yes Model Compatibility List $21.27 / Each

4,5,6
701590 004619-AB N07 Screw;Phillip;BH;Oval Tapped;4x8L No Model Compatibility List $2.00 / Each

N 700323 000960-AA N13 End Cap;Upper Vertical Handlebar Yes Model Compatibility List $3.89 / Each

9,11
Foam;Handle Bar 725948 078530 N16 Foam;Handle Bar No Model Compatibility List $3.82 / Each

N 701572 004606-00 N20 Screw;Phillip;BH;Tapped;2x4L No Model Compatibility List $1.85 / Each

2
700700 001952-00 N29 Fixing Plate;Reed Switch No Model Compatibility List $1.90 / Each

3,4,5,6
N 706546 063261-AA N50 Fix Implemen;HW-8Aa No Model Compatibility List $1.77 / Each

1
UCB;725T;H105S701;noRoHS 728738 096362 N60 UCB;725T;H105S701;noRoHS Yes Model Compatibility List $311.53 / Each

728967 099990 N61 Overlay;Operator;TM611-1US No Model Compatibility List $35.46 / Each

N 705285 040613-B N63 Ground Wire;250 No Model Compatibility List $1.90 / Each

4,5,6
705181 039042-A N64 Pulse Sensor Set Yes Model Compatibility List $18.28 / Each

12,13,14
P 705308 040695-A P01 Power Switch Yes Model Compatibility List $9.99 / Each

P 040695-A 040695-A P01 1 Power Switch on Off Yes Model Compatibility List $9.99 / Each

P 1000730 040695-A P01 1 Power Switch Yes Model Compatibility List $9.99 / Each

P 1001368 040695-A P01 Power Switch On Off Yes Model Compatibility List $19.99 / Each

P 705211 039124-B P02 Power Cord; 16AWG 2M Yes Model Compatibility List $57.49 / Each

4,5,6
P 706320 061192-A P03 Console Cable;Mast;2400mm Yes Model Compatibility List $38.32 / Each

7,4,5,6
Console Cable; 250mm; 2.5-9P+SM-10Y 725956 078550 P04 Console Cable; 250mm; 2.5-9P+SM-10Y No Model Compatibility List $38.32 / Each

P 703925 019455-B P06 Cable;Socket to MCB;330L;16AWG;Black Yes Model Compatibility List $1.90 / Each

4,5,6
P 706800 065712-A P10 Screw;;Umbrella Cross;M5x0.8Px25L; No Model Compatibility List $1.85 / Each

701020 003346-00 P12 Circuit Breaker;12A;125V/250V Yes Model Compatibility List $30.11 / Each

P 1002652 003346-00 P12 Power 12a Circuit Breaker Yes Model Compatibility List $8.99 / Each

P 1009798 003346-00 P12 Power Circuit Breaker 12AMP (New) Yes Model Compatibility List $32.99 / Each

700746 002124-B P13 Connecting Cable;Socket/Breaker;60;16AWG Black Yes Model Compatibility List $3.82 / Each

P 1020937 002124-B P13 1 Power Entry Socket Input Module Yes Model Compatibility List $25.99 / Each

700773 002248-D P14 Speed Sensor Wire;1000mm(Reed Switch+2.5-2P) Yes Model Compatibility List $18.15 / Each

47
P 1001433 002248-D P14 RPM Speed Sensor Reed Switch Yes Model Compatibility List $9.99 / Each

47
701866 004889-00 P16 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $2.00 / Each

Q 705252 039393-AA Q01 Motor Cover;Upper Yes Model Compatibility List $47.37 / Each

9,10
Q 705249 039391-BA Q02 Motor Cover;Bottom No Model Compatibility List $17.47 / Each

9,10
706868 066450-Z Q03 Side Rail Set No Model Compatibility List $22.05 / Each

9
Q 705253 039394-BA Q05 End Cap;Rear Roller;Left No Model Compatibility List $9.57 / Each

8,9
Q 705254 039395-BA Q06 End Cap;Rear Roller;Right No Model Compatibility List $9.57 / Each

8,9
Q 705834 056330-BA Q08 End Cap;Base Frame No Model Compatibility List $3.82 / Each

9,3
707243 1000091557 Q10 Water Bottle Holder;Black;TM289 No Model Compatibility List $3.82 / Each

4,5,6
701591 004620-00 Q11 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

Q 911968 004620-00 Q11 Self Tapping Screw 4X12L (New) No Model Compatibility List $12.99 / Each

Q 701367 004417-00 Q15 Screw;Phillip;Sink;M5x0.8Px10L; No Model Compatibility List $2.00 / Each

2
701600 004624-00 Q16 Screw;Umbrella Cross Tapped;4x20L;Gap; No Model Compatibility List $2.00 / Each

Q 705954 056905-A Q20 Stopper;Side Rail No Model Compatibility List $1.79 / Each

9
Q 706685 064420-AA Q21 Latch;Side Rail Yes Model Compatibility List $3.82 / Each

9
R 705455 049244-A R03 Running Belt;458x2400x1.4T No Model Compatibility List $249.13 / Each

15
R 708921 1000107268 R04 Drive Belt;Poly-V;170-J5 No Model Compatibility List $25.00 / Each

23
R 701476 004523-00 R05 Screw;Hex Socket;Round;M8x1.25Px40L;Adhe No Model Compatibility List $2.00 / Each

R 701445 004488-00 R06 Screw;Hex Socket;Round;M8x1.25Px55L;BED; Yes Model Compatibility List $2.00 / Each

2
R 704175 020425-00 R07 Washer;Flat;8.4x15.5x1.6T Yes Model Compatibility List $2.00 / Each

725078 101605 V05 Sticker;Cover;L;TM611 No Model Compatibility List $1.77 / Each

9
725079 101606 V09 Sticker;Decorative buffer;TM611 No Model Compatibility List $3.54 / Each

1
725077 101603 V17 Sticker;Motor Up Cover;LOGO;TM611 No Model Compatibility List $3.54 / Each

9,10
725104 101748 V20 Manual;Manipulate;Non-Rohs;REV1.4;TM611- No Model Compatibility List $8.87 / Each

1
Z 702257 005393-00 Z01 Wrench;T-Type;6mm No Model Compatibility List $10.24 / Each

706361 061371-A Z02 Wrench;Hex;L-Type;M5x110L; No Model Compatibility List $9.28 / Each

2
701699 004724-00 Z04 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

701781 004796-00 Z07 Bol;M8x1.25Px20L Yes Model Compatibility List $2.00 / Each

1
Z 702136 005165-00 Z08 Washer;Arc;8.2x18x1.5T No Model Compatibility List $2.00 / Each

Z 702005 005043-00 Z09 Washer;Flat;8.2x20x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

Z 703968 020019-00 Z10 Screw;Phillip;BH;M6x1.0Px16L No Model Compatibility List $2.00 / Each

2
Z 706200 060221-00 Z14 Screw;Phillip;BH;M5x0.8Px20L;Gap; No Model Compatibility List $2.00 / Each

2
701964 005005-00 Z17 Washer;Spring;Lock;8.2x15.4x2.0t Yes Model Compatibility List $1.59 / Each

701291 004357-00 Z18 Screw;Phillip;BH;M4x0.7Px15L; No Model Compatibility List $2.00 / Each
