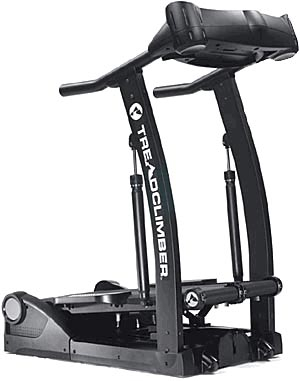

Nautilus Residential - Nautilus TC5000

Repair Parts for Nautilus Residential Nautilus TC5000

Brand: Nautilus Residential

Category: Upper cycle

Type: Non Folding Treadmills

Model Name: Nautilus TC5000

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price

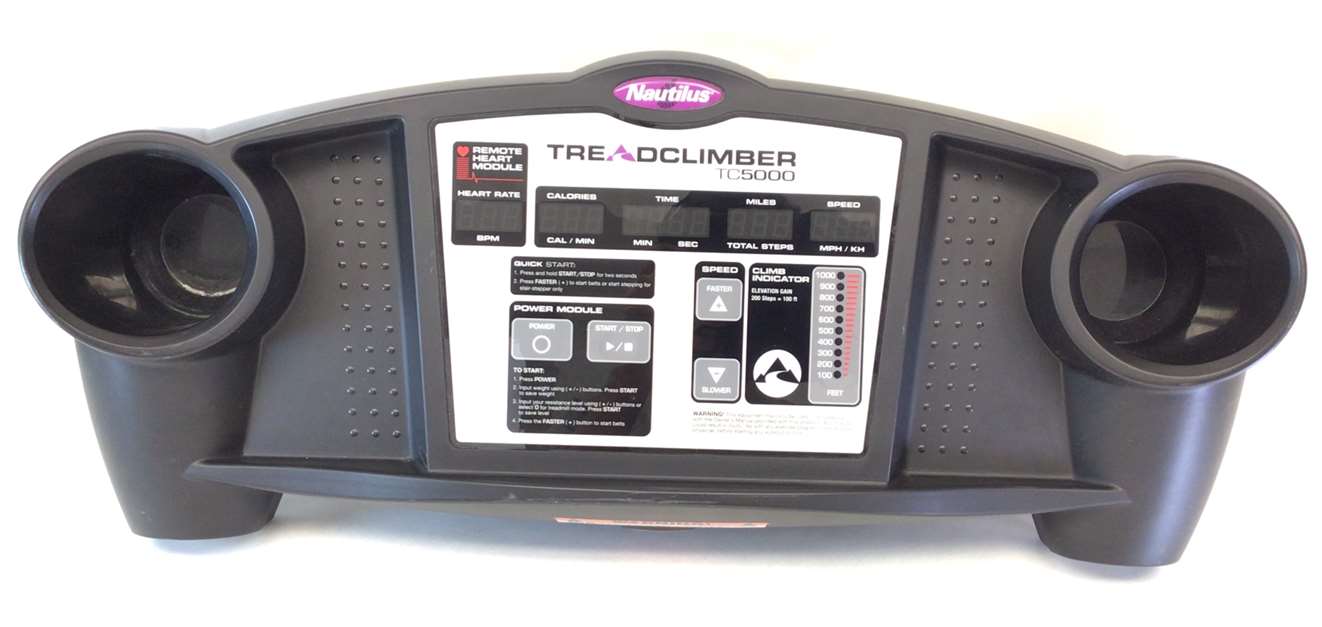

Full Display Console With Back Mounting (Used) 1031886 KK-2475 0 1 Full Display Console With Back Mounting (Used) No Model Compatibility List $249.00 / Each

Roller, Rear, Kit (Used) 1034156 000-0278 45 1 Roller, Rear, Kit (Used) No Model Compatibility List $142.24 / Each

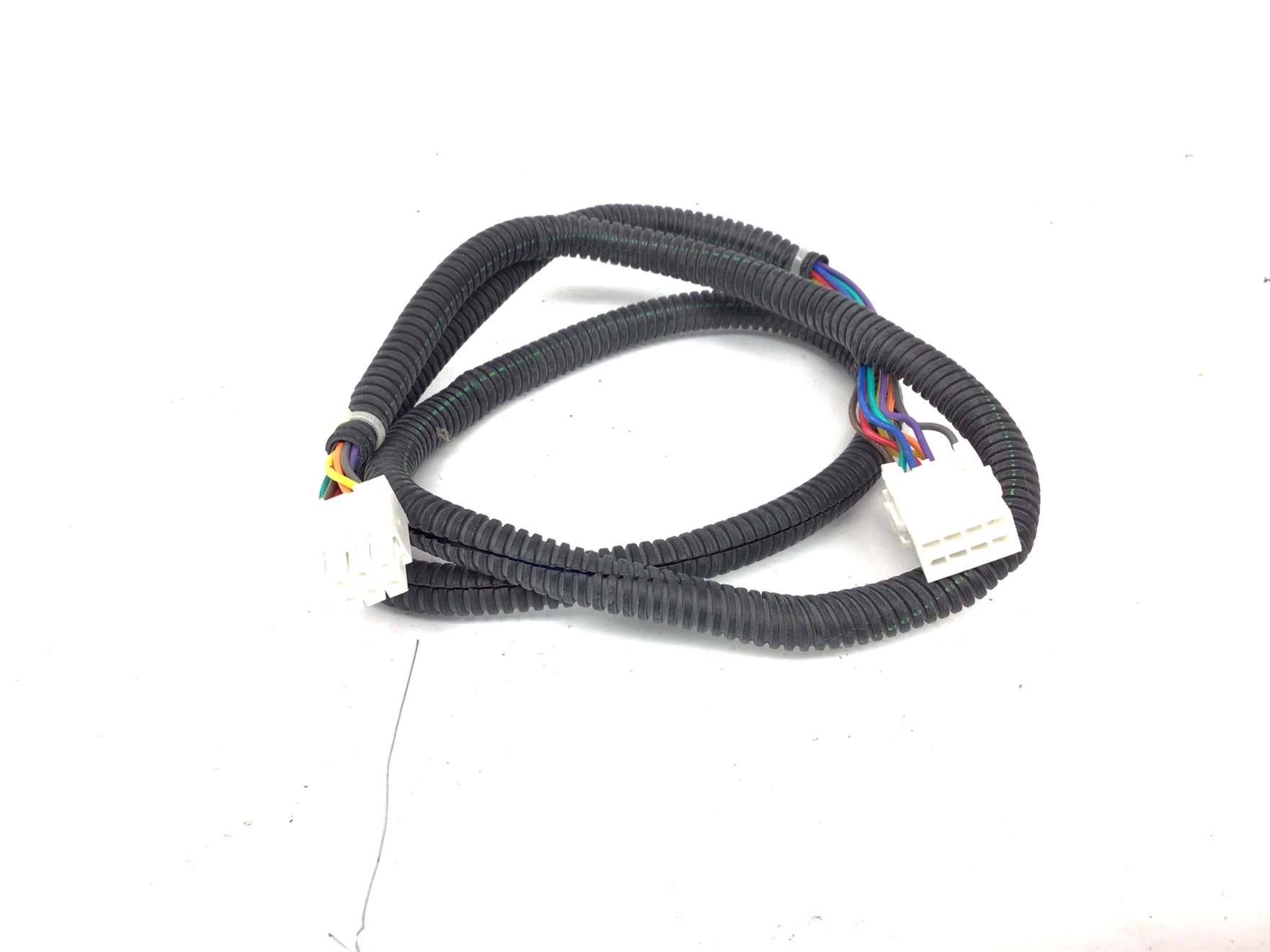

Wire harness (Used) 1034137 000-3658 1002 1 Wire harness (Used) No Model Compatibility List $39.00 / Each

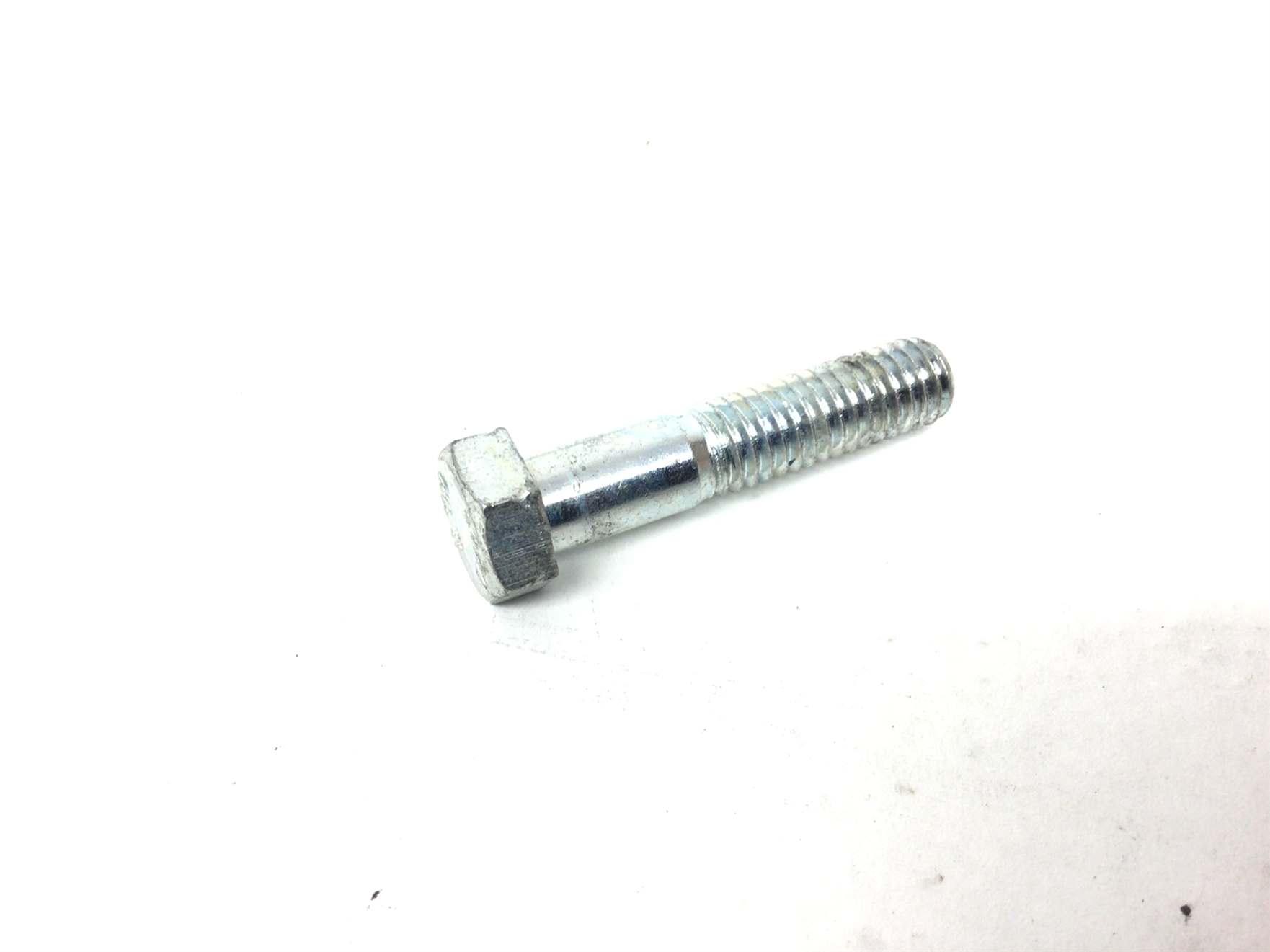

Inch Hex Bolt 3/8 - 16 x 1.75 (Used) 1034152 TC5000-3816175IHB 0 1 Inch Hex Bolt 3/8 - 16 x 1.75 (Used) No Model Compatibility List $2.99 / Each

Inch Hex Bolt 5/16 - 18 x 5 (Used) 1034153 TC5000-516185IHB 0 1 Inch Hex Bolt 5/16 - 18 x 5 (Used) No Model Compatibility List $4.99 / Each

12A Breaker Circuit Reset tc5k-12a-br TC5000-12ABCR 0 1 12A Breaker Circuit Reset Yes Model Compatibility List $29.99 / Each

Treadle Outer (Used) 1034124 10510 0 1 Treadle Outer (Used) No Model Compatibility List $25.00 / Each

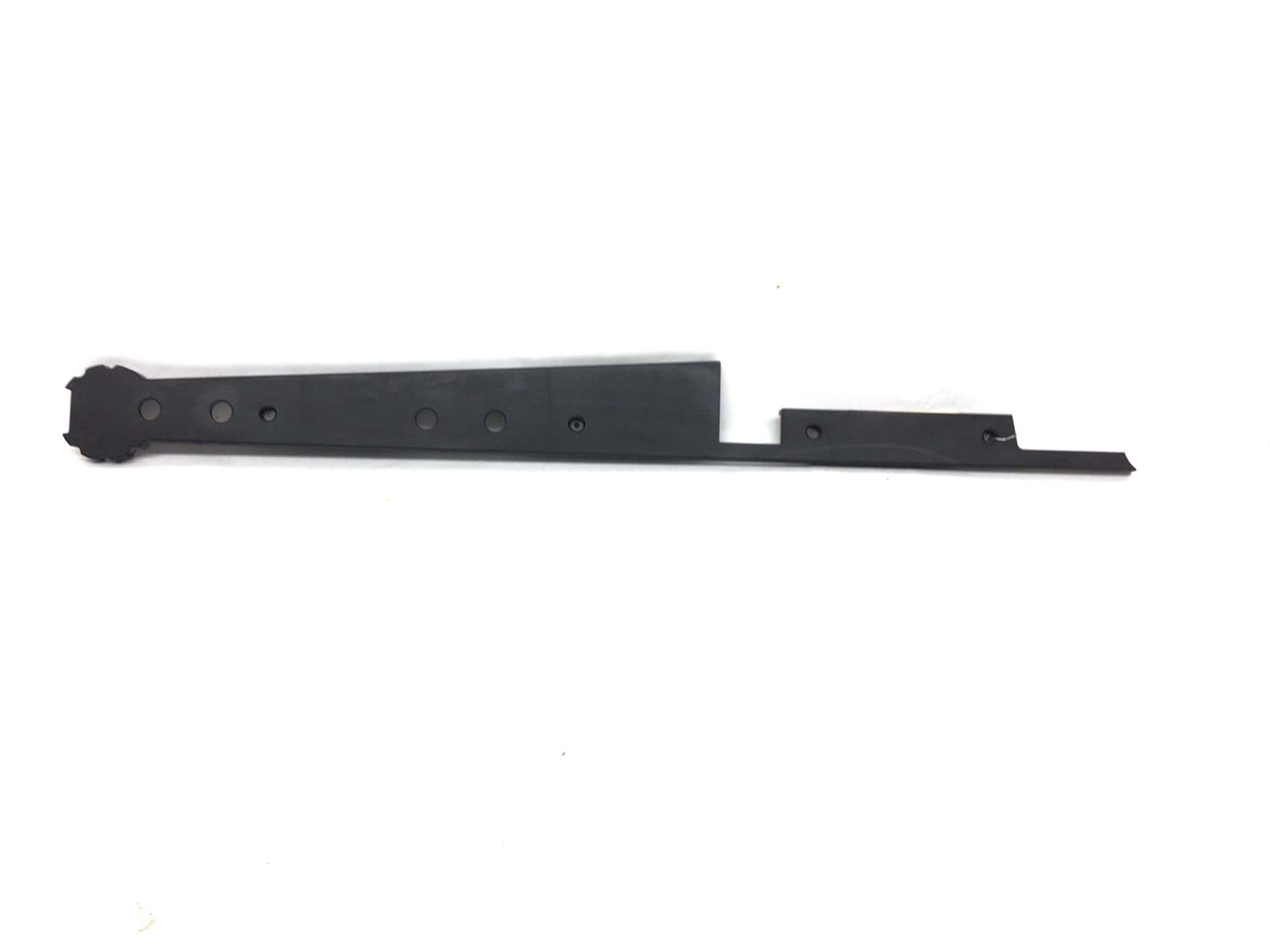

Treadle Outer (Used) 1034125 10511 0 1 Treadle Outer (Used) No Model Compatibility List $25.00 / Each

Front Roller (Used) 1034155 11739 0 1 Front Roller (Used) No Model Compatibility List $145.99 / Each

Teeter Assembly Center Frame (Used) 1034138 12746 0 1 Teeter Assembly Center Frame (Used) No Model Compatibility List $20.00 / Each

Front Roller Bracket (Used) 1034147 12832 0 3 Front Roller Bracket (Used) No Model Compatibility List $5.00 / Each

Drive Pulley (Used) 1034134 TC5000-DP 0 1 Drive Pulley (Used) No Model Compatibility List $29.99 / Each

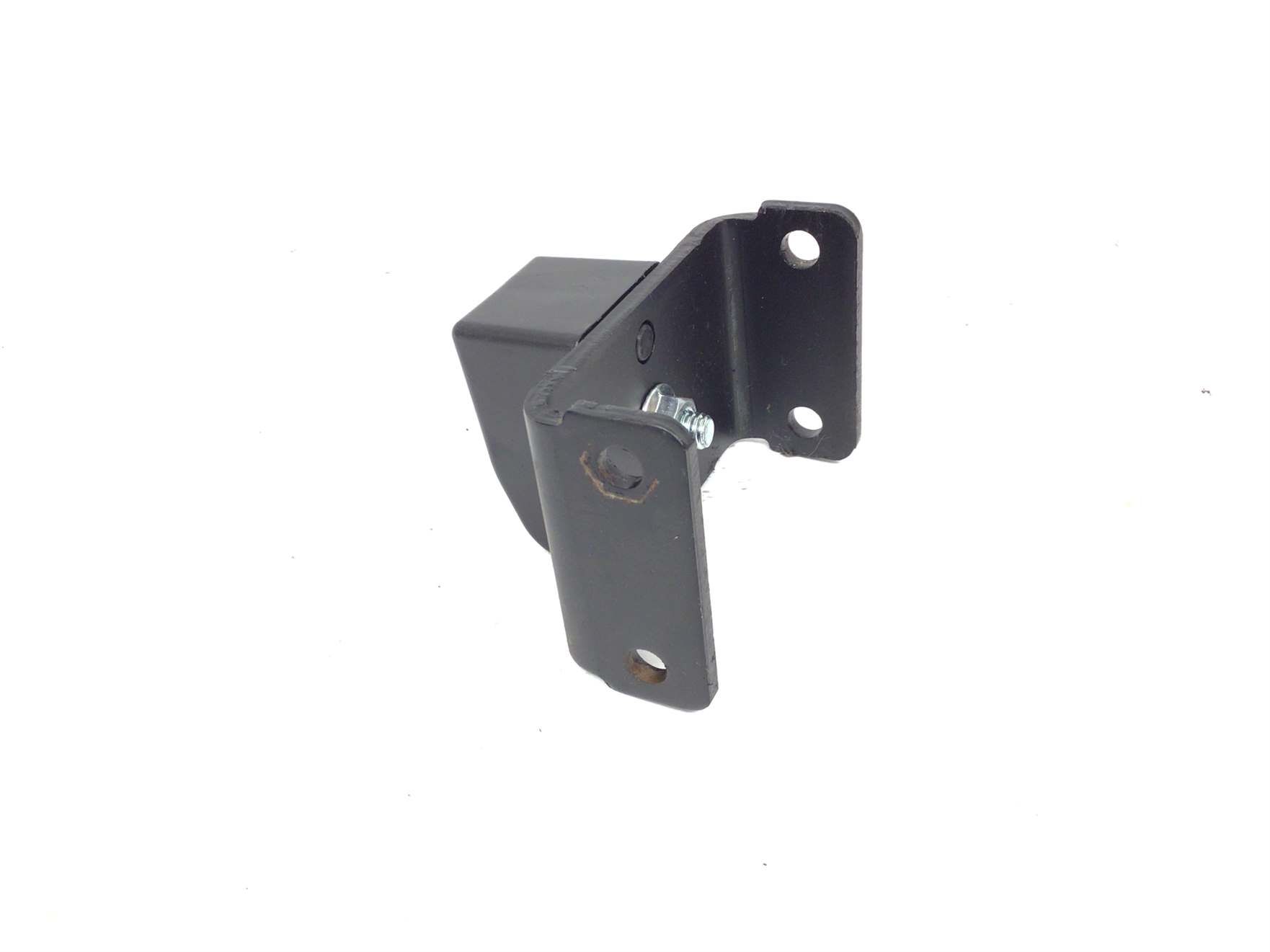

Frame Mount Stop Bracket (Used) 1034133 TC5000-FMSB 0 2 Frame Mount Stop Bracket (Used) No Model Compatibility List $10.00 / Each

Hex Bolt 3/8 - 16 x 2.50 Inch (Used) 1034151 TC5000-HB3816250 0 4 Hex Bolt 3/8 - 16 x 2.50 Inch (Used) No Model Compatibility List $3.99 / Each

Hex Bolt 3/8 -16 x 4.50 Inch (Used) 1034150 TC5000-HB3816450 0 1 Hex Bolt 3/8 -16 x 4.50 Inch (Used) No Model Compatibility List $6.99 / Each

Left Cover Nautilus Version (Used) 1034128 KK-2476 0 1 Left Cover Nautilus Version (Used) No Model Compatibility List $29.99 / Each
Out Of Stock 		9
Right Cover Nautilus Version (Used) 1034127 KK-2476 0 1 Right Cover Nautilus Version (Used) No Model Compatibility List $29.99 / Each

9

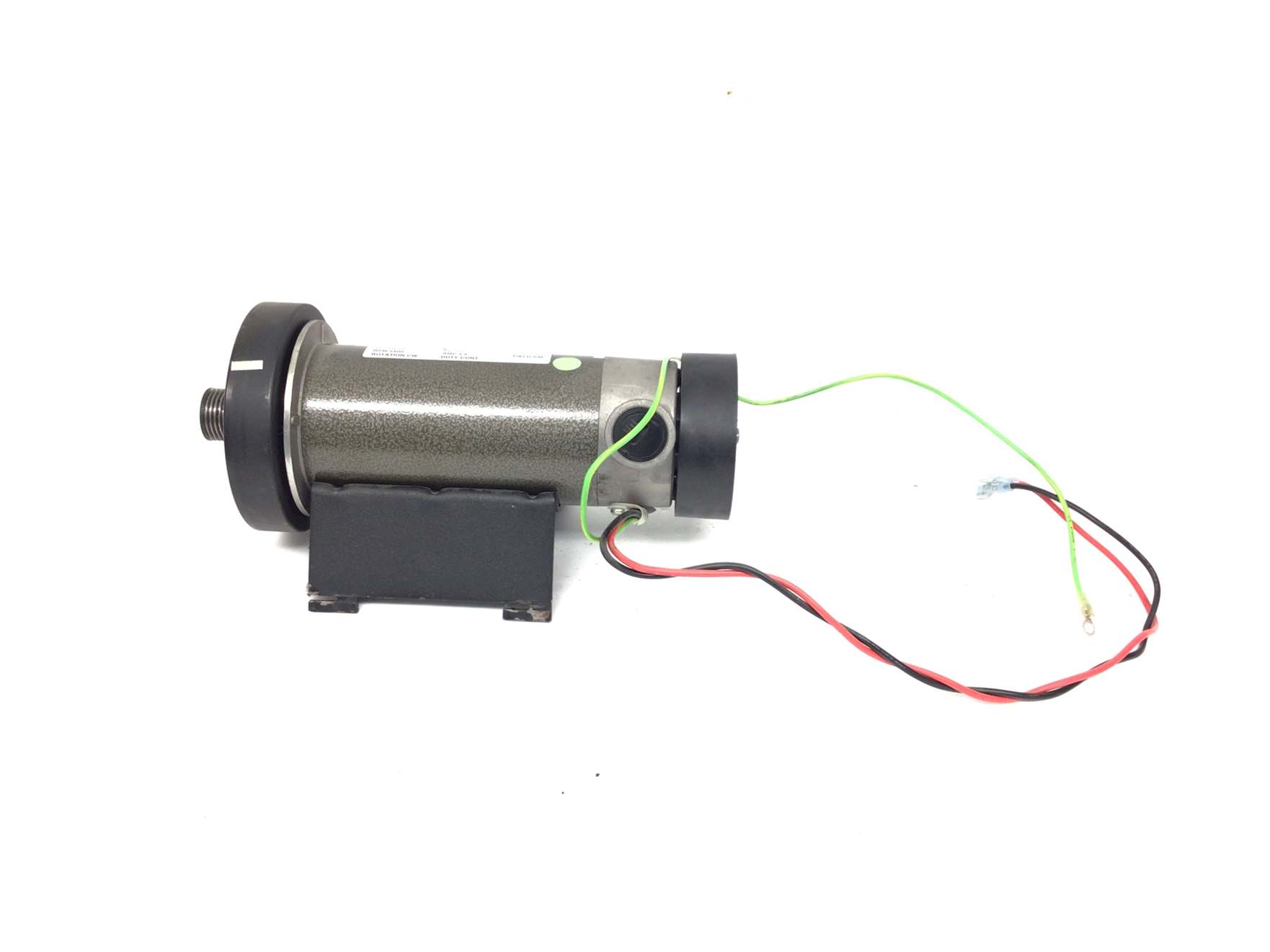

Drive Motor (Used) 1034127 KK-2631 0 1 Drive Motor (Used) No Model Compatibility List $249.00 / Each

Latch Mechanism Treadel Lock Release Lever (Used) 1034136 TC5000-LMTLRL 0 1 Latch Mechanism Treadel Lock Release Lever (Used) No Model Compatibility List $24.99 / Each

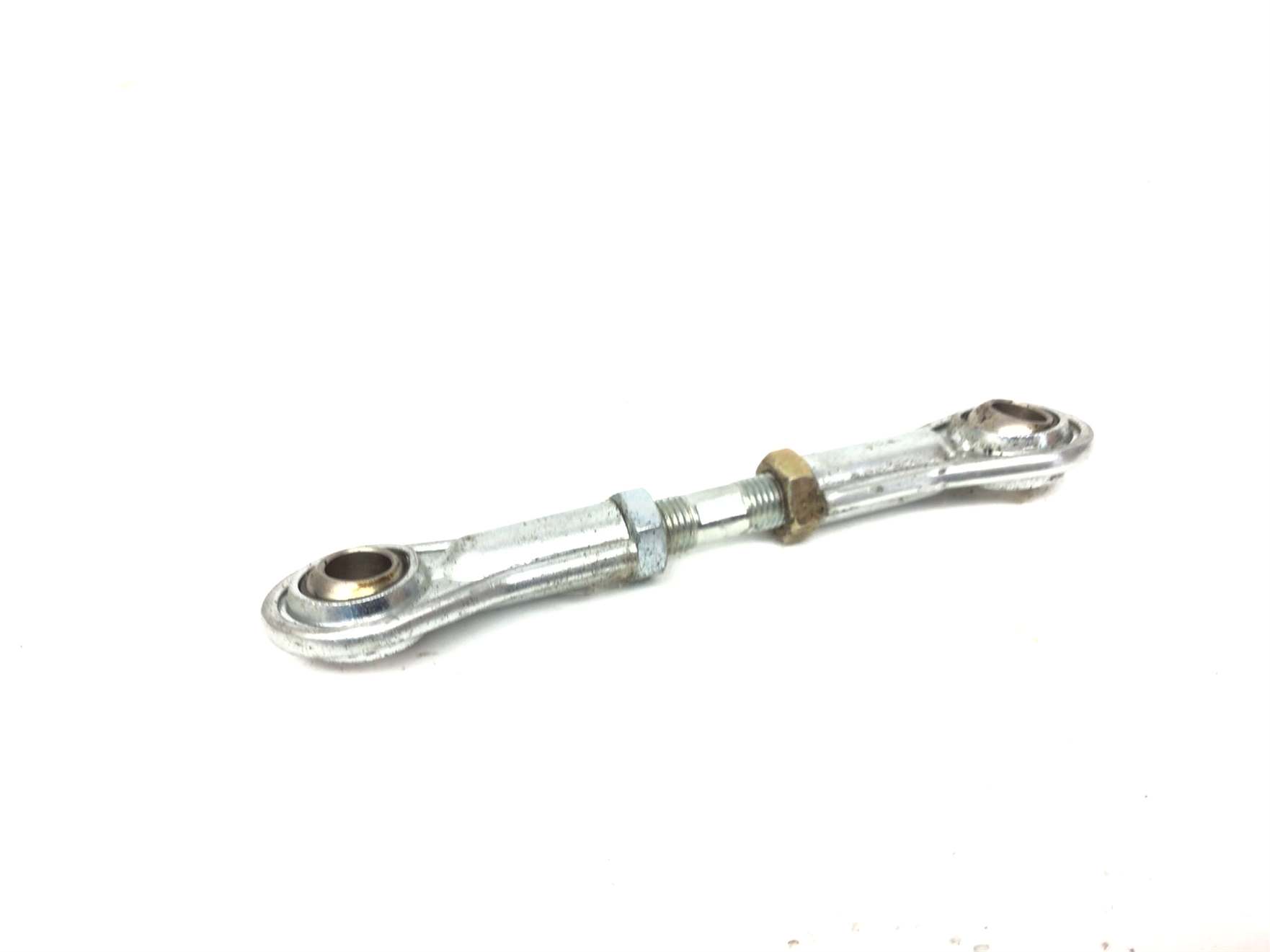

Teeter Assembly Turnbuckle (Used) 1034142 TC5000-TAT 0 1 Teeter Assembly Turnbuckle (Used) No Model Compatibility List $19.99 / Each

Threaded Rod Shaft (Used) 1034154 TC5000-TRS 0 1 Threaded Rod Shaft (Used) No Model Compatibility List $9.99 / Each

Transport Wheel Bowflex Nautilus TC1000 TC3000 TC5000 Treadclimber (Used) 1034143 TC5000-TWBN 0 1 Transport Wheel Bowflex Nautilus TC1000 TC3000 TC5000 Treadclimber (Used) No Model Compatibility List $8.99 / Each
Out Of Stock
Treadel Lock Lever Release Plate Guide (Used) 1034144 TC5000-TLLRPG 0 1 Treadel Lock Lever Release Plate Guide (Used) No Model Compatibility List $20.00 / Each

Treadmill Treadle Guide Separator (Used) 1034132 TC5000-TTGS 0 1 Treadmill Treadle Guide Separator (Used) No Model Compatibility List $15.00 / Each

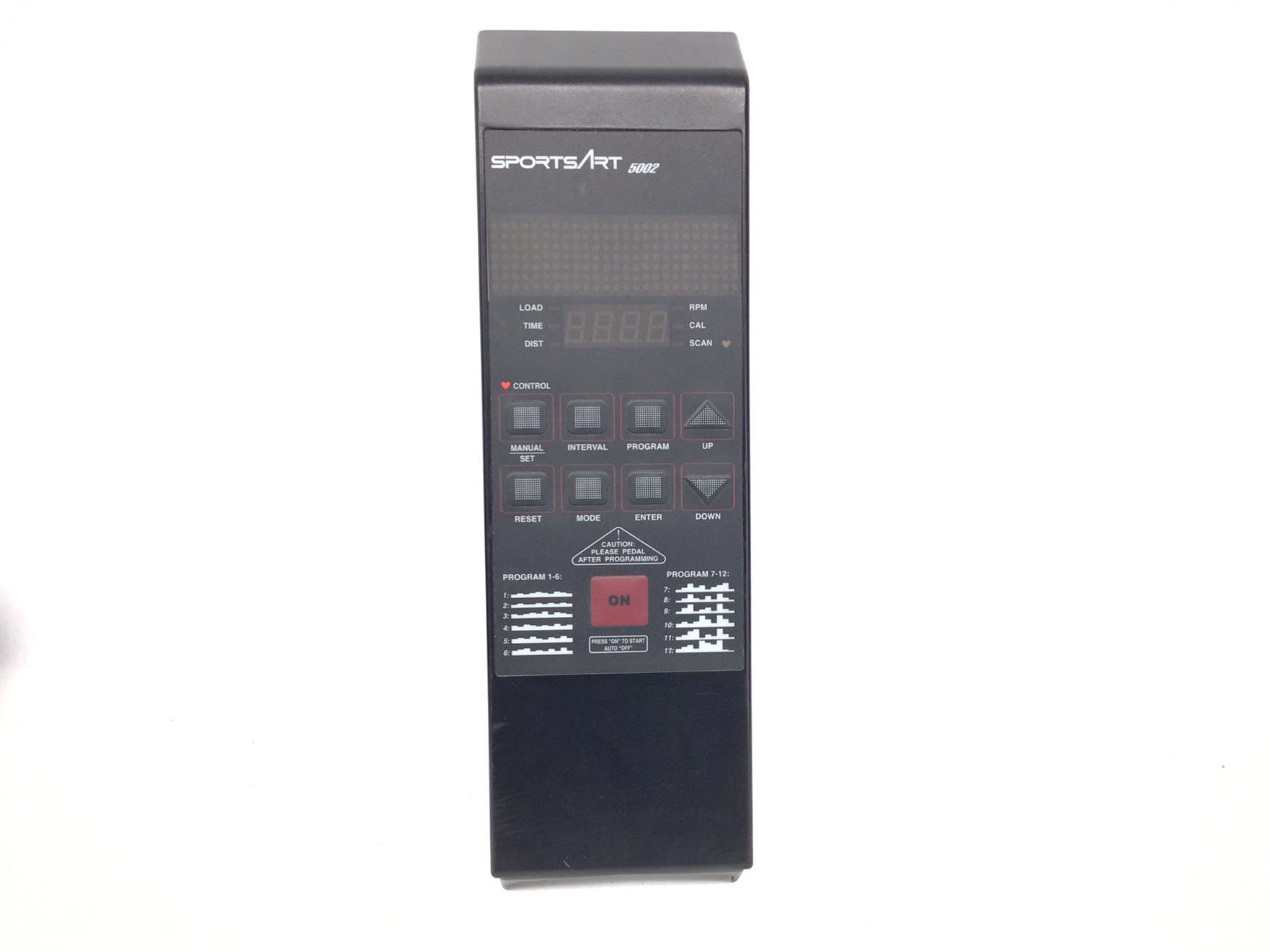

Display Console With Circuit Board (Used) 1034172 150-491-004 0 1 Display Console With Circuit Board (Used) No Model Compatibility List $179.00 / Each
