Replacement Parts for Nautilus Residential U616 Residential Upright Bikes

Nautilus Residential - U616 - 2014 Rev. A

Repair Parts for Nautilus Residential U616 100390

Brand: Nautilus Residential

Category: Residential Upright Bikes

Type: Stationary Bikes

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

100390

Model Name: U616

Version: 2014 Rev. A

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Nautilus Residential - U616 - 100390 - 2014 Rev. A - Entire Unit.PDF

VIEWS

Catalog #	MPN	Part List Key	Quantity On Model	Part Description	Available Used	Model Compatibility List	New price
1023863	8001210	0	1	Sleeve Seat post (Used)	No	Model Compatibility List	$0.81 / Each	1

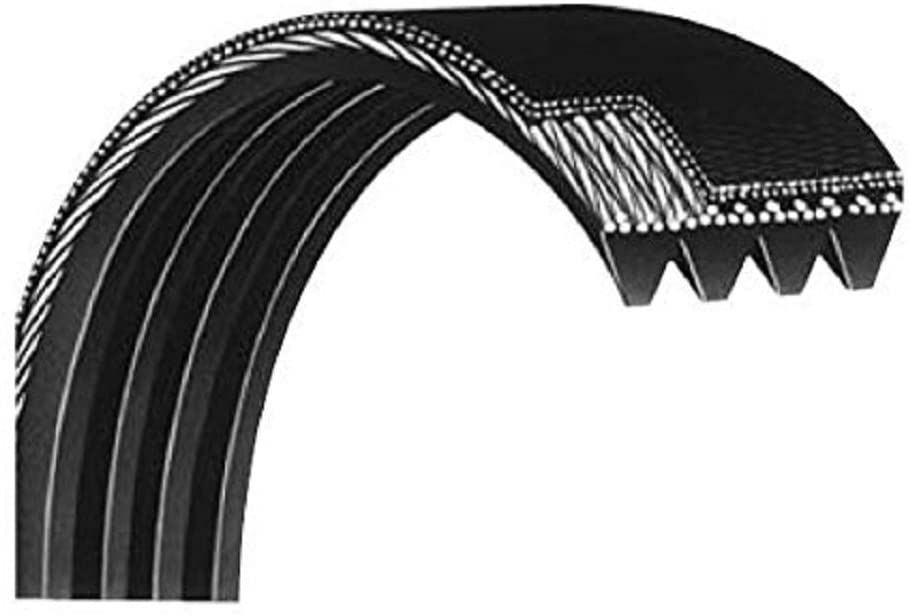

sch480l6R	U616-MDB	0	7	Nautilus Residential Motor Drive Belt PJ1219/480J Works with Schwinn Recumbent Bike	No	Model Compatibility List	$39.99 / Each	1
1025671	004-2899	0	1	Pin Adjusting (Used)	No	Model Compatibility List	$12.99 / Each	39
1025834	004-2899	0	1	Pin Adjusting	No	Model Compatibility List	$44.99 / Each	39
1031518	8001352	31	1	Power Wire harness (Used)	No	Model Compatibility List	$14.99 / Each Out Of Stock
1031522	8001394	34	1	Crank Arm Right (Used)	No	Model Compatibility List	$20.00 / Each
1031521	8001395	12	1	Crank Arm Left (Used)	No	Model Compatibility List	$20.00 / Each Out Of Stock
1031508	8001675	36	1	Knob (Used)	No	Model Compatibility List	$12.99 / Each Out Of Stock
1031508	8001675	36	1	Knob (Used)	No	Model Compatibility List	$12.99 / Each Out Of Stock
1031520	8002002	4	1	Bottle Holder (Used)	No	Model Compatibility List	$9.99 / Each Out Of Stock
1031507	8002222	28	1	Sensor (Used)	No	Model Compatibility List	$9.99 / Each Out Of Stock
1031517	8003165	6	1	Wire harness (Used)	No	Model Compatibility List	$15.99 / Each Out Of Stock
1031503	8005831	27	1	Wire harness, Motor (Used)	No	Model Compatibility List	$99.00 / Each Out Of Stock
1031531	170-BP	22	1	Belt Pulley (Used)	No	Model Compatibility List	$5.99 / Each Out Of Stock
1030334	170-SPAKP	20	1	Seat Post Adjustment Knob Pin (Used)	No	Model Compatibility List	$19.99 / Each
1031791	8001675	36	1	Knob	No	Model Compatibility List	$12.99 / Each
1031781	8002002	4	1	Holder, Bottle	No	Model Compatibility List	$12.99 / Each
1031742	8002222	28	1	Sensor	No	Model Compatibility List	$19.99 / Each
sch9v2000ma	adp-supl-200			Power Supply AC Adapter (New)	No	Model Compatibility List	$33.99 / Each
1005749	ac-adp-49			Power Supply AC Adapter	Yes	Model Compatibility List	$19.99 / Each Out Of Stock
