Nautilus Residential - U916

Repair Parts for Nautilus Residential U916

Brand: Nautilus Residential

Category: Residential Upright Bikes

Type: Stationary Bikes

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

Model Name: U916

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

VIEWS

Catalog #	MPN	Part List Key	Quantity On Model	Part Description	Available Used	Model Compatibility List	New price

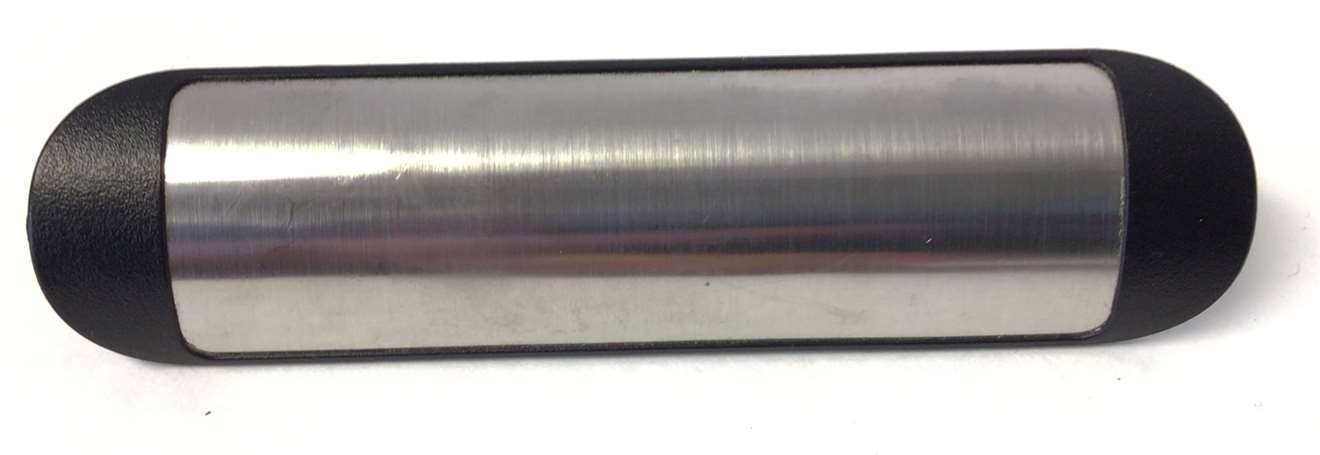

1022254	001-6341	0	1	HR Grips Top Only (Used)	No	Model Compatibility List	$14.99 / Each	1
1022309	21445	0	1	Sensor Speed (Used)	No	Model Compatibility List	$59.74 / Each Out Of Stock	1
1022457	18073	0	1	Screw M8-1.0X20mm (Used)	No	Model Compatibility List	$9.99 / Each Out Of Stock	1
schn6v1-3ah	SM14123	0	6	Lead Acid Battery	No	Model Compatibility List	$32.99 / Each	1
1001924	SM21445	0		Speed Sensor Reed Switch (Used)	Yes	Model Compatibility List	$28.79 / Each Out Of Stock	1

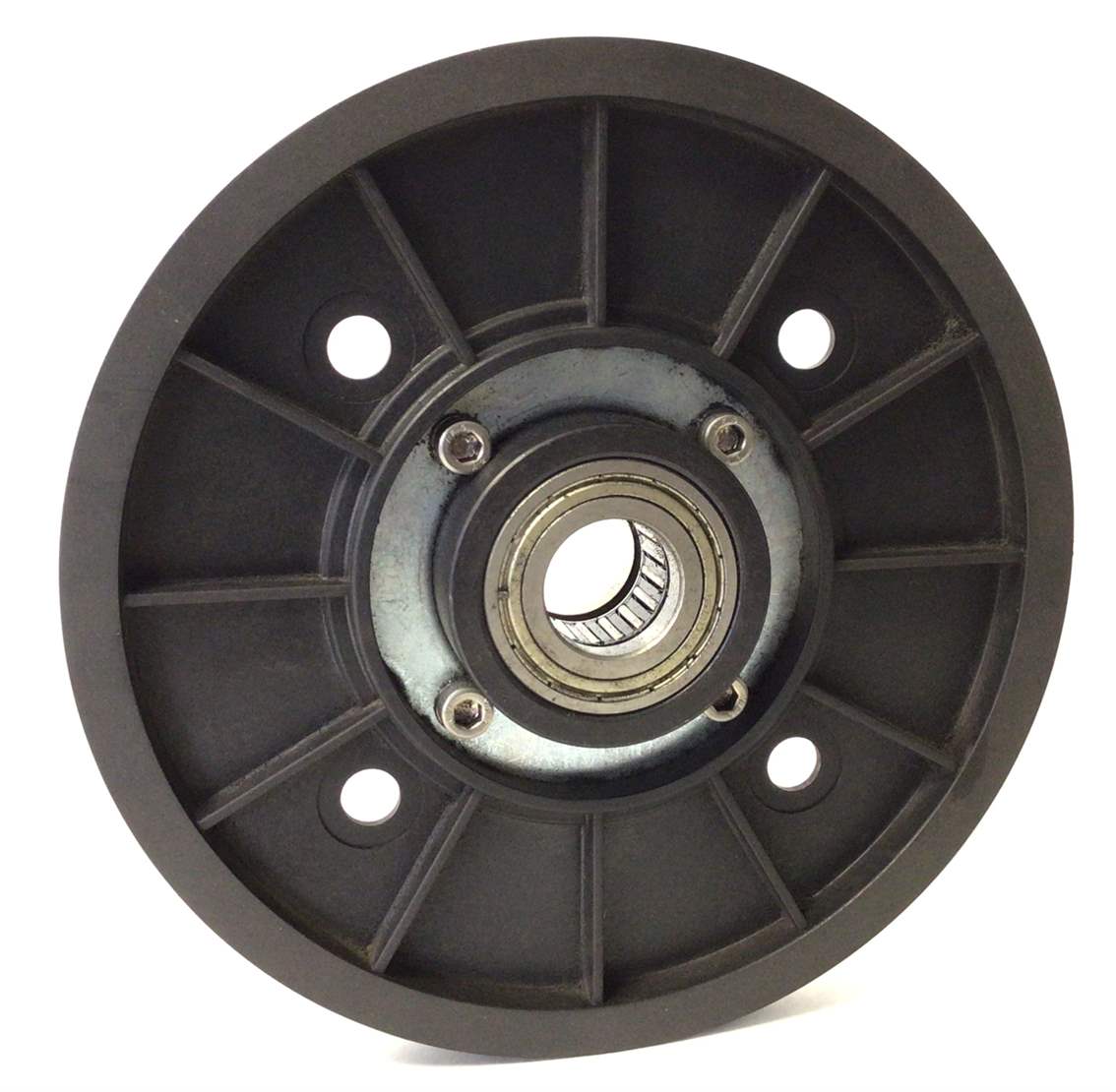

1023129	000-6214	21	1	Intermediate Pulley With Bearing Hub (Used)	No	Model Compatibility List	$79.00 / Each Out Of Stock	1
1023116	001-0342	0	1	Left Pedal Just Only (Used)	No	Model Compatibility List	$14.99 / Each	1
1023103	001-0342	0	1	Right Pedal Only (Used)	No	Model Compatibility List	$14.99 / Each	1
1015233-R	U916-MCBC	0	1	Nautilus U9.16 R916 Upright Bike Motor Control Board Controller SM13099 (Used)	No	Model Compatibility List	$170.99 / Each Out Of Stock	1

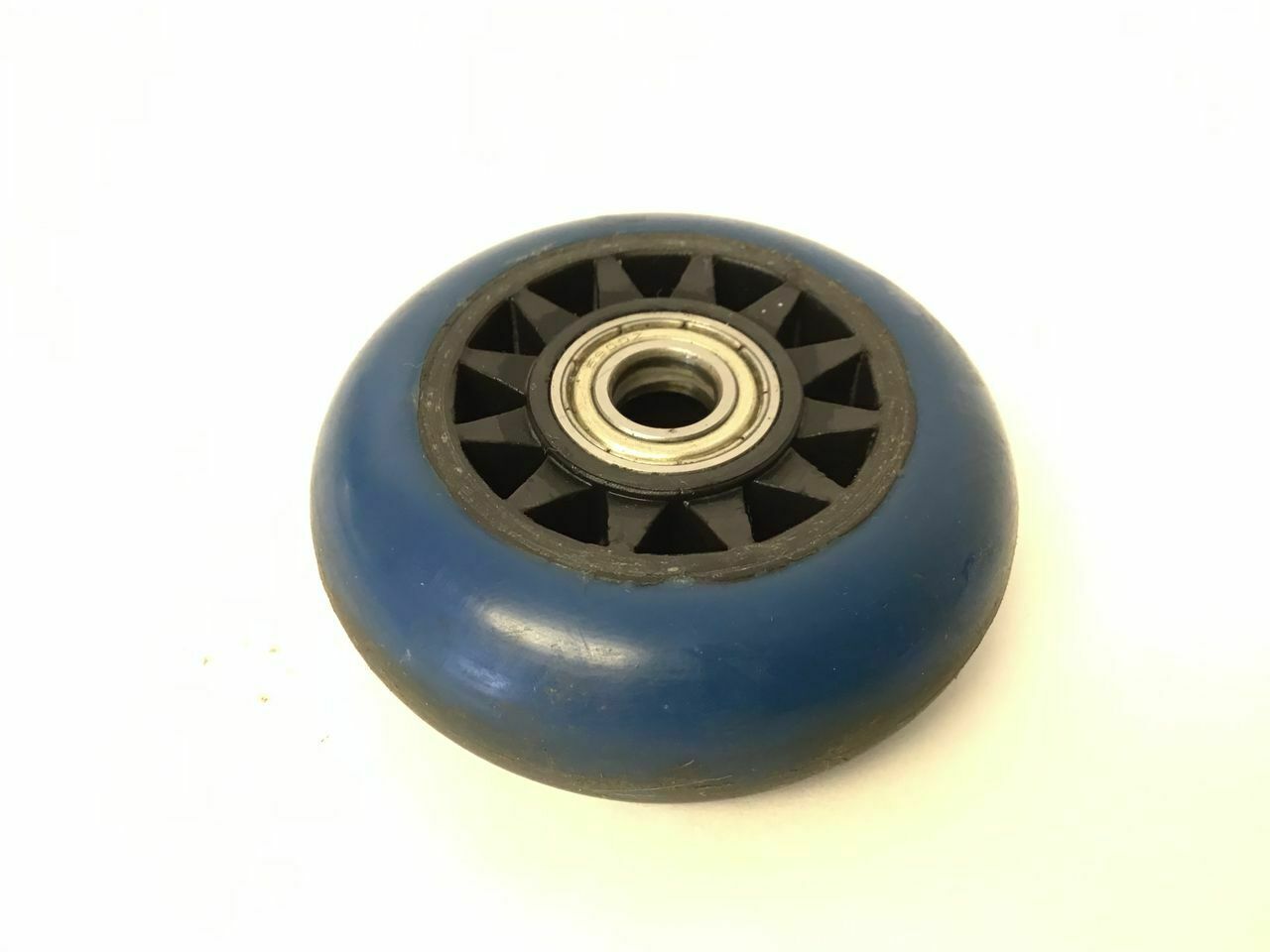

1015227	U916-FTW	0	4	Nautilus U916 U9.16 R916 Upright Bikes Front Transport Wheel 000-6247 (Used)	No	Model Compatibility List	$17.09 / Each	1

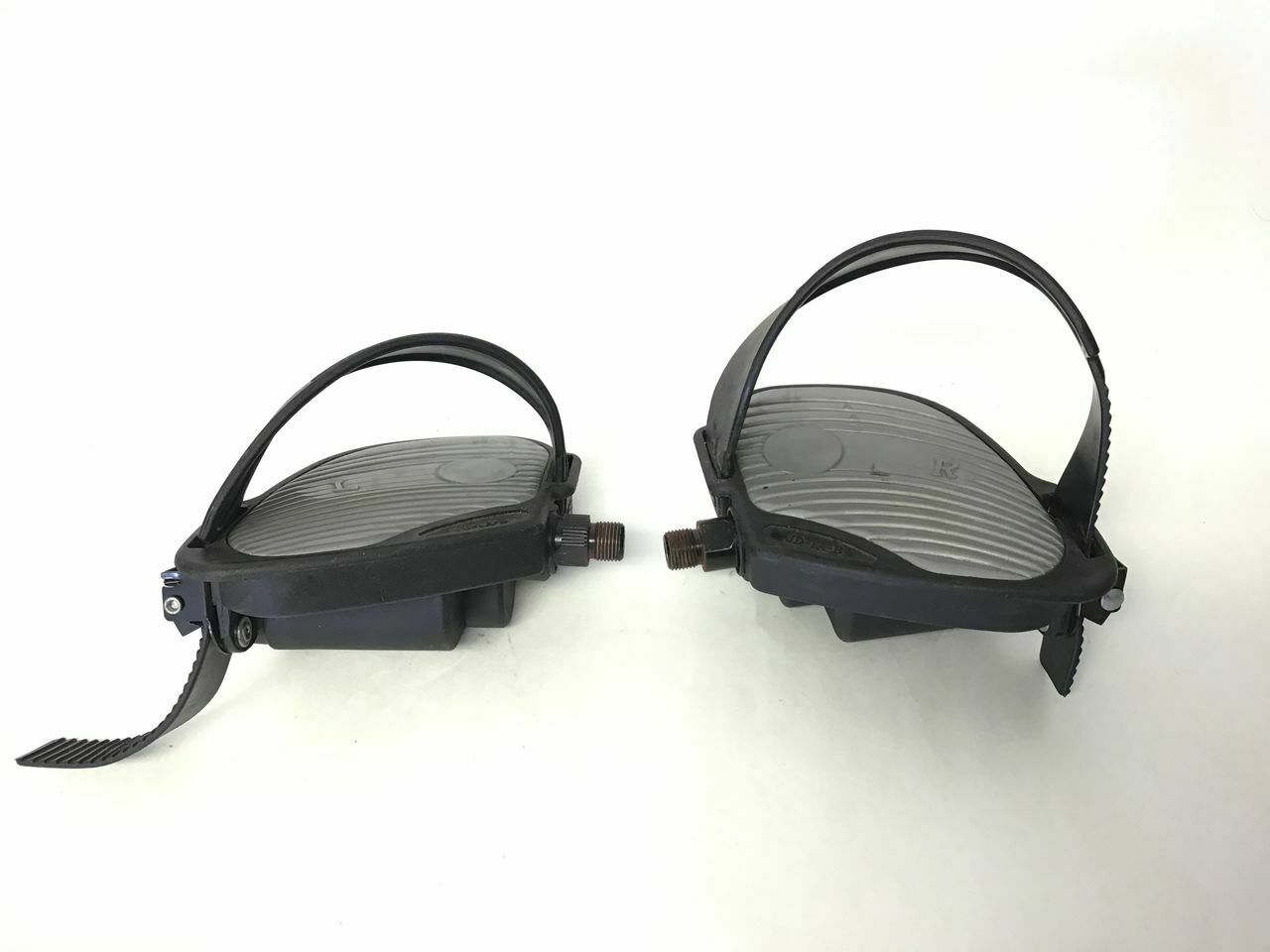

1015214	U916-LARPWS	0	3	Nautilus R916 U916 Upright Bike Universal Left and Right Pedal w/ Strap 24006154 (Used)	No	Model Compatibility List	$130.99 / Each	1
1018096	R916-MDCEB	0	1	Stairmaster Stepper Step Machine Display Console Electronic PCB Board SM40826 (Used)	No	Model Compatibility List	$227.69 / Each Out Of Stock	1
1018483	R916-LFP	0	1	Nautilus StairMaster Elliptical Leveling Foot Pad 10597 (Used)	No	Model Compatibility List	$17.99 / Each	1

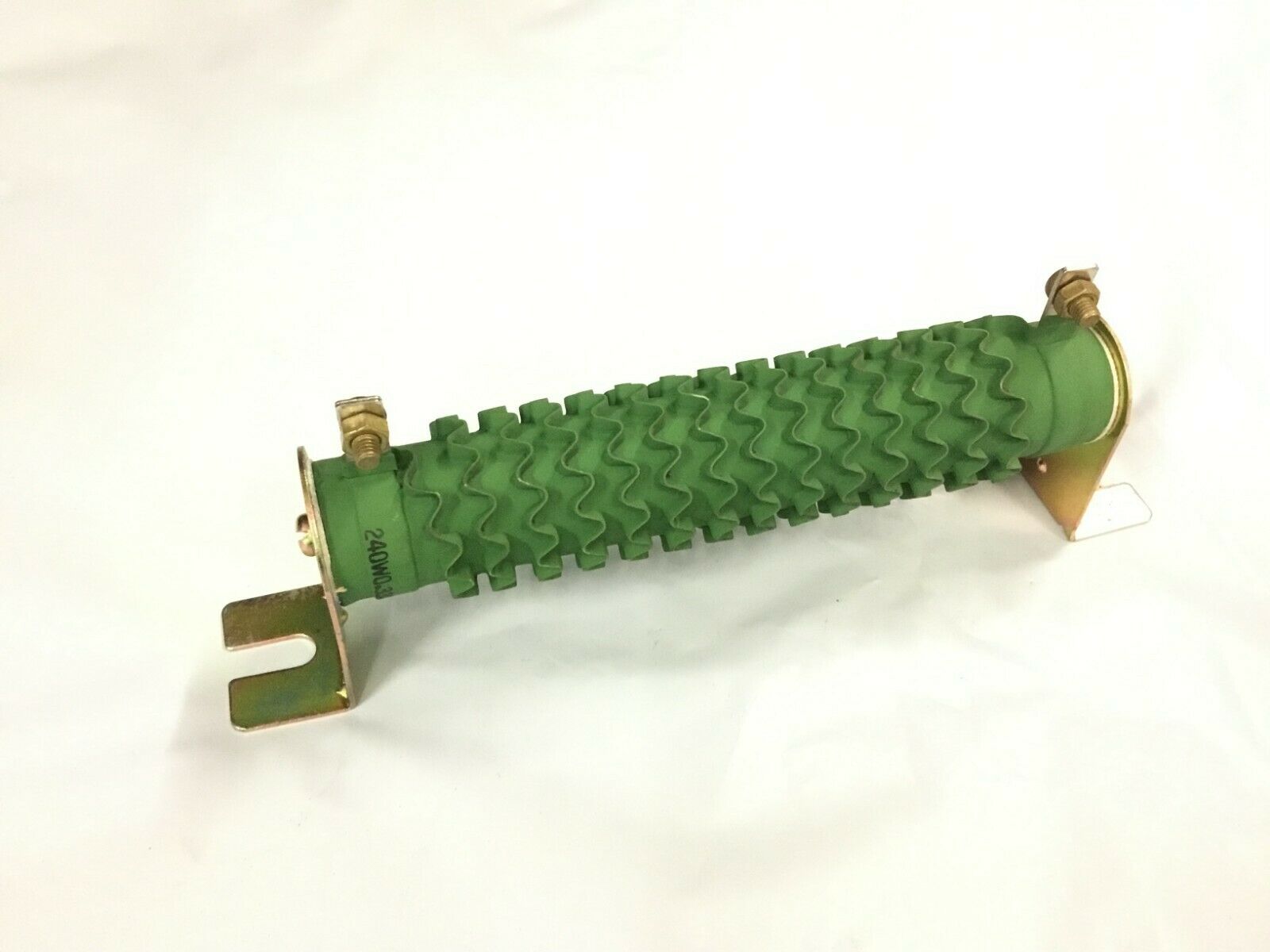

1007117	000-6217	0	1	Power Resistor W/Bracket 240W 33 Ohm (Used)	No	Model Compatibility List	$21.99 / Each	6

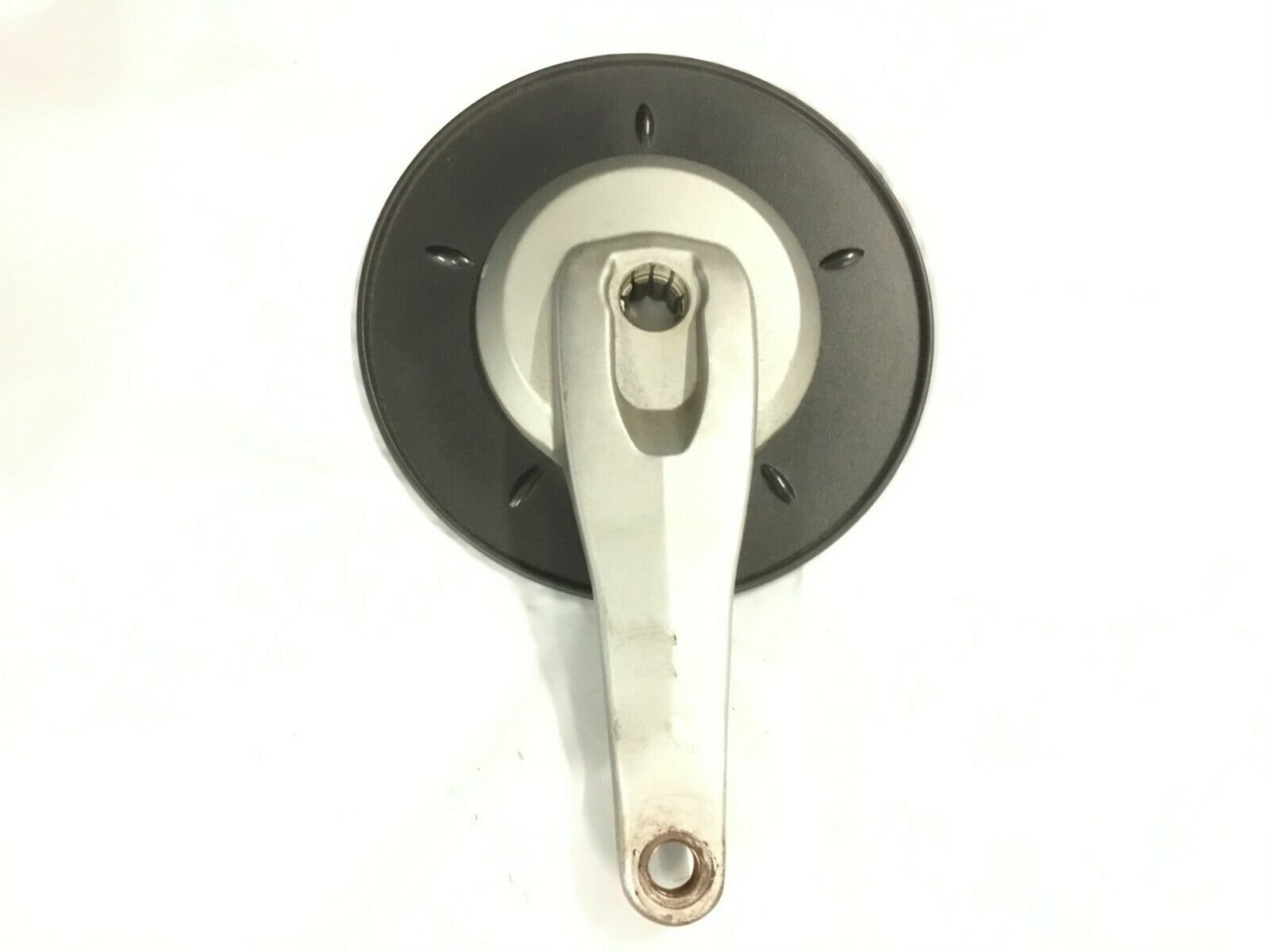

1007143	000-6324	0	1	Left Disc Crank	Yes	Model Compatibility List	$60.99 / Each	35
1007165	000-6291	0	1	Belt Drive (Used)	No	Model Compatibility List	$22.99 / Each	23

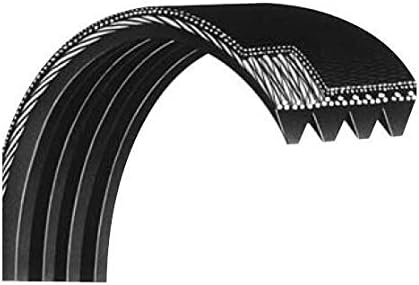

Nautiflex6PJ831	000-6432			Jason Flexonic Drive Belt	No	Model Compatibility List	$49.99 / Each Out Of Stock
1001945	6v1.3a-WKA6-1.3F			Lead Acid Battery	Yes	Model Compatibility List	$21.99 / Each Out Of Stock
R916-Leveler	SM17686			Leveling Foot Leveler	Yes	Model Compatibility List	$13.99 / Each
1001946	6v1.3a-WKA6-1.3F			Lead Acid Battery	No	Model Compatibility List	$49.99 / Each

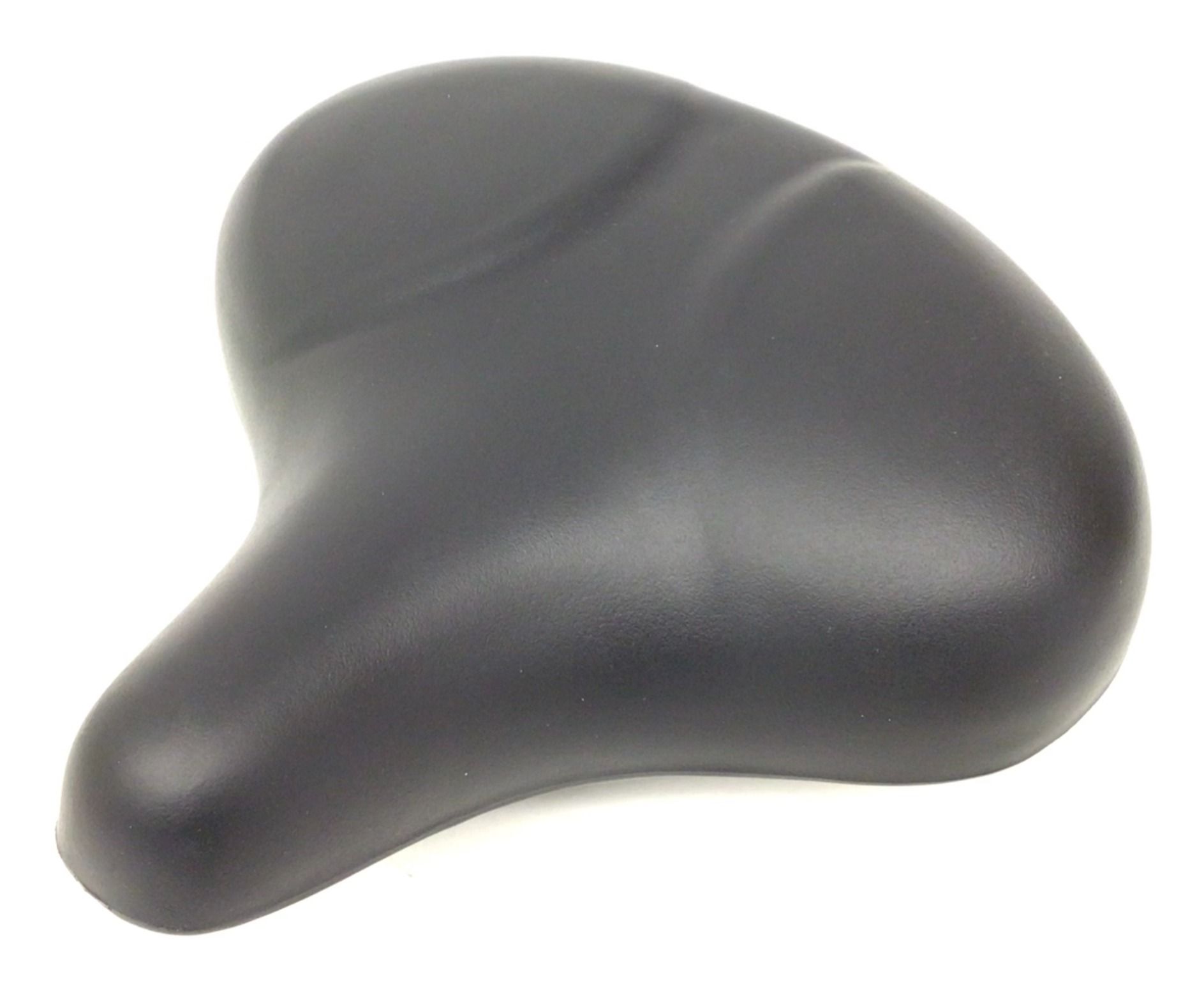

1036322	000-6264			Seat Med Width	No	Model Compatibility List	$69.00 / Each

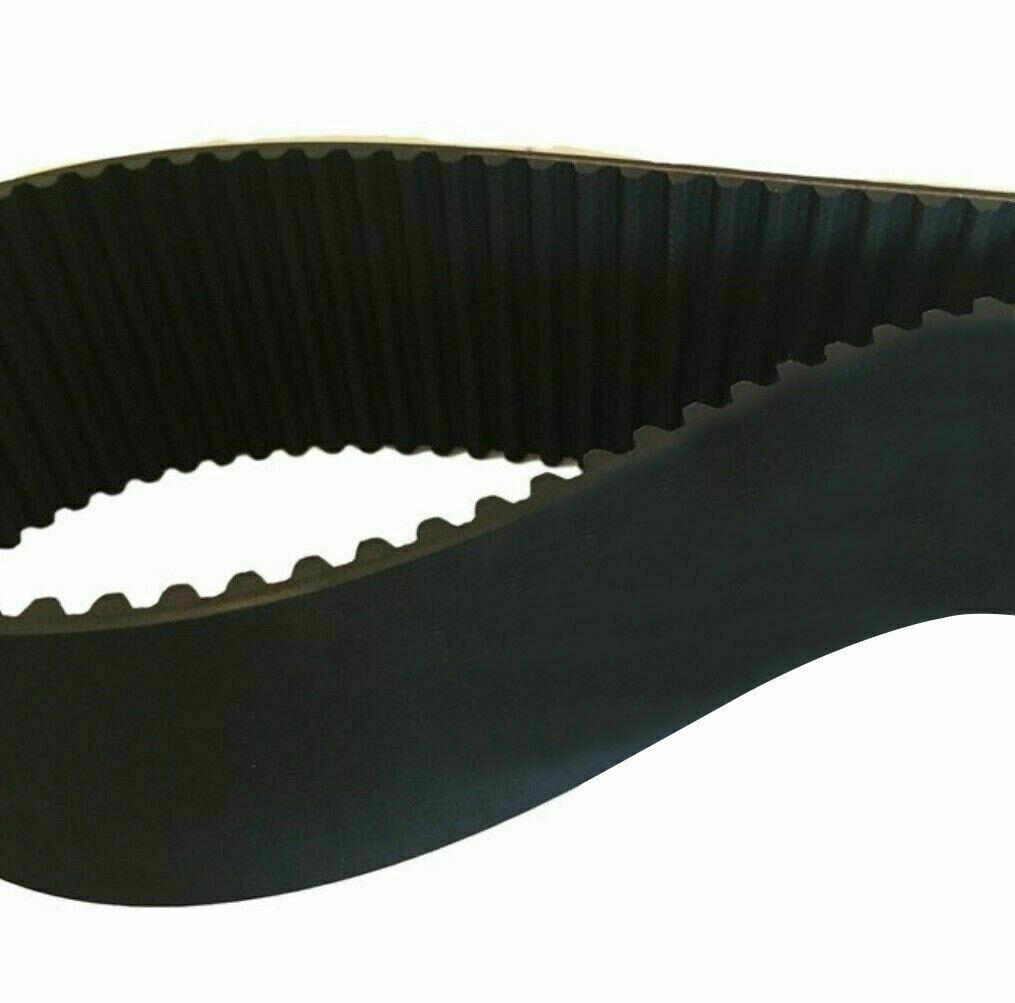

1120-8M-16	24006132			Cogged Belt (New)	No	Model Compatibility List	$39.99 / Each
NautilusR916	drv-16-blt			Motor Drive Belt 44 (New)	No	Model Compatibility List	$39.99 / Each Out Of Stock
1018535	95-0614			Left Pedal with Strap (Used)	Yes	Model Compatibility List	$47.99 / Each	1

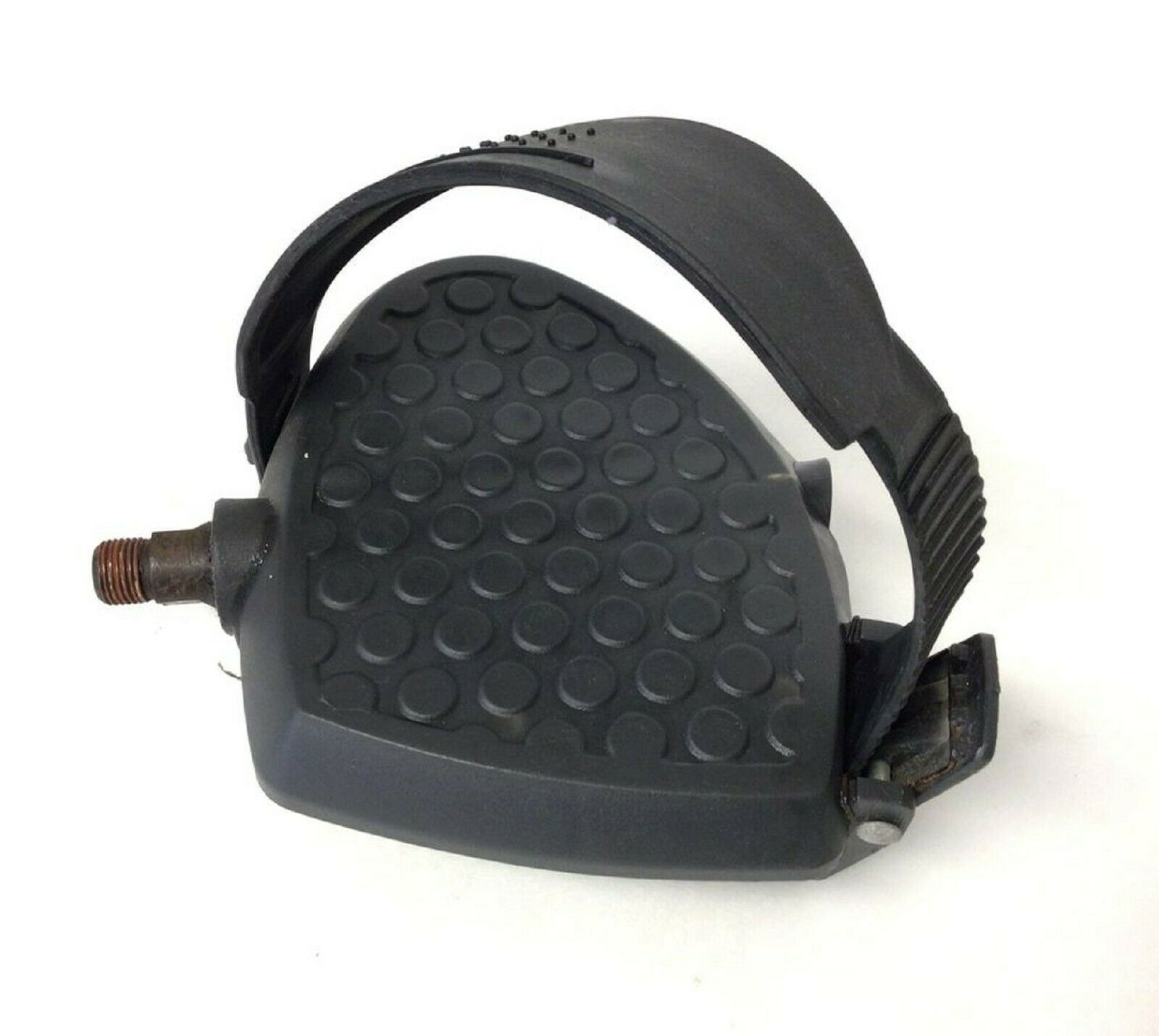

1018536	95-0614			Right Pedal with Strap (Used)	Yes	Model Compatibility List	$47.99 / Each Out Of Stock	1
PE6V1.2	PE6V1.2			Rechargeable Lead Acid Battery (Used)	Yes	Model Compatibility List	$12.99 / Each Out Of Stock	20
1018484	17686			Leveling Foot Pad (Used)	Yes	Model Compatibility List	$17.99 / Each	1
1002786	786-consol			Display Console (Used)	Yes	Model Compatibility List	$299.00 / Each Out Of Stock	51
