NordicTrack® - 10.9 i

Exploded Diagrams

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
M8 NYLON LOCKNUT 100682 012042 104 M8 NYLON LOCKNUT Yes Model Compatibility List $1.15 / Each

DRIVE BELT 105114 175643 113 DRIVE BELT Yes Model Compatibility List $99.45 / Each

28
RESISTANCE MOTOR 100647 193223 66 RESISTANCE MOTOR Yes Model Compatibility List $106.74 / Each

28
M8 X 38MM BOLT 115889 251830 96 M8 X 38MM BOLT Yes Model Compatibility List $3.08 / Each

2
M6 X 12MM SCREW 101189 262341 111 M6 X 12MM SCREW Yes Model Compatibility List $2.64 / Each

2,45
POWER SWITCH 109126 264511 115 POWER SWITCH Yes Model Compatibility List $35.01 / Each

24
PULLEY 101387 277369 19 PULLEY Yes Model Compatibility List $178.75 / Each

37
LIFT MTR WIRE HRNS 109167 302754 # LIFT MTR WIRE HRNS Yes Model Compatibility List $20.26 / Each

4,5,6,10,12,13,14
FRONT UPRIGHT COVER 129732 316751 117 FRONT UPRIGHT COVER Yes Model Compatibility List $36.08 / Each

3,9
INCLINE MOTOR 109136 320496 11 INCLINE MOTOR Yes Model Compatibility List $130.97 / Each

28
SENSOR ASSEMBLY 105080 324444 63A SENSOR ASSEMBLY Yes Model Compatibility List $50.70 / Each

1,47
RESISTANCE MTR WIRE HRNS 105135 324737 # RESISTANCE MTR WIRE HRNS Yes Model Compatibility List $22.20 / Each

4,5,6,10,12,13,14
REAR UPRIGHT COVER 105100 335817 81 REAR UPRIGHT COVER Yes Model Compatibility List $70.20 / Each

3,9
ACCESSORY TRAY 105059 335818 37 ACCESSORY TRAY Yes Model Compatibility List $33.15 / Each

4,5,6
ROLLER 100964 340773 51 ROLLER Yes Model Compatibility List $92.10 / Each

26
POWER CORD 101017 342275 112 POWER CORD Yes Model Compatibility List $74.11 / Each

1,4,5,6
EDDY MECHANISM 105055 362898 28A EDDY MECHANISM Yes Model Compatibility List $399.00 / Each

1
MAIN WIRE 105113 362904 110 MAIN WIRE Yes Model Compatibility List $60.30 / Each

4,5,6
IDLER 100939 363093 22 IDLER Yes Model Compatibility List $58.30 / Each

8
CONTROLLER 130481 416695 31 CONTROLLER No Model Compatibility List $144.18 / Each

7,1
REED SWITCH/WIRE 105060 372087 38 REED SWITCH/WIRE Yes Model Compatibility List $17.23 / Each

4,5,6,47
SHIELD COVER 140482 383076 75 SHIELD COVER Yes Model Compatibility List $46.09 / Each

3,9
M8 X 13MM SCREW 115887 383382 82B M8 X 13MM SCREW No Model Compatibility List $0.69 / Each

1,2
LEFT ARM FRONT COVER 115879 384816 67 LEFT ARM FRONT COVER Yes Model Compatibility List $36.95 / Each

3,9
LEFT ARM REAR COVER 115880 384822 68 LEFT ARM REAR COVER Yes Model Compatibility List $33.07 / Each

3,9
RIGHT ARM REAR COVER 115878 384828 66 RIGHT ARM REAR COVER Yes Model Compatibility List $35.01 / Each

3,9

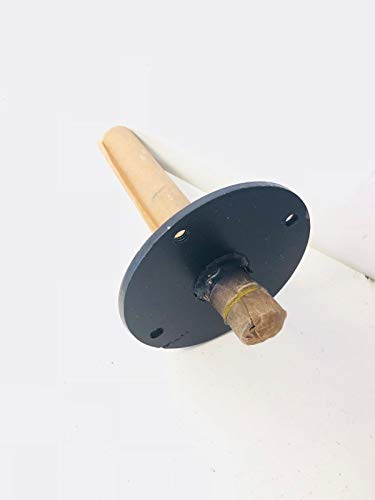

CRANK 115859 386166 18 CRANK Yes Model Compatibility List $116.70 / Each

8
CRANK ARM 115860 386662 20 CRANK ARM Yes Model Compatibility List $140.61 / Each

3,8

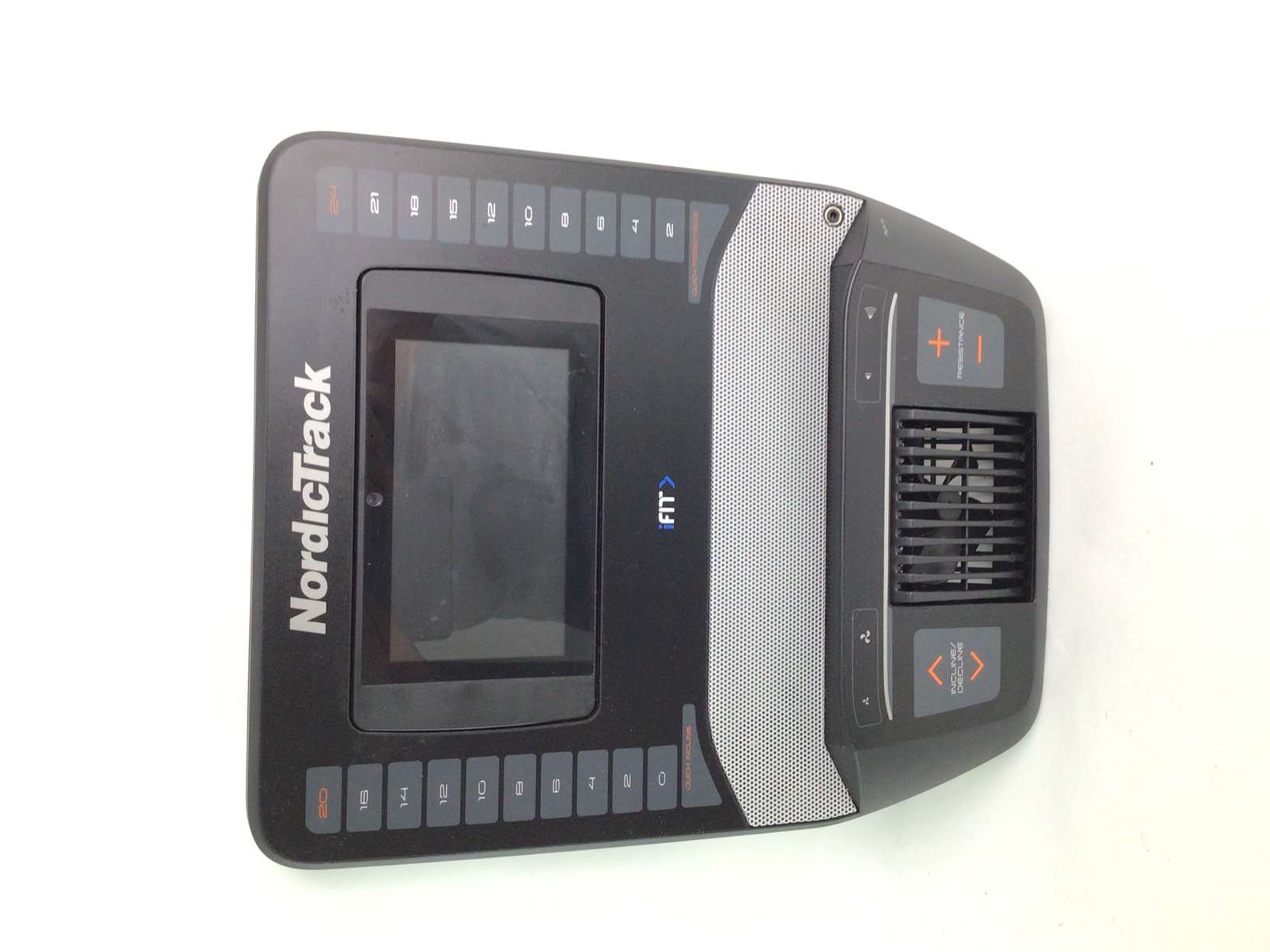

CONSOLE (RESET CNSL) (Used) 1027373 404460 7A 1 CONSOLE (RESET CNSL) (Used) No Model Compatibility List $299.00 / Each
Out Of Stock
30

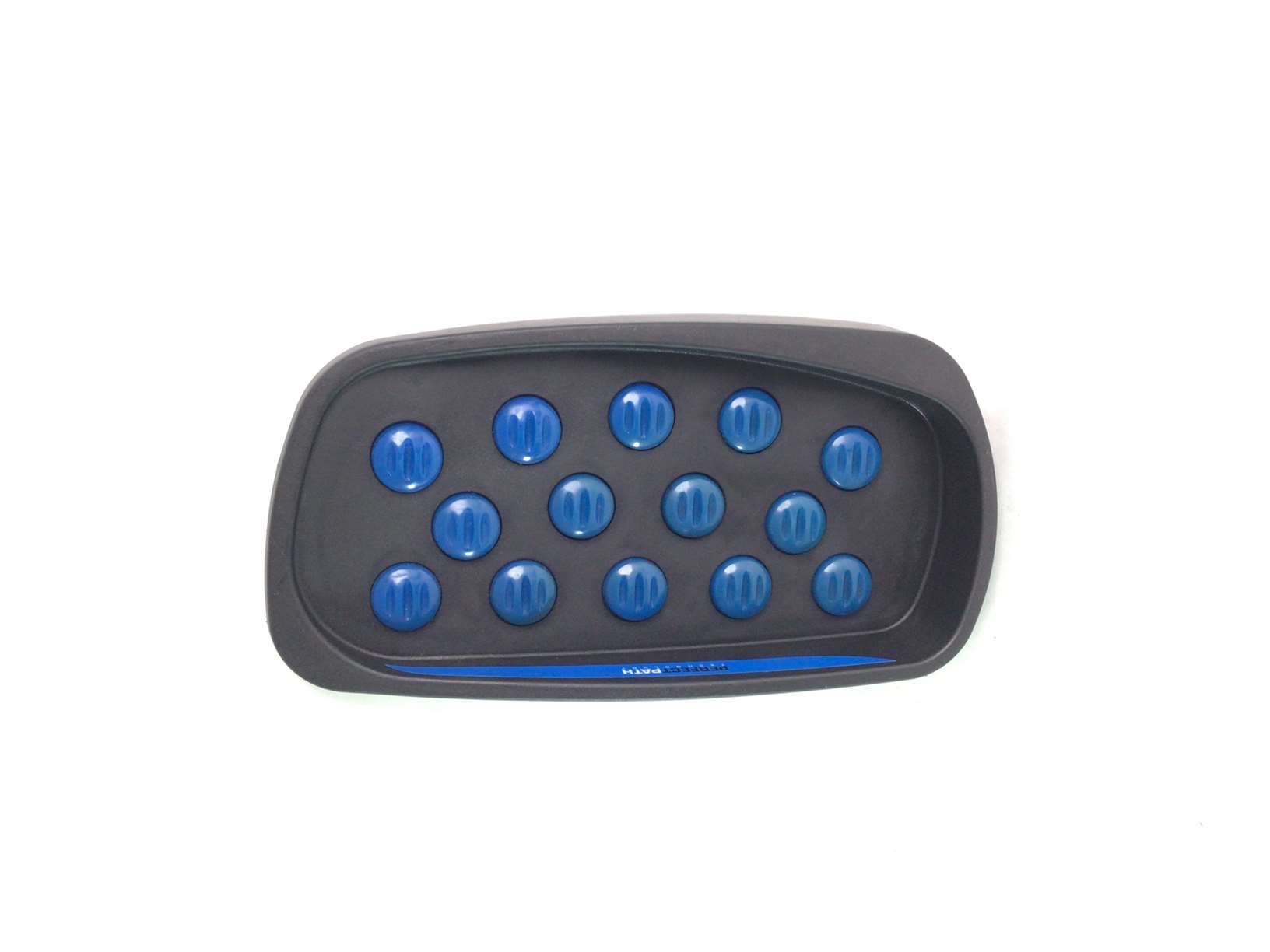

LEFT PEDAL 1027391 404462 49 1 LEFT PEDAL Yes Model Compatibility List $130.00 / Each

31

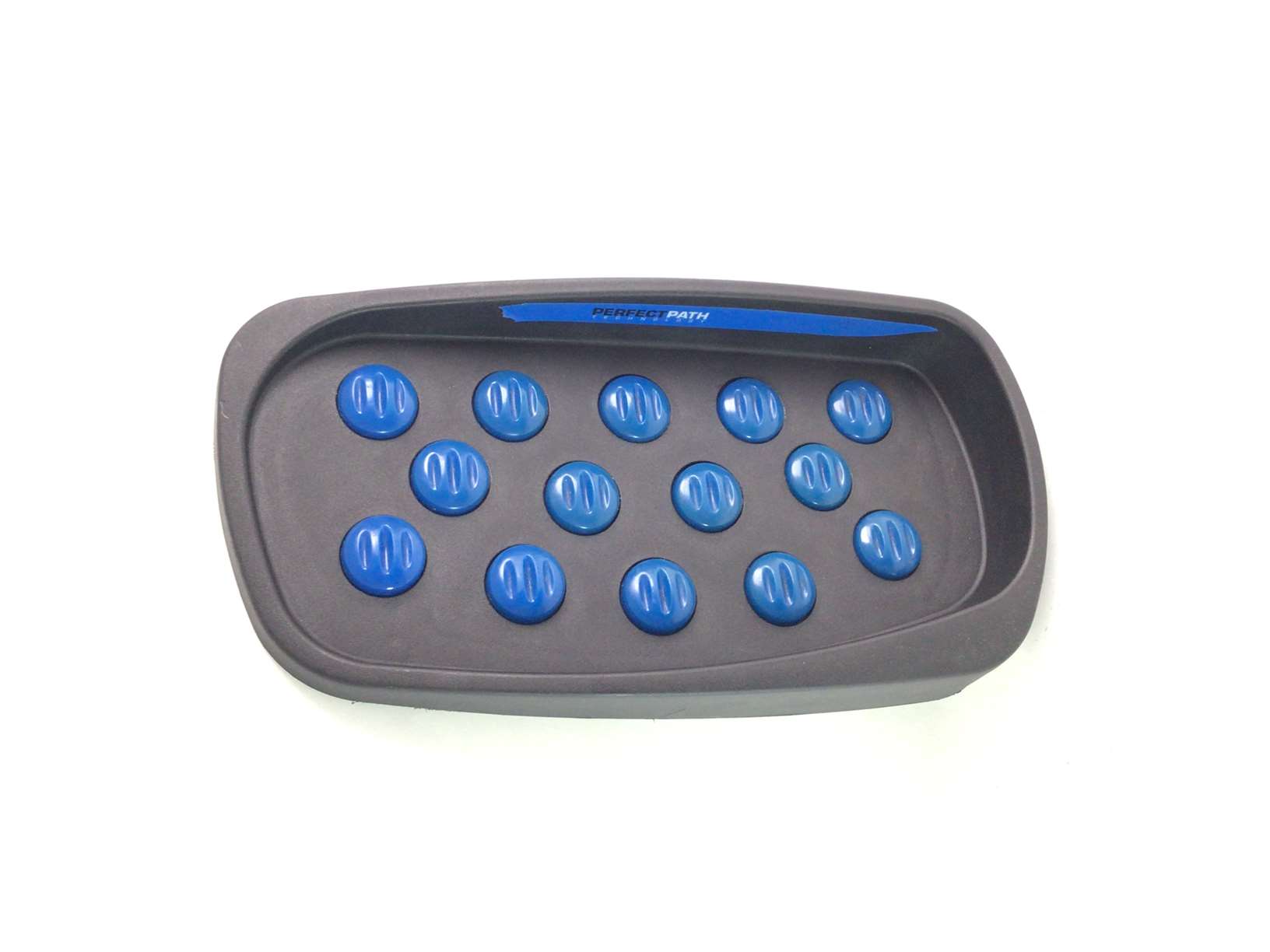

RIGHT PEDAL 1027390 404463 130 1 RIGHT PEDAL Yes Model Compatibility List $130.00 / Each

31

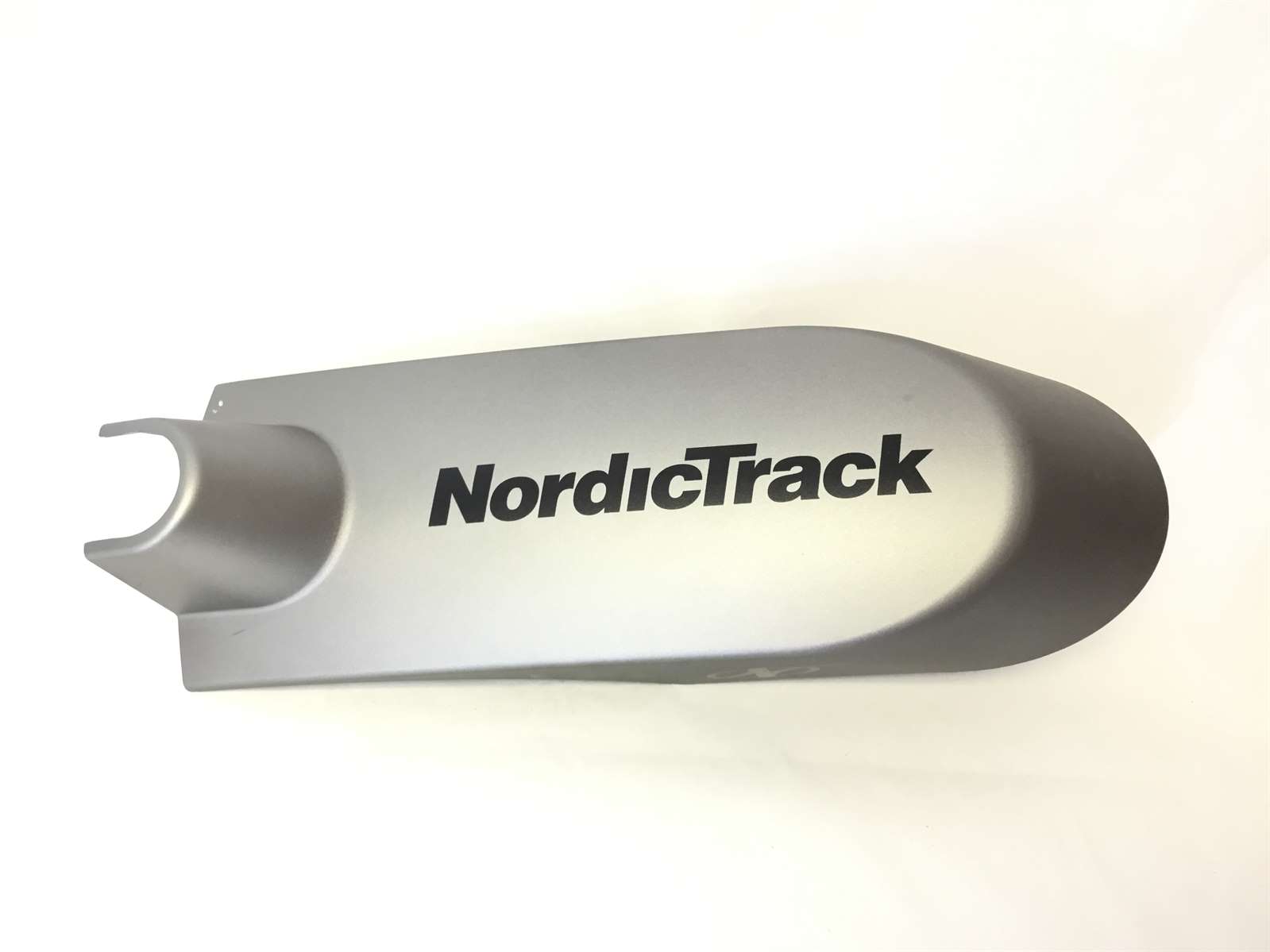

REAR STABILIZER COVER 1027372 404553 15 1 REAR STABILIZER COVER Yes Model Compatibility List $72.00 / Each

18

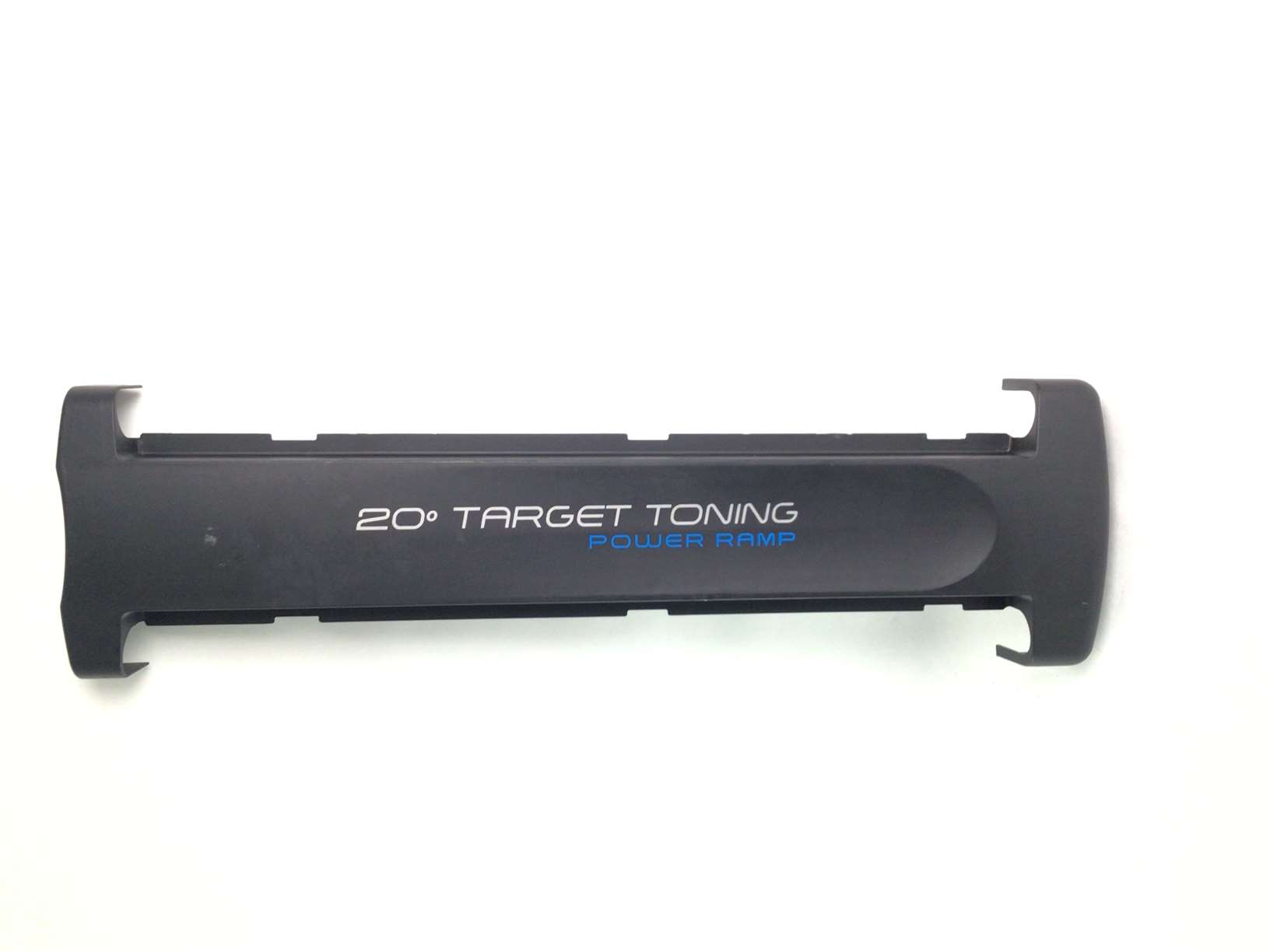

RAMP COVER 1027387 404554 10 1 RAMP COVER Yes Model Compatibility List $110.00 / Each

18
Tack (Used) 1027360 371314 16A 2 Tack (Used) Yes Model Compatibility List $31.08 / Each
Out Of Stock
1
Eddy Brake Mechanism 1002952 362898 Eddy Brake Mechanism Yes Model Compatibility List $149.00 / Each
Out Of Stock
1
Cup Holder Accessory Tray (New) 1012628 335818 Cup Holder Accessory Tray (New) Yes Model Compatibility List $45.99 / Each

4,5,6
Magnetic Brake Generator W/ Motor 1005834 193223 Magnetic Brake Generator W/ Motor Yes Model Compatibility List $149.00 / Each

28
Screw M6 X 12MM (New) 1011871 262341 Screw M6 X 12MM (New) Yes Model Compatibility List $14.99 / Each

2,45
View Drawing
