NordicTrack® - A.C.T. COMMERCIAL PLUS

Repair Parts for NordicTrack® A.C.T. COMMERCIAL PLUS NTEL716120

Brand: NordicTrack®

Category: Commercial Ellipticals

Type: Elliptical

Model Name: A.C.T. COMMERCIAL PLUS

Exploded Diagrams

Other Languages Available

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
LUBE, GREASE 100396 104838 # LUBE, GREASE No Model Compatibility List $6.19 / Each

1,15
ROLLER MAGNET 100081 113842 88 ROLLER MAGNET Yes Model Compatibility List $1.10 / Each

8,1
100186 116566 # 15 1/2" CABLE TIE No Model Compatibility List $0.76 / Each

2,4,5,6,1
RELEASABLE WIRE TIE 100064 116926 # RELEASABLE WIRE TIE No Model Compatibility List $0.25 / Each

1,4,2
40MM X 50MM INT ENDCAP 106302 117544 36 40MM X 50MM INT ENDCAP Yes Model Compatibility List $3.12 / Each

1
RSW CLAMP 100079 131090 87 RSW CLAMP Yes Model Compatibility List $0.46 / Each

4,5,6,2,1,47
M4 X 12MM GROUND SCREW 101860 013222 # M4 X 12MM GROUND SCREW No Model Compatibility List $2.75 / Each

WIRE TIE 100073 132315 # WIRE TIE No Model Compatibility List $0.56 / Each

2,4,5,6,1
DRIVE BELT 101320 132699 57 DRIVE BELT Yes Model Compatibility List $43.25 / Each

23
BEARING 100657 139703 50 BEARING Yes Model Compatibility List $24.46 / Each

1
100828 140069 # SNAP RING PLIERS, 1" EXT No Model Compatibility List $143.47 / Each

2,1
M10 FLAT WASHER 100027 140206 64 M10 FLAT WASHER No Model Compatibility List $1.33 / Each

2
LARGE SNAP RING 100654 143742 59 LARGE SNAP RING Yes Model Compatibility List $1.84 / Each

1
FLOOR MAT 36X72 100097 146119 # FLOOR MAT 36X72" No Model Compatibility List $42.90 / Each

1
M10 LOCKNUT 100540 148710 76 M10 LOCKNUT No Model Compatibility List $1.57 / Each

2
8 100063 016057 # 8" CABLE TIE No Model Compatibility List $1.30 / Each

M4 X 12MM SCREW 101004 168267 72 M4 X 12MM SCREW Yes Model Compatibility List $0.22 / Each

2,1
101209 171902 58A HEART RATE MNTR TRNSMTR No Model Compatibility List $98.78 / Each

12,13,14
101194 171904 58B CHEST STRAP No Model Compatibility List $21.00 / Each

1
101864 184126 67A M4 X 16MM SCREW No Model Compatibility List $0.47 / Each

2
REED SWITCH/WIRE 100953 186070 86 REED SWITCH/WIRE Yes Model Compatibility List $27.83 / Each

47
M8 X 13MM BUTTON SCREW 100669 191032 62 M8 X 13MM BUTTON SCREW Yes Model Compatibility List $1.34 / Each

2,1
RESISTANCE MOTOR 100647 193223 30 RESISTANCE MOTOR Yes Model Compatibility List $106.74 / Each

28
M4 X 16MM SCREW 100586 195562 67B M4 X 16MM SCREW Yes Model Compatibility List $1.49 / Each

2
M8 X 19MM SCREW 100583 207682 71 M8 X 19MM SCREW No Model Compatibility List $2.87 / Each

1
PIVOT SCREW 101001 208163 103 PIVOT SCREW Yes Model Compatibility List $1.20 / Each

2,8
AUDIO WIRE,18 100197 215823 # AUDIO WIRE,18 Yes Model Compatibility List $8.87 / Each

4,5,6
LARGE SNAP RING 100795 229541 60 LARGE SNAP RING No Model Compatibility List $3.16 / Each

2
LEVELING FOOT 101146 237631 52 LEVELING FOOT Yes Model Compatibility List $6.69 / Each

9,46
M6 X 10MM BUTTON HEAD SCREW 100775 242711 78A M6 X 10MM BUTTON HEAD SCREW No Model Compatibility List $0.52 / Each

2
BUSHING ASSY 101696 247253 37 BUSHING ASSY No Model Compatibility List $34.79 / Each

8
M10 X 20MM PATCH SCREW 101417 248334 61 M10 X 20MM PATCH SCREW Yes Model Compatibility List $3.83 / Each

2
100789 250181 98 M4 X 16MM RND HEAD SCRW No Model Compatibility List $0.46 / Each

1,2
HANGER BEARING 105913 251313 44 HANGER BEARING Yes Model Compatibility List $38.19 / Each

1
LARGE PULLEY 101170 255072 53 LARGE PULLEY Yes Model Compatibility List $77.97 / Each

37
M8 NUT 100030 256446 101 M8 NUT No Model Compatibility List $0.69 / Each

2
M10 X 73MM BUTTON BOLT 108949 258847 69 M10 X 73MM BUTTON BOLT No Model Compatibility List $4.18 / Each

1
129333 259931 47 CRANK SPACER No Model Compatibility List $28.86 / Each

2,8,3,4,5,6
THRUST WASHER 108934 259935 45 THRUST WASHER No Model Compatibility List $4.42 / Each

1
SMALL ADJUSTMENT BUSHING 129325 259954 34 SMALL ADJUSTMENT BUSHING No Model Compatibility List $15.47 / Each

1
PEDAL ARM ROLLER 108935 259956 46 PEDAL ARM ROLLER Yes Model Compatibility List $160.85 / Each

1
LARGE ADJUSTMENT BUSHING 129326 259963 35 LARGE ADJUSTMENT BUSHING No Model Compatibility List $59.40 / Each

1
CLIP 129338 260014 85 CLIP Yes Model Compatibility List $7.71 / Each

1
ADJUSTMENT SPRING 129327 260238 38 ADJUSTMENT SPRING No Model Compatibility List $10.27 / Each

1
PULSE WIRE 30 101186 260951 99 PULSE WIRE 30 Yes Model Compatibility List $22.35 / Each

1
108939 261373 51 WHEEL No Model Compatibility List $17.58 / Each

8
M6 X 12MM SCREW 101189 262341 78B M6 X 12MM SCREW Yes Model Compatibility List $2.64 / Each

2,45
129337 263102 56 PEDAL AXLE ENDCAP No Model Compatibility List $2.55 / Each

8,9,4,5,6
M4 X 64MM SCREW, NOTE: 105918 265269 73 M4 X 64MM SCREW, NOTE: No Model Compatibility List $3.13 / Each

1
M4 X 30MM SCREW 120478 265270 74 M4 X 30MM SCREW No Model Compatibility List $2.66 / Each

1
IDLER SCREW 101010 281150 97 IDLER SCREW Yes Model Compatibility List $3.36 / Each

2,8
BELT ADJUSTMENT SCREW 101000 281156 79 BELT ADJUSTMENT SCREW No Model Compatibility List $6.47 / Each

1
WAVE WASHER 101005 287202 75 WAVE WASHER No Model Compatibility List $2.54 / Each

2,4,5,6
M12 X 55 HEX BOLT 129374 288961 65 M12 X 55 HEX BOLT No Model Compatibility List $10.32 / Each

2
M12 LOCKNUT 128863 288962 66 M12 LOCKNUT No Model Compatibility List $6.51 / Each

2
M8 X 25MM FLAT PATCH SCRW 129375 289152 68 M8 X 25MM FLAT PATCH SCRW No Model Compatibility List $4.52 / Each

1
POWER JACK WIRE 129377 297183 83 POWER JACK WIRE Yes Model Compatibility List $64.35 / Each
Out Of Stock 		4,5,6
101867 297255 # 5MM ALLEN WRENCH No Model Compatibility List $5.51 / Each

2,1
101868 297256 # 6MM ALLEN WRENCH No Model Compatibility List $9.37 / Each

2,1
101065 304974 # 4MM ALLEN WRENCH No Model Compatibility List $3.11 / Each

2,1
130387 313703 # DECAL, LT STRIDE ADJ No Model Compatibility List $2.79 / Each

7,3
130388 313704 # DECAL, RT STRIDE ADJ No Model Compatibility List $2.79 / Each

7,3
131142 313705 # DECAL, STRIDE LENGTH No Model Compatibility List $19.67 / Each

7,3
130383 314038 95B LEFT PEDAL PLATE No Model Compatibility List $37.05 / Each

8,9
130382 314042 104 RIGHT PEDAL INSERT No Model Compatibility List $105.30 / Each

8,9
130381 314043 105 LEFT PEDAL INSERT No Model Compatibility List $105.30 / Each

8,9
130338 314049 6 LEFT SMALL RAIL COVER No Model Compatibility List $10.32 / Each

9
130339 314052 7 RIGHT SMALL RAIL COVER No Model Compatibility List $10.32 / Each

9
130361 314059 31 HANDLEBAR COVER No Model Compatibility List $6.28 / Each

9,11
130384 314121 9B RIGHT PEDAL PLATE No Model Compatibility List $37.05 / Each

8,9

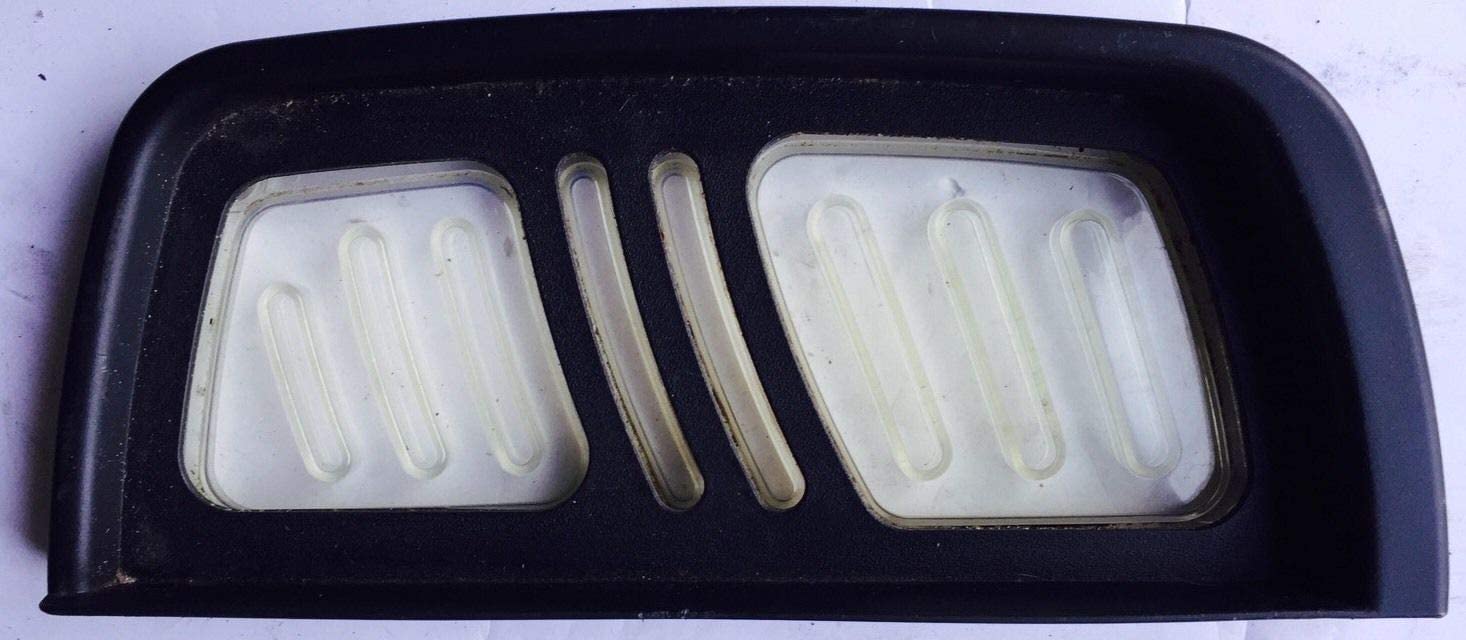

RIGHT PEDAL 130341 314122 9A RIGHT PEDAL Yes Model Compatibility List $117.01 / Each

8,9

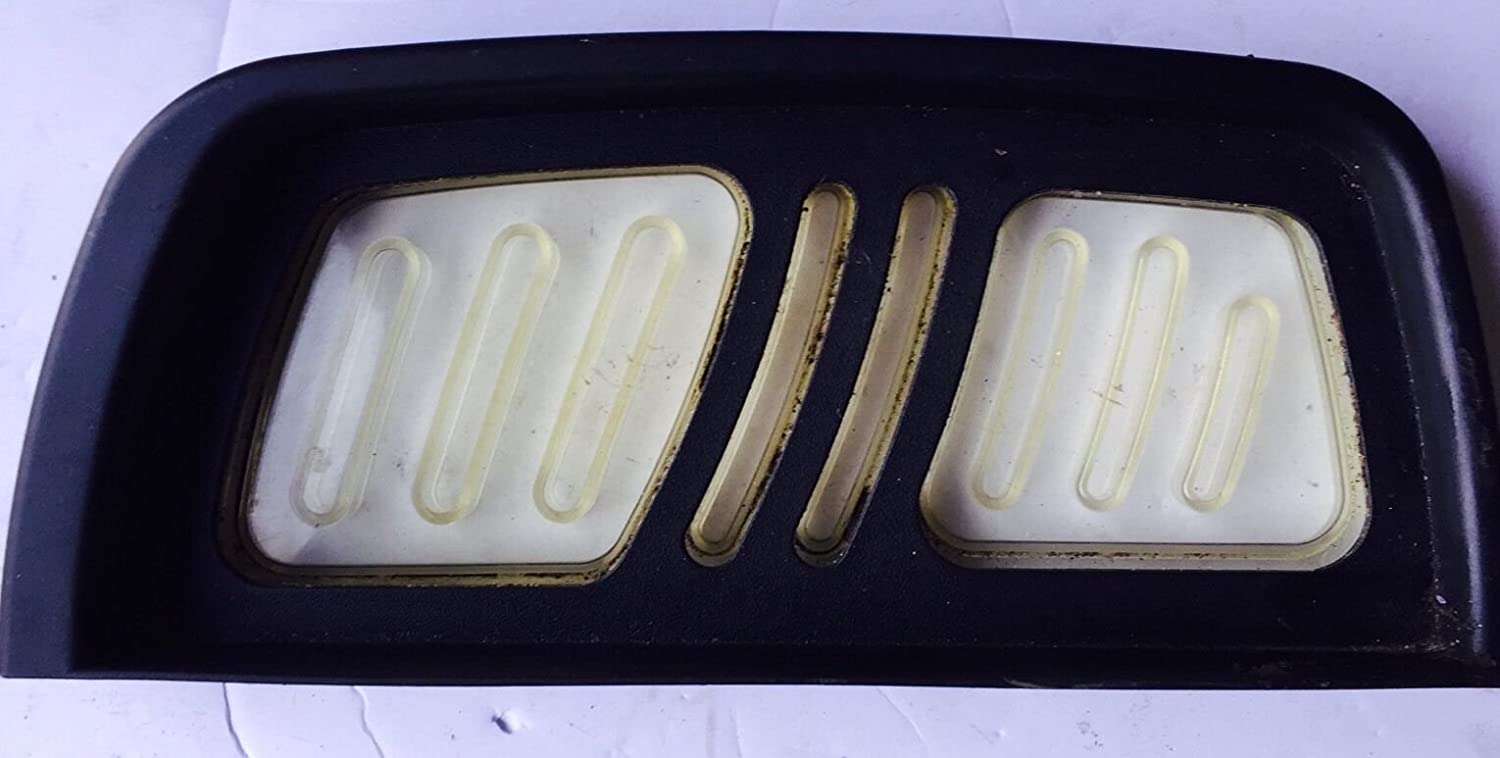

LEFT PEDAL 130378 314123 95A LEFT PEDAL Yes Model Compatibility List $117.01 / Each

8,9
130379 314125 77 ALUMINUM COVER No Model Compatibility List $111.16 / Each

9
130370 314136 54 FRAME COVER No Model Compatibility List $23.31 / Each

9,3
130368 314137 48 CRANK COVER No Model Compatibility List $58.50 / Each

8,9
131126 314138 21 RIGHT UPRIGHT COVER No Model Compatibility List $55.58 / Each

9,3
130352 314139 20 LEFT UPRIGHT COVER No Model Compatibility List $53.24 / Each

9,3
130357 314140 25 RIGHT INNER LEG COVER No Model Compatibility List $34.72 / Each

9
130356 314142 24 LEFT INNER LEG COVER No Model Compatibility List $34.72 / Each

9
130362 314144 39 PEDAL AXLE COVER No Model Compatibility List $2.32 / Each

8,9
130358 314145 26 ADJUSTMENT ARM COVER No Model Compatibility List $17.02 / Each

9,3
130087 314258 81 UPRIGHT WIRE No Model Compatibility List $49.15 / Each

3,4,5,6
130375 314322 93 RIGHT LARGE RAIL COVER No Model Compatibility List $58.50 / Each

9
130355 314325 23 RIGHT OUTER LEG COVER No Model Compatibility List $25.91 / Each

9
130350 314331 18 LEFT INNER SHIELD No Model Compatibility List $220.19 / Each

3
130354 314344 22 LEFT OUTER LEG COVER No Model Compatibility List $25.91 / Each

9

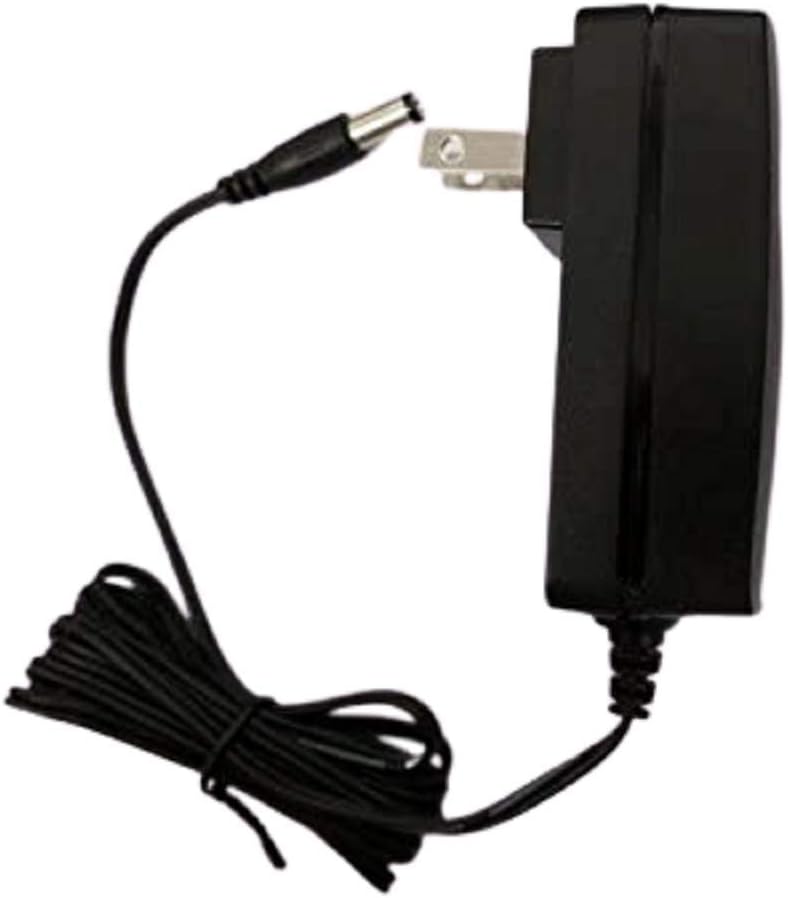

POWER ADAPTER 130371 317189 84 POWER ADAPTER Yes Model Compatibility List $32.99 / Each

4,5,6

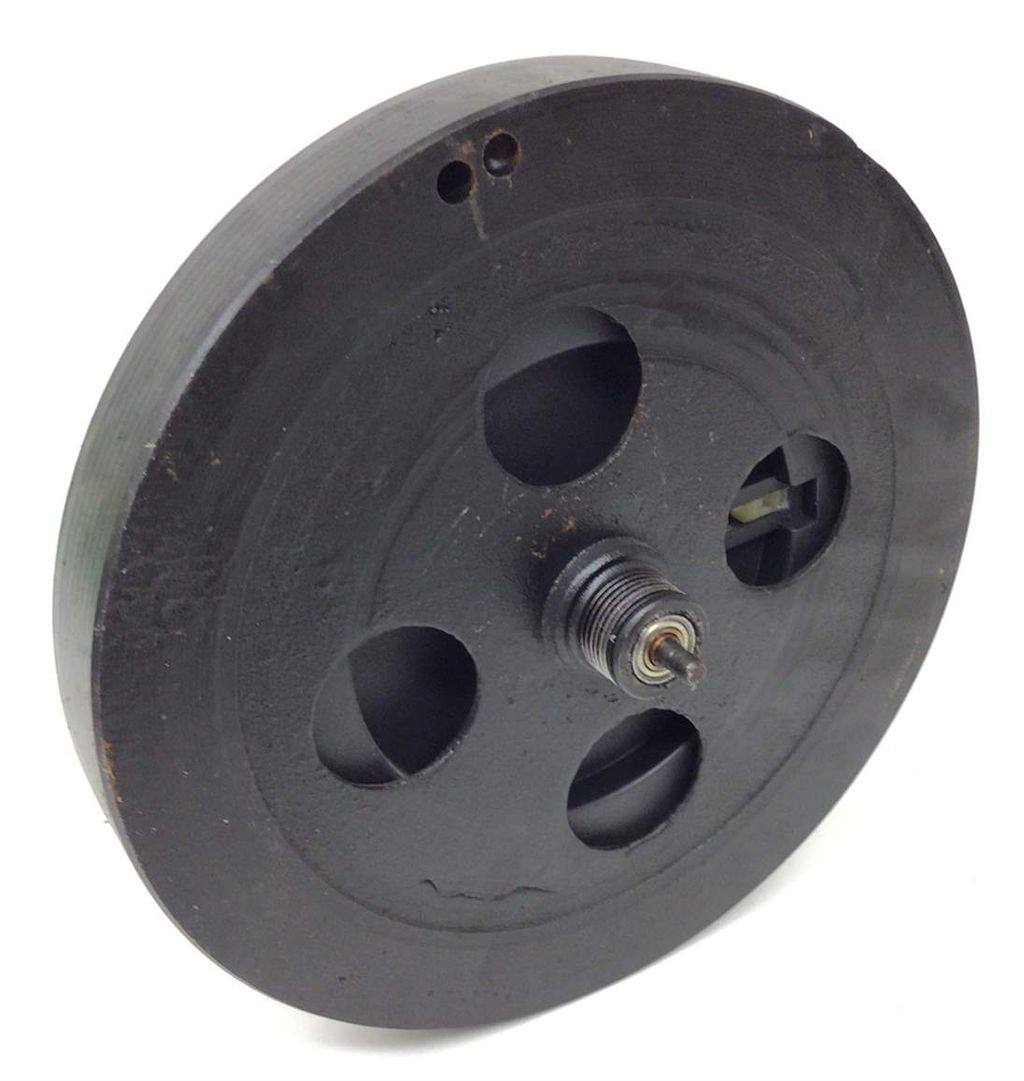

EDDY MECHANISM 100943 321221 55A EDDY MECHANISM Yes Model Compatibility List $648.00 / Each

8
RESISTANCE CABLE 101064 321353 55E RESISTANCE CABLE Yes Model Compatibility List $18.06 / Each

4,5,6,10,49
FRAME WIRE 130104 322069 82 FRAME WIRE Yes Model Compatibility List $70.20 / Each

3,4,5,6
FLWH SPACER 101062 322163 55D FLWH SPACER No Model Compatibility List $2.92 / Each

2,3,4,5,6
130369 322512 49 ADJUSTMENT PIN No Model Compatibility List $68.25 / Each

12,13,14
130878 322526 # M14 FLAT WSHR, STRIDE ADJ No Model Compatibility List $0.69 / Each

2,12,13,14

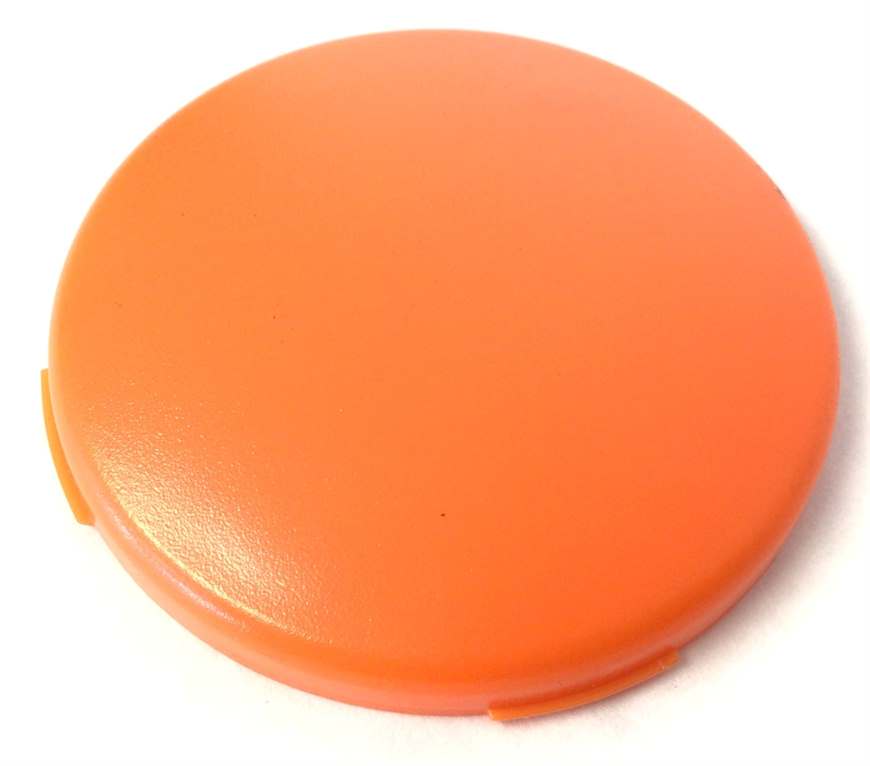

KNOB ENDCAP 130385 322528 96 KNOB ENDCAP No Model Compatibility List $5.81 / Each

9,4,5,6
101101 323876 # DECAL, GENERAL WARNING No Model Compatibility List $3.02 / Each

7,3
130873 325719 19 RIGHT INNER SHIELD No Model Compatibility List $155.16 / Each

3
100944 325938 55B MECHANISM AXLE No Model Compatibility List $16.47 / Each

8
130360 326765 28 ADJUSTMENT KNOB Yes Model Compatibility List $29.25 / Each

1
129793 338041 91 RIGHT GRIP ASSY No Model Compatibility List $97.50 / Each

11
129804 338044 89 RIGHT SENSOR ASSY Yes Model Compatibility List $58.50 / Each

1
129805 338045 94 LEFT SENSOR/WIRE Yes Model Compatibility List $58.50 / Each

4,5,6
131127 338661 27 ADJUSTMENT ARM No Model Compatibility List $81.91 / Each

3
131117 338662 8 PEDAL LEG No Model Compatibility List $143.80 / Each

8,9
131122 338664 14 LEFT PEDAL ARM No Model Compatibility List $233.87 / Each

8,9,3
131123 338665 15 RIGHT PEDAL ARM No Model Compatibility List $233.87 / Each
Out Of Stock 		8,9,3
131131 338666 41 RIGHT CRANK BRACKET No Model Compatibility List $133.94 / Each

2,8,3,4,5,6
131132 338667 42 LEFT CRANK BRACKET No Model Compatibility List $105.74 / Each

2,8,3,4,5,6

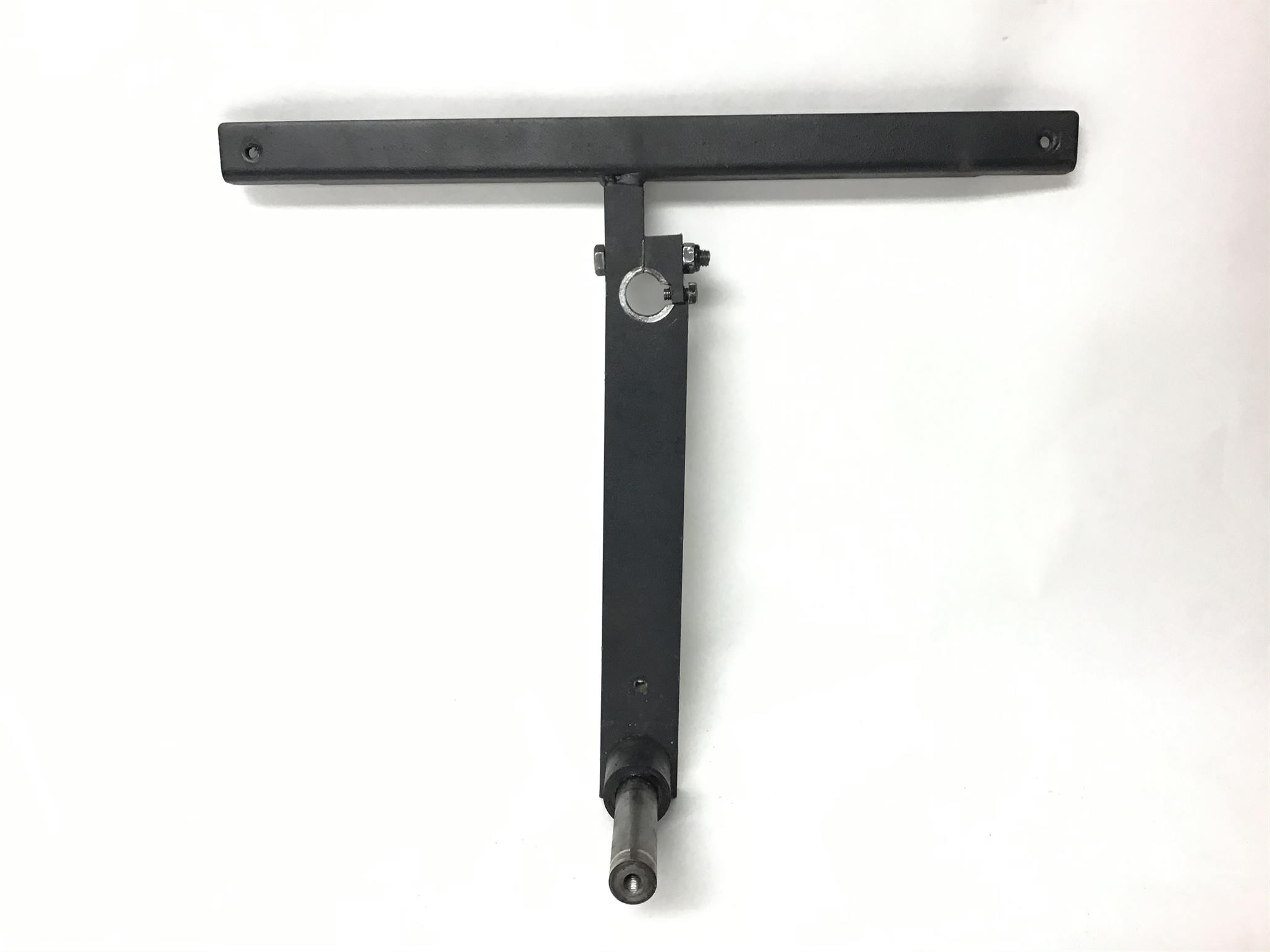

CRANK 131130 338670 40 CRANK Yes Model Compatibility List $132.11 / Each
Out Of Stock 		8
131128 338681 29 LEFT CONTROL GRIP No Model Compatibility List $91.64 / Each

7,11
131115 338759 4 LEFT HANDRAIL No Model Compatibility List $115.61 / Each

9,3
131116 338760 5 RIGHT HANDRAIL No Model Compatibility List $115.61 / Each

9,3
131119 338813 11 RIGHT HANDLEBAR No Model Compatibility List $104.32 / Each
Out Of Stock 		11
131118 338814 10 LEFT HANDLEBAR No Model Compatibility List $104.32 / Each

11
131129 338852 33 PIVOT BUSHING No Model Compatibility List $16.21 / Each

8
131120 339097 12 LEFT HANDLEBAR LEG No Model Compatibility List $303.47 / Each

11
131121 339098 13 RIGHT HANDLEBAR LEG No Model Compatibility List $303.47 / Each

11
131138 339163 92 RIGHT CONTROL GRIP WIRE No Model Compatibility List $22.20 / Each

7,4,5,6,11
131135 339164 70 LEFT CONTROL GRIP WIRE No Model Compatibility List $20.35 / Each

7,4,5,6,11
131136 339165 80 RIGHT EXTENSION WIRE No Model Compatibility List $18.50 / Each

4,5,6
131139 339166 100 LEFT EXTENSION WIRE No Model Compatibility List $17.58 / Each

4,5,6
131137 339168 90 LEFT RAIL COVER No Model Compatibility List $133.94 / Each

9
131492 339195 # USER-S MANUAL No Model Compatibility List $9.22 / Each

1
131488 339256 2 UPRIGHT No Model Compatibility List $383.33 / Each
Out Of Stock 		3
131490 339257 17 RIGHT OUTER SHIELD No Model Compatibility List $212.88 / Each

3
131489 339258 16 LEFT OUTER SHIELD No Model Compatibility List $183.68 / Each

3
131491 344162 # CNSL REPROG MICRO SD CARD No Model Compatibility List $117.42 / Each
Out Of Stock 		7
131494 346120 # "AA" CNSL REPROG THUMB DR No Model Compatibility List $0.00 / Each
Out Of Stock 		7
131133 355988 43A LT PEDAL ARM BRACKET No Model Compatibility List $122.08 / Each
Out Of Stock 		2,8,9,3,4,5,6
131134 355992 43B RT PEDAL ARM BRACKET No Model Compatibility List $122.08 / Each
Out Of Stock 		2,8,9,3,4,5,6
IDLER 100939 363093 32 IDLER Yes Model Compatibility List $58.30 / Each

8
131493 366741 # "AA" CNSL REPROG MICRO SD No Model Compatibility List $114.67 / Each
Out Of Stock 		7
M6 Flat Washer (Used) 1020703 014033 36 1 M6 Flat Washer (Used) Yes Model Compatibility List $2.02 / Each

Ebony Plastic U Clip 013165 260014 0 1 Ebony Plastic U Clip Yes Model Compatibility List $15.99 / Each

1
Flat Screw M8 X 25MM 013279 289152 0 1 Flat Screw M8 X 25MM No Model Compatibility List $14.99 / Each

1
Screw M4 X 64MM 013288 265269 0 1 Screw M4 X 64MM No Model Compatibility List $12.99 / Each

1
Heart Rate Pulse Wire Harness 30 013289 260951 0 1 Heart Rate Pulse Wire Harness 30" Yes Model Compatibility List $32.99 / Each

1
Large Adjustment Bushing 013291 259963 0 1 Large Adjustment Bushing No Model Compatibility List $62.99 / Each

1
Small Adjustment Bushing 013298 259954 0 1 Small Adjustment Bushing No Model Compatibility List $24.99 / Each

1
Button Bolt M10 X 73MM 013302 258847 0 1 Button Bolt M10 X 73MM No Model Compatibility List $15.99 / Each

1
.Lock Nut M6 013303 254769 0 1 .Lock Nut M6 No Model Compatibility List $12.99 / Each

1
Screw M8 X 19MM 013335 207682 95 1 Screw M8 X 19MM No Model Compatibility List $2.87 / Each

1
Hanger Bearing 1000438 251313 88 1 Hanger Bearing Yes Model Compatibility List $38.19 / Each

1
Pedal Arm Roller 1000446 259956 0 1 Pedal Arm Roller Yes Model Compatibility List $146.23 / Each

1
Bearing Sealed 1002777 139703 33 1 Bearing Sealed Yes Model Compatibility List $24.46 / Each

1
Pulley 1002802 255072 29 1 Pulley Yes Model Compatibility List $77.97 / Each

37
Foot Leveler 1003996 237631 60 1 Foot Leveler Yes Model Compatibility List $6.69 / Each

9,46
Locknut 1004197 288962 159 1 Locknut No Model Compatibility List $6.51 / Each

2
M12 X 55 Hex Bolt 1004199 288961 0 1 M12 X 55 Hex Bolt No Model Compatibility List $19.99 / Each

2
M8 Locking Nut 1004787 256446 108 1 M8 Locking Nut No Model Compatibility List $0.69 / Each

2
Button Screw M8 X 13MM 1005194 191032 82A 1 Button Screw M8 X 13MM Yes Model Compatibility List $1.34 / Each

2,1
M10 Locknut 1005195 148710 53 1 M10 Locknut No Model Compatibility List $1.57 / Each

2
Idler Bracket Assembly 1006636 363093 0 1 Idler Bracket Assembly Yes Model Compatibility List $67.99 / Each

8
Resistance Gear Motor Brake Tensioner 1008084 193223 25 1 Resistance Gear Motor Brake Tensioner Yes Model Compatibility List $106.74 / Each

28
Wave Washer 1008244 287202 0 1 Wave Washer No Model Compatibility List $9.99 / Each

Main Motor Drive Belt 1008387 144762 0 1 Main Motor Drive Belt Yes Model Compatibility List $67.99 / Each

15
Magnet 1009452 113842 137 1 Magnet Yes Model Compatibility List $1.10 / Each

8,1
Adjuster Resistor Cable 1009747 321353 0 1 Adjuster Resistor Cable Yes Model Compatibility List $29.99 / Each

4,5,6,10,49
Idler Bolt 101010 281150 97 1 Idler Bolt Yes Model Compatibility List $3.36 / Each

2,8
Resistance Motor 1010426 193223 25 1 Resistance Motor Yes Model Compatibility List $106.74 / Each

28
Axle Screw M10 X 19MM 1010514 248334 105 1 Axle Screw M10 X 19MM Yes Model Compatibility List $3.83 / Each

2
Pedal Arm Roller 1011140 259956 46 1 Pedal Arm Roller Yes Model Compatibility List $161.99 / Each

1
Idler Washer M6 1011790 014033 0 1 Idler Washer M6 Yes Model Compatibility List $12.99 / Each

Reed Switch Cable Retainer Clamp 1011798 131090 114 1 Reed Switch Cable Retainer Clamp Yes Model Compatibility List $0.46 / Each

4,5,6,2,1,47
Screw M4 X 12MM 1011802 168267 82 1 Screw M4 X 12MM Yes Model Compatibility List $0.22 / Each

2,1
Idler Screw 1011833 208163 84 1 Idler Screw Yes Model Compatibility List $1.20 / Each

2,8
Idler Bracket Assembly 1011844 363093 0 1 Idler Bracket Assembly Yes Model Compatibility List $68.99 / Each

8
Hand Sensor Wire Harness 101186 260951 99 1 Hand Sensor Wire Harness Yes Model Compatibility List $32.99 / Each

1
AC Adapter Power Supply 1000871 317189 AC Adapter Power Supply Yes Model Compatibility List $19.99 / Each

4,5,6
OEM AC Adapter Power Supply Cord 1001328 317189 OEM AC Adapter Power Supply Cord Yes Model Compatibility List $39.99 / Each

4,5,6
Reed Switch RPM Speed Sensor 1002520 186070 Reed Switch RPM Speed Sensor Yes Model Compatibility List $21.99 / Each

47
BUSHING ASSY (New) 1008441 247253 BUSHING ASSY (New) Yes Model Compatibility List $42.99 / Each
Out Of Stock 		8
Large Bearing (New) 1003396 139703 Large Bearing (New) Yes Model Compatibility List $29.99 / Each

1
FLYWHEEL 1037071 321221 FLYWHEEL Yes Model Compatibility List $223.50 / Each

8
Magnetic Brake Generator W/ Motor 1005834 193223 Magnetic Brake Generator W/ Motor Yes Model Compatibility List $149.00 / Each

28
Screw M6 X 12MM (New) 1011871 262341 Screw M6 X 12MM (New) Yes Model Compatibility List $14.99 / Each

2,45
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
