NordicTrack® - AUDIO STRIDER 600

Exploded Diagrams

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
#6 X 9.5MM SCREW 101448 100244 # #6 X 9.5MM SCREW No Model Compatibility List $0.08 / Each

2
SNAP RING 100630 100488 # SNAP RING No Model Compatibility List $2.71 / Each

2
5/16 101664 102372 96 5/16" WASHER No Model Compatibility List $0.21 / Each

9
LUBE, GREASE 100396 104838 # LUBE, GREASE No Model Compatibility List $6.19 / Each

1,15
ROLLER MAGNET 100081 113842 # ROLLER MAGNET Yes Model Compatibility List $1.10 / Each

8,1
100814 115366 77 TRANSPORT HANDLE ENDCAP No Model Compatibility List $0.55 / Each

9,4,5,6,11
38MM ROUND INNER CAP 114216 116980 73 38MM ROUND INNER CAP Yes Model Compatibility List $2.11 / Each

9,46
M6 LOCKNUT 101429 012142 94 M6 LOCKNUT No Model Compatibility List $1.98 / Each

FRONT STABILIZER ENDCAP 100732 130656 16 FRONT STABILIZER ENDCAP Yes Model Compatibility List $6.70 / Each

4,5,6,9
RSW CLAMP 100079 131090 51 RSW CLAMP Yes Model Compatibility List $0.46 / Each

4,5,6,2,1,47
100828 140069 # SNAP RING PLIERS, 1" EXT No Model Compatibility List $143.47 / Each

2,1
M10 FLAT WASHER 100027 140206 98 M10 FLAT WASHER No Model Compatibility List $1.33 / Each

2
38MM X 76MM INNER CAP 100894 141510 76 38MM X 76MM INNER CAP Yes Model Compatibility List $5.31 / Each

9
M8 SPLIT WASHER 100665 014174 97 M8 SPLIT WASHER No Model Compatibility List $2.48 / Each

LARGE SNAP RING 100654 143742 62 LARGE SNAP RING Yes Model Compatibility List $1.84 / Each

1
M10 LOCKNUT 100540 148710 82 M10 LOCKNUT No Model Compatibility List $1.57 / Each

2
FRONT WHEEL 100467 148803 17 FRONT WHEEL Yes Model Compatibility List $2.52 / Each

8,45
100602 166909 # PAD FRAME WARNING DECAL No Model Compatibility List $1.84 / Each

7,3,12,13,14,1
REED SWITCH/WIRE 100752 170205 50 REED SWITCH/WIRE Yes Model Compatibility List $15.46 / Each

4,5,6
M10 SPLIT WASHER 108804 177034 99 M10 SPLIT WASHER No Model Compatibility List $2.27 / Each

1
M8 X 35MM SCREW 100785 183870 89 M8 X 35MM SCREW Yes Model Compatibility List $1.61 / Each

2
M4 X 16MM SCREW 106040 184369 81 M4 X 16MM SCREW No Model Compatibility List $0.47 / Each

2
WHEEL BEARING 101275 185387 42 WHEEL BEARING Yes Model Compatibility List $10.75 / Each

8
M8 X 25MM PATCH SCREW 102049 186409 87 M8 X 25MM PATCH SCREW No Model Compatibility List $2.32 / Each

2
HANDLEBAR CAP 101335 186477 8 HANDLEBAR CAP Yes Model Compatibility List $3.36 / Each

9,11,46
CONTROL POWER BOARD PB30IS 109842 187992 81 CONTROL POWER BOARD PB30IS Yes Model Compatibility List $106.23 / Each

7
100796 193109 95 M8 SMALL WASHER No Model Compatibility List $2.78 / Each

2
M4 X 16MM SCREW 100586 195562 78 M4 X 16MM SCREW Yes Model Compatibility List $1.49 / Each

2
UPPER WIRE HARNESS 30 116241 197780 65 UPPER WIRE HARNESS 30" Yes Model Compatibility List $72.02 / Each

4
BELT 100697 201296 74 BELT Yes Model Compatibility List $106.39 / Each

23
M8 X 22MM BUTTON SCREW 120945 204230 86 M8 X 22MM BUTTON SCREW No Model Compatibility List $2.55 / Each

2
M8 X 14MM BUTTON SCREW 115304 204486 84 M8 X 14MM BUTTON SCREW No Model Compatibility List $2.09 / Each

2
WAVE WASHER 101362 204489 102 WAVE WASHER No Model Compatibility List $2.99 / Each

2,4,5,6
M8 X 19MM SCREW 100583 207682 85 M8 X 19MM SCREW No Model Compatibility List $2.87 / Each

1
100557 208581 100 M10 X 25MM BOLT No Model Compatibility List $3.73 / Each

2
M4 X 16MM SCREW 101187 208817 80 M4 X 16MM SCREW No Model Compatibility List $0.46 / Each

2,1
M10 X 60MM BUTTON SCREW 100779 208938 91 M10 X 60MM BUTTON SCREW Yes Model Compatibility List $4.51 / Each

2
M8-1.25 X 45MM Button Head Screw 113421 212500 90 M8-1.25 X 45MM Button Head Screw Yes Model Compatibility List $3.83 / Each

2
WAVE WASHER 100797 213148 101 WAVE WASHER No Model Compatibility List $4.64 / Each

2
AUDIO WIRE,18 100197 215823 # AUDIO WIRE,18 Yes Model Compatibility List $8.87 / Each

4,5,6
CRANK HUB 100743 228084 58A CRANK HUB Yes Model Compatibility List $87.85 / Each

8
PULLEY PLATE 12.152 100745 228085 57A PULLEY PLATE 12.152"OD Yes Model Compatibility List $57.15 / Each

8
PILLOW BLOCK 101587 231745 46B PILLOW BLOCK Yes Model Compatibility List $22.30 / Each

1
M10 X 80MM BUTTON  HEAD SCREW 129561 234664 93 M10 X 80MM BUTTON HEAD SCREW No Model Compatibility List $3.86 / Each

2
REISTANCE MOTOR 101588 241949 49 REISTANCE MOTOR Yes Model Compatibility List $76.77 / Each

1
101677 241952 # EDDY LINK ARM No Model Compatibility List $5.65 / Each

8,3
RESISTANCE WHEEL 101173 241954 # RESISTANCE WHEEL No Model Compatibility List $1.29 / Each

1
101577 241963 47 IDLER No Model Compatibility List $44.42 / Each
Out Of Stock
8
101590 241967 # IDLER WASHER No Model Compatibility List $1.03 / Each

2,8
PEDAL LEG COVER -PIVOT 115424 242651 66 PEDAL LEG COVER -PIVOT Yes Model Compatibility List $4.99 / Each

8,9
M6 X 18MM IDLER SCREW 101592 242710 # M6 X 18MM IDLER SCREW Yes Model Compatibility List $0.53 / Each

2,8
M6 X 10MM BUTTON  HEAD SCREW 100775 242711 83 M6 X 10MM BUTTON HEAD SCREW No Model Compatibility List $0.52 / Each

2
IDLER SNAP RING 101063 243374 # IDLER SNAP RING Yes Model Compatibility List $1.32 / Each

2,8,1
IDLER PULLEY 101589 244245 48 IDLER PULLEY Yes Model Compatibility List $26.07 / Each

8
100826 244325 # BATTERY DOOR No Model Compatibility List $6.42 / Each

1
131568 246724 # DECAL, GENERAL WARNING No Model Compatibility List $1.16 / Each

7,3
LEFT PEDAL BRACKET W/ WELDNUTS 131550 247239 5 LEFT PEDAL BRACKET W/ WELDNUTS Yes Model Compatibility List $60.92 / Each

3
RIGHT PEDAL BRACKET 131551 247240 6 RIGHT PEDAL BRACKET Yes Model Compatibility List $59.42 / Each

3
131563 247241 69 LATCH BRACKET No Model Compatibility List $8.70 / Each

2,3,4,5,6
PEDAL ARM 131557 247242 32 PEDAL ARM Yes Model Compatibility List $115.13 / Each

3
LATCH AXLE 3.05 129535 247251 25 LATCH AXLE 3.05" Yes Model Compatibility List $21.66 / Each

8
LINK AXLE, GROOVED 2.55 115920 247252 18 LINK AXLE, GROOVED 2.55" Yes Model Compatibility List $7.88 / Each

8
BUSHING ASSY 101696 247253 67 BUSHING ASSY No Model Compatibility List $34.79 / Each

8
109895 247255 7 SMALL BUSHING No Model Compatibility List $27.91 / Each

1
101158 247256 68 UPRIGHT BUSHING No Model Compatibility List $8.62 / Each

8,3
UPPER BODY AXLE AXLE,.625 129552 247257 71 UPPER BODY AXLE AXLE,.625",THRD,INT,15.1" Yes Model Compatibility List $32.97 / Each

8
PIVOT BUSHING 129532 247258 21 PIVOT BUSHING No Model Compatibility List $10.74 / Each

8
PIVOT AXLE .75 129551 247259 70 PIVOT AXLE .75" DIA Yes Model Compatibility List $38.71 / Each

8

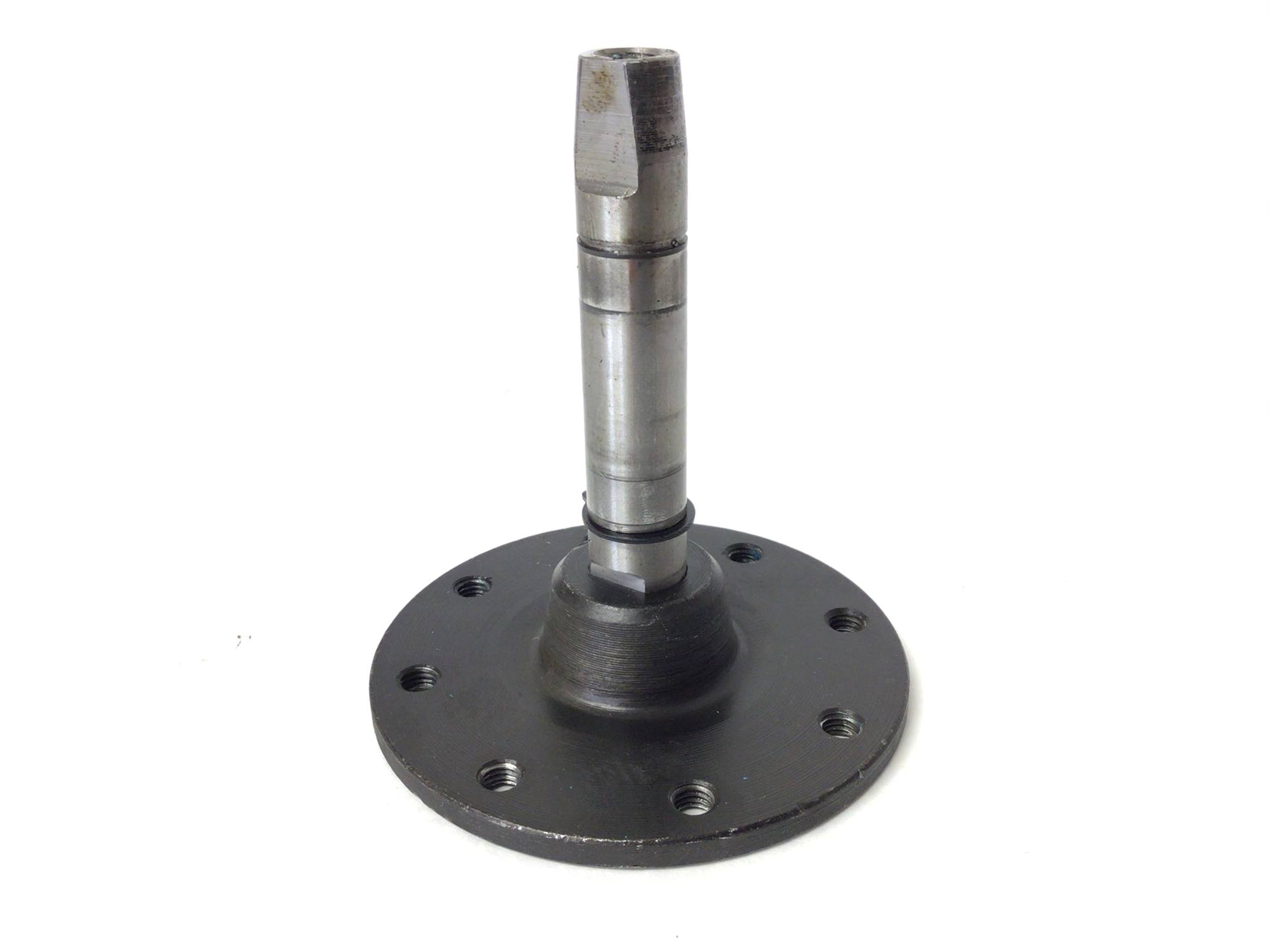

CRANK 131562 247260 61A CRANK Yes Model Compatibility List $44.86 / Each

8
CRANK ARM 129939 247261 55 CRANK ARM Yes Model Compatibility List $123.21 / Each

3,8
CRANK ARM SPACER 131561 247262 56A CRANK ARM SPACER Yes Model Compatibility List $9.89 / Each

8
115935 247263 40 CENTER FOOT No Model Compatibility List $9.59 / Each
Out Of Stock
9
LEG SPACER 129904 247264 9 LEG SPACER Yes Model Compatibility List $1.92 / Each
Out Of Stock
2,3,4,5,6
PEDAL ARM COVER 131560 247265 39 PEDAL ARM COVER Yes Model Compatibility List $20.72 / Each

9
LEFT FRAME COVER 129543 247266 36 LEFT FRAME COVER Yes Model Compatibility List $22.11 / Each
9
RIGHT FRAME COVER 129544 247267 37 RIGHT FRAME COVER Yes Model Compatibility List $25.51 / Each

3,9
LEFT PEDAL 131558 247268 34 LEFT PEDAL Yes Model Compatibility List $100.74 / Each
Out Of Stock
8,9
RIGHT PEDAL 131559 247269 35 RIGHT PEDAL Yes Model Compatibility List $100.74 / Each

8,9
DISC CRANK LEFT RIGHT 131553 247270 12 DISC CRANK LEFT RIGHT Yes Model Compatibility List $97.89 / Each

9
LEFT SIDE SHIELD 129528 247271 14 LEFT SIDE SHIELD Yes Model Compatibility List $107.38 / Each

3
RIGHT SIDE SHIELD 129529 247272 15 RIGHT SIDE SHIELD Yes Model Compatibility List $106.73 / Each
3
LINK ARM PAD 115937 247274 43 LINK ARM PAD Yes Model Compatibility List $6.37 / Each

3
LATCH BRACKET SPRING 101165 247275 38 LATCH BRACKET SPRING Yes Model Compatibility List $5.58 / Each

3
LT FRONT UPPER BODY CVR 129536 247276 27 LT FRONT UPPER BODY CVR Yes Model Compatibility List $18.47 / Each

9
RT FRONT UPPER BODY CVR 129538 247278 29 RT FRONT UPPER BODY CVR Yes Model Compatibility List $18.88 / Each

9
RT REAR UPPER BODY CVR 129537 247279 28 RT REAR UPPER BODY CVR Yes Model Compatibility List $21.18 / Each

9
LEFT UPRIGHT COVER 129530 247280 19 LEFT UPRIGHT COVER Yes Model Compatibility List $20.46 / Each

3,9
RIGHT UPRIGHT COVER 129531 247281 20 RIGHT UPRIGHT COVER Yes Model Compatibility List $20.46 / Each

3,9
115936 247282 41 LATCH BUTTON No Model Compatibility List $4.79 / Each

1
LOWER WIRE HARNESS 129549 247347 64 LOWER WIRE HARNESS Yes Model Compatibility List $72.00 / Each
4
131567 247355 # USER-S MANUAL No Model Compatibility List $9.16 / Each

1
M8 X 25MM BOLT SET 129554 247390 88 M8 X 25MM BOLT SET No Model Compatibility List $4.51 / Each

2
131549 247391 4 FRONT STABILIZER No Model Compatibility List $64.69 / Each

1

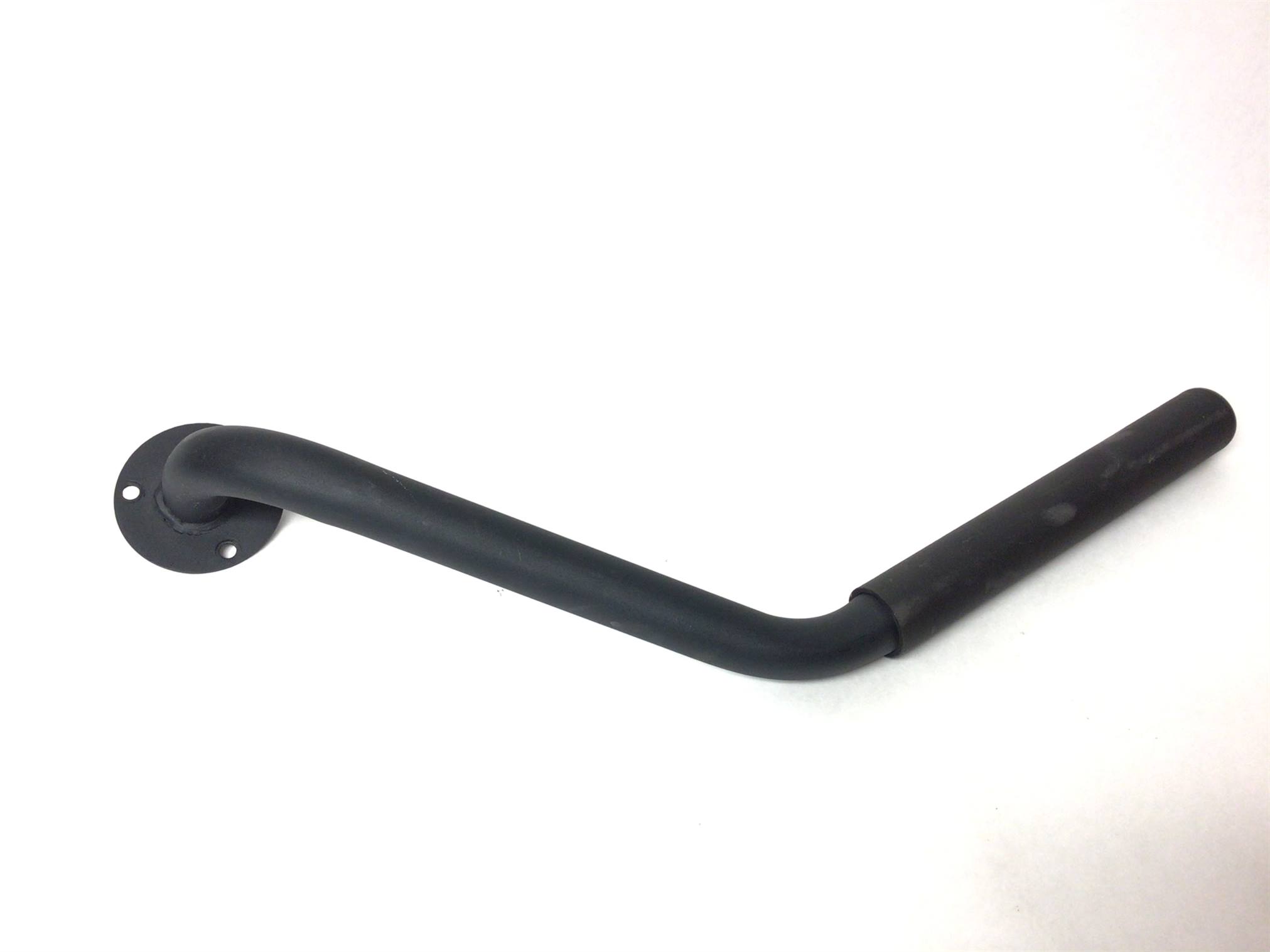

LEFT UPPER BODY ARM 131555 247402 22 LEFT UPPER BODY ARM Yes Model Compatibility List $95.39 / Each

3
RIGHT UPPER BODY ARM 131556 247403 23 RIGHT UPPER BODY ARM Yes Model Compatibility List $59.95 / Each

3
131552 247406 10 UPRIGHT No Model Compatibility List $120.66 / Each

3
129547 248273 60A CRANK SPACER No Model Compatibility List $4.98 / Each

2,8,3,4,5,6
POWER SUPPLY 100830 248512 # POWER SUPPLY Yes Model Compatibility List $21.95 / Each

4,5,6
M8 X 23MM WASHER 109029 250868 31 M8 X 23MM WASHER No Model Compatibility List $0.38 / Each

2
M10 X 77MM CARRIAGE BOLT 123114 250913 92 M10 X 77MM CARRIAGE BOLT No Model Compatibility List $12.80 / Each

2
102005 250957 79 M4 X 15MM FLAT HEAD SCREW No Model Compatibility List $0.28 / Each

2
109858 251498 # EXERCISE CHART No Model Compatibility List $5.69 / Each

1
131566 252130 CN, AUDIO CABLE No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6
131565 255932 CN, M4 X 16MM SCREWS No Model Compatibility List $0.00 / Each
Out Of Stock
2
100653 263347 59B RT BEARING HOUSING ASSY No Model Compatibility List $180.34 / Each

1

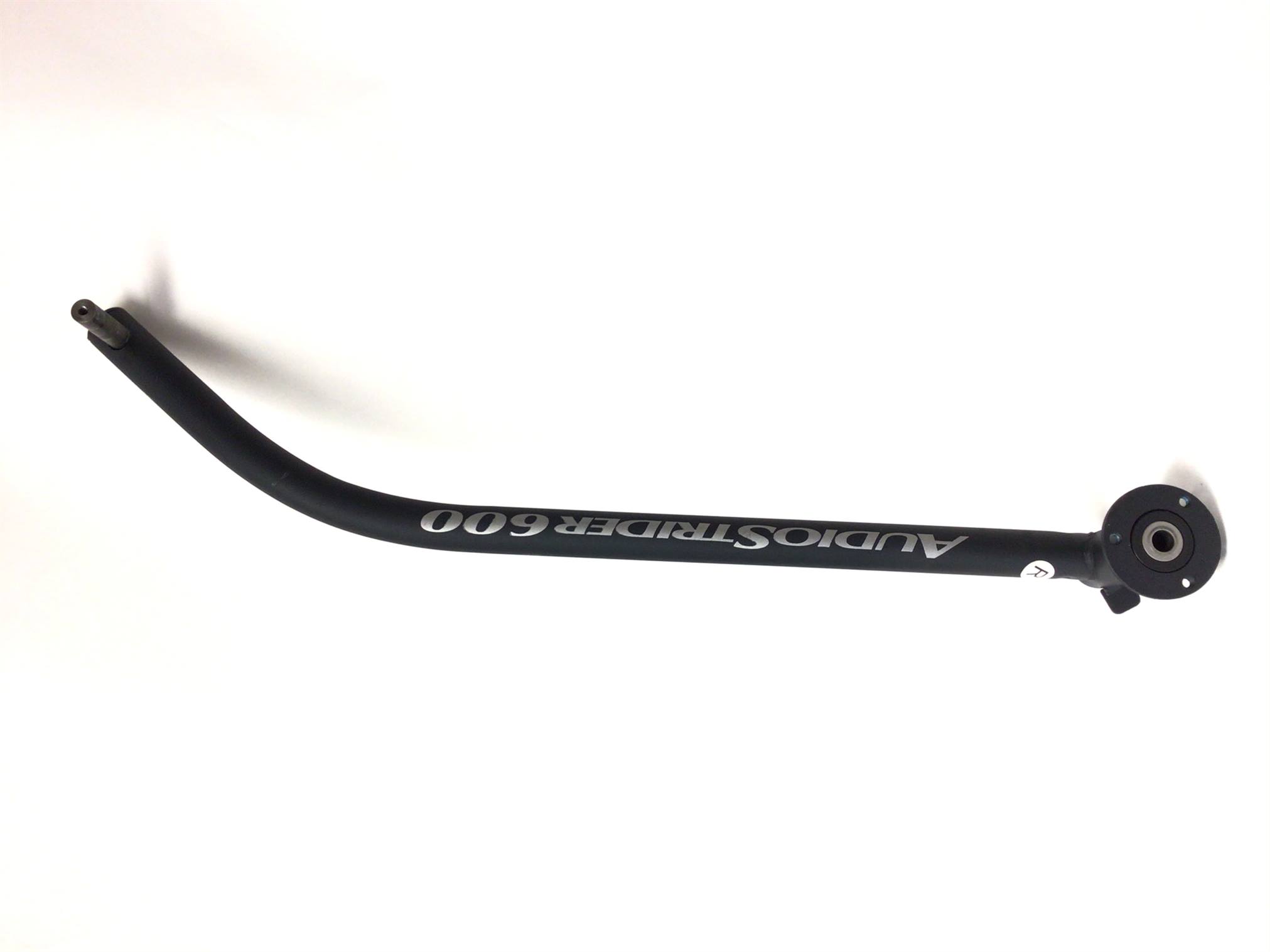

RIGHT UPPER BODY LEG 131564 271230 72 RIGHT UPPER BODY LEG Yes Model Compatibility List $115.13 / Each
Out Of Stock
1
131554 271232 13 DISC COVER No Model Compatibility List $53.73 / Each

9
REAR STABILIZER 131548 271233 3 REAR STABILIZER Yes Model Compatibility List $143.90 / Each

3
101474 276770 # IFIT SD,JILLIAN MICHAELS No Model Compatibility List $27.49 / Each

1
101475 276771 # IFIT SD,JILLIAN MICHAELS No Model Compatibility List $27.49 / Each

1
101476 276772 # IFIT SD,JILLIAN MICHAELS No Model Compatibility List $27.49 / Each

1
101477 276773 # IFIT SD,JILLIAN MICHAELS No Model Compatibility List $27.49 / Each

1
101478 276774 # IFIT SD,JILLIAN MICHAELS No Model Compatibility List $27.49 / Each

1
101479 276775 # IFIT SD,JILLIAN MICHAELS No Model Compatibility List $27.49 / Each

1
CRANK SCREW 100776 283582 63 CRANK SCREW No Model Compatibility List $47.61 / Each

2,8
101465 290905 # IFIT CARD, WELLNESS, L1 No Model Compatibility List $21.99 / Each

1
101466 290906 # IFIT CARD, WELLNESS, L2 No Model Compatibility List $21.99 / Each

1
101467 290907 # IFIT CARD, WELLNESS, L3 No Model Compatibility List $21.99 / Each

1
101468 290908 # IFIT CARD, WEIGHT LOSS,L1 No Model Compatibility List $21.99 / Each

3
101469 290909 # IFIT CARD, WEIGHT LOSS,L2 No Model Compatibility List $21.99 / Each

3
101470 290910 # IFIT CARD, WEIGHT LOSS,L3 No Model Compatibility List $21.99 / Each

3
5MM ALLEN WRENCH 100604 045008 # 5MM ALLEN WRENCH Yes Model Compatibility List $3.85 / Each

6MM ALLEN WRENCH 100541 045021 # 6MM ALLEN WRENCH Yes Model Compatibility List $5.28 / Each

COVER,PEDAL LEG END CAP,EBONY198846B-USED 1019338 204875 52 2 COVER,PEDAL LEG END CAP,EBONY198846B-USED Yes Model Compatibility List $6.59 / Each

9
COVER,HB,PIVOT,LEFT,REAR,EBONY 1019315 247277 0 1 COVER,HB,PIVOT,LEFT,REAR,EBONY Yes Model Compatibility List $19.99 / Each

9
ELNT7506 DISPLAY CONSOLE (USED) 1019266 247401 0 1 ELNT7506 DISPLAY CONSOLE (USED) Yes Model Compatibility List $179.00 / Each
Out Of Stock
7
LEG,PEDAL,RR,W/BRNG,AND BUMPER -USED 1019389 247404 0 2 LEG,PEDAL,RR,W/BRNG,AND BUMPER -USED Yes Model Compatibility List $119.00 / Each
Out Of Stock
3

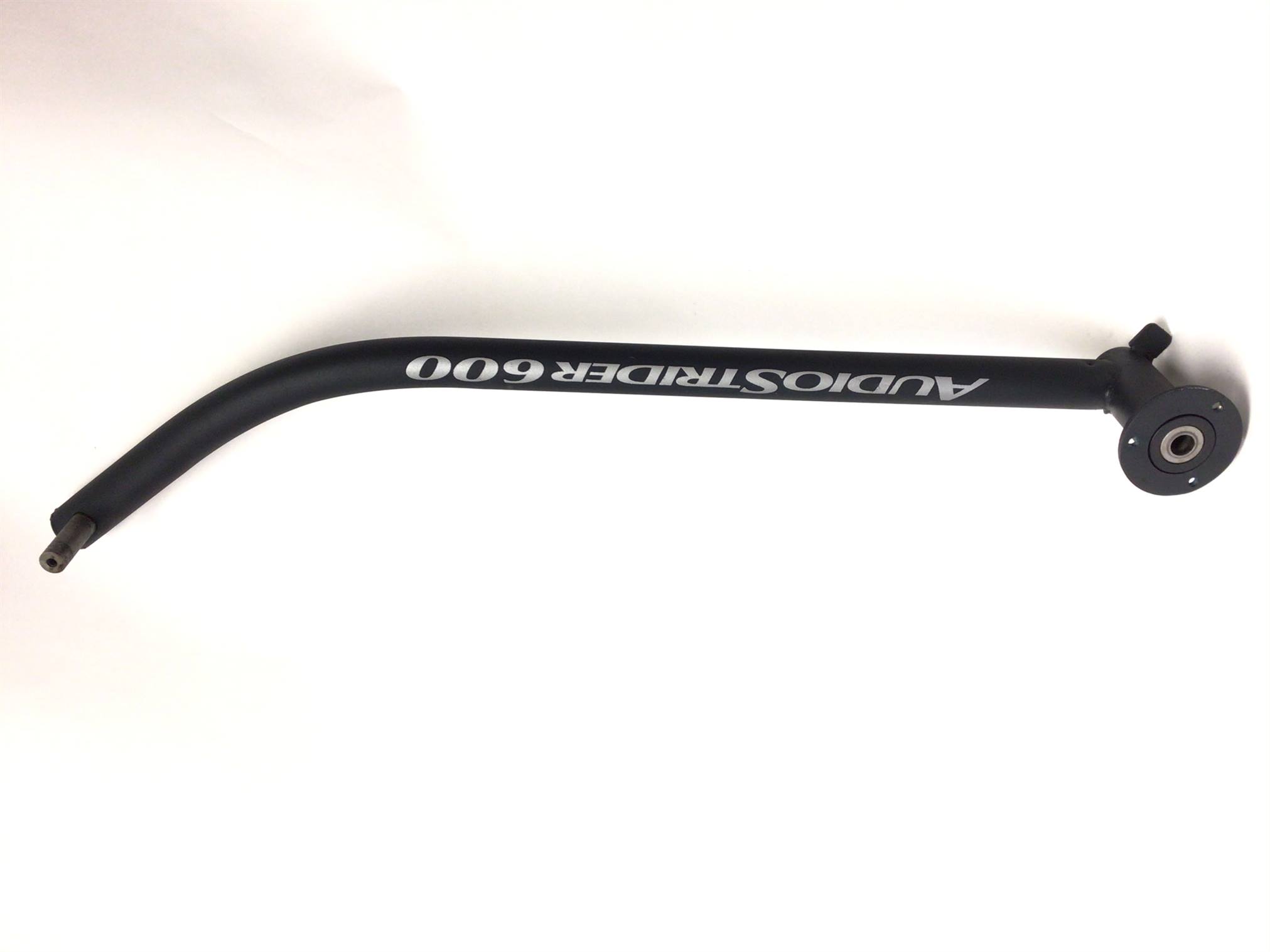

LEFT UPPER BODY LEG-USED 1019337 271231 0 1 LEFT UPPER BODY LEG-USED Yes Model Compatibility List $99.00 / Each
Out Of Stock
3
Pivot Arm Cover 1019362 175580 0 1 Pivot Arm Cover Yes Model Compatibility List $12.99 / Each

9
Arm EncCap Cover 1019361 175581 0 1 Arm EncCap Cover Yes Model Compatibility List $12.99 / Each

9
Handlebar Spacer Cover - Used 1019375 175579 0 1 Handlebar Spacer Cover - Used Yes Model Compatibility List $12.99 / Each

9
M6 Split Washer Lock 1019810 012142 79 4 M6 Split Washer Lock No Model Compatibility List $1.79 / Each

M6 Flat Washer (Used) 1020703 014033 36 1 M6 Flat Washer (Used) Yes Model Compatibility List $2.02 / Each

M8 Split Washer 1004202 014174 0 1 M8 Split Washer No Model Compatibility List $11.99 / Each

Wave Washer 1004211 204489 0 1 Wave Washer No Model Compatibility List $10.99 / Each

2,4,5,6
Speed Sensor 1004489 170205 0 1 Speed Sensor Yes Model Compatibility List $21.99 / Each

4,5,6
M10 Locknut 1005195 148710 53 1 M10 Locknut No Model Compatibility List $1.57 / Each

2
Retainer Snap Ring 1006261 100488 0 1 Retainer Snap Ring No Model Compatibility List $11.99 / Each

2
Screw 1007995 184369 124 1 Screw No Model Compatibility List $0.47 / Each

2
Pivot Bushing 1008444 247258 0 1 Pivot Bushing No Model Compatibility List $22.99 / Each

8
Stabilizer Endcap 38mm X 76mm 100894 141510 76 1 Stabilizer Endcap 38mm X 76mm Yes Model Compatibility List $15.99 / Each

9
Magnet 1009452 113842 137 1 Magnet Yes Model Compatibility List $1.10 / Each

8,1
Retainer Snap Ring 1009932 243374 0 1 Retainer Snap Ring Yes Model Compatibility List $12.99 / Each

2,8,1
Transport Wheel 1010433 148803 17 1 Transport Wheel Yes Model Compatibility List $2.52 / Each

8,45
Idler Snap Ring 101063 243374 # 1 Idler Snap Ring Yes Model Compatibility List $17.99 / Each

2,8,1
Tension Brake Resistance Motor 1011564 241949 0 1 Tension Brake Resistance Motor Yes Model Compatibility List $82.99 / Each

1
Idler Pulley 1011568 244245 0 1 Idler Pulley Yes Model Compatibility List $32.99 / Each

8
Latch Bracket Spring 101165 247275 38 1 Latch Bracket Spring Yes Model Compatibility List $22.99 / Each

3
M8 Locknut 1011772 012042 102B 1 M8 Locknut Yes Model Compatibility List $11.99 / Each

Idler Washer M6 1011790 014033 0 1 Idler Washer M6 Yes Model Compatibility List $12.99 / Each

Reed Switch Cable Retainer Clamp 1011798 131090 114 1 Reed Switch Cable Retainer Clamp Yes Model Compatibility List $0.46 / Each

4,5,6,2,1,47
Bolt M10 X 60MM 1011837 208938 109 1 Bolt M10 X 60MM Yes Model Compatibility List $4.51 / Each

2
Screw M4 X 16mm 101187 208817 80 1 Screw M4 X 16mm No Model Compatibility List $0.46 / Each

2,1
Screw (Used) 1032516 208581 0 1 Screw (Used) No Model Compatibility List $2.99 / Each

2
Idler Pulley 1003772 244245 Idler Pulley Yes Model Compatibility List $10.79 / Each
Out Of Stock
8
AC Adapter Power Supply 999991 248512 AC Adapter Power Supply Yes Model Compatibility List $8.99 / Each

4,5,6
AC Adapter Power Supply 999992 248512 AC Adapter Power Supply Yes Model Compatibility List $14.99 / Each

4,5,6
BUSHING ASSY (New) 1008441 247253 BUSHING ASSY (New) Yes Model Compatibility List $42.99 / Each
Out Of Stock
8
M8 Small Washer (New) 013727 193109 M8 Small Washer (New) Yes Model Compatibility List $12.99 / Each

2
View Drawing
