NordicTrack® - C2255

Repair Parts for NordicTrack® C2255 NTL078064

Brand: NordicTrack®

Category: Residential Treadmills

Type: Folding Treadmill

Model Name: C2255

Exploded Diagrams

Other Languages Available
loader

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Catalog #
MPN
Part List Key
Quantity On Model
Part Description
Notes
Available Used
Model Compatibility List
New price
Upper Main Console Wire 1018783 248526-a 0 1 Upper Main Console Wire Yes Model Compatibility List $31.19 / Each
Out Of Stock 		4
Proform Reebok (Icon) Treadmill Heartrate Bottom Bar 258556 (Used) 1018656 REL8-HBB 0 1 Proform Reebok (Icon) Treadmill Heartrate Bottom Bar 258556 (Used) No Model Compatibility List $15.59 / Each
Out Of Stock 		1
Heart Rate Monitor 013306 237858 0 1 Heart Rate Monitor No Model Compatibility List $158.99 / Each
Out Of Stock 		1
Split Washer 1/4 1004205 014126 0 1 Split Washer 1/4" No Model Compatibility List $10.99 / Each

#8 X 3/4 1004394 013322 0 1 #8 X 3/4" Foot Pedal Screw No Model Compatibility List $5.99 / Each

Incline Motor Wire 10 1004803 201563 0 1 Incline Motor Wire 10" Yes Model Compatibility List $13.42 / Each

4,5,6,10
Motor Drive Belt 1008217 248521 0 1 Motor Drive Belt Yes Model Compatibility List $25.09 / Each

23
Nylock Jam Nut 3/8 1011523 133945 0 1 Nylock Jam Nut 3/8" Yes Model Compatibility List $11.99 / Each

2
Rear Back Idler Roller 220001 246288 Rear Back Idler Roller Yes Model Compatibility List $105.00 / Each

8
Inc. Front Drive Roller 1000580 248405 Inc. Front Drive Roller Yes Model Compatibility List $50.00 / Each

8
Front Drive Roller 1000581 248405 Front Drive Roller Yes Model Compatibility List $129.99 / Each

8
DC Drive Motor 1002646 286633 or 220686 DC Drive Motor Yes Model Compatibility List $193.99 / Each
Out Of Stock
DC Drive Motor 1002710 286633 DC Drive Motor Yes Model Compatibility List $349.00 / Each
Out Of Stock 		28
Incline Lift Elevation Motor 1001356 249516 or 231224 Incline Lift Elevation Motor Yes Model Compatibility List $74.99 / Each

Motor Controller Lower Board 1001669 259522 Motor Controller Lower Board No Model Compatibility List $159.99 / Each
Out Of Stock
Black Jumper R-R 8 Inch 1036849 200747 Black Jumper R-R 8 Inch Yes Model Compatibility List $3.00 / Each
Out Of Stock 		4,5,6
Power Cord and Surge Protector Combo ICON 1001716 124669 Power Cord and Surge Protector Combo ICON Yes Model Compatibility List $13.19 / Each
Out Of Stock 		6
Motor Hood Shroud Cover 1018554 239404 or 245313 Motor Hood Shroud Cover Yes Model Compatibility List $40.19 / Each

Drive Motor 2.25 HP Version (Used) 1038287 286633 Drive Motor 2.25 HP Version (Used) Yes Model Compatibility List $159.00 / Each
Out Of Stock 		28
Safety Latch Shock 46.5” (Used) 1004973 255033 Safety Latch Shock 46.5” (Used) Yes Model Compatibility List $34.19 / Each
Out Of Stock 		1
Screw (New) 104355 102959 Screw (New) Yes Model Compatibility List $11.99 / Each

1

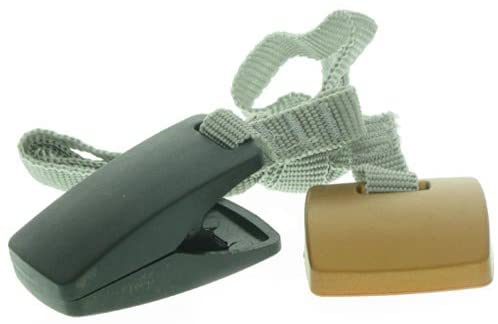

Magnetic Safety Key (Used) MHZ-TJC-K8B 216157 Magnetic Safety Key (Used) Yes Model Compatibility List $8.09 / Each
Out Of Stock 		1
Rail, Foot, Left (Used) 1033062 245354 1 1 Rail, Foot, Left (Used) No Model Compatibility List $47.99 / Each
Out Of Stock
#12 X 1 1/4 102772 251607 2 #12 X 1 1/4" No Model Compatibility List $1.67 / Each

2
ADJUSTOR GUIDE 135650 227255 4 ADJUSTOR GUIDE Yes Model Compatibility List $10.57 / Each

1
5/16 102837 124280 5 5/16" X 4 1/2" BOLT No Model Compatibility List $3.88 / Each

2
Screw #8 X 1/2 1004209 013576 5 1 Screw #8 X 1/2" Yes Model Compatibility List $2.49 / Each

1
100280 256836 6 LATCH WRNG DECAL, ENGLISH No Model Compatibility List $1.50 / Each

7,3
102395 153210 8 #8 X 3/4" FLAT HEAD SCREW No Model Compatibility List $0.21 / Each

2
LATCH CATCH 135645 242026 9 LATCH CATCH Yes Model Compatibility List $10.77 / Each

1
ISOLATOR 135625 248201 10 ISOLATOR Yes Model Compatibility List $24.34 / Each

3
102838 013444 11 1/4" X 1 1/4" BOLT No Model Compatibility List $0.54 / Each

BELT GUIDE 100147 198639 12 BELT GUIDE Yes Model Compatibility List $4.44 / Each

15,40
Idler Pulley Nut 1010877 100427 12 1 Idler Pulley Nut Yes Model Compatibility List $0.46 / Each

2,40
#8 X 1/2 100137 136728 13 #8 X 1/2" SCREW Yes Model Compatibility List $0.30 / Each

2
HANDRAIL BOLT 100255 142622 14 HANDRAIL BOLT No Model Compatibility List $2.18 / Each

2,3,9
135626 247364 15 WALKING PLATFORM No Model Compatibility List $151.43 / Each

15
WALKING BELT 102252 406287 16 WALKING BELT No Model Compatibility List $121.47 / Each

1
FRONT ROLLER 122462 248405 17 FRONT ROLLER Yes Model Compatibility List $132.50 / Each

8
100420 222902 18 MAGNET No Model Compatibility List $13.18 / Each
Out Of Stock 		8
FRAME SPACER 100421 214851 19 FRAME SPACER No Model Compatibility List $2.90 / Each
Out Of Stock 		1
3/8 100031 119425 20 3/8" HEX JAM NUT Yes Model Compatibility List $0.55 / Each

2
REED SWITCH CLIP 100422 216626 21 REED SWITCH CLIP No Model Compatibility List $1.85 / Each

1
REED SWITCH 102795 165798 22 REED SWITCH Yes Model Compatibility List $14.41 / Each

24
#8 X 1/2 100120 186819 23 #8 X 1/2" SCREW Yes Model Compatibility List $0.42 / Each

2
Leveler Foot Bumper 1011801 157600 23 1 Leveler Foot Bumper Yes Model Compatibility List $1.33 / Each

3,12,13,14,46,1
WIRE TIE 100073 132315 24 WIRE TIE No Model Compatibility List $0.56 / Each

1,2,4,5,6
DRIVE MOTOR 102313 286633 25 DRIVE MOTOR Yes Model Compatibility List $358.30 / Each

28
MOTOR BELT 100233 248521 26 MOTOR BELT Yes Model Compatibility List $27.60 / Each

23
SPRING BOLT 100428 122794 27 SPRING BOLT No Model Compatibility List $2.13 / Each

2
RIGHT REAR FOOT 119463 227258 28 RIGHT REAR FOOT Yes Model Compatibility List $20.98 / Each

9
LEFT REAR FOOT 119464 227257 29 LEFT REAR FOOT Yes Model Compatibility List $20.98 / Each

9
LIFT FRAME NUT 100440 128742 30 LIFT FRAME NUT No Model Compatibility List $0.95 / Each

2,3,10
5/16 102452 295758 31 5/16" MOTOR SCREW No Model Compatibility List $1.84 / Each

2
#8 X 3/4 100149 013300 32 #8 X 3/4" WASHER HD SCREW Yes Model Compatibility List $1.28 / Each

1
135627 245313 33 MOTOR HOOD No Model Compatibility List $104.72 / Each

9
#8 HOOD CLIP 100032 133333 34 #8 HOOD CLIP Yes Model Compatibility List $0.65 / Each

1,2,9,46
GROMMET 100061 173169 35 GROMMET Yes Model Compatibility List $0.94 / Each

1,2
UPPER CLEVIS PIN 100431 215942 36 UPPER CLEVIS PIN Yes Model Compatibility List $5.72 / Each

1
COTTER PIN 100432 015044 37 COTTER PIN No Model Compatibility List $1.98 / Each

FRONT ROLLER ADJ BOLT 100433 165220 38 FRONT ROLLER ADJ BOLT No Model Compatibility List $2.79 / Each

1
Nylock Nut 1010890 119425 38 1 Nylock Nut Yes Model Compatibility List $0.55 / Each

2
1/4 102839 142686 39 1/4" FLANGE NUT No Model Compatibility List $7.19 / Each

2
INCLINE MOTOR 102810 249516 40 INCLINE MOTOR Yes Model Compatibility List $126.00 / Each

10
LOWER PIN 100435 194343 41 LOWER PIN Yes Model Compatibility List $5.31 / Each

1
CONTROLLER MC1618DLS 102829 398063 43 CONTROLLER MC1618DLS Yes Model Compatibility List $199.95 / Each

7,48
POWER SWITCH 100201 186726 44 POWER SWITCH Yes Model Compatibility List $16.42 / Each

6
BELLY PAN 135432 239400 45 BELLY PAN Yes Model Compatibility List $84.22 / Each

1
1.25 104342 119445 46 1.25" TEK SCREW No Model Compatibility List $1.46 / Each

2
INCLINE WIRE 102808 201563 48 INCLINE WIRE Yes Model Compatibility List $13.42 / Each

4,5,6,10
3/16-7/32 100190 128457 49 3/16-7/32" ALLEN WRENCH No Model Compatibility List $18.74 / Each

1
TIE CLAMP HOLDER - SCREW MOUNT 100262 116927 50 TIE CLAMP HOLDER - SCREW MOUNT No Model Compatibility List $2.49 / Each

1
RELEASABLE WIRE TIE 100064 116926 51 RELEASABLE WIRE TIE No Model Compatibility List $0.25 / Each

1,2,4
8 100063 016057 52 8" CABLE TIE No Model Compatibility List $1.30 / Each

1
FRONT ROLLER BUSHING 102248 219550 53 FRONT ROLLER BUSHING No Model Compatibility List $2.52 / Each

1
Belt Guide 1008212 198639 53 1 Belt Guide Yes Model Compatibility List $4.44 / Each

15,40
135628 245355 54 RIGHT FOOT RAIL No Model Compatibility List $77.44 / Each

9
Rail, Foot, Right (Used) 1033049 245355 54 1 Rail, Foot, Right (Used) No Model Compatibility List $47.99 / Each

9
102848 155433 56 DRIVE ROLLER GROUND WIRE No Model Compatibility List $1.89 / Each

8,4,5,6,10
PLATFORM NUT 100252 136012 57 PLATFORM NUT No Model Compatibility List $1.47 / Each

1
IDLER WHEEL WASHER 100263 014132 58 IDLER WHEEL WASHER No Model Compatibility List $2.43 / Each

REAR ROLLER WASHER 100283 014126 60 REAR ROLLER WASHER No Model Compatibility List $1.10 / Each

REAR ROLLER ADJ. BOLT 100250 305744 62 REAR ROLLER ADJ. BOLT Yes Model Compatibility List $19.99 / Each

2,8
117962 240152 63 WHEEL PIN No Model Compatibility List $1.45 / Each

8,12,13,14
IDLER ROLLER 119047 246288 64 IDLER ROLLER Yes Model Compatibility List $106.39 / Each

8
IDLER WHEEL BOLT 100229 162866 66 IDLER WHEEL BOLT Yes Model Compatibility List $5.49 / Each

2,8
Star Washer 5/16 100449 014149 67 1 Star Washer 5/16" Yes Model Compatibility List $12.99 / Each

IDLER ARM BOLT 100450 013547 68 IDLER ARM BOLT No Model Compatibility List $2.89 / Each

100451 216573 69 IDLER ARM SPACER No Model Compatibility List $1.67 / Each
Out Of Stock 		2,8,3,4,5,6
135629 245356 70 HANDRAIL No Model Compatibility List $95.58 / Each

9,3
ROUND UPRIGHT ENDCAP 100453 157223 71 ROUND UPRIGHT ENDCAP Yes Model Compatibility List $5.51 / Each

3,4,5,6,9
CONSOLE BOLT 100454 181385 72 CONSOLE BOLT No Model Compatibility List $4.08 / Each

2,7
UPRIGHT WIRE HARNESS 135630 248526 73 UPRIGHT WIRE HARNESS Yes Model Compatibility List $76.26 / Each

3,4,5,6
IDLER ARM 100456 238669 74 IDLER ARM Yes Model Compatibility List $13.67 / Each
3,8
IDLER ARM SPRING 100232 227298 75 IDLER ARM SPRING Yes Model Compatibility List $5.74 / Each

2,3,8
LATCH INSERT 135631 222410 77 LATCH INSERT Yes Model Compatibility List $10.75 / Each

1
HANDRAIL ENDCAP 100459 218172 78 HANDRAIL ENDCAP Yes Model Compatibility List $5.46 / Each

3,4,5,6,9
Power Cord 1002864 31229 78A 1 Power Cord No Model Compatibility List $36.95 / Each

6
Power Supply Line Cord 1002865 31229 78A Power Supply Line Cord Yes Model Compatibility List $11.99 / Each

6
SQUARE UPRIGHT ENDCAP 135632 222139 79 SQUARE UPRIGHT ENDCAP Yes Model Compatibility List $10.32 / Each

3,4,5,6,9
LIFT FRAME BOLT 100461 204429 80 LIFT FRAME BOLT No Model Compatibility List $2.22 / Each

2,3,10
BASE PAD 100076 157600 81 BASE PAD Yes Model Compatibility List $1.33 / Each

3,12,13,14,46,1
100264 146427 82 1" TEK SCREW No Model Compatibility List $0.28 / Each

2
Screw M4 X 12MM 1011802 168267 82 1 Screw M4 X 12MM Yes Model Compatibility List $0.22 / Each

2,1
U-NUT 100462 012179 83 U-NUT No Model Compatibility List $4.42 / Each

100178 252433 84 WARNING DECAL No Model Compatibility List $0.47 / Each

1,3,7
135634 239282 86 BOOK HOLDER No Model Compatibility List $43.13 / Each
Out Of Stock 		1
5/16 101667 203283 87 5/16"X 2" BTN SCRW, NOTE: Yes Model Compatibility List $2.07 / Each

1,2
WHEEL HOUSING 135635 239697 88 WHEEL HOUSING Yes Model Compatibility List $10.14 / Each

8
WHEEL 102868 239698 89 WHEEL Yes Model Compatibility List $1.73 / Each

8
M4 X 12MM SCREW 101004 168267 90 M4 X 12MM SCREW Yes Model Compatibility List $0.22 / Each

2,1
EXTENSION LEG NUT 102261 223547 91 EXTENSION LEG NUT Yes Model Compatibility List $3.06 / Each
Out Of Stock 		2
KNOB INSERT 135636 222260 92 KNOB INSERT Yes Model Compatibility List $4.91 / Each

1
111926 273382 93B IFIT SD CARD KIT No Model Compatibility List $75.82 / Each
Out Of Stock 		1
117596 239197 94 LIFT FRAME No Model Compatibility List $128.18 / Each

3,10
ACCESS DOOR 119282 200028 95 ACCESS DOOR Yes Model Compatibility List $4.70 / Each

6,9
100344 200747 96 GROUND WIRE No Model Compatibility List $2.56 / Each

4,5,6
CONSOLE BASE 135637 247992 98 CONSOLE BASE Yes Model Compatibility List $119.66 / Each
7,3
PULSE SENSOR SCREW 100474 213769 99 PULSE SENSOR SCREW No Model Compatibility List $0.22 / Each

2,12,13,14
PAD SPACER 100247 161411 101 PAD SPACER Yes Model Compatibility List $3.72 / Each

3,9
1/4 100042 014063 102 1/4" FLAT WASHER No Model Compatibility List $1.03 / Each

KEY/CLIP 119481 245920 103 KEY/CLIP Yes Model Compatibility List $19.89 / Each

2,9
Isolator Bottom Cap (Used) 1021786 191665 110 1 Isolator Bottom Cap (Used) Yes Model Compatibility List $8.99 / Each

1
Tinnerman Clip 1011229 133333 126 1 Tinnerman Clip Yes Model Compatibility List $0.65 / Each

2,9,1,46
Fat Switch Version 000698 186726 128 1 Fat Switch Version Yes Model Compatibility List $16.42 / Each

6
4 102281 114011 # 4 Yes Model Compatibility List $4.87 / Each

1,4
4 102280 114012 # 4 Yes Model Compatibility List $2.74 / Each

4,5,6
100186 116566 # 15 1/2" CABLE TIE No Model Compatibility List $0.76 / Each

1,2,4,5,6
102820 118204 # 8" BLUE WIRE,M/F No Model Compatibility List $3.30 / Each

4,5,6
1/4 102840 012090 # 1/4" NUT No Model Compatibility List $1.54 / Each

100088 123945 # TECH SHEET ENVELOPE No Model Compatibility List $0.94 / Each

1
100478 014105 # IDLER PULLEY WASHER No Model Compatibility List $0.21 / Each

100496 148580 # INCLN MTR SNSR WIRE CLIP No Model Compatibility List $1.85 / Each

2,4,5,6
117441 163251 # 10" WHITE WIRE M/F Yes Model Compatibility List $3.52 / Each

4,5,6
125091 191355 # N- LOGO DECAL No Model Compatibility List $10.57 / Each

7,3
125093 195458 # NORDICTRACK LOGO DECAL No Model Compatibility List $5.55 / Each

7,15,3,4,5,6
1 TUBE LUBE KIT 100095 219168 # 1 TUBE LUBE KIT No Model Compatibility List $9.99 / Each

23
3 TUBE LUBE KIT 100096 219170 # 3 TUBE LUBE KIT No Model Compatibility List $28.18 / Each

1
135643 227611 # HARDWARE KIT No Model Compatibility List $33.55 / Each

1
CHEST PULSE KIT 100316 237858 # CHEST PULSE KIT No Model Compatibility List $166.63 / Each
Out Of Stock 		1
135641 239351 # TECH SHEET No Model Compatibility List $0.87 / Each

1
135638 239452 # DECAL,RT DURASOFT CUSHION No Model Compatibility List $4.44 / Each

7,3
135639 239453 # DECAL,LT DURASOFT CUSHION No Model Compatibility List $4.44 / Each

7,3
135647 242790 # USER-S MANUAL No Model Compatibility List $6.23 / Each

1
135640 243183 # DECAL, FRAME -C2255- No Model Compatibility List $5.00 / Each

7,3
135651 249068 # CN - VERSION ID No Model Compatibility List $0.00 / Each
Out Of Stock 		1
101471 274913 # IFIT CARD,CIRCUIT TRNG,L1 No Model Compatibility List $63.16 / Each

4,5,6
101472 274914 # IFIT CARD,CIRCUIT TRNG,L2 No Model Compatibility List $63.16 / Each

4,5,6
101473 274915 # IFIT CARD,CIRCUIT TRNG,L3 No Model Compatibility List $63.16 / Each

4,5,6
102761 276769 # IFIT SD, JILLIAN MICHAELS No Model Compatibility List $27.49 / Each

1
101474 276770 # IFIT SD,JILLIAN MICHAELS No Model Compatibility List $27.49 / Each
Out Of Stock 		1
101475 276771 # IFIT SD,JILLIAN MICHAELS No Model Compatibility List $27.49 / Each

1
101476 276772 # IFIT SD,JILLIAN MICHAELS No Model Compatibility List $27.49 / Each

1
101477 276773 # IFIT SD,JILLIAN MICHAELS No Model Compatibility List $27.49 / Each

1
101478 276774 # IFIT SD,JILLIAN MICHAELS No Model Compatibility List $27.49 / Each

1
101479 276775 # IFIT SD,JILLIAN MICHAELS No Model Compatibility List $27.49 / Each

1
102762 276776 # IFIT SD, JILLIAN MICHAELS No Model Compatibility List $27.49 / Each

1
102763 276777 # IFIT SD, JILLIAN MICHAELS No Model Compatibility List $27.49 / Each

1
102764 276778 # IFIT SD, JILLIAN MICHAELS No Model Compatibility List $27.49 / Each

1
INCLINE MOTOR SENSOR KIT 100162 286707 # INCLINE MOTOR SENSOR KIT No Model Compatibility List $50.13 / Each

47
101465 290905 # IFIT CARD, WELLNESS, L1 No Model Compatibility List $21.99 / Each

1
101466 290906 # IFIT CARD, WELLNESS, L2 No Model Compatibility List $21.99 / Each

1
101467 290907 # IFIT CARD, WELLNESS, L3 No Model Compatibility List $21.99 / Each

1
101468 290908 # IFIT CARD, WEIGHT LOSS,L1 No Model Compatibility List $21.99 / Each

3
101469 290909 # IFIT CARD, WEIGHT LOSS,L2 No Model Compatibility List $21.99 / Each

3
101470 290910 # IFIT CARD, WEIGHT LOSS,L3 No Model Compatibility List $21.99 / Each

3
102760 290931 # IFIT CARD, PERFORMANCE No Model Compatibility List $0.00 / Each
Out Of Stock 		1
100094 356520 # ACCESSORY KIT No Model Compatibility List $42.89 / Each

1,4,5,6
Hardwired Power Cord (Used 1000884 124669 # 1 Hardwired Power Cord (Used Yes Model Compatibility List $16.49 / Each

6
135648 249069 #A THICK SHIM No Model Compatibility List $0.00 / Each
Out Of Stock 		1
100482 225552 #B MOTOR ISOLATOR No Model Compatibility List $2.90 / Each

3
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2025. All Rights Reserved.

Payment options
