NordicTrack® - C2270

Repair Parts for NordicTrack® C2270 NTL12951

Brand: NordicTrack®

Category: Residential Treadmills

Type: Folding Treadmill

Model Name: C2270

Exploded Diagrams

Other Languages Available
loader

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Catalog #
MPN
Part List Key
Quantity On Model
Part Description
Notes
Available Used
Model Compatibility List
New price
Console Top (Used) 1022008 219617 0 1 Console Top (Used) Yes Model Compatibility List $36.59 / Each

1
BRACKET PULSE BAR LEFT (Used) 1024440 216802 0 1 BRACKET PULSE BAR LEFT (Used) No Model Compatibility List $23.99 / Each
Out Of Stock 		1
Front Motor Hood Shroud Cover 013308 222704 0 1 Front Motor Hood Shroud Cover No Model Compatibility List $106.99 / Each

1
Latch Insert Sleeve 013309 219610 0 1 Latch Insert Sleeve No Model Compatibility List $12.99 / Each

1
Plastic Spacer 013328 218117 0 1 Plastic Spacer No Model Compatibility List $12.99 / Each

1
Ball Detent Plunger 013348 173956 0 1 Ball Detent Plunger No Model Compatibility List $13.99 / Each

1
Motor Drive 1002953 293895 0 1 Motor Drive Yes Model Compatibility List $312.55 / Each

28
#8 X 3/4 1004394 013322 0 1 #8 X 3/4" Foot Pedal Screw No Model Compatibility List $5.99 / Each

Incline Motor Wire 10 1004803 201563 0 1 Incline Motor Wire 10" Yes Model Compatibility List $18.99 / Each

4,5,6,10
Upper Arm End Cap (Used) 1009261 214861 0 1 Upper Arm End Cap (Used) No Model Compatibility List $11.99 / Each

Nylock Jam Nut 3/8 1011523 133945 0 1 Nylock Jam Nut 3/8" Yes Model Compatibility List $11.99 / Each

2
Clamp Screw 1011778 013162 0 1 Clamp Screw Yes Model Compatibility List $11.99 / Each

M4 X 13MM SCREW 101030 013162 2 M4 X 13MM SCREW Yes Model Compatibility List $1.26 / Each

FRONT LEFT ENDCAP 136084 219598 3 FRONT LEFT ENDCAP Yes Model Compatibility List $8.09 / Each

9,4,5,6
PLATFORM BOLT, FRONT 1/4 100221 128272 5 PLATFORM BOLT, FRONT 1/4" X1.25" Yes Model Compatibility List $7.04 / Each

2
Screw #8 X 1/2 1004209 013576 5 1 Screw #8 X 1/2" Yes Model Compatibility List $1.99 / Each

1
100280 256836 6 LATCH WRNG DECAL, ENGLISH No Model Compatibility List $1.50 / Each

7,3
IDLER WHEEL BOLT 100229 162866 8 IDLER WHEEL BOLT Yes Model Compatibility List $5.49 / Each

2,8
136472 216914 9 CUSHION DECAL No Model Compatibility List $3.40 / Each

7,3

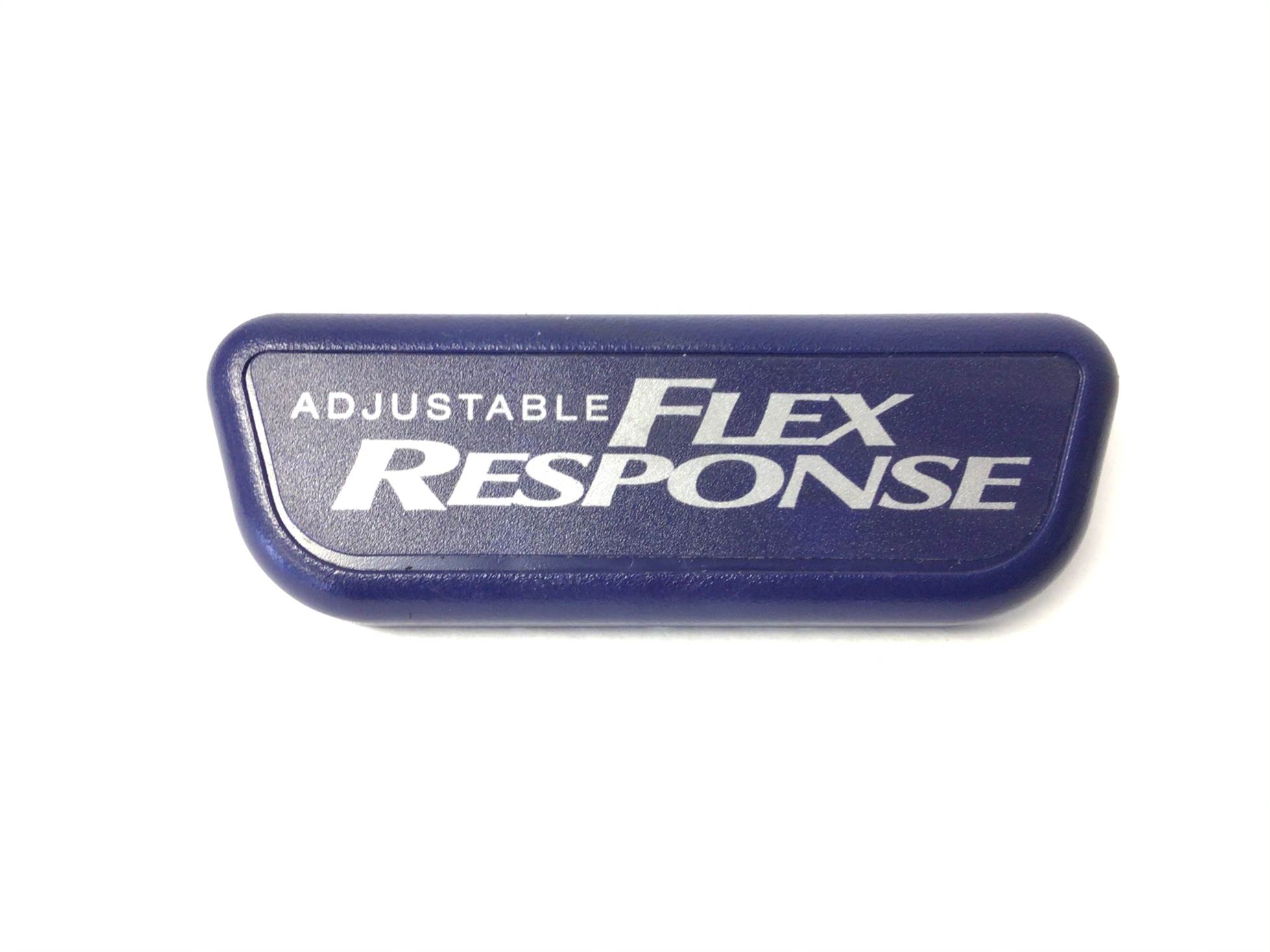

CUSHION HANDLE 136473 222697 10 CUSHION HANDLE Yes Model Compatibility List $70.89 / Each

3,11
#8 X 1 102882 125803 11 #8 X 1" SCREW No Model Compatibility List $2.54 / Each

2
BELT GUIDE 100147 198639 12 BELT GUIDE Yes Model Compatibility List $4.44 / Each

15,40
#8 X 1/2 100137 136728 13 #8 X 1/2" SCREW Yes Model Compatibility List $0.30 / Each

2
HANDRAIL BOLT 100255 142622 14 HANDRAIL BOLT No Model Compatibility List $2.18 / Each

2,3,9
WALKING BELT 124413 403798 16 WALKING BELT Yes Model Compatibility List $121.34 / Each

15

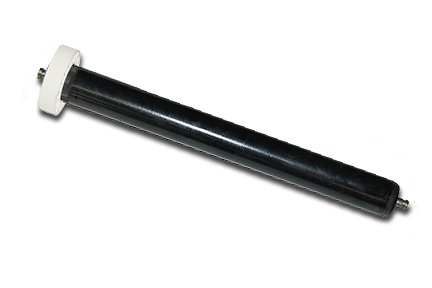

FRONT ROLLER 136474 222701 17 FRONT ROLLER Yes Model Compatibility List $123.40 / Each

8
ROLLER MAGNET 100081 113842 18 ROLLER MAGNET Yes Model Compatibility List $1.10 / Each

8,1
FRAME SPACER 100421 214851 19 FRAME SPACER No Model Compatibility List $2.90 / Each
Out Of Stock 		1
3/8 100031 119425 20 3/8" HEX JAM NUT Yes Model Compatibility List $0.55 / Each

2
REED SWITCH CLIP 100422 216626 21 REED SWITCH CLIP No Model Compatibility List $1.85 / Each

1
REED SWITCH 102795 165798 22 REED SWITCH Yes Model Compatibility List $14.41 / Each

24
#8 X 1/2 100120 186819 23 #8 X 1/2" SCREW Yes Model Compatibility List $0.42 / Each

2
Leveler Foot Bumper 1011801 157600 23 1 Leveler Foot Bumper Yes Model Compatibility List $1.33 / Each

3,12,13,14,46,1
136475 222707 24 LEFT CUSHION HOUSING No Model Compatibility List $101.32 / Each

1
DRIVE MOTOR 102245 293895 25 DRIVE MOTOR Yes Model Compatibility List $358.19 / Each

28
MOTOR BELT 100426 216749 26 MOTOR BELT Yes Model Compatibility List $21.99 / Each

23

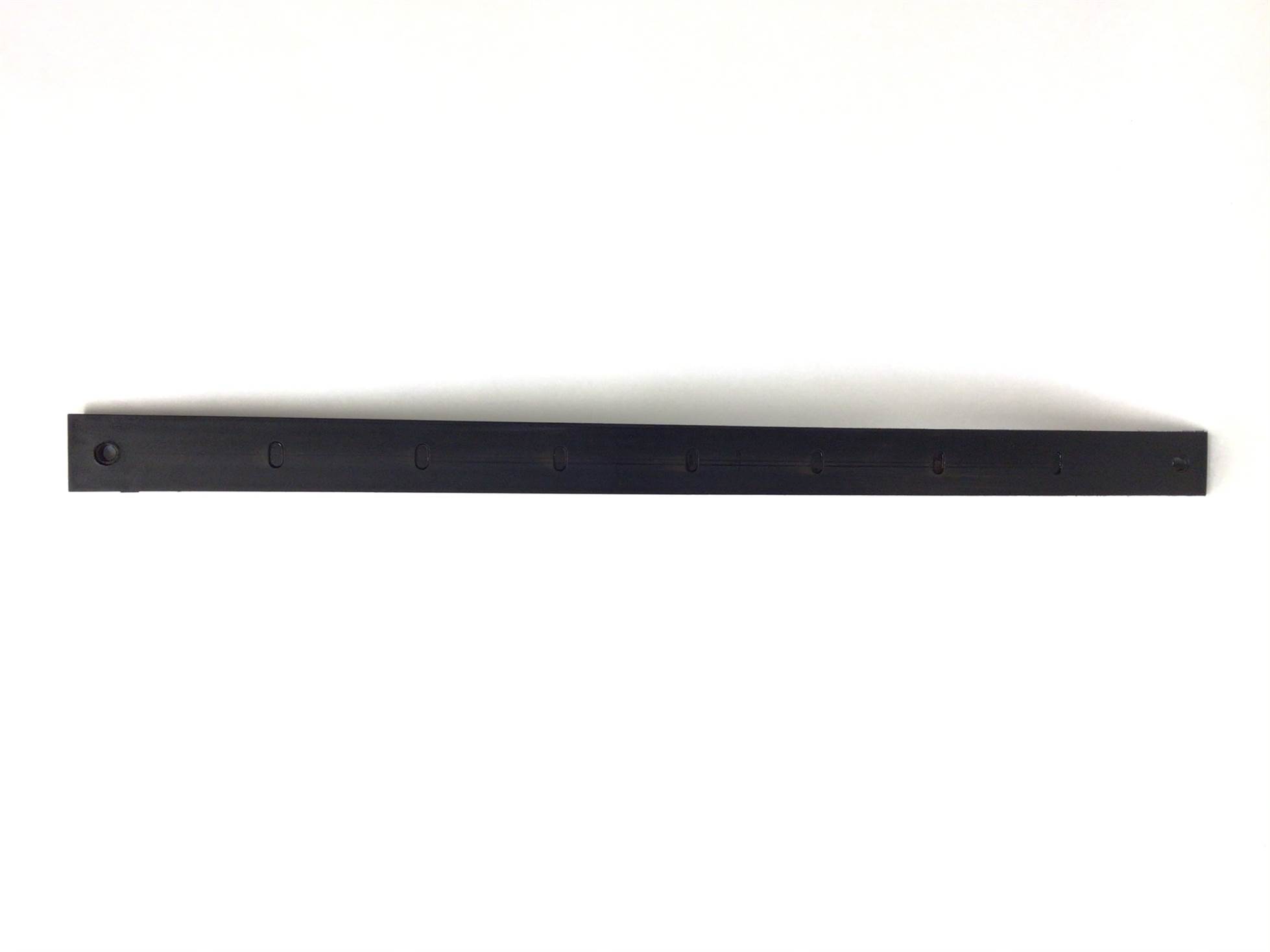

ISOLATOR GUIDE 100334 216629 27 ISOLATOR GUIDE Yes Model Compatibility List $13.53 / Each

3
BALL DETENTION ASSEMBLY 116783 173956 29 BALL DETENTION ASSEMBLY No Model Compatibility List $3.05 / Each

1
MOTOR BOLT 102291 259500 31 MOTOR BOLT No Model Compatibility List $3.22 / Each

2

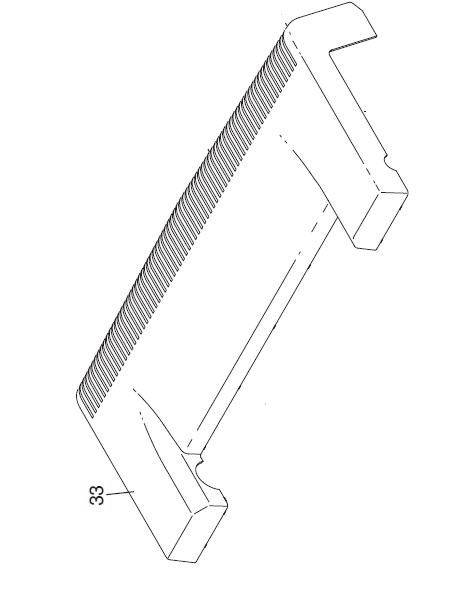

MOTOR HOOD 136477 222704 33 MOTOR HOOD No Model Compatibility List $111.90 / Each

1
#8 HOOD CLIP 100032 133333 34 #8 HOOD CLIP Yes Model Compatibility List $0.65 / Each

1,2,9,46
UPPER CLEVIS PIN 100431 215942 36 UPPER CLEVIS PIN Yes Model Compatibility List $5.72 / Each

1
COTTER PIN 100432 015044 37 COTTER PIN No Model Compatibility List $1.98 / Each

FRONT ROLLER ADJ BOLT 100433 165220 38 FRONT ROLLER ADJ BOLT No Model Compatibility List $2.79 / Each

1
Nylock Nut 1010890 119425 38 1 Nylock Nut Yes Model Compatibility List $0.55 / Each

2

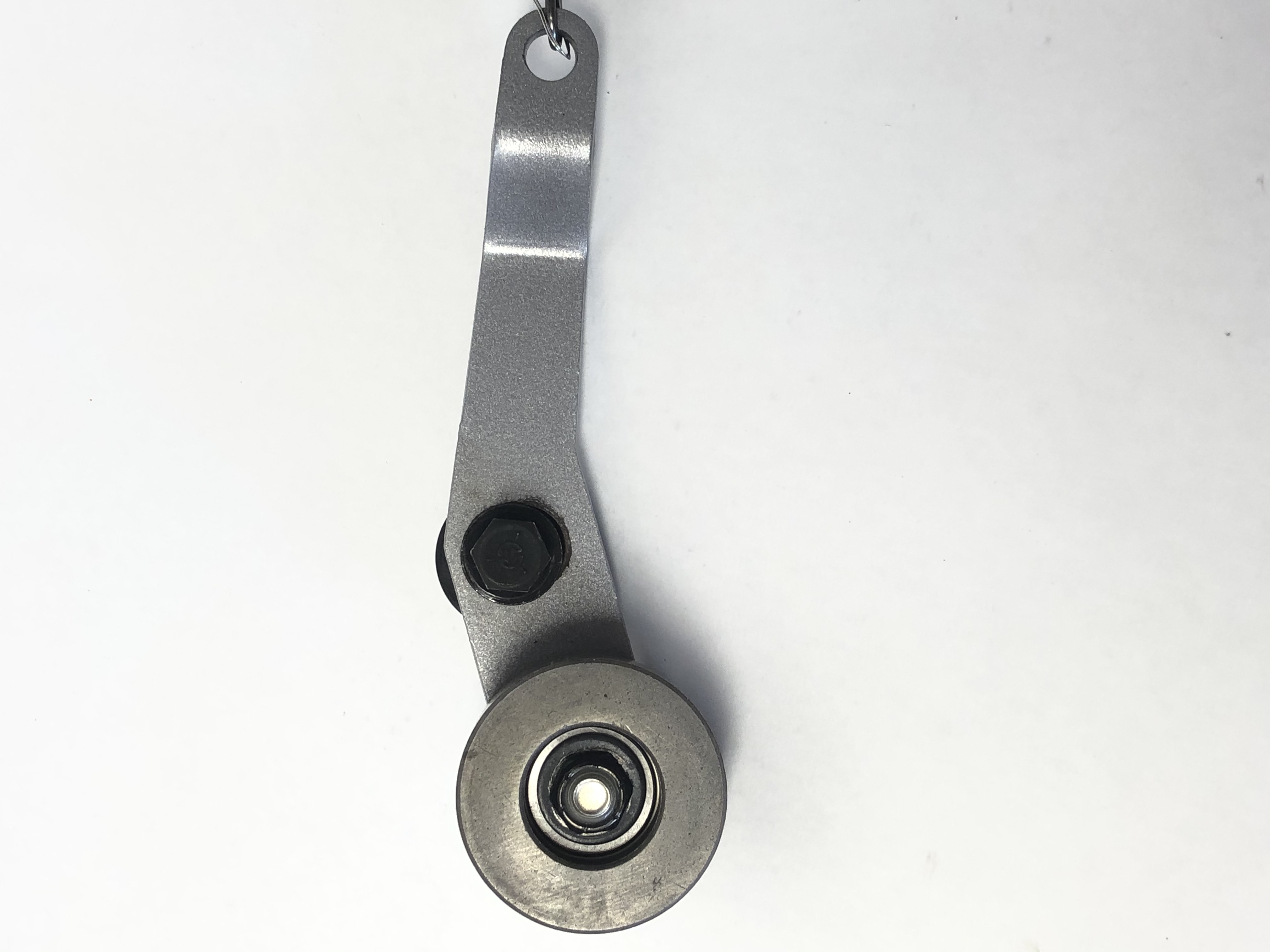

IDLER ARM ASSEMBLY 136478 222705 39 IDLER ARM ASSEMBLY Yes Model Compatibility List $79.39 / Each

3,8
INCLINE MOTOR 135996 220696 40 INCLINE MOTOR Yes Model Compatibility List $164.89 / Each

10
LOWER PIN 100435 194343 41 LOWER PIN Yes Model Compatibility List $5.31 / Each

1
TRANSFORMER 30VA P57A-M2000MA 103170 195311 42 TRANSFORMER 30VA P57A-M2000MA Yes Model Compatibility List $67.87 / Each

1
CONTROLLER 102623 198023 43 CONTROLLER Yes Model Compatibility List $175.46 / Each
Out Of Stock 		7,8
135997 221458 45 BELLYPAN No Model Compatibility List $88.20 / Each
Out Of Stock 		9
POWER SWITCH 100201 186726 48 POWER SWITCH Yes Model Compatibility List $16.42 / Each

6
TIE CLAMP HOLDER - SCREW MOUNT 100262 116927 50 TIE CLAMP HOLDER - SCREW MOUNT No Model Compatibility List $2.49 / Each

1
RELEASABLE WIRE TIE 100064 116926 51 RELEASABLE WIRE TIE No Model Compatibility List $0.25 / Each

1,2,4
8 100063 016057 52 8" CABLE TIE No Model Compatibility List $1.30 / Each

1
136089 219596 53 FRONT RIGHT ENDCAP No Model Compatibility List $8.09 / Each

9,4,5,6
Belt Guide 1008212 198639 53 1 Belt Guide Yes Model Compatibility List $4.44 / Each

15,40
PLATFORM NUT 100252 136012 57 PLATFORM NUT No Model Compatibility List $1.47 / Each

1
3/8 110794 106879 58 3/8" X 3" BOLT Yes Model Compatibility List $2.94 / Each

2
REAR WHEEL 136090 214869 59 REAR WHEEL Yes Model Compatibility List $9.15 / Each

8
REAR ROLLER STAR WASHER 100359 136121 60 REAR ROLLER STAR WASHER No Model Compatibility List $2.33 / Each

1
1/4 100042 014063 61 1/4" FLAT WASHER No Model Compatibility List $1.03 / Each

REAR ROLLER BOLT 1/4 100358 013206 62 REAR ROLLER BOLT 1/4"-20X3" Yes Model Compatibility List $4.51 / Each

REAR ROLLER 136091 254350 64 REAR ROLLER Yes Model Compatibility List $153.23 / Each
8
PULSE BAR 125063 221151 69 PULSE BAR Yes Model Compatibility List $223.91 / Each

12,13,14
136490 222532 70 RIGHT HANDRAIL No Model Compatibility List $86.03 / Each

9,3
WIRE HARNESS 136003 220699 73 WIRE HARNESS Yes Model Compatibility List $60.50 / Each

4,5,6
136095 219608 78 LEFT UPRIGHT CAP No Model Compatibility List $8.20 / Each

9,3

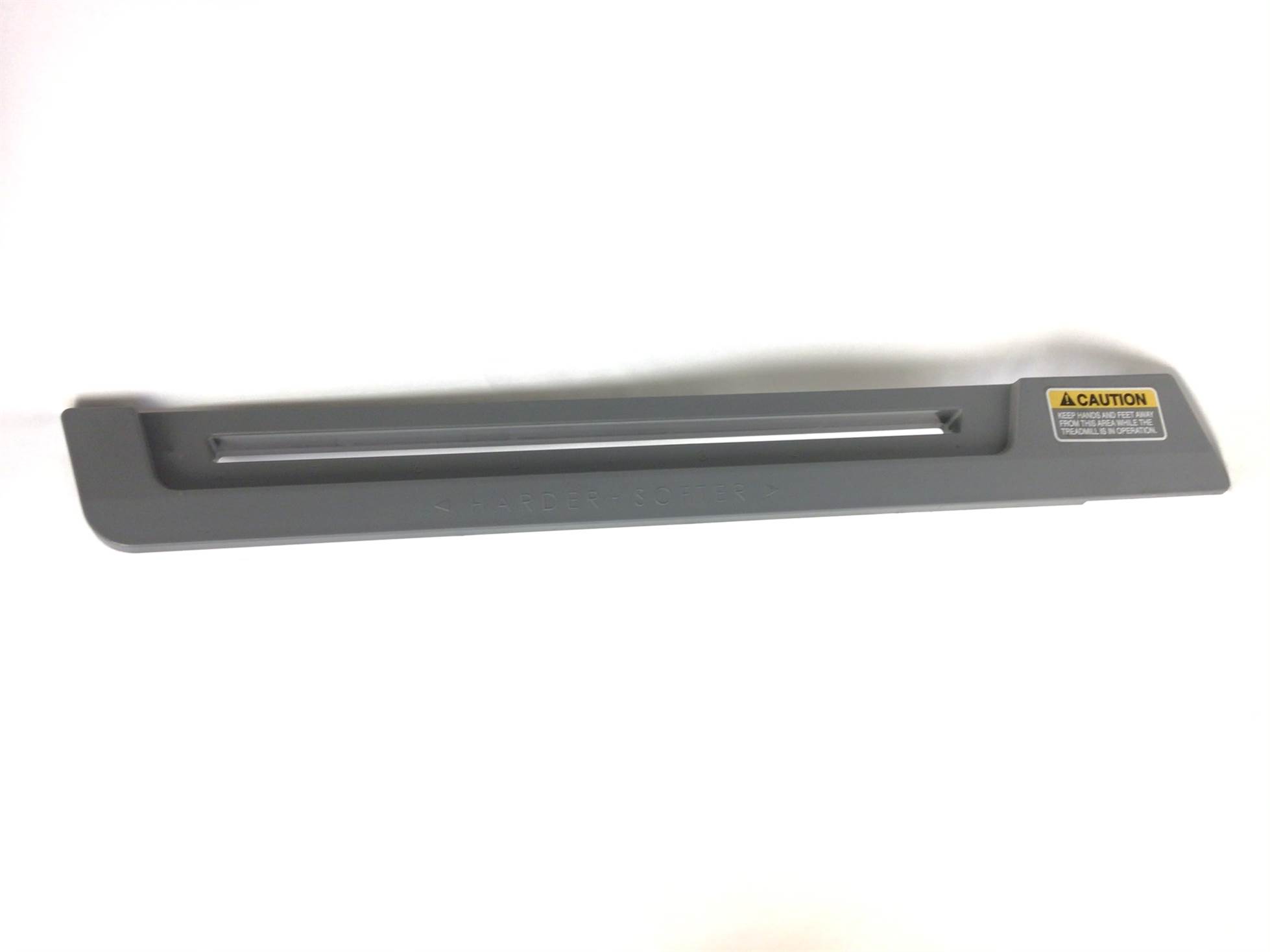

RIGHT CUSHION HOUSING 136481 222706 79 RIGHT CUSHION HOUSING Yes Model Compatibility List $101.32 / Each

3
CLEVIS PIN 124268 189034 80 CLEVIS PIN No Model Compatibility List $5.46 / Each

1
100178 252433 84 WARNING DECAL No Model Compatibility List $0.47 / Each

1,3,7
136491 222604 85 UPRIGHT BASE No Model Compatibility List $322.95 / Each

3
WHEEL BOLT 100266 150148 88 WHEEL BOLT No Model Compatibility List $3.09 / Each

2,8
WHEEL 115252 052012 89 WHEEL Yes Model Compatibility List $4.49 / Each

136110 219542 90 BASE EXTENSION No Model Compatibility List $95.92 / Each

3
136098 219607 91 RIGHT UPRIGHT CAP No Model Compatibility List $8.20 / Each

9,3
BASE COVER 136099 219613 92 BASE COVER Yes Model Compatibility List $47.67 / Each

9,3
136007 214817 94 LIFT FRAME No Model Compatibility List $176.55 / Each

3,10
BRACKET PULSE BAR RIGHT (Used) 1024453 216801 94 1 BRACKET PULSE BAR RIGHT (Used) No Model Compatibility List $23.99 / Each

1
125065 219616 95 ACCESS DOOR No Model Compatibility List $3.49 / Each

4,5,6
RIGHT TRAY 125076 214850 97 RIGHT TRAY Yes Model Compatibility List $17.99 / Each
Out Of Stock 		1
125066 219617 98 CONSOLE BASE Yes Model Compatibility List $80.36 / Each

1
LEFT TRAY 125075 214849 99 LEFT TRAY Yes Model Compatibility List $12.84 / Each

1
8 X 1 Inch SCREW 101799 154848 101 8 X 1 Inch SCREW No Model Compatibility List $1.23 / Each

2
WHEEL SPACER 136105 218117 104 WHEEL SPACER No Model Compatibility List $3.53 / Each

1
136102 219623 107 BOOK HOLDER No Model Compatibility List $18.48 / Each

1
FILTER WIRE 113296 203982 108 FILTER WIRE Yes Model Compatibility List $20.16 / Each

4,5,6
INCLINE WIRE 102808 201563 109 INCLINE WIRE Yes Model Compatibility List $13.42 / Each

4,5,6,10
100479 222429 110 HOOD FOAM, RIGHT No Model Compatibility List $6.69 / Each

9
CONSOLE GROUND WIRE 118235 216122 113 CONSOLE GROUND WIRE Yes Model Compatibility List $2.71 / Each

7,4,5,6
136103 219463 114 LEFT RAIL COVER No Model Compatibility List $82.78 / Each
Out Of Stock 		9
RIGHT RAIL COVER 136104 219465 115 RIGHT RAIL COVER Yes Model Compatibility List $98.05 / Each

9
102240 158157 116 STATIC DECAL No Model Compatibility List $1.84 / Each
Out Of Stock 		7,3
15 123897 217076 117 15" WIRE HARNESS Yes Model Compatibility List $20.75 / Each

4,5,6
M5 SPLIT WASHER 116258 014123 118 M5 SPLIT WASHER No Model Compatibility List $1.54 / Each

3/8 103990 194329 120 3/8"-16 X 1 1/2" FLAT HEAD SCREW - BOLT Yes Model Compatibility List $4.89 / Each

2
IDLER ARM BOLT 100450 013547 121 IDLER ARM BOLT No Model Compatibility List $2.89 / Each

100451 216573 122 IDLER ARM SPACER No Model Compatibility List $1.67 / Each
Out Of Stock 		2,8,3,4,5,6
IDLER ARM 100456 238669 123 IDLER ARM Yes Model Compatibility List $13.67 / Each
3,8
IDLER ARM SPRING 100341 164574 124 IDLER ARM SPRING Yes Model Compatibility List $21.13 / Each

1
136484 216568 125 CONTROL KNOB No Model Compatibility List $8.15 / Each

7
136485 216569 125A CONTROL KNOB CAP No Model Compatibility List $3.86 / Each

7,9
Tinnerman Clip 1011229 133333 126 1 Tinnerman Clip Yes Model Compatibility List $0.65 / Each

2,9,1,46
Fat Switch Version 000698 186726 128 1 Fat Switch Version Yes Model Compatibility List $16.42 / Each

6
1/4 102839 142686 131 1/4" FLANGE NUT No Model Compatibility List $7.19 / Each

2
Magnet 1009452 113842 137 1 Magnet Yes Model Compatibility List $1.10 / Each

1,8
102820 118204 # 8" BLUE WIRE,M/F No Model Compatibility List $3.30 / Each

4,5,6
Console Wire Harness 102331 156429 # Console Wire Harness Yes Model Compatibility List $24.06 / Each

4
125091 191355 # N- LOGO DECAL No Model Compatibility List $10.57 / Each

7,3
113323 194526 # CONTROLLER GROUND WIRE No Model Compatibility List $2.33 / Each

7,8,4,5,6
125093 195458 # NORDICTRACK LOGO DECAL No Model Compatibility List $5.55 / Each

7,15,3,4,5,6
12 113327 198072 # 12" BLUE WIRE F/F Yes Model Compatibility List $3.88 / Each

4,5,6
100344 200747 # GROUND WIRE No Model Compatibility List $2.56 / Each

4,5,6
CONTROLLER FUSE 100394 212142 # CONTROLLER FUSE No Model Compatibility List $8.22 / Each

1
136487 216913 # "C2270" DECAL No Model Compatibility List $6.80 / Each

7,3
FRONT ROLLER BUSHING 102248 219550 # FRONT ROLLER BUSHING No Model Compatibility List $2.52 / Each

1
136493 220436 # LITERATURE PACKET No Model Compatibility List $93.65 / Each

4,5,6
CHEST PULSE KIT 100316 237858 # CHEST PULSE KIT No Model Compatibility List $166.63 / Each
Out Of Stock 		1
100094 356520 # ACCESSORY KIT No Model Compatibility List $42.89 / Each

1,4,5,6
117645 126040 . ALLEN WRENCH 3/16" No Model Compatibility List $1.29 / Each

2
RUBBER BUMPER 106102 126650 . RUBBER BUMPER Yes Model Compatibility List $3.01 / Each

1
#8 X 3/4 100149 013300 . #8 X 3/4" WASHER HD SCREW Yes Model Compatibility List $1.28 / Each

1
CONSOLE BOLT 102260 013496 . CONSOLE BOLT No Model Compatibility List $2.25 / Each

EXTENSION LEG BOLT 100465 138797 . EXTENSION LEG BOLT Yes Model Compatibility List $11.99 / Each

2
100264 146427 . 1" TEK SCREW No Model Compatibility List $0.28 / Each

2
MOUNT SCREW 102058 150508 . MOUNT SCREW No Model Compatibility List $1.52 / Each

2
BASE PAD 100076 157600 . BASE PAD Yes Model Compatibility List $1.33 / Each

3,12,13,14,46,1
JACK 100386 158332 . JACK Yes Model Compatibility List $7.66 / Each

1
CONSOLE BOLT 100454 181385 . CONSOLE BOLT No Model Compatibility List $4.08 / Each

2,7
AUDIO WIRE,18 100197 215823 . AUDIO WIRE,18 Yes Model Compatibility List $8.87 / Each

4,5,6
LATCH KNOB SLEEVE 125064 219610 . LATCH KNOB SLEEVE No Model Compatibility List $3.89 / Each

1
LEFT OR RIGHT UPRIGHT COVER 136094 219611 . LEFT OR RIGHT UPRIGHT COVER Yes Model Compatibility List $14.30 / Each

3,9
136492 220437 . USER-S MANUAL No Model Compatibility List $10.34 / Each

1
5/16 X 2 125098 220621 . 5/16 X 2" BTTN SCREW No Model Compatibility List $3.21 / Each
Out Of Stock 		2
125097 220647 . HARDWARE KIT B No Model Compatibility List $14.16 / Each

1
136489 221099 . HARDWARE KIT No Model Compatibility List $34.57 / Each

1
KEY/CLIP 119481 245920 . KEY/CLIP Yes Model Compatibility List $19.89 / Each

2,9
Star Washer 5/16 100449 014149 . 1 Star Washer 5/16" Yes Model Compatibility List $12.99 / Each

136486 225180 CN - UPRIGHT HOLE No Model Compatibility List $0.00 / Each
Out Of Stock 		3
Motor Controller Board 1002309 198023 Motor Controller Board Yes Model Compatibility List $159.99 / Each
Out Of Stock 		7,8
Transformer P57A-M2000M 1002288 E222161 or 195311 Transformer P57A-M2000M Yes Model Compatibility List $44.99 / Each

Rear Back Idler Roller 1002077 254350 Rear Back Idler Roller Yes Model Compatibility List $69.99 / Each

8
Incline Lift Elevation Motor Actuator 1001637 220696 or 215397 Incline Lift Elevation Motor Actuator Yes Model Compatibility List $59.00 / Each

Black Jumper R-R 8 Inch 1036849 200747 Black Jumper R-R 8 Inch Yes Model Compatibility List $5.00 / Each
Out Of Stock 		4,5,6
Lift Shock 13 1000509 05-09-lift Lift Shock 13"" Fits Many!! (Used) Yes Model Compatibility List $14.99 / Each
Out Of Stock 		1
RPM Speed Sensor Reed Switch (Used) 1008486 748115 RPM Speed Sensor Reed Switch (Used) Yes Model Compatibility List $10.19 / Each

4
Screw (New) 104355 102959 Screw (New) Yes Model Compatibility List $11.99 / Each

1
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2025. All Rights Reserved.

Payment options
