NordicTrack® - POWERTREAD 5.0

Exploded Diagrams

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
INCLINE SENSOR SWITCH 104351 102955 76 INCLINE SENSOR SWITCH No Model Compatibility List $16.73 / Each

47
SMALL BOLT 104355 102959 47 SMALL BOLT No Model Compatibility List $0.18 / Each

2,40
POST CAP 101902 103833 64 POST CAP No Model Compatibility List $4.69 / Each

1
124418 105674 45 MOTOR TENSION WASHER No Model Compatibility List $0.18 / Each

2
MOTOR BOLT 3/8-16X5 117640 107503 39 MOTOR BOLT 3/8-16X5" Yes Model Compatibility List $6.51 / Each

1
POWER RECEPTICLE 100651 109231 31 POWER RECEPTICLE Yes Model Compatibility List $13.59 / Each

4,5,6
INCLINE DISK 104346 109370 69 INCLINE DISK Yes Model Compatibility List $5.31 / Each

1
122039 112627 75 LIFT SPACER No Model Compatibility List $2.88 / Each

2,3,4,5,6,10
ROLLER MAGNET 100081 113842 91 ROLLER MAGNET Yes Model Compatibility List $1.10 / Each

8,1
RELEASABLE WIRE TIE 100064 116926 65 RELEASABLE WIRE TIE No Model Compatibility List $0.25 / Each

1,4,2
TIE CLAMP HOLDER - SCREW MOUNT 100262 116927 67 TIE CLAMP HOLDER - SCREW MOUNT No Model Compatibility List $2.49 / Each

1
38MM ROUND INNER CAP 114216 116980 10 38MM ROUND INNER CAP Yes Model Compatibility List $2.11 / Each

9,46
KEY/CLIP 104349 119038 . KEY/CLIP Yes Model Compatibility List $9.89 / Each

1
3/8 100031 119425 24 3/8" HEX JAM NUT Yes Model Compatibility List $0.55 / Each

2
100237 119439 56 ELECTRONIC BRACKET NUT No Model Compatibility List $0.18 / Each

2,3,4,5,6
122824 119779 36 REAR PLATFORM SCREW No Model Compatibility List $0.26 / Each

2
CONSOLE GROUND SCREW 103901 120630 7 CONSOLE GROUND SCREW No Model Compatibility List $1.19 / Each

1
SEAT RAIL FLANGE NUT 104004 120867 59 SEAT RAIL FLANGE NUT No Model Compatibility List $3.75 / Each

1
M4 X 30MM SCREW 100671 121204 55 M4 X 30MM SCREW No Model Compatibility List $1.50 / Each

2
3/8 100136 012149 40 3/8" HEX LOCK NUT No Model Compatibility List $1.79 / Each

124742 121737 # RUBBER WASHER No Model Compatibility List $0.44 / Each

2
100088 123945 # TECH SHEET ENVELOPE No Model Compatibility List $0.94 / Each

1
LARGE STANDOFF 101014 125819 51 LARGE STANDOFF Yes Model Compatibility List $2.35 / Each

2,1
RUBBER BUMPER 106102 126650 89 RUBBER BUMPER Yes Model Compatibility List $3.01 / Each

1
20 104352 126911 73 20" WIRE HARNESS Yes Model Compatibility List $12.17 / Each

1
FASTENER 118677 127860 # FASTENER No Model Compatibility List $1.28 / Each

1
PLATFORM BOLT, FRONT 1/4 100221 128272 8 PLATFORM BOLT, FRONT 1/4" X1.25" Yes Model Compatibility List $7.04 / Each

2
3/16-7/32 100190 128457 . 3/16-7/32" ALLEN WRENCH No Model Compatibility List $18.74 / Each

1
ROUND GROMMET 101035 129004 32 ROUND GROMMET No Model Compatibility List $1.44 / Each

1
124105 130248 46 STAR WASHER No Model Compatibility List $1.38 / Each
Out Of Stock
2
102322 130285 96 LIFT FRAME WASHER No Model Compatibility List $0.14 / Each

2,3,10
100491 130421 # 4" GREEN WIRE, F/RING Yes Model Compatibility List $2.39 / Each

4,5,6
100083 130424 # 4" BLACK WIRE,F/F, POWER No Model Compatibility List $3.49 / Each

4,5,6
PIVOT BOLT 3/8-16X1.75X.5 121971 130868 37 PIVOT BOLT 3/8-16X1.75X.5 Yes Model Compatibility List $2.07 / Each

2,8
RSW CLAMP 100079 131090 74 RSW CLAMP Yes Model Compatibility List $0.46 / Each

4,5,6,2,1,47
103888 131663 # 8" WHITE WIRE, 2F No Model Compatibility List $4.14 / Each

4,5,6
118668 131771 29 CHOKE No Model Compatibility List $96.14 / Each

1
103887 131818 # 8" BLUE WIRE, 2F No Model Compatibility List $4.03 / Each

4,5,6
WHEEL 121972 132314 30 WHEEL Yes Model Compatibility List $1.12 / Each

8
109944 132632 # 14" WHITE WIRE, 2F No Model Compatibility List $4.77 / Each

4,5,6
REAR ROLLER ADJ SCREW 121869 013342 1 REAR ROLLER ADJ SCREW No Model Compatibility List $3.52 / Each

113530 133436 # 14" BLUE WIRE,F/F No Model Compatibility List $5.97 / Each

4,5,6
118430 133497 4 ON/OFF SWITCH No Model Compatibility List $12.22 / Each

4,5,6
3/8 106621 013375 25 3/8" BOLT No Model Compatibility List $4.17 / Each

IDLER ARM BOLT 100450 013547 44 IDLER ARM BOLT No Model Compatibility List $2.89 / Each

#8 X 1/2 100137 136728 90 #8 X 1/2" SCREW Yes Model Compatibility List $0.30 / Each

2
HANDRAIL COVER FASTENER 100290 138853 62 HANDRAIL COVER FASTENER No Model Compatibility List $1.55 / Each

1,40
1/4 100042 014063 49 1/4" FLAT WASHER No Model Compatibility List $1.03 / Each

121861 141544 2 FRONT ROLLER ADJ BOLT No Model Compatibility List $0.85 / Each

2,8
#8 STAR WASHER 100141 014157 92 #8 STAR WASHER Yes Model Compatibility List $1.17 / Each

127981 141645 # TECH SHEET No Model Compatibility List $0.32 / Each

1
127983 141671 # INCLINE DECAL No Model Compatibility List $3.73 / Each

7,3,10
FRONT ROLLER/PULLEY 121929 141760 17 FRONT ROLLER/PULLEY Yes Model Compatibility List $132.76 / Each
8
WIRE HARNESS 104330 143049 52 WIRE HARNESS Yes Model Compatibility List $65.82 / Each

4
127979 143300 83 LATCH WARNING DECAL No Model Compatibility List $2.19 / Each

7,3
127982 143301 # BASE CAUTION DCL, 4 LANG No Model Compatibility List $4.60 / Each

3,4,5,6
127980 143628 # BELLY PAN BRACKET No Model Compatibility List $9.50 / Each

2,3,4,5,6
103885 145367 3 FILTER No Model Compatibility List $103.77 / Each

1
WALKING BELT 127978 153487 80 WALKING BELT No Model Compatibility List $127.30 / Each

1
ADHESIVE CLIP 118356 016028 . ADHESIVE CLIP No Model Compatibility List $2.23 / Each

8 100063 016057 66 8" CABLE TIE No Model Compatibility List $1.30 / Each

BELT GUIDE 100040 198640 48 BELT GUIDE Yes Model Compatibility List $18.62 / Each

15,40
3 TUBE LUBE KIT 100096 219170 # 3 TUBE LUBE KIT No Model Compatibility List $28.18 / Each

1
MOTOR BELT 104319 224019 42 MOTOR BELT Yes Model Compatibility List $21.99 / Each

23
100490 255997 77 8" GREEN WIRE, F/RING No Model Compatibility List $24.25 / Each

4,5,6
100280 256836 # LATCH WRNG DECAL, ENGLISH No Model Compatibility List $1.50 / Each

7,3
100094 356520 # ACCESSORY KIT No Model Compatibility List $42.89 / Each

4,5,6,1
103047 040061 68 HANDRAIL CAP No Model Compatibility List $2.22 / Each
Out Of Stock
WIRE CLIP 121907 054023 82 WIRE CLIP No Model Compatibility List $1.82 / Each

SPACER,PLASTIC,.39X2.0X.38 1019298 137625 0 2 SPACER,PLASTIC,.39X2.0X.38" Used Yes Model Compatibility List $4.40 / Each
9
PLATE LATCH 1.25X1.5 1021860 137944 - b 93 1 PLATE LATCH 1.25X1.5" (Used) Yes Model Compatibility List $6.99 / Each

1
Plastic Bushing (Used) 1025358 130403 34 1 Plastic Bushing (Used) Yes Model Compatibility List $4.64 / Each

9
OEM Walking Running Belt Treadbelt 1000193 153487 0 1 OEM Walking Running Belt Treadbelt No Model Compatibility List $115.73 / Each

1
Drive Belt 20 1003636 224019 0 1 Drive Belt 20" Yes Model Compatibility List $32.99 / Each

23
#8 X 3/4 1004394 013322 0 1 #8 X 3/4" Foot Pedal Screw No Model Compatibility List $5.99 / Each

Speed Sensor Reed Switch 2 Terminal Wire (Used) 1005353 123380 0 1 Speed Sensor Reed Switch 2 Terminal Wire (Used) No Model Compatibility List $17.99 / Each

19
Plastic Standoff Fastener 1008813 125819 19 1 Plastic Standoff Fastener Yes Model Compatibility List $2.35 / Each

2,1
Magnet 1009452 113842 137 1 Magnet Yes Model Compatibility List $1.10 / Each

8,1
RPM Incline Speed Sensor Switch 1010322 102955 0 1 RPM Incline Speed Sensor Switch No Model Compatibility List $12.33 / Each

47
Nylock Nut 1010890 119425 38 1 Nylock Nut Yes Model Compatibility List $0.55 / Each

2
Walking Belt Guide 1010892 198640 64 1 Walking Belt Guide Yes Model Compatibility List $18.62 / Each

15,40
Star Lock Washer 1011510 014157 0 1 Star Lock Washer Yes Model Compatibility List $11.99 / Each

Nylock Jam Nut 3/8 1011523 133945 0 1 Nylock Jam Nut 3/8" Yes Model Compatibility List $11.99 / Each

2
M4 Locknut 1011776 012152 0 1 M4 Locknut Yes Model Compatibility List $11.99 / Each

Reed Switch Cable Retainer Clamp 1011798 131090 114 1 Reed Switch Cable Retainer Clamp Yes Model Compatibility List $0.46 / Each

4,5,6,2,1,47
Suspa Gas Cylinder Lift Latch Shock 1000088 388199 56 Suspa Gas Cylinder Lift Latch Shock Yes Model Compatibility List $106.59 / Each
Out Of Stock
1,40
Suspa Gas Cylinder Lift Latch Shock 1000482 388199 56 Suspa Gas Cylinder Lift Latch Shock Yes Model Compatibility List $106.59 / Each
Out Of Stock
1,40
Power Cord Entry Input Socket 1002832 109231 Power Cord Entry Input Socket Yes Model Compatibility List $17.99 / Each

4,5,6
Front Drive Roller with Pulley 1002251 141760 Front Drive Roller with Pulley Yes Model Compatibility List $86.99 / Each

8
Power Cord Entry Input Module 1002857 109231 Power Cord Entry Input Module Yes Model Compatibility List $14.00 / Each
4,5,6

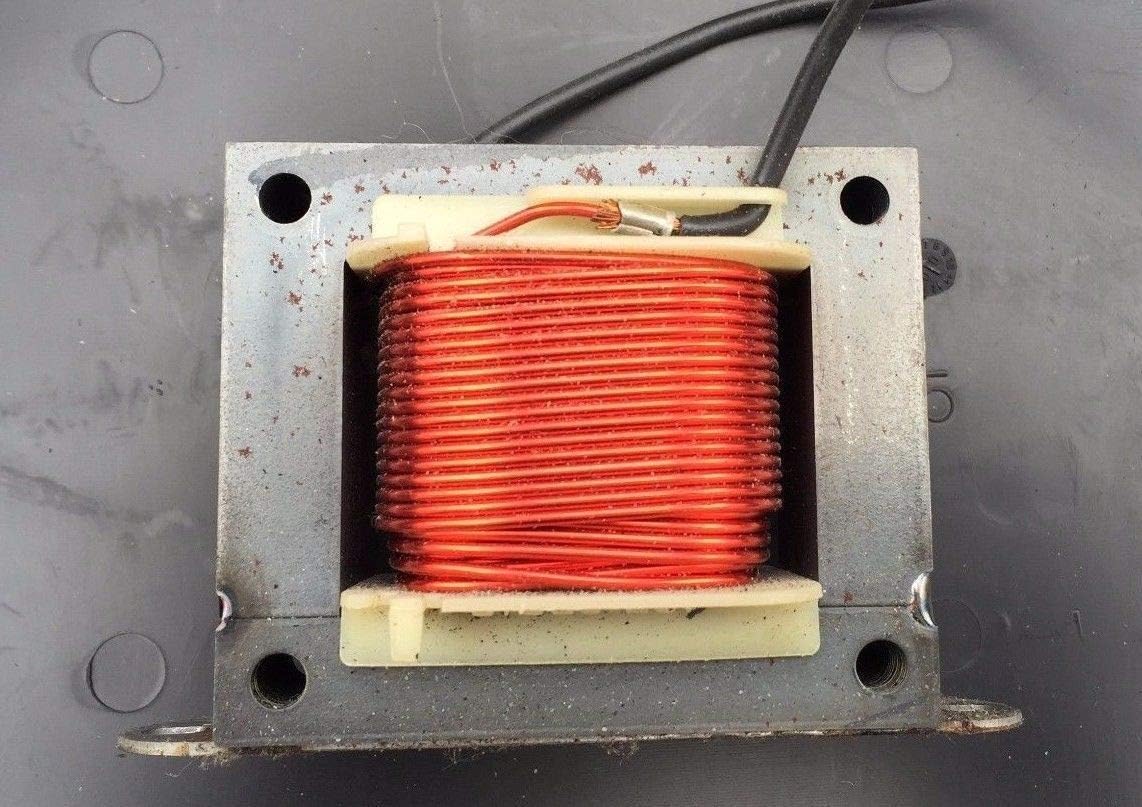

Motor Choke 1002482 131771 Motor Choke Yes Model Compatibility List $29.99 / Each
Out Of Stock
1

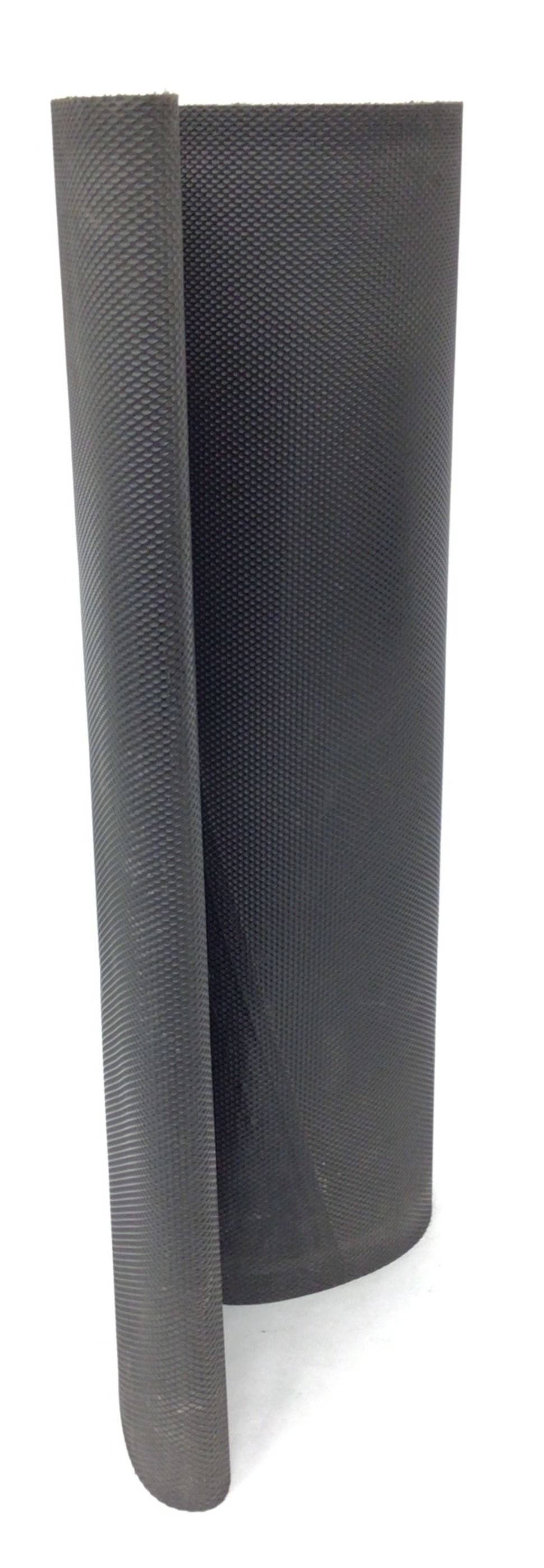

Running Belt Treadmill 1033960 153487 Running Belt Treadmill Yes Model Compatibility List $76.70 / Each

1
Allen Tool Clamp (New) 1013015 016028 Allen Tool Clamp (New) No Model Compatibility List $12.99 / Each

View Drawing
