Phone : 847-309-2818 M-F 10am-5pm

NordicTrack® - PRO

Exploded Diagrams

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
105688 103025 0.2 1/4" X 1/2" BOLT No Model Compatibility List $0.30 / Each

2
1/4 102840 012090 0.5 1/4" NUT No Model Compatibility List $1.54 / Each

105280 012096 .... ADJUSTMENT BLOCK NUT No Model Compatibility List $0.26 / Each

M4 X 16MM SCREW 100668 144985 0.4 M4 X 16MM SCREW No Model Compatibility List $0.22 / Each

2
TOE PIECE 139663 212253 0.3 TOE PIECE Yes Model Compatibility List $30.35 / Each

1
139668 226772 ...2 UPRIGHT KNOB No Model Compatibility List $50.06 / Each

3
139674 226773 .... ARM,UPPER,ARPS,ASSY No Model Compatibility List $187.00 / Each

8
139701 226775 .... 1/4" U-BOLT No Model Compatibility List $16.42 / Each

2
WHEEL 139712 226922 0.15 WHEEL Yes Model Compatibility List $36.53 / Each

8
PULLEY,ROUND,.314X1.138X.457 Inch (Used) 1015100 154571 # PULLEY,ROUND,.314X1.138X.457 Inch (Used) Yes Model Compatibility List $21.99 / Each

8
Front End Frame cover Trim (Used) 1021809 PRO-FEFCT 0 1 Front End Frame cover Trim (Used) No Model Compatibility List $29.99 / Each

1
Hip Pad w Nordictrack Ensignia (Used) 1021823 PRO-HPWNE 0 1 Hip Pad w Nordictrack Ensignia (Used) No Model Compatibility List $39.00 / Each
Out Of Stock
1
Plastic Foot Left or Right Pedal (Used) 1021822 PRO-PFLRP 0 1 Plastic Foot Left or Right Pedal (Used) No Model Compatibility List $24.99 / Each

1
Pulse Sensor Wire Thumb (Used) 1021912 PRO-PSWT 0 1 Pulse Sensor Wire Thumb (Used) No Model Compatibility List $19.99 / Each
Out Of Stock
1,4
Resistance Control Setting Knob w Cable (Used) 1021836 PRO-RCSKC 0 1 Resistance Control Setting Knob w Cable (Used) No Model Compatibility List $39.99 / Each
Out Of Stock
1,5
Resistance Friction Strap W Spring (Used) 1021925 PRO-RFSS 0 1 Resistance Friction Strap W Spring (Used) No Model Compatibility List $24.99 / Each
Out Of Stock
1

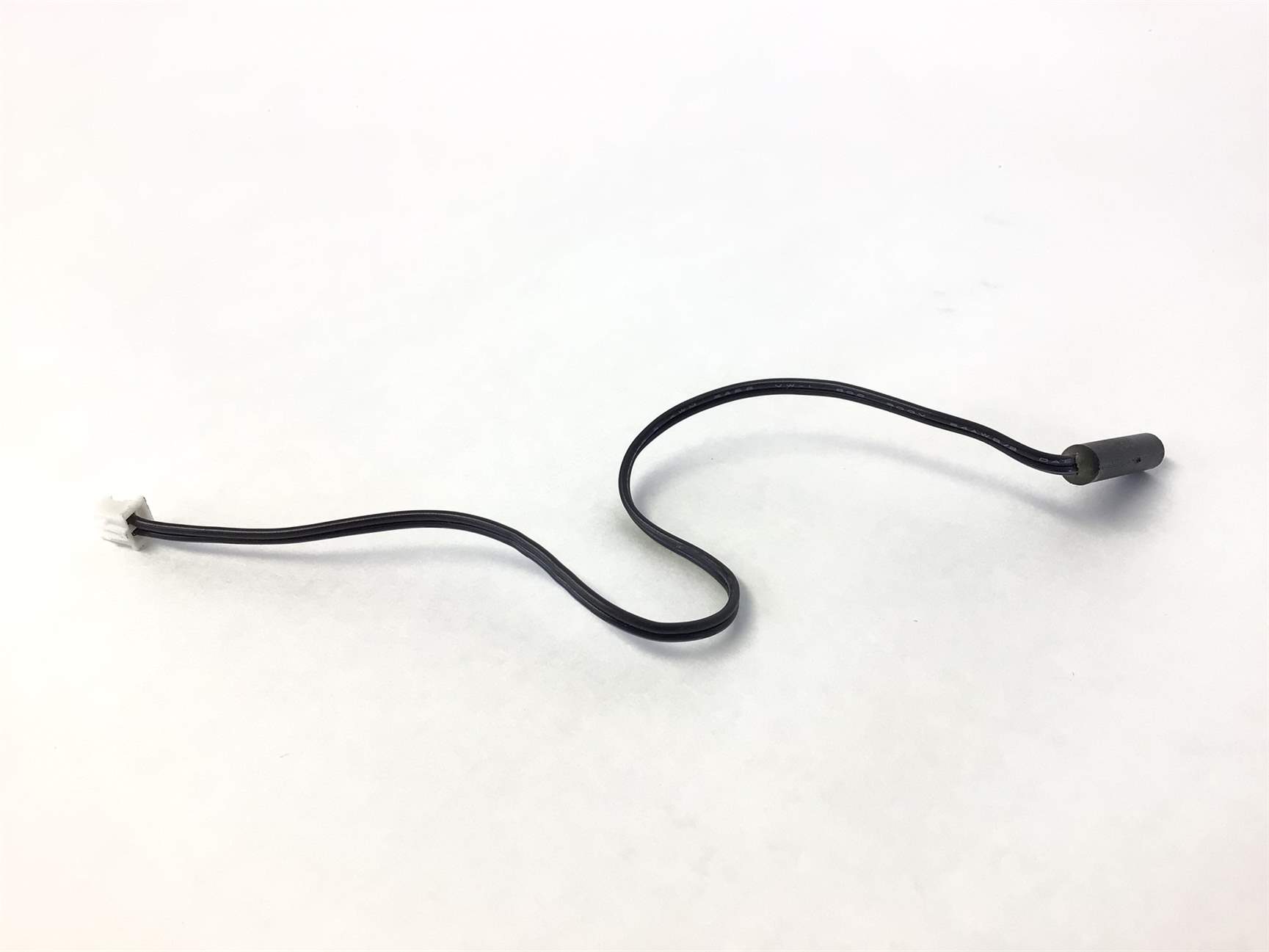

RPM Speed Sensor Reed Switch 2 Terminal Wire (Used) 1021850 PRO-RPMSSRS2TW 0 1 RPM Speed Sensor Reed Switch 2 Terminal Wire (Used) No Model Compatibility List $29.99 / Each

1
Skier Arm Cord Set w Handles (Used) 1021849 PRO-SACSH 0 1 Skier Arm Cord Set w Handles (Used) No Model Compatibility List $39.99 / Each

1
Upper Arm Adjust Knob (Used) 1021886 PRO-UAAK 0 1 Upper Arm Adjust Knob (Used) No Model Compatibility List $19.99 / Each

1
Upper Arm Resistance Adjust Knob (Used) 1021913 PRO-UARAK 0 1 Upper Arm Resistance Adjust Knob (Used) No Model Compatibility List $24.99 / Each
Out Of Stock
1

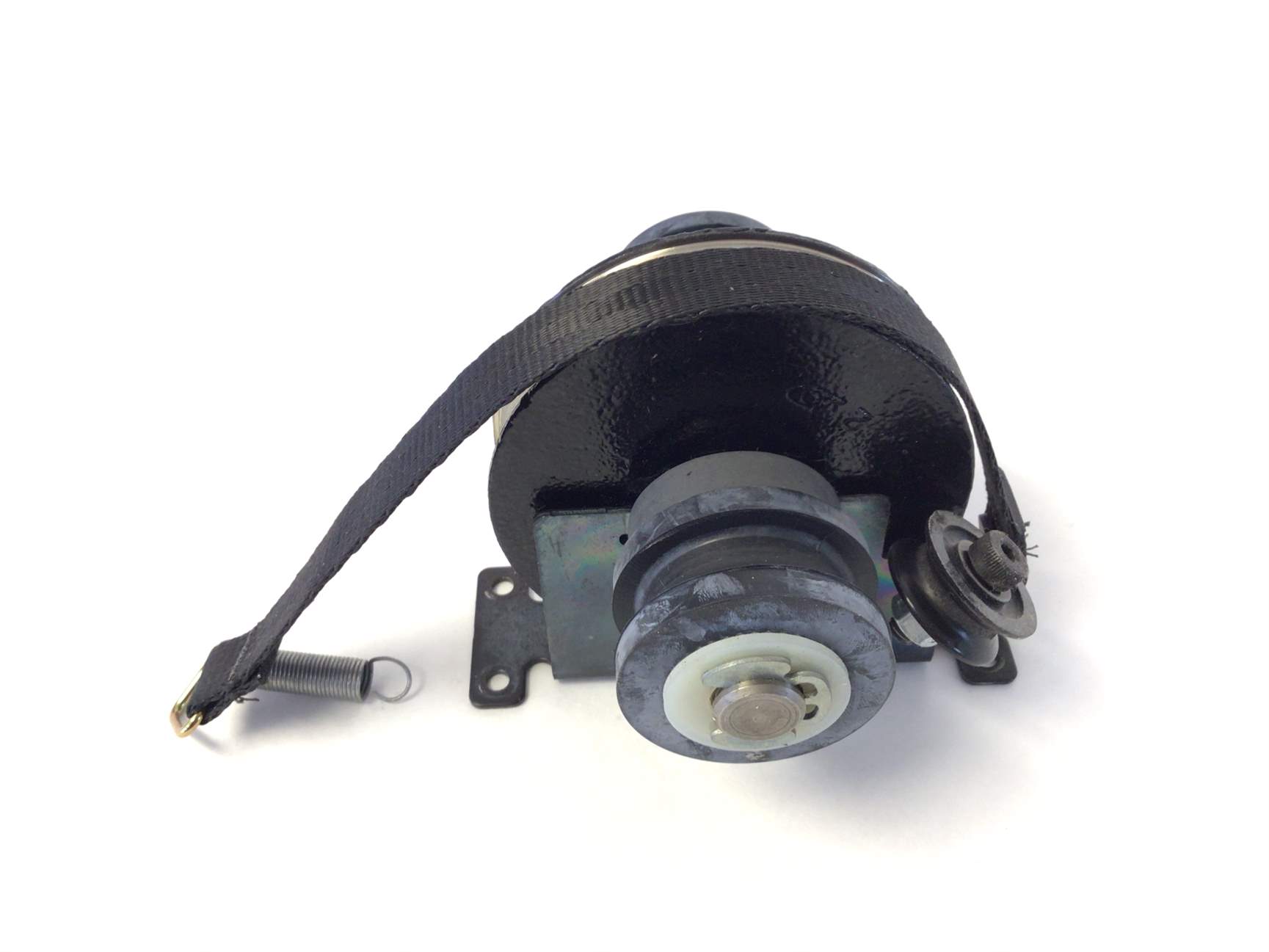

Upper Arm Rope Pulley (Used) 1021835 PRO-UARP 0 1 Upper Arm Rope Pulley (Used) No Model Compatibility List $79.00 / Each

1

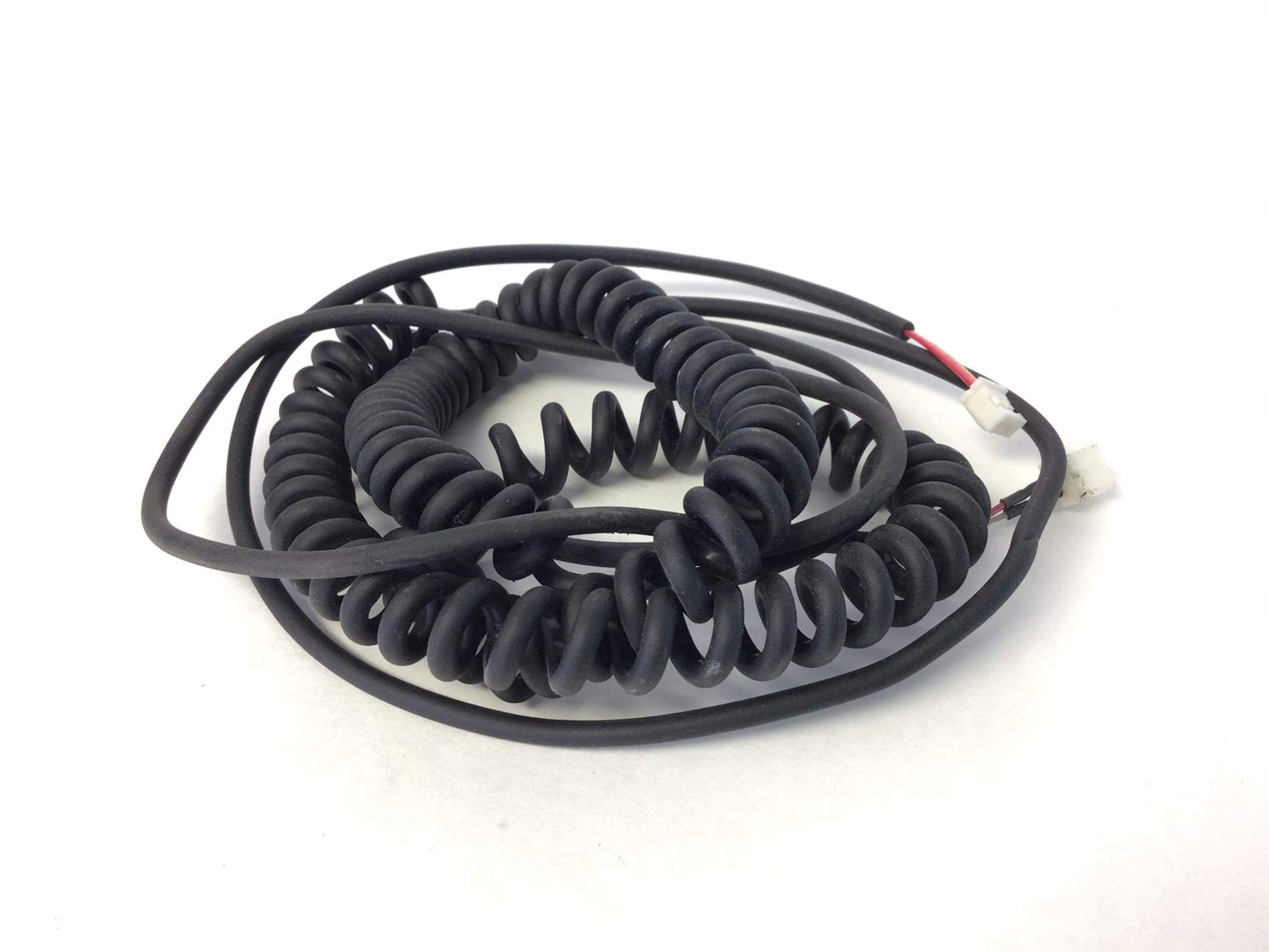

Upper Harness Feedback (Used) 1021873 PRO-UHF 0 1 Upper Harness Feedback (Used) No Model Compatibility List $19.99 / Each

1
Upper Neck Telescoping Adjust Knob (Used) 1021837 PRO-UNTAK 0 1 Upper Neck Telescoping Adjust Knob (Used) No Model Compatibility List $19.99 / Each
Out Of Stock
1

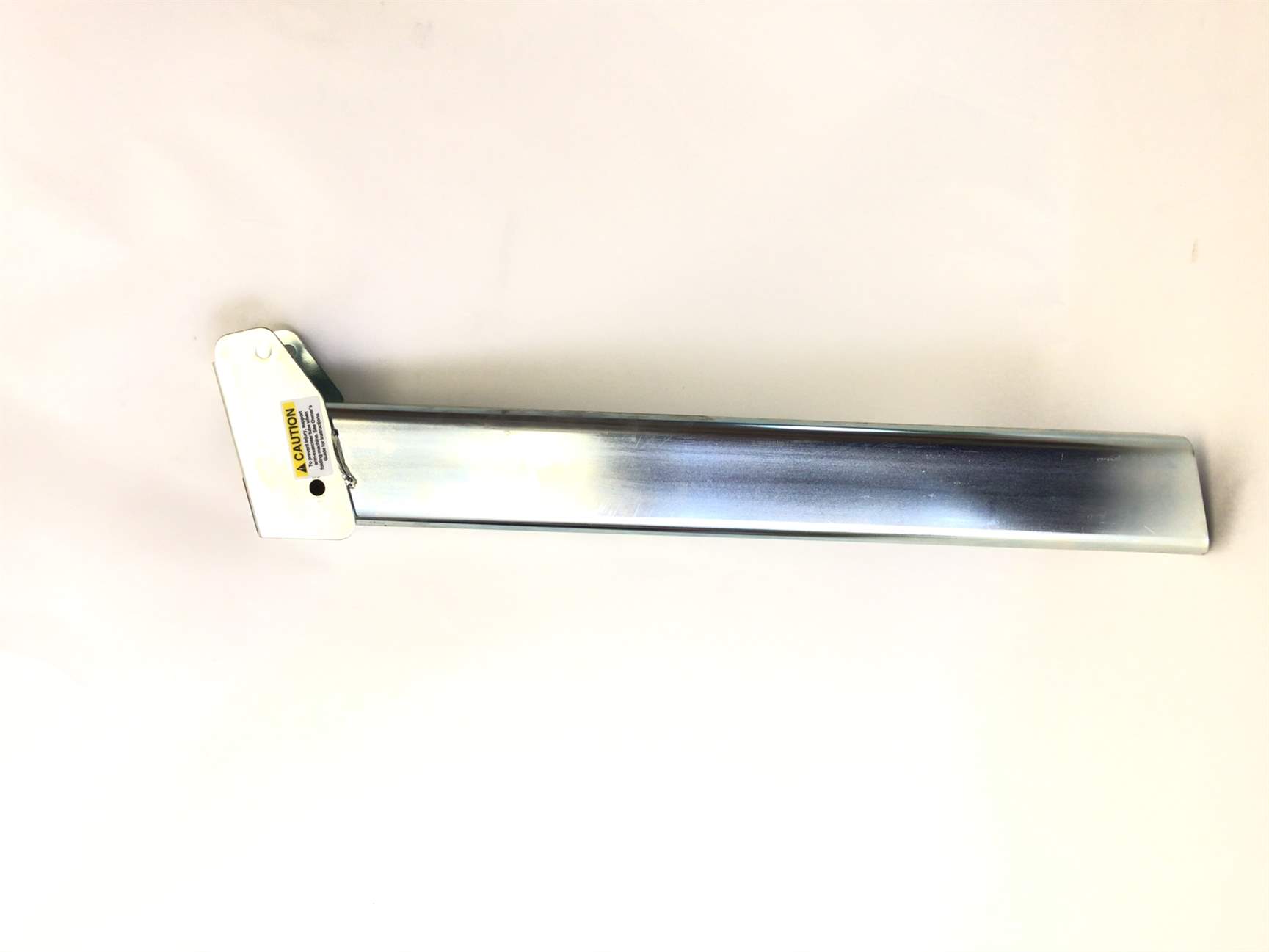

Upright Tube (Used) 1021796 PRO-UT 0 1 Upright Tube (Used) No Model Compatibility List $49.99 / Each

1
Upright Tube Knob (Used) 1021899 PRO-UTK 0 1 Upright Tube Knob (Used) No Model Compatibility List $29.99 / Each
Out Of Stock
1
Weighted Flywheel Base W Rollers (Used) 1021824 PRO-WFBR 0 1 Weighted Flywheel Base W Rollers (Used) No Model Compatibility List $89.00 / Each
Out Of Stock
1
Screw 3/8-16-0.75 Inches (Used) 123668 105134 0 1 Screw 3/8-16-0.75 Inches (Used) No Model Compatibility List $0.91 / Each

2,41
Generator Brake Magnetic 1000127 b600339a Generator Brake Magnetic Yes Model Compatibility List $199.00 / Each
Out Of Stock
DC Drive Motor 1003525 MR-16634 DC Drive Motor Yes Model Compatibility List $349.99 / Each
Out Of Stock
View Drawing
