NordicTrack® - SPACESAVER SE9I

Repair Parts for NordicTrack® SPACESAVER SE9I NTEL144162

Brand: NordicTrack®

Category: Residential Ellipticals

Type: Elliptical

Model Name: SPACESAVER SE9I

Exploded Diagrams

Other Languages Available

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
8 100111 102634 TS6 8" GRN WIRE F/R, POWER Yes Model Compatibility List $2.51 / Each

1,4
ROLLER MAGNET 100081 113842 41 ROLLER MAGNET Yes Model Compatibility List $1.10 / Each

8,1
100186 116566 # 15 1/2" CABLE TIE No Model Compatibility List $0.76 / Each

2,4,5,6,1
DRIVE BELT 101018 119199 46 DRIVE BELT Yes Model Compatibility List $68.07 / Each

23
LARGE STANDOFF 101014 125819 100 LARGE STANDOFF Yes Model Compatibility List $2.35 / Each

2,1
WIRE TIE 100073 132315 # WIRE TIE No Model Compatibility List $0.56 / Each

2,4,5,6,1
100828 140069 # SNAP RING PLIERS, 1" EXT No Model Compatibility List $143.47 / Each

2,1
FLOOR MAT 36X72 100097 146119 # FLOOR MAT 36X72" No Model Compatibility List $42.90 / Each

1
8 100063 016057 # 8" CABLE TIE No Model Compatibility List $1.30 / Each

109101 181900 83 M10 X 14MM WASHER No Model Compatibility List $0.78 / Each

2
M4 X 16MM SCREW 106040 184369 110 M4 X 16MM SCREW No Model Compatibility List $0.47 / Each

2
RESISTANCE MOTOR 100647 193223 54 RESISTANCE MOTOR Yes Model Compatibility List $106.74 / Each

28
M6 ACORN NUT 105130 194653 127 M6 ACORN NUT Yes Model Compatibility List $1.20 / Each

2
M4 X 16MM SCREW 100586 195562 61A M4 X 16MM SCREW Yes Model Compatibility List $1.49 / Each

2
M6 X 12MM SCREW 101027 197037 75A M6 X 12MM SCREW Yes Model Compatibility List $0.69 / Each

2,1,50
12 113327 198072 TS5 12" BLUE WIRE F/F Yes Model Compatibility List $3.88 / Each

4,5,6
101213 198086 TS4 6" WHITE WIRE, M/F No Model Compatibility List $3.01 / Each

4,5,6
PIVOT SCREW 101001 208163 97 PIVOT SCREW Yes Model Compatibility List $1.20 / Each

2,8
M10 X 60MM BUTTON SCREW 100779 208938 77 M10 X 60MM BUTTON SCREW Yes Model Compatibility List $4.51 / Each

2
100793 213457 61D M4 X 12MM SCREW No Model Compatibility List $1.20 / Each

2,50
AUDIO WIRE,18 100197 215823 # AUDIO WIRE,18 Yes Model Compatibility List $8.87 / Each

4,5,6
M10 X 140MM BOLT 100590 223084 116 M10 X 140MM BOLT Yes Model Compatibility List $10.87 / Each

2
M4 X 25MM SCREW 100788 224606 61B M4 X 25MM SCREW Yes Model Compatibility List $0.52 / Each

2
121235 238124 98B M6 X 15MM WASHER No Model Compatibility List $0.77 / Each

2
LEVELING FOOT 105057 246285 47 LEVELING FOOT Yes Model Compatibility List $7.85 / Each

9,46
109895 247255 23 SMALL BUSHING No Model Compatibility List $27.91 / Each

1
100789 250181 68 M4 X 16MM RND HEAD SCRW No Model Compatibility List $0.46 / Each

1,2
M4 X 19MM SELF-TAP SCREW 100881 250961 65 M4 X 19MM SELF-TAP SCREW No Model Compatibility List $0.69 / Each

2
PEDAL PLATE SCREW 101049 256377 84 PEDAL PLATE SCREW Yes Model Compatibility List $9.83 / Each

2,8,9
M8 NUT 100030 256446 99 M8 NUT No Model Compatibility List $0.69 / Each

2
POWER SWITCH 109126 264511 91 POWER SWITCH Yes Model Compatibility List $35.01 / Each

24
M4 X 30MM SCREW 120478 265270 62 M4 X 30MM SCREW No Model Compatibility List $2.66 / Each

1
109176 266083 # DECAL, GENERAL WARNING No Model Compatibility List $4.80 / Each

7,3,1
M10 X 50MM SCREW 104573 268401 95 M10 X 50MM SCREW No Model Compatibility List $6.23 / Each

2
109908 273353 64 M4 X 38MM SCREW No Model Compatibility List $0.69 / Each

2
M10 LOCKNUT 101008 275907 117 M10 LOCKNUT Yes Model Compatibility List $3.36 / Each

2
120481 276108 71 M4 X 12MM SCREW No Model Compatibility List $9.62 / Each

2
PULLEY 101387 277369 66 PULLEY Yes Model Compatibility List $178.75 / Each

37
CRANK ARM BOLT 130633 277730 79 CRANK ARM BOLT No Model Compatibility List $6.91 / Each

2,8,3
BELT ADJUSTMENT SCREW 101436 281149 72 BELT ADJUSTMENT SCREW Yes Model Compatibility List $4.87 / Each

2,15
IDLER SCREW 101010 281150 96 IDLER SCREW Yes Model Compatibility List $3.36 / Each

2,8
CLAMP 100954 282277 57 CLAMP Yes Model Compatibility List $2.32 / Each

4,5,6,2,47
120511 283894 78 M10 X 45MM SCREW No Model Compatibility List $6.95 / Each

2
115839 284975 80 LATCH SCREW No Model Compatibility List $3.90 / Each

2
MOUNT 101022 286527 113A MOUNT Yes Model Compatibility List $1.91 / Each

2,1
ROLLER ARM BEARING - BUSHING 101443 290729 29 ROLLER ARM BEARING - BUSHING Yes Model Compatibility List $31.01 / Each

3,8,45
UPRIGHT BUSHING 108691 293159 17 UPRIGHT BUSHING No Model Compatibility List $6.95 / Each

1
FRAME BEARING 100955 295804 38 FRAME BEARING Yes Model Compatibility List $40.21 / Each

1
101868 297256 # 6MM ALLEN WRENCH No Model Compatibility List $9.37 / Each

2,1
MOTOR POWER WIRE 109112 300907 TS8 MOTOR POWER WIRE Yes Model Compatibility List $70.20 / Each

4,5,6
120441 306275 7C M5 X 18MM EDDY MECH SCRW No Model Compatibility List $0.47 / Each

8
SMALL PULLEY SPACER 101091 306635 53 SMALL PULLEY SPACER No Model Compatibility List $4.75 / Each

2,3,4,5,6,8
M4 X 19MM SELF-TAP SCREW 109620 313568 61C M4 X 19MM SELF-TAP SCREW Yes Model Compatibility List $0.46 / Each

2
SQUARE GROMMET 100934 313668 115 SQUARE GROMMET Yes Model Compatibility List $7.19 / Each

6
PEDAL SPRING 105128 321268 126 PEDAL SPRING Yes Model Compatibility List $2.40 / Each

2,8,9,45,1
RESISTANCE CABLE 101064 321353 7B RESISTANCE CABLE Yes Model Compatibility List $18.06 / Each

4,5,6,10,49
SENSOR ASSEMBLY 105080 324444 63 SENSOR ASSEMBLY Yes Model Compatibility List $50.70 / Each

1,47
PEDAL PIN 105127 325993 128 PEDAL PIN Yes Model Compatibility List $14.75 / Each

8,9,12,13,14,2
10 101060 326276 TS7 10 No Model Compatibility List $25.50 / Each

4,5,6
M8 X 23MM WASHER 101007 331026 33 M8 X 23MM WASHER No Model Compatibility List $0.94 / Each

2,1
CONTROL BOARD BRACKET 109472 334515 107 CONTROL BOARD BRACKET Yes Model Compatibility List $16.65 / Each

2,3,4,5,6,7
110447 342081 98C M6 WASHER No Model Compatibility List $1.39 / Each

2
POWER CORD 101017 342275 42 POWER CORD Yes Model Compatibility List $74.11 / Each

1,4,5,6
PEDAL ARM AXLE 120461 345936 31 PEDAL ARM AXLE No Model Compatibility List $19.83 / Each

8,9,3
M8 FLAT WASHER 109397 346533 43 M8 FLAT WASHER Yes Model Compatibility List $3.11 / Each

2,1
130641 347488 108 LIFT FRAME AXLE No Model Compatibility List $71.20 / Each

8,3,10
M8 X 14MM SHOULDER SCREW 105123 347975 81 M8 X 14MM SHOULDER SCREW Yes Model Compatibility List $4.31 / Each

2
PEDAL ARM CAP 120460 348389 30 PEDAL ARM CAP Yes Model Compatibility List $4.31 / Each

8,9,3,45
120495 348647 102 UPRIGHT AXLE No Model Compatibility List $20.68 / Each

8,3
RIGHT PEDAL PAD 130648 349538 119 RIGHT PEDAL PAD Yes Model Compatibility List $69.06 / Each

8,9
LARGE WHEEL 130642 349847 109 LARGE WHEEL Yes Model Compatibility List $18.09 / Each

8
WHEEL 120474 349848 50 WHEEL Yes Model Compatibility List $21.54 / Each

8
PEDAL DISC 130625 349849 36 PEDAL DISC Yes Model Compatibility List $135.77 / Each

8,9
130645 349851 112 INCLINE FRAME CAP No Model Compatibility List $5.07 / Each

9,3,10
LEFT LEG INNER COVER 120467 349852 39 LEFT LEG INNER COVER Yes Model Compatibility List $21.03 / Each

9
LEFT LEG OUTER COVER 120491 349853 92 LEFT LEG OUTER COVER Yes Model Compatibility List $19.54 / Each

9
RIGHT LEG INNER COVER 120462 349854 32 RIGHT LEG INNER COVER Yes Model Compatibility List $20.79 / Each

9
RIGHT LEG OUTER COVER 120454 349855 22 RIGHT LEG OUTER COVER Yes Model Compatibility List $19.39 / Each

9
ACCESSORY TRAY 120438 349856 5 ACCESSORY TRAY Yes Model Compatibility List $22.69 / Each

4,5,6
TRAY HOUSING 120453 349857 21 TRAY HOUSING Yes Model Compatibility List $25.37 / Each

1
LIFT FRAME COVER 130646 349860 114 LIFT FRAME COVER Yes Model Compatibility List $31.70 / Each

9,3,10
UPPER BODY ARM COVER 120452 349861 20 UPPER BODY ARM COVER Yes Model Compatibility List $25.46 / Each

9,3
LEFT LEG FRONT COVER 120450 349862 18 LEFT LEG FRONT COVER Yes Model Compatibility List $20.27 / Each

9
120451 349863 19 LEFT LEG REAR COVER No Model Compatibility List $16.70 / Each

9
RIGHT LEG FRONT COVER 120444 349864 11 RIGHT LEG FRONT COVER Yes Model Compatibility List $19.91 / Each

9
RIGHT LEG REAR COVER 120448 349865 15 RIGHT LEG REAR COVER Yes Model Compatibility List $16.72 / Each

9
130630 349866 55 AXLE COVER No Model Compatibility List $24.77 / Each

8,9
130793 349868 134 RIGHT LIFT MOTOR COVER No Model Compatibility List $44.79 / Each

9,10
FRONT UPRIGHT COVER 120449 349871 16 FRONT UPRIGHT COVER Yes Model Compatibility List $24.36 / Each

9,3
REAR UPRIGHT COVER 120435 349872 3 REAR UPRIGHT COVER Yes Model Compatibility List $24.05 / Each

9,3
SMALL STORAGE FOOT 120475 349873 51 SMALL STORAGE FOOT Yes Model Compatibility List $9.12 / Each

9
STABILIZER CAP 120472 349876 48 STABILIZER CAP Yes Model Compatibility List $15.71 / Each

9
LARGE STORAGE FOOT 130622 349919 27 LARGE STORAGE FOOT Yes Model Compatibility List $41.76 / Each

9
LEFT SHIELD 130627 349920 44 LEFT SHIELD Yes Model Compatibility List $128.58 / Each

3
RIGHT SHIELD 130628 349921 45 RIGHT SHIELD Yes Model Compatibility List $128.58 / Each

3
LATCH RELEASE 120488 350296 89 LATCH RELEASE Yes Model Compatibility List $6.23 / Each
Out Of Stock 		1
UPRIGHT KNOB 120484 350300 85A UPRIGHT KNOB Yes Model Compatibility List $83.92 / Each

3
LATCH 120489 350307 90 LATCH Yes Model Compatibility List $36.24 / Each

1
CRANK ARM 120456 350309 25 CRANK ARM Yes Model Compatibility List $185.81 / Each

8,3
110429 350331 67 M4 X 15MM SCREW No Model Compatibility List $0.36 / Each

2
MAIN WIRE HARNESS 130766 350377 28 MAIN WIRE HARNESS Yes Model Compatibility List $106.59 / Each

4,5,6
RIGHT UPRIGHT COVER 130634 350437 86 RIGHT UPRIGHT COVER Yes Model Compatibility List $51.26 / Each

9,3

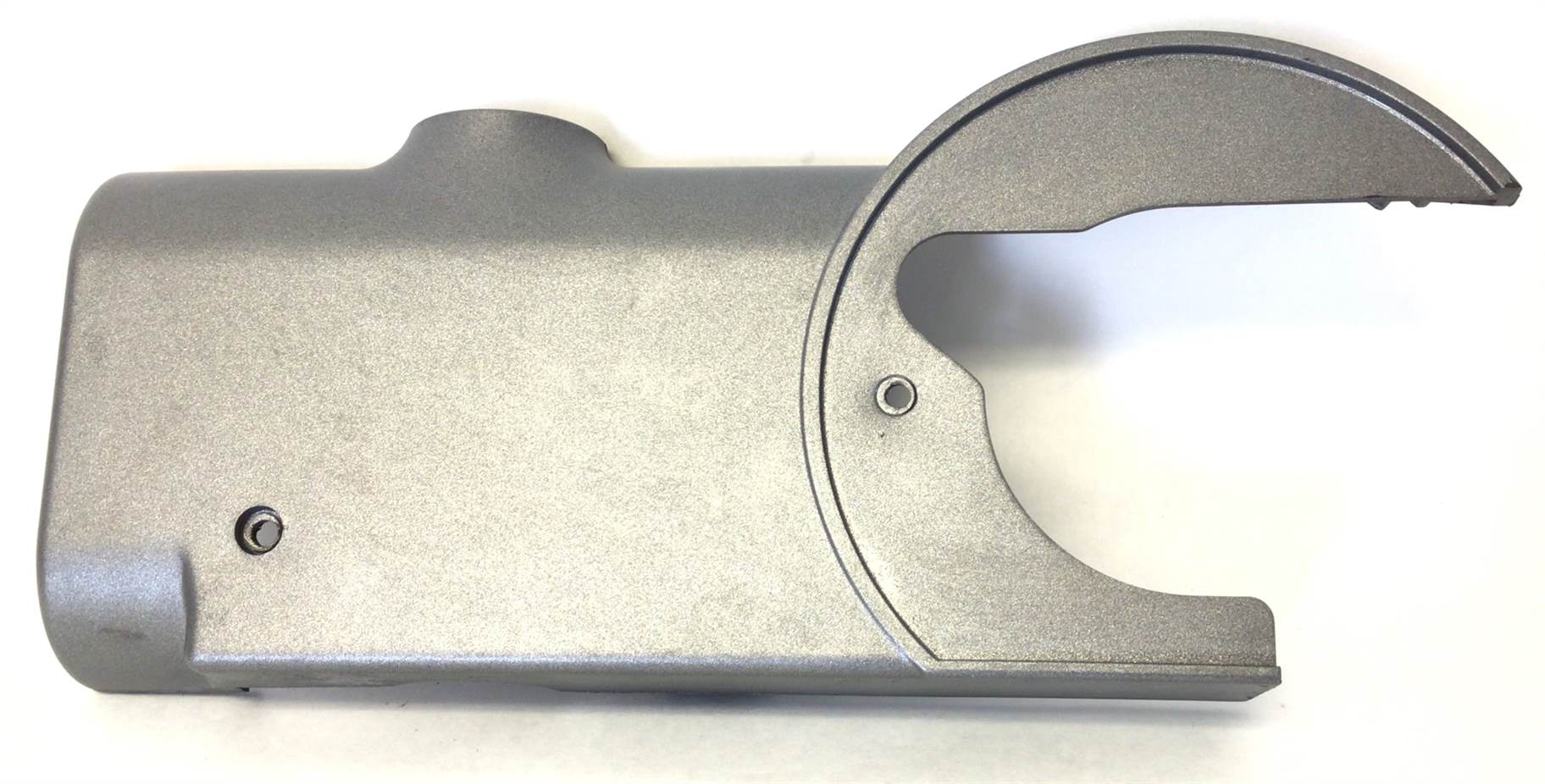

LEFT UPRIGHT COVER 130635 350438 87 LEFT UPRIGHT COVER No Model Compatibility List $51.26 / Each

9,3
FRONT STABILIZER 130632 350448 73 FRONT STABILIZER Yes Model Compatibility List $165.70 / Each

1
LIFT MOTOR 130639 350823 105 LIFT MOTOR Yes Model Compatibility List $173.72 / Each

10
130657 350868 # DECAL, WARNING HEAVY LIFT No Model Compatibility List $1.44 / Each

7,3,4,5,6,10
KEY 120477 352003 60 KEY Yes Model Compatibility List $3.83 / Each

9
LARGE SPACER 120468 352035 40 LARGE SPACER No Model Compatibility List $10.39 / Each

2,3

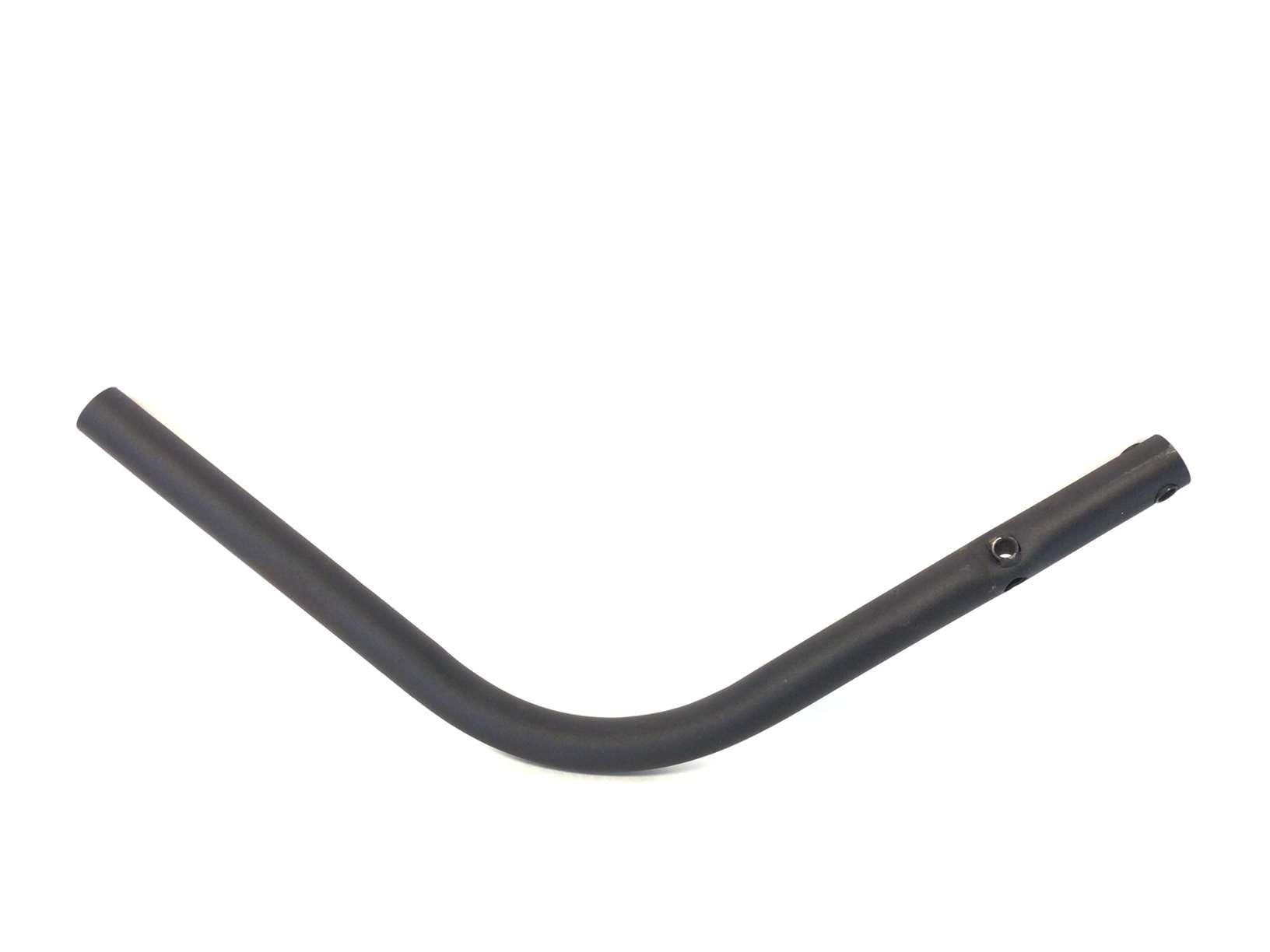

LEFT UPPER BODY ARM 130614 353121 8 LEFT UPPER BODY ARM Yes Model Compatibility List $103.95 / Each

3
RIGHT UPPER BODY ARM 130615 353124 9 RIGHT UPPER BODY ARM No Model Compatibility List $103.95 / Each

3
RIGHT FRONT SHIELD 130624 353134 35 RIGHT FRONT SHIELD Yes Model Compatibility List $127.82 / Each

3
LEFT FRONT SHIELD 130623 353143 34 LEFT FRONT SHIELD Yes Model Compatibility List $128.53 / Each

3
120487 354708 88 M5 X 5MM SCREW No Model Compatibility List $0.24 / Each

2
120483 354709 74 M6 X 12MM FLAT HEAD SCRW No Model Compatibility List $0.47 / Each

1
113014 354710 56 M4 X 12MM SCREW No Model Compatibility List $0.29 / Each

2
CRANK 120455 355179 24 CRANK Yes Model Compatibility List $56.48 / Each

1
M12 WASHER 120496 356178 85B M12 WASHER No Model Compatibility List $1.88 / Each

2
M12 SPLIT WASHER 120497 356179 85C M12 SPLIT WASHER No Model Compatibility List $2.17 / Each

2
LIFT FRAME BUSHING 130654 356195 131 LIFT FRAME BUSHING No Model Compatibility List $18.25 / Each

3,8
LEFT CRANK SPACER 120498 358702 132 LEFT CRANK SPACER Yes Model Compatibility List $5.75 / Each

2,8,3,4,5,6
130653 359361 125 LIFT MOTOR BOLT, NOTE No Model Compatibility List $11.90 / Each

2,10
IDLER 100939 363093 52 IDLER Yes Model Compatibility List $58.30 / Each

8
EDDY MECHANISM 130613 364100 7A EDDY MECHANISM Yes Model Compatibility List $411.04 / Each

36
CHEST HEART RATE MONITOR 103644 364361 130 CHEST HEART RATE MONITOR Yes Model Compatibility List $121.32 / Each

12,13,14,47,1
CONTROLLER 130481 416695 106 CONTROLLER No Model Compatibility List $144.18 / Each

7,1
REED SWITCH/WIRE 105060 372087 58 REED SWITCH/WIRE Yes Model Compatibility List $17.23 / Each

4,5,6,47
TABLET HOLDER 115894 372664 133 TABLET HOLDER Yes Model Compatibility List $87.44 / Each

1
104528 373258 59 M10 X 20MM BOLT No Model Compatibility List $3.91 / Each

2
120512 373259 103 M8 X 20MM BOLT No Model Compatibility List $2.75 / Each

2
130647 373266 118 M6 X 16MM SCREW No Model Compatibility List $1.30 / Each

2
M6 X 12MM SCREW 109761 373267 75B M6 X 12MM SCREW Yes Model Compatibility List $0.86 / Each

2
130778 382664 124 LEFT PEDAL PLATE No Model Compatibility List $62.24 / Each

8,9
130777 382666 123 RIGHT PEDAL PLATE No Model Compatibility List $62.24 / Each

8,9
RIGHT PEDAL ARM 130768 385425 49 RIGHT PEDAL ARM No Model Compatibility List $108.91 / Each

3,8,9
130764 385426 14 LEFT PEDAL ARM No Model Compatibility List $108.91 / Each

8,9,3
130765 385429 26 PEDAL DISC INSERT No Model Compatibility List $22.14 / Each

8,9
REAR CONSOLE COVER 130771 385447 94 REAR CONSOLE COVER Yes Model Compatibility List $18.45 / Each

7,9
FRONT CONSOLE COVER 130770 385448 93 FRONT CONSOLE COVER Yes Model Compatibility List $116.70 / Each

7,9
130782 385465 TS9 75"WIRE HRNS, LIFT MTR No Model Compatibility List $20.83 / Each

4,5,6,10,12,13,14
130760 385485 10A LT INCLINE CONTROL,W/GRIP Yes Model Compatibility List $106.97 / Each

7,10,11
130761 385487 10B RT RESIST CONTROL, W/GRIP No Model Compatibility List $106.97 / Each

7,11
TOP SHIELD 130767 385559 37 TOP SHIELD Yes Model Compatibility List $110.86 / Each

3
LIFT FRAME 130773 385560 104 LIFT FRAME No Model Compatibility List $130.53 / Each

3,10
LEFT LIFT MOTOR COVER 130774 385561 111 LEFT LIFT MOTOR COVER Yes Model Compatibility List $12.25 / Each

9,10
LEFT PEDAL 130762 385563 12 LEFT PEDAL Yes Model Compatibility List $97.25 / Each

8,9
RIGHT PEDAL 130763 385564 13 RIGHT PEDAL Yes Model Compatibility List $97.25 / Each

8,9
130769 385565 70 REAR STABILIZER No Model Compatibility List $95.61 / Each

1
130772 385566 101 LEFT UPPER BODY LEG No Model Compatibility List $73.91 / Each

1
130759 385567 6 RIGHT UPPER BODY LEG No Model Compatibility List $73.91 / Each

1
RIGHT PEDAL HANDLE 130775 385568 121 RIGHT PEDAL HANDLE Yes Model Compatibility List $14.71 / Each

8,9,11
LEFT PEDAL HANDLE 130776 385569 122 LEFT PEDAL HANDLE Yes Model Compatibility List $14.71 / Each

8,9,11
130792 386639 76 M8 X 16MM HEX SCREW No Model Compatibility List $22.14 / Each

2
130780 387487 19B LEFT GRIP CONTROL WIRE Yes Model Compatibility List $19.61 / Each

7,4,5,6,11
130779 387488 129A RIGHT GRIP CONTROL WIRE Yes Model Compatibility List $19.61 / Each

7,4,5,6,11
130787 397815 4B CONSOLE REPROG THUMBDRIVE No Model Compatibility List $0.00 / Each
Out Of Stock 		7,10
130785 397907 2 UPRIGHT No Model Compatibility List $199.12 / Each

3
130788 399158 69 PULSE WIRE No Model Compatibility List $42.79 / Each

4,5,6,12,13,14
130791 401547 4A CONSOLE (RESET CNSL) No Model Compatibility List $0.00 / Each
Out Of Stock 		7,4,5,6
130794 401548 # USER-S MANUAL No Model Compatibility List $0.00 / Each
Out Of Stock 		1
M6 Flat Washer (Used) 1020703 014033 36 1 M6 Flat Washer (Used) Yes Model Compatibility List $2.02 / Each

Front Upright Cover (Used) 1022328 084788 16 1 Front Upright Cover (Used) No Model Compatibility List $21.49 / Each

9,18
Screw M4 X 30MM 013287 265270 0 1 Screw M4 X 30MM No Model Compatibility List $12.99 / Each

1
Left Hand Control Incline Button Grip (Used) 1026216 SE9i-LHCIBG 0 1 Left Hand Control Incline Button Grip (Used) No Model Compatibility List $29.99 / Each

1
Right Hand Control (Used) 1026268 SE9i-RHC 0 1 Right Hand Control (Used) No Model Compatibility List $29.99 / Each
Out Of Stock 		1
Console Mounted Black Tablet Phone Book Holder 1000575 372664 0 1 Console Mounted Black Tablet Phone Book Holder Yes Model Compatibility List $77.99 / Each

1
Belt Drive 1002855 119199 0 1 Belt Drive Yes Model Compatibility List $76.99 / Each

23
Magnetic Resistance Eddy Brake Flywheel Mechanism 1003067 364100 0 1 Magnetic Resistance Eddy Brake Flywheel Mechanism Yes Model Compatibility List $349.00 / Each

36
Pulley Assembly 1003102 277369 19 1 Pulley Assembly Yes Model Compatibility List $178.75 / Each

37
Crank 1003108 355179 0 1 Crank Yes Model Compatibility List $74.99 / Each

1
Bearing Sealed 1003109 295804 40 1 Bearing Sealed Yes Model Compatibility List $40.21 / Each

1
On Off Power Switch 1003819 264511 118 1 On Off Power Switch Yes Model Compatibility List $35.01 / Each

24
Plate Power Cord 1003820 313668 119 1 Plate Power Cord Yes Model Compatibility List $7.19 / Each

6
Main Wire Harness 1003993 350377 0 1 Main Wire Harness Yes Model Compatibility List $106.09 / Each

4,5,6
Washer M8 X 23MM 1003997 331026 103 1 Washer M8 X 23MM No Model Compatibility List $0.94 / Each

2,1
M10 Locking Nut 1004782 275907 26B 1 M10 Locking Nut Yes Model Compatibility List $3.36 / Each

2
M8 Locking Nut 1004787 256446 108 1 M8 Locking Nut No Model Compatibility List $0.69 / Each

2
Small Pulley Spacer 1005193 306635 0 1 Small Pulley Spacer No Model Compatibility List $12.99 / Each

2,3,4,5,6,8
Idler Bracket Assembly 1006636 363093 0 1 Idler Bracket Assembly Yes Model Compatibility List $67.99 / Each

8
Screw 1007995 184369 124 1 Screw No Model Compatibility List $0.47 / Each

2
Resistance Gear Motor Brake Tensioner 1008084 193223 25 1 Resistance Gear Motor Brake Tensioner Yes Model Compatibility List $106.74 / Each

28
Snap Fastener 1008634 286527 156A 1 Snap Fastener Yes Model Compatibility List $1.91 / Each

2,1
Plastic Standoff Fastener 1008813 125819 19 1 Plastic Standoff Fastener Yes Model Compatibility List $2.35 / Each

2,1
Magnet 1009452 113842 137 1 Magnet Yes Model Compatibility List $1.10 / Each

8,1
RPM Speed Sensor Reed Switch 1009545 372087 0 1 RPM Speed Sensor Reed Switch Yes Model Compatibility List $29.99 / Each

4,5,6,47
Sealed Bearing 100955 295804 38 1 Sealed Bearing Yes Model Compatibility List $40.21 / Each

1
Adjuster Resistor Cable 1009747 321353 0 1 Adjuster Resistor Cable Yes Model Compatibility List $29.99 / Each

4,5,6,10,49
Right Pedal Arm 1009907 385425 0 1 Right Pedal Arm No Model Compatibility List $114.99 / Each

3,8,9
Locking Nut 101008 275907 117 1 Locking Nut Yes Model Compatibility List $3.36 / Each

2
Idler Bolt 101010 281150 96 1 Idler Bolt Yes Model Compatibility List $3.36 / Each

2,8
Power Switch On Off 1010418 264511 118 1 Power Switch On Off Yes Model Compatibility List $35.01 / Each

24
Resistance Motor 1010426 193223 25 1 Resistance Motor Yes Model Compatibility List $106.74 / Each

28
Speed Sensor Clamp 1010437 282277 116 1 Speed Sensor Clamp Yes Model Compatibility List $2.32 / Each

4,5,6,2,47
Acorn Nut M6 / 1.0 1010481 194653 140 1 Acorn Nut M6 / 1.0 Yes Model Compatibility List $1.20 / Each

2
Leveling Foot Leveler 1010488 246285 78 1 Leveling Foot Leveler Yes Model Compatibility List $7.85 / Each

9,46
Pedal Spring 1010489 321268 139 1 Pedal Spring Yes Model Compatibility List $2.40 / Each

2,8,9,45,1
Pedal Plate Screw 101049 256377 84 1 Pedal Plate Screw Yes Model Compatibility List $28.99 / Each

2,8,9
Locking Nut M10 1010497 275907 26B 1 Locking Nut M10 Yes Model Compatibility List $3.36 / Each

2
Resist Motor Wire Harness 101060 326276 TS7 1 Resist Motor Wire Harness No Model Compatibility List $30.99 / Each

4,5,6
HR Transmitter (Used) 1030551 364361 # 1 HR Transmitter (Used) Yes Model Compatibility List $121.32 / Each

12,13,14,47,1
Pedal Pin 1011044 325993 138 1 Pedal Pin Yes Model Compatibility List $14.75 / Each

8,9,12,13,14,2
Power Cord 110 Volt 1011500 342275 59 1 Power Cord 110 Volt Yes Model Compatibility List $74.11 / Each

1,4,5,6
Clamp 1011595 282277 116 1 Clamp Yes Model Compatibility List $2.32 / Each

4,5,6,2,47
Idler Washer M6 1011790 014033 0 1 Idler Washer M6 Yes Model Compatibility List $12.99 / Each

Lift Motor Top Screw M6 X 13MM 1011820 373267 138 1 Lift Motor Top Screw M6 X 13MM Yes Model Compatibility List $0.86 / Each

2
Idler Screw 1011833 208163 84 1 Idler Screw Yes Model Compatibility List $1.20 / Each

2,8
Bolt M10 X 60MM 1011837 208938 109 1 Bolt M10 X 60MM Yes Model Compatibility List $4.51 / Each

2
Idler Bracket Assembly 1011844 363093 0 1 Idler Bracket Assembly Yes Model Compatibility List $68.99 / Each

8
Shoulder Screw M8 X 14MM 1011850 347975 122 1 Shoulder Screw M8 X 14MM Yes Model Compatibility List $4.31 / Each

2
Bearing, Arm 1032040 274307 0 1 Bearing, Arm No Model Compatibility List $32.81 / Each

Magnetic Resistance Eddy Brake Flywheel 1002047 364100 Magnetic Resistance Eddy Brake Flywheel Yes Model Compatibility List $199.00 / Each
Out Of Stock 		36
Pulley Drive Belt 1003082 119199 Pulley Drive Belt Yes Model Compatibility List $29.99 / Each

23
Magnetic Brake Generator W/ Motor 1005834 193223 Magnetic Brake Generator W/ Motor Yes Model Compatibility List $149.00 / Each

28
Foot Pedal Pin (New) 1033858 325993 Foot Pedal Pin (New) Yes Model Compatibility List $31.99 / Each

8,9,12,13,14,2
Self-tap Screw M4 X 19mm (New) 1020015 250961 Self-tap Screw M4 X 19mm (New) No Model Compatibility List $11.99 / Each

2
Belt Adjustment Screw (New) 1011896 281149 Belt Adjustment Screw (New) Yes Model Compatibility List $15.99 / Each

2,15
Crank with Pulley 1037524 355179 or 255072 Crank with Pulley Yes Model Compatibility List $78.00 / Each

Optional Chest Pulse Heart Rate Sensor Strap (New) 999893 364361 Optional Chest Pulse Heart Rate Sensor Strap (New) Yes Model Compatibility List $197.00 / Each

12,13,14,47,1
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
