Octane Fitness - Q47 Base (2006) International (Discontinued) & Q47 E Console - English (Discontinued)

Repair Parts for Octane Fitness Q47 Base (2006) International (Discontinued) & Q47 E Console - English (Discontinued)

Brand: Octane Fitness

Category: Residential Ellipticals

Type: Elliptical

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

Model Name: Q47 Base (2006) International (Discontinued) & Q47 E Console - English (Discontinued)

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

103023-001 C_PAGE_1-10.pdf

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
600006	03351-001	NA	CROSS CIRCUIT GUIDE	No	Model Compatibility List	$16.80 / Each	7
600121	100787-001	#40-ASSY	SCREW, M5 X 0.8 X 18, PAN HEAD, TYPE 1 CROSS RECESSED, BZ	No	Model Compatibility List	$4.68 / Each	1
600134	100834-001	NA	TRANSMITTER, CHEST STRAP, POLAR	No	Model Compatibility List	$150.00 / Each	1
600150	100862-001	#4-Q37 CNSL-CE DEU DEU CAT-E ROHS	CONSOLE, BACK ARC	No	Model Compatibility List	$4.20 / Each	7,9
600151	100866-001	FIXED CALIPER	SCREW, M4.2 X 1.4 X 8 TYPE B, TYPE 1 CROSS RECESS PAN HEAD, ST, BZ	No	Model Compatibility List	$4.68 / Each	2
600171	100913-001	FAN	SCREW, M3.5 X 1.3 X 10 TYPE B, TYPE 1 CROSS RECESS PAN HEAD, ST, BZ	No	Model Compatibility List	$4.68 / Each	2
600277	106510-001		BOARD, CONTROLLER, Q45, RoHS	Yes	Model Compatibility List	$207.50 / Each	3,4,5,6,7,10
600287	101354-001	PRO310	SCREW, M5 X 0.8 X 12, PAN HEAD, TYPE 1 CROSS RECESSED, BZ, SPRING WSHR-FLAT WSHR	No	Model Compatibility List	$4.68 / Each	7,2,12,13,14
600369	101783-001	KEYPAD	LABEL, MODEL Q47E	No	Model Compatibility List	$5.78 / Each	7
600401	101883-001	KEYPAD	COVER, DUCT, FAN KEYPAD	No	Model Compatibility List	$4.73 / Each	7
600402	101884-001	KEYPAD	VENT, AIR DEFLECTOR	No	Model Compatibility List	$4.73 / Each	7
600433	102001-001	KEYPAD	FAN, 75MM X 30MM	Yes	Model Compatibility List	$50.40 / Each	7
600434	102002-001	SHROUD	WASHER, 4 X 15 X 1.2, STEEL, BZ	No	Model Compatibility List	$4.68 / Each	2
600471	102220-001	NA	POWER CORD, CAT-I, INLET-C14	No	Model Compatibility List	$31.50 / Each	4,5,6
600472	102221-001	NA	POWER CORD, CAT-G, INLET-C14	No	Model Compatibility List	$29.40 / Each	4,5,6

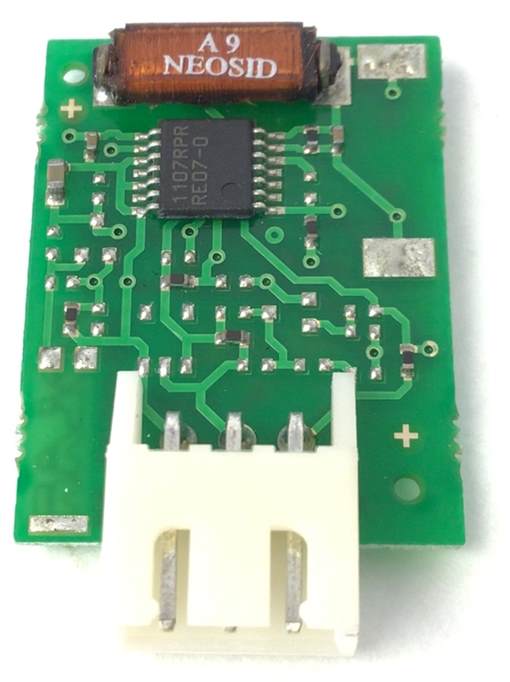

600572	102913-001	CONSOLE MAST	CABLE ASSEMBLY, HR-CONSOLE, POLAR	Yes	Model Compatibility List	$9.99 / Each	7,3,4,5,6,12,13,14
600582	102989-001	#3-ASSEMBLY	CIRCUIT BOARD ASSEMBLY, POLAR HR	No	Model Compatibility List	$48.30 / Each	7
600594	103023-001	NA	ASSEMBLY, KEYPAD, Q47E, 2008	No	Model Compatibility List	$159.60 / Each	7
600596	103024-001	KEYPAD	KEYPAD, DELUXE Q47, 2008	No	Model Compatibility List	$35.70 / Each	7
600599	103027-001	DELUXE CONSOLE	LENS, DELUXE CONSOLE Q47, 2008	No	Model Compatibility List	$54.60 / Each	7
600707	103551-001	NA	ASSEMBLY, DLX CONSOLE, Q47, RoHS, 2008	No	Model Compatibility List	$543.90 / Each	7
600798	104050-001	SWITCHING POWER SUPPLY	POWER CORD, CAT-B, INLET-C14	No	Model Compatibility List	$27.30 / Each	4,5,6
601095	106510-001		CIRCUIT BOARD ASSY, SMART DRIVE, RoHS	Yes	Model Compatibility List	$257.50 / Each	3,4,5,6,7,10
601660	109949-001	#1-ASSEMBLY	POWER SUPPLY, AC/DC, CE & GS, Pro 450	Yes	Model Compatibility List	$299.00 / Each	4,5,6
1000113	101333-001		Lower Motor Controller Board	Yes	Model Compatibility List	$129.00 / Each Out Of Stock
